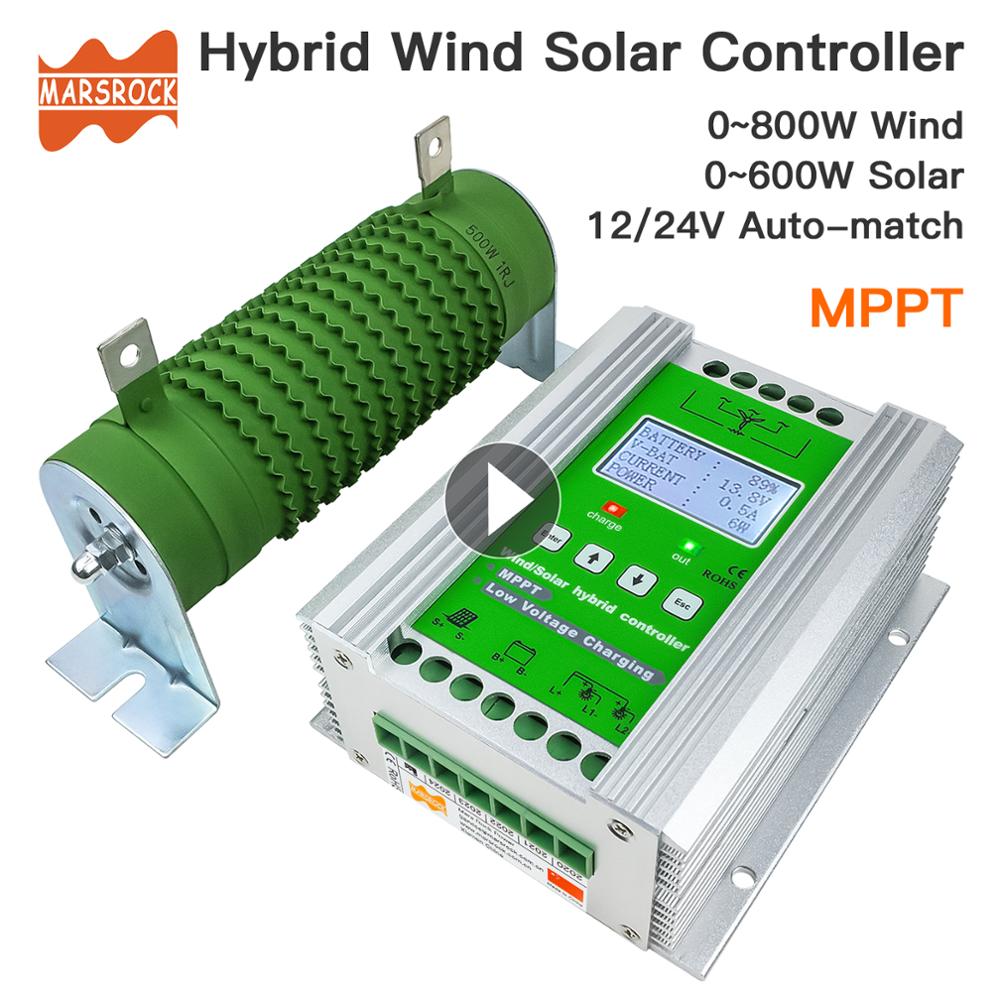

12V 24V 1400W Wind Solar Hybrid Controller 10A 20A 30A Solar Panel Wind Turbine MPPT Board Battery Charging Regulator

FAQ

1.Why choose MARS ROCK as a provider of products?

(1) Mars Rock is famous brand on the world market in new energy business. We have strong R&D technical teams and professional production lines;

(2) Mars Rock is a manufacturer specializing in the production of controller from China. It has a complete quality management system and cost control advantages;

(3) Mars Rock is a leader in cross-border e-commerce. After many years of operation, Mars Rock has completed the integration of the supply chain and established overseas warehouses in several countries, such as the United States, Canada, Mexico, Brazil, UK, Spain, and Russia, Poland. Local delivery can be done quickly;

(4) Mars Rock has established sales and after-sales teams in several countries, which can provide pre-sales guidance and after-sales service in a local language;

(5) Since becoming a golden member of AL ABABA in 2007, Mars Rock has won praises from more and more customers around the world for its professionalism, responsible attitude and high quality.

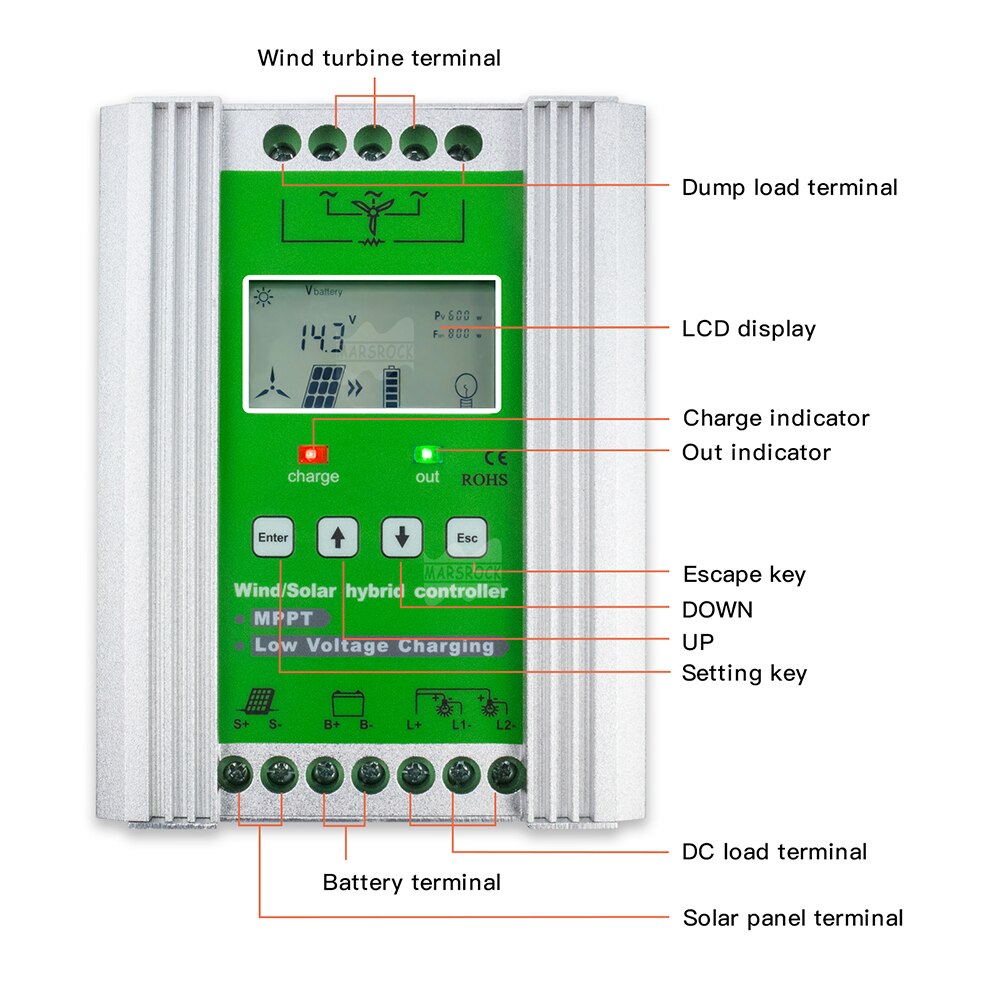

2.How to connect these 3 terminals of controller with my wind output wires?

(1) To AC wind turbine, any one of three wires from wind turbine can be connected with any terminal of wind on your controller. For they are non-electrode;

(2) To DC wind output is 2 wires(Positive Negative) , you can connect them with any wind terminals on your controller.

3.How many connecting ways user can choose when using this controller?

For the wind charging and Solar charging are independent, so user can choose any one of the following as the connection method :

(1) Only connect wind turbine generator to charge battery;

(2) Only connect solar to charge battery;

(3) Connect wind turbine and solar to build a hybrid wind solar power system to charge battery.

4.Can i only connect wind turbine as generator to charge battery when i get my controller?

Yes, you can to do so. But for the main purpose of such controller designs for low power consumption equipment charging, such as: street lights and monitoring etc. So establish hybrid wind solar system can get better charging guarantee. Because most of low-power wind turbine is installed in or close to the residential place, wind generation efficiency is not high due to the low wind speed and short working time.

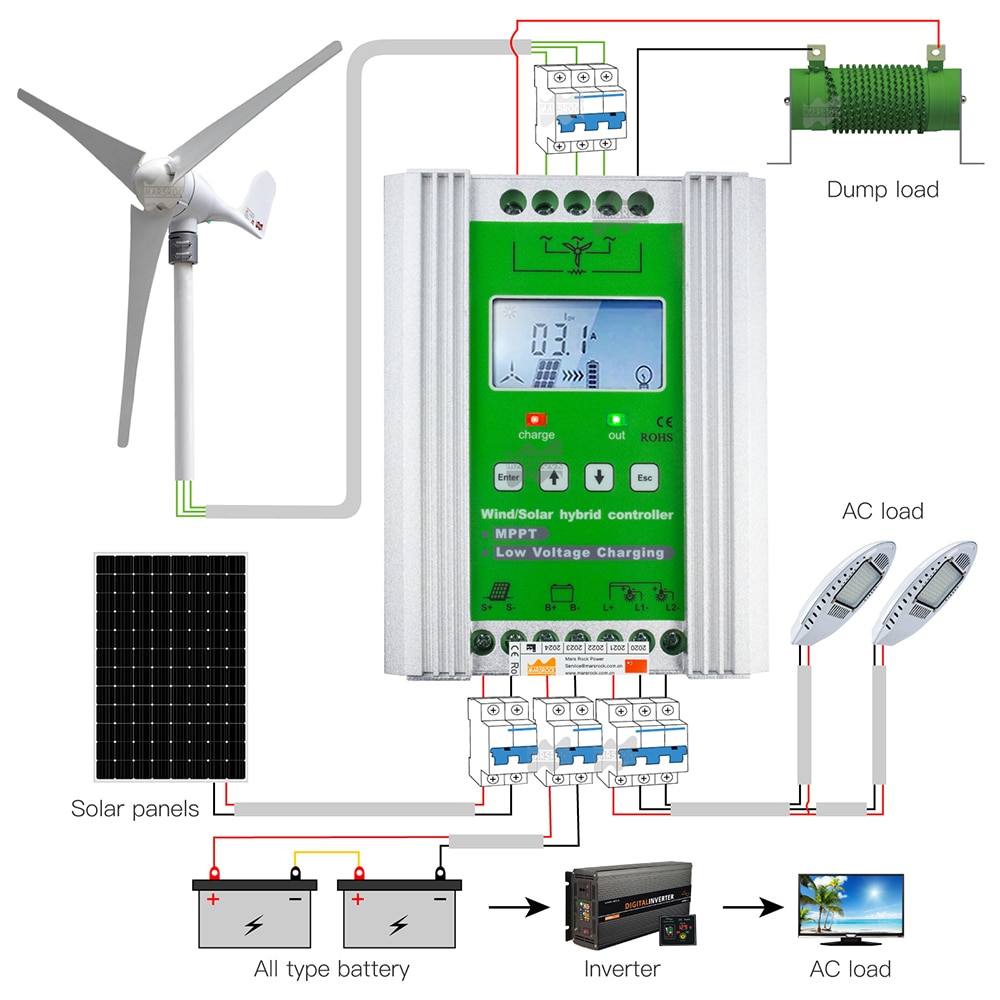

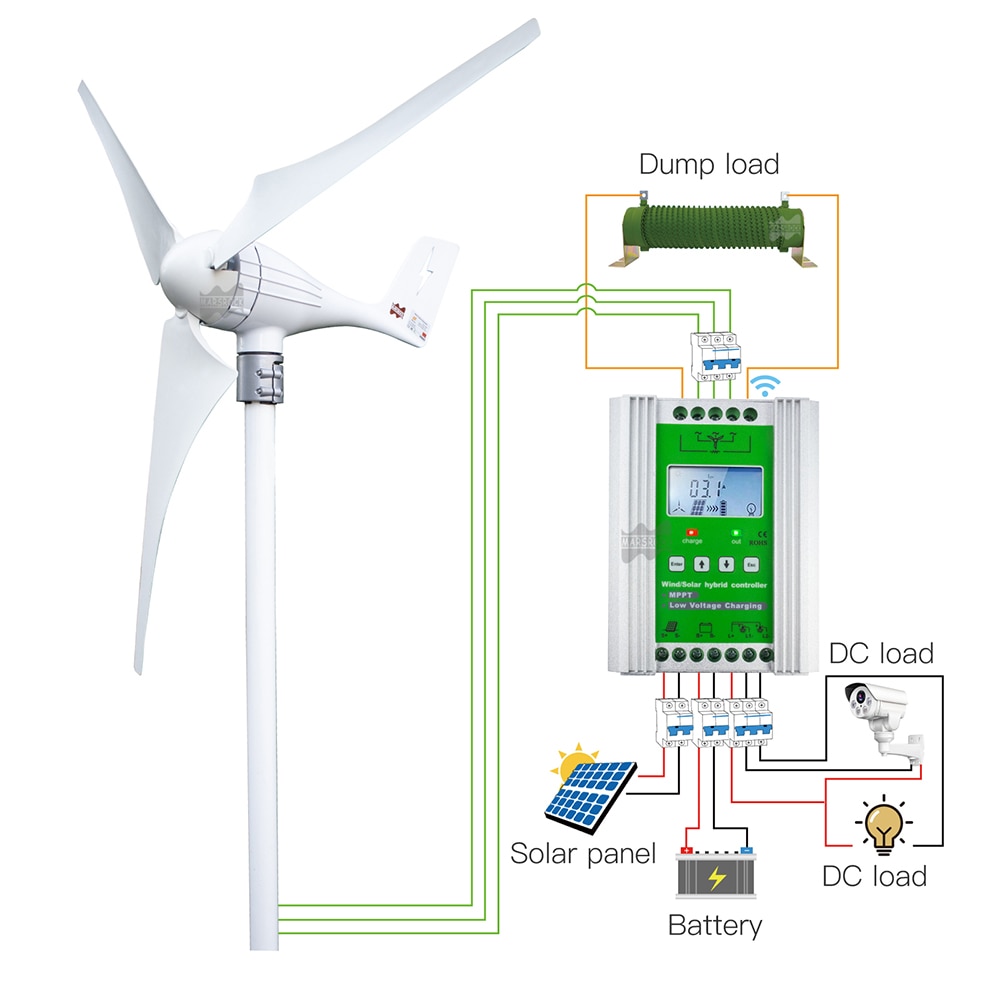

5.How to connect my system when I get this controller?

We strongly recommend user to install air switch between all DC and AC input or output. Then please turn on the breaker/ air switch in this order:

(1) First turn on the breaker between battery and controller;

(2) Second turn on the breaker between wind and controller;

(3) Third turn on the breaker between DC load and controller;

(4) Final turn on the breaker between Solar and controller.

Remark: If you want to shut down the system, please proceed in the reverse order as above.

6.Do i need to install additional light protecting for my power system?

Yes, it is best way to install additional light protecting.

7.How the controller to operate when the wind speed is too fast?

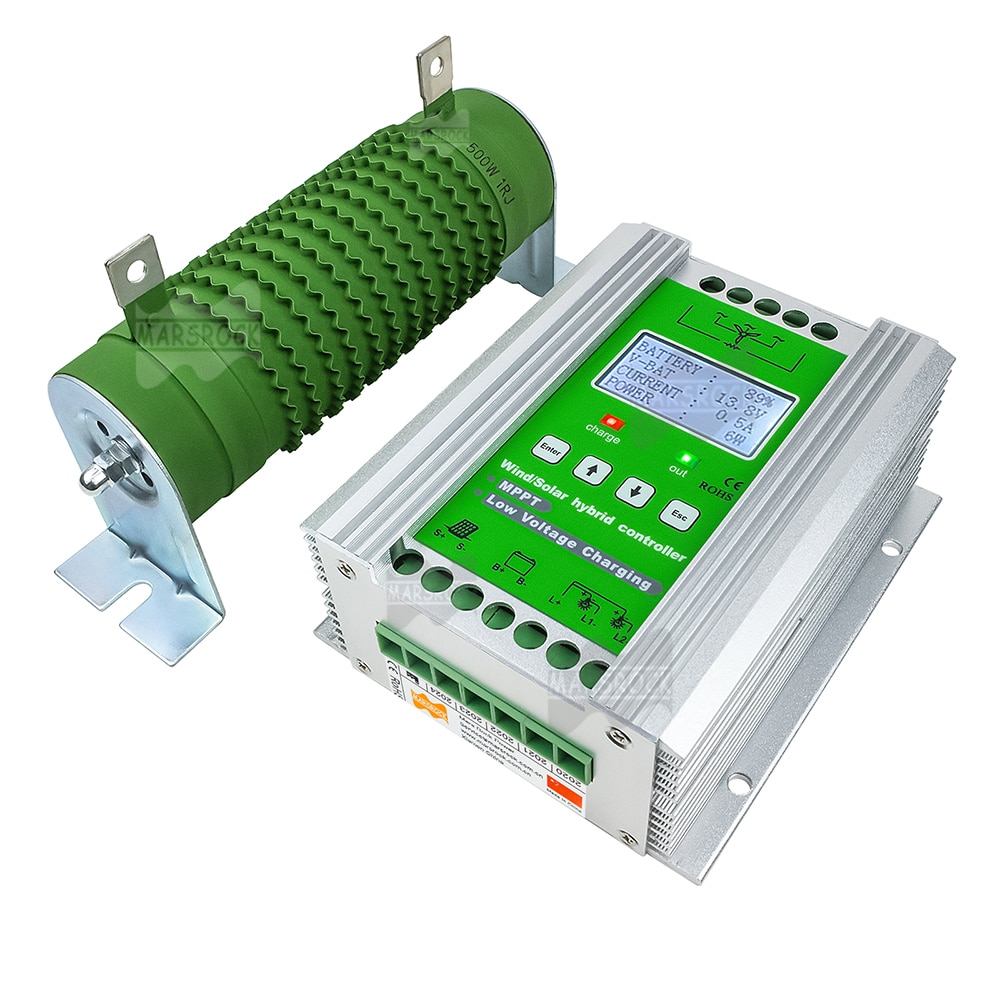

(1) For the output voltage or current from wind generator which beyond the safety range, the controller will automatically turn on the brake and gradually slow down. Meanwhile, the dump load will start to consume excess current immediately.

(2) But when encountering strong storm weather, such as hurricane, typhoon, it is strongly recommended to put down the wind turbine immediately.

8.How to design hybrid wind solar power system voltage, 12V, 24V, 48V, which one is best to me?

(1) The system voltage is equivalent to the voltage of the battery pack;

(2) Once the battery voltage designed, the input voltage from wind turbine generator and solar modules must be matched according to the specifications in the parameter table;

(3) Therefore, users cannot simply think that more lower voltage design, can get more bigger charging current but ignore that the excessive current has exceeded the working range of the controller or battery to damage the controller or battery.

9.Why wind part designed in MPPT, but solar part designed in PWM?

(1) Wind turbine charging adopted booster MPPT technology, which makes under low wind speed, the Wind turbine's electricity can still be used;

(2) In the high wind speed or the Wind turbine of power is beyond the scope of the battery and load absorption, the controller immediately launched the step-less unloading function,protection system of the equipment.

(3) Solar charging using in series MOS tube PWM technology, which makes the controller power consumption is small, the system more stable.

10.When the wind generator is connected to the controller, why its running speed becomes very slow immediately?

(1) The battery reaches the floating voltage;

(2) The rated output voltage of the wind generator is much higher than the battery, because the speed of the wind generator is proportional to the output voltage, and the voltage is dragged by the battery, so the speed will be very low;

(3) The dump load MOS was burnt out because of wrong operation.

11.Why wind generator dump load when the controller displays small current?

The controller protect the all system by detecting battery voltage, charging current and temperature and so on. When the battery reach floating charge voltage or high temperature, the wind generator will dump load, no matter how much charging current it is.

12.Why there showing no charging current on LCD screen but the wind is running or the solar is working?

Only when the input voltage of solar panels or wind generator higher than battery then it can charge.But the prerequisite is that the battery is properly connected and not fully charged.

13.Why the LCD does not light up?

For the power of controller comes from battery or solar when its working. So please check solar input or battery as follows:

(1) The battery didn't connect the controller well, please check the battery and controller connection;

(2) Battery is damaged, please check and replace the battery;

(3) In good sun day the solar input is workable or not.

14.What kinds of parameter of this controller is adjustable by user(Pilot version & Deluxe Version)?

(1) All data have been set for the best charging work before packing, so no need to make any settings for sealed battery. The default is sealed battery too;

(2) To lithium-ion batteries, user only need to select the corresponding battery type according to the manual operation guide, so there is no need to adjust the parameters;

(3) If the professional users need to make additional parameter adjustments for their own lithium battery characteristics, Pilot version and Deluxe Version are supported.

15.Through LCD display, what kind of data i can set(To Classic Version)?

(1) Float charging voltage.

(2) Wind turbine unloading voltage (dump load)

16.What kind of discharge part working mode can be set?

light control mode, time control function etc, The user can be set up according to the requirements on its own combination.

17.As user, how to choice one correct MPPT controller from these four versions controller?

(1) To Classic Version

●This version is the most cost-effective and classic controller with the largest sales amount in the longest selling time;

●Full protection function with LCD display easy to view data but not allowed to adjusted by user. So it suitable for most of ordinary users; .

●Only workable for sealed(Lead- -acid) and GEL battery.

(2)To Pilot version

● Inherit all the advantages of the Classic Version controller;

●It support lithium battery(ternary and iron phosphate) and user set own data.

(3) To Deluxe Version

●Inherit all the advantages of the Pilot Version controller;

●It support 48V system voltage;

●The maximum power available respectively is: Wind 1500W, Solar 1500W;

●Optional Wi-Fi function to inspect all data on mobile or PC through APP.

(4) To Black Whirlwind Version

●The core components adopts well-known brands such as Japan,

●Germany, and the United States, so the quality is the best and the performance is the most stable;

●There are 12V, 24V, 48 system voltage can be can be selected;

●The maximum power available respectively is: Wind 1500W, Solar 1 500W;

●Only workable for sealed(Lead- -acid) and GEL battery.
