HOMSECUR 4 Wire HD Indoor Monitor BA05H-B Auto Photo For HDK Video Doorphone Doorbell Intercom
288.90 228.00 $
SALE
ID: 98671
Quantity
9" Video Doorbell Intercom Wired Indoor Monitor Color Touch Screen 12 Ringtones Photo Recording Dual-way Audio with 32GB Memory
0.0 ( votes) | 1 orders
Price:
US $237.48
/ piece
Discount Price:
US $
201.86
/ piece
-15%
- Color
-
-
9" Wired Video Doorbell Indoor Monitor Screen
ONLY indoor monitor, without outdoor unit!
These indoor monitors only can work with such outdoor unit which is 5-wire or 4-wire connection type!This device is a 9 inch TFT LCD Color Indoor Unit Monitor for Video Door Phone Intercom System. Support SD card. Take picture and recording. With high resolution TFT-LCD screen, the screen color and brightness can be adjusted by yourself.
Use international 5-wire (or 4-wire) structure design, the max distance of audio & video transmission is about 100 meters.

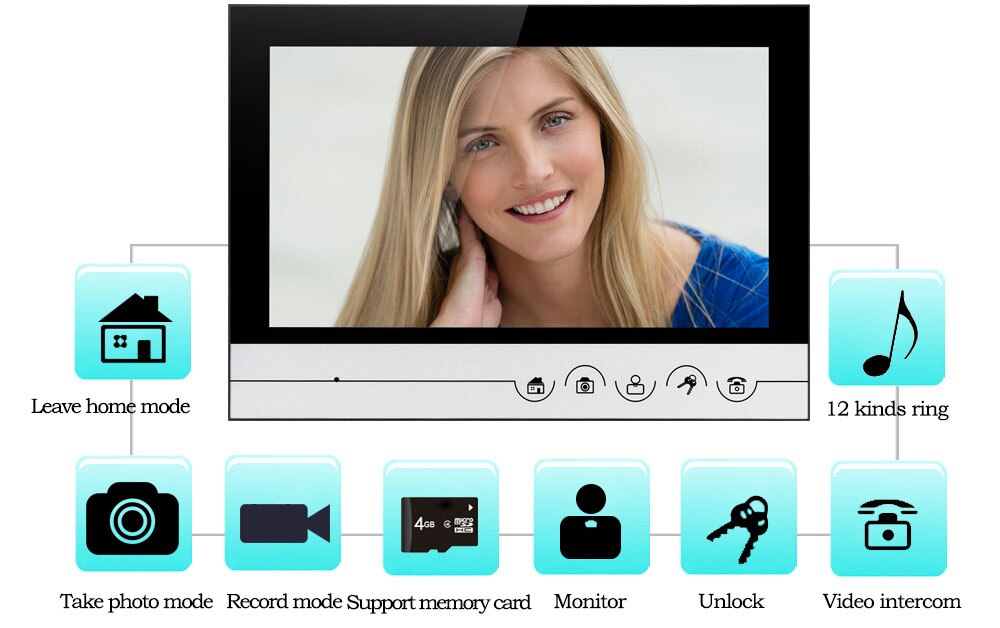

Support to monitor, intercom, audio & video, 12 chord ringtones, one key to unlock, take photo, take record, etc.
Product Features
1. Cabling standards.
Use international 5-wire (or 4-wire) structure design, these indoor monitors only can work with such outdoor unit which is 5-wire or 4-wire connection type.

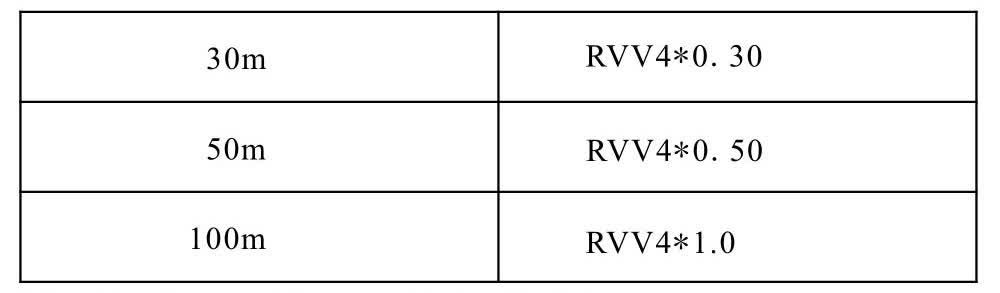

The max distance between indoor monitor and outdoor unit is about 100 meters. Different distance, use different diameter cable. Please check the following form to choose corresponding cable. (We will send a 5 meters cable to you for testing. When installing, if you need longer cable, you have to buy it in additional.)
2. Handsfree Dual-way Intercom and Indoor Monitoring.
When a visitor ring the bell, the monitor will be activated and show the image outside, then you can see and hear outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s. It supports monitoring feature, press the monitoring button, you can see and hear outside situation.

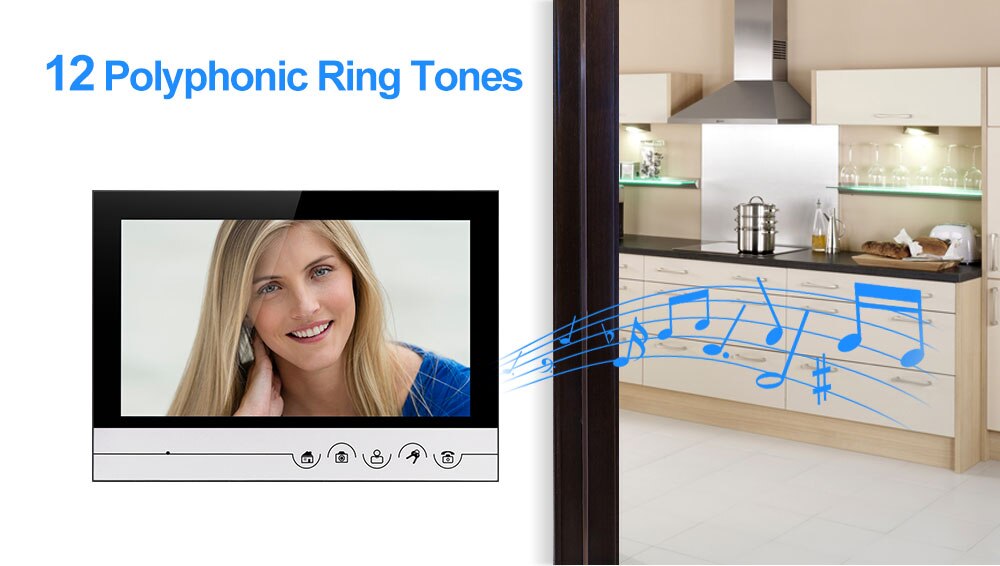

3. There are many different ringtones for you to choose, and the volume can be adjusted.
The 12 chord ringtones can be switched freely, elegantly and fair-sounding.
Both of the ringtones and volume can be adjustable, can meet the original needs of your time. There are three levels of volume to choose. Don't need to worry about can't hear voice or hear it too loud any more.

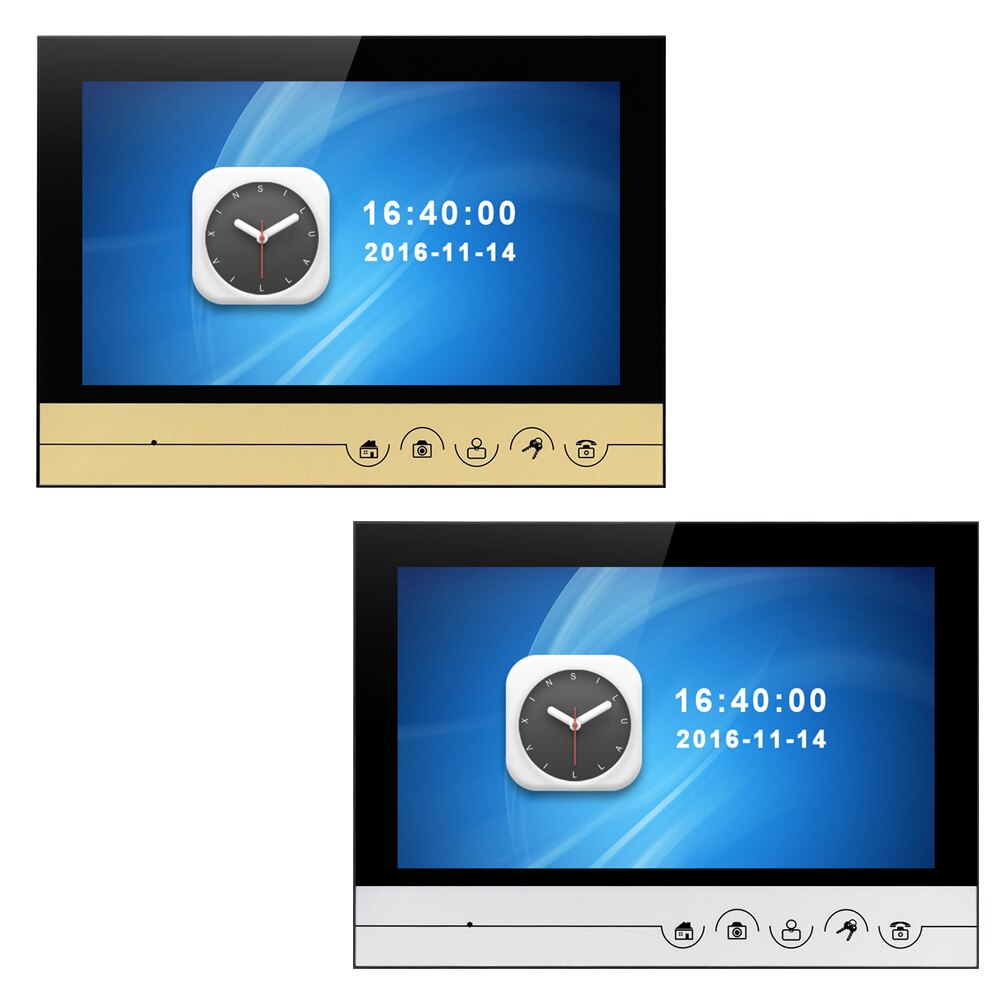

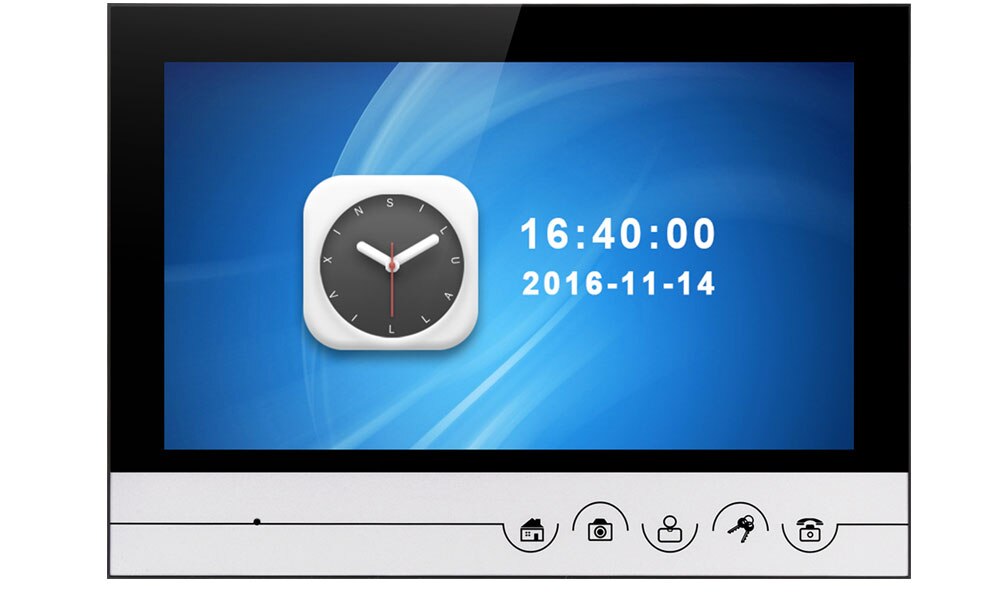

4. Clock & Date Mode.
With this function, you can use the indoor monitor as a clock hanging on the wall.

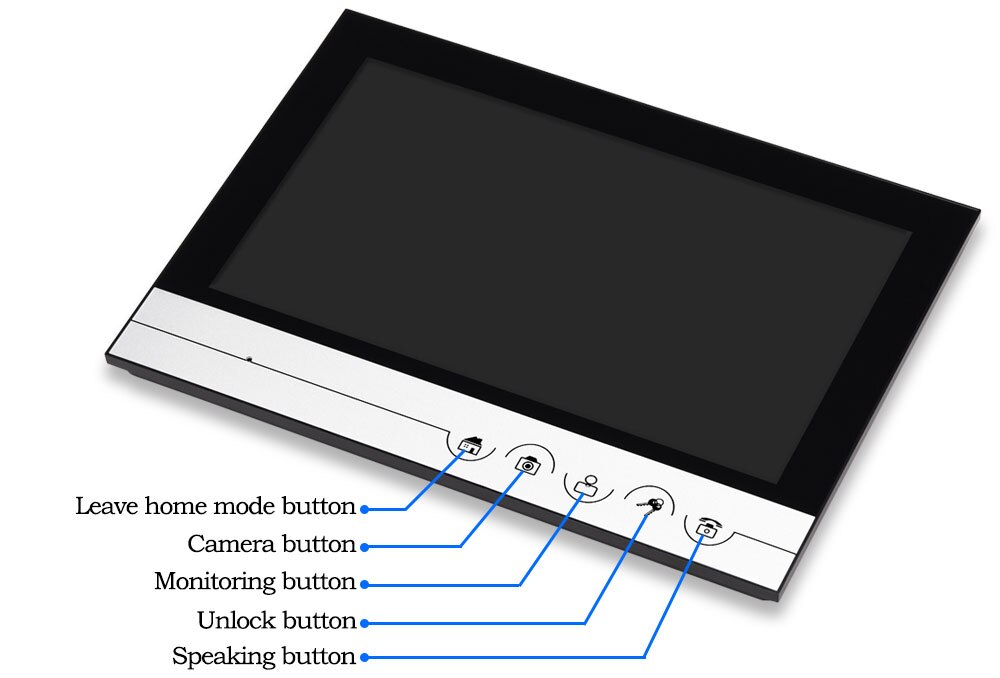

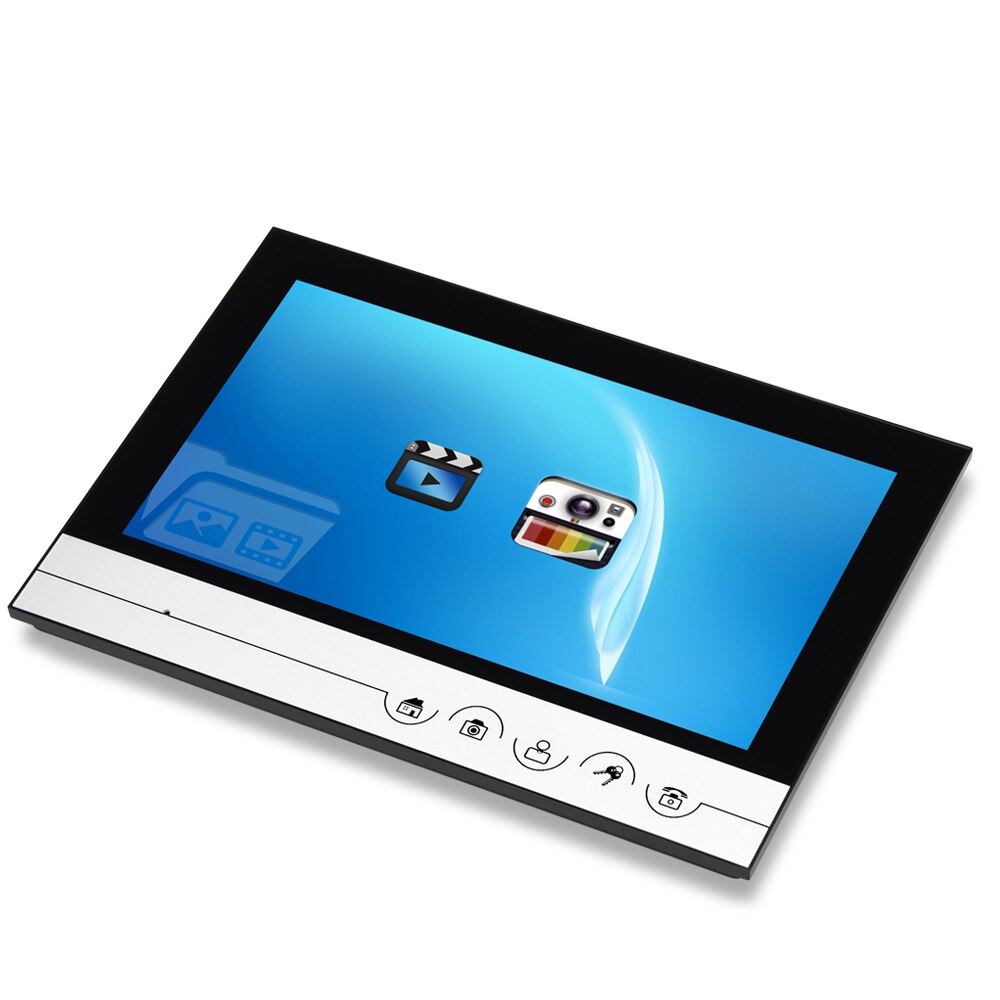

5. UI Interface & Manu Operation.

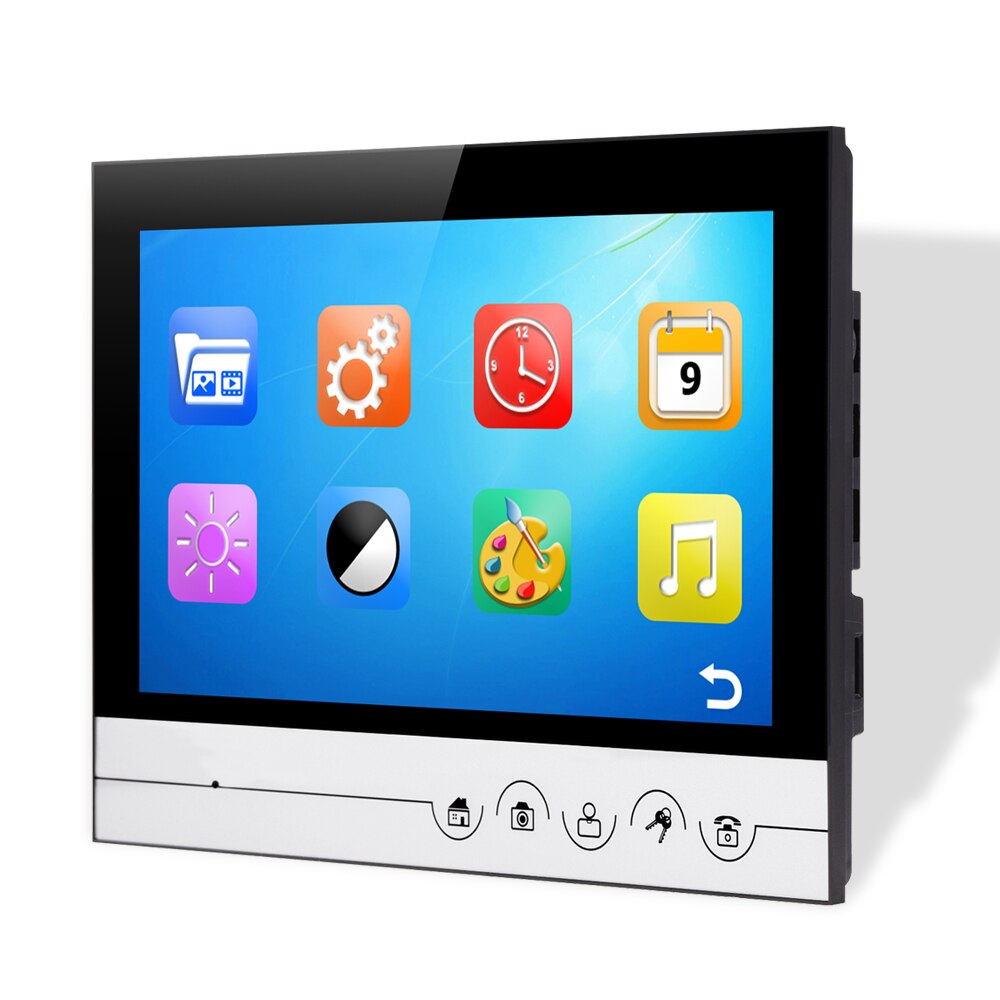

Pressing the multi-function key under the black screen or standby mode, then can enter the main interface to set multi-function.

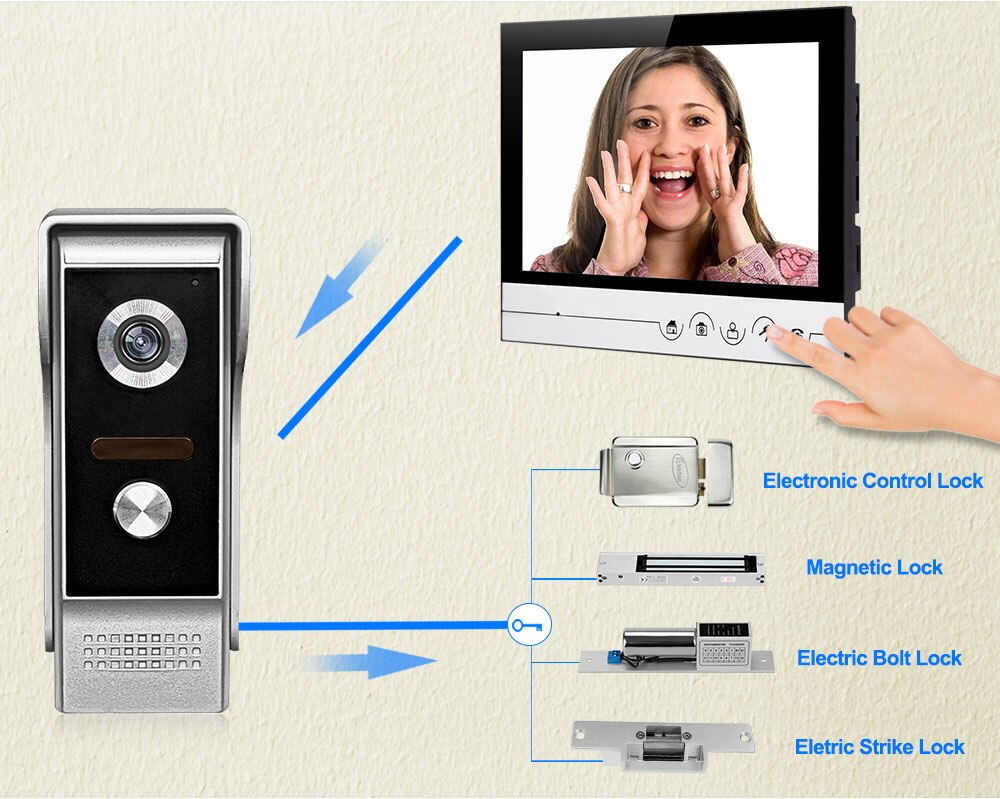

6. One key to unlock
This door phone can work with 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don't need go to the door to open door for your guest, you just need to press unlock button on monitor. It also works as an access control system. This will bring great convenience for you and your family members.(Note: The electric locks which shown in below picture are not included in the package. If you need them, please contact us before order.)

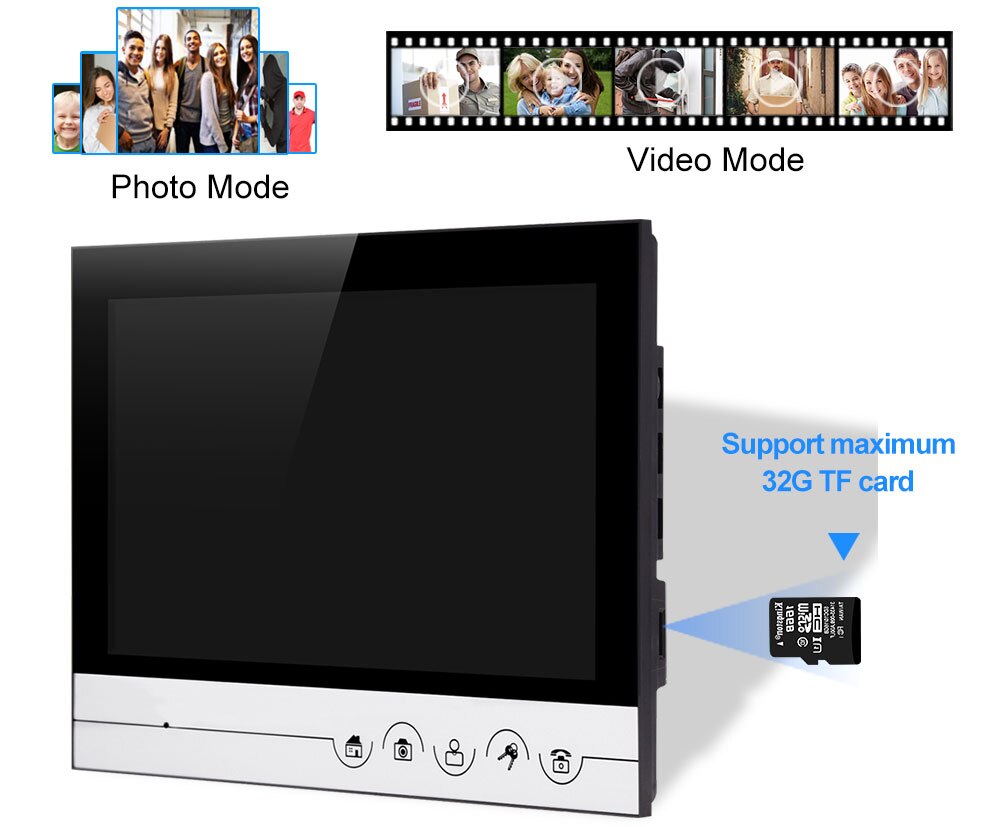

7. Video or Picture Record, SD Card Supported
When someone rings the call button on the outdoor camera, the indoor monitor that is inserted into the SD card will automatically record a picture or video, and you can set the photo mode or video mode.
The memory card supports up to 32G. When there is not enough memory, it will be cycled and stored from the first photo. Add a security guarantee to your home. There is no TF card included in the package. If you need it, you have to order it in additional.
Product Specifications:
Model: XSL-V90Rm

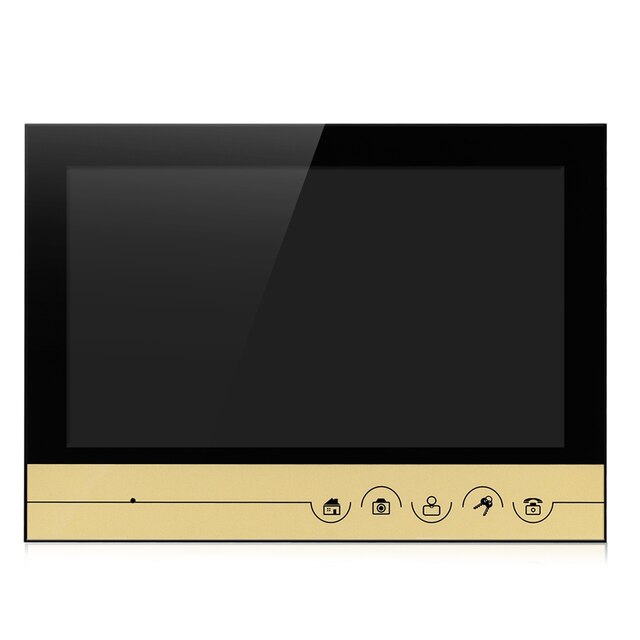

Color: Silver , Golden (Optional)
Screen: 9 inch colour TFT-LCD touch screen
Effective Pixels: 800 x 480
Ringtone: 12 Chords
TF Card: supports, max 32GB
Wiring: 4-wire or 5-wire pin end
Room to Room intercom: Yes
Adapter Input: AC100 - 240V / 50-60HZ
Adapter Output: DC 15V / 1500mA
Power: Standby: ≤ 1W; Working: ≤ 10W
Video Signal: 1VP - P
Answering Method: hand-free
Installation: Wall mounted
Timing: Intercom: 30 seconds; Monitoring: 90 seconds
Relative Humidity: 10% ~ 90%
Working Temperature: -20℃ ~ +60℃
Material: ABS plastic shell + touchable acrylic panel

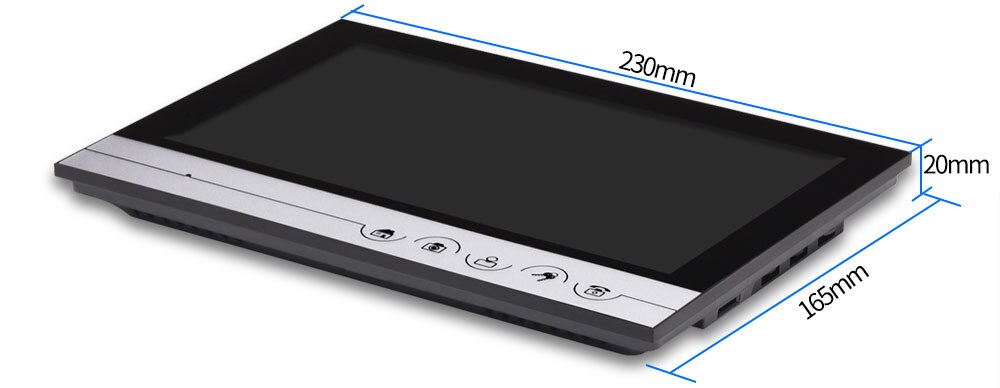

Dimension: 230*165*20mm(L/W/H)

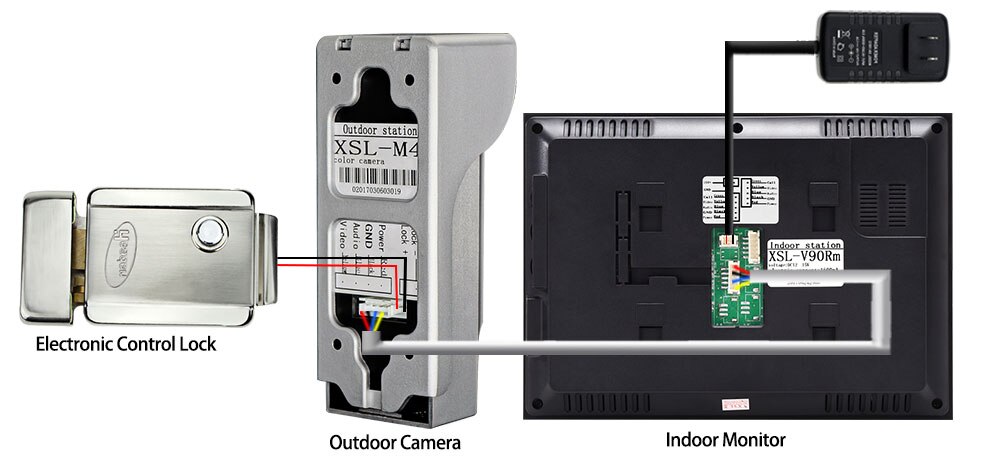

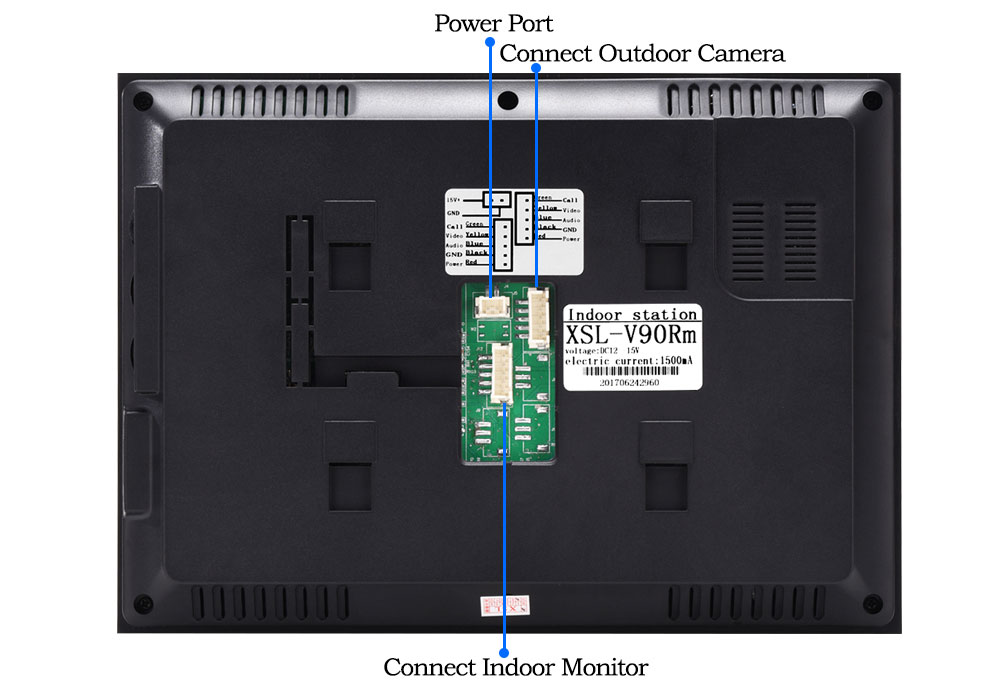

Wiring diagram for your reference only
It is a 5-wire or 4-wire system, use 4-core cable to connect the outdoor unit and indoor monitor, but use 5-core cable to connect indoor monitor and the second indoor monitor.(Please noted: the outdoor unit and electric lock which show in below picture are not included in the package.)

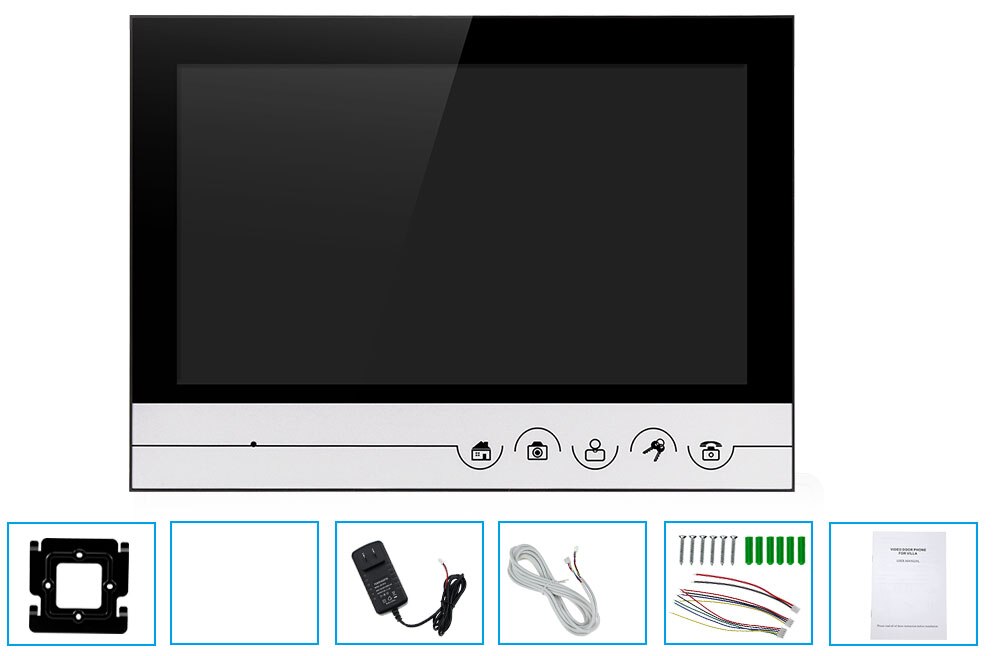

Package List:
1 * Indoor unit (Monitor)
1 * Mounting bracket
1 * Power adapter (US/EU/UK/AU plug optional)
1 * White cable
1 * Wires & Screws bag
1 * User manual
Attention!!!
1, Without TF card. If you need it, you have to order it in additional.
2, Please leave us a message which type of power adapter you need, otherwise we will send EU power adapter to you by default.
Very Important!!!

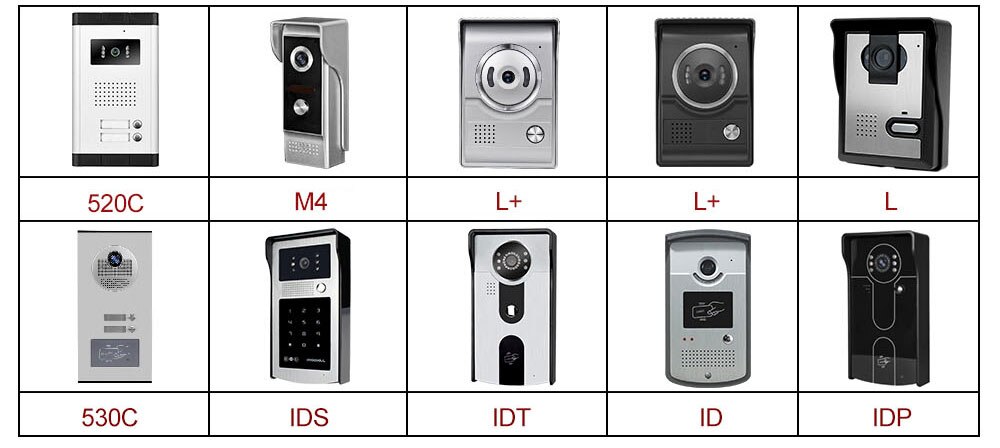

These indoor monitors only can work with such outdoor unit which is 5-wire or 4-wire connection type. For your reference, the outdoor units shown in below picture are compatible with these indoor monitors.
If you already have a outdoor unit, please check whether it will compatible with our indoor monitor or not. If you can not sure, please feel free to contact us before ordering.
- Model Number: Wired Indoor Monitor
- Brand Name: OBO HANDS
- Origin: Mainland China
- Smart home platform: NONE
- Certification: CE
- Power Supply Input/Output: AC100 - 240V / DC15V, 1500mA
- Power: Standby: ≤ 1W; Working: ≤ 10W
- Screen: 7" TFT-LCD color screen
- Resolution: 800x480
- Ringtone: 12 Chords
- Installation: Wall mounting
- Wiring: 4 or 5 PIN line RVV
- Video Signal: 1VP - P
- Answering method: hands-free
- Intercom Time Delay: 30 s
- Monitoring Time Delay: 90 s
- Relative Humidity: 10% ~ 90%
- Working Temperature: -20 ~ +60 Celsius
- Material: ABS plastic shell + acrylic panel
- TF Card: support, max 32GB
- Model: V90Rm
