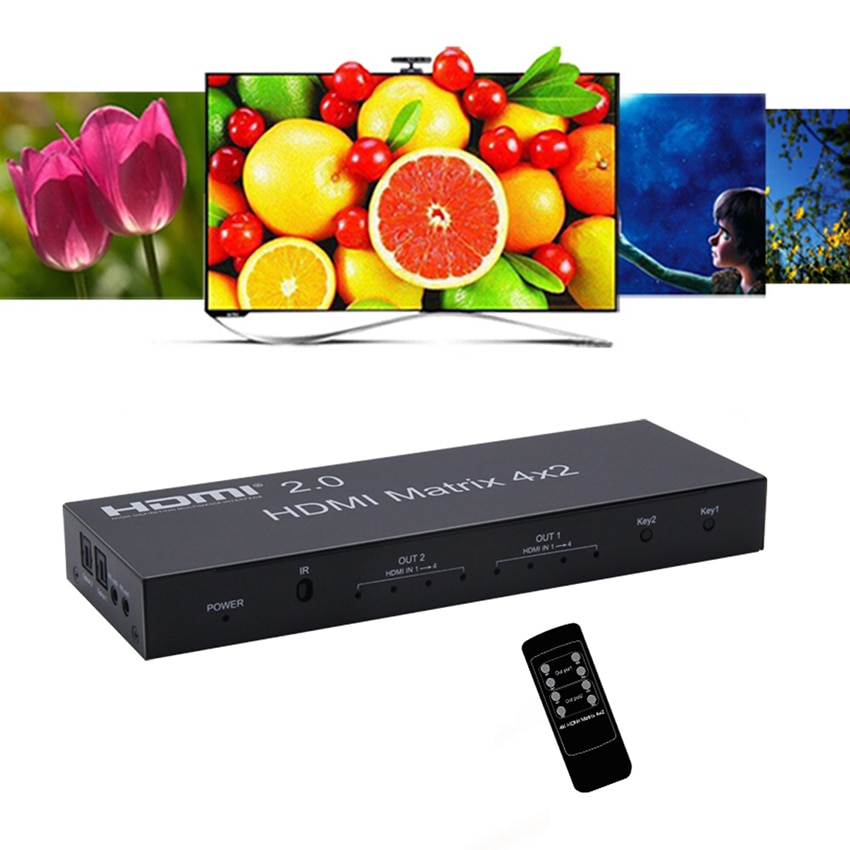

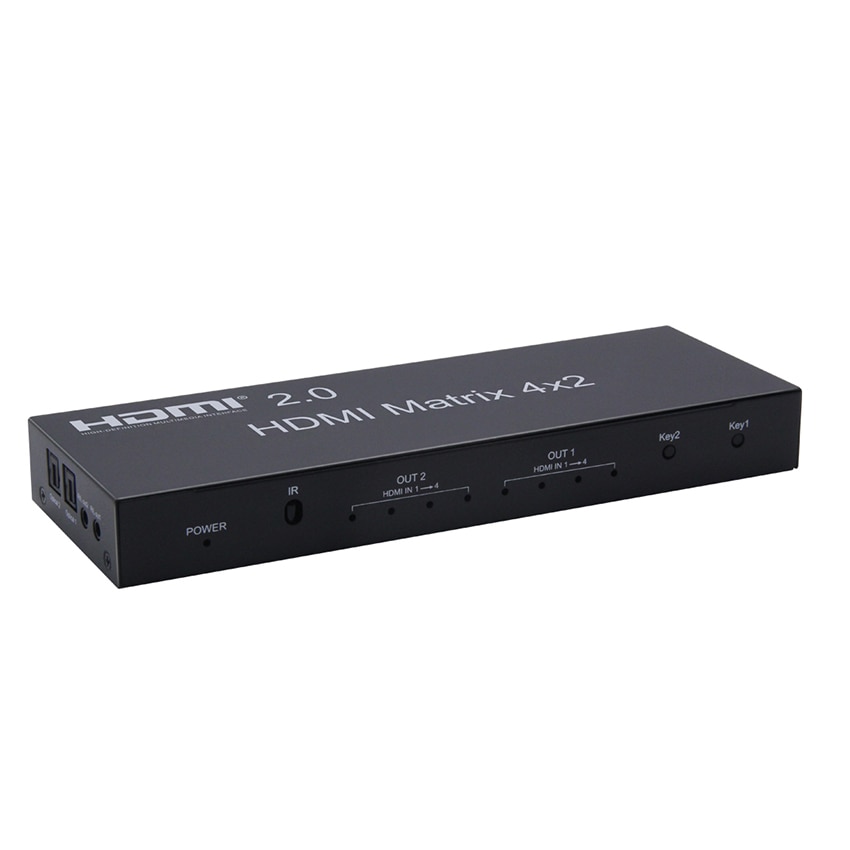

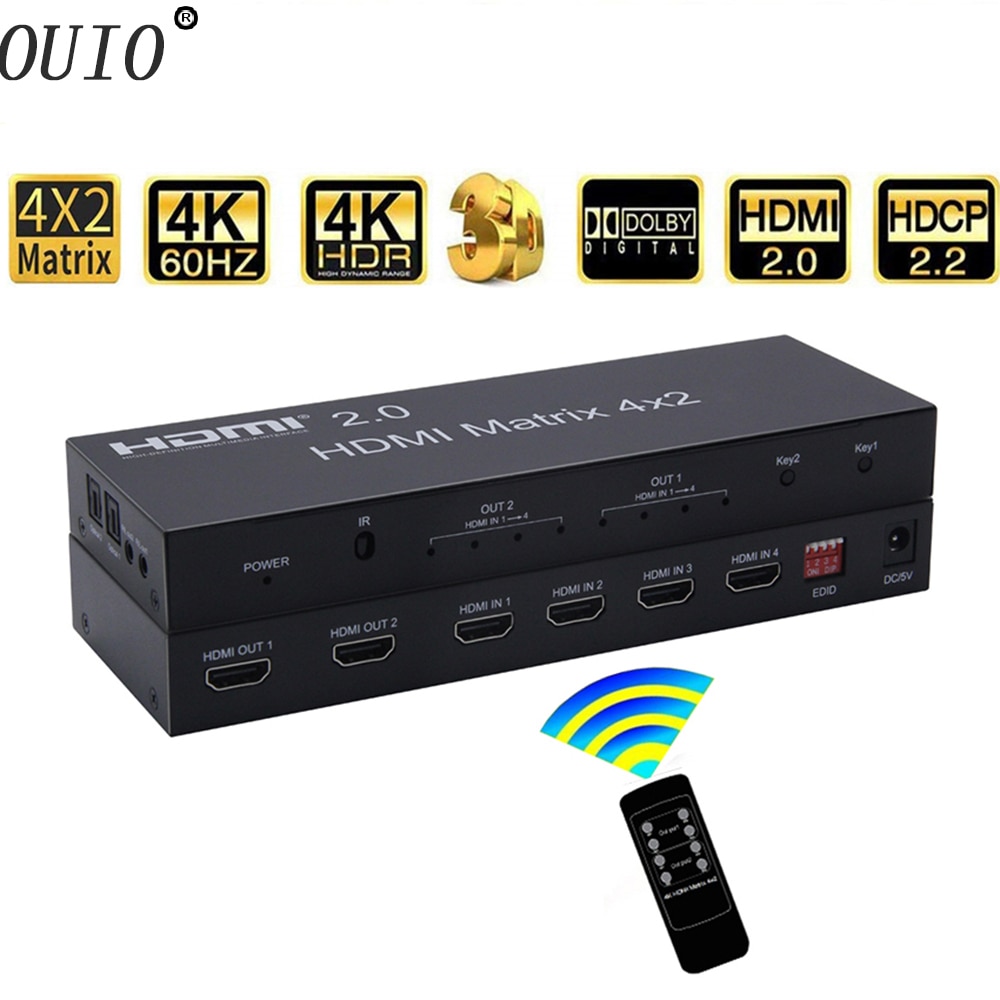

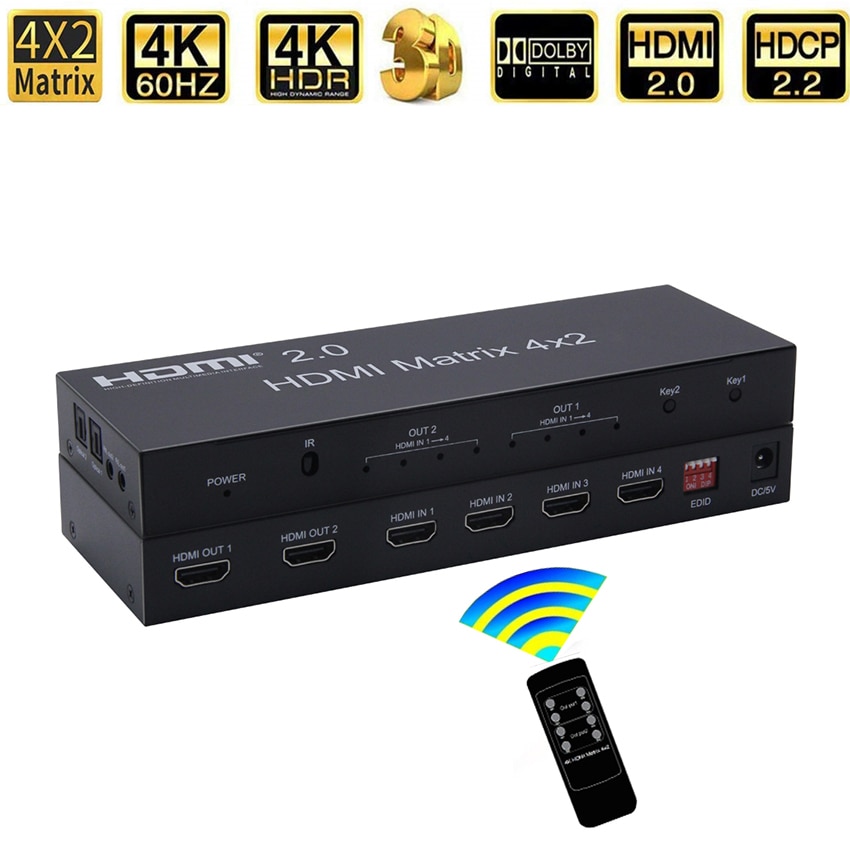

OUIO HDMI 2.0 Matrix 4x2 4K @ 60Hz HDR Switch Splitter 4 in 2 out Optical SPDIF + 3.5mm jack Audio Extractor HDMI Switcher
0.0 ( votes)
Price:
US $103.56
/ piece
Discount Price:
US $
95.28
/ piece
-8%
2.0 HDMI Matrix 4x2 4K @ 60Hz HDR Switch Splitter 4 in 2 out YUV 4：4：4 Optical SPDIF + 3.5mm jack Audio Extractor HDMI Switcher
Features:

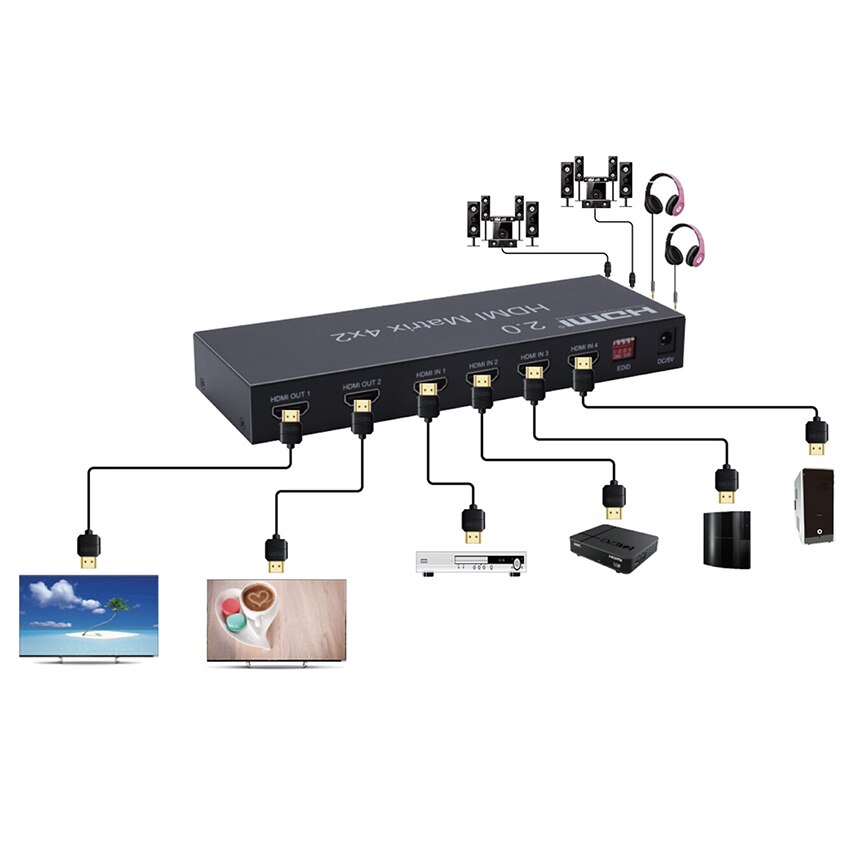

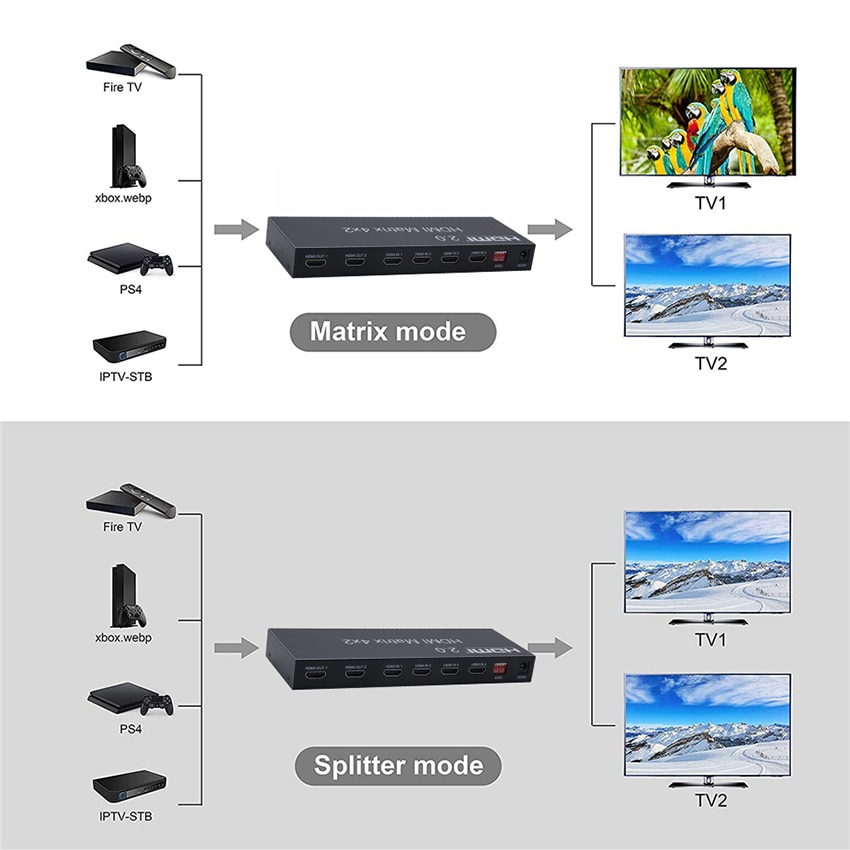

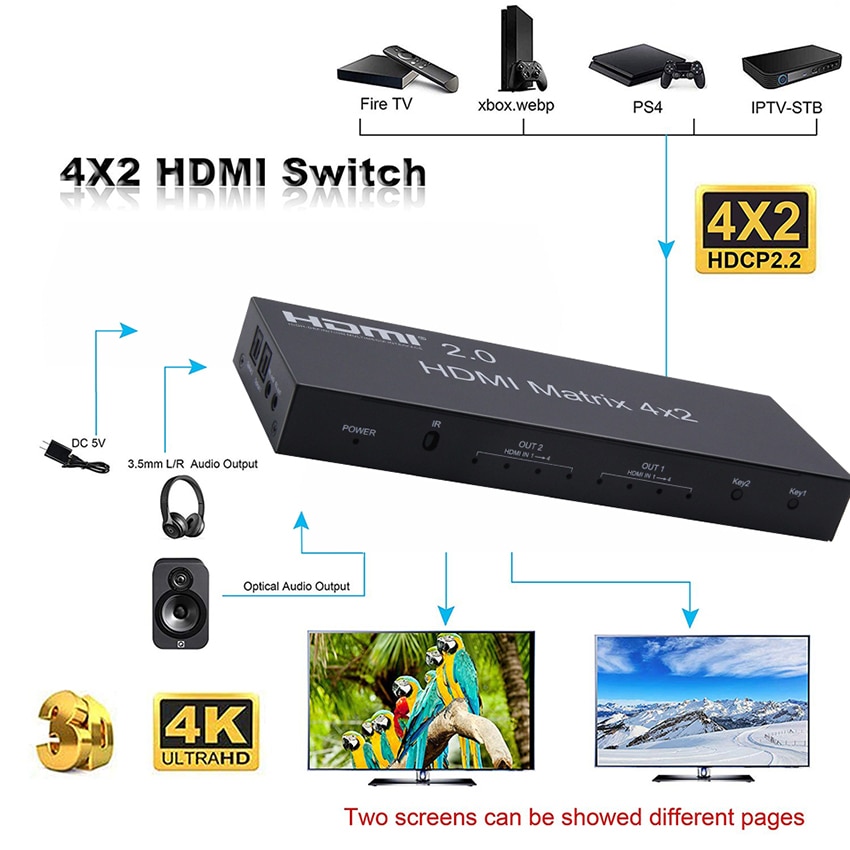

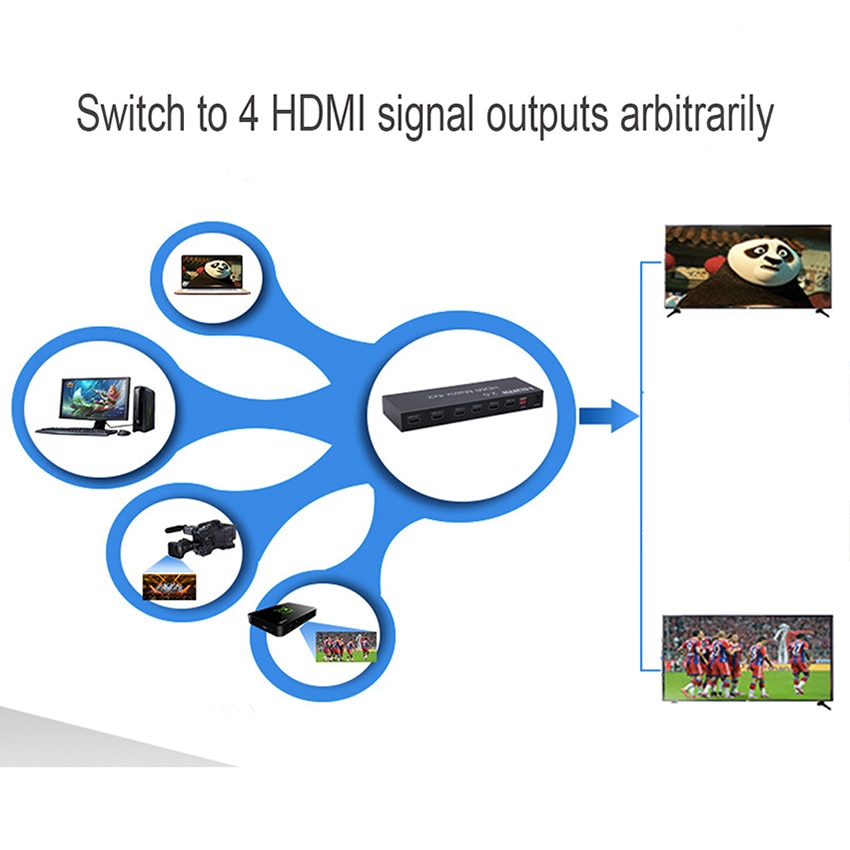

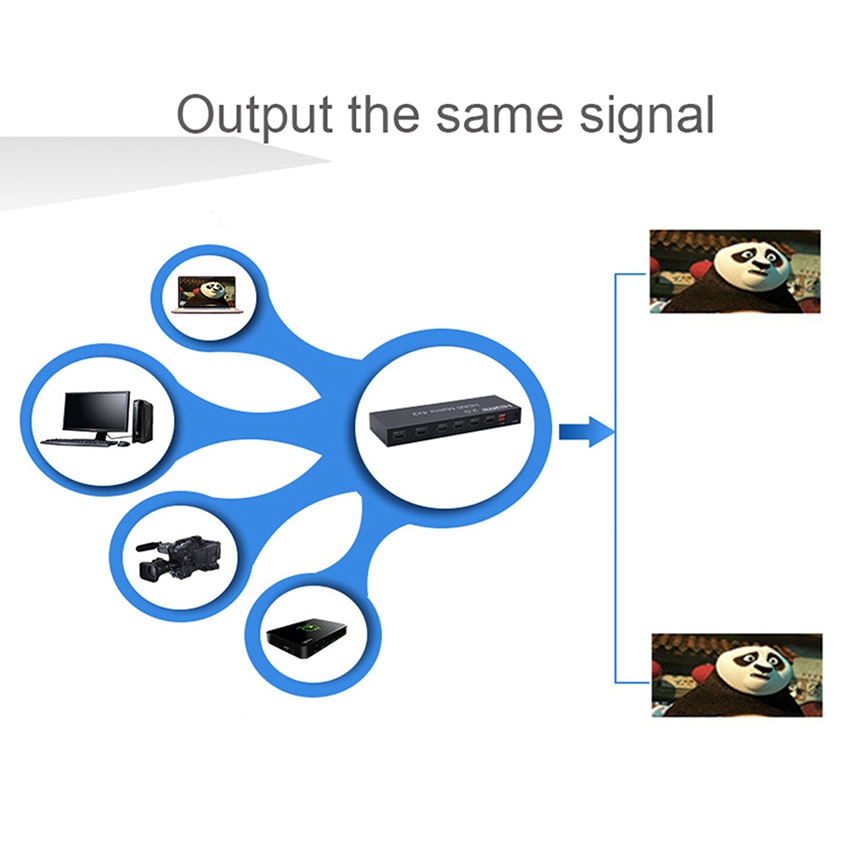

1. This 4X2 HDMI matrix can switch between 4 input source devices and distribute the signals to 2 displays (2 displays can display the same picture or different pictures), and any output The ports can be independently outputted with audio via the Optical SPDIF or 3.5mm audio jack.
2. The product can enlarge the HDMI signal at the HDMI output to increase the transmission distance of the output signal, choose different resolution, transmit longer distance, 1080P can reach the transmission distance of 15 meters, 4K@30HZ transmission 10 meters , 4K@60HZ transmission 5 meters.
3. Support HDMI 2.0 and HDCP 2.2. With a resolution of up to 4K @ 60Hz (RGB/YUV 4:4:4), you can enjoy a fantastic visual feast.
4. Support 4K (input) to 2K (output) (Down scaler).
5. This 4X2 HDMI matrix is ideal for entertainment centers, retail and web sites, high definition TV set-top boxes, DVDs, projector plants, data center
control, information distribution, conference rooms, schools and corporate training.

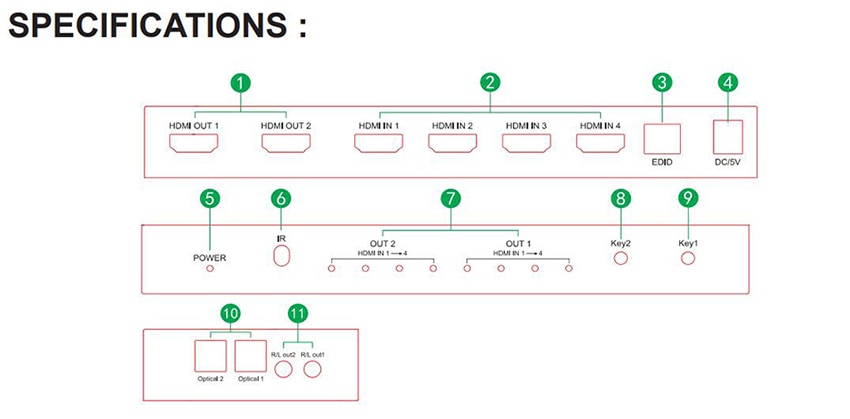

Product parameters:
HDMI version: HDMI2.0 (downward compatible)
HDCP version: HDCP 2.2 (downward compatible)
Resolution: up to 3840x2160/60Hz (RGB/YUV 4:4:4) (downward compatible)
Support audio format: LPCM/DTS/Dolby-AC3
Support video format: 8/10/12 color depth
Maximum bandwidth transmission: 600MHz
Maximum transmission rate: 3x6Gbps
HDMI input port: 4
HDMI output port: 2
Optical SPDIF：2
3.5mm jack：2
Input cable length: 1080P ≤ 15M; 4k@30Hz ≤ 10MHDMI standard cable, 4k@60Hz ≤ 5M AWG26 HDMI standard 2.0 cable
Output cable length: 1080P ≤ 15M; 4k@30Hz ≤ 10MHDMI standard cable, 4k@60Hz ≤ 5M AWG26 HDMI standard 2.0 cable

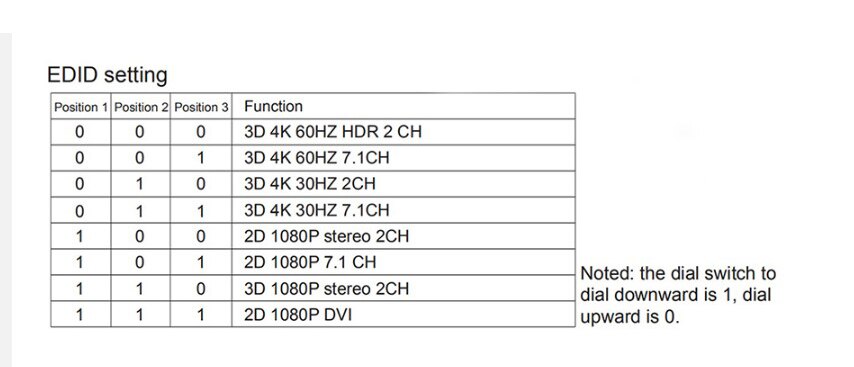

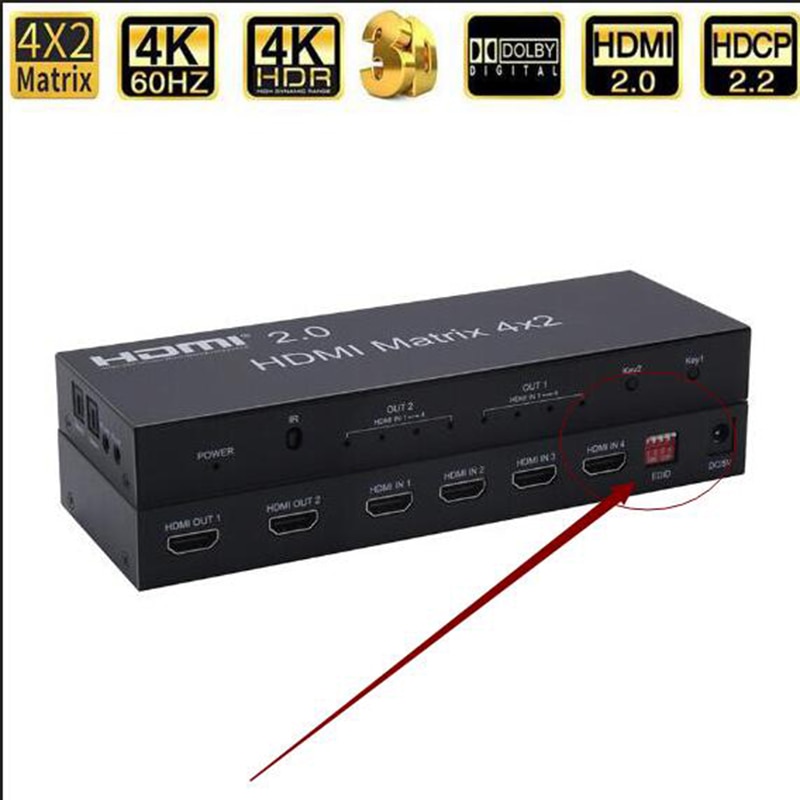

How to use EDID:
When your input device resolution is a table
You just tune to the numeric number corresponding to EDID
such as:
When the input device is 4K60HZ
Please dial 0 0 0 for the corresponding value of EDID
When the input device is 4K60HZ 7.1
Please dial 0 0 1 for the corresponding value of EDID
For other resolutions, please refer to the above method
The corresponding value of EDID is adjusted to the corresponding number
- Feature: HDMI-Compatible2.0
- Package: Yes
- Shielding: Non-Shielded
- Packing: Carton Box
- Application: Computer,Monitor,DVD Player,Projector,Television
- Type: HDMI-Compatible Cables
- Connector B: HDMI-Compatible
- Connector A: HDMI-Compatible
- Model Number: ky96
- Gender: Female-Female
- Brand Name: YPAY
- Origin: Mainland China
- Certification: CE
