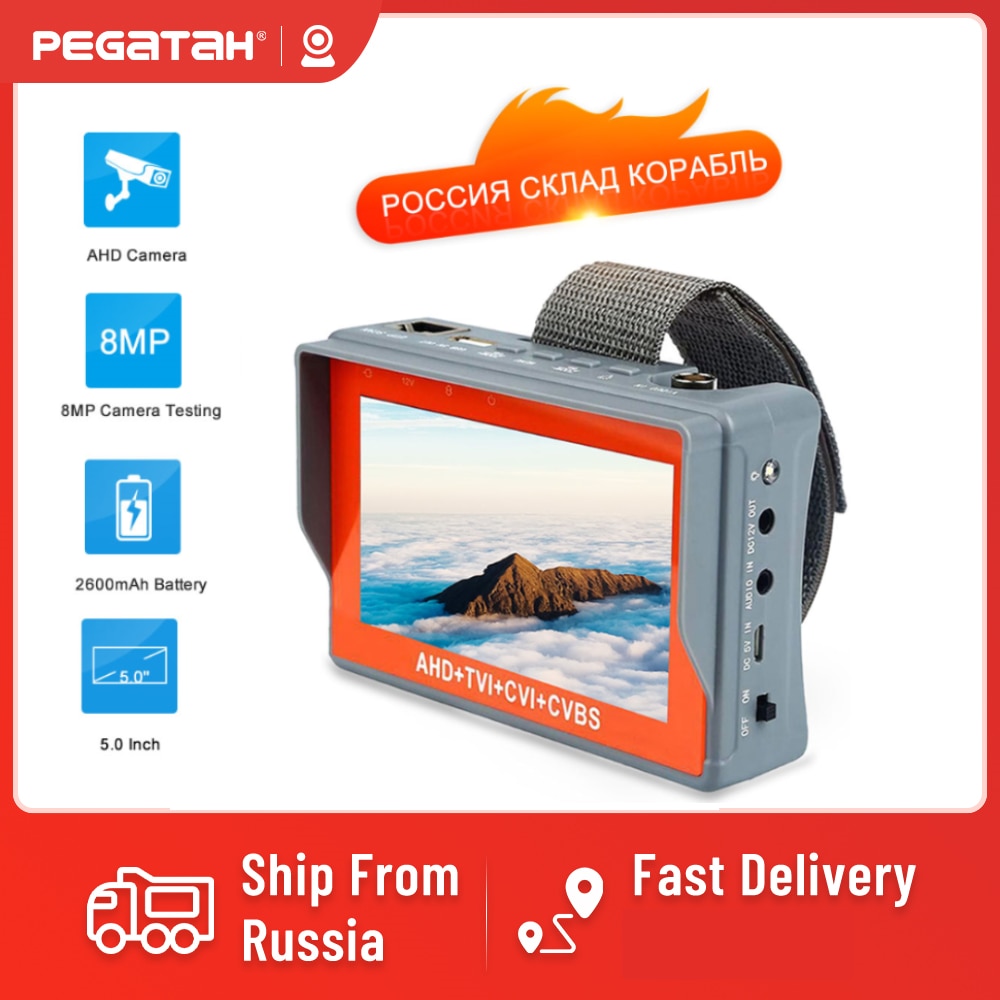

5 inch CCTV Tester Camera Mini Monitor AHD TVI CVI Analog CVBS Portable Monitor tester CCTV UTP PTZ HD cftv Camera tester

5.0 (1 votes) | 1 orders
Price: US $208.16 - 243.81 / piece
Discount Price:
US $ 121.62 - 142.43 / piece
-42%
Ships From
Color

Sorry! This item is out of stock

Key Feature:

Note !

For RS485 and UTC functions, the camera must meet both functions and The camera baud rate, address code, protocol must be the same as the tester.

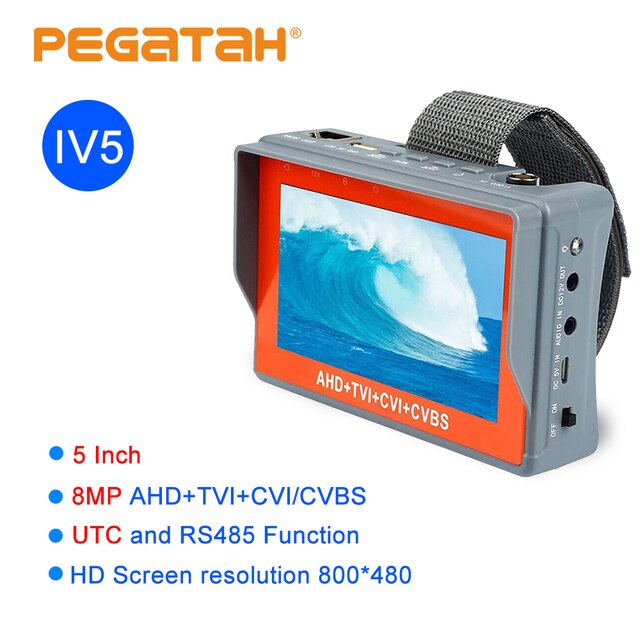

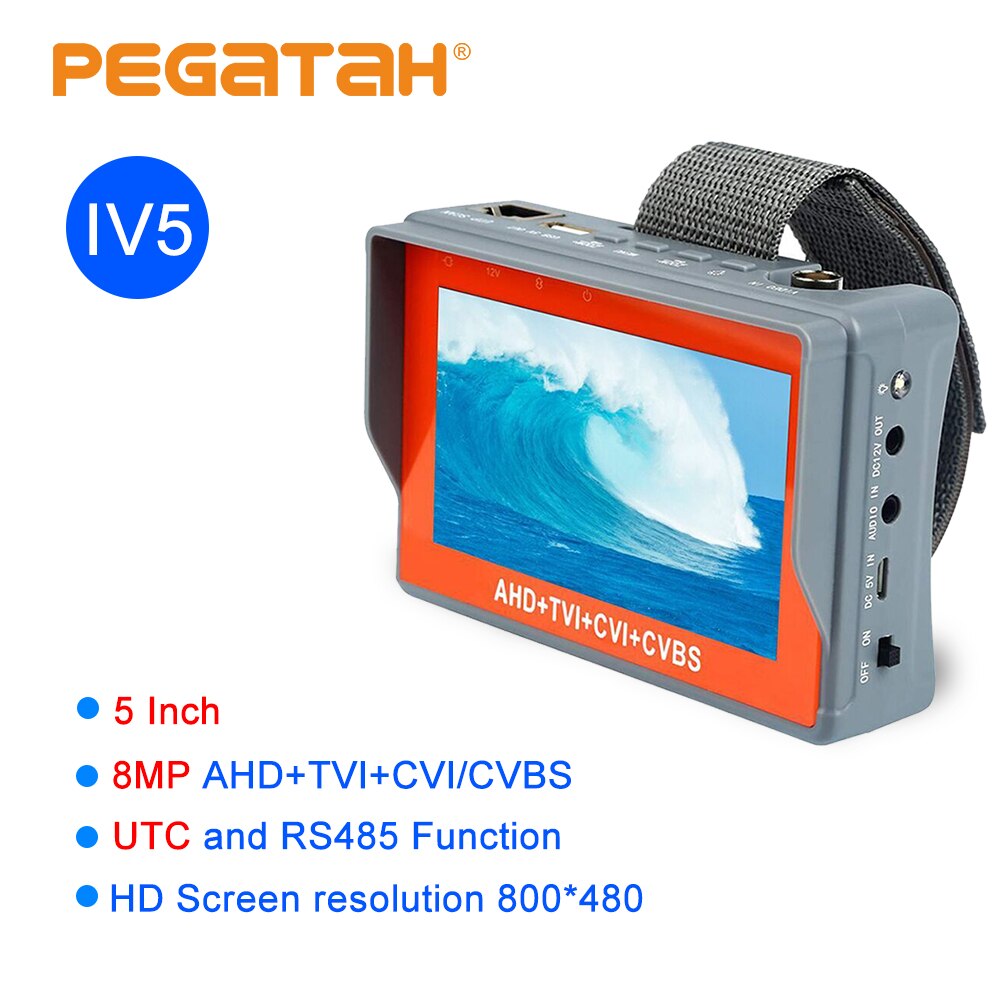

I5V-8MP

5 Inch b,HD Screen resolution 800*480 c,Support 8MP AHD+TVI+CVI/CVBS Video tester d,UTC (HD coaxial control,BNC coaxial control PTZ,But can't call the camera menu information )and RS485 and UTP Function

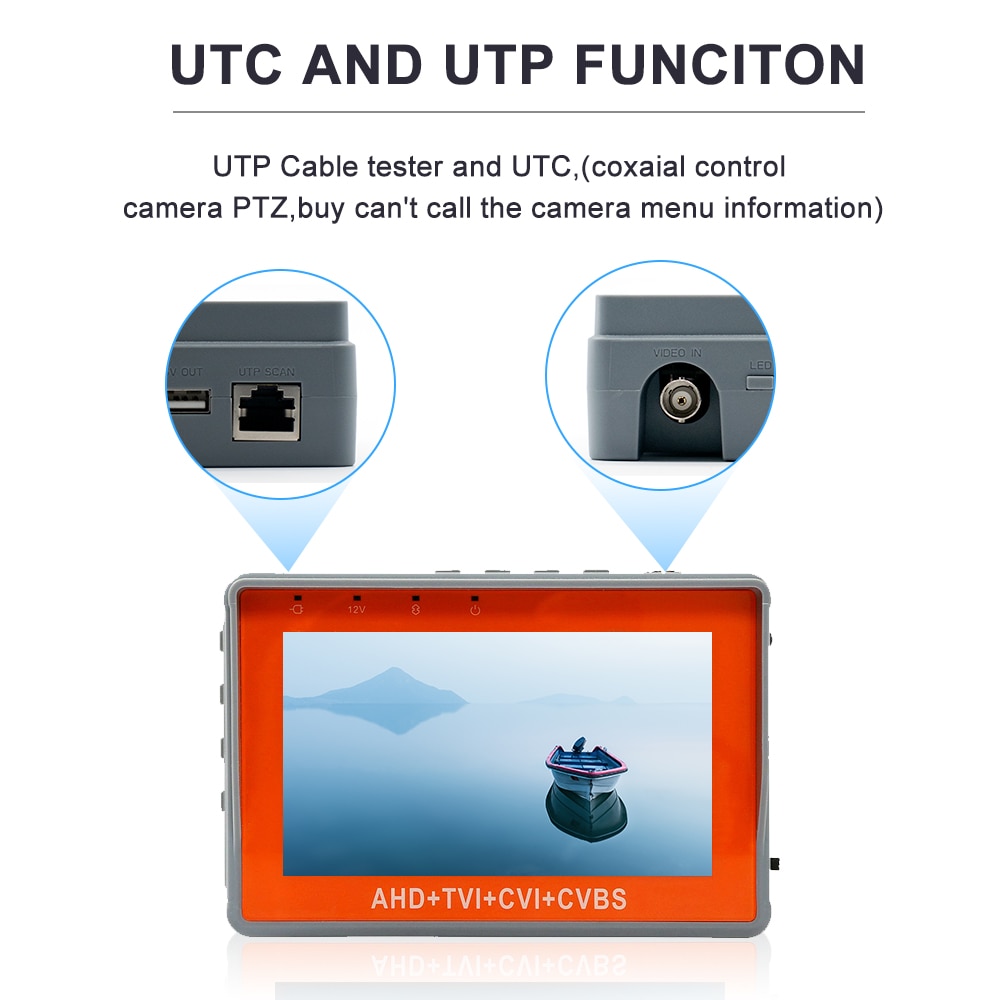

UTP Cable tester and UTC,(coxaial control camera PTZ,buy can't call the camera menu information)

TI-6300W

4.3 inch screen, screen resolution: 480X272 battery capacity: 3.7V 3000mAh 4 in 1 video signal AHD/TVI/CVI/CVBS video resolution: 2MP-8MP AHD TVI CVI 720P@25/30/, 1080P25/30F(3MP/ 4MP/5MP/8MP) Support RS485 PTZ control, UTP network cable test can reach 100-150 meters, 12V1A power output, USB5V1A power output 12 languages

Support languages

Chinese Traditional Chinese English Russian Italy Poland Portugal Germany Spain Japan Turkey French

TI-6800ACT

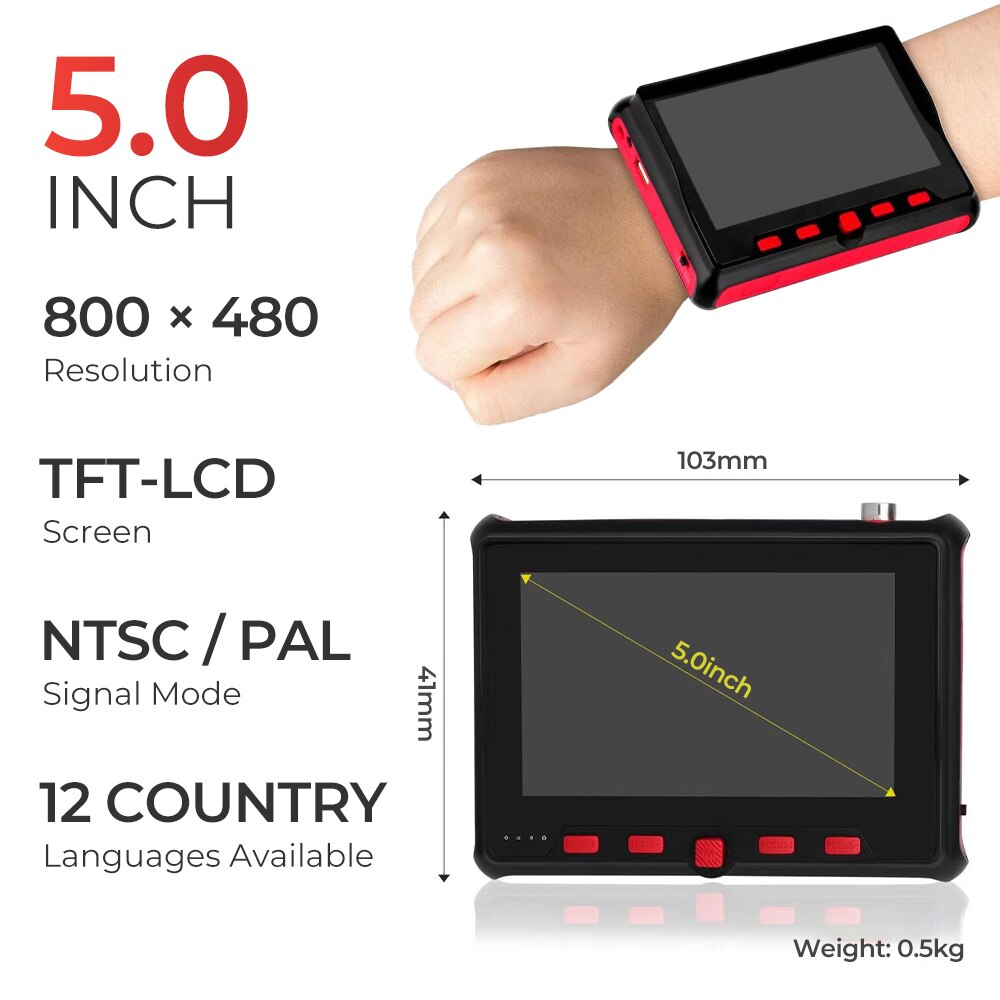

"5-inch screen, screen resolution: 480X272, battery capacity: 3.7V 3000mAh 4 in 1 video signal AHD/TVI/CVI/CVBS video resolution: 2MP-8MP AHD CVI TVI 720P@25/30/, 1080P25/30F(3MP /4MP/5MP/8MP) Support RS485 PTZ control, UTP network cable test can reach 100-150 meters, 12V1A power output, USB5V1A power output, 12 languages"

Support languages

Chinese Traditional Chinese English Russian Italy Poland Portugal Germany Spain Japan Turkey French

IV5 Key feature

● 4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color(IV5 800 RGB *480P)
● Support PAL/NTSC standard video signal. CVBS testing.
● RS485 PTZ controller (7A /7S/7W)
●RS485 PTZ controller and UTC control PTZ,BNC coaxial control PTZ,But cant call the camera menu information(IV5) Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.
● Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

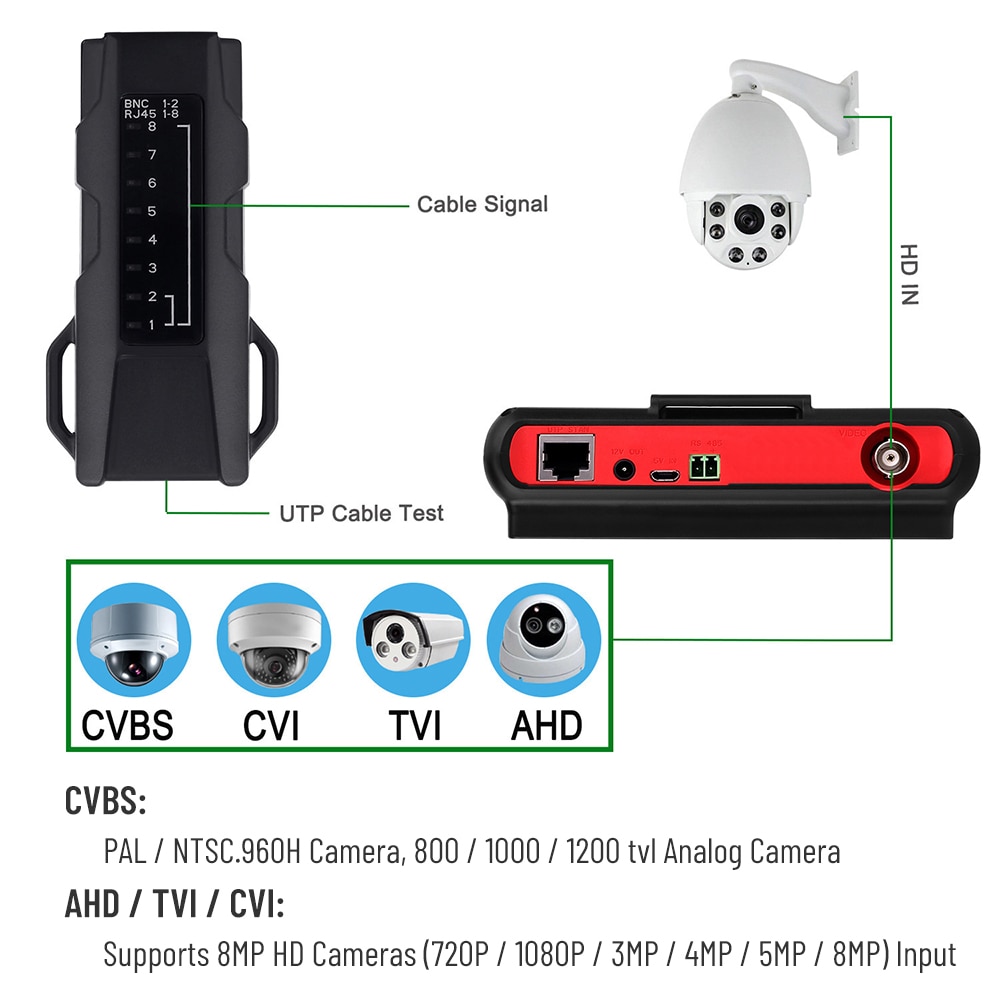

● UTP Network cable testing
Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.
● TVI camera test
HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.
● CVI camera test
HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image.
● AHD camera test
HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.
● LED lamp
It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

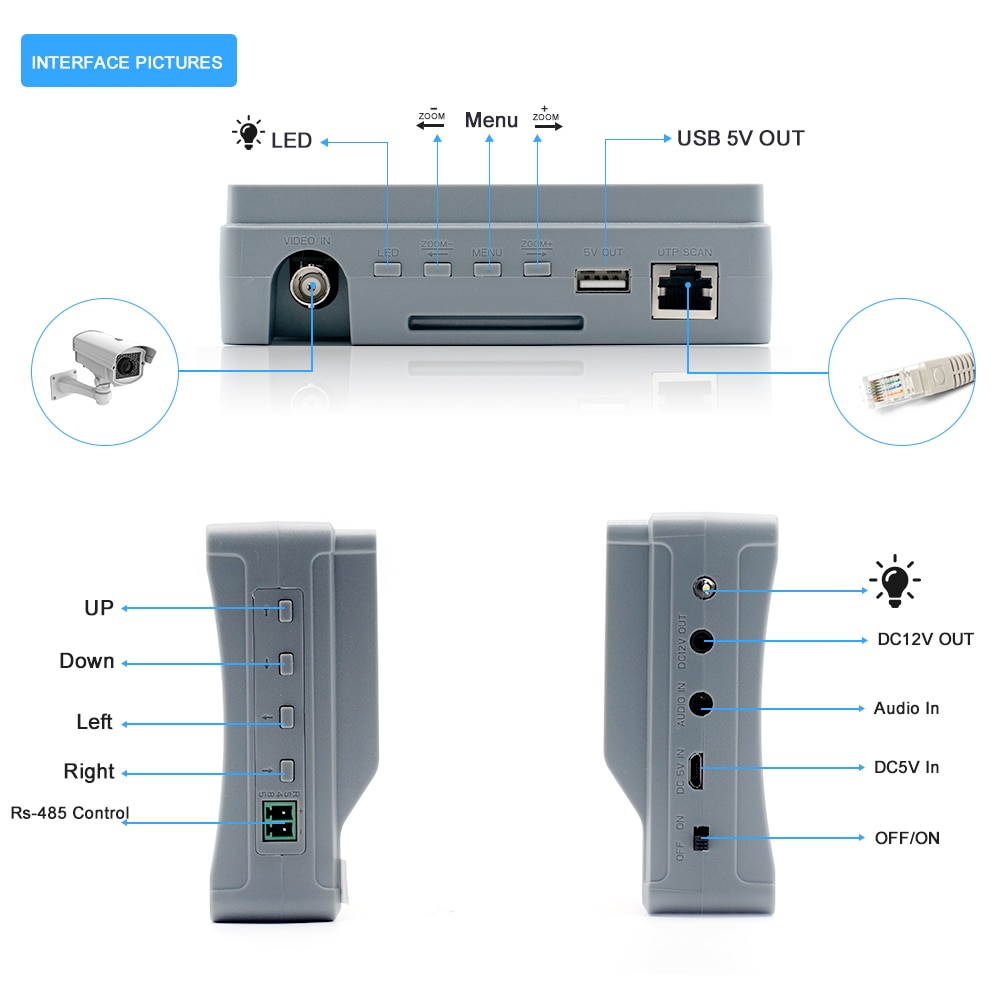

TI-6300W key feature

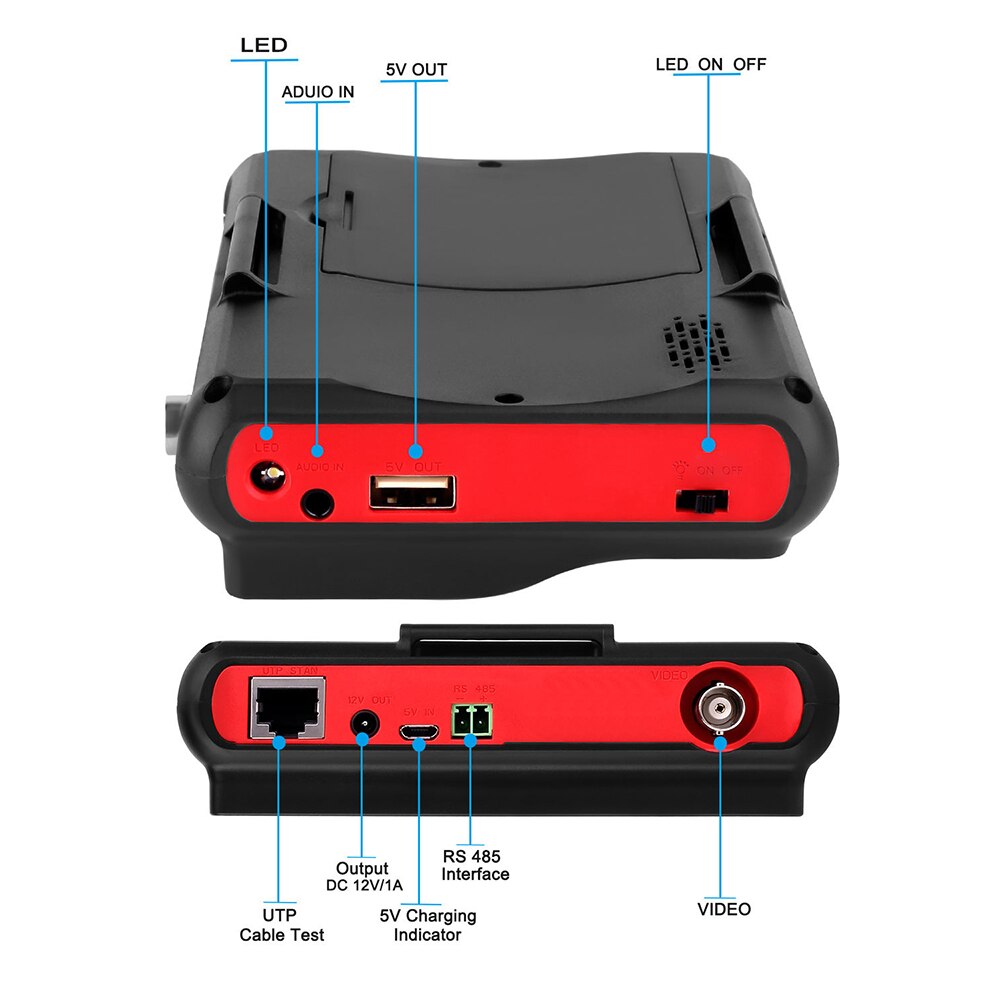

The new HD CCTV Test monitor support "4in1”(AHD/TVVCVCVBS)video format of up to 2MP~8MPresolution. It also supportPTZ control by RS485 and other special features suchas DC12V/USB/5V out put, audion test,UTP cable test,LED lighting etc.lt is designed to bring installer maximum conveniecy duringthe installation.

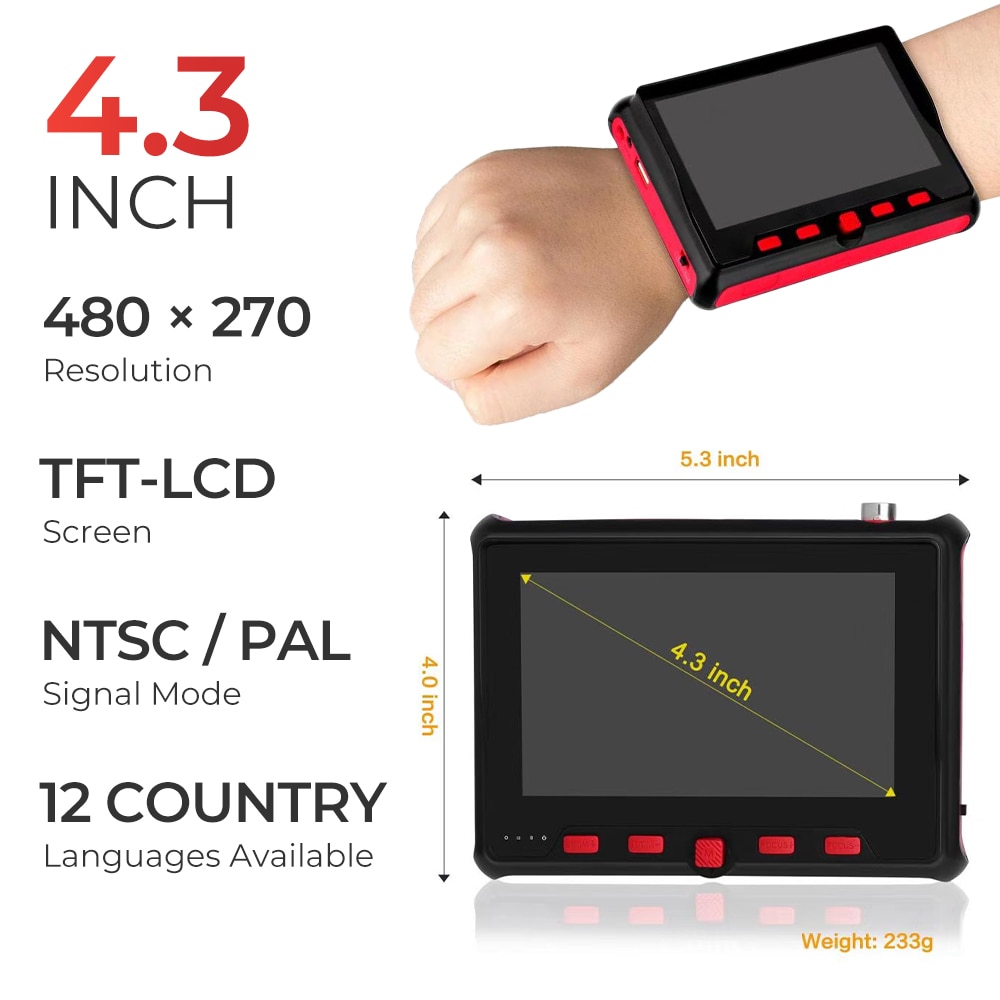

Display:4.3inch TFT- LCD, 480X272 resolution
Signal mode :NTSC/PAL (Auto adapt)
PTZ Contoller:Support RS485,Compatible with protocols
PELCO- D/P, Baud Rate 1200~ 14400bps
UTP Cable Tester:Enhanced UTP cable, with indicator light, the test distance can reach 100- 150 meters
DC12V output:DC12V1A power Output

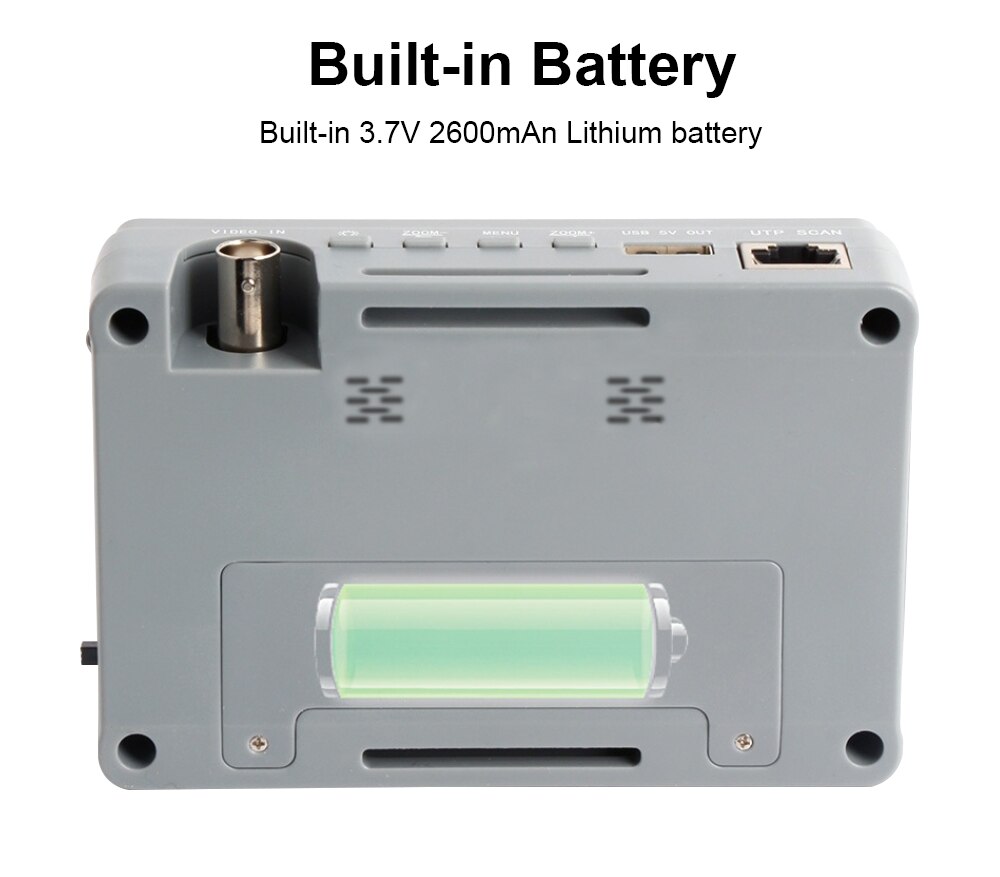

Battery:Built-in 3.7V 3000ma battery
L anguage:12 Languages available
Video input: Compatible with AHD, TVI,CVI,CVBS signalsof up to 2MP~8MP resolution.
1.4.3 inch 480 ×272 resolution.PAL/NTSC(Auto adapt).2.PTZ control: RS485 Baud-Raud:1200~115200bps,compatible with PELCO-D/Pprotocols.
3. Camorera Power Supply: Power output of DC 12V/1Afor temporarily powering on cameras for angle and zoomadjustment
4.USB Power Supply: USB2.0 interface provides 5V/1Apoweroutput
5.Audio signal input
6.Enhanced UTP cable, with indicator lights. the cable testdistance can reach 100-150 meters
7.UTC control/call OSD menu
8.Coaxial HD test
AHD tester support 720P25F/30F/1080P/25F/3OF(4MP/5MP/8MP AHD camera tester is optional*)
TVl tester support 720P25FI30F 1080P 25F/30F(3MP/4MP/5MP/8MP TVI camera tester is optional*)
CVl tester support 720P25F/30F 1080P25F/30F(4MP/5MP/8MP CVI camera tester is optional*)
9.LED emergency lighting

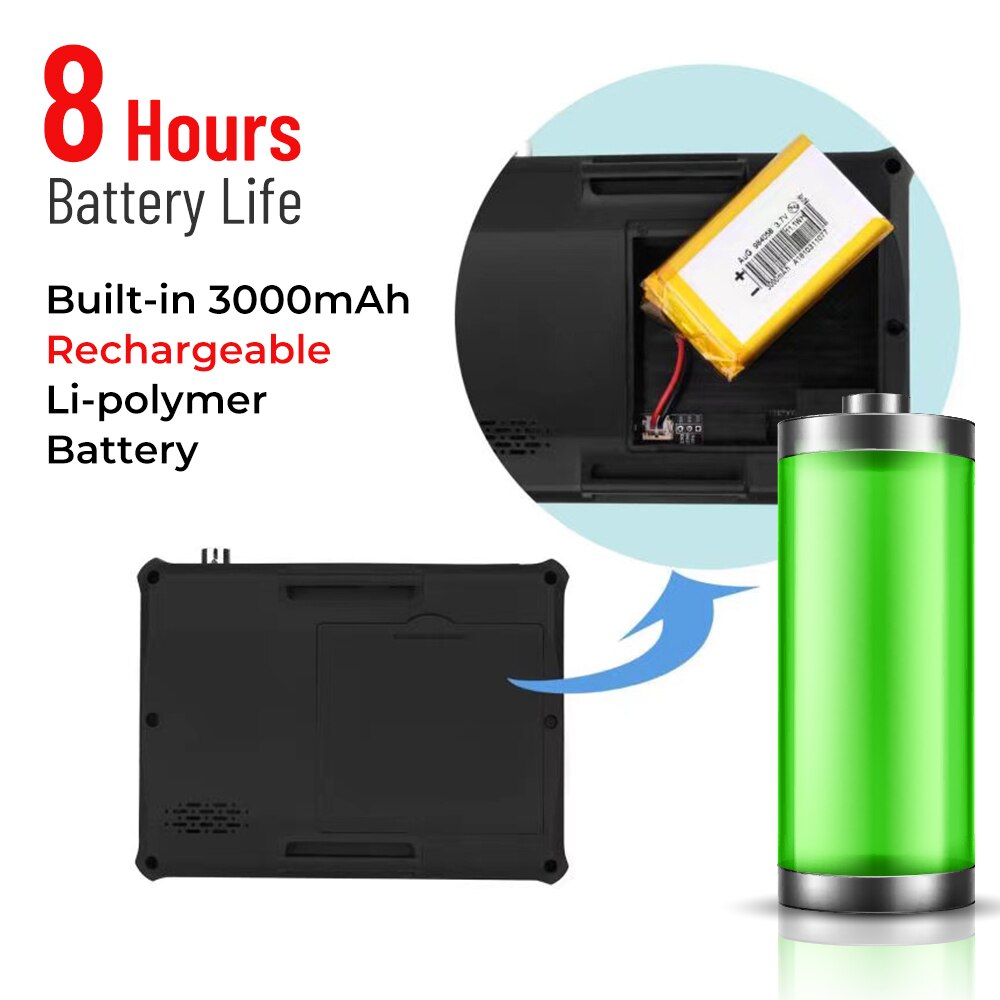

10.bulit-in 3.7V Lithium polymer bottery, 3000mAh

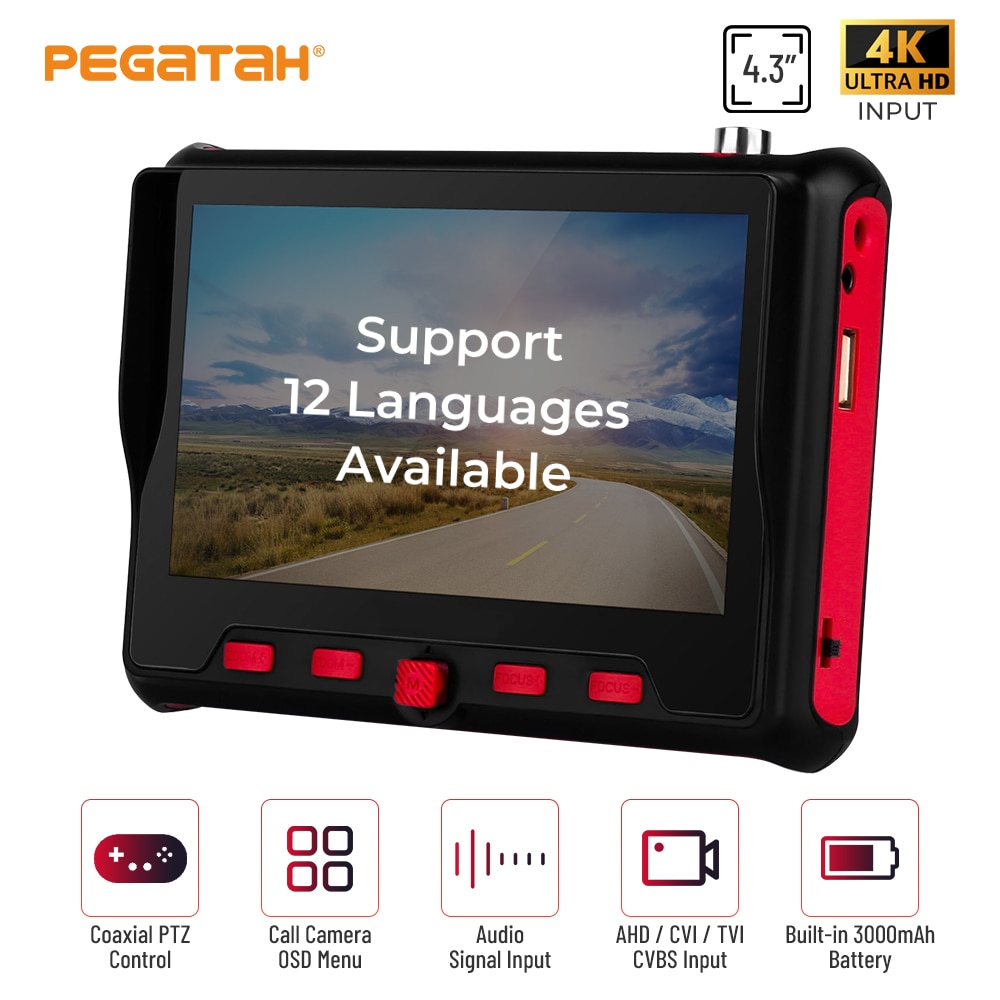

TI-6800ACT

General
The new HDCCTV Test monitor support "4in1" (AHD/TVICvvCVBS)video format of up to 2MP~8MP resolution. lt also supportPTZ control by RS485 and other special features suchas DC12V/USB/5V out put, audion test,UTP cable test,LED lighting etc.lt is designed to bring installer maximum conveniecy duringthe installation.
Product Funtions:
Video input: Compatible withAHD,TVI,CVI,CVBS signalsof up to 2MP~8MPresolution.
1.5 inch 800(RGB) x480 resolution. PAL/NTSC(Auto adapt).2.PTZ control: RS485 Baud-Raud:1200~115200bps,compatible with PELCO-D/Pprotocols.
3. Camorera Power Supply.:Power output of DC 12V/1Afor temporarily powering on cameras for angle and zoomadjustment
4.USB Power Supply: USB2.0 interface provides 5V/1A poweroutput
5.Audio signal input
6.Enhanced UTP cable, with indicator lights. the cable testdistance can reach 100-150 meters
7.UTC control/call OSD menu
8.Coaxial HD test
AHD tester support 720P25F/30F/1080P/25F/3OF(4MP/5MP/BMP AHD camera tester is optional*)
TVl tester support 720P25F/30F 108OP25F/30F(3MP/4MP/5MP/8MP TVl camera tester is optional*)
CVl tester support 720P25F/30F 1080P 25F/30F(4MP/5MP/8MP Cvl camera tester is optional*)
9.LED emergency lighting
10.bulit-in 3.7V Lithium polymer bottery, 3000mAh

Warranty

All items carry a 1 year manufacturer warranty,please set your mind at rest to purchase.

About Shipping

1.Before making a payment, please confirm that your address and phone number are correct. After the delivery, the information cannot be changed.

2.The buyer is responsible for helping to clear the customs. If the customs asks for an invoice, or if there is any doubt about the logistics, please contact us;

3.We can do wholesale and drop shipping, please feel free to contact us.

Feedback

Pls kindly help with the delivery confirmation once package receipt.Pls dont forget to leave us a 5 Star Positive Feedback after Receiving your items.



  • Brand Name: PEGATAH
  • Maximum IR Distance(m): Other
  • Certification: CE
  • Lens: Other
  • Origin: Mainland China
  • Sensor Size: Other
  • Sensor Type: Other
  • Model Number: cctv test monitor
  • Plug Type: EU plug
  • Display screen: 4.3 inch LCD 480 (RGB) * 272 (QVGA) resolution
  • TI-6300W: 2MP-8MP AHD/TVI/CVI/CVBS
  • TI-6800ACT: 2MP-8MP AHD/TVI/CVI/CVBS
  • Analog CVBS camera test: Support
  • DC 12V/1A output for camera: Support
  • Audio testing: Support
  • UPT cable test: Support
  • LED Light: 1*35lm
  • USB Power ouput: DC5V 1A
  • PTZ Control: Support RS485
  • feature1: cctv tester
  • feature2: mini monitor
  • feature3: tester cctv
  • feature4: CCTV CAMERA TEST MONITOR
  • feature5: monitor cctv
  • feature6: cctv test monitor camera
  • feature7: hd cctv test monitor
  • feature8: video camera tester
