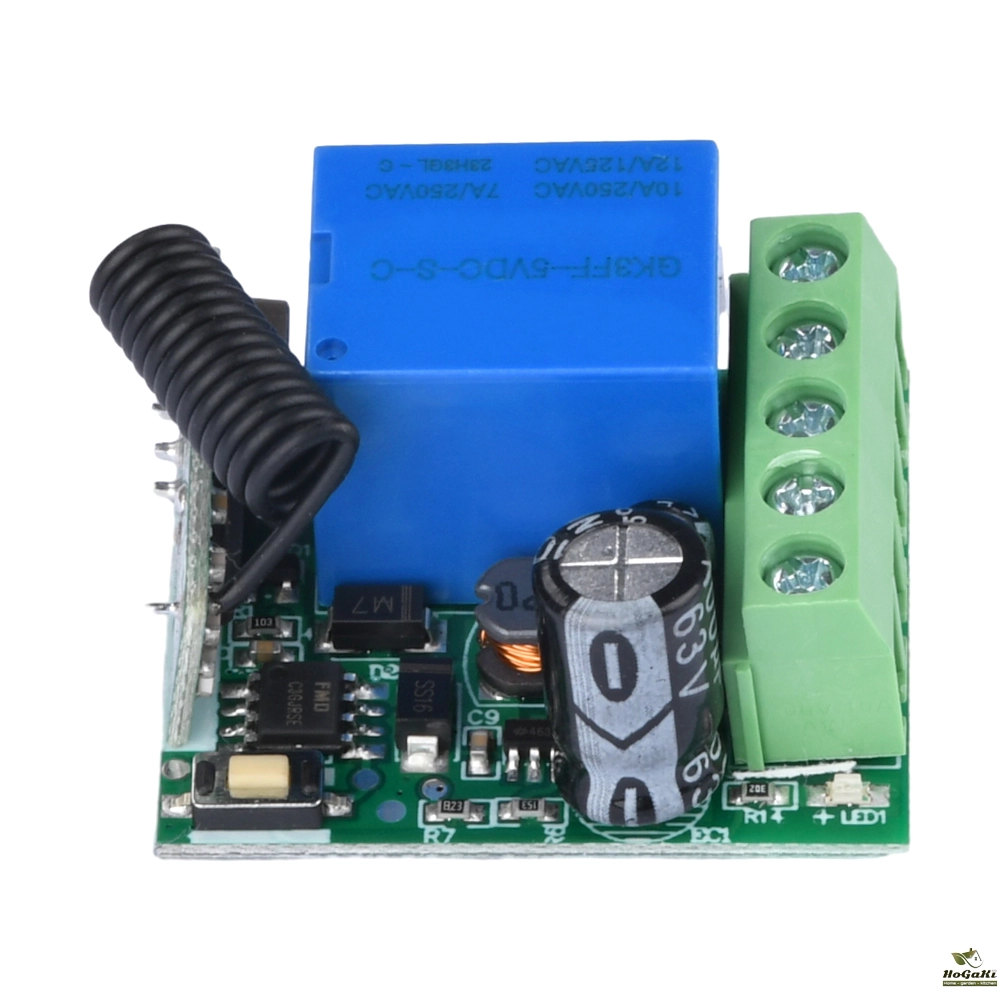

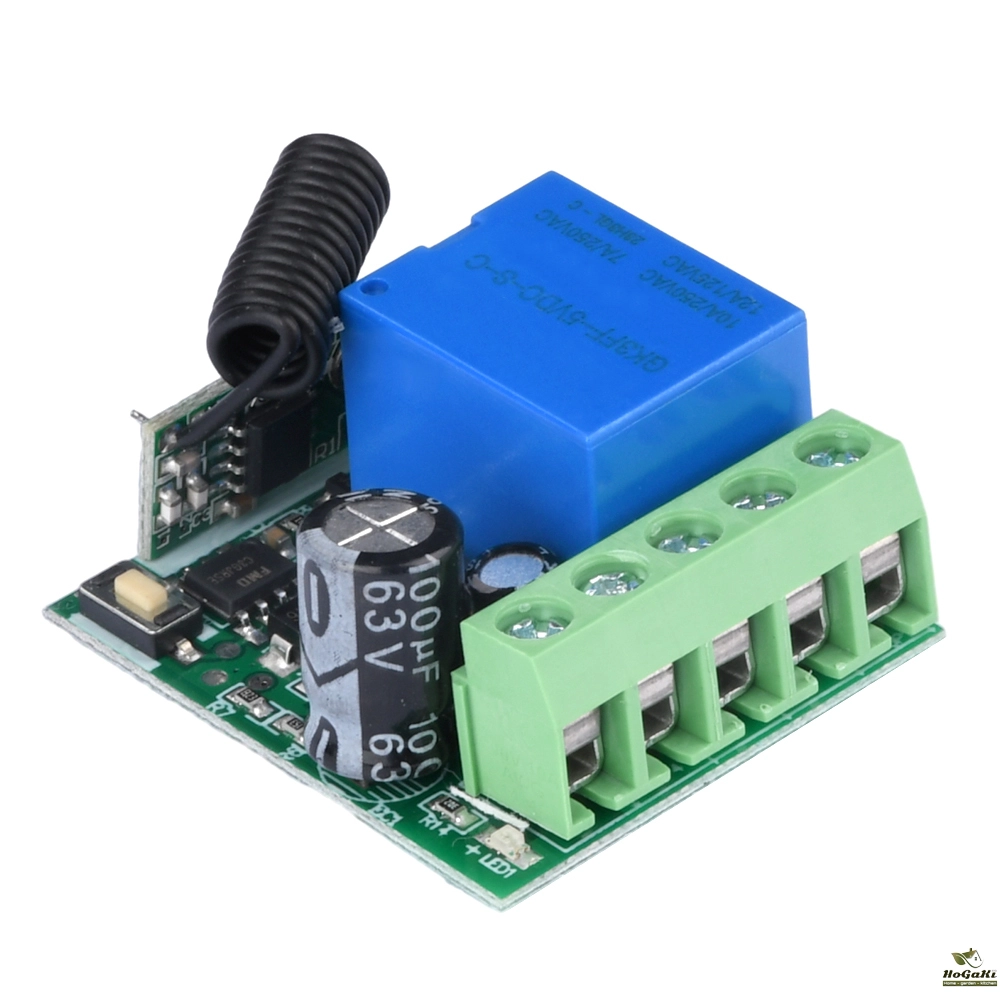

433Mhz Wireless Remote Control Switch DC5V9V12V24V60V Single Channel Attendance Access Control Machine Receiving Module Relay
5.0 (6 votes) | 24 orders
Price:
US $19.71
Discount Price:
US $
16.65
-16%
Features:
1. Use of high-quality materials, product quality is guaranteed
2. Exquisite and compact appearance, beautiful arrangement of components
3. Stable performance, wide voltage input of DC5-60V.
4. Easy to use, pointing/self-locking/interlocking can be set freely.
5. Wide range of applications, suitable for a variety of industrial DIY occasions
Parameter:
Working voltage: DC5-60V
Standby current: 8mA
Load recommendation: 10A relay (use to leave a margin) recommended load <90w, inductive load <50w and is not suitable for frequent start-stop

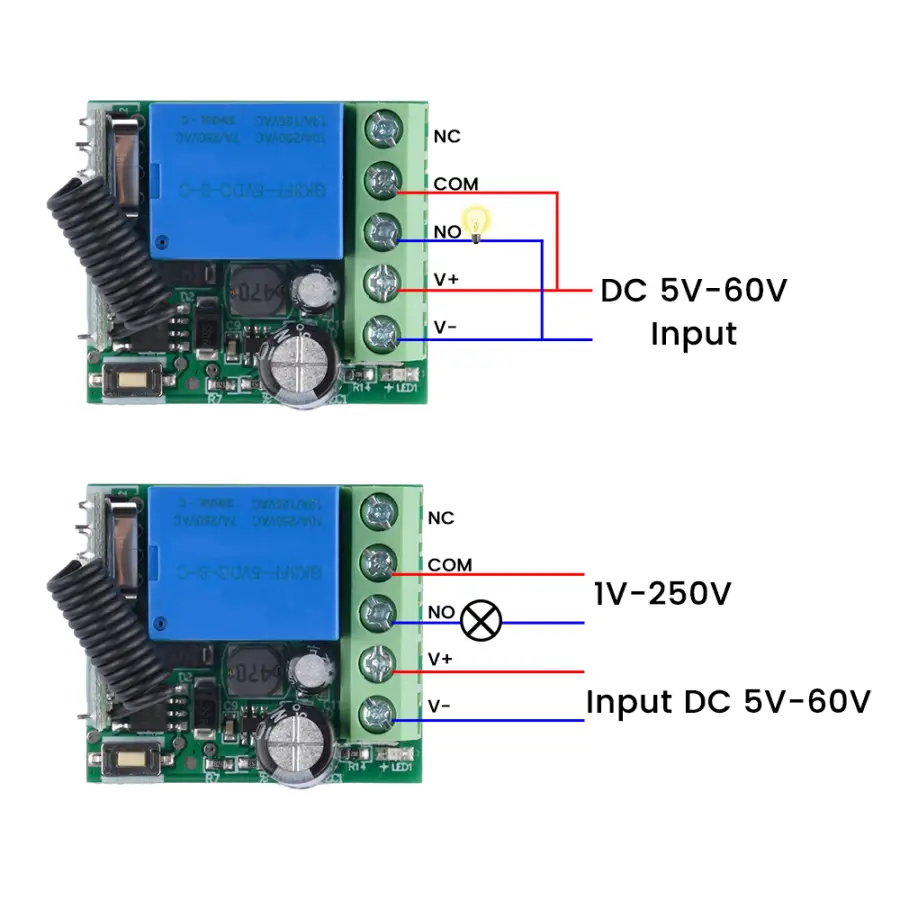

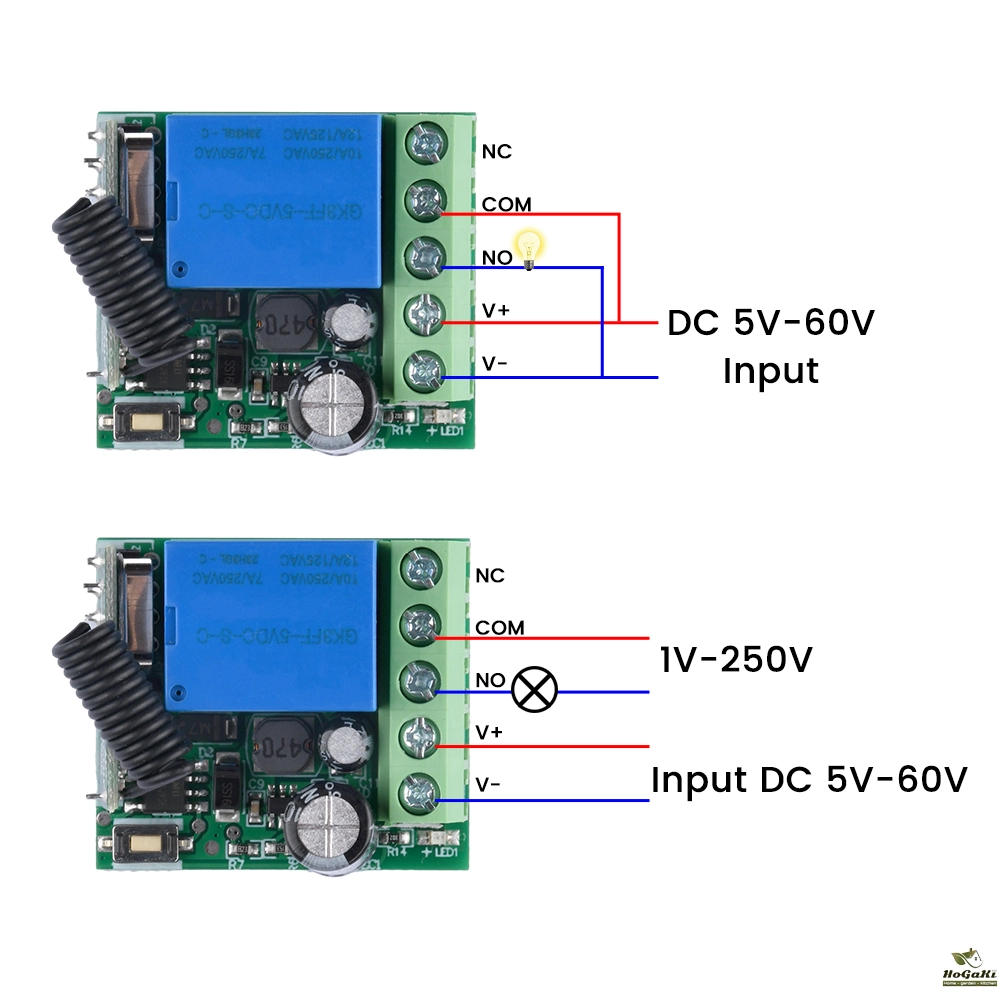

Output mode: touch output (can control AC, DC)
Standby current: 3.6mA~10mA
RF frequency: 433MHz
RF working mode: super differential reception
Receiving sensitivity: >97dbm
Remote reception distance: 50-1000 meters
Decoding mode: MCU software decoding
Modulation mode: ASK (anti-interference, strong transmission performance)
Number of remote controls can be stored: 20
Multiple working modes: Tap, self-locking, interlocking, time-delayed switching, incoming call to turn on the light (5 seconds, 10 seconds, 15 seconds, 20 seconds)
Support remote control type: intelligent learning 1527 learning code, 2262 fixed code
Working environment: 20~80℃

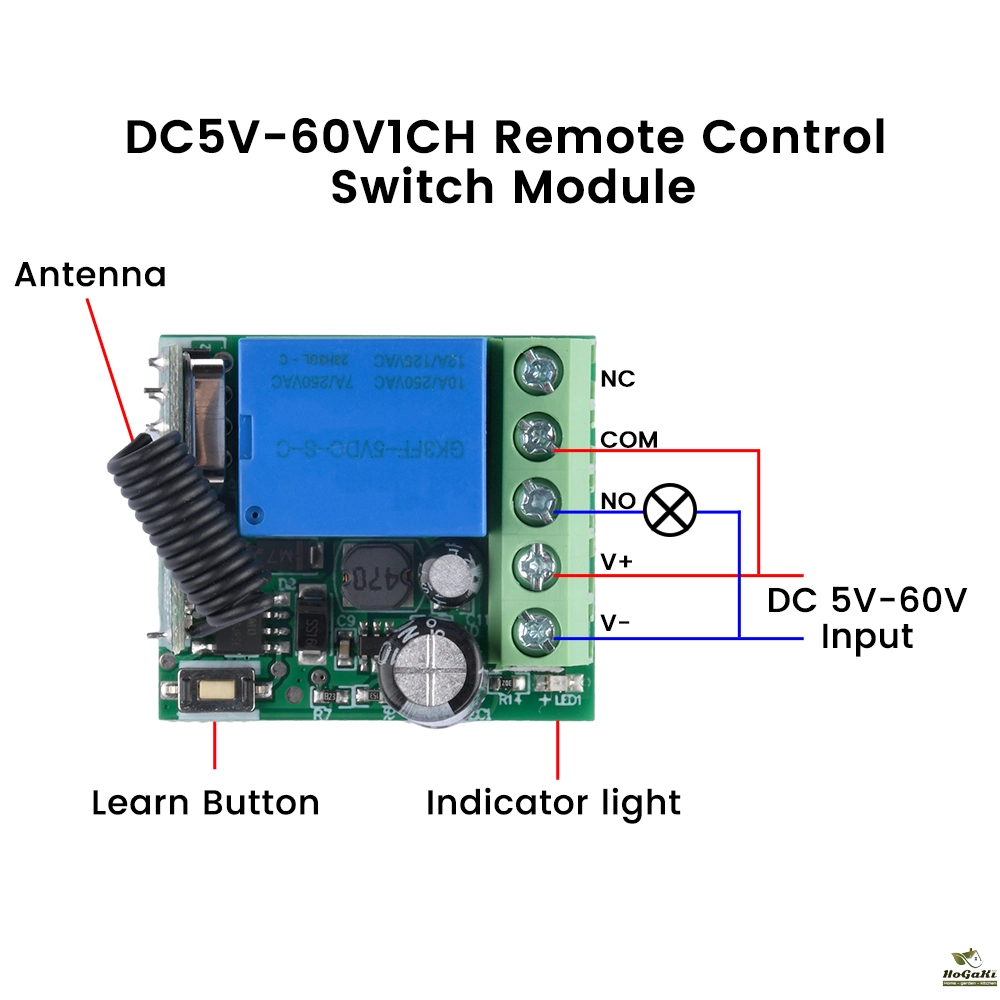

Operating instructions:

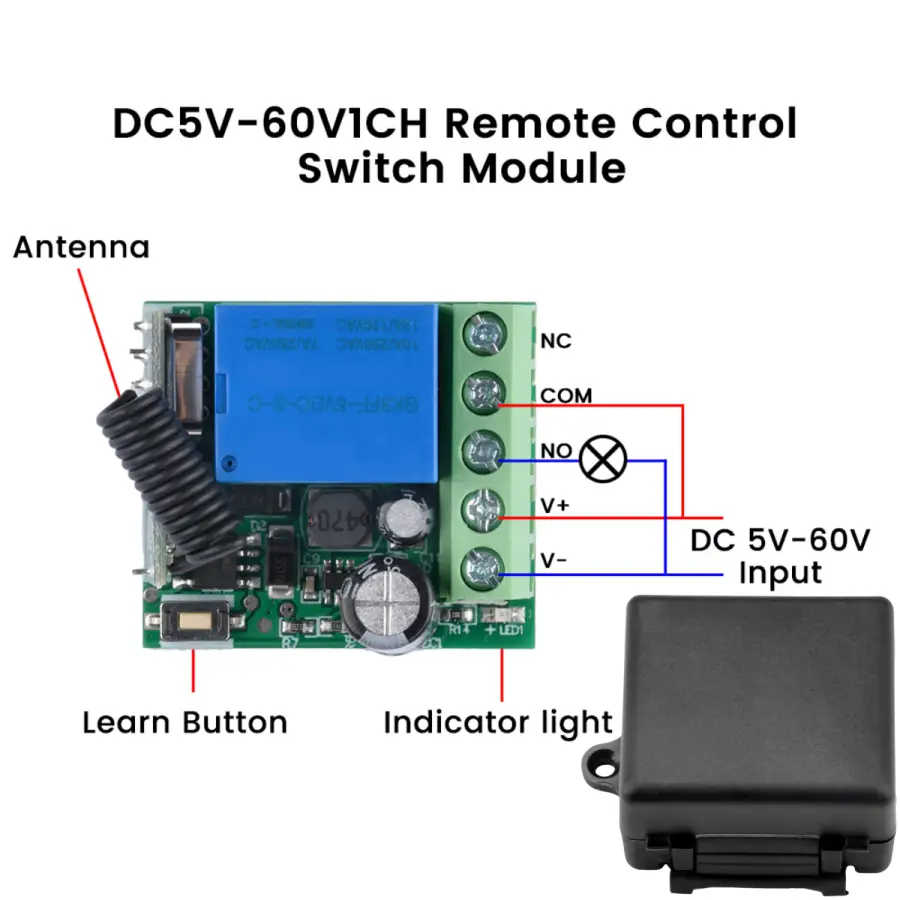

1. Clear code function: Press the control board to code button 8 times continuously, the LED indicator will flash 8 times along with it, at this time, the LED indicator will automatically flash 8 times continuously, then the clearing code will be completed, clearing all the previously learned remote control key codes.
2. Tap function: Press the control panel code button once, the LED indicator light will flash once, when the LED indicator light is on, press the remote control button that needs to be coded, the LED indicator light of the control panel will blink 3 times in a row, then the code will be successful.
3. Self-locking function: press the control panel code button 2 times in a row, the LED indicator light flashes 2 times, wait for the LED indicator light to light up and then press the remote control button that needs to code, the control panel LED indicator light flashes 3 times in a row and the code is successful.
4. Interlocking function: press the control panel code button 3 times continuously, the LED indicator light flashes 3 times, wait for the LED indicator light to light up and then press the remote control button that needs to be coded, the control panel LED indicator light flashes 3 times continuously and the code is successful.
5. 5 seconds delay: continuously press the control board to code button 4 times, LED indicator accompanied by blinking 4 times, and so the LED indicator light is lit and then press the remote control key that needs to be coded, the control board LED indicator blinks 3 times in a row to code successfully.
6. 10 seconds delay: continuously press the control board to code button 5 times, LED indicator accompanied by blinking 5 times, and so the LED indicator light is lit and then press the remote control key that needs to code, the control board LED indicator blinks 3 times to code successfully.
7. 15 seconds delay: continuously press the control board to code button 6 times, LED indicator accompanied by blinking 6 times, and so the LED indicator light up and then press the remote control key that needs to code, the control board LED indicator blinks 3 times to code successfully.
8. 20 seconds delay: continuously press the control panel code button 7 times, the LED indicator accompanied by blinking 7 times, wait for the LED indicator to light up and then press the remote control button that needs to be coded, the control panel LED indicator blinks 3 times in a row and the code is successful.
Attention
1. Please do not operate with electricity, the power should be turned off to operate, test to make sure that there is no error after the power to use.
2. When the remote control voltage is insufficient, please replace the battery in time (when the remote control battery voltage is insufficient, the general remote control distance becomes closer).
3. When using wireless electronic products should pay attention to avoid metal masks, large electronic equipment, electromagnetic fields and other strong sources of interference, to avoid the remote control and receiving a short distance or can not work properly.
4. Do not use this electronic product abnormally. Abnormal use will reduce the product performance and life, serious damage to the product will also bring hidden danger to your safety.
Package include:
Ultra-external differential receiver *1
Packaging Details
- Unit Type:
- Package Weight: 0.026

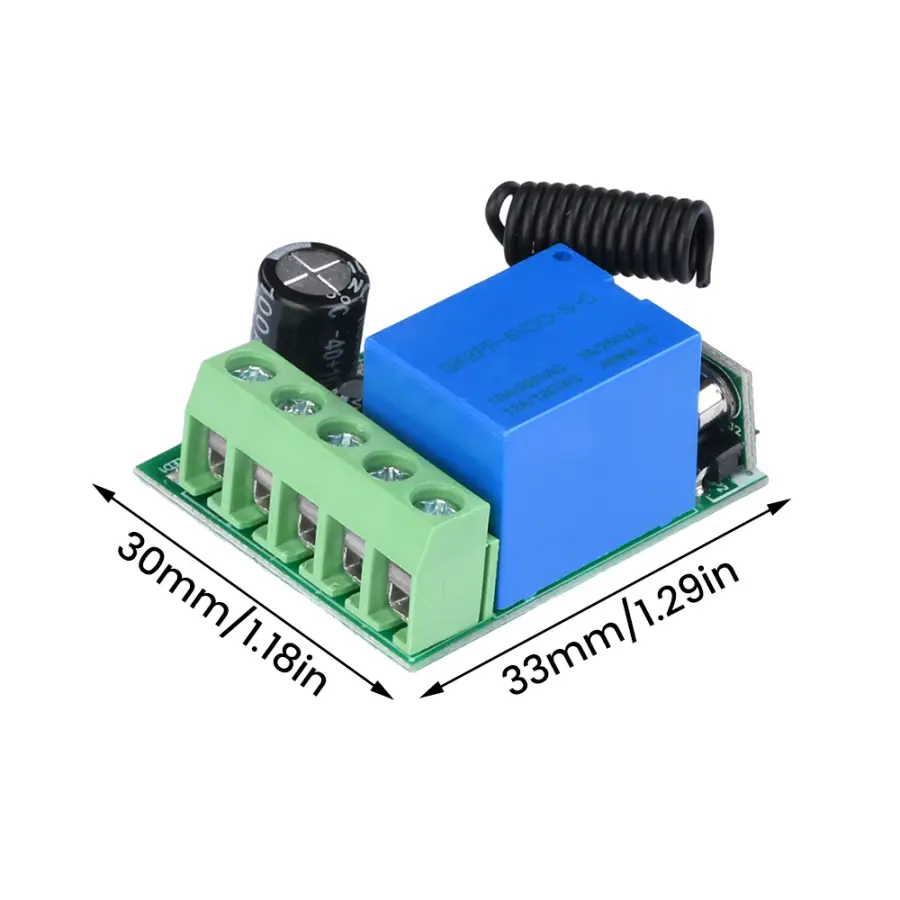

- Package Size: 3x2x4
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Model Number: 433Mhz Wireless Remote Control Switch
- Working voltage: DC5-60V
- Standby current: 8mA
- RF frequency: 433MHz
- RF working mode: super differential reception
