Hikvision DS-KV8113-WME1(C) 1 Button Metal Villa Door Station 2MP Camera with IR Built-in Card Reader Module PoE IK08 & IP65
0.0 ( votes) | 1 orders
Price:
US $531.82
Discount Price:
US $
295.37
-44%
Hikvision DS-KV8113-WME1(C) 1 Button Metal Villa Door Station
The KV8 series IP villa door station, designed with metal, supports multiple buttons to customize calling. Users can view, chat with, and send permission for the visitor via mobile phone in anywhere. The villa door station is powered by the standard PoE , and is no need to wire extra power supply, which is easy for installation and deployment. With high protective lev el, it is suitable for villa, detached house, etc.
2 MP camera with IR supplement
One nametag button calling design for easier calls
Built-in card reader module
Standard PoE power supply
IK08 & IP65 higher protection level with aluminum alloy material
Convenient Hik-Connect APP mobile control
General
Button1 physical button
InstallationSurface mounting
Indicator3
-
Weight
Net weight: 0.370 kg
Gross weight: 0.637 kg
Protective levelIP65, IK08
Working temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
Working humidity10% to 95% (no-condensing)

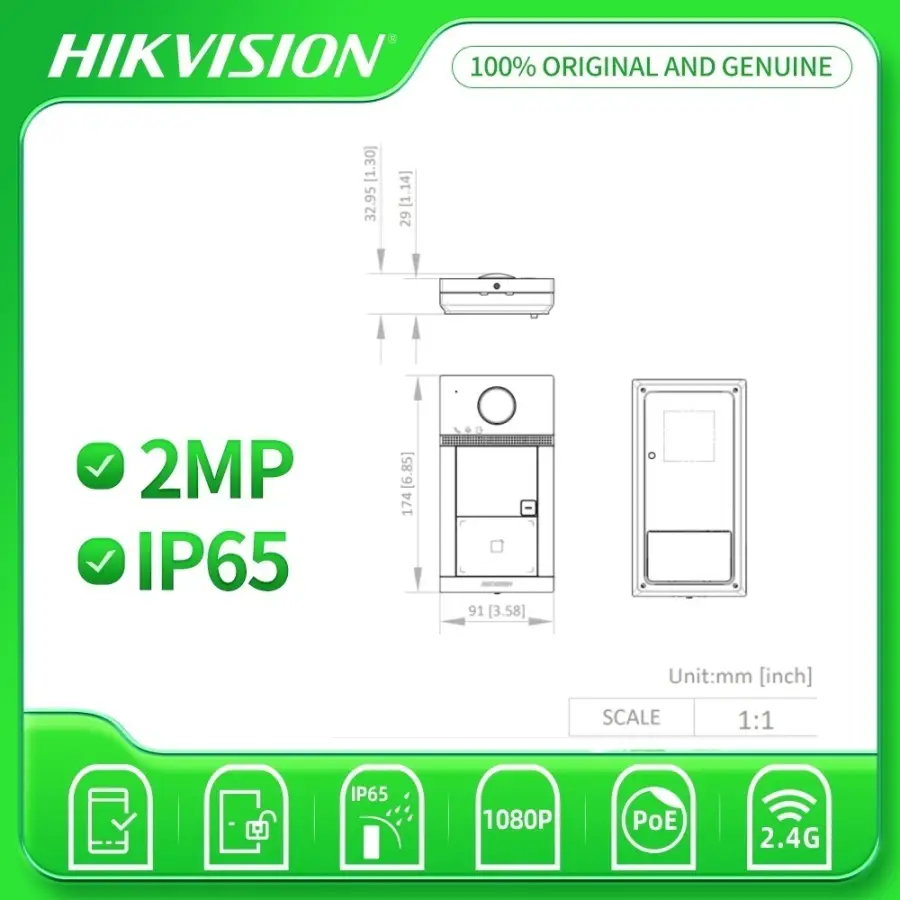

Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
Battery/
Application environmentOutdoor
Power consumption＜ 10 W
LanguageEnglish, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
Device interfaces
Alarm input4
Network interface1 RJ-45, 10/100 Mbps self-adaptive
TAMPER1
Exit button2
RS-4851
USB/
Wiegand/
TF cardReserved
Alarm output/
Lock control2 relays, Max. 30 VDC 2 A
Door contact input2
Authentication
Card reading frequency13.56 MHz
Network parameters
Network protocolTCP/IP, RTSP, ipv6, onvif
Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth/
3G/4G/
Received frequency2.4 to 2.4835 GHz
Transmitted frequency2.4 to 2.4835 GHz
Bandwidth20/40 MHz
-
Frequency power
802.11b:15 dBm +/- 1.5 dBm
802.11g:15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
Capacity
User capacity2000
Card capacity10000
Linked indoor station capacity1 (main indoor station)
Sub door station capacity16
Audio parameters
Audio input1 built-in omnidirectional microphone
Audio compression standardG.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1
Audio output1 built-in loudspeaker
Audio compression bitrate64 Kbps
Audio qualityNoise suppression and echo cancellation
Volume adjustmentAdjustable
Video parameters
Lens1
-
Resolution
Main stream:1920 × 1080p and 1280 × 720p
Sub stream: 640 × 480p
FOVHorizontal: 124° Vertical: 75°
Wide dynamic range (WDR)Digital WDR/76.9 dB
Supplement lightIR light, up to 3 m
Video compression standardH.264; h.265; MJPEG
Display parameters
Screen size/
Operation method/
Type/
Resolution/
System parameters
Operation systemLinux
ROM32 MB
RAM256 MB
ProcessorEmbeded high performance processor
Packaging Details
- Unit Type:
- Package Weight: 0.760
- Package Size: 10x5x20
- Brand Name: hotal
- Hign-concerned Chemical: None
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE
- Certification: FCC
- Certification: KC
- Model Number: DS-KV8113-WME1(C)
