405nm Continuous B30635 Laser Engraving Module With TTL / PWM Modulation for laser engraving machine, CNC, DIY laser, Arduino
0.0 (1 votes) | 5 orders
Price:
US $360.35
/ piece
Discount Price:
US $
205.60
/ piece
-43%
- Color
-
-
Speciation

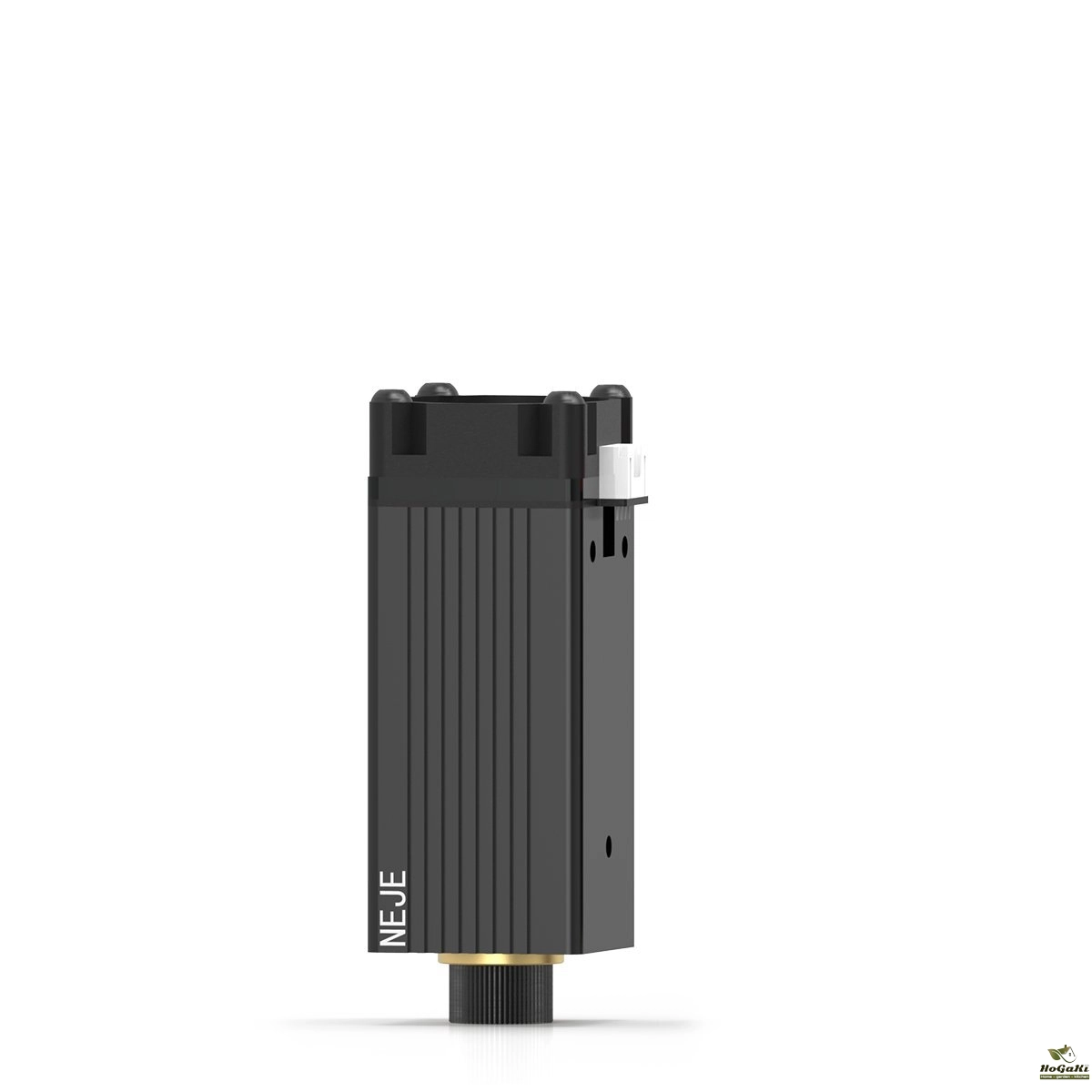

Model： NEJE Module 3500MW
Heatsink Material： Aircraft Aluminum + Brass Shell
Laser diode：sharp 350mw 5.6mm laser diode (The maximum power 405nm 5.6mm laser diode)
(Real 500mw continuous work,The other seller 500mw is Nichia 3.8mm laser with a power of only 200mw)
LD current： 350mA
Luminous Color： Blue
Section Size： 30mm x 30mm
Cooling Mode： 20mm copper core + Heat Sink Groove+ Thermal silicone grease + 10000 rpm cooling fan

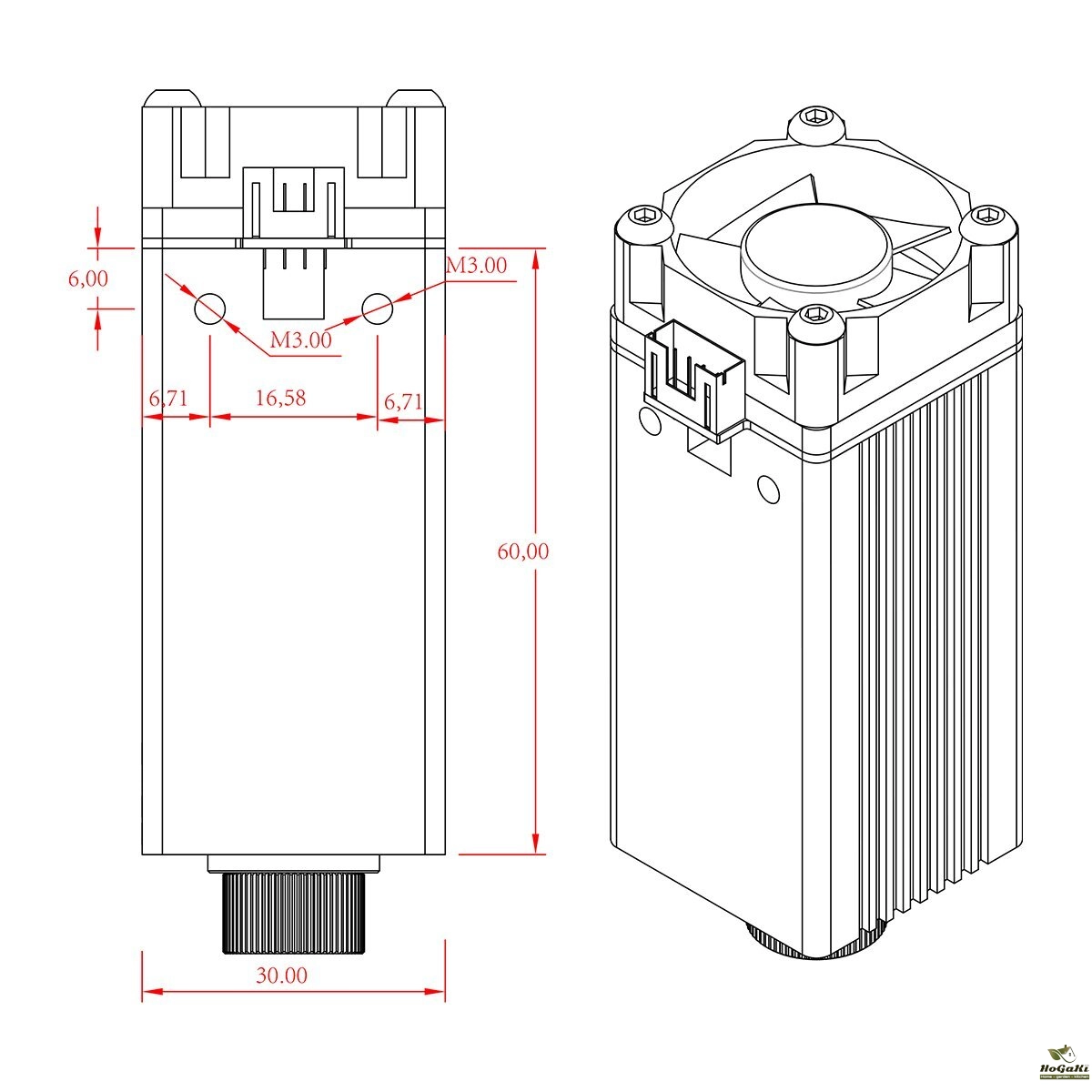

Dimension： 60 * 30 * 30mm
Adapter Output Voltage： DC 12V 2A
Can Engrave： MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave： Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Module Input： 3500MW
Laser Output Power： 500MW
Wavelength： 405nm
Beam Shape： Dot (Focusable)
Working Voltage： DC 12V
TTL&PWM Modulation： YES, Compatible with Both TTL & PWM Modulation
Input Voltage： DC12V
PWM/TTL Input： DC3.3V-12V

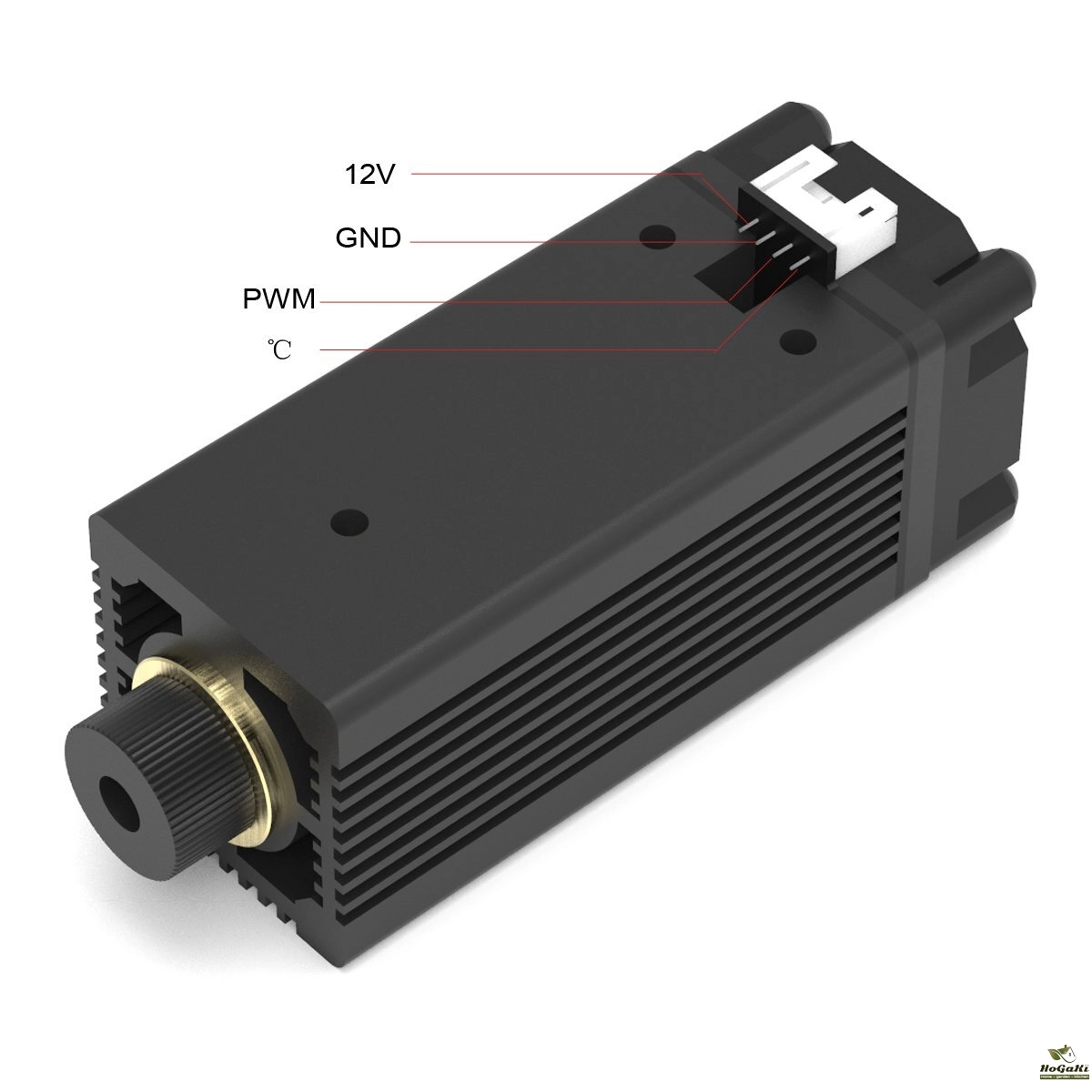

Input Interface： PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE： Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode： External ACC
Safe temperature range： <70 ℃
Module weight： 115g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time： 20,000 hours
Features（Unique technology）

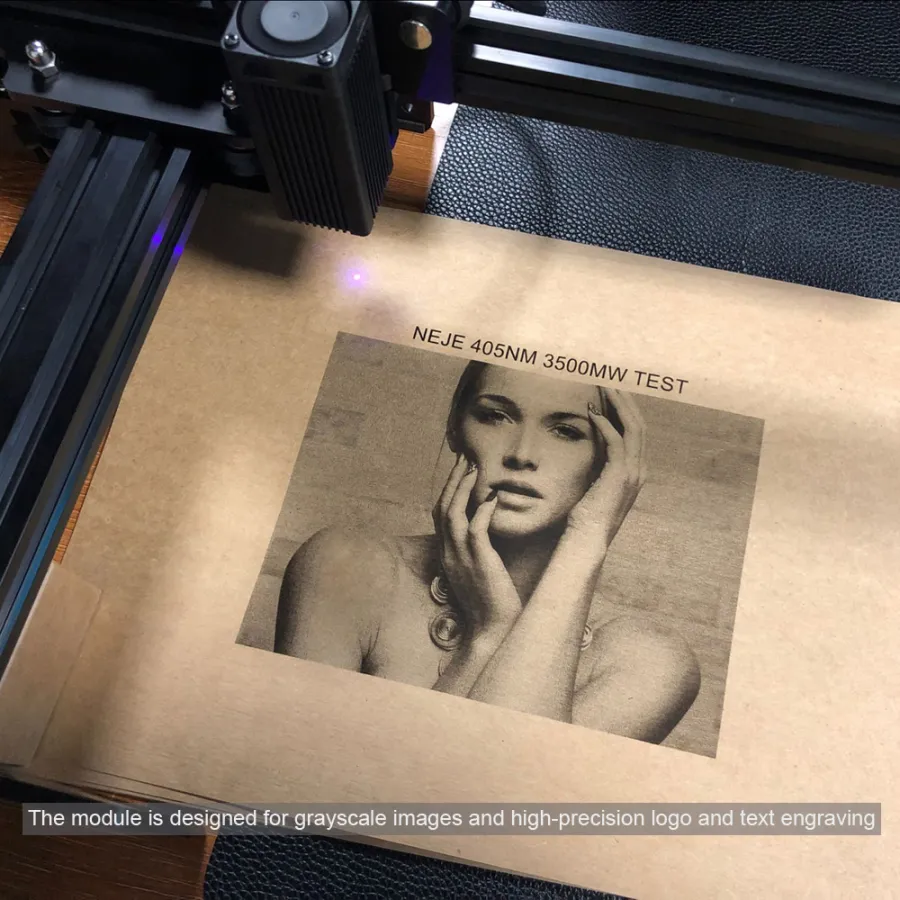

Can be used for laser cutting machine, laser engraving machine, CNC, DIY laser.
Original laser diodes, High-quality, Ensure service life！

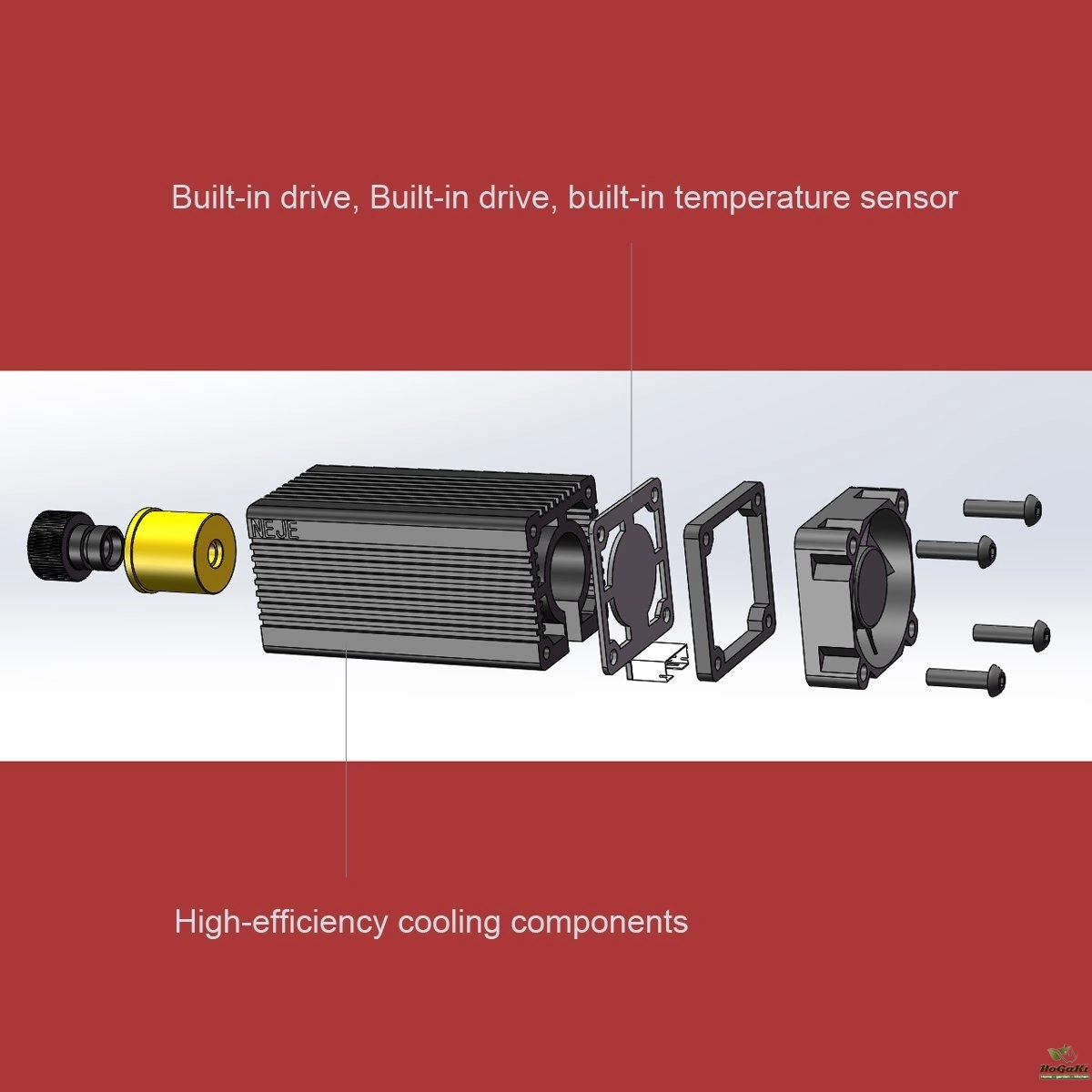

Built-in driver board, 20mm threaded copper core with thermal grease compound, Temperature sensor，NEJE factory 48 hours 100% power aging test, Ensure long time working！
New lens, Clear focus, Not stray light, Adjustable focal length.
Can carving MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam paper, anodized aluminum, etc.(Not suitable for iron or other metal)
Note(Please pay attention)
Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!
Do not engrave mirror objects，Pay attention to fire，Pay attention to pets when working！
Smoke will be generated when burned, please pay attention to smoke exhaust indoors.
The warranty period of the laser module is one year. If you have any quality problems (Except individual situations like using the laser module more than 30 minutes per time and cause damage ), please feel free to ask our customer service for help.
If your laser module has any problem, please DO NOT dismantle it without our permission. It will destroy the laser module.
If you have any quality problem with the machine, please feel free to contact us. Many operative problems can be solved according to your video and problem description. Thank you in advance.
This laser module is compatible with our NEJE machine.

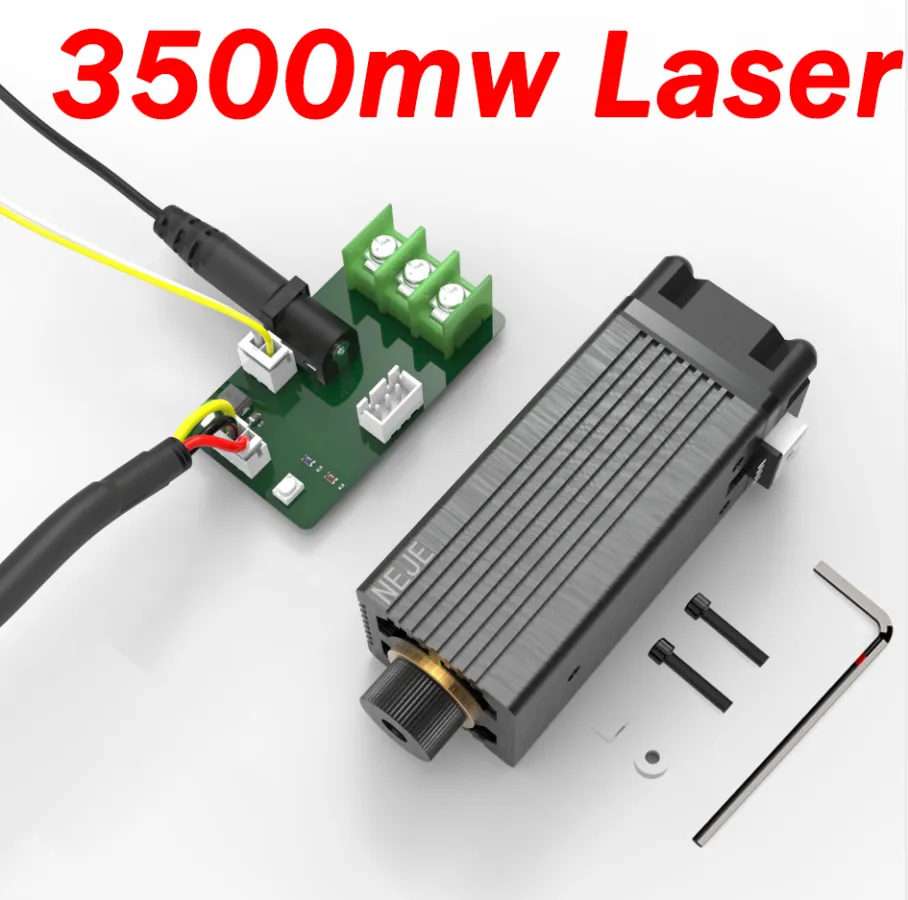

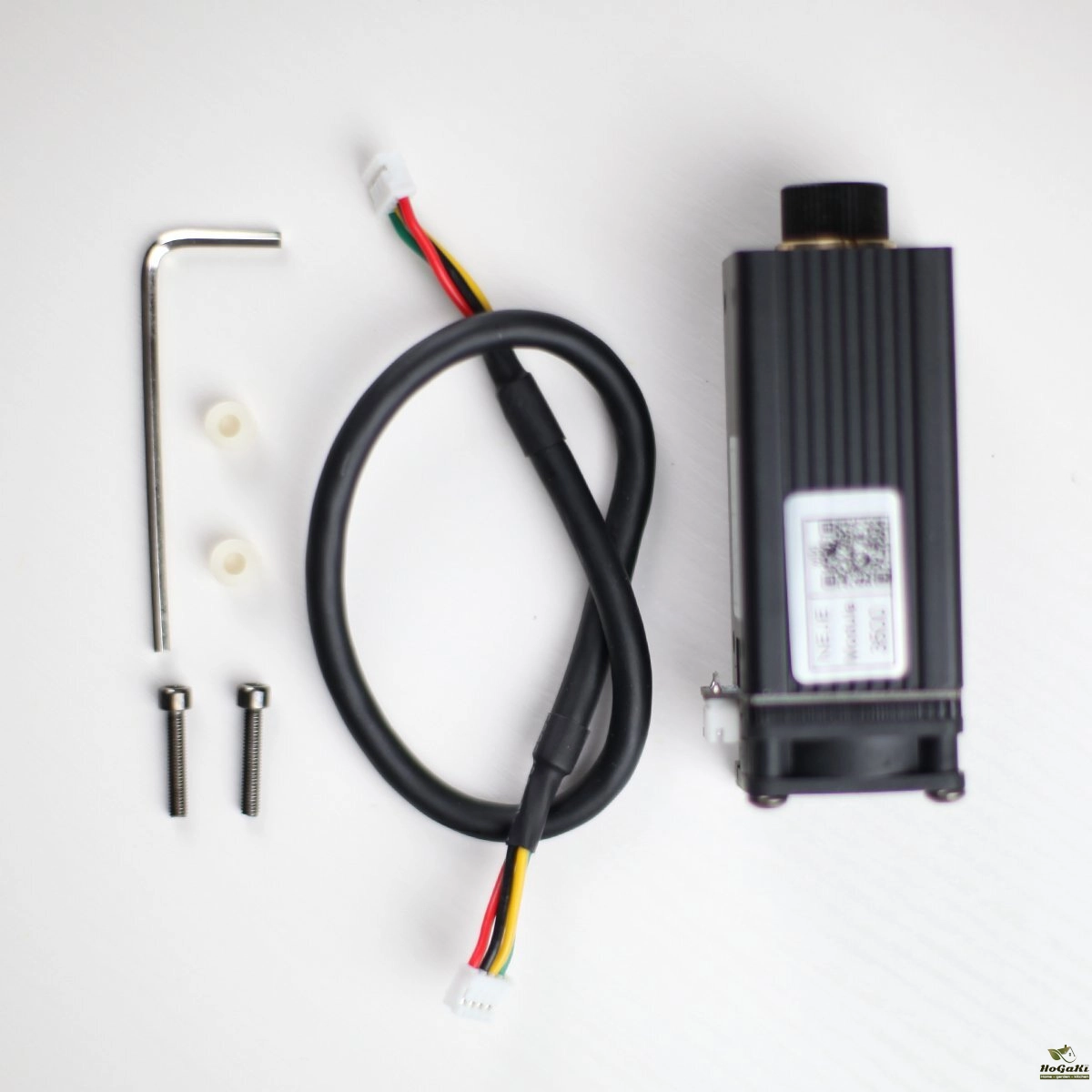

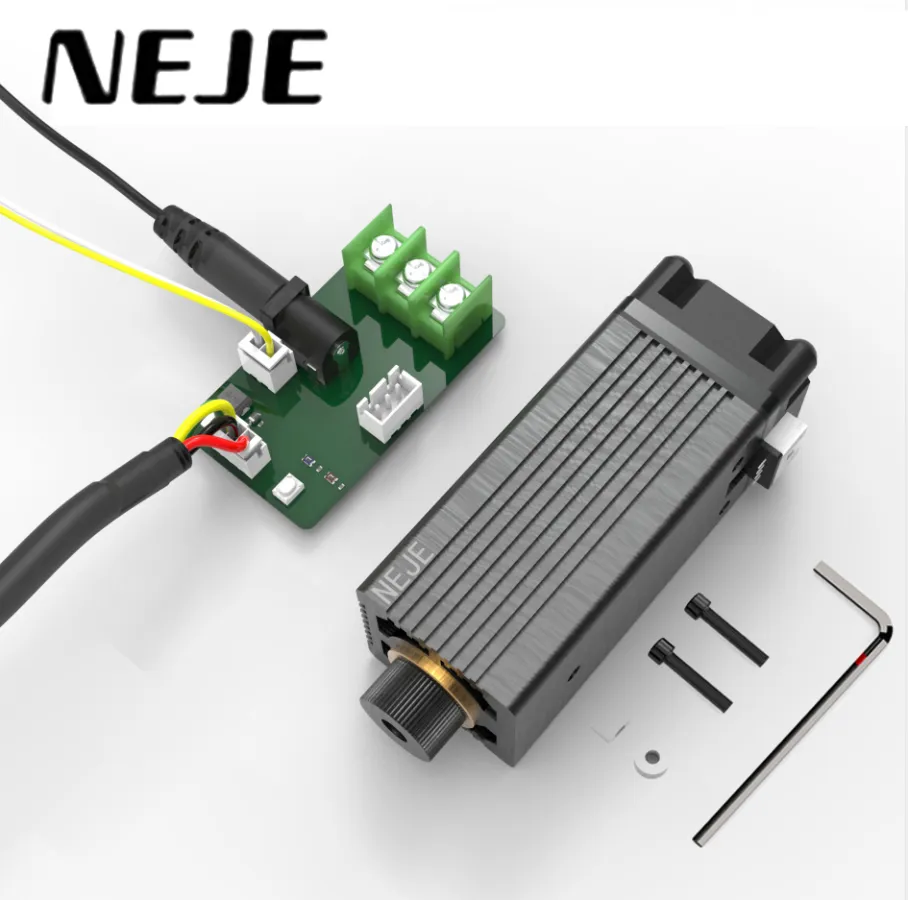

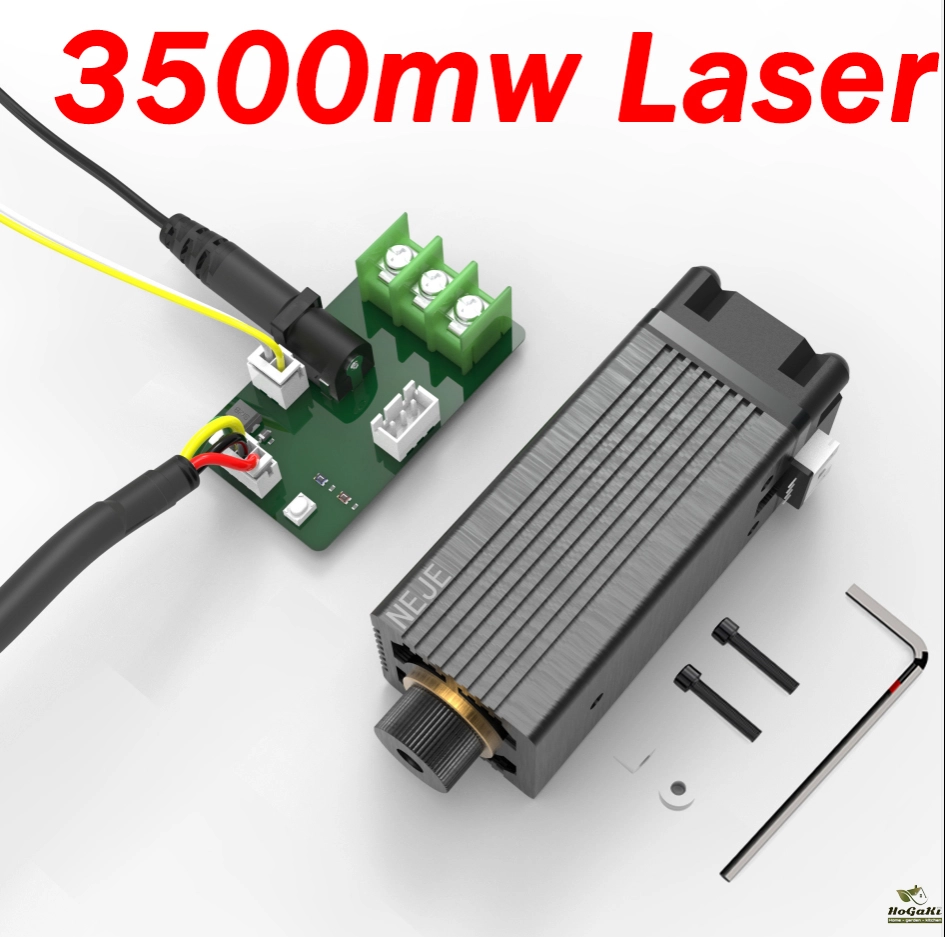

Package Included
1 x 3500MW Laser Engraving Module
2 x Screw
2 x ABS cushion post
1 x L-shaped wrench

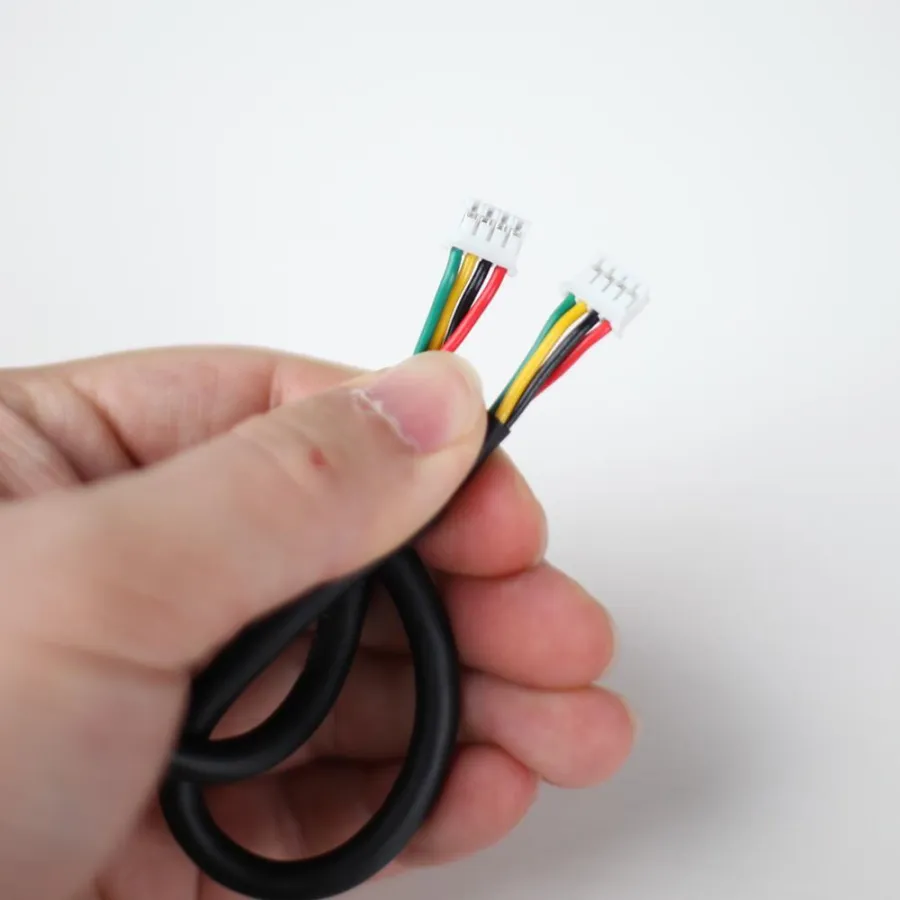

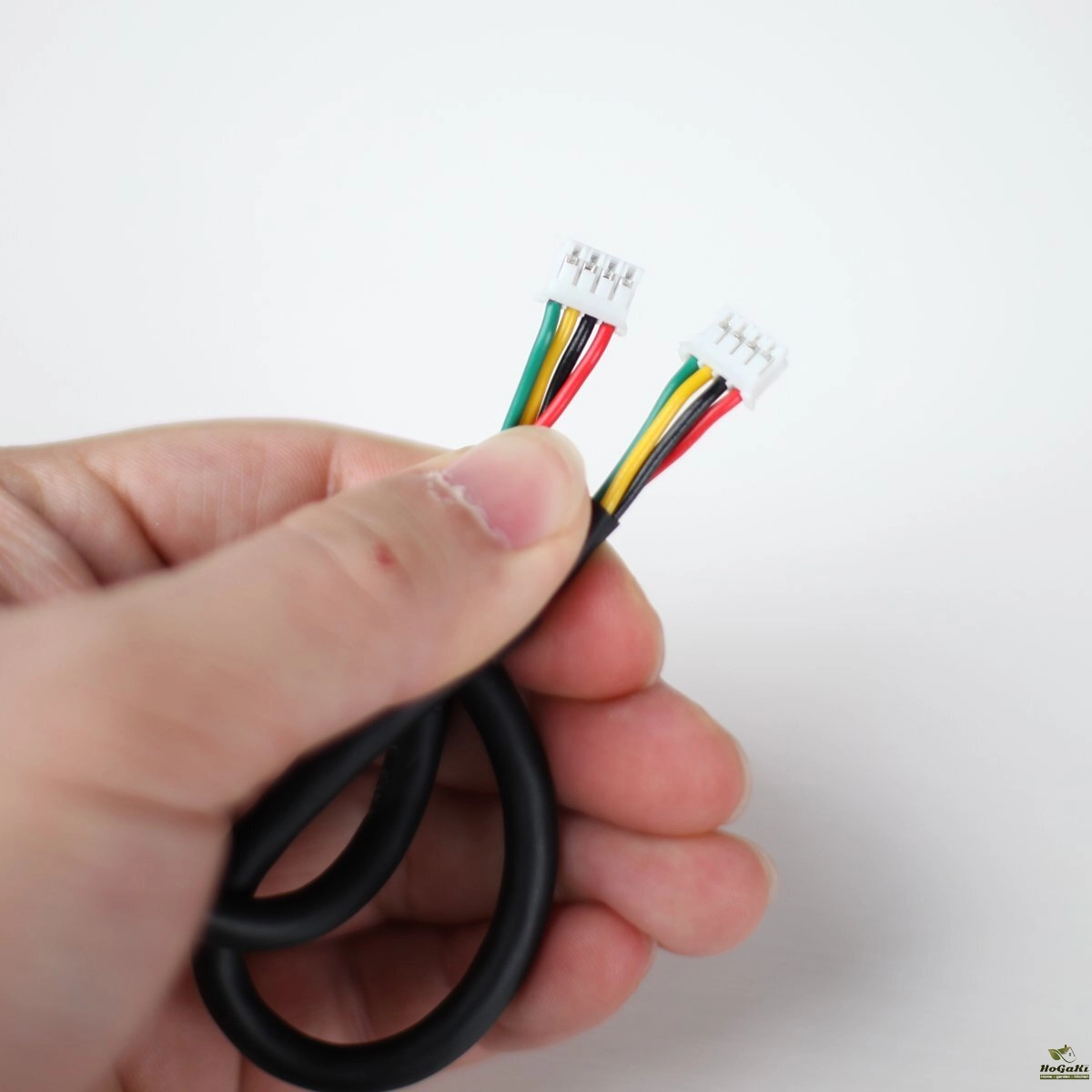

1 x 4 Pin Cable(300mm Sports Cable)
1 x NEJE Digital PWM Wave Pulse Signal Generator Adjustable board
Please note
If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.
Do not accept bad reviews and disputes due to tariffs.
Packaging Details
- Unit Type: piece
- Package Weight: 0.400
- Package Size: 11x6x16
- Brand Name: NEJE
- Certification: CE
- Origin: Mainland China
- Model Number: NEJE MASTER
