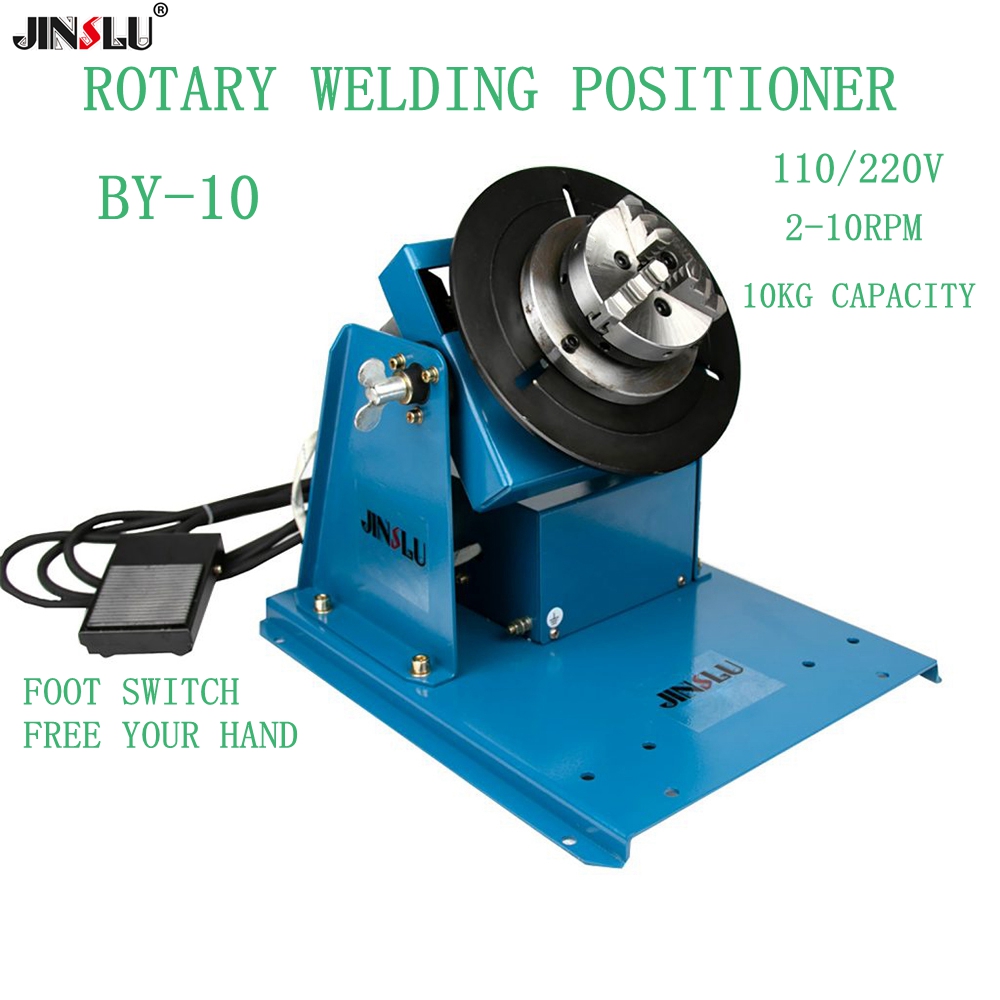

110V/220V BY-10 10kg Pipe Rotary Rotating Turn Table Weld Positioning Rotation Equipment Small Turntable Welding Positioner
1,386.48 1,180.40 $
ID: 13676
Quantity
110V/220V BY-10 10kg Pipe Rotary Rotating Turn Table Weld Positioning Rotation Equipment Small Turntable Welding Positioner
0.0 ( votes) | 2 orders
Price:
US $1386.48
/ piece
Discount Price:
US $
1180.40
/ piece
-15%

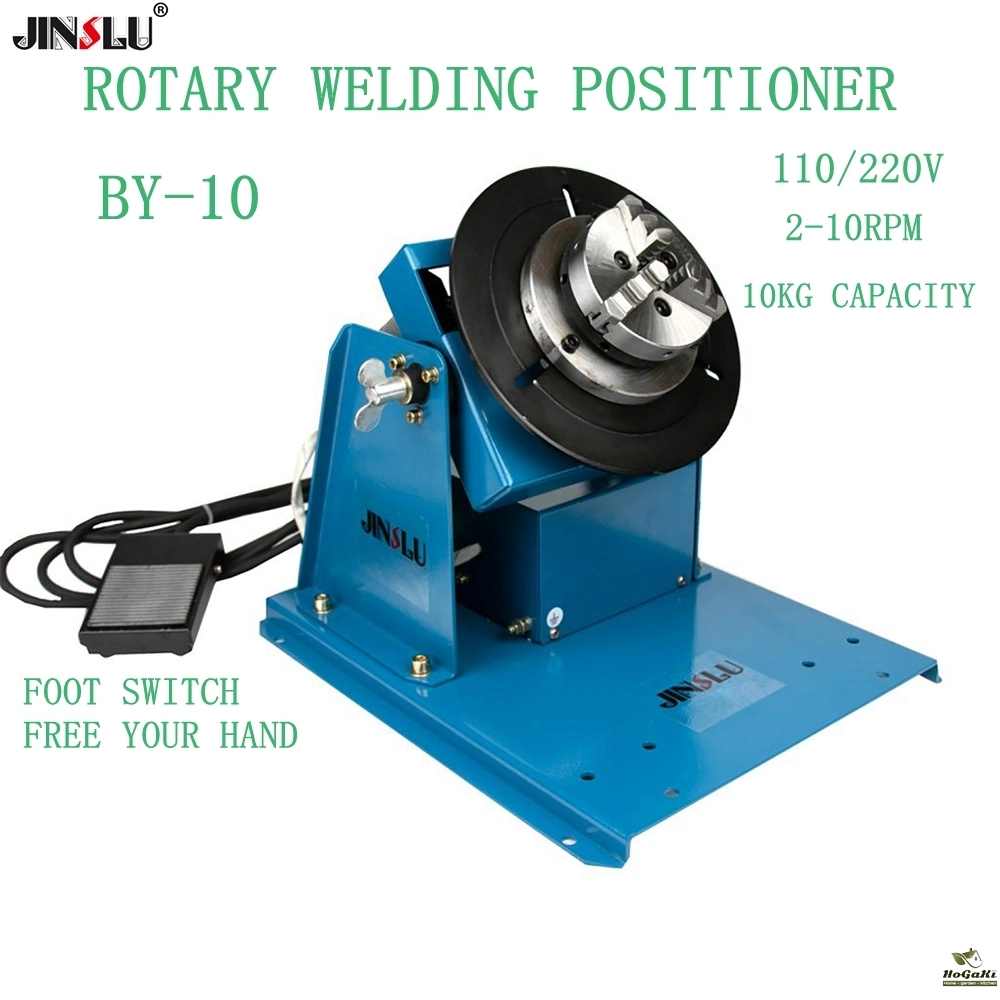

110V/220V BY-10 10kg Pipe Rotary Welding Positioner Rotating Turn Table Weld Positioning Rotation Equipment Small Turntable

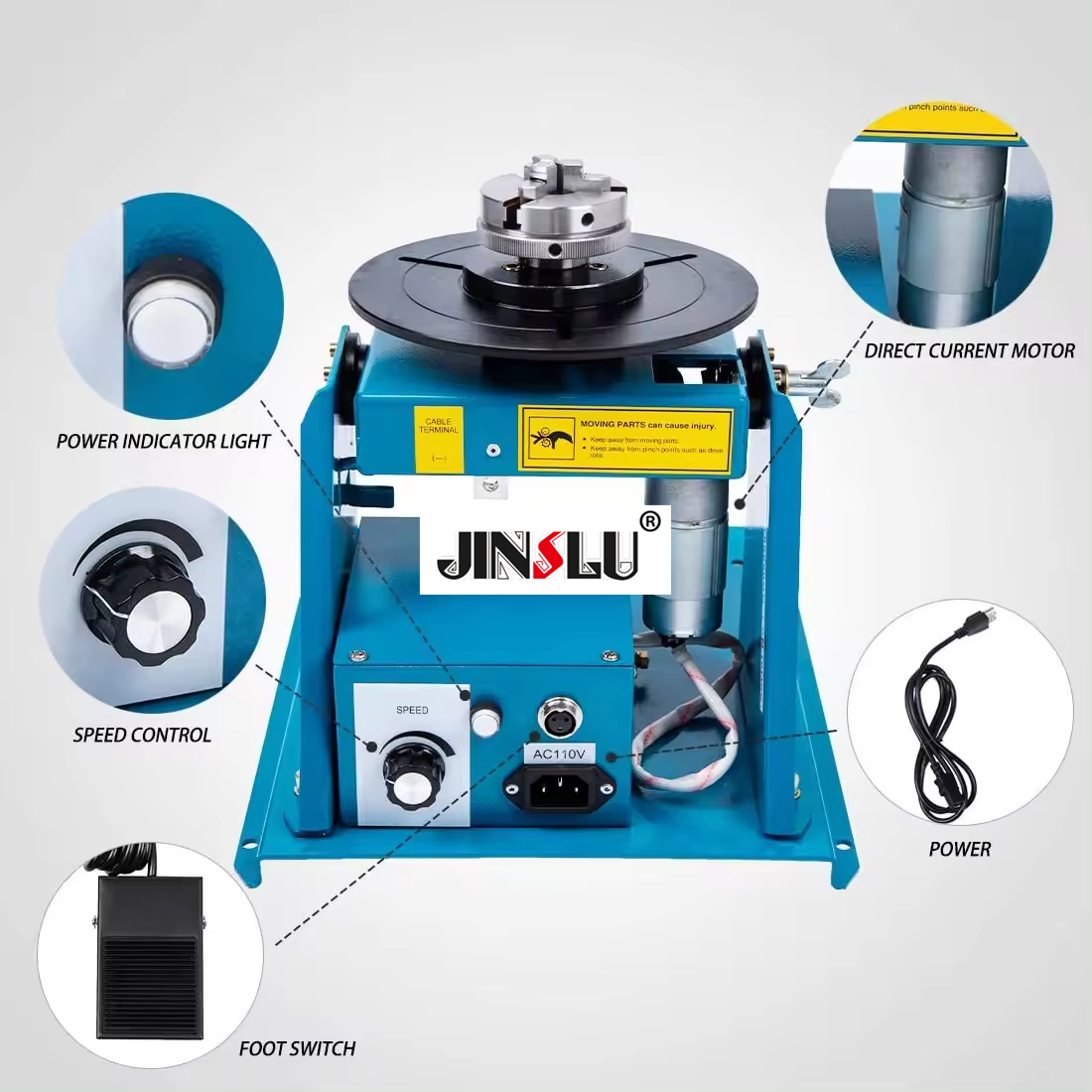

Packing list:
BY-10 welding positioner 1set
K01-65 chuck 1set
BY-10 welding positioner 1set
K01-65 chuck 1set
Foot switch 1pcs

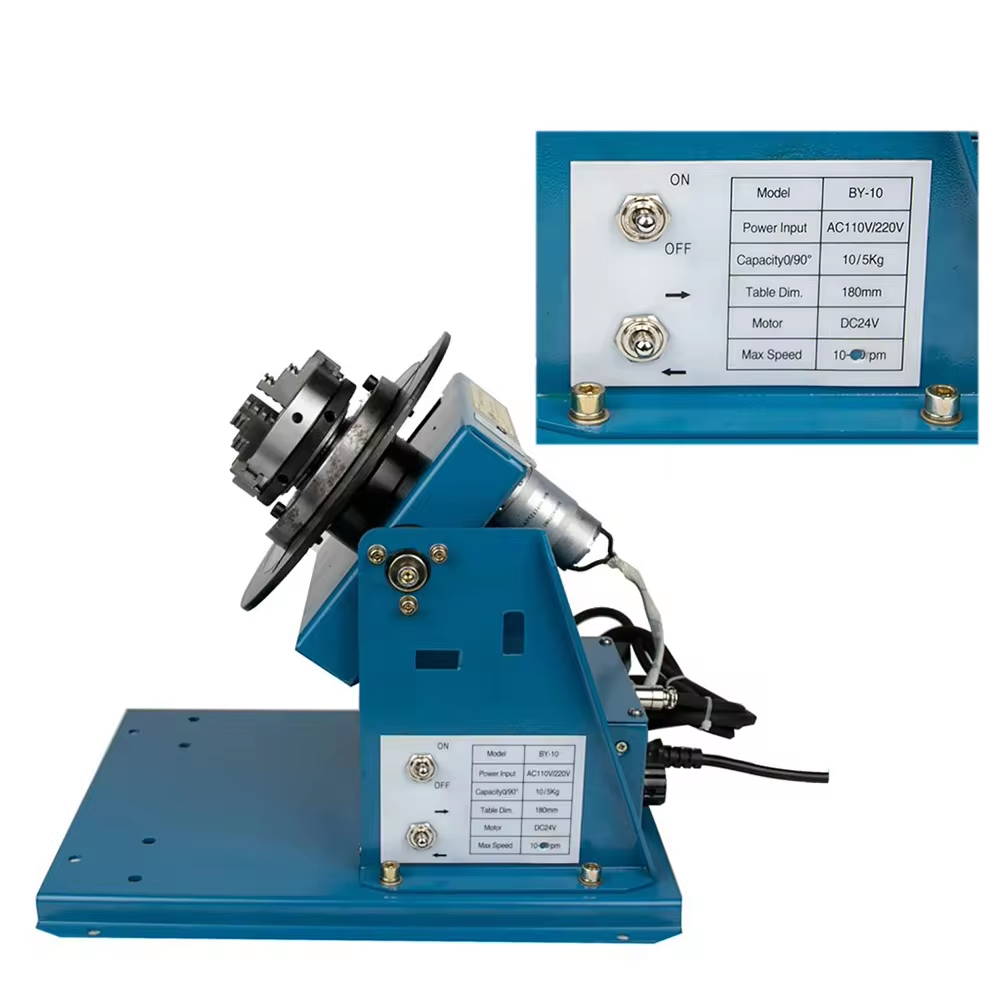

BY-10 Parameter:
1、Power input : AC 220V 50/60Hz

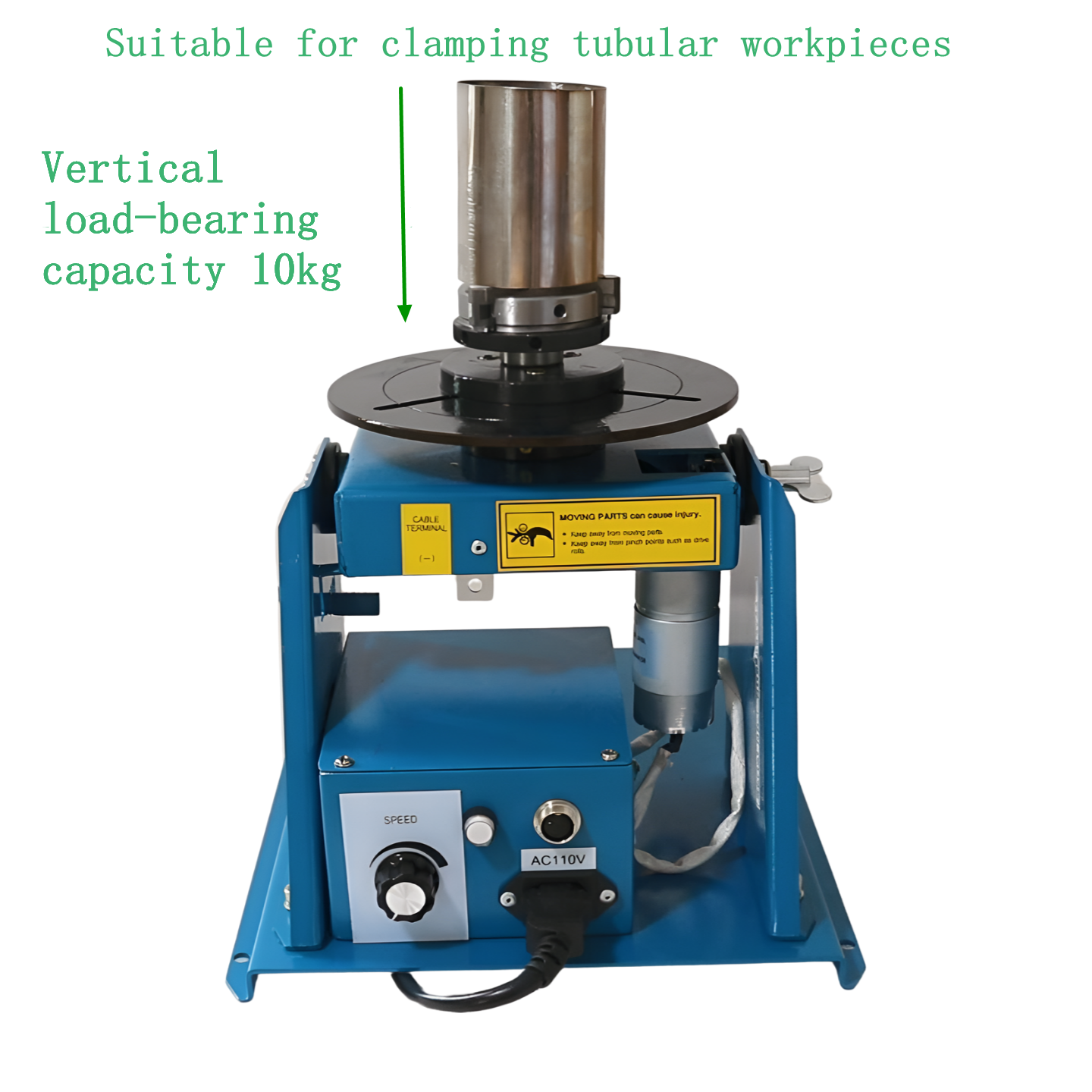

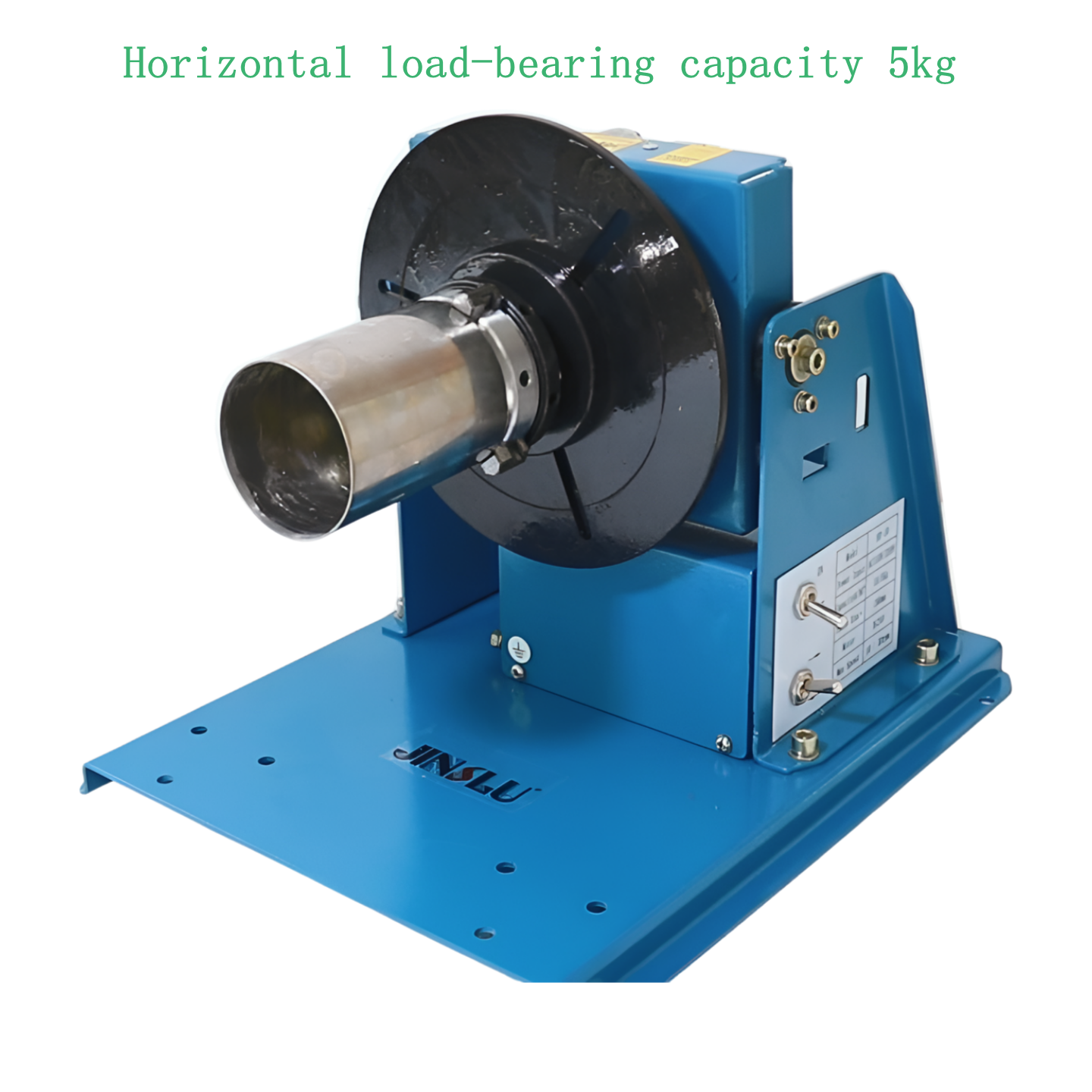

2、Capacity(horizontal/vertical):10kg/5kg
3、Table dimension: 180mm
4、Table height:215mm
5、Rotation speed :1-12rpm
6、Tilt range :0-90°
7、Tilt mode :manual
8、Drive motor :20W
9、Over dimension :370*270*215mm
BY-10 Parameter:
1、Power input : AC 220V 50/60Hz
2、Capacity(horizontal/vertical):10kg/5kg
3、Table dimension: 180mm
4、Table height:215mm
5、Rotation speed :1-12rpm
6、Tilt range :0-90°
7、Tilt mode :manual
8、Drive motor :20W
9、Over dimension :370*270*215mm
Here is the video to show you the lowest and max speed. Please copy and paste to see.
Chinese Youtube:
v.youku.com/v_show/id_XMTMzODEwNzU1Ng==.html
Youtube:
Instruction:

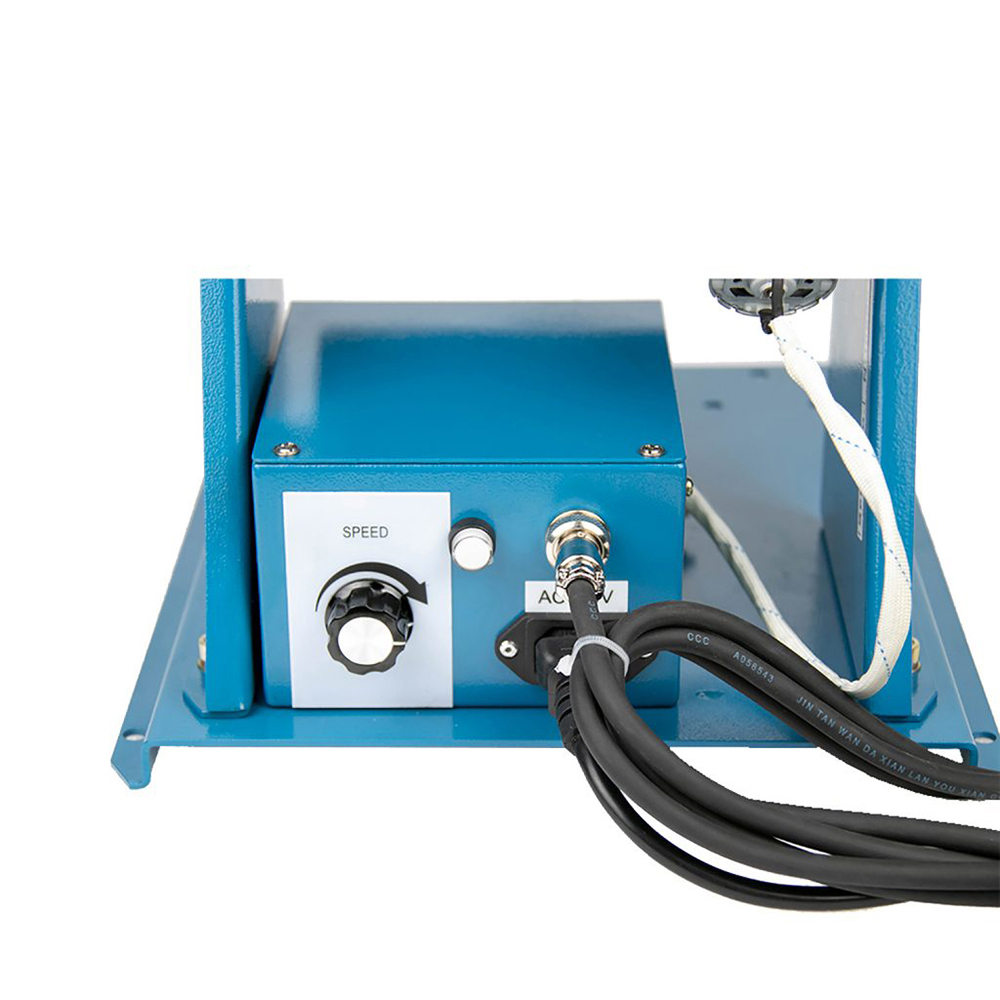

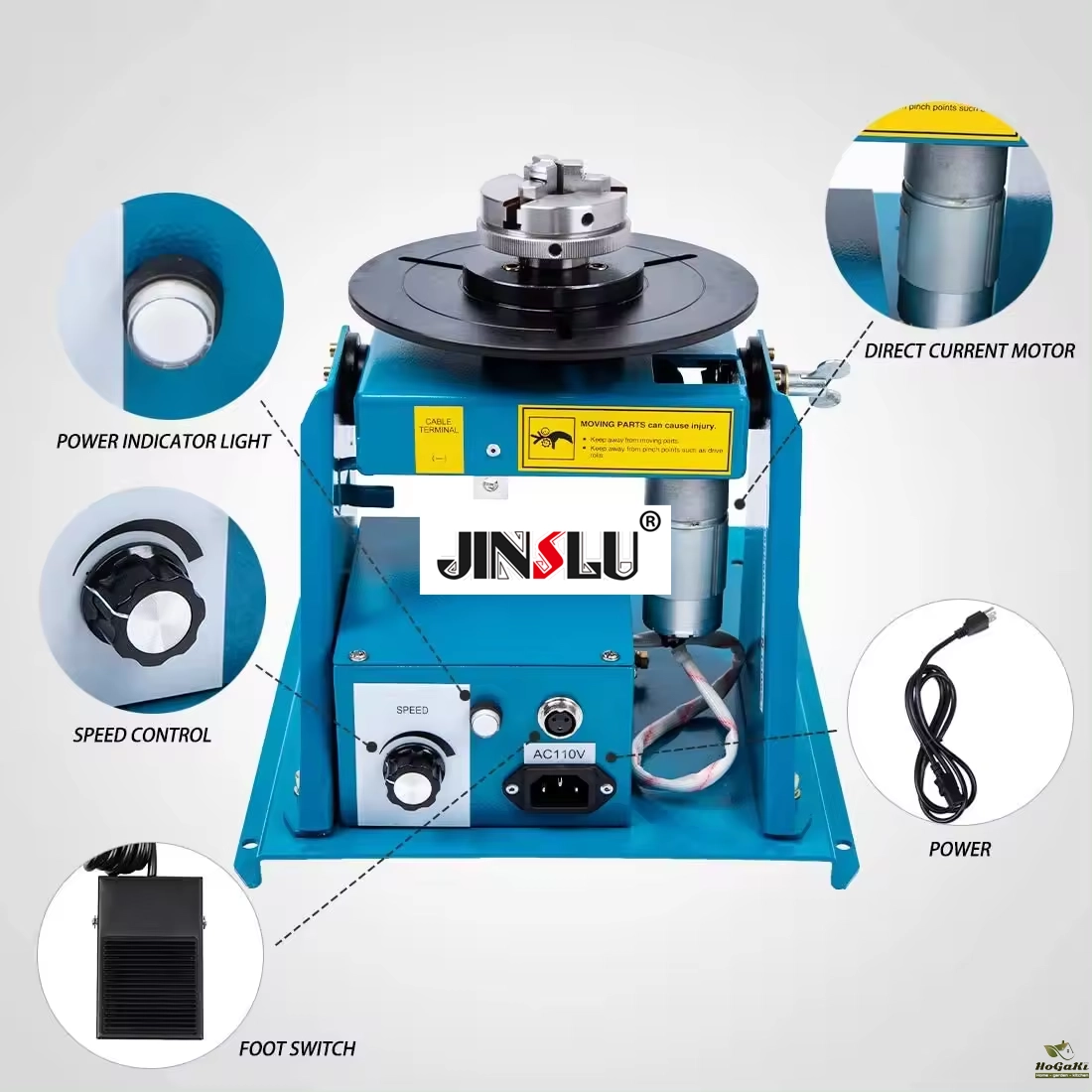

The rotation structure is driven by name-brand DC motor, while stepless speed regulation can be achieved
The tile range of rotary table is 0~90, worker can set the shaft, so the welding at arbitrary angle can be achieved.
Special design of anti-electromagnetic, which reduce the high frequency interference of TIG’S welding, at the same time can improve the welding quality effectively.
A time- controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
The adjustable-welding gun support can be furnished to fix the position of the welding torch.
The welding chuck and air-powered tailstack can be furnished to achieve the function of self holding to the workpiece.

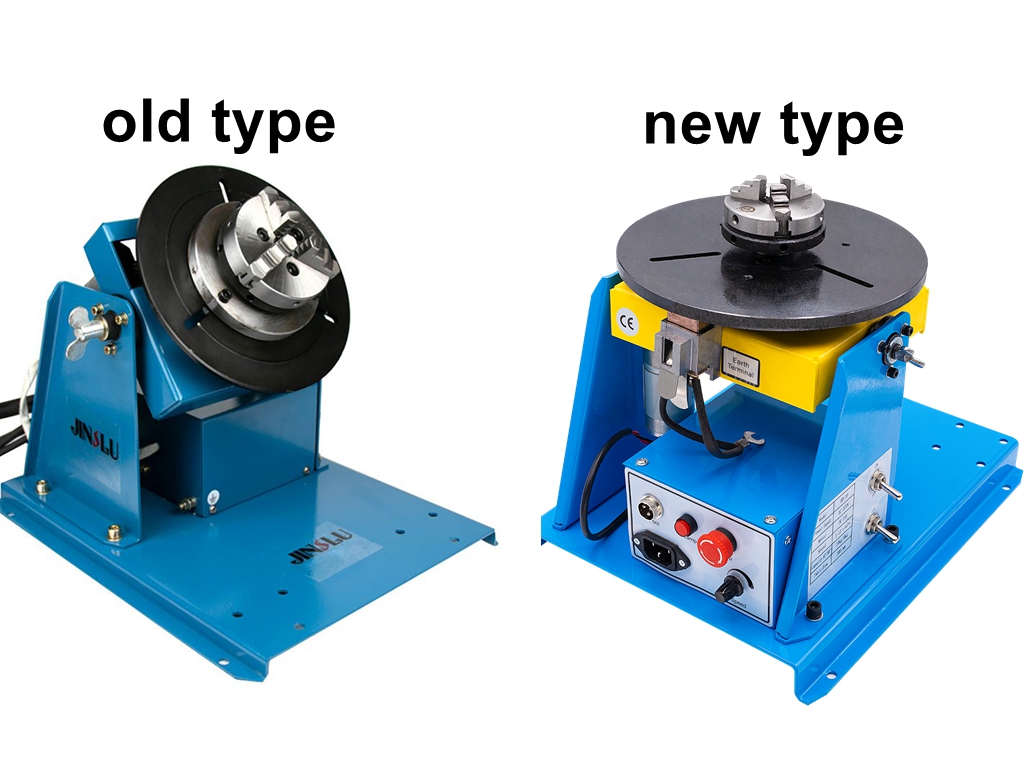

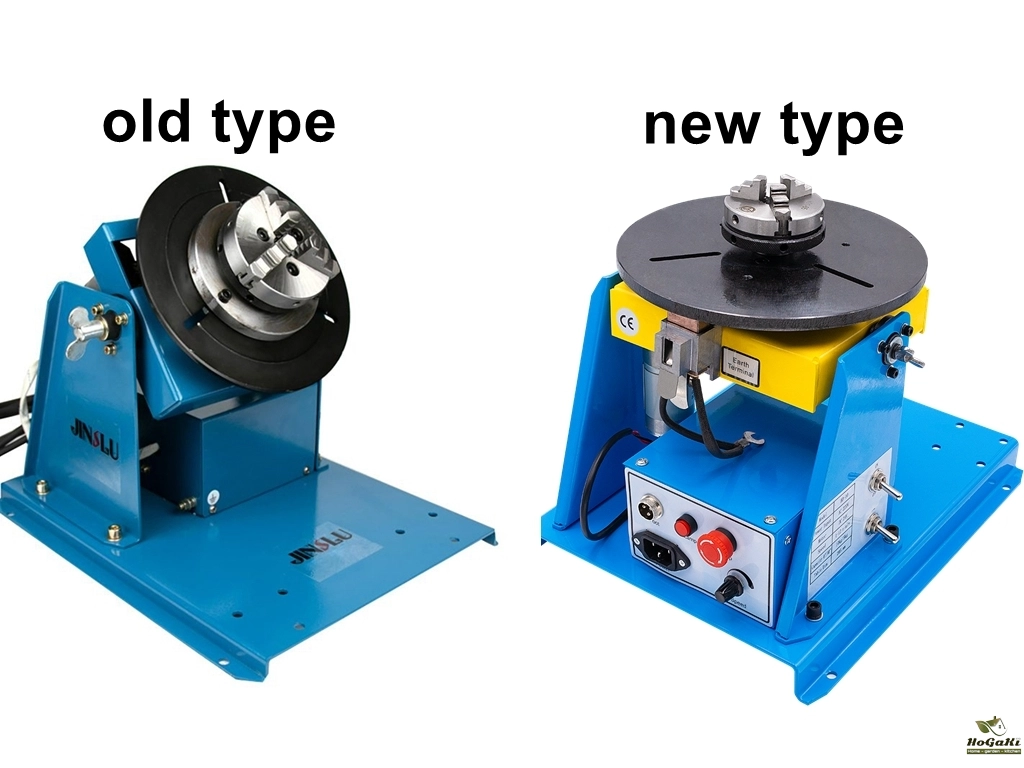

New and old type are randomly shipped

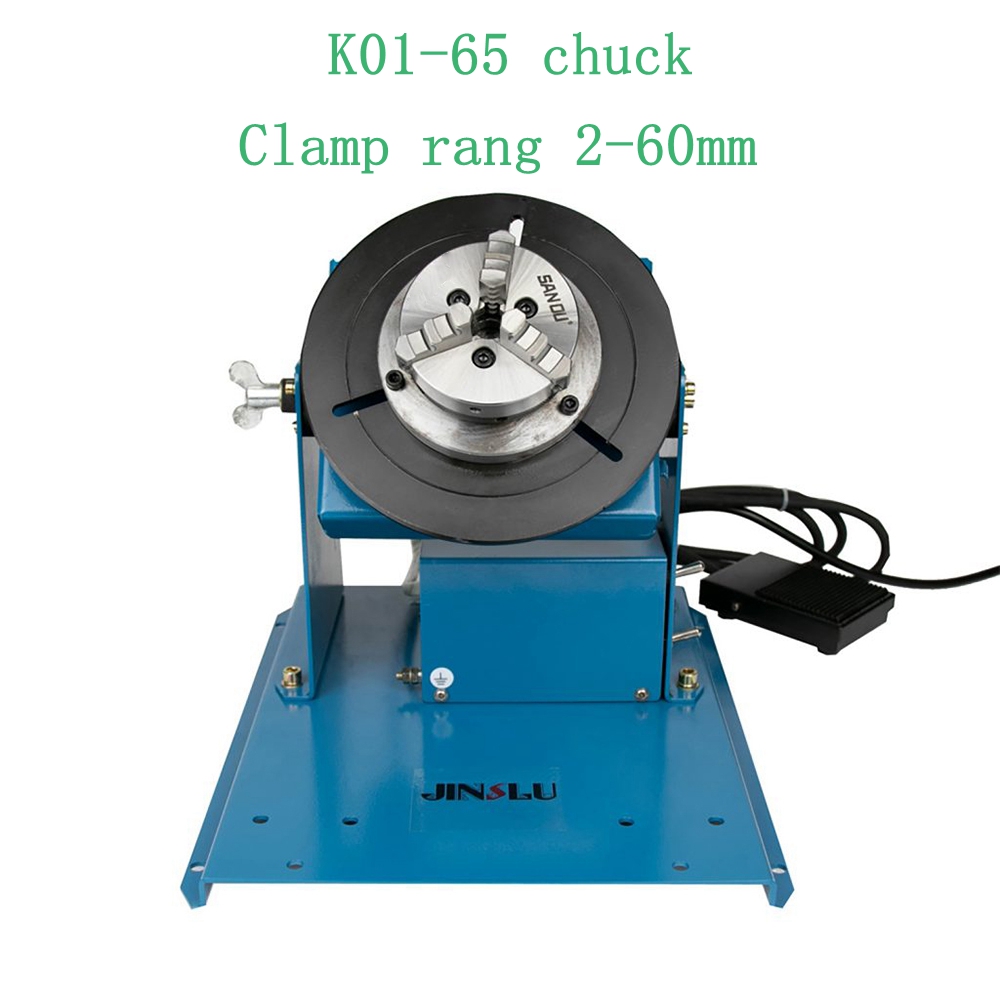

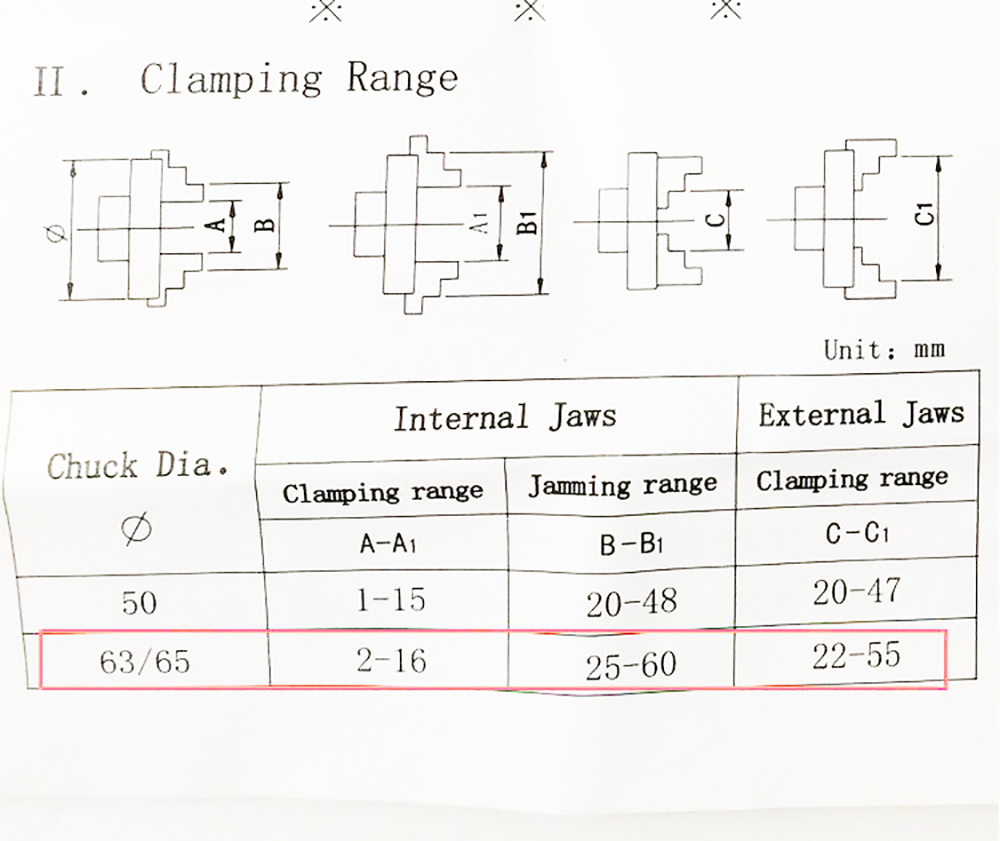

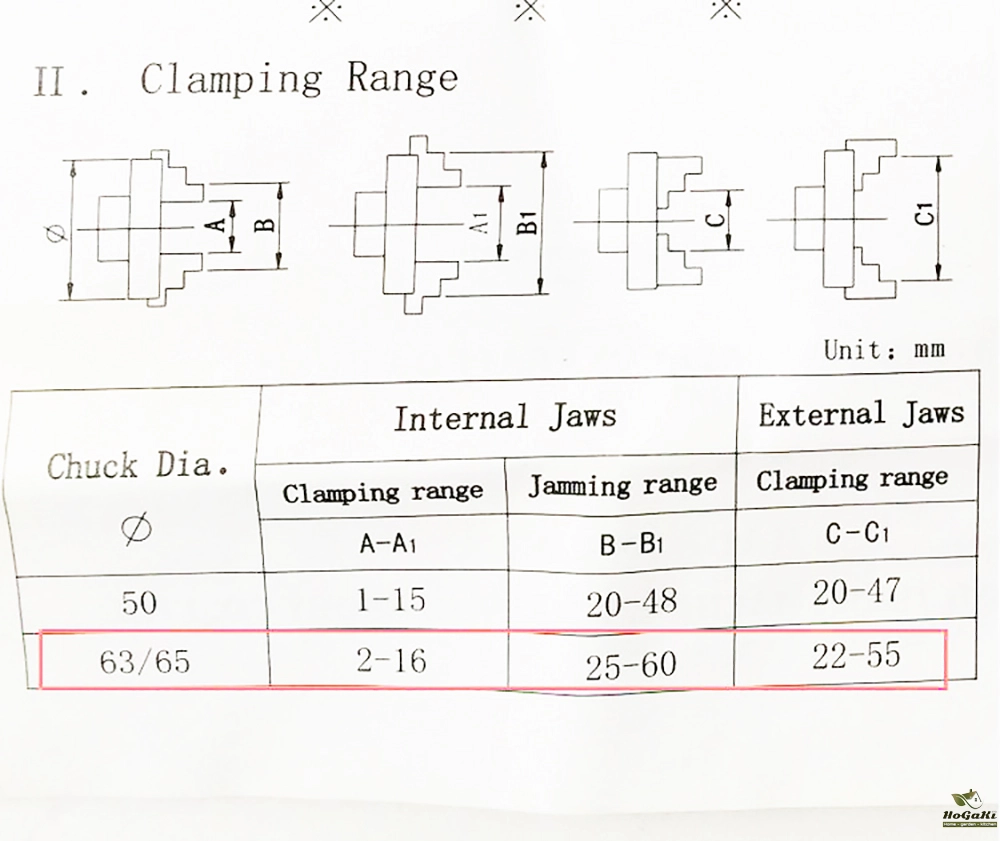

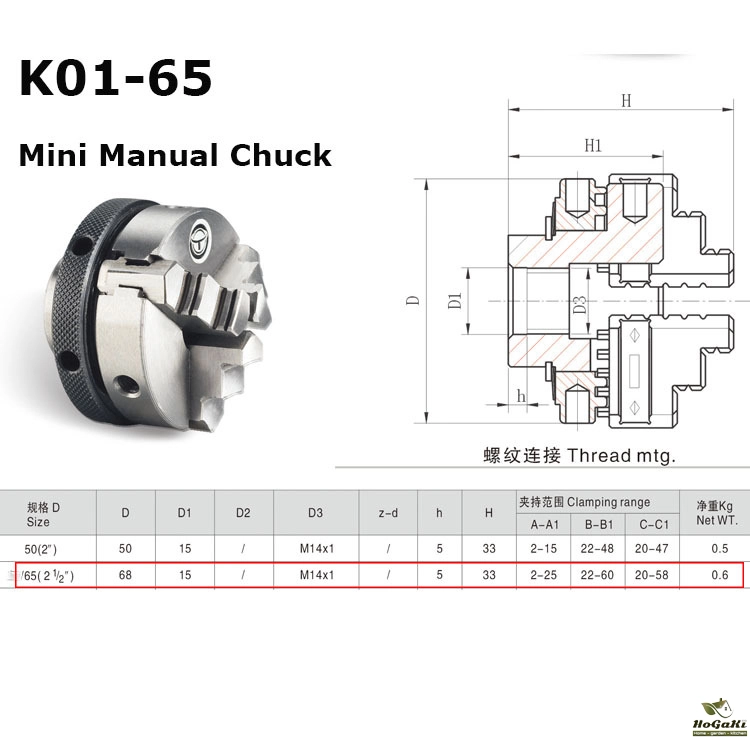

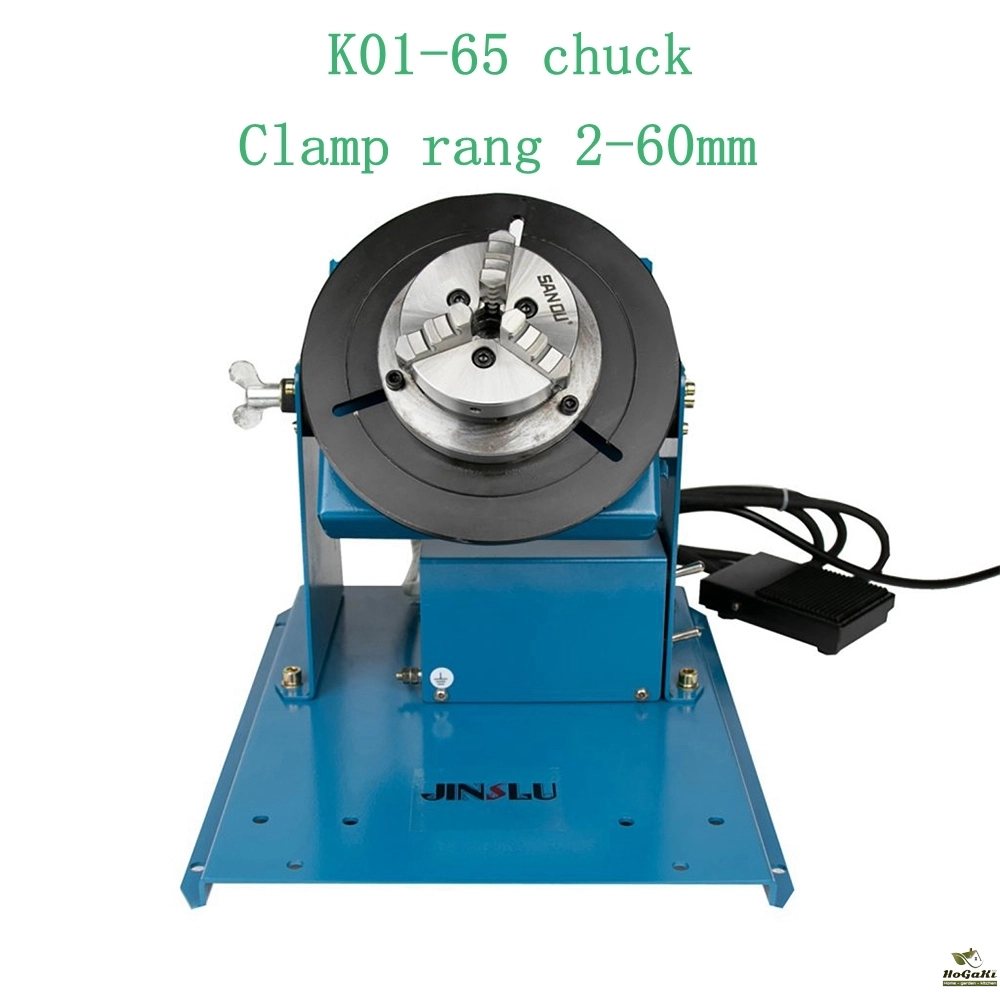

The chuck clamp range:
Packing & Delivery
Model: BY-10 Welding Positioner
Load Capacity: 10 kilograms
Product Description:
The BY-10 Welding Positioner is a professionally designed welding auxiliary device widely used in various welding tasks, enhancing both work efficiency and welding quality. Key features include:
Load Capacity: The equipment is designed to handle a load of 10 kilograms, providing a reliable structure and materials to ensure a safe and stable working environment.
Positioning Functionality: The BY-10 Welding Positioner boasts advanced positioning capabilities, allowing the welding workpiece to rotate, tilt, or be fixed at different angles. This provides multiple working options to meet various welding angle and position requirements.
User-Friendly Design: The equipment is easy to operate with an intuitive control panel, enabling users to easily navigate through its functions. The machine is ergonomically designed to offer a comfortable working experience.
Stability and Durability: Utilizing high-quality materials and advanced manufacturing processes, the BY-10 Welding Positioner ensures stability and durability, adapting to various industrial environments.
Safety Features: The equipment is equipped with multiple safety protection devices, including overload protection and an emergency stop button, ensuring user safety during operation.
The BY-10 Welding Positioner is an indispensable tool in welding projects, providing greater flexibility and convenience for welding operations. Whether in a small workshop or a large manufacturing facility, it serves as a reliable partner, facilitating the efficient completion of welding tasks.
FAQ
Q1：Is the turning slow enough for tig welding?
A1：Yes, the turning speed serves both TIG welding and MIG

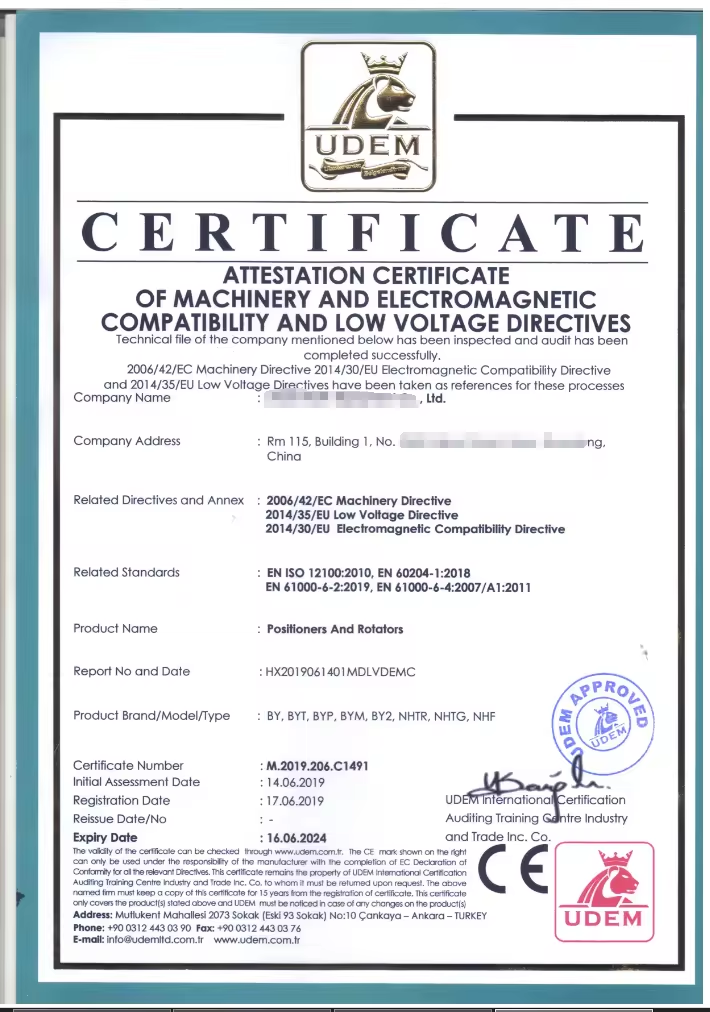

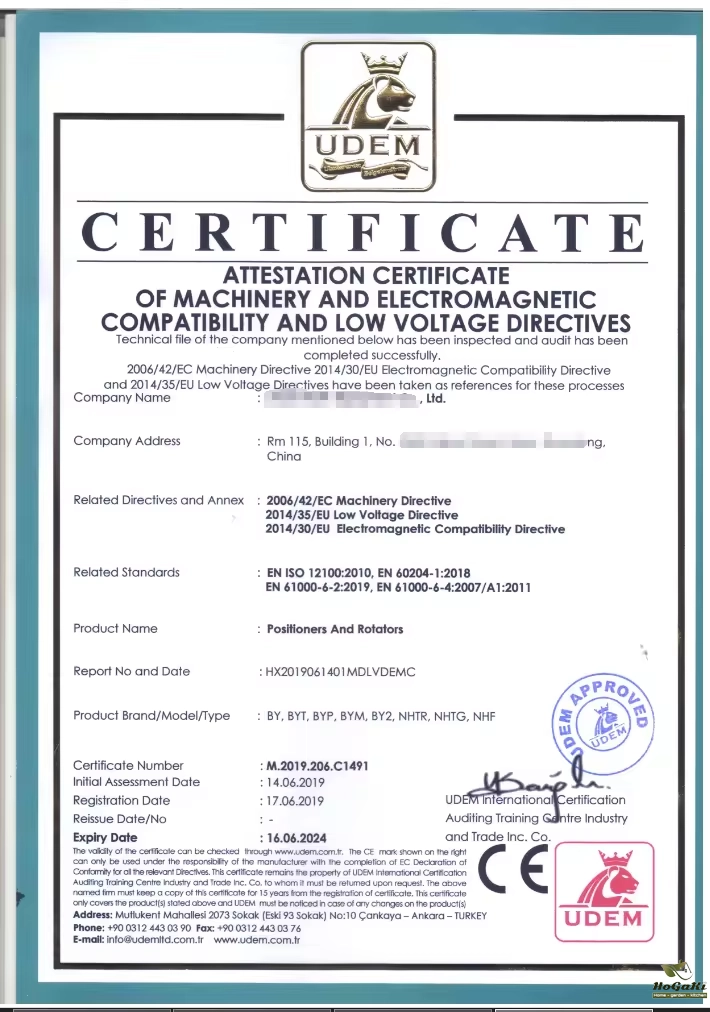

Q2: Hi . Can I have a CE stratification?
A2:Yes
Packaging Details
- Unit Type: piece
- Package Weight: 10.500
- Package Size: 30x30x30
- Brand Name: JINSLU
- Hign-concerned Chemical: None
- Origin: Mainland China
- Weight: 11KG
- Tube Diameter: Standard
- Dimensions: 370*270*215mm
- Model Number: BY-10
- Certification: None
- Use: welding positoner
- with chuck: K01-65
- Power input: 220V
- Capacity(horizontal/vertical): 10KG/5kg
- Table diamension: 180CM
- Table height: 215CM
- Rotation speed: 1-12RPM
- Tilt Range: 0-90
- Rotation motor: 20W
