450nm Blue Light Laser Head for Master Series DIY Carving Engraving Machine Engraver Accessory DIY Tools laser module head
SALE
ID: 32924

450nm Blue Light Laser Head for Master Series DIY Carving Engraving Machine Engraver Accessory DIY Tools laser module head

5.0 (1 votes) | 8 orders
Price: US $104.03 - 391.42 / piece
Discount Price:
US $ 63.25 - 236.99 / piece
-39%
Ships From
Color
Quantity

Buy Now
Add to Cart



type1

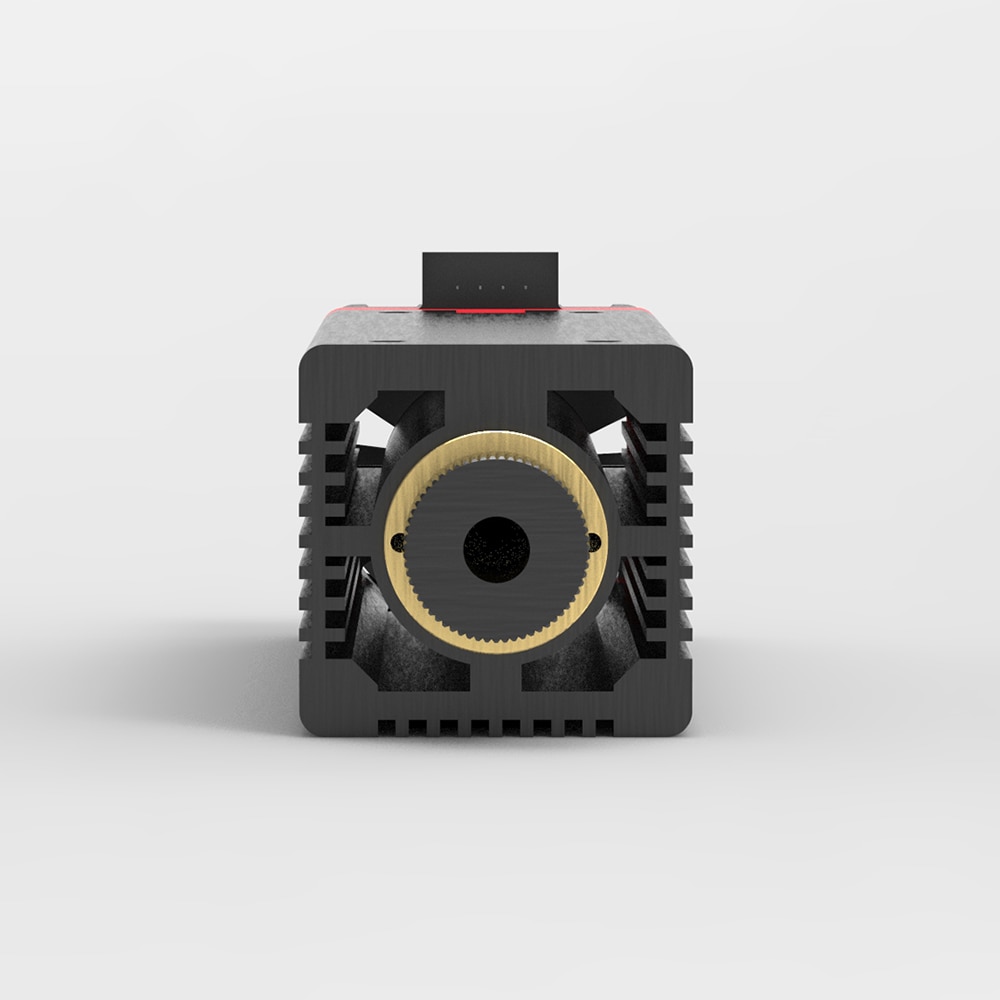

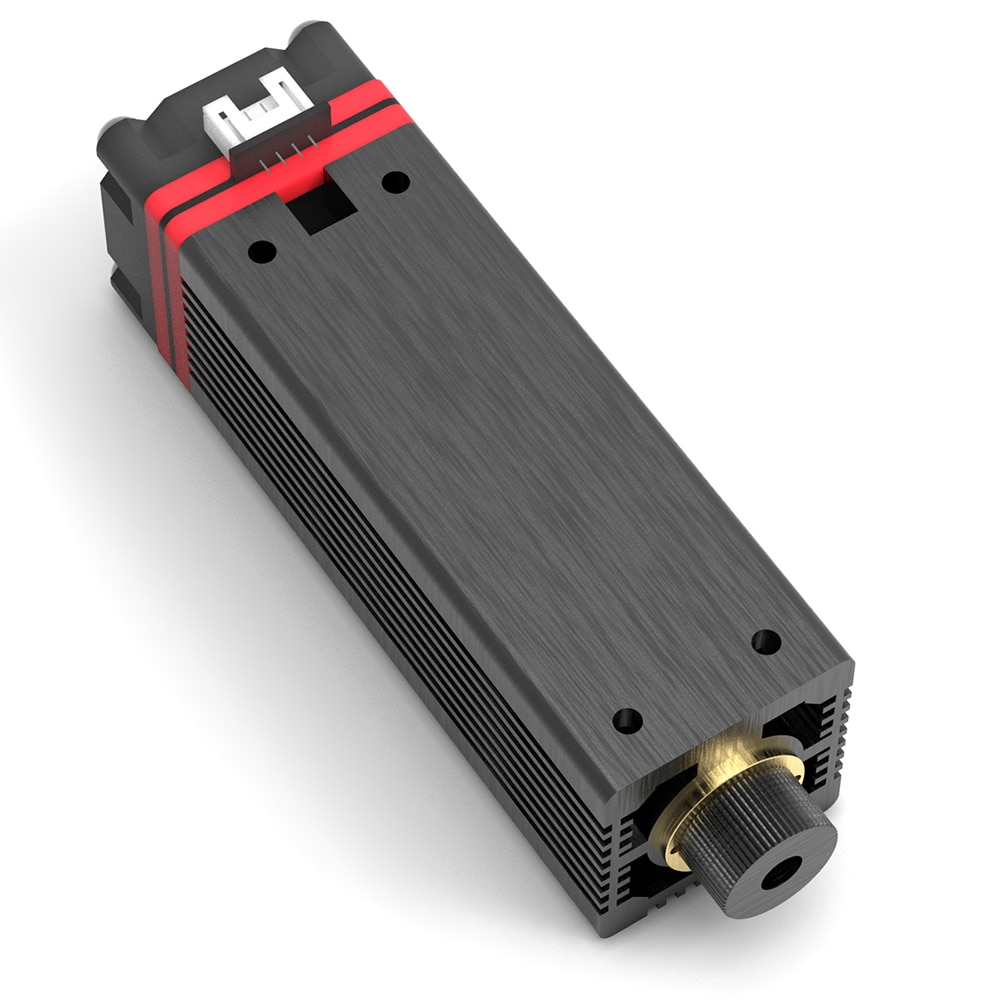

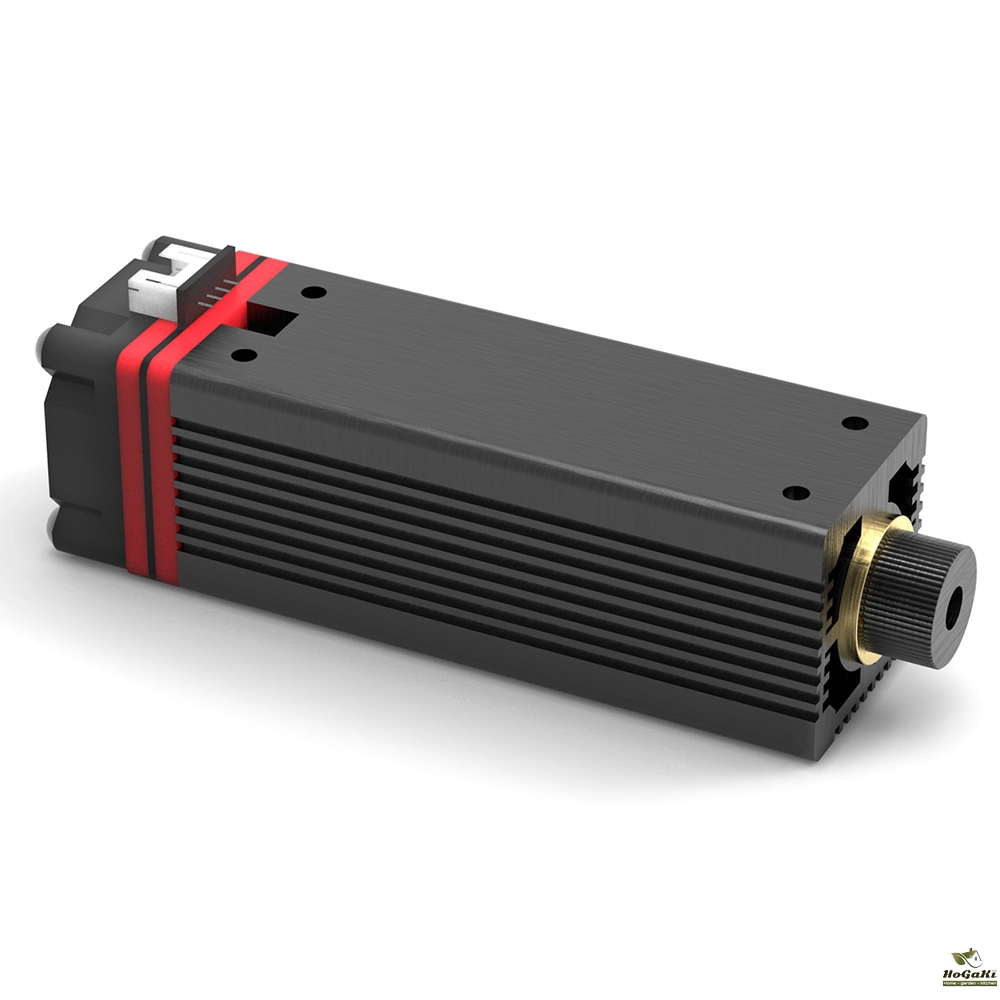

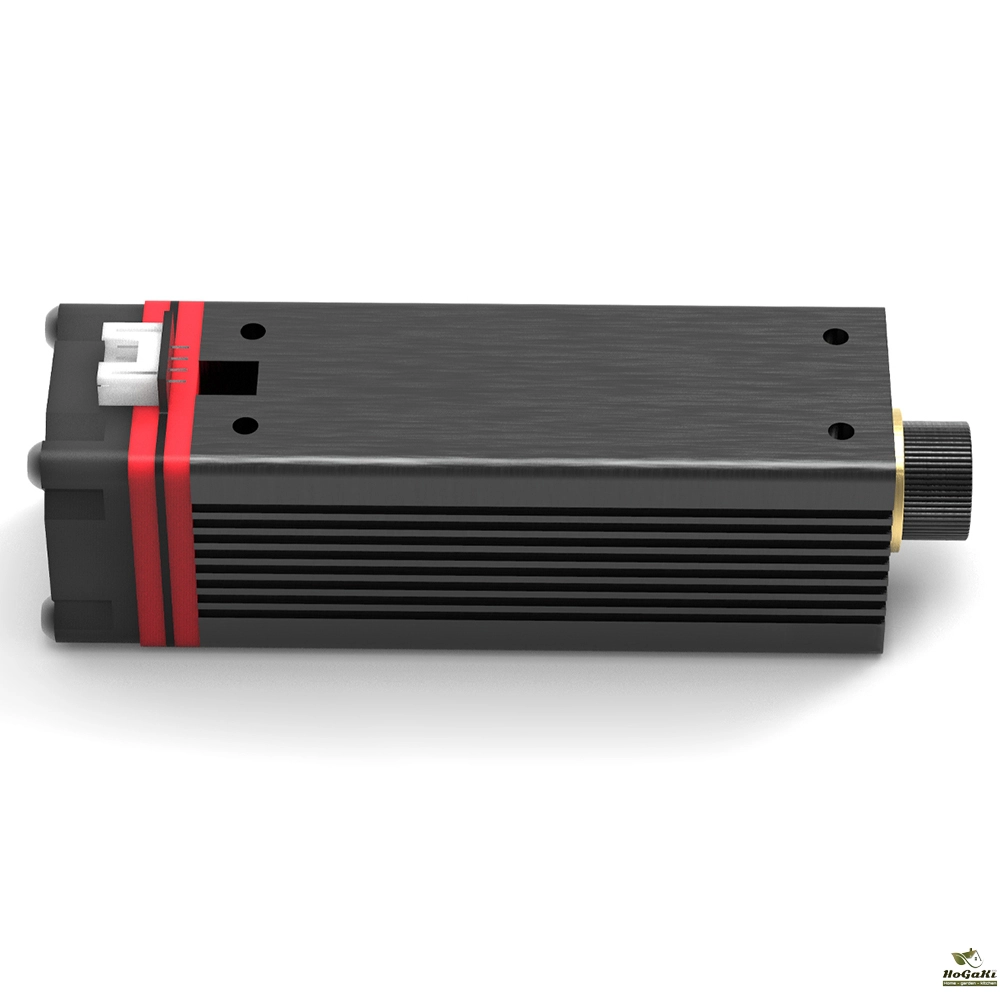

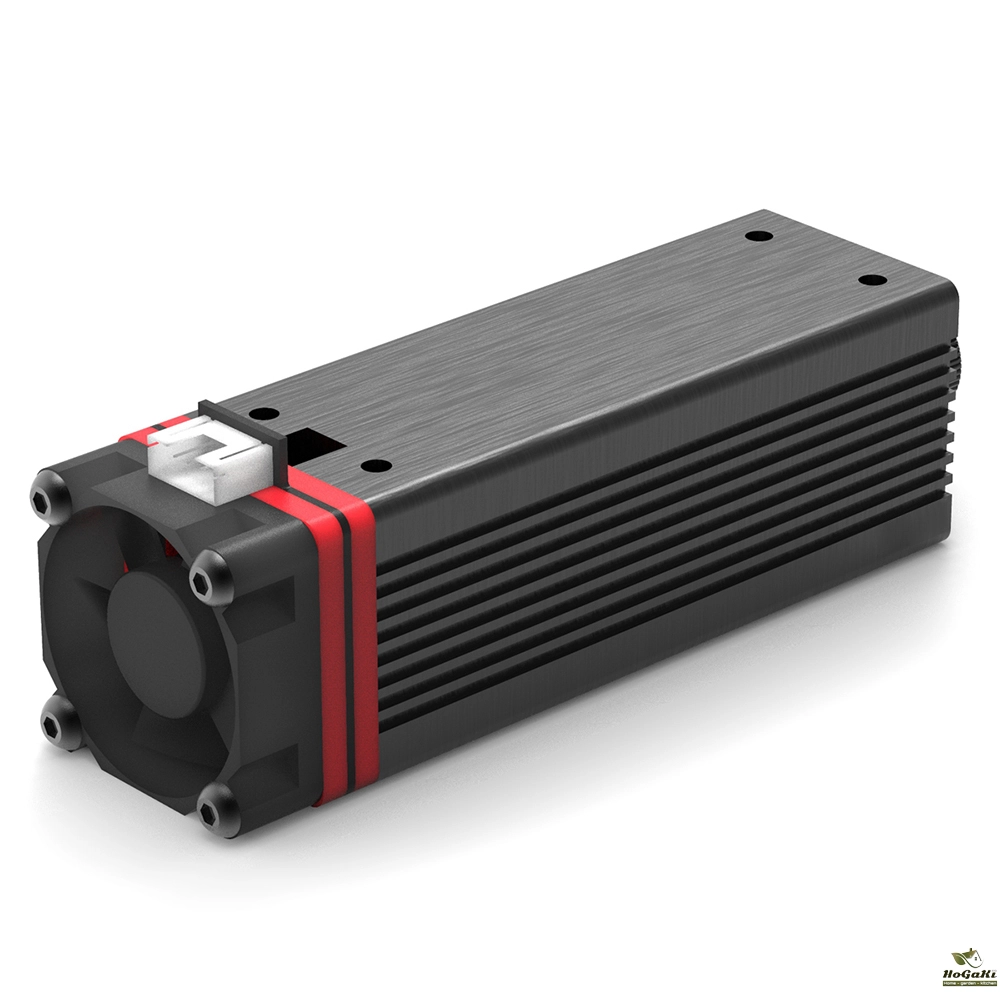

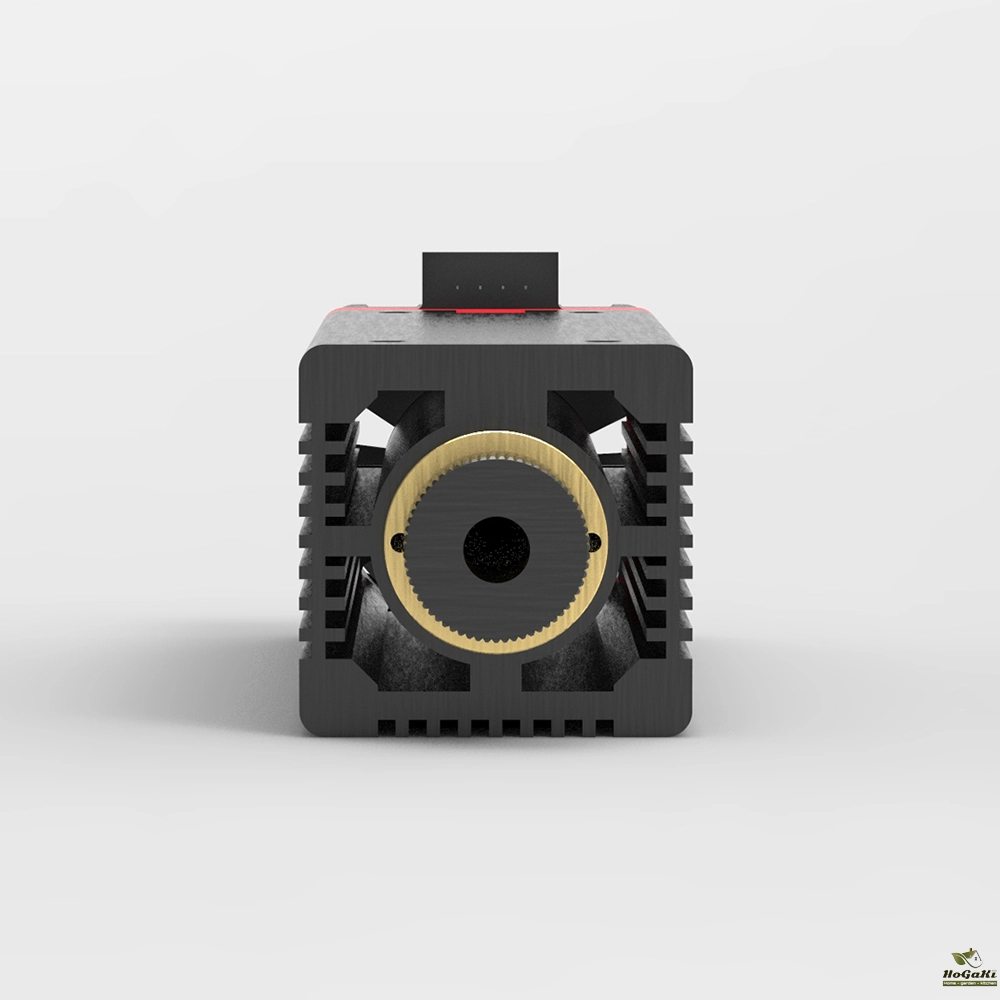

This item is a necessary accessory for Master series DIY engraving machine. It is a professional laser head with high speed and high stability.
Features:
Professional laser head with high speed, high precision and high stability.
Bright blue light, easy for locating when engraving.
Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Laser head is more durable and stable after high temperature and long time aging.

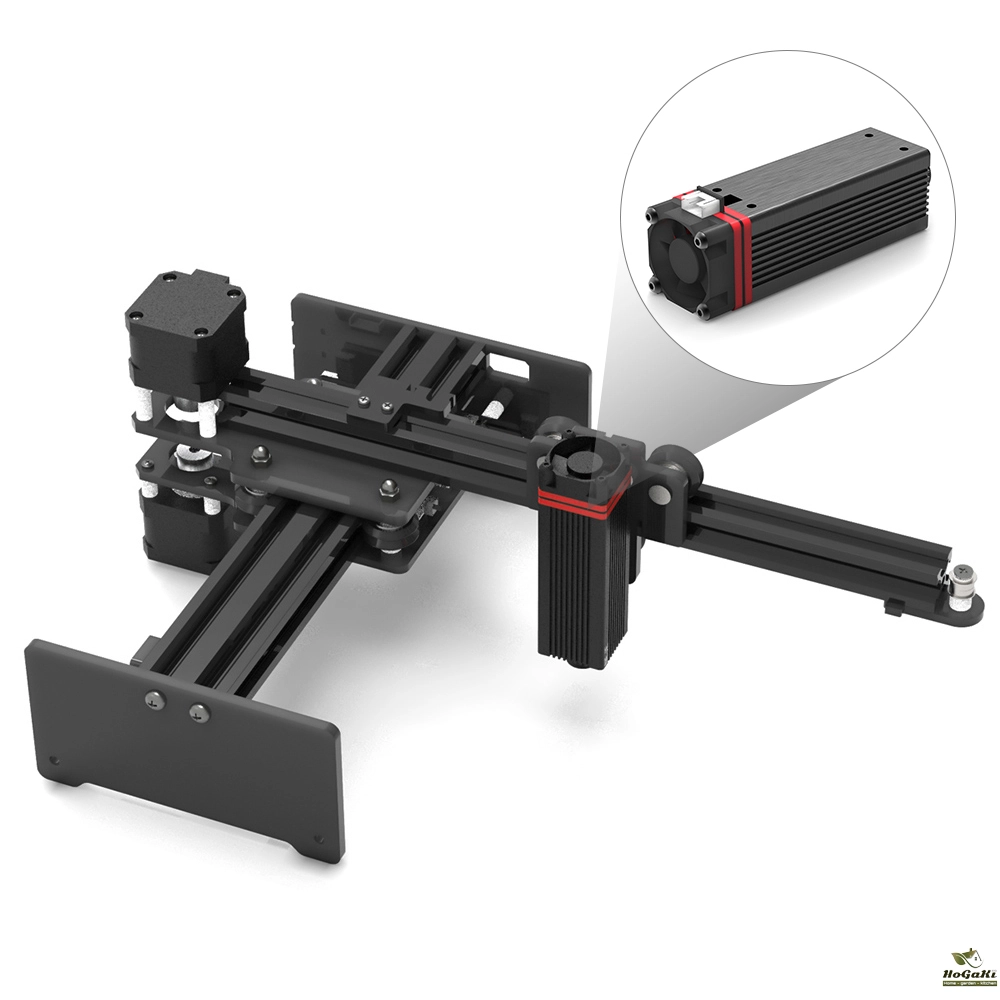

Suitable for Master series DIY engraving machine, easy to install.

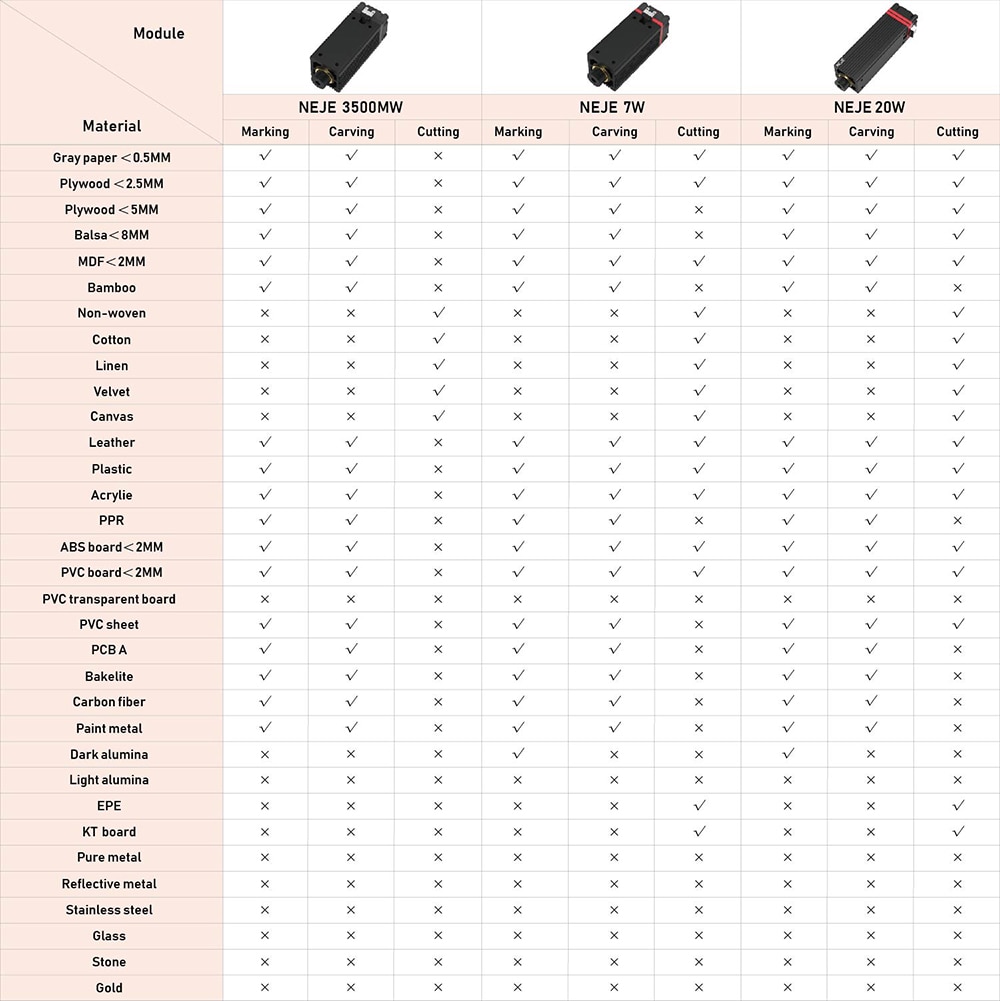

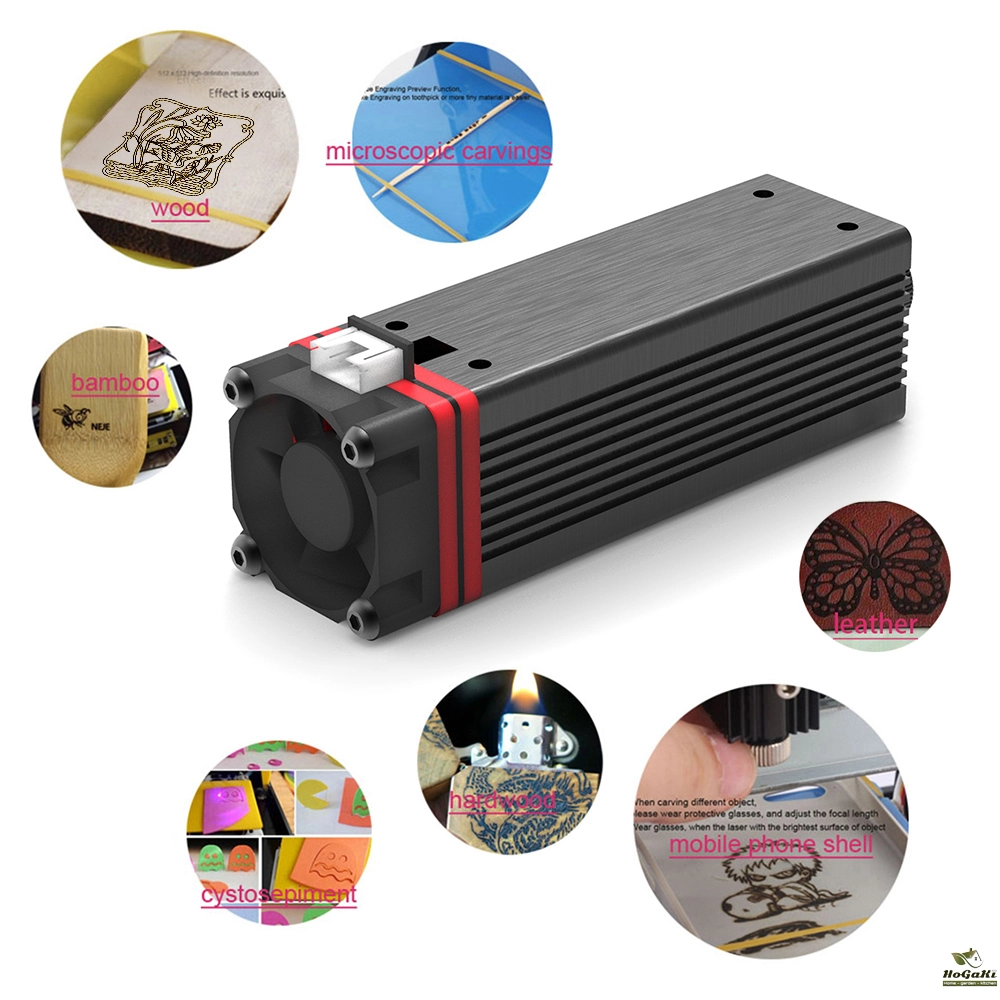

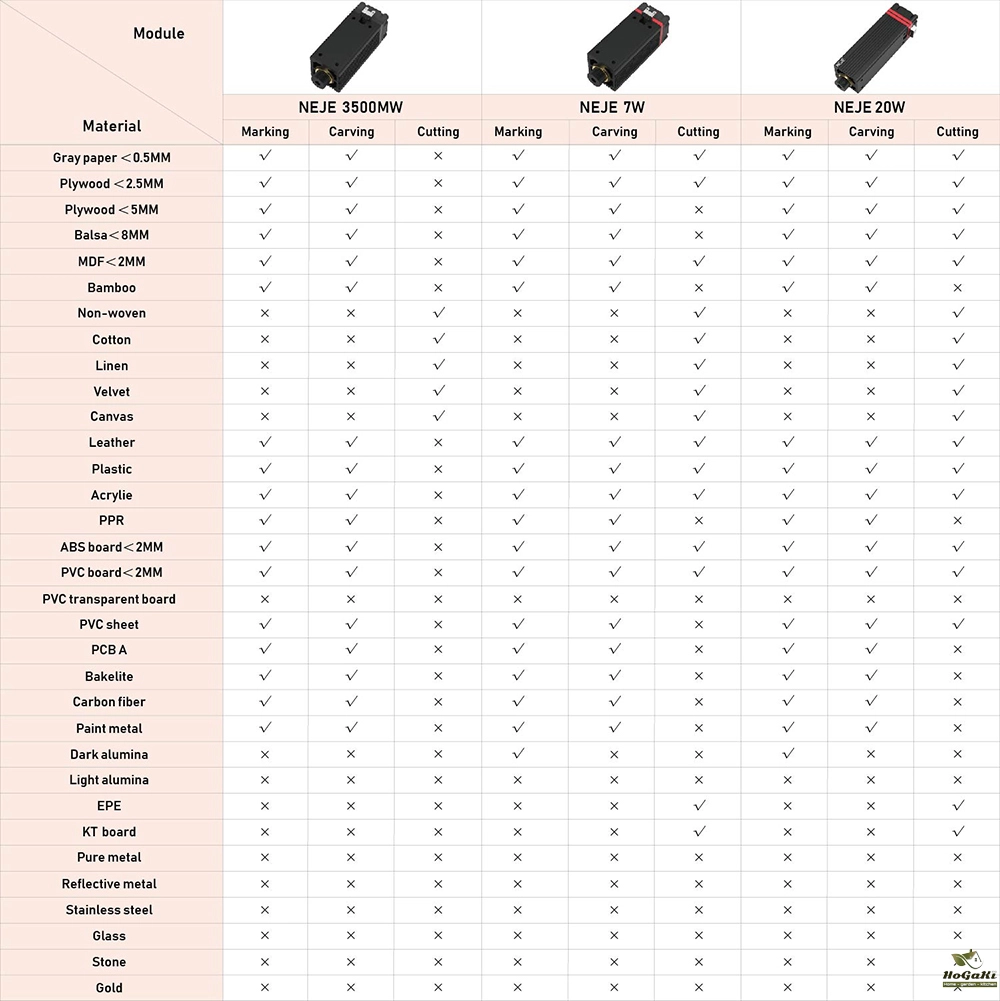

Main applications: cutting, metal engraving, drawing depth engraving, etc. (Especially good at cutting, It can cut wood (3-8mm). It supports metal engraving including alumina oxide, copper and other non-reflective materials, depth of engraving (0.5-3mm wood). Supported engraving materials: Wood, gray paper, leather, bamboo, blackening plastics, rubber, alumina oxide, copper, etc.
Note: It is not possible to directly engrave the metal with strong mirror reflectivity, which may cause injury to the operator or burn the laser. Master series engraving machine comes standard with 12V2A charger. If you want to use 20W laser head, you need to prepare another 12V3A power supply.（except Master 20W engraving machine ）

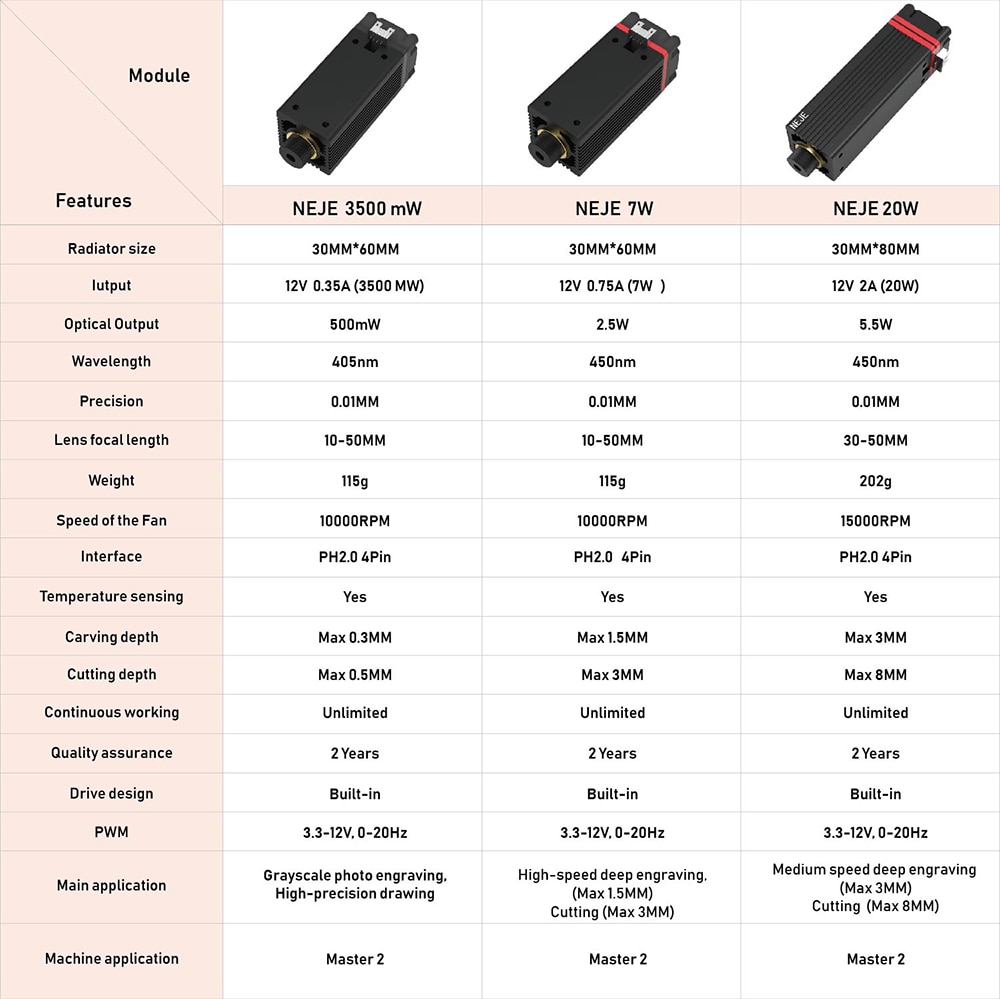

Specifications:

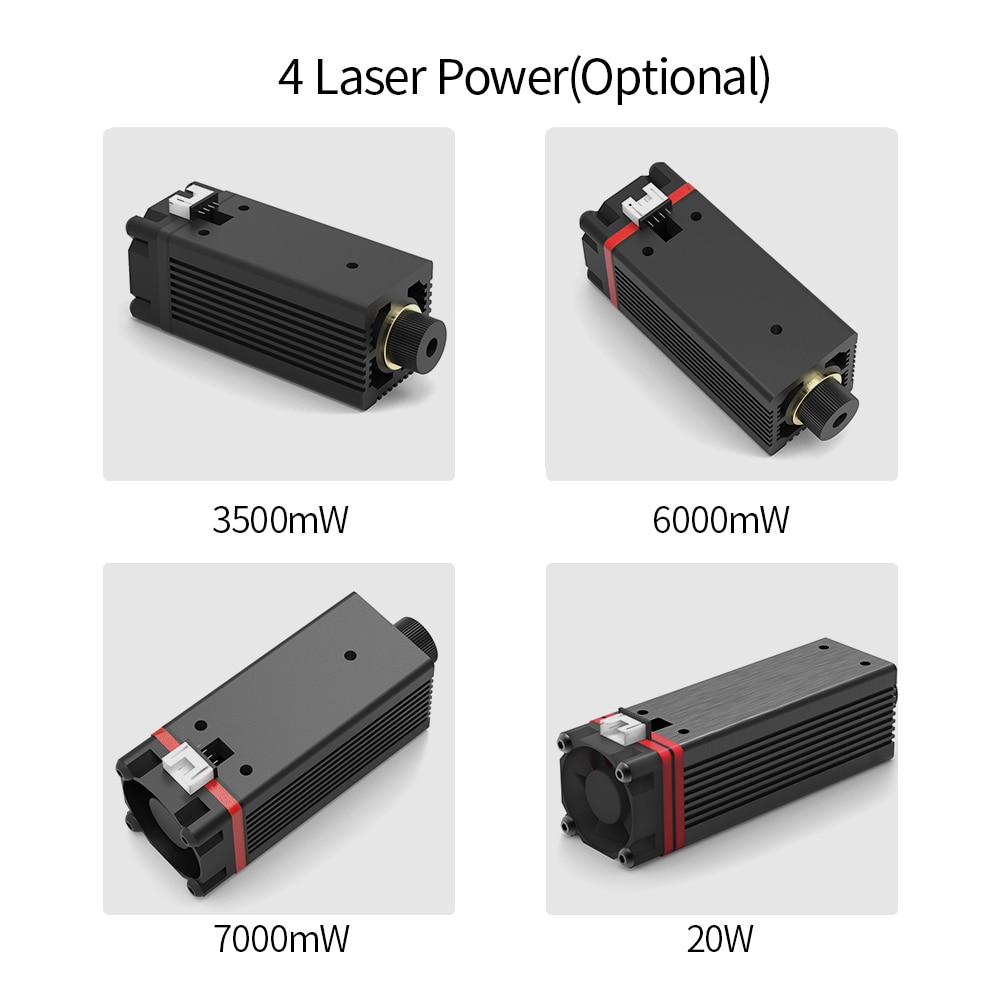

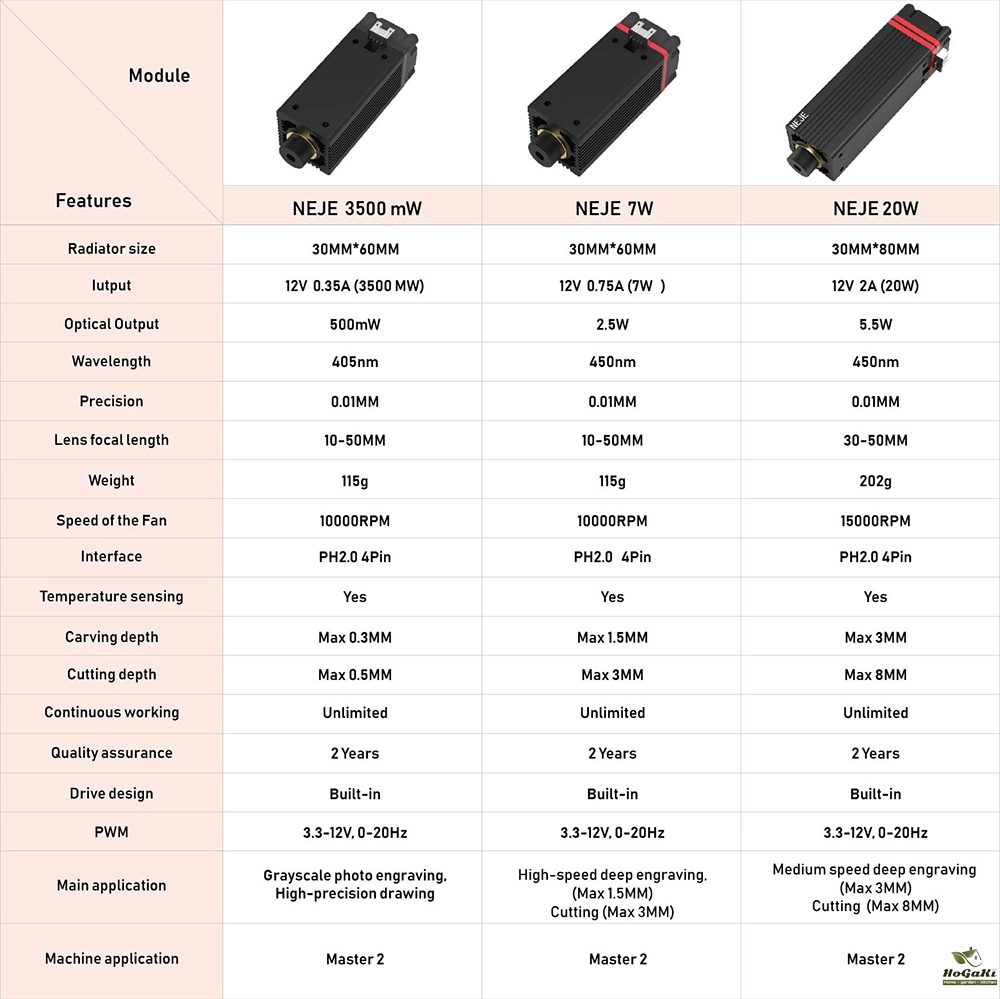

Laser Power: 6000mW / 7000mW / 20W (Optional)
Material: Copper + Aluminum
Light Color: Blue
Power: 20W
Wave Length: 450nm
Input power: approx. 12V 2A (without fan power)
Drive Position: Built-in

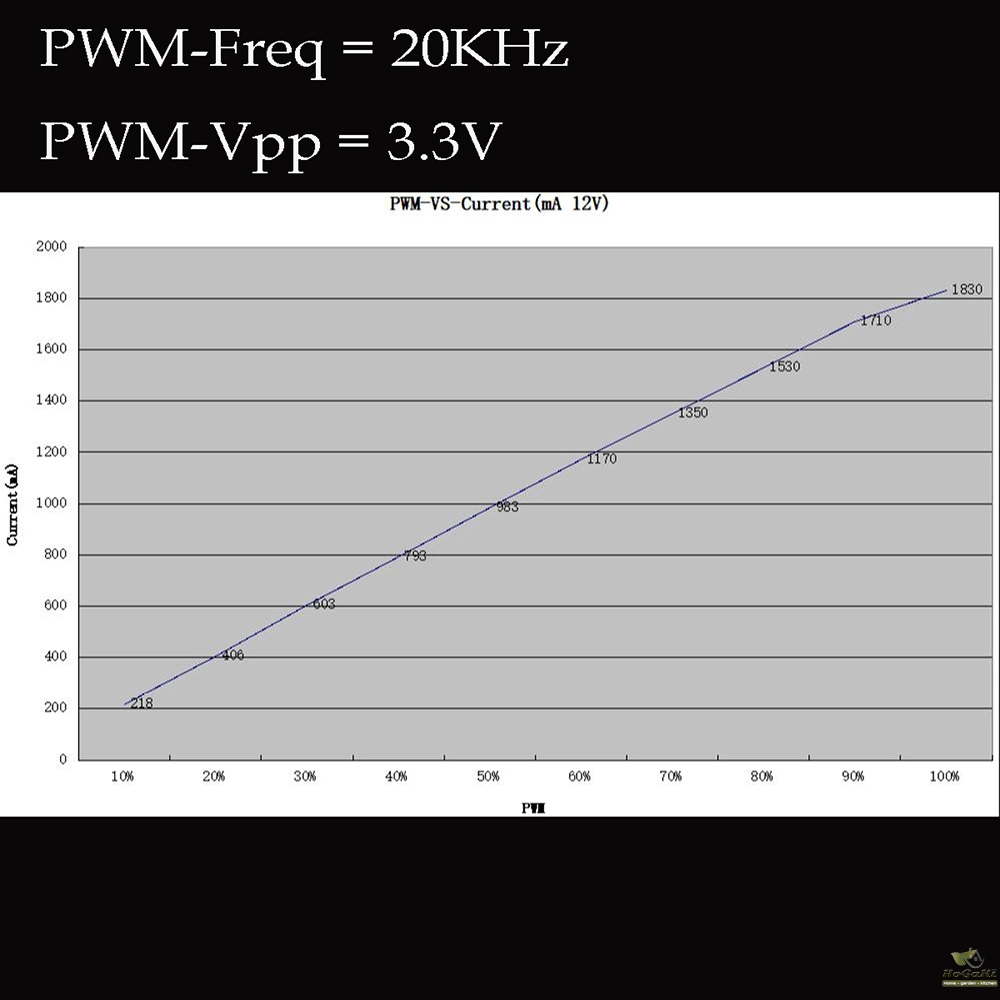

Is the Power Adjustable: PWM can be adjusted
Drive Protection: Surge protection, overvoltage protection
Line Length: 300mm
Line Length Material: Sports silicone
Control Line Installation Method: Pluggable

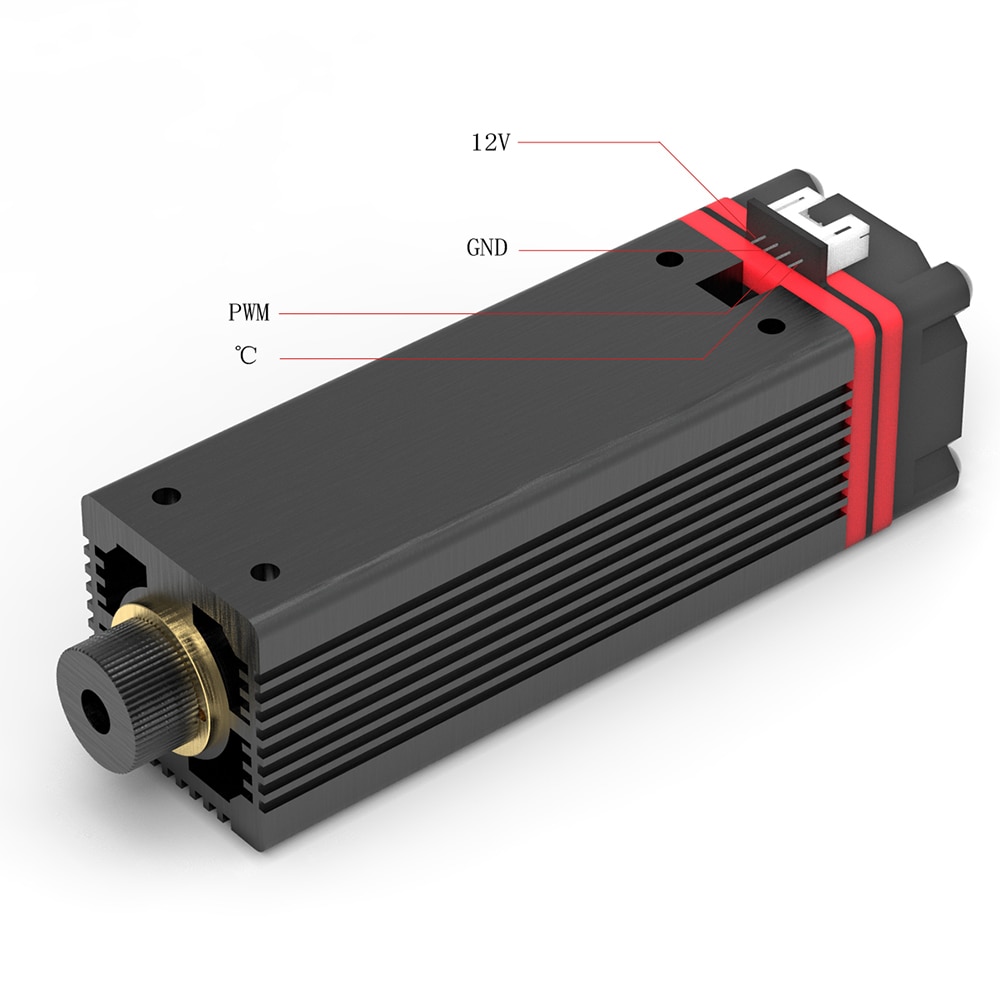

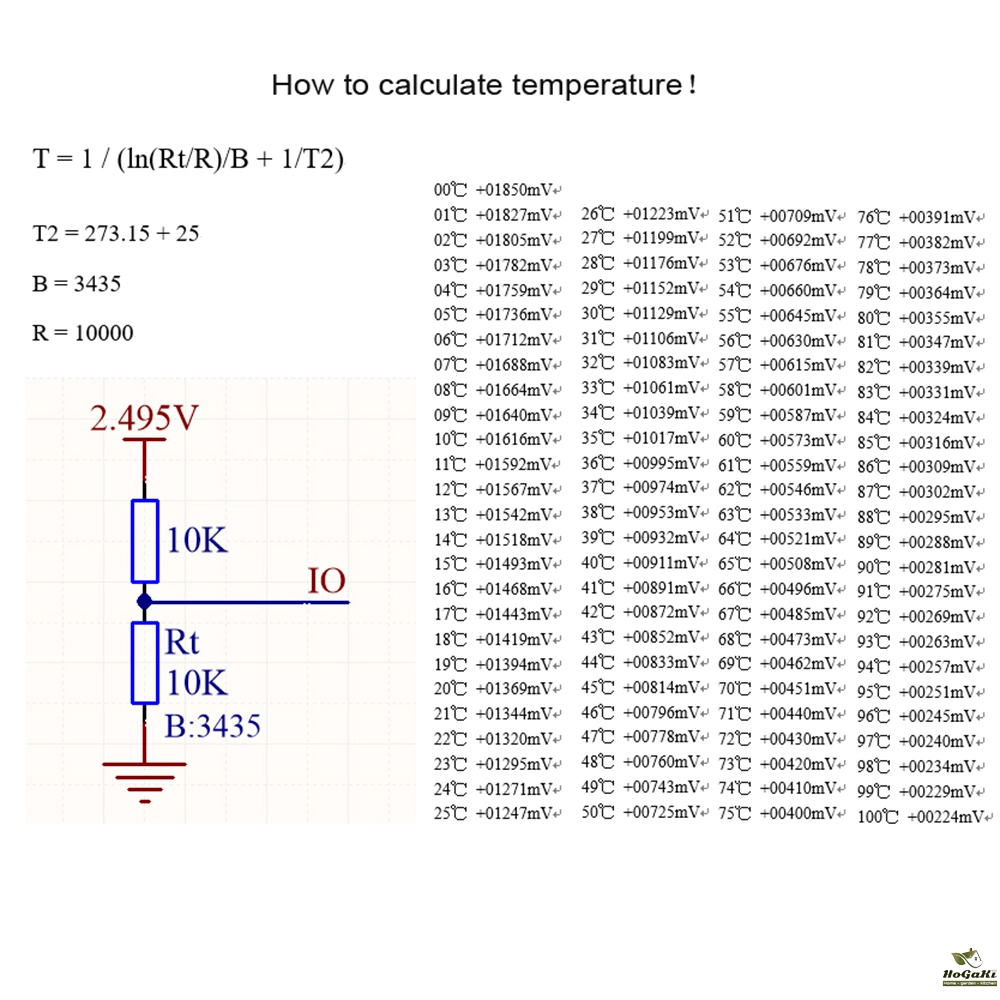

Interface Specification: 4pin PH2.0 (red: 12V, black: GND, yellow: PWM, green: temperature signal)
Radiator Size: 30 * 80mm
Fan Size: 30 * 10mm
Fan Speed: 15,000 rpm
Controllable Temperature: Less than 60 degrees Celsius
Focus Range: 5 ~ 50mm (best focus: 10mm from the light exit)
Item Size: Approx. 110 * 30 * 30mm / 4.33 * 1.18 * 1.18in
Item Weight: Approx. 202g / 7.14oz
Package Size: Approx. 20 * 15 * 3cm / 7.88 * 5.91 * 1.18in
Package Weight: Approx. 224g / 4.73oz
Package List:
1 * module
1 * Wrench
2 * Screw
2 * Gasket


type2

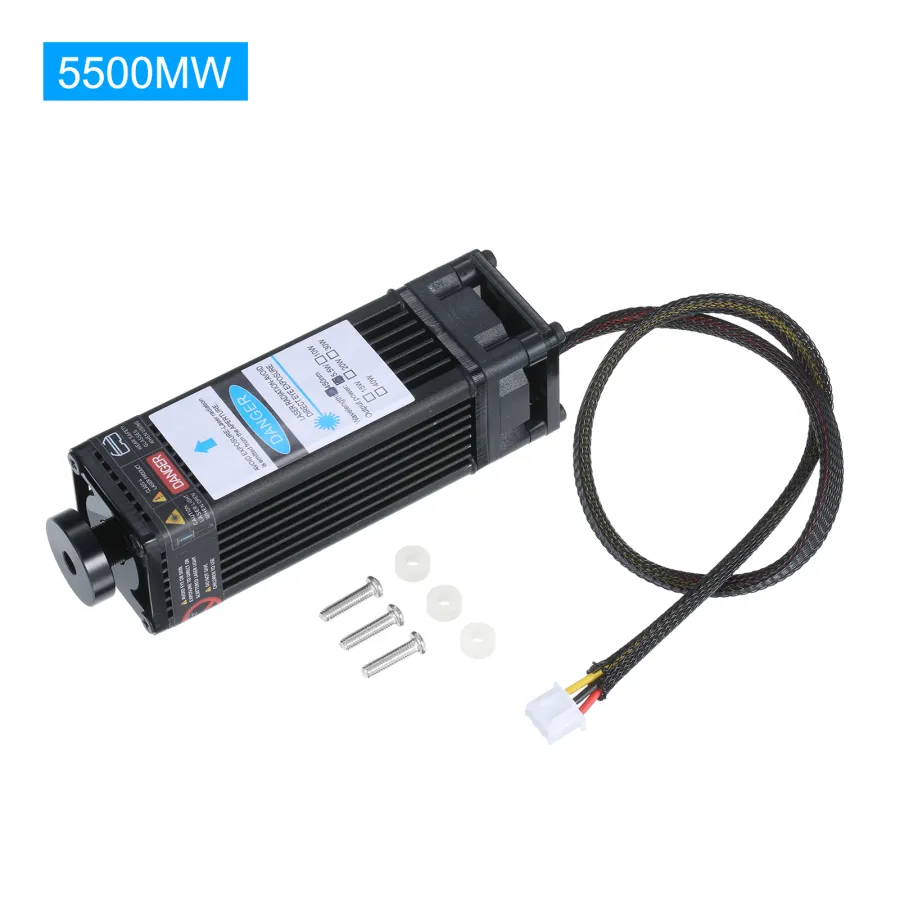

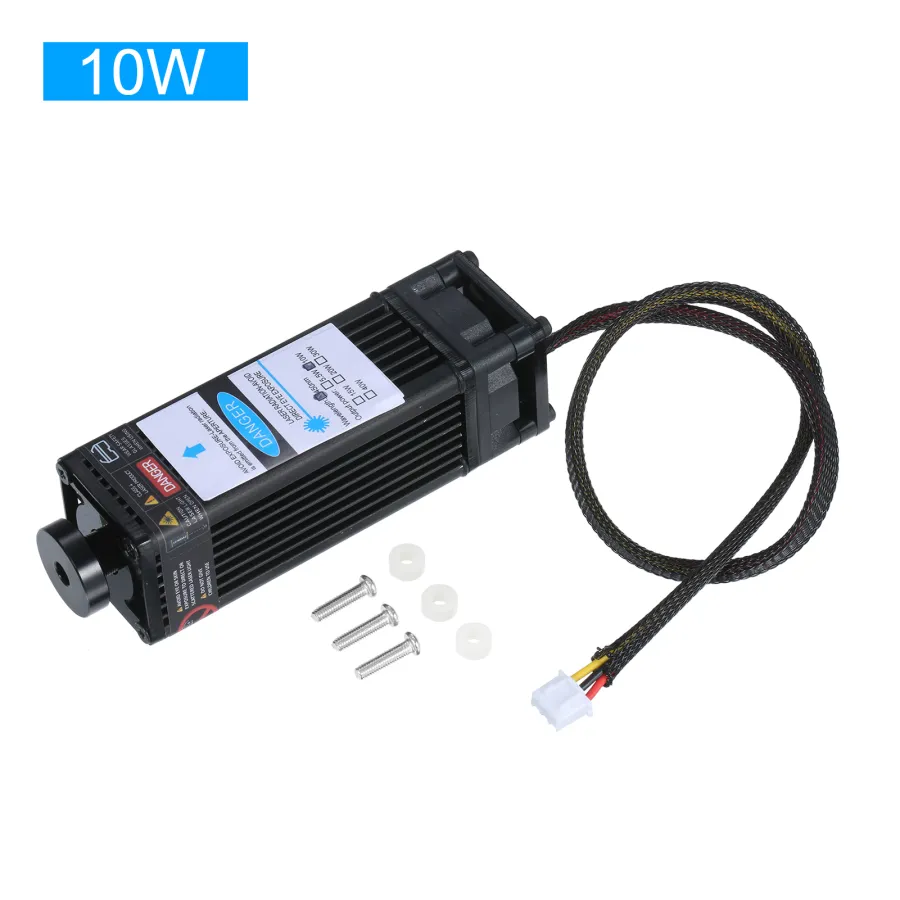

The Blue Laser Modual is designed for both 3D printer and CNC mill.  With 450nm wavelength, it is an effective tool for laser engraving and laser cutting.  There 4 powerful laser modual for choose, they can engrave and cut a variaty of materials.

Features:
Blue Laser Modual --- Professional laser head with high speed and high stability. Bright blue-violet light, easy for locating when engraving.
Adjustable Focuse --- Adjustable laser head, easy to adjust, ensure engraving with good quality and high efficiency.
Easy to Assemble --- Small and compact, convenient and easy to install.
10W Carving Material --- Wood type, some plastics, paper, bamboo, horn, thin leather (wallet), rubber stamp, tooth, PU, Printing paper, PVC, horn, crab shell,  lobster, mammoth, ivory, linden root, resin, spectacle lens, metal painted surface,those kinds of flammable materials.  And colored ceramics, colored aluminum, pebbles, etc.
10W Cutting Material --- Within 2mm thick paper, leather, non-woven fabrics, flocking fabrics, aircraft wood, stickers, etc.

Specifications:

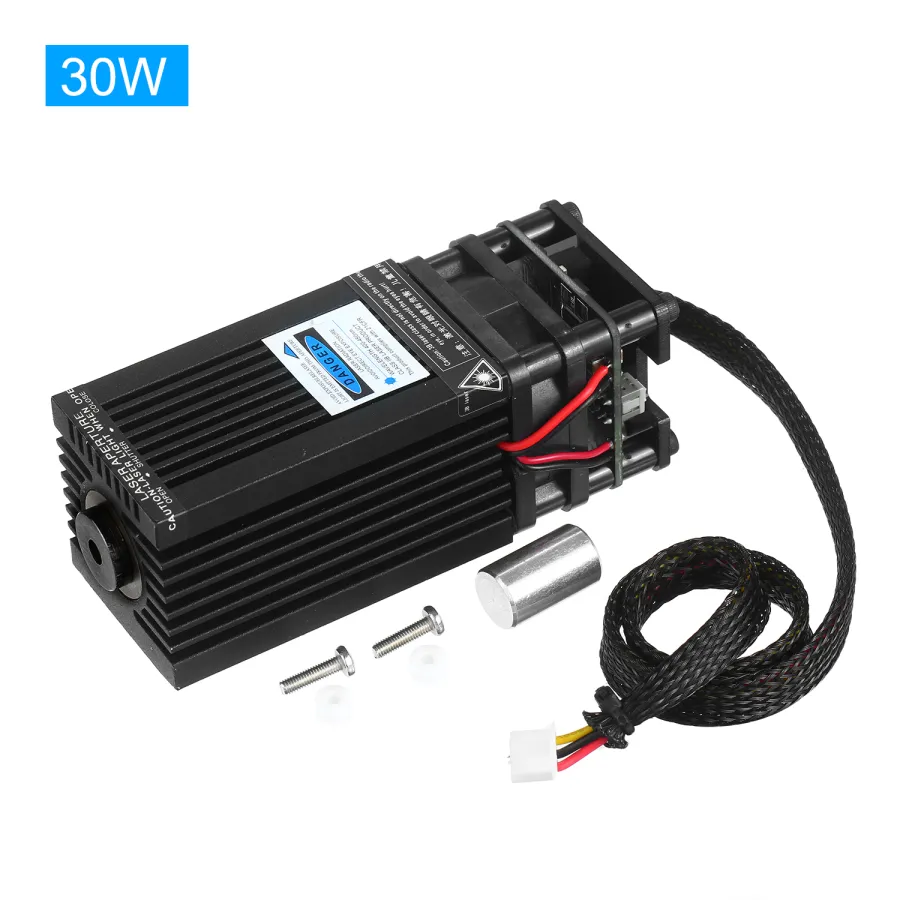

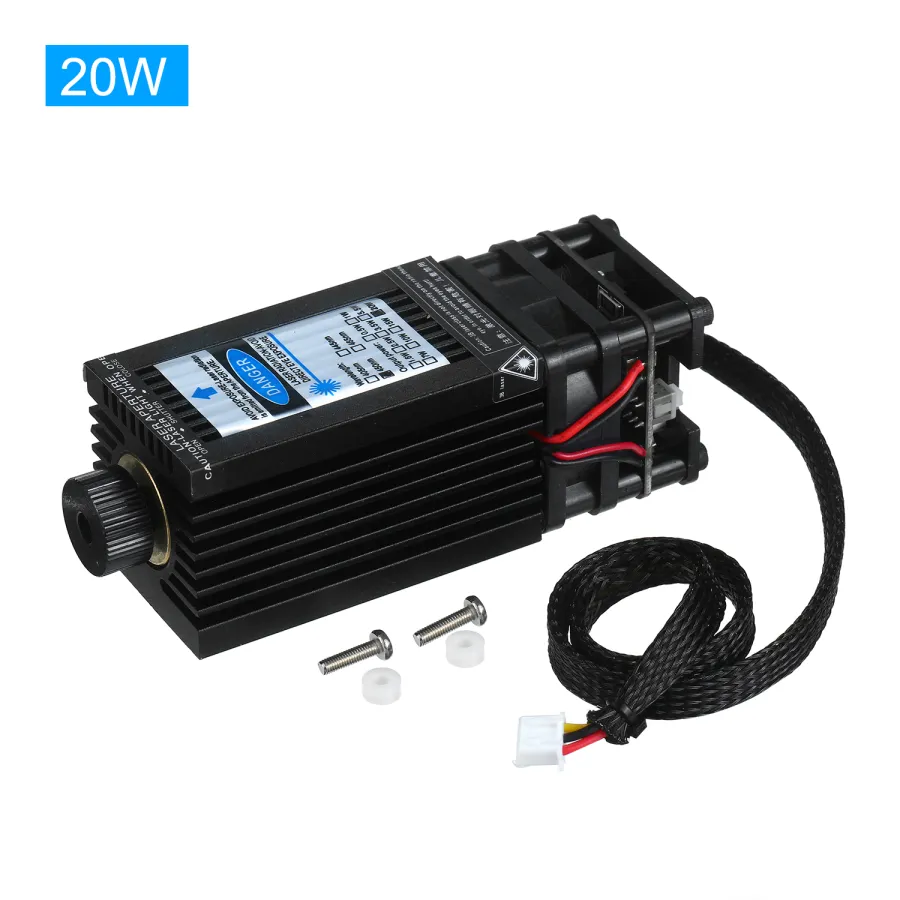

Laser Power: 5500mW/10W/20W/30W (Optional)
Material: Aluminum Alloy+Plastic
Light Color: Blue-violet
Wave Length: 450nm
Facula Form: Punctiform, Adjustable Focus(30W can not adjust focuse)
Input Voltage: 12V 2A

Interface Parameter: Support TTL signal controls power

Item Size: 10*3.3*3.3cm / 3.94*1.18*1.18in
Package Size: 15*15*5cm / 5.9*5.9*1.96in
Item Weight: 132g / 4.66oz

Package List:
1 * Laser Head



























1) We accept Alipay, West Union, TT.All major credit cards are accepted through secure payment processor ESCROW.

2) Payment must be made within 3 days of order.

3) If you can't checkout immediately after auction close, please wait for a few minutes and retry Payments must be completed within 3 days.

1. WORLDWIDE SHIPPING.(Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
8. Delivery Time:


1. You have 7 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 7 days, it is considered used and WE WILL NOT ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half.
2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.
3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from Hogaki. OR, you may choose to have a replacement.
4.  We will bear all the shipping cost if the product(s) is (are) not as advertised.

1. 12 months Manufacturer`s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY.
You agree to all of the above-listed policies upon ordering on Hogaki!

We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
It is impossible to address issues if we do not know about them!





  • Model Number: Laser Head,laser module head
  • Brand Name: KKMOON
  • Certification: CE
  • Origin: Mainland China
  • Wave Length: 450nm
  • Input power: approx. 12V 2A (without fan power)
  • Drive Position: Built-in
  • Is the Power Adjustable: PWM can be adjusted
  • Line Length: 300mm
  • Line Length Material: Sports silicone
  • Control Line Installation Method: Pluggable

SHIPPING AND DELIVERY

We are proud to offer international shipping services that currently operate in over 200 countries and islands world wide. Nothing means more to us than bringing our customers great value and service. We will continue to grow to meet the needs of all our customers, delivering a service beyond all expectation anywhere in the world.

How do you ship packages?

Packages from our warehouse in China will be shipped by ePacket or EMS depending on the weight and size of the product. Packages shipped from our US warehouse are shipped through USPS.

Do you ship worldwide?

Yes. We provide free shipping to over 200 countries around the world. However, there are some location we are unable to ship to. If you happen to be located in one of those countries we will contact you.

What about customs?

We are not responsible for any custom fees once the items have shipped. By purchasing our products, you consent that one or more packages may be shipped to you and may get custom fees when they arrive to your country.

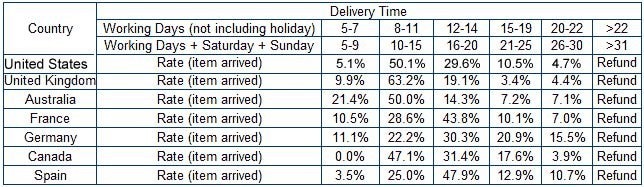

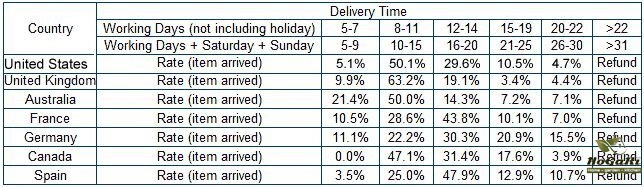

How long does shipping take?
