200w 300w 400w 500w CNC Spindle Air-cooling Spindle DC 12V-48V 500W Spindle Motor ER11 Brushed DIY Engraving Machine Spindle

0.0 ( votes)
Price: US $97.53 - 146.59 / piece
Discount Price:
US $ 80.42 - 119.95 / piece
-18%
Color
Quantity

1. 200W Package Includes:

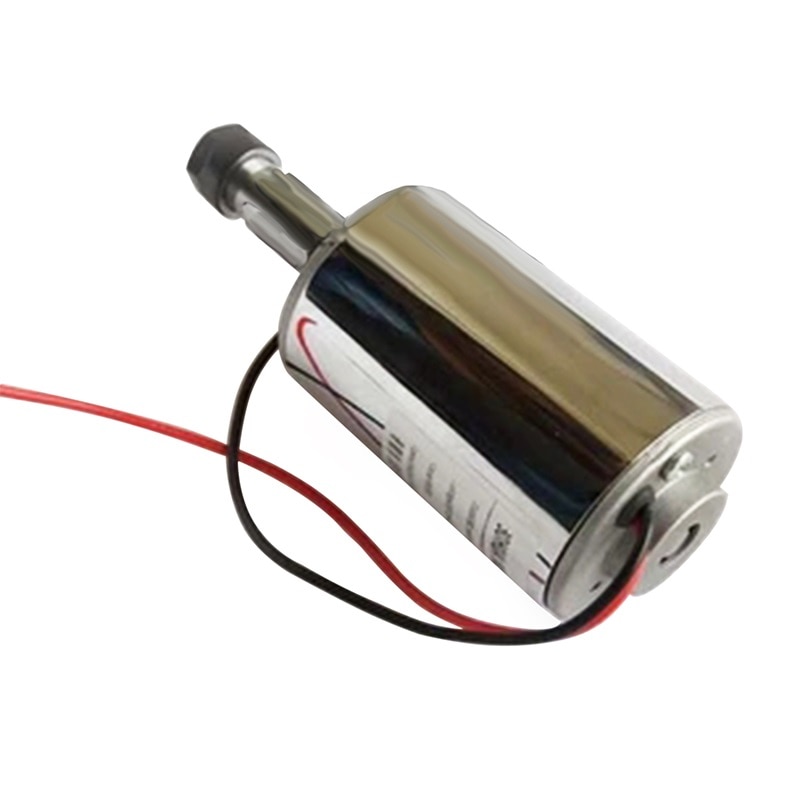

 1 x 200W Spindle Motor


Feature:


Spindle motor: new DC motor
Operating voltage: 12-48VDC
Power: 200W
Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Torque:280mN.m
Insulation resistance: >2 Mohm
Insulation dielectric strength: 400V
Diameter: 52mm
Chuck part length: Arbor part contains nut and sandwich 41MM
Chuck part of the diameter: 16mm (clip default with 3.175MM)

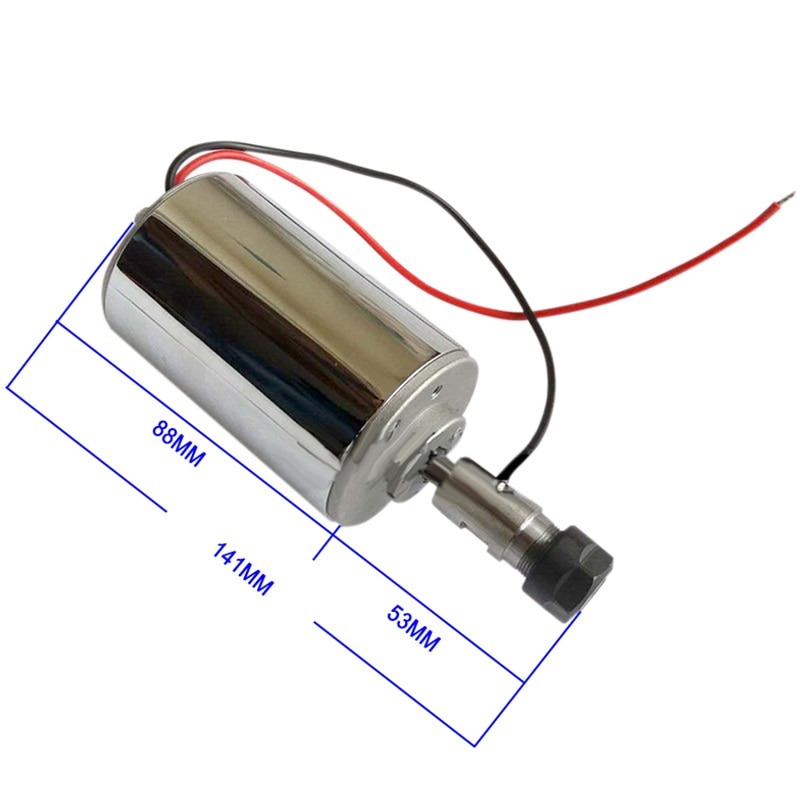

Total length of motor: 141mm (including clamping area and motor)
Spindle net weight: 0.68KG
Spindle radial runout is about 0.01-0.03.
This motor does not have a fan. Do not work continuously for a long time!

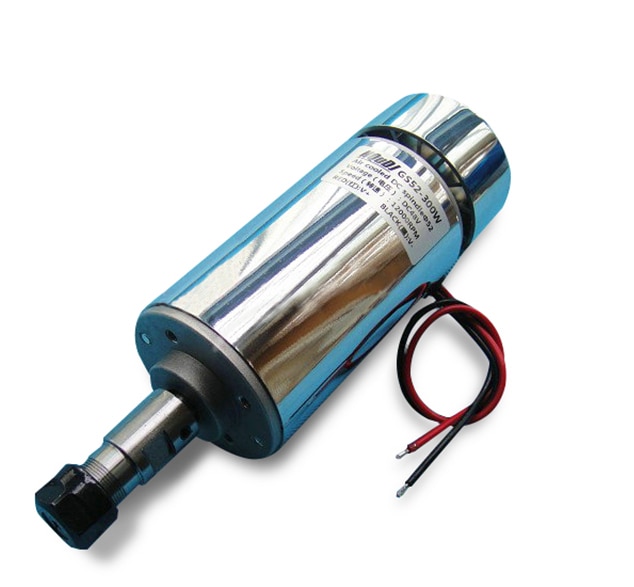

2 . 300W Package include:

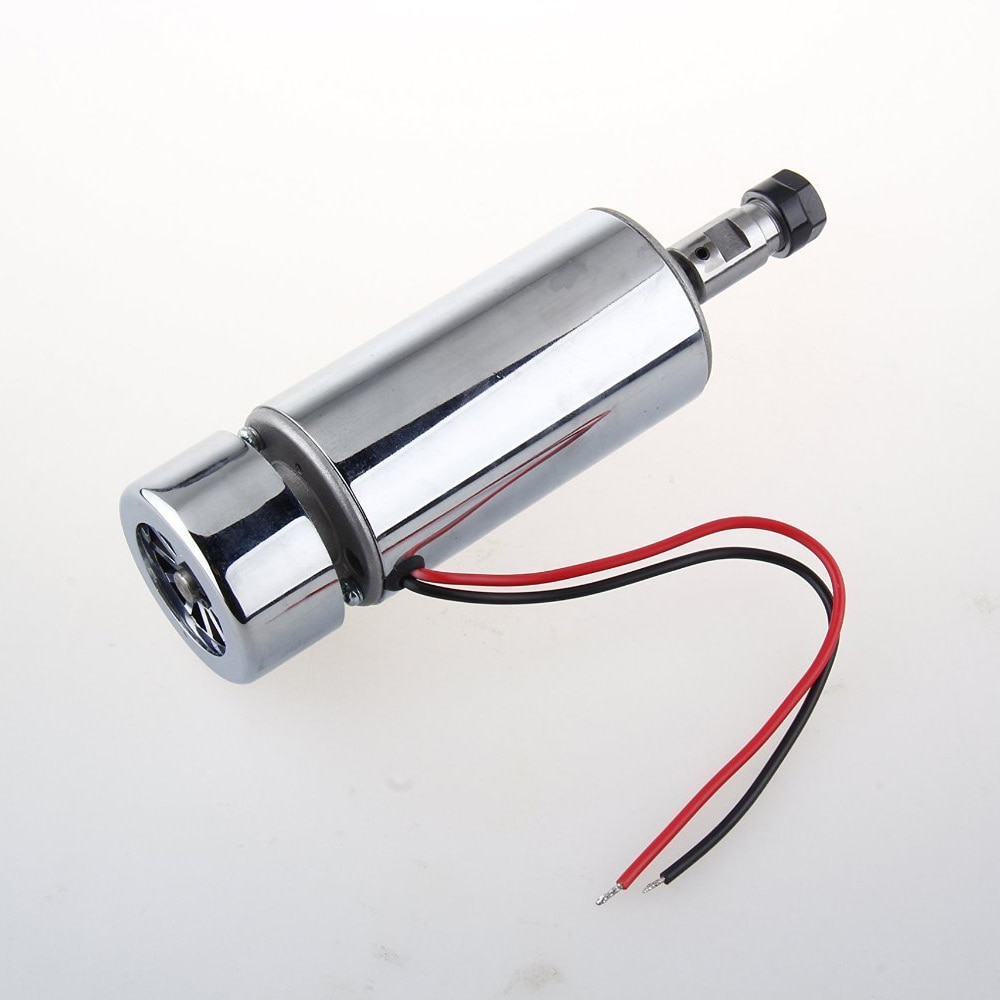

1 x 300W Spindle Motor



Feature:

Spindle Motor: New Chrome-plated DC Brush Motor

Operating voltage: 12-48VDC (DC voltage)

Power: 300W

Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Torque: 400mN.m

Insulation resistance: >2 Mohm

Insulation dielectric strength: 400V

Diameter: 52mm

Chuck part length: Arbor part contains nut and sandwich 41MM

The diameter of the chuck part is: 16mm

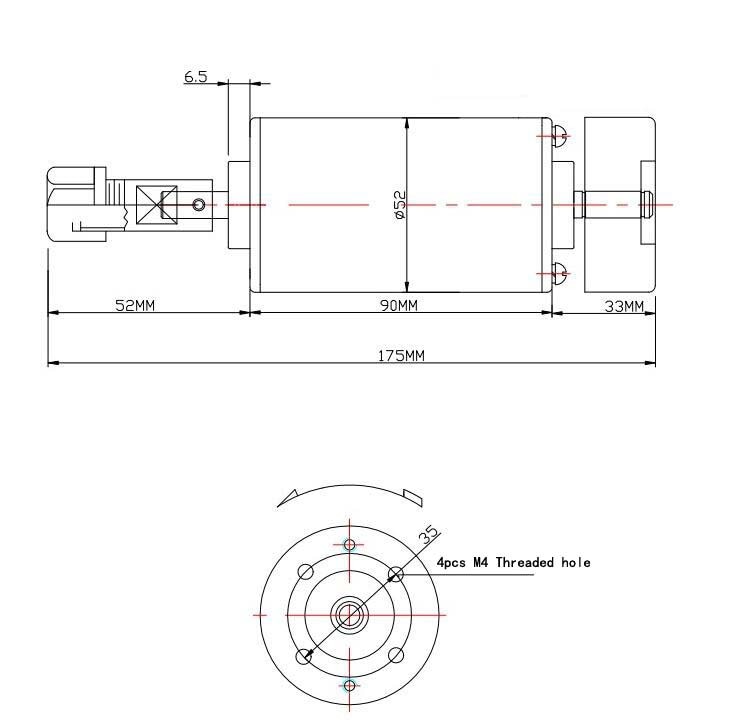

Total length of motor: 175mm (including gripping parts and motor)

Spindle net weight about: 0.8KG

Spindle radial runout is about 0.01-0.04.

Can be used to engrave metal or non-metal materials.

This spindle comes with forced air cooling and can work long hours.

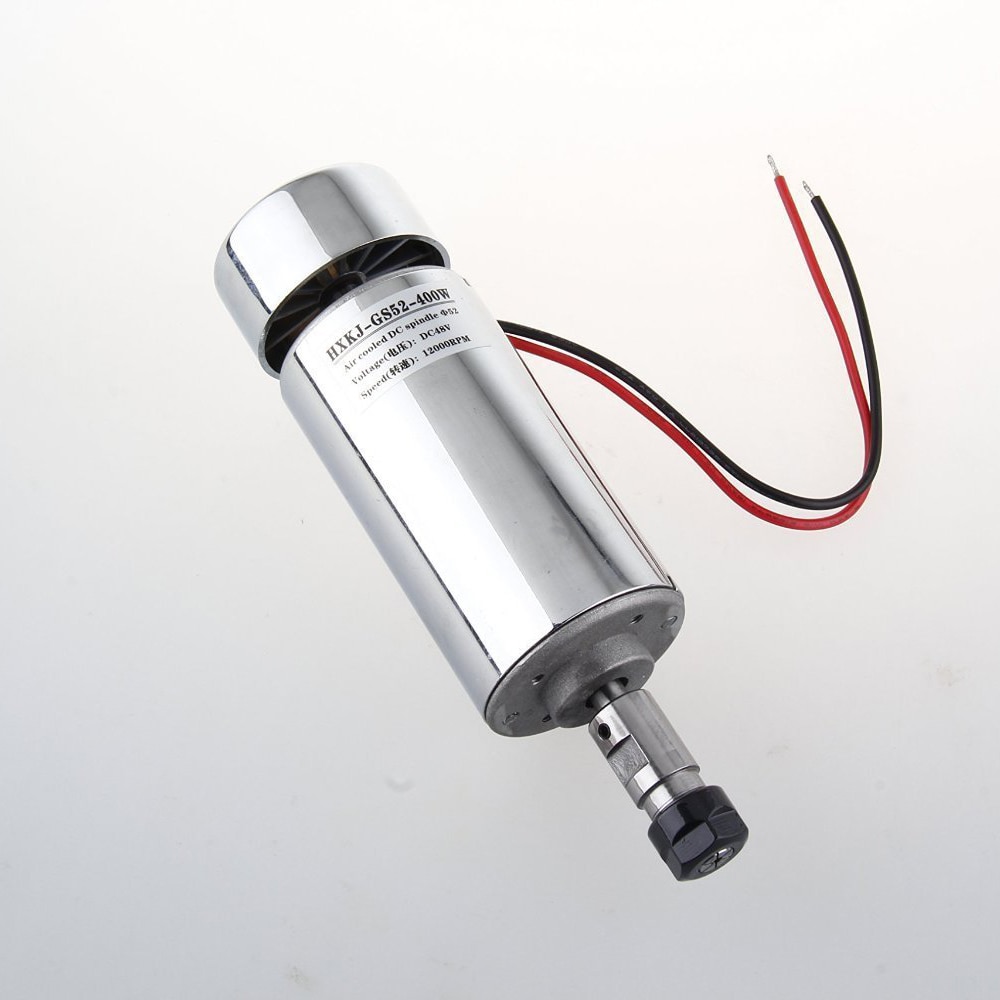

3 . 400W Package include:


1x400w spindle motor


Feature:

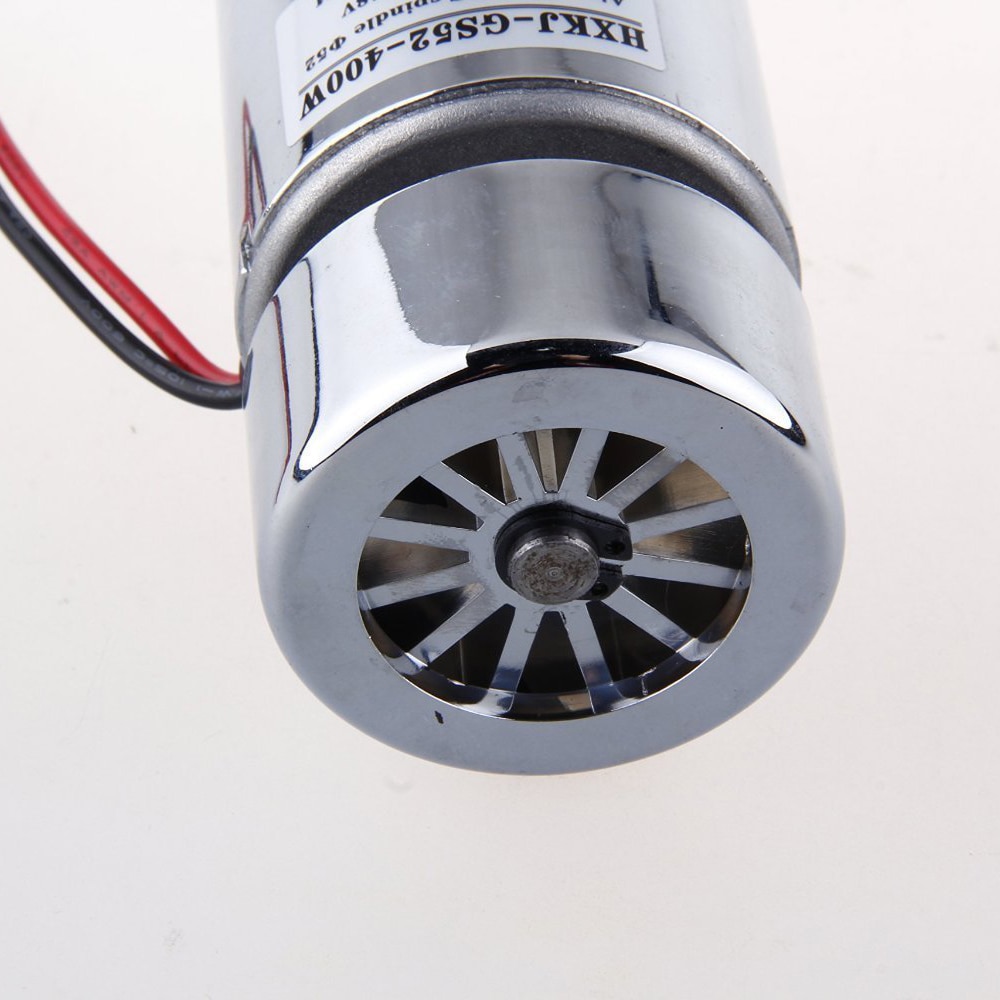

1.Air Cooled Spindle:

Working voltage: 48 VDC
Power: 400 w
Idling speed: at up to 12000 RPM
Distance: 2300 g/CM
Insulation resistance: > 2 ohms
Insulation dielectric strength: 400 v
2.52 mm diameter:
Chuck section length: 45 mm
Chuck part: diameter 16 mm
Motor length: 180 mm
0.01 0.04 high precision spindle radial runout

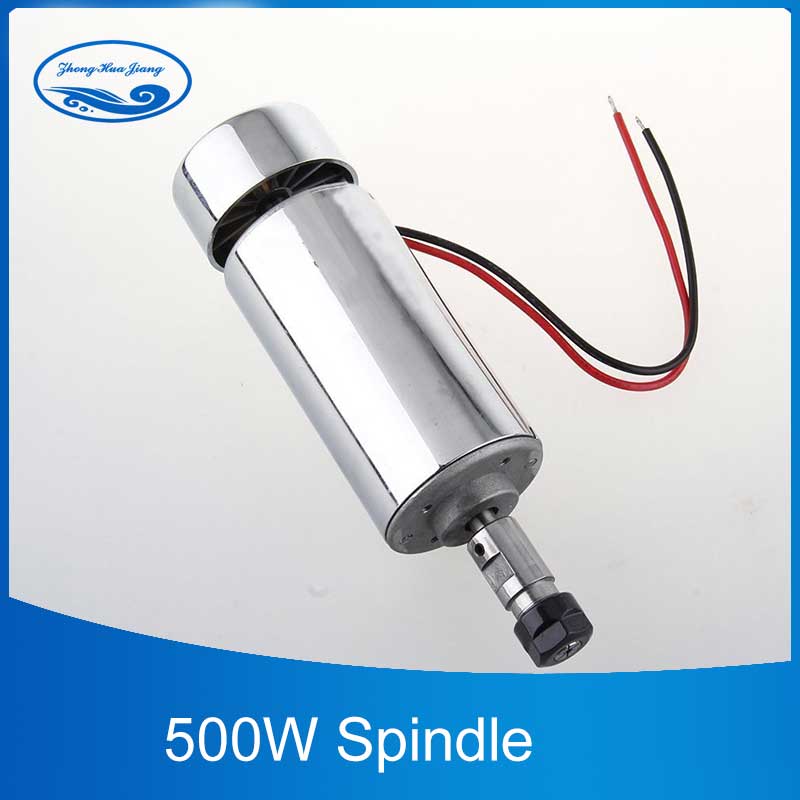

4.Package include:

1 x 0.5kwSpindle Motor


Feature:

Spindle Motor: New Brushed DC Motor

Operating voltage: 12-48VDC (DC)

Power: 500W

Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)

Torque: 500mN.m

Insulation resistance: >2 Mohm

Insulation dielectric strength: 400V

Diameter: 52mm

Clamp section length: 35mm for the shank (43mm including nut and sandwich)

The diameter of the chuck part is: 16mm

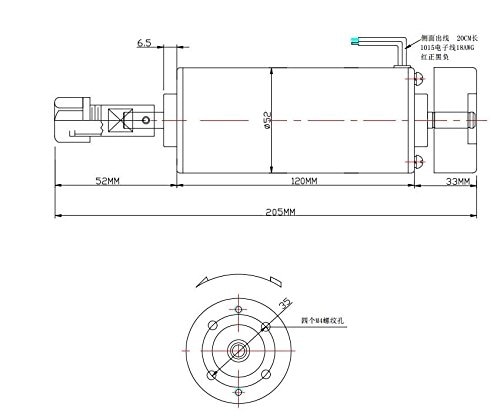

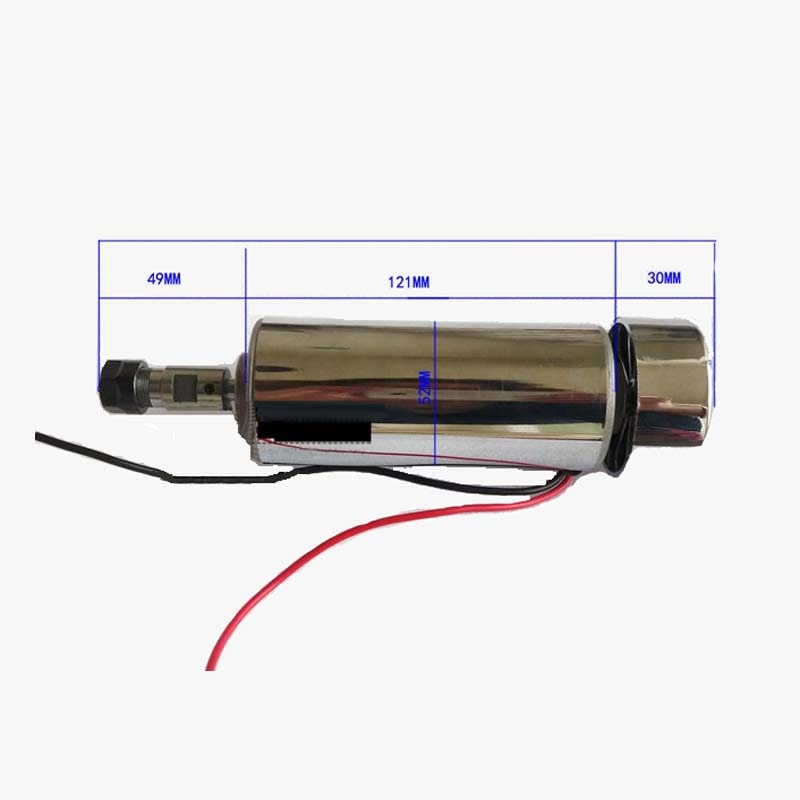

Total length of motor: 205mm (including clamping area and motor)

Spindle net weight: 1KG

Spindle radial runout is about 0.01-0.04.

Can be used to engrave metal or non-metallic materials.

This spindle comes with forced air cooling







  • Operating Speed: 3000-12000rpm
  • Application: Milling
  • Model Number: 500W Spindle
  • Drive: Motor
  • Origin: Mainland China
  • Certification: NONE
  • Type: 500W Spindle
  • Cooling: AIR Cooled
  • Speed: 3000-12000rpm

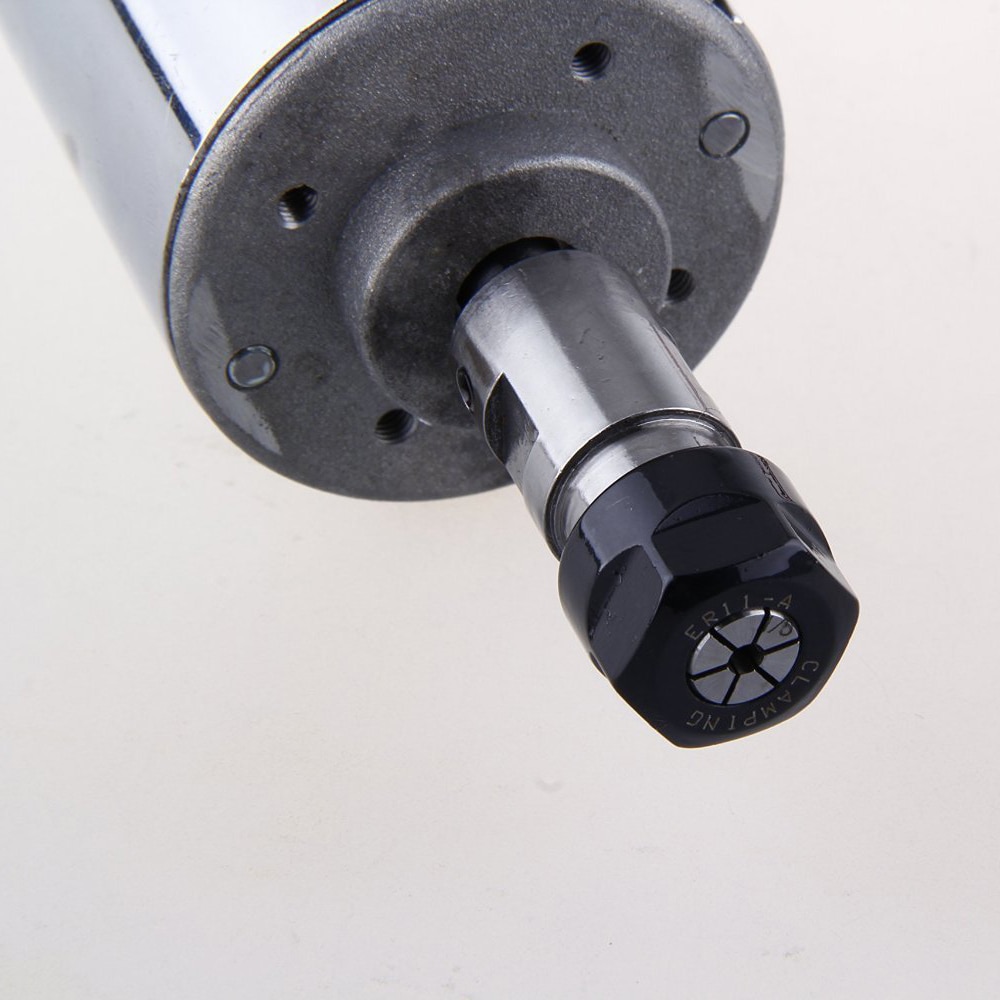

  • Collet: ER11
  • Size: 52mm
  • is_customized: Yes
  • Spindle Power: 200w/300w/400w/500w
