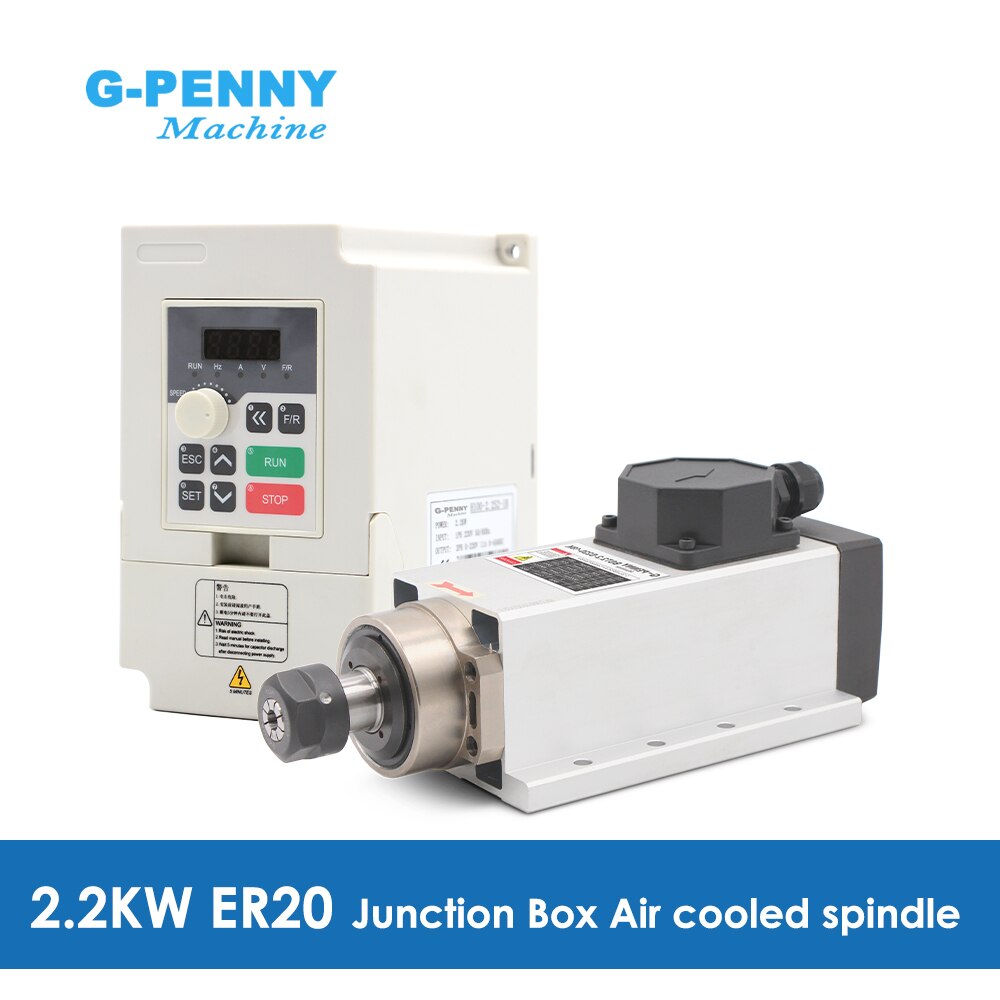

G-Penny 2.2kw ER20 Air Cooled Spindle Kit 4 pcs Bearings 0.01mm Accuracy Square Type With Flange & 2.2kw 220v QL Inverter / VFD
4.9 (12 votes) | 33 orders
Price:
US $728.16 - 950.16
/ piece
Discount Price:
US $
574.12 -
748.68
/ piece
-21%

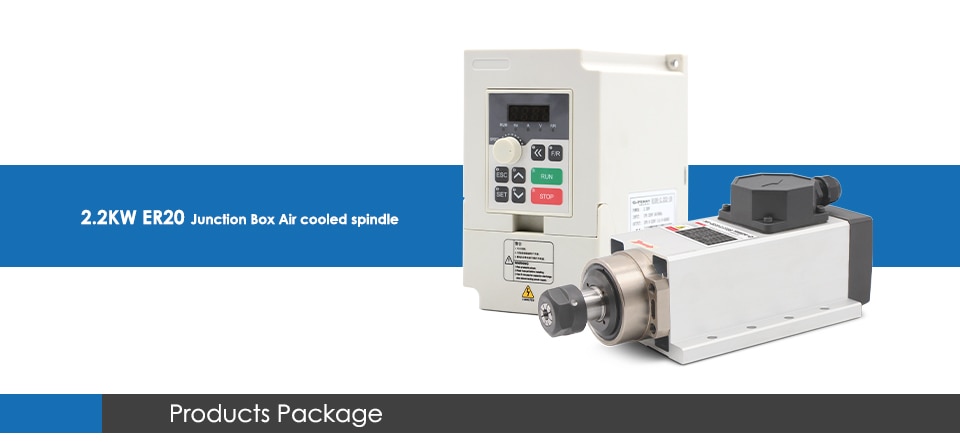

1 &220v 2.2kw ER20 air cooled spindle motor 4 pcs bearings 0-24000rpm / 0-18000rpm
1 &220v 2.2kw QL Inverter / VFD

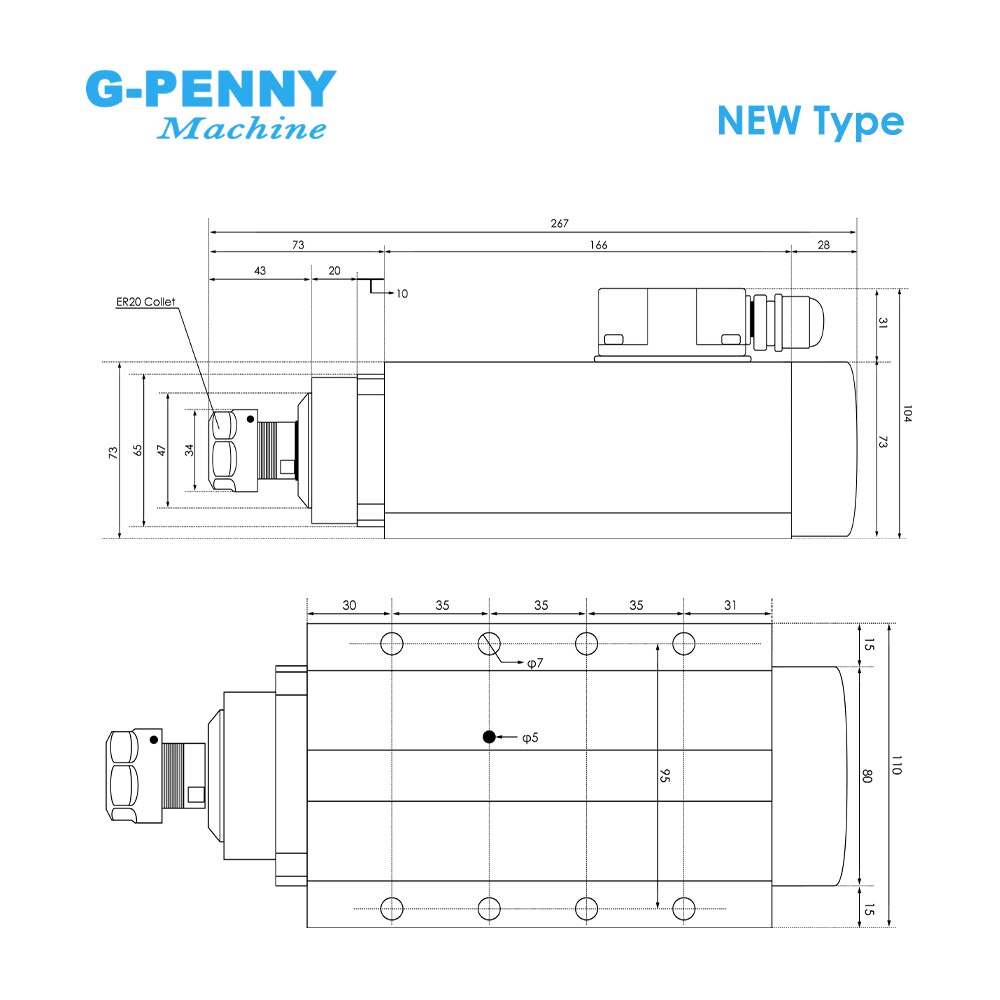

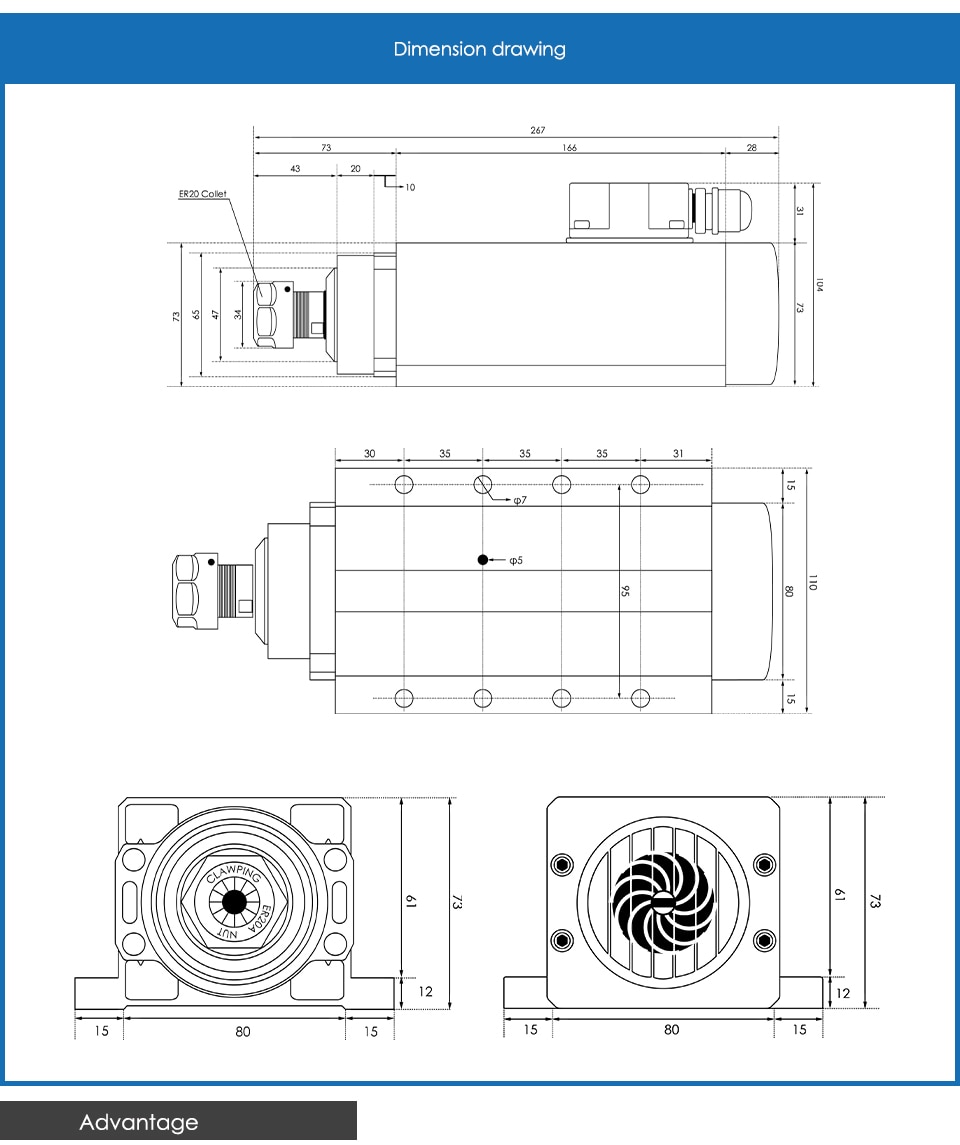

Size:173x82x95mm With Mounting Flange
Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling:Air cooling

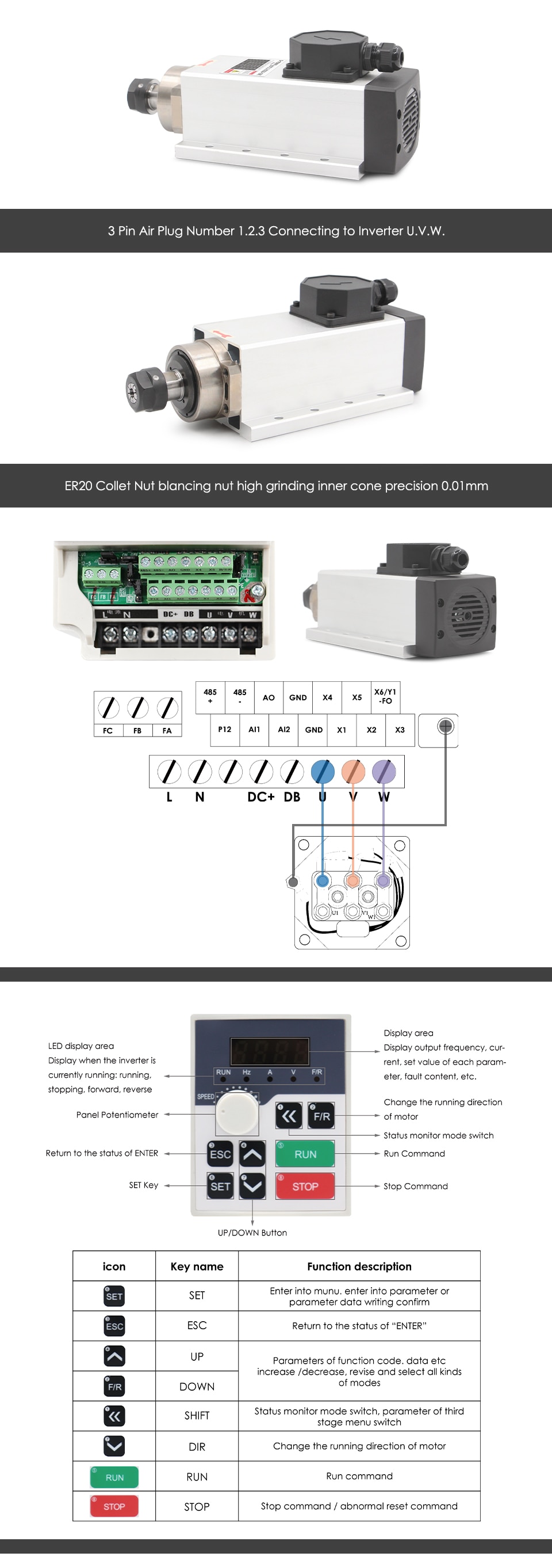

Power Interface:Optional 5 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4" "5" "GND". "1 ","2 ","3" were connected to inverter (U, V, W), "GND" connected inverter ground.
(Pay attention! our spindle "4" connecting to GND,promised personal safety!!)Power:2.2kw(1HP=0.735kw)
Voltage:220v
Current:8.5A
Frequency:0-300Hz/0-400Hz
Speed:0-18000rpm/0-24000rpm (If you choose ceramic ball bearings, the speed can be 24000rpm)
Runout Off:Less than 0.01mm
Bearing type:2x7005 C P4 DT & 2x7002 C P4 DT
Collet:ER20
Clip Knifediameter:1mm,2mm,3mm,3.175mm(1/8),4mm,5mm,6mm,6.35mm(1/4),7mm, 8mm,9mm,10mm,11mm,12mm,12.7mm(1/2),13mm
Grease Lubrication
Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,duotone board(ABS)and etc nonmetal, also can engrave on gold,silver,copper, aluminium,Pb etc soft metal surface working.(Please pay more attention, this is wood working spindle, only can used for wood working and aluminum working,please don't use it for steel. If you need steel working,please check the metal spindle,thank you!)
Bearing is P4 grade,2×7005C P4 DT & 2x7002C P4 DT. 4pcs angular contact bearings,increase the spindle life.
2.2kwER20air cooled spindle, the collet nut range from 1mm to 13mm.
High precision,runout off less than 0.01mm.Coaxial degree less than 0.0025mm.
We are thespindle manufacturer,we offer only best quality andbest price to you.

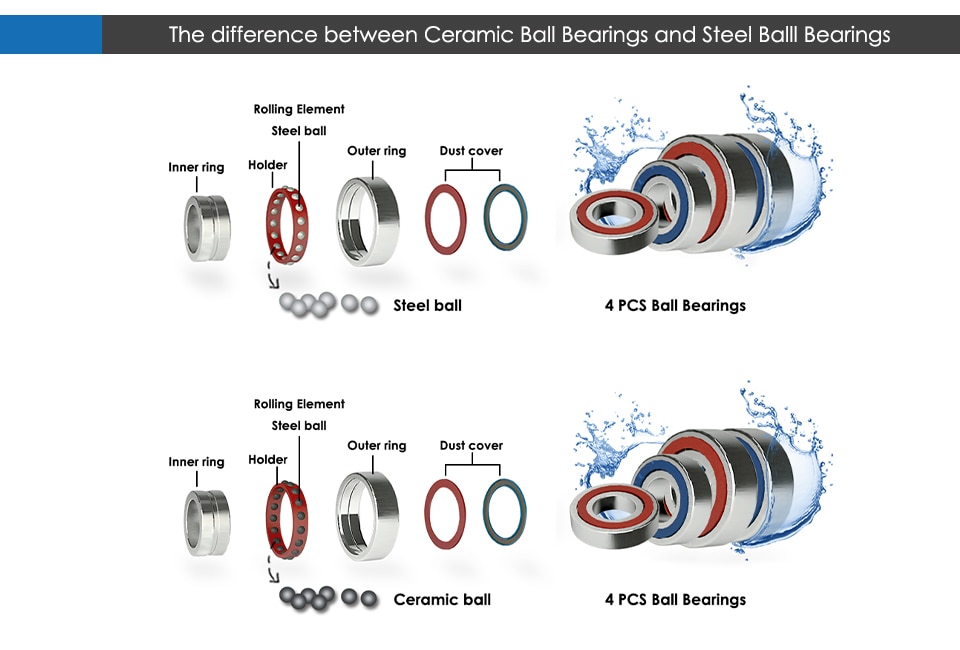

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings areresistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings during using .
3. Ceramic ball bearings havelow friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

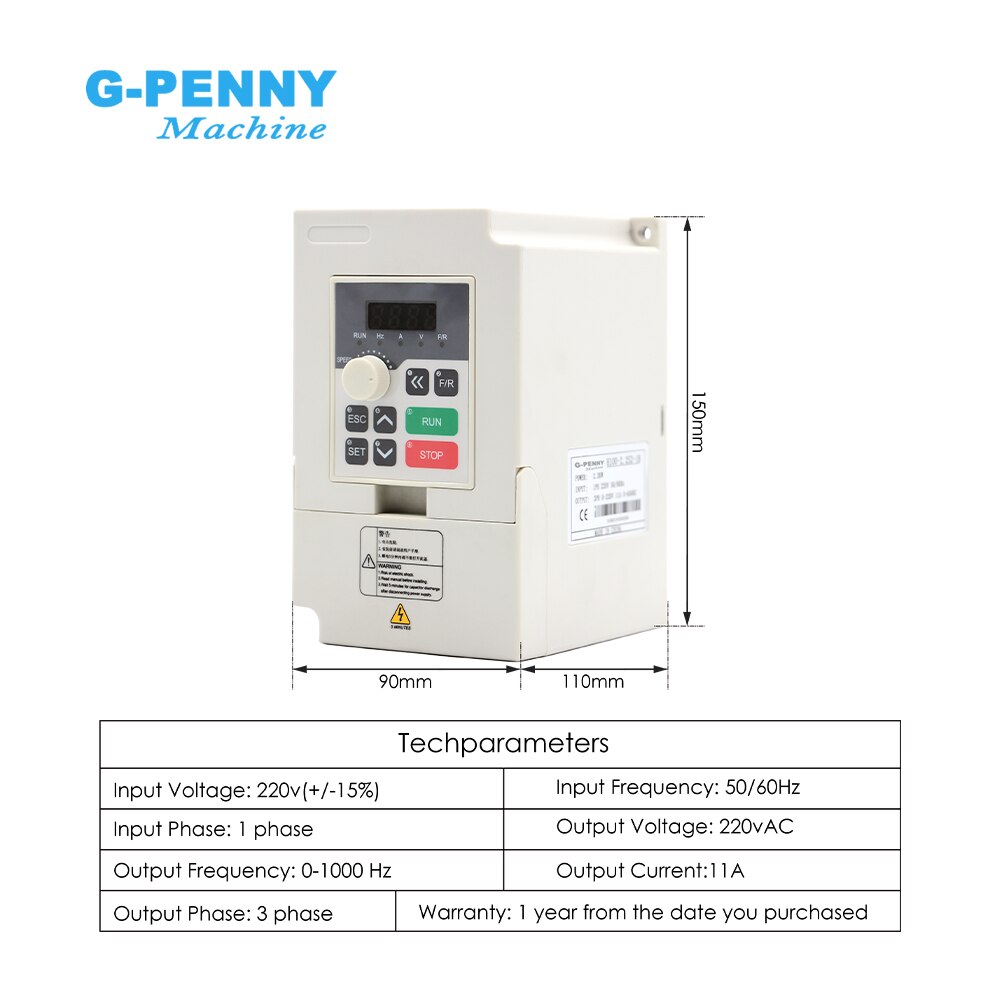

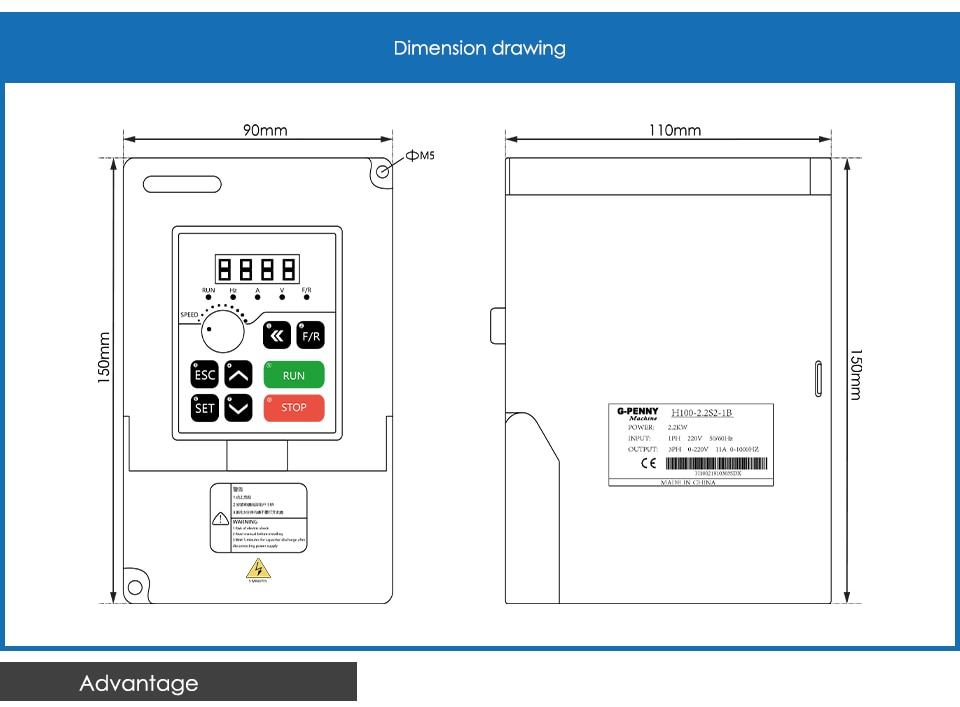

Power: 2.2kw
Input Voltage: 220v (±20%)
Input Phase: 1 or 3 phase
Input Frequency: 50-60Hz (±5Hz)
Output Voltage: 220v
Output Phase: 3 phase
Output Current: 11A
Output Frequency: 0-1000Hz
Control Method: V/F control

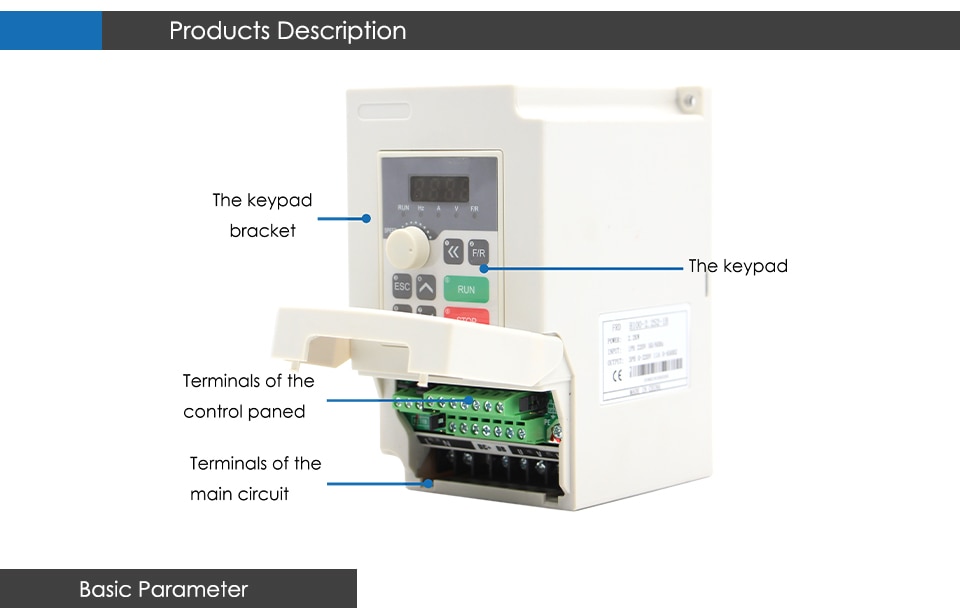

1. The outer plastic shell of the inverter is made of ABS flame retardant raw material, which is flame retardant and not easy to break.
2. The inverter cooling fan is a domestic first-line brand Huaxia Hengtai, the air volume is more than 20% higher than that of ordinary fans, and the service life is more than 5 years.
3. There is an independent cooling air duct inside the inverter, which can form an independent space and effectively prevent dust, water mist, etc. from entering the circuit board.
4. With MODBUS485 communication function, built-in braking unit.
5. Built-in PID setting, speed tracking, multi-function relay output, multiple fault protection, multiple state feedback torque control, analog setting.
6. The capacitor brand used in the inverter is Taiwan loose control, the temperature resistance is 105 degrees, and the temperature resistance of ordinary capacitors is 80 degrees.
7. The maximum output frequency of the inverter can reach 1000HZ,
8. Currently has CE certificate, CSA certification program has passed, in certification.
9. Heavy load and high torque, 1HZ can reach full torque.
10. Up to 16-stage speed control can be achieved.
Application:Winding ma chine,mixer, extruder,slitter, rewinder,compressor, ventilator, pump,grinder, conveyor, elevator, centrifuge and other speed control machines.
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.
Spindle working environment temperature is usually -10 ~ 40 .
Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

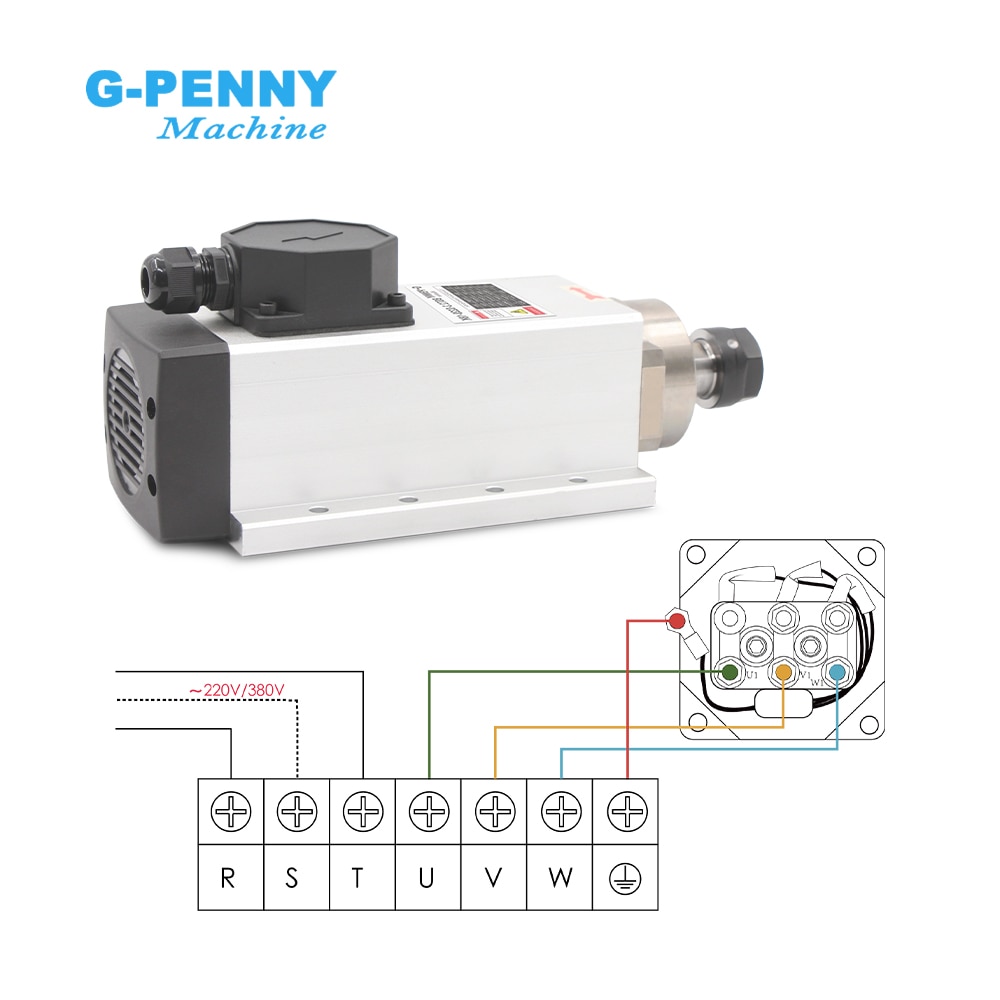

Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
If the spindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
Spindle frequency power supply connected rated voltage, frequency should be consistent with the technicalparameters of the electro-spindle, spindle speed can be adjusted to change the frequency, and voltage is proportional to the change.

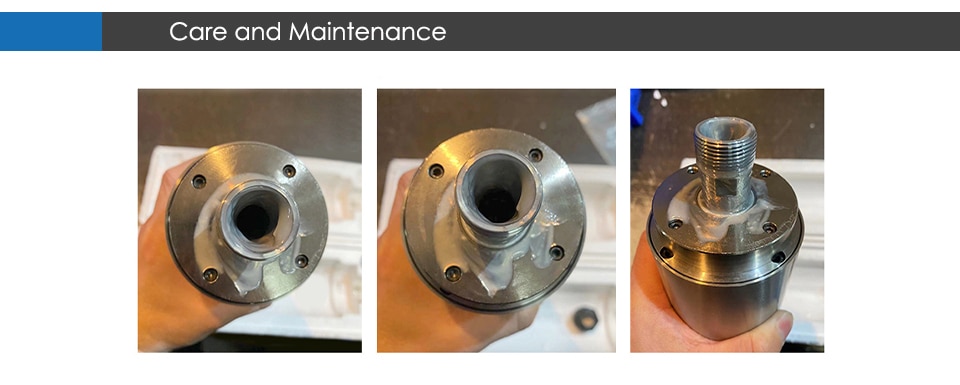

Spindle being not used, the application of compressed air to blow the pipes static coolant.To prevent rust, clogging water holes. Spindle appearance should be oiled. Plus the shaft protection device, put in a dry place.
To replace the spindle bearings, certain professional and technical personnel should be replaced.Supporting special tools, bearings should be replaced fully cleaned without removing the stator coils.

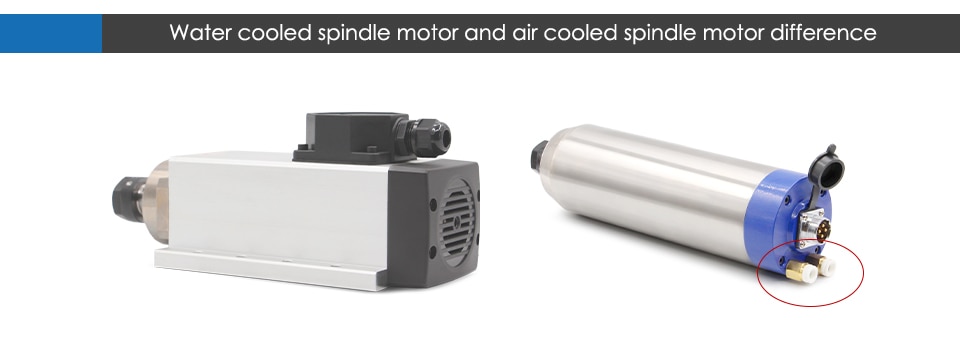

1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.

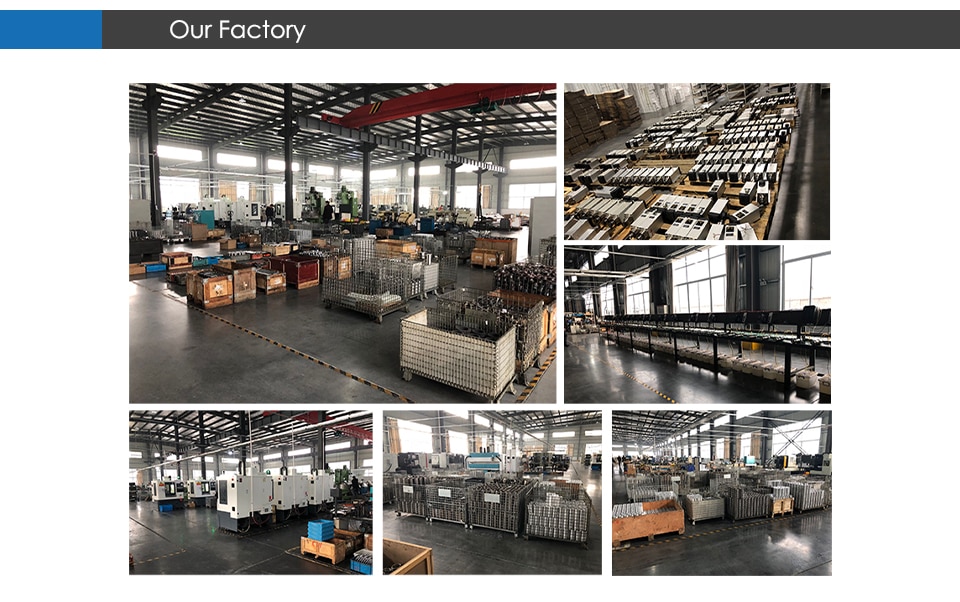

Spindle from the production - assembly - test, and finally the perfect packaging .
We will 100% guarantee security to the hands of the guests.
Shipping Cost
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.

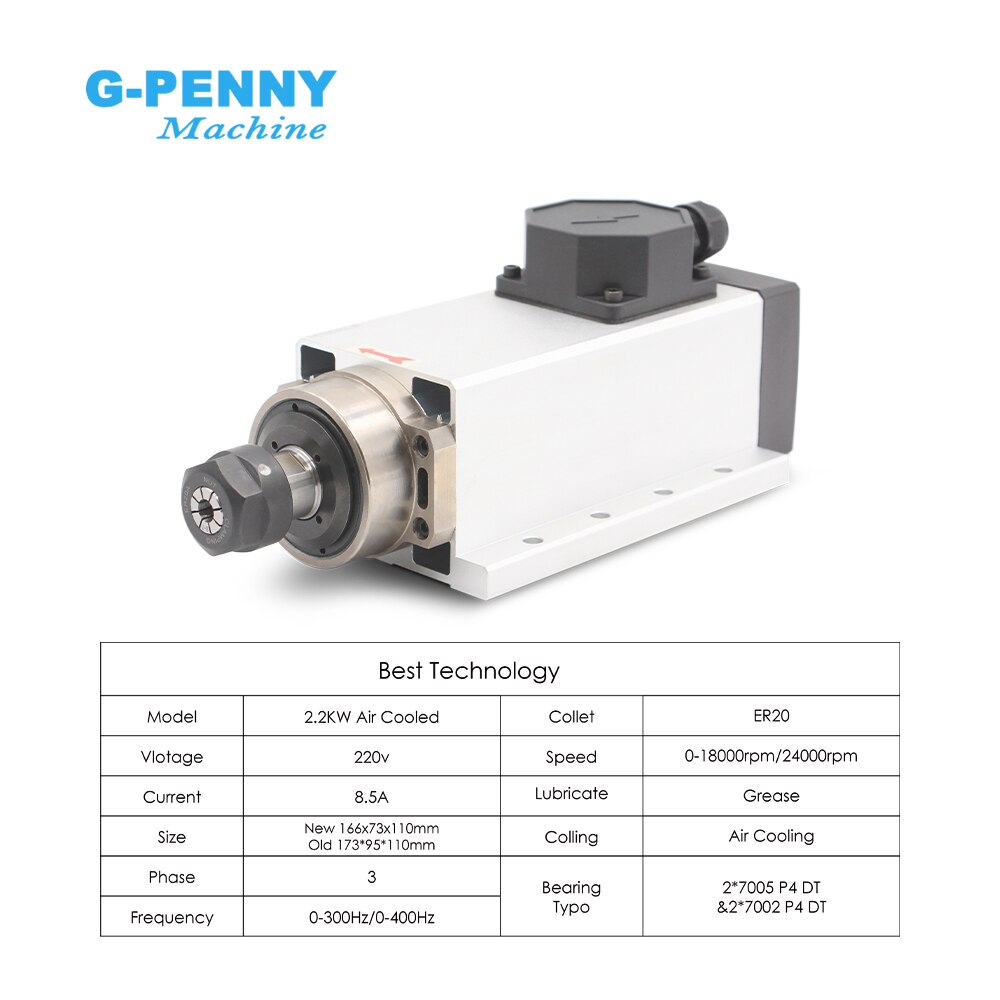

- Operating Speed: 0-18000rpm/0-24000rpm
- Maximum Torque: 1.17Nm
- Application: Milling
- Model Number: 220v 2.2kw ER20 air cooled spindle
- Drive: Motor
- Brand Name: G-PENNY MACHINE
- Origin: Mainland China
- Certification: CE
- Spindle Size: 166x110x73mm
- Spindle Voltage: 220v
- Spindle Current: 8.5A
- Spindle Power: 2.2kw
- Spindle Cooling: Air cooled
- Spindle Bearing Type: 2x7005C P4 DB & 2x7002C P4 DB
- Spindle Collet: ER20
- Spindle Frequency: 300Hz/400Hz
- Spindle Collet Range: 1-16mm (Including 1/4,1/8,1/2)
- Inverter Parameter: 220v 2.2kw 1000Hz
