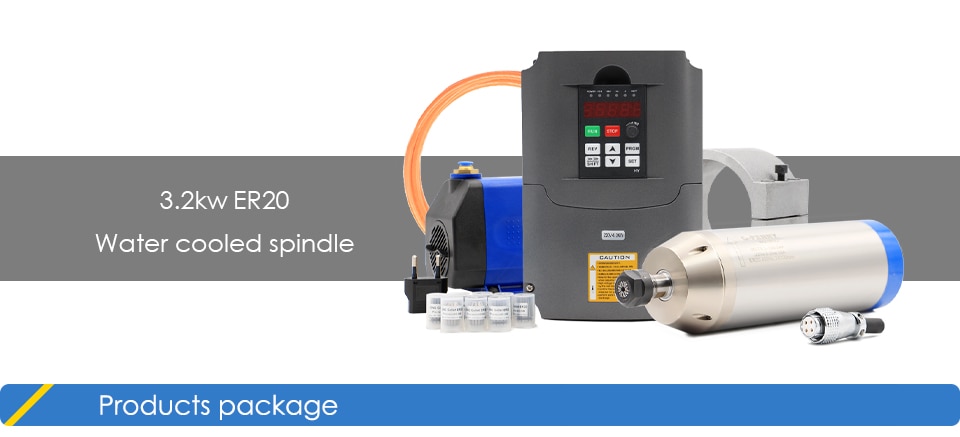

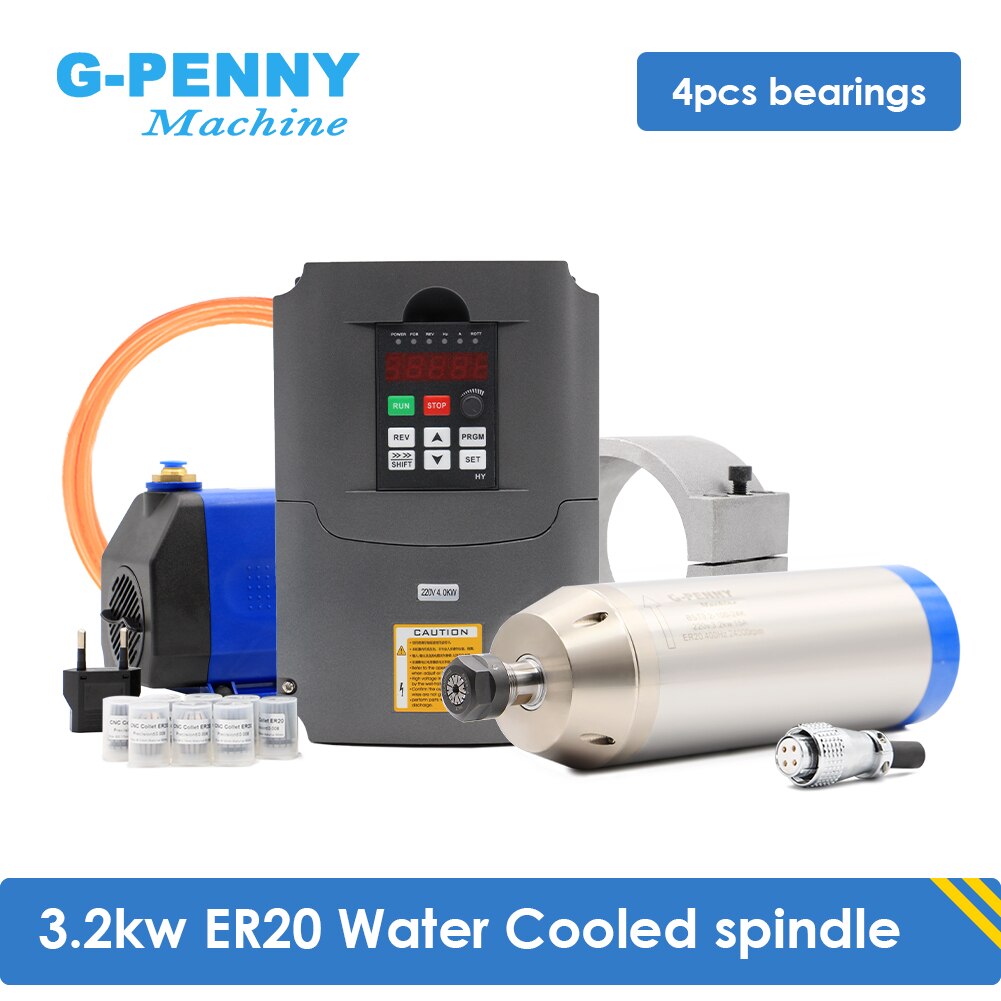

1 & 220v 3.2kw ER20 4 bearings water cooled spindle
1 & 220v 4.0kw inverter/VFD
1 & 100mm spindle clamp/bracket
1 & 75w water pump &5mwater pipes
1 kit ER20 high accuracy collet (≤0.008mm) --- 4,6,8,10,12,1/2,1/4,1/8 (As gift)

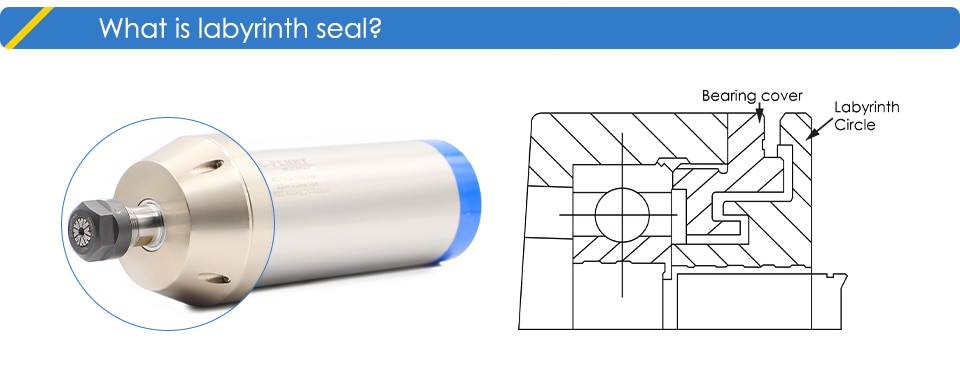

There are 4 labyrinth seal in the front section of the spindle，Prevents lubricant leakage from bearings and intrusion of harmful impurities (dust, moisture, corrosive gases) and bearing seals under high-speed conditions.
If you want to use the spindle for engraving and cutting aluminum,stone,wood... You can choose bullet type, the waterproof is better. If you only need used for wood, then you can take normal wood working spindle.

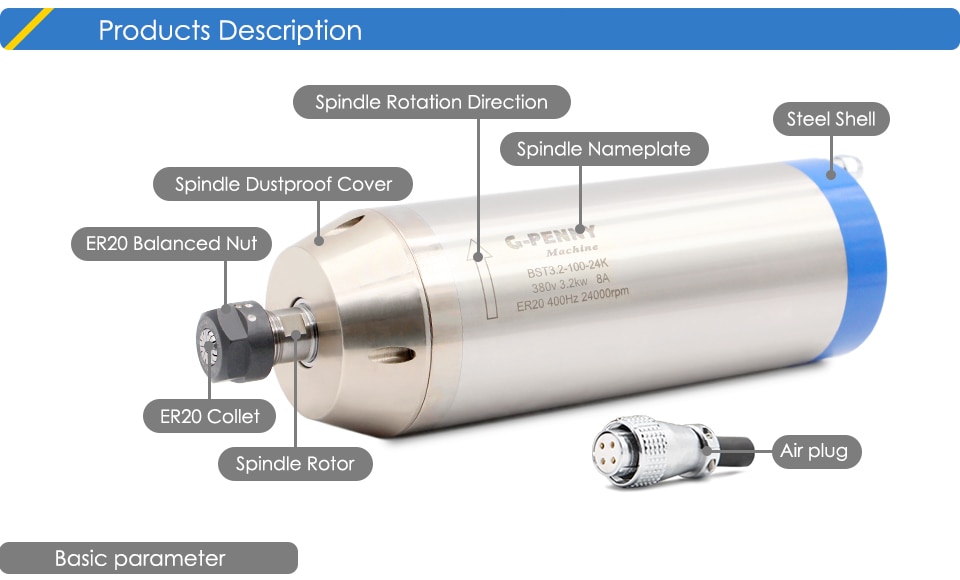

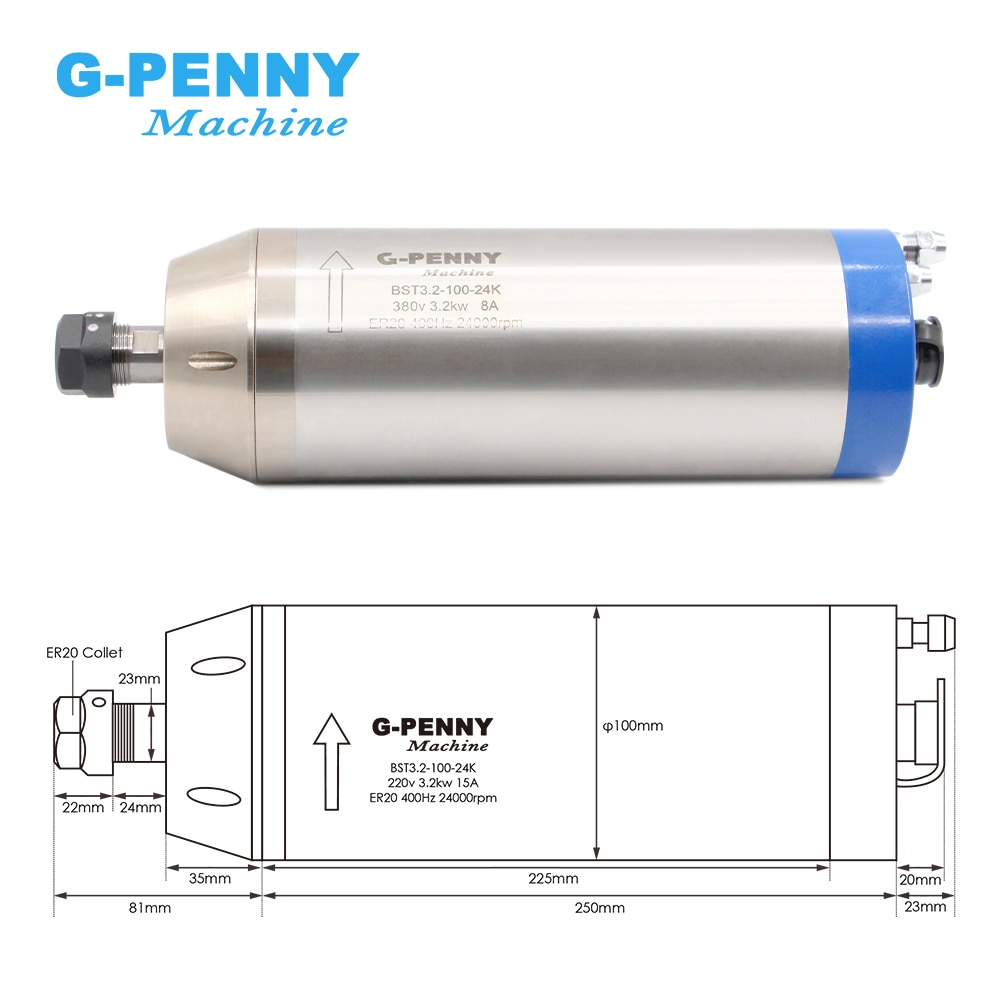

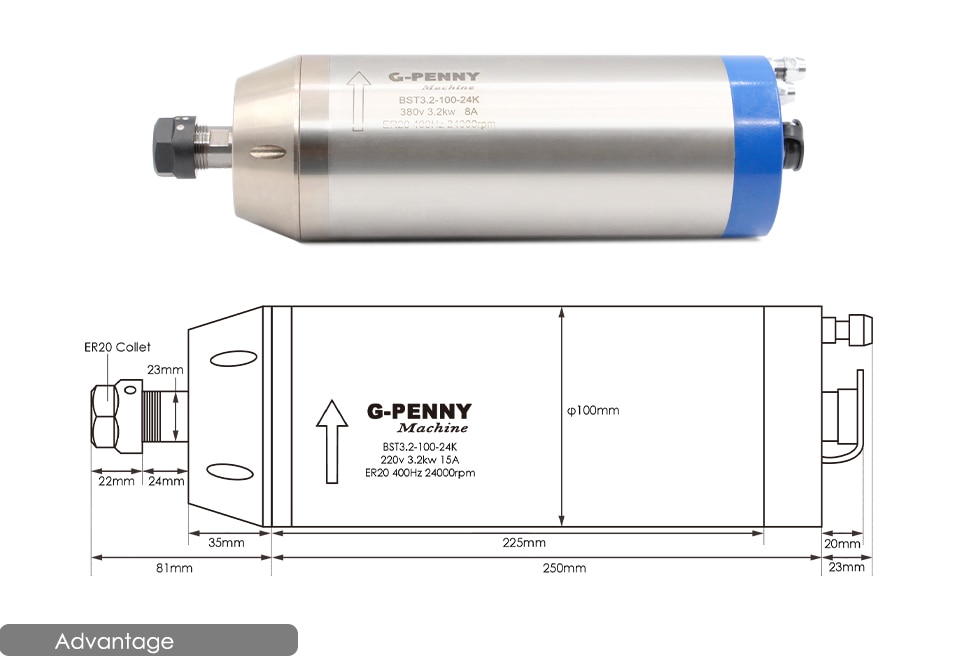

Size:100x250mm (Middle body diameter:100mm;Length:250mm)
Speed Ways:Through 3-phase output inverter and adjust the inverter frequency to change the spindle speed.
Cooling:Water cooling
Power Interface:Optional H20-4 pins waterproof air plug. The air plug marked "1 ","2"," 3"," 4", "1 ","2 ","3" were connected to inverter (U, V, W), 4 connected inverter ground.
Power:3.0kw
Voltage:220v
Current:15A
Frequency:0-400Hz
Speed:0-24000rpm
Runout Off:Less than 0.01mm
Diameter(mm):100
Bearing Type:2 x 7005 P4 DT & 2 x 7003 P4 DT
4pcs fully sealed angular contact bearings
Collet:ER20
Clip Knifediameter:13mm,12mm,12.7mm,11mm,10mm,9mm,8mm,7mm, 6.35mm,6mm, 5mm, 4mm, 3.175mm, 3mm, 2mm, 1mm(standard 6mm)
Water Cooling ER20 collet chunk
Grease Lubrication
Main Application:Engrave for wood,bamboo,normal PCB,PVC,PMMA,plastic,bamboo,duotone board(ABS)and etc nonmetal,also can engrave on gold,silver,copper,aluminium,Pb etc soft metal surface working.
4 P4 angular contact bearings ,2×7005C P4 DT&2×7003C P4 DT,increase spindle life.

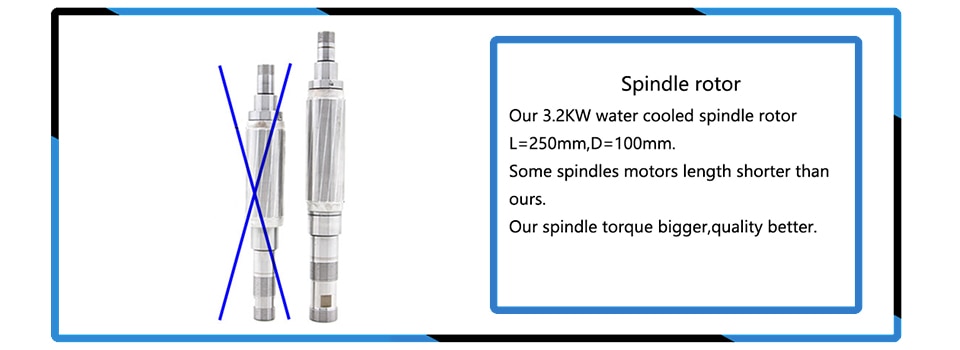

Longer length make the torque bigger,more powerful.
Carefull assembly make the spindle more precisional.
Runout off 0.01mm.Coaxial degree less than 0.0025mm
We are the spindle manufacturer,we offer only best quality and best price to you.
There are 4 labyrinth seal in the front section of the spindle，Prevents lubricant leakage from bearings and intrusion of harmful impurities (dust, moisture, corrosive gases) and bearing seals under high-speed conditions.

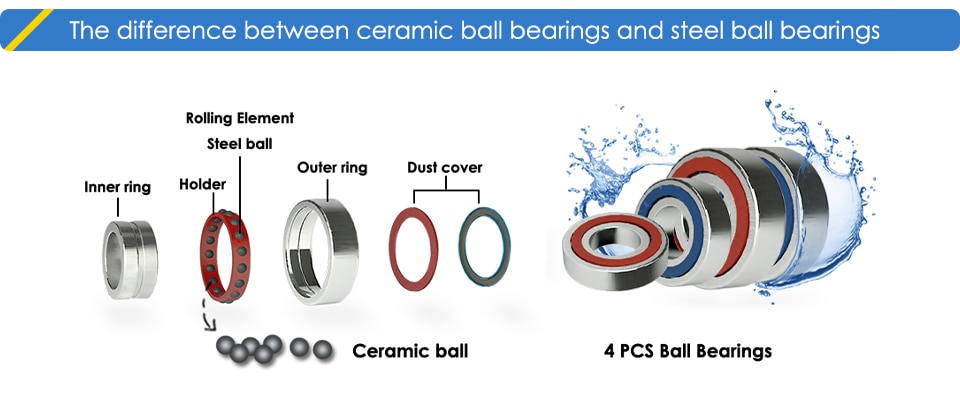

1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.
2. Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings during using .
3. Ceramic ball bearings have low friction, low noise and long service life.
4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

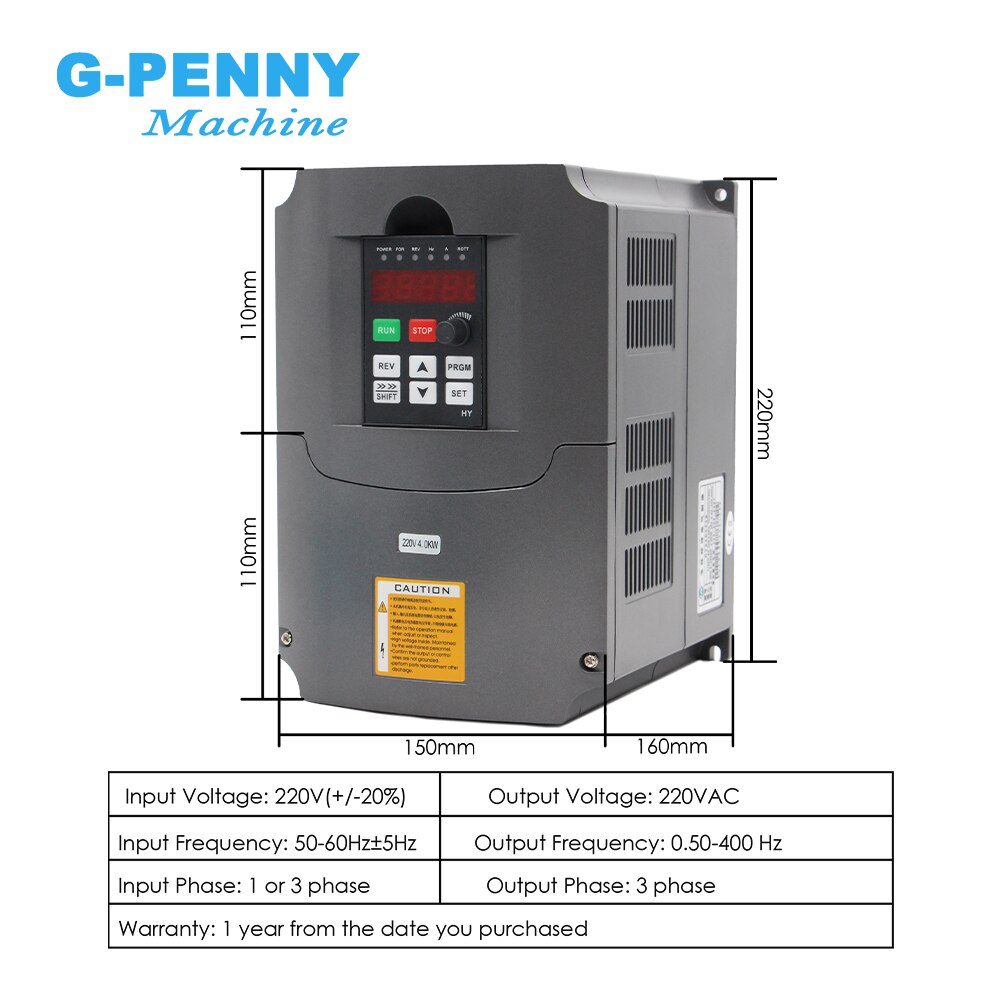

Inverter Type: Huanyang 220v 4.0kw
Input Voltage:220V(+/-15%)
Output Voltage:220vAC
Input Frequency:48-63 Hz
Output Frequency:0-400 Hz
Input Phase:1 or 3 phase
Output Phase:3 phase
Warranty:1 year from the date you purchased
Original HY (Huangyang) brand inverter, stable using.
Control Mode is SPWM,it is very easy to use and convenient Protection functions are very strong, Fin over-heat protection, Overload protection, Fuse protection, Restart after instant stop,stall protection. Powful function.
Features
---PID control; advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
---Easy PLC function can realize 16 legs of speed and inverter control function;
---RS485 communication port, adopting standard international MODBUS main circuit control ---With extremely strong anti-jamming capability;
--- Low output ratting torque 0.5HZ-150%, low speed running ability;
--- Carrier adjustable by 16KHZ, completely soundless working environment;
---Broad voltage working area, normal running in 304V-456V;
--- Auto voltage regulation(AVR) technique, for ensuring the inverter load capability;
--- Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
--- With perfect error protection and short circuit starting protection capability;
--- Dead-time compensation and auto torque slip compensation function, can realize 180% high torque output at low frequency 0.25Hz
--- Unique EMC design, can minimize inverter's pollution to power.
---Overall reinforcement layer to suit all kinds of harsh environment.
DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.
Please contact us, we have manuals, videos and pictures to help you.

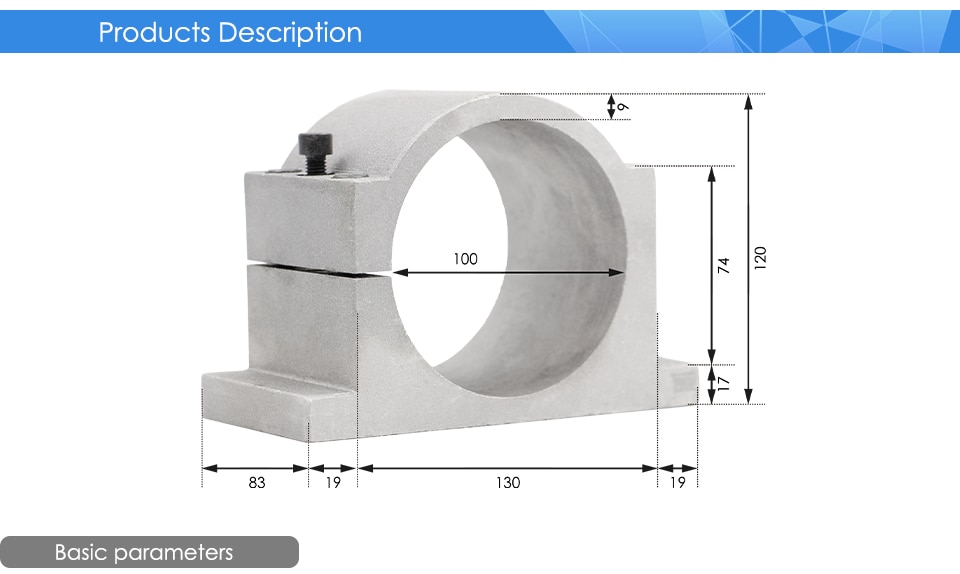

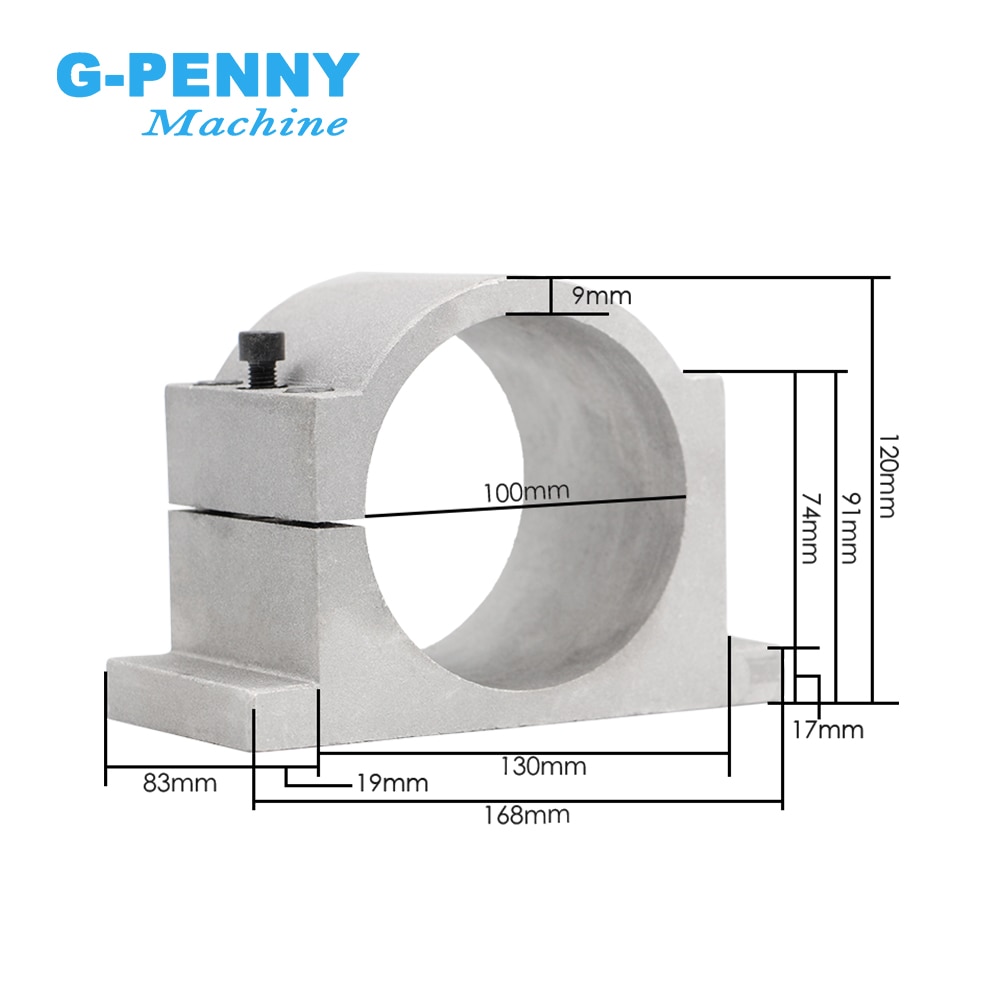

Diameter:100mm
Material:Cast Aluminium
Features
Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.
Inner wall is very smooth, outer walls is sandblasted, relatively fine uniform, but not very smooth.
Cast aluminium fixture is much heavier than aluminium profile fixture
Product Description
Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.
Usage
Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.

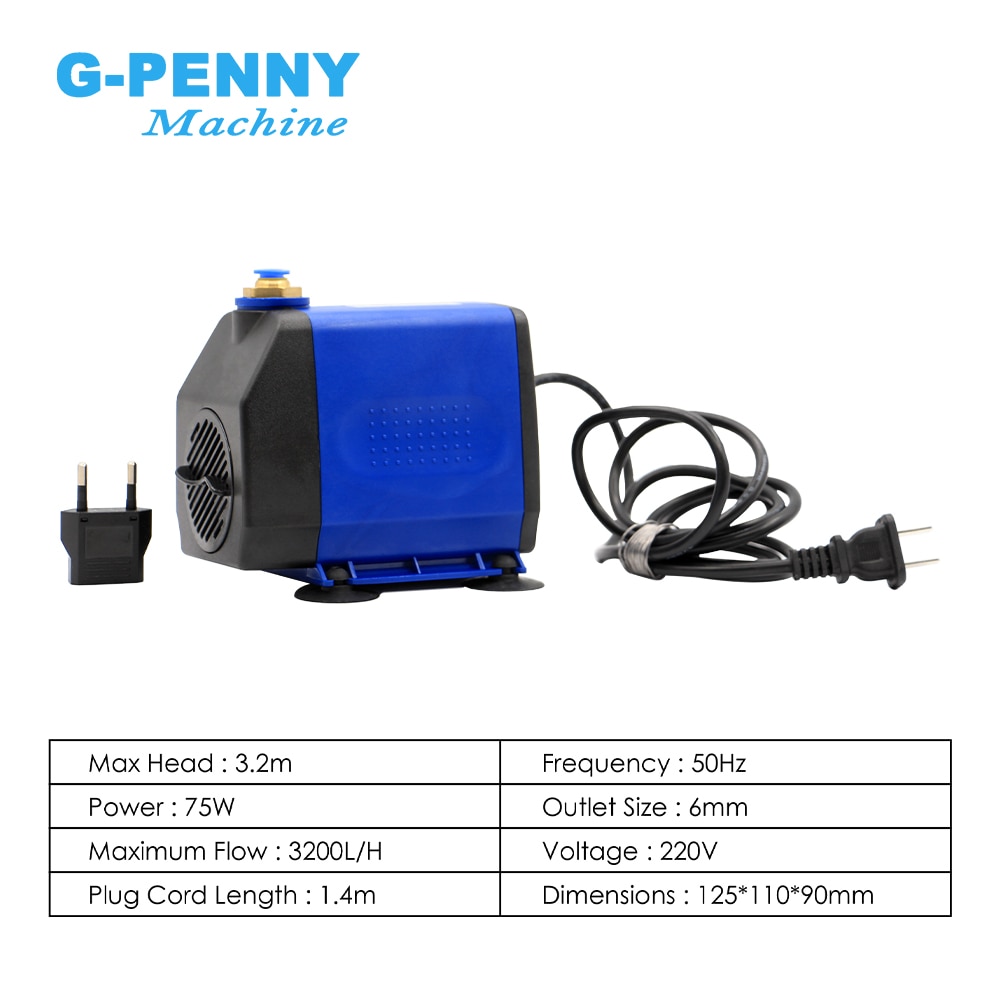

Max Head: 3.2 m;
Power: 75w;
Maximum flow:3200L / H
Plug Cord Length: 1.4m
Voltage: 220V;
Frequency: 50 HZ
Outlet size: 4 and 6 mm;
Dimensions: 125 * 105 * 90 mm
Advantage
High Lift / Large Flow Rate / Highly Durable / Excellent Insulation / Can cool the machine quickly / Good quality and long life / Large inventory / Big strong power
Features
The shell is made of high quality plastic, which is anti corrosive and high durable.
Pumps have excellent insulation thanks to the motor bearing completely sealed.
Pumps combine pumping, filtered,oxygen and fountains in one.
Note
Must be used in the water.
Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.

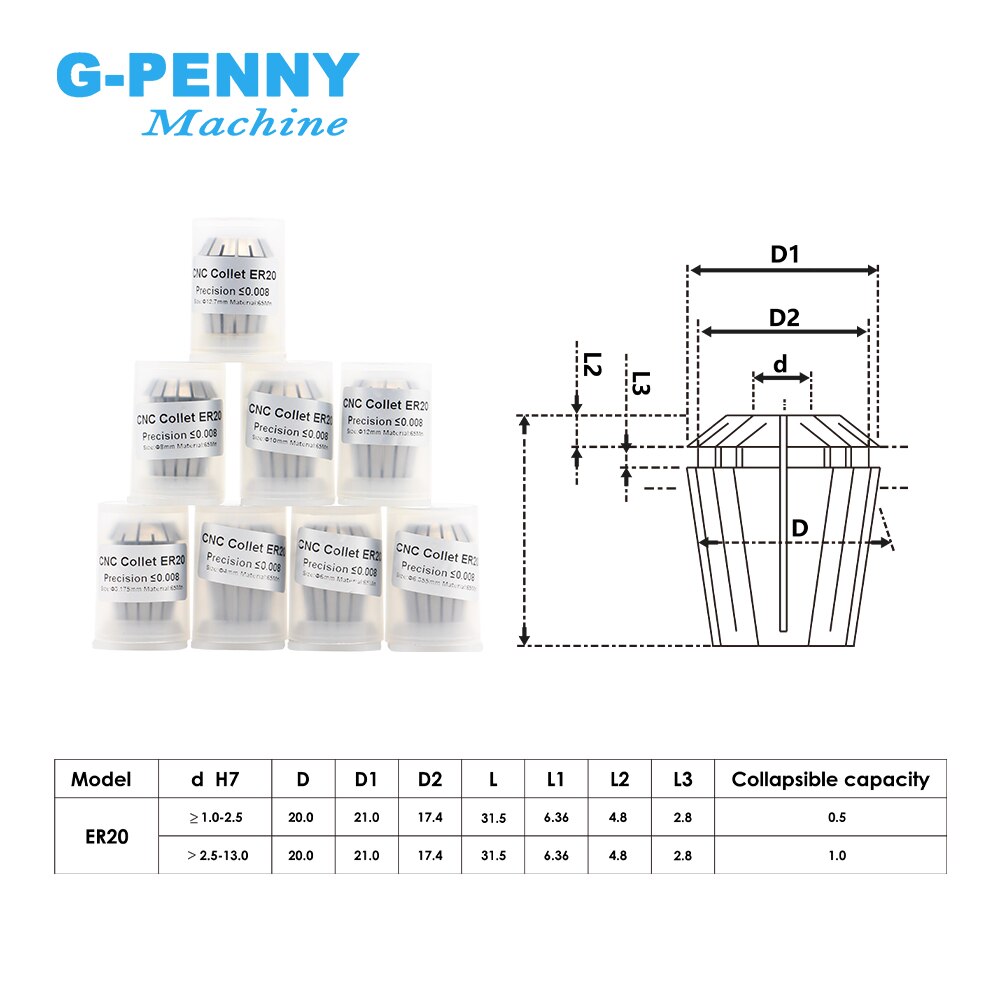

Type: ER20 High accuracy collet
Material:65Mn Steel
Quantity: 8 pcs(4mm,6mm,8mm,10mm,12mm,1/4(6.35mm),1/8(3.175mm),1/2(12.7mm))
Precision ≤ 0.008mm
Hardened & Precision ground
Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.
Spindle working environment temperature is usually -10 ~ 40 .
Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.
Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

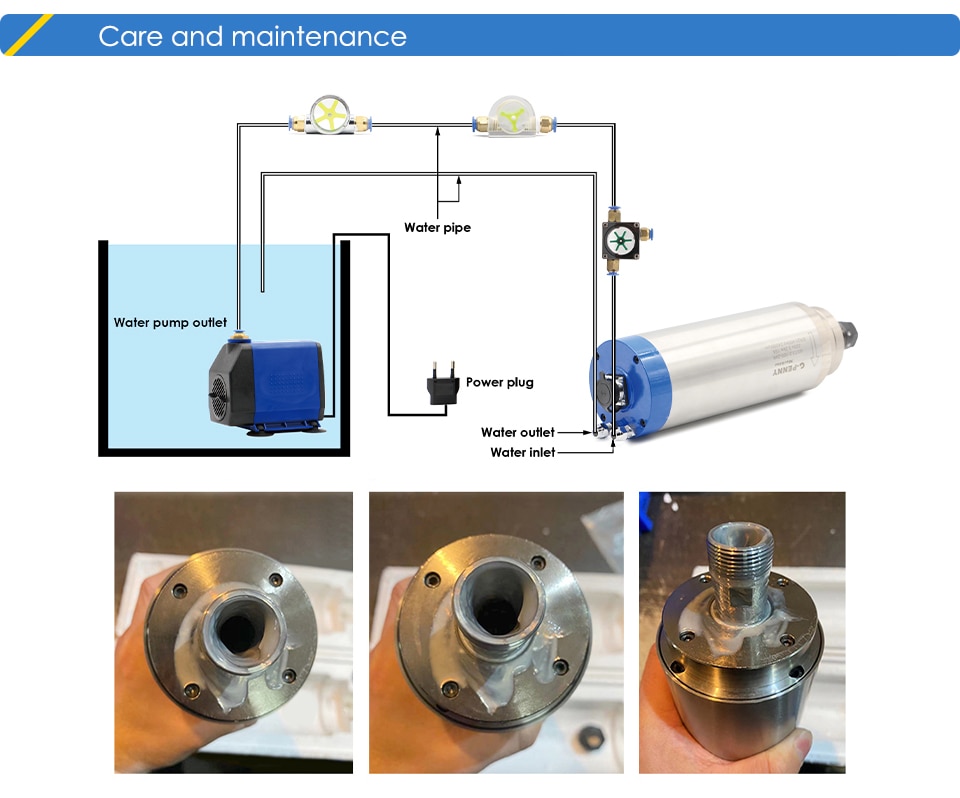

It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
Water cooled spindle MUSTbe used with water pump. Otherwise the spindle will soon broken.

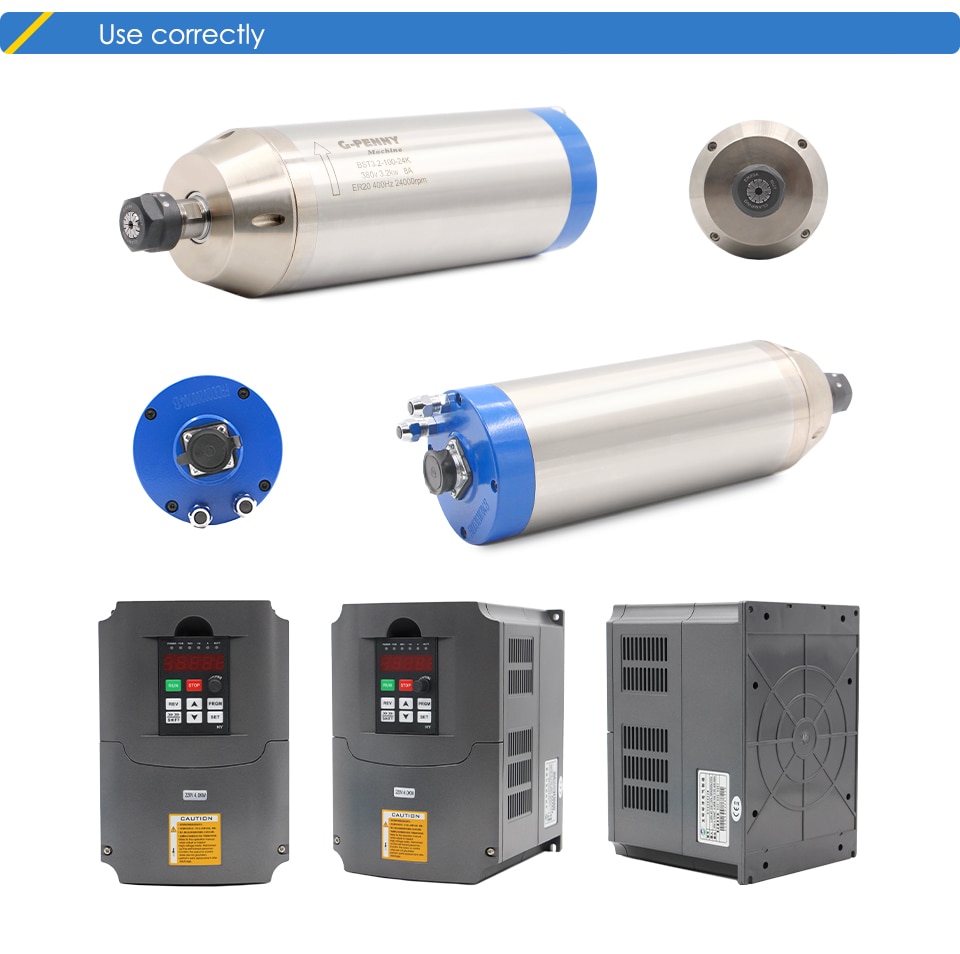

AC spindle motor MUSTuse with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
When you use the spindle,the noise is not same as always,please STOPthe spindle at once. You may need to replace the spindle bearings. If the spindle will not be used for a long time, please keep the spindle oil sealed to prevent rust from being unused for a long time.
Before shipping , we did the oil seal to avoid the rust during the long shipment. When you get the spindle, please clearing the oil seal before using. Thank you.
If you don't know how to set up the inverter or connect the spindle to inverter,please contact us.We will help you to set up it.

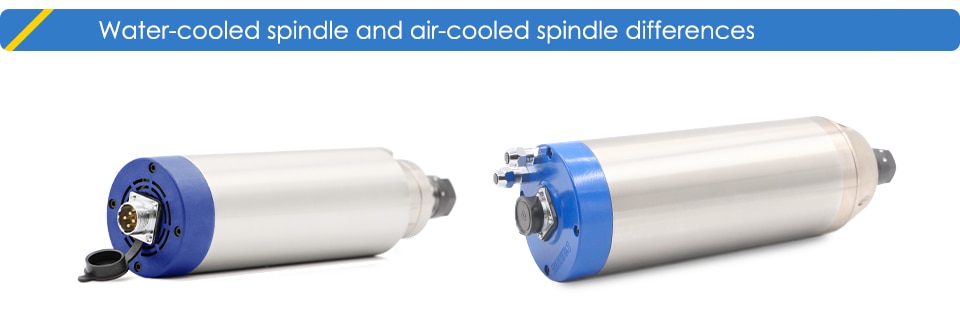

1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.
2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.
3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.
4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.
Spindle from the production - assembly - test, and finally the perfect packaging.
We will 100% guarantee aecurity to the hands of the guests.
Shipping Cost
Our products are sold worldwide.
If you need many items in the same time, please contact us in advance to confirm shipping cost.
Payment:
We accept paypal credit, bank transfer, western union etc.
Payment must be made within 7days calendar days of the auction end time.
Problem and Feedback:
PLEASE DON'T leave any negative feedback before you contact us.
We are honest and helpful supplier , we will try our best to solve problems with you.
Your satisfaction is very important for our store, so please contact us before you want to leave a negative feedback.
Thanks very much in advance.
Refund:
If you are NOT SATISFIED with our package like the products is damage, please do not sign it and contact us immediately.
If it is possible, please take some photos or make a small video about it. It will help us to solve the problems.
Note:
We can produce the product according to our customer's design.
If you need something is very special, please contact us about it.
We are willing to help you about it.
- Operating Speed: 0-24000rpm
- Maximum Torque: 1.27Nm
- Application: Milling
- Model Number: 3.2kw water cooled spindle motor kit
- Drive: Motor
- Brand Name: G-PENNY MACHINE
- Origin: Mainland China
- Certification: CE
- Size: 100x250mm
- Power: 3.2kw (1HP=735w)
- Cooling: Water cooled
- Bearing Type: 2 X 7005C P4 DT and 2X 7003C P4 DT
- Collet: ER20
- Frequency: 400Hz
- Spindle Clamp: 100mm
- Inverter Type: HY 220v 4.0kw 400Hz
- Water Pump Type: 75w 220v 3200 L/H
- Application: Milling, Engraving
