200(N.m)/59kg Two Shaft Magnetic Powder Clutch & Brakes ZKB-20BN Magnetic Powder Clutch For Printing Machine

1

ZKB-BN-type magnetic powder clutch

>>>Feature

Rated torque: 12 to 400 (N · m)

Spontaneous cooling/force-air cooling solid shaft type.

   1.Operable from 5 r / min

   2,.Increase the heat capability by air being blown into the air gap

>>>Description

Magnetic clutch is based on electromagnetic theory and the use of magnetic torque transmission. Its exciting current and transmission of torque with a linear relationship between the basic features. Has nothing to do with the slip case to pass a certain torque, with fast response, simple structure, no pollution, no noise, no shock and vibration energy-saving advantages. It is a multi-purpose, superior performance, the automatic control devices. Magnetic clutch is widely used for buffer starting, overload protector, speed governing, tension control in the winding system.

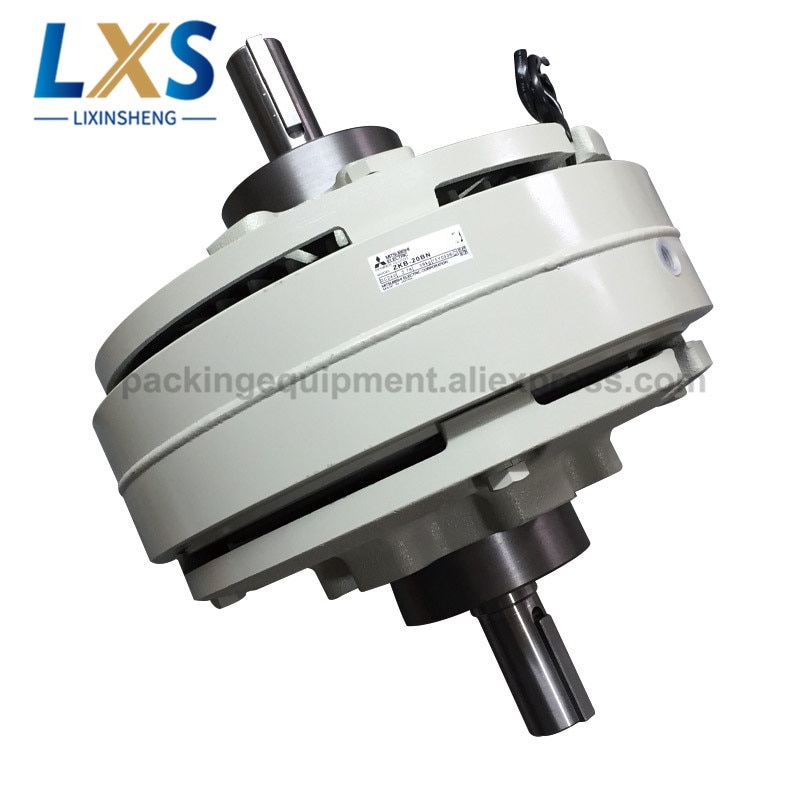

ZKB-20BN (1)



>>> Specification

Model

Rated torque

(N·m)

Coil(75℃)

Inertia moment

(kgm⊃2;)

Wind pressure

(Pa)

Air volume

(m⊃2;/min)

Power

(W)

Weight

(kg)

Max. allowable speed

(r/min)

Magnetic

Particle

weight(g)





Current (A)

Power

(W)

Time constant

(s)

Input shaft

Output shaft













ZKB-1.2BN

12

0.94

22.5

0.10

1.34×10^(-3)

4.90×10^(-4)

3×10^(4)

0.2

250

5.5

1,800

20

ZKB-2.5BN

20

1.24

30.0

0.12

3.80×10^(-3)

1.49×10^(-3)

5×10^(4)

0.4

380

10

1,800

33

ZKB-5BN

50

2.15

51.5

0.13

9.50×10^(-3)

4.80×10^(-3)

1×10^(5)

0.6

700

16

1,800

60

ZKB-10BN

100

2.40

57.6

0.25

3.50×10^(-2)

2.50×10^(-2)

6×10^(4)

1.1

1100

37

1,800

140

ZKB-20BN

200

2.70

64.8

0.37

9.15×10^(-2)

6.89×10^(-2)

5×10^(4)

1.6

1900

59

1,800

225

ZKB-40BN

400

3.5

84.0

0.40

2.40×10^(-1)

2.20×10^(-1)

2×10^(5)

2.0

2800

108

1,800

370

>>>Application:

Printing machinery, paper industry machinery, bag-making machinery, paper-making machinery , wire and cable machinery,coil machinery,wire machinery,strapping bag machinery, textile machinery, weaving-dimensional machinery, woodworking machinery, test equipment, analog load use, the kinds of mechanical precision tension controlling,general industrial equipment, other general industrial machinery.

12

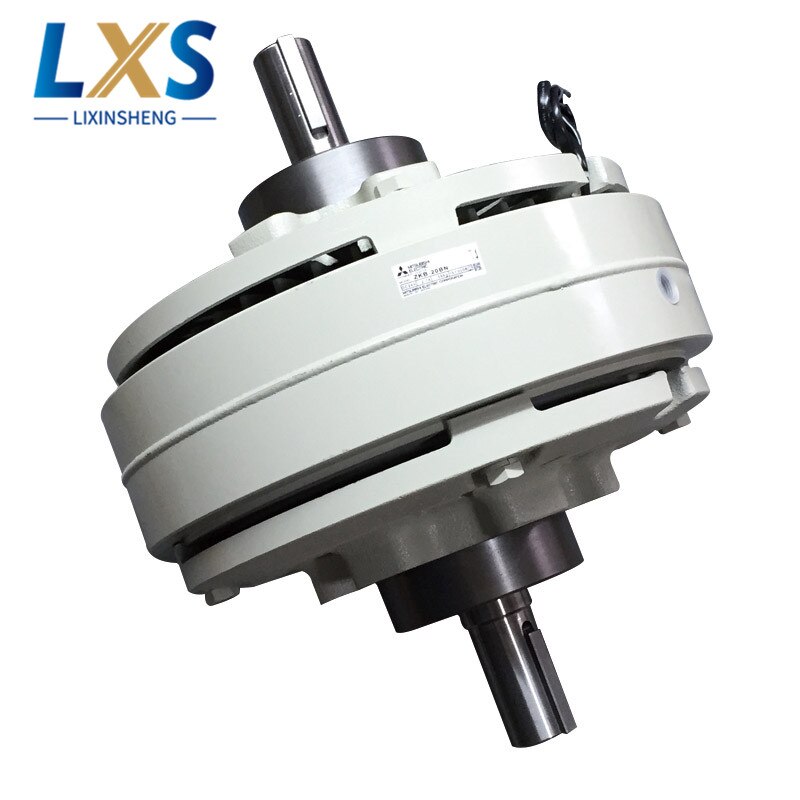

ZKB-20BN (5)

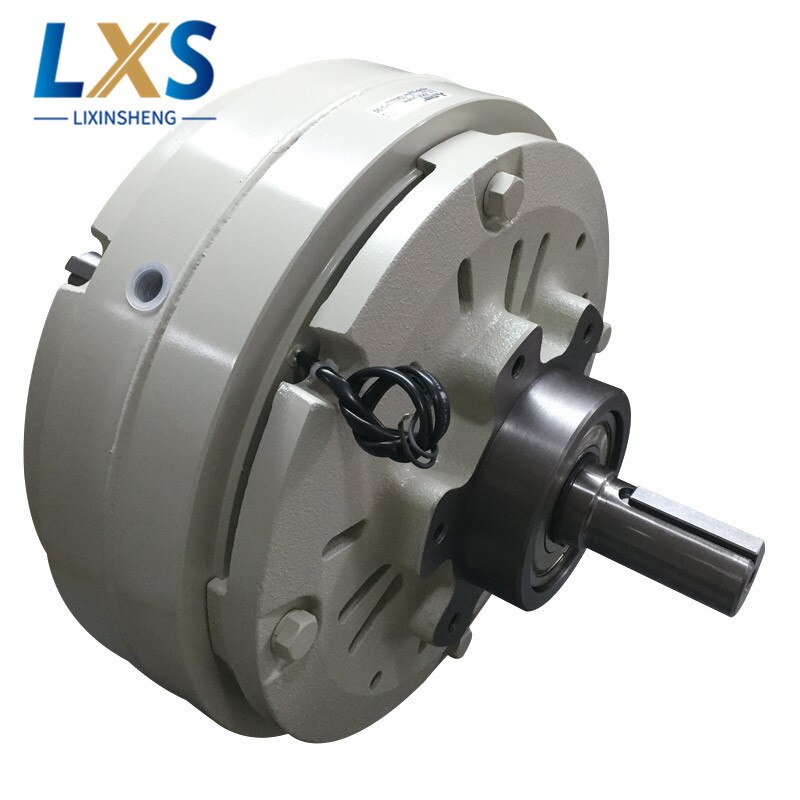

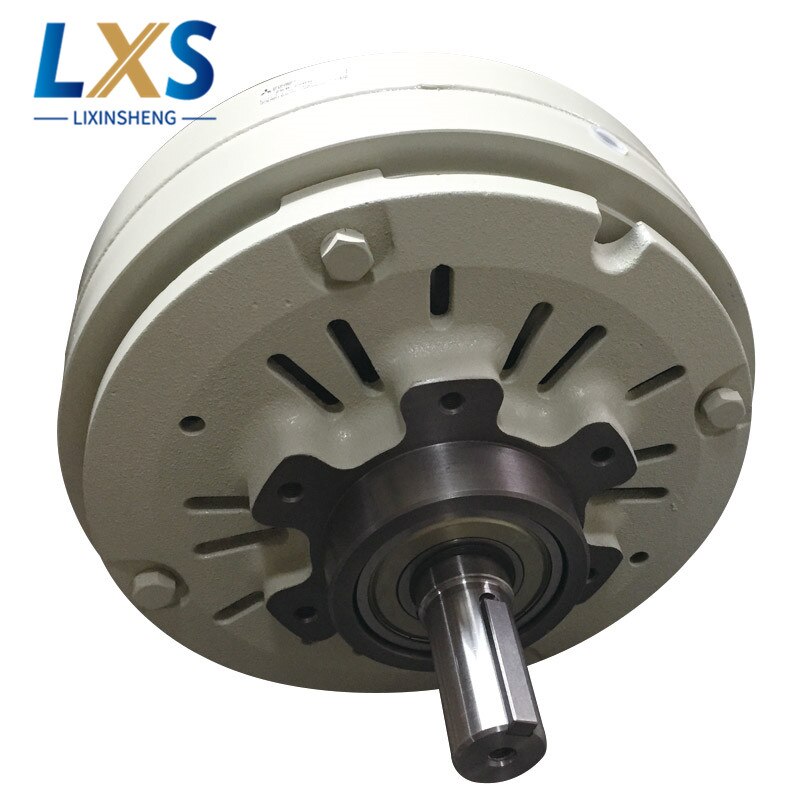

ZKB-20BN (2)ZKB-20BN (3)ZKB-20BN (4)

3

More products pls kindly click here  : Xiamen Lixinsheng Packing Equipment Co.,Ltd Store

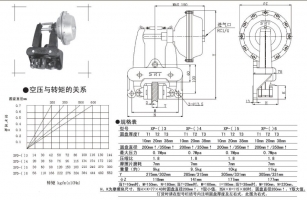

As the following is a table of other spec. , pls choose the perfect match standard you need.

 _20181017223723

HTB1s_YJaovrK1RjSspcq6zzSXXal

1

>>>DT325E LED Handheld Srobescope   >>>Pneumatic Diaphragm Pump BML-15P     >>>Cross Hatch Cutter


>>>JSCC Speed Control Motor      >>>Intelligent Krebs Stormer Viscometer        >>>Electromagnetic Clutch



  • Voltage: 64.8W
  • Material: Aluminium-copper Alloy
  • Model Number: ZKB-20BN magnetic powder clutch
  • Advantag: By blowing compressed air into the voids to cooling, improve the ther
  • Magnetic powder clutch used in: tension control, overload protector, torque loader, etc
  • The magnetic powder weight: 225g
  • Available Speed : 1800 r/min
  • Name : Japan Mitsubishi Clutch 200(N.m)/59kg
  • Type: Spontaneous cooling/force-air cooling solid shaft type.
  • Time constant: 0.37S
  • Current : 2.70A
  • Suitable machine: Printing machine, paper making machine, re-reeling machine,wire draw
  • Widely used for: Buffer starting, overload protector, speed governing, tension control
  • Air volume: 1.6
  • Item Type: ZKB-20BN Magnetic Powder Clutch For Printing Machine
  • Feature: Two Shaft Magnetic Powder Clutch & Brakes
