12Nm 1.2kg DC24V Hollow Shaft Magnetic Powder Clutch Winding Brake for Tension Control Bagging Printing Packaging Dyeing Machine
498.89 434.97 $
ID: 30059
Quantity
5kg magnetic particle clutch 50Nm dual axle magnetic particle clutch FL50A-1 magnetic powder clutch
0.0 ( votes)
Price:
US $
1055.48
/ piece

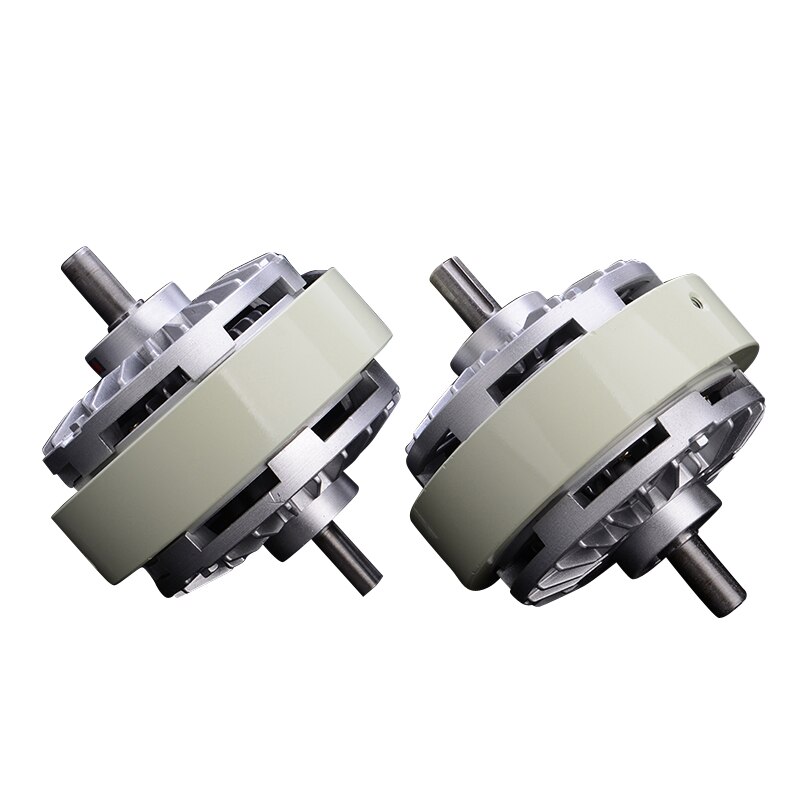

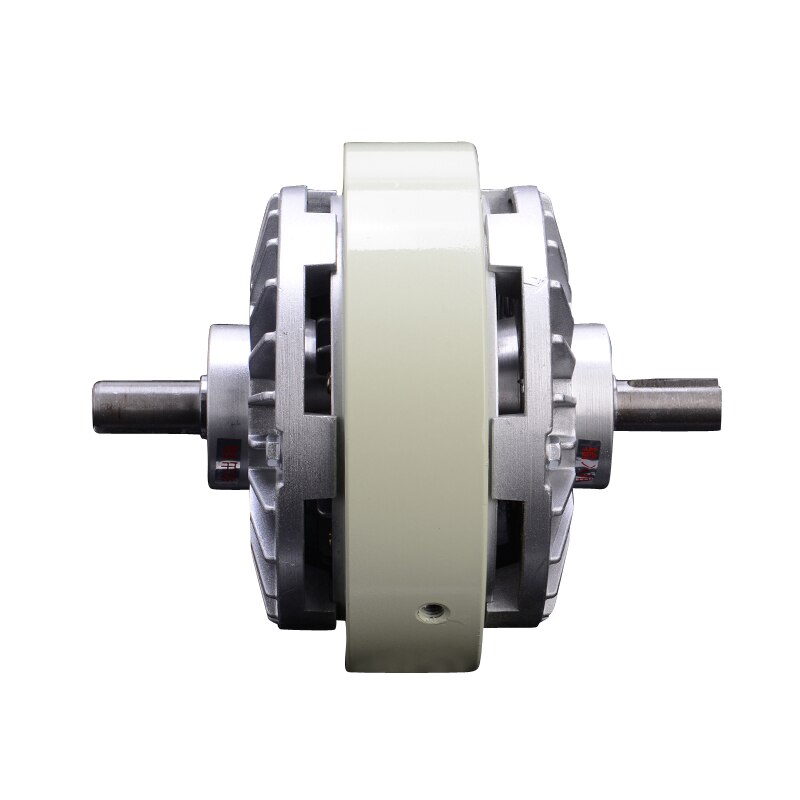

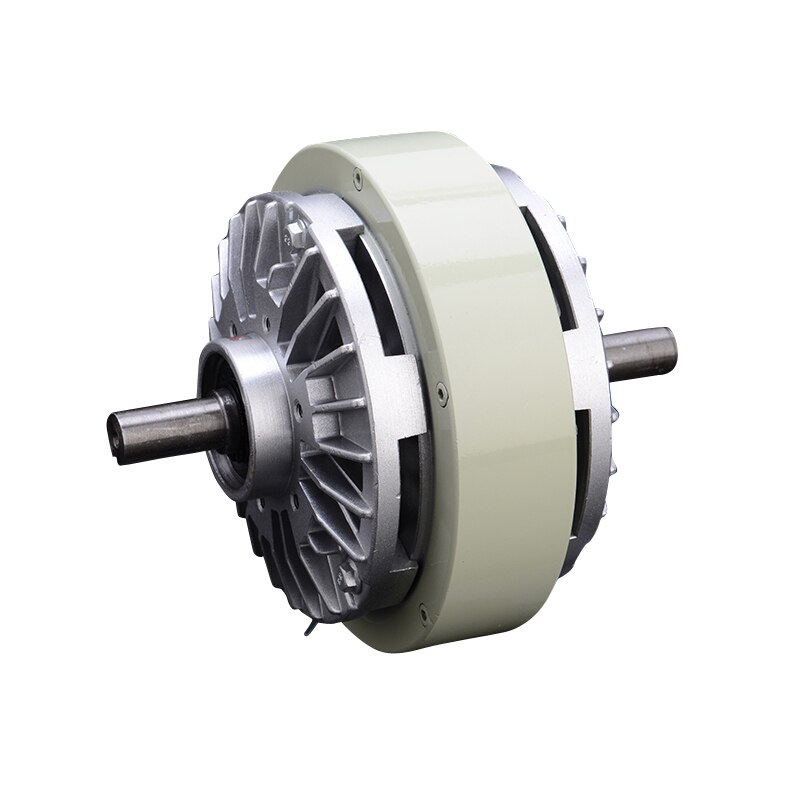

5kg magnetic particle clutch 50Nm dual axle magnetic particle clutch FL50A-1 magnetic powder clutch
| model | Technical parameters | dimension | shaft | R | Weight (kg) | Type of cooling | ||||||||||||
| Torque (N.m) | V | Rotate speed |
Current (A) | D1 | D2 | D3 | L1 | L2 | L3 | L4 | 6-S | d | t | path | depth | |||
| FL6A-1 | 6 | 24 | 1400 | 0.8 | 130 | 62 | 44 | 25 | 10 | 72 | 152 | M4 | 12 | 4 | M4 | 8 | 4 | Auto cooling |
| FL12A-1 | 12 | 1.0 | 157 | 62 | 50 | 30 | 15 | 93 | 180 | M5 | 16 | 5 | M4 | 8 | 6.5 | |||
| FL25A-1 | 25 | 1.5 | 182 | 78 | 58 | 40 | 16 | 102 | 218 | M6 | 20 | 6 | M5 | 10 | 9.5 | |||
| FL50A-1 | 50 | 1.8 | 220 | 100 | 75 | 50 | 20 | 112 | 260 | M6 | 25 | 8 | M6 | 12 | 15 | |||
| FL100A-1 | 100 | 1000 | 2.0 | 290 | 120 | 90 | 65 | 25 | 160 | 340 | M8 | 30 | 8 | M10 | 20 | 30 | Auto cooling Water cooling | |
| FL200A-1 | 200 | 2.5 | 335 | 140 | 110 | 70 | 30 | 190 | 396 | M10 | 35 | 10 | M10 | 20 | 55 | |||
| FL400A-1 | 400 | 3.0 | 398 | 200 | 130 | 99 | 35 | 221 | 510 | M12 | 45 | 14 | M10 | 20 | 80 | |||
The magnetic powder clutch is a combination of a transmission unit (input shaft) and a driven unit (output shaft). The space between the two sets of cells is filled with granular magnetic powder (recessed about 40 microns). When the magnetic coil is not conductive, the torque will not be transmitted from the transmission shaft to the driven shaft. However, if the coil is electromagnetically energized, the magnetic powder will attract hardening due to the action of the magnetic force, and the torque will be transmitted between successive slidings.
Features:
(1) the control range of the high precision torque control torque is very wide, and the control precision is high, transmission torque and exciting current into the correct proportion, can achieve high precision control.
(2) superior durability, long life, the use of heat, wear resistance, oxidation resistance, corrosion resistance of super alloy magnetic powder, long life.
(3) the magnetic characteristics of constant torque characteristic of magnetic particle stability superior good, and powder between binding force stability, sliding torque is very stable, and the relative rotation number of Never mind lasting constant torque.
(4) continuous sliding structure for cooling operation and good heat dissipating effect by thermal deformation uniformity, high heat resistance and magnetic powder, allowing connection and braking power and sliding power can operate smoothly, sliding, not
Cause vibration.
(5) the link is smooth, and the impact is very small when the impact is not connected, and the smooth start and stop of the impact can be achieved. And the resistance torque is very small, does not cause the useless heat quantity.
(6) suitable for high frequency operation and quick response and special heat dissipation structure, which is suitable for high frequency operation.
(7) light weight, maintenance free, long life type simple lightweight, high temperature resistance of the coil and special grease bearings, and for the easy wear of the armature to wear special treatment to extend the service life.
Usage:
1, buffer starting, stop using: the smooth characteristics of the link and the buffer effect of the fixed torque characteristics, that is, acceleration stability and no impact on the peak torque.
2, continuous sliding, tension control
3, torque limiter
4, high speed response
5, dynamic absorption
6, positioning stop using
7, analog load
Application range:
Printing machinery, paper machinery, bag making machinery, paper machinery, wire and cable machinery, machinery, machinery, winding wire bundle bag machinery, textile machinery, textile machinery, woodworking machinery, test set
Mechanical precision tension control, general industrial equipment, and other general industrial machinery.
- Voltage: 24V
- Material: Cast Iron
- Model Number: FL50A-1
