ZKG-AN Type Miniature Magnetic Powder Clutch ZKG-50AN ZKG-5AN ZKG-10AN ZKG-20AN ZKG-100AN Magnetic Powder Brake
0.0 ( votes) | 2 orders
Price:
US $866.02 - 1884.42
/ piece
Discount Price:
US $
817.04 -
1764.16
/ piece
-6%

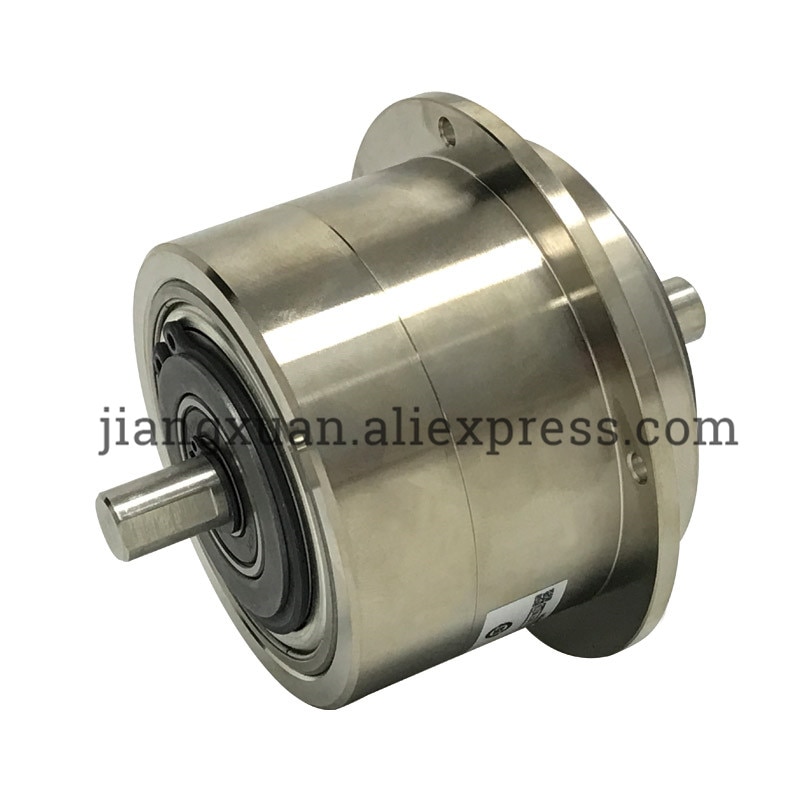

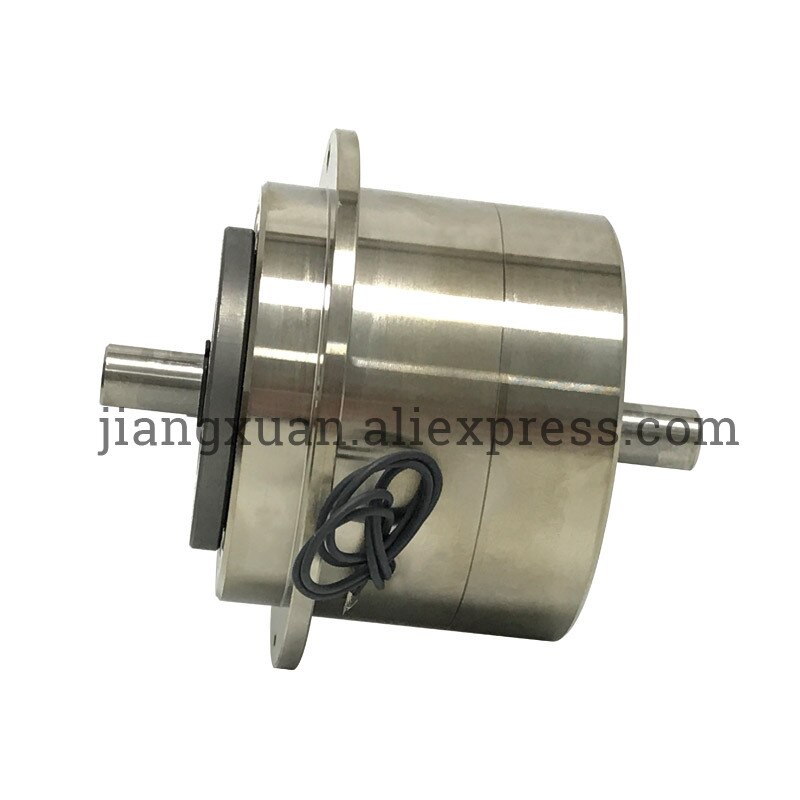

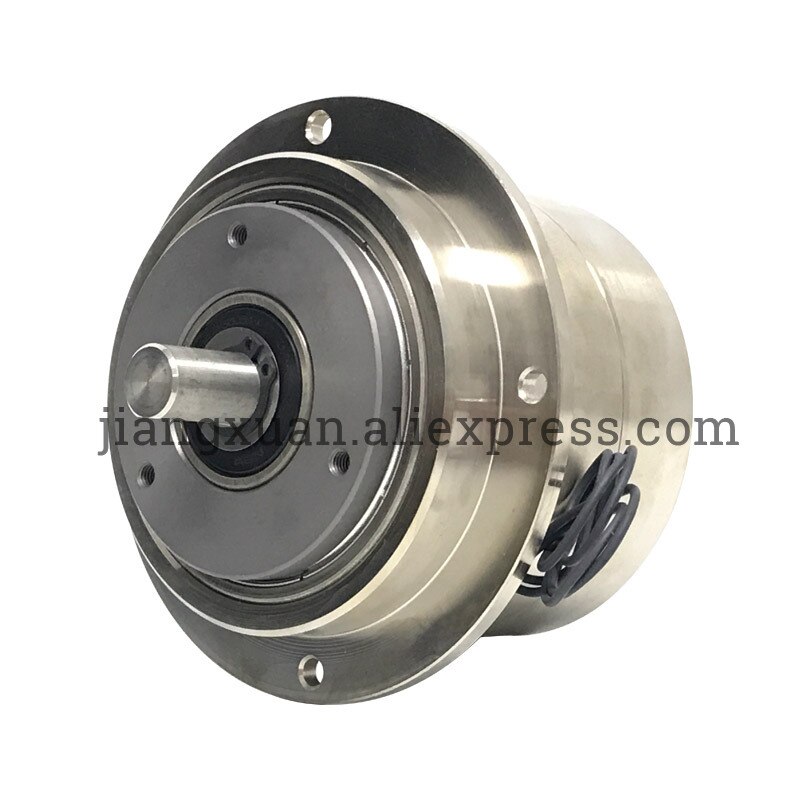

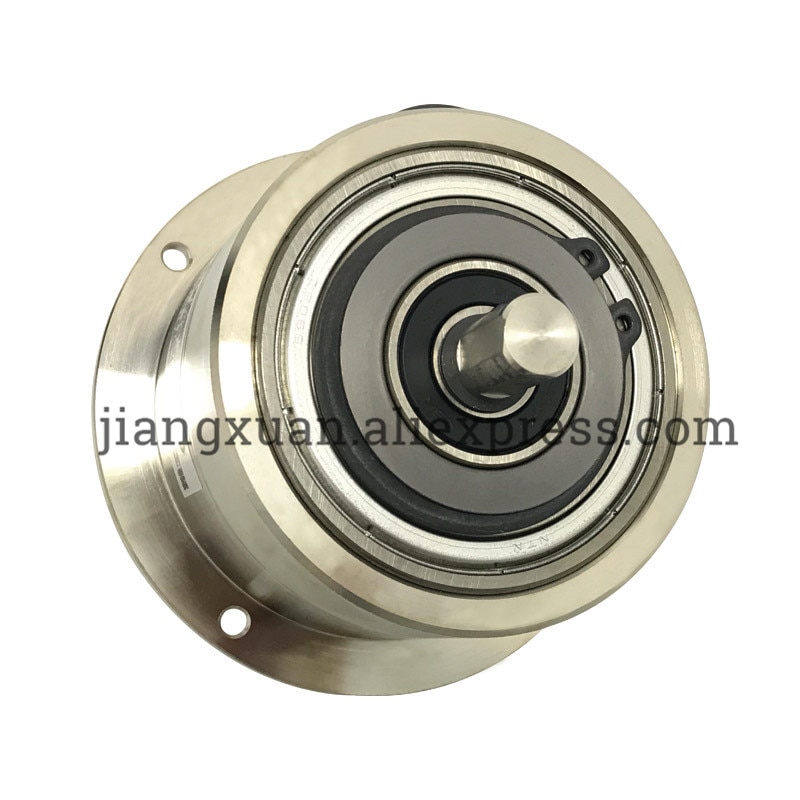

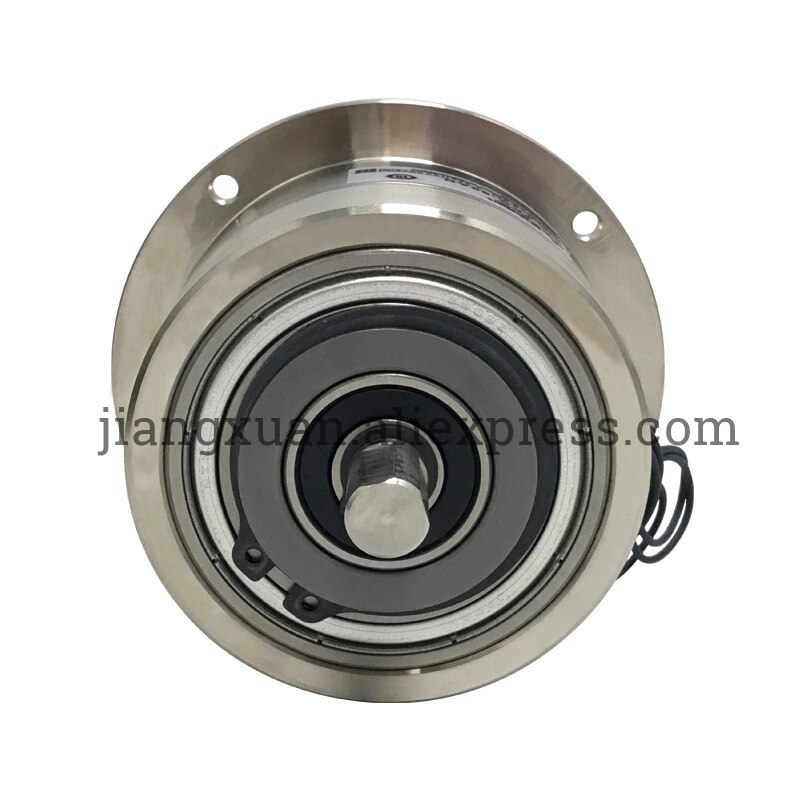

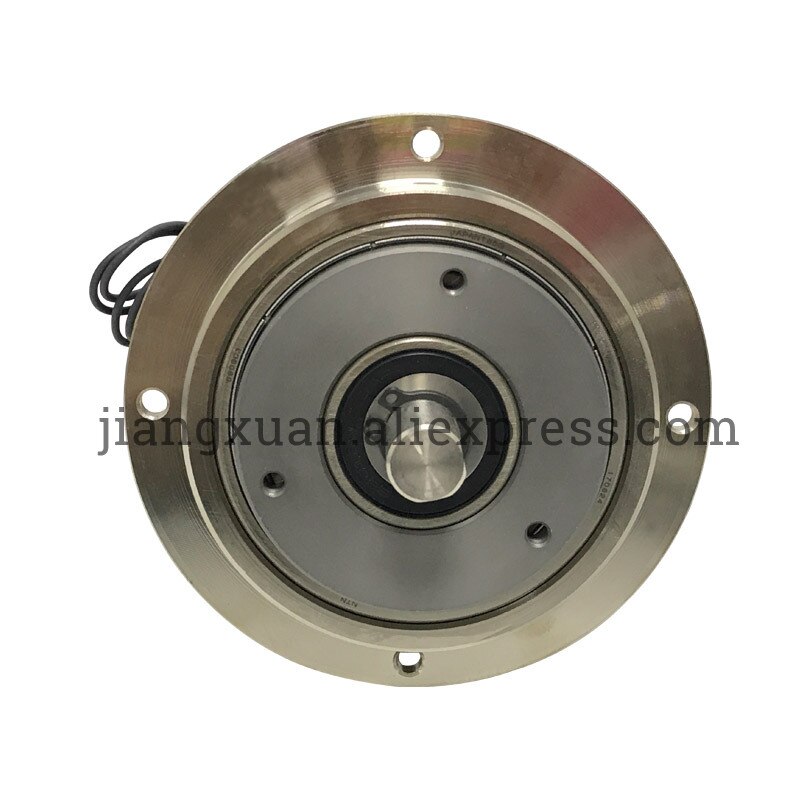

ZKG-AN Type Miniature Magnetic Powder Clutch ZKG-50AN ZKG-5AN ZKG-10AN ZKG-20AN ZKG-100AN Magnetic Powder Brake
The magnetic powder clutch transmits torque according to the electromagnetic principle and using magnetic powder. It has a linear relationship between the excitation current and the transmission torque. It can transmit a certain torque regardless of slip, and has the advantages of fast response, simple structure, no pollution, no noise, no impact vibration and energy saving. It is a multi-purpose, superior performance automatic control component. Magnetic powder brakes are widely used for braking, power test loading, and unwinding tension control for various purposes in various machines. Magnetic powder clutches are widely used for buffer starting, overload protection, speed regulation, tension control of winding in winding systems, etc.
Model: ZKG-50AN
Torque: 5Nm
Rated voltage: DC24V
Rated current (75 ° C): 0.8 A
Power consumption (75 ° C): 19.2W
Coil resistance (75 ° C): 30.1
Application:
Magnetic powder clutch (magnetic powder brake) is used for tension control, overload protector, torque loader, etc. such as printing machine, paper machine, winder, wire drawing machine, metal calender, film processing machine, textile machinery, etc.; The engine, the hydraulic reducer, etc. are loaded during the loading experiment.
Specifications:
Specification model | Torque | Rated voltage（DCV） | Rated current | Coil resistance |
（N.m） | (A /75ºC) | (Ohm /75ºC) | ||
ZKG-5AN | 0.5 | DC24V | 0.35 | 68.6 |
ZKG-10AN | 1 | DC24V | 0.47 | 50.9 |
ZKG-20AN | 2 | DC24V | 0.55 | 42.9 |
ZKG-50AN | 5 | DC24V | 0.8 | 30.1 |
ZKG-100AN | 10 | DC24V | 1 | 24 |
Basic characteristics:
1. Excitation current - torque characteristics
The excitation current is basically linear with the torque, and the magnitude of the torque can be controlled by adjusting the excitation current.
2, speed - torque characteristics
The torque is independent of the speed and remains constant. (When the excitation current is constant, the torque is not affected by the change of the speed in the allowable slip speed range) There is no difference between the static torque and the dynamic torque.
3, load characteristics
The allowable slip power of the magnetic powder brake is a fixed value when the heat dissipation condition is constant. When the actual selection is selected, the practical slip power needs to be within the allowable slip power. When using the high speed, reduce the torque.
4, selection
The selection of magnetic powder brake and magnetic powder clutch is generally selected according to the maximum torque required to be transmitted, and attention should be paid to ensure that the actual slip power should be less than the allowable slip power of the technical parameters, and the larger margin can prolong the service life. .
In the absence of a shifting mechanism, the product of the maximum tension required to wind the material and the maximum winding radius should not exceed the rated torque of the brake.
The choice of magnetic powder clutch is related to its position. Under the premise of slip power matching, the magnetic powder clutch can be placed at a high speed level, and a smaller size can be selected. If it does not match, it should be placed at the low speed end (middle or rear) of the mechanism. To increase the working torque to reduce the no-distance speed.
More products pls kindly click here :As the following is a table of other spec. , pls choose the perfect match standard you need.
- Voltage: DC24V
- Material: Aluminium-copper Alloy
- Model Number: ZKG-50AN ZKG-5AN ZKG-10AN ZKG-20AN ZKG-100AN
- Origin: Mainland China
- Max allowable speed: 1,800 R / Min
- Magnetic particle weight: 10g
- Time constant: 0.37s
- Current: 0.8A
- Type: ZKG-AN Type Miniature Magnetic Powder Clutch
- Advantage: No pollution, no noise, no impact vibration energy saving, etc
- Magnetic powder clutch used in: Tension control, overload protector, torque loader, etc
- Used for: Printing machine, paper machine, rewinding machine, drawing machine,
- Widely used for: Buffer starting, overload protector, speed governing, tension control
- Coil resistance: 30.1
- Power consumption: 19.2W
- Usage: Magnetic Powder Brake For Tension Control
