Made in China WEIZHENG YS-5A1 Magnetic Powder Clutch
1,070.42 $
SALE
ID: 88822
Quantity
Built-in Bearing Type Electromagnetic Clutch 14.105.06.1.1/ 1.3 /1.5 24VDC 7.5Nm 15W For Film Remover Sucker
0.0 ( votes)
Price:
US $81.88 - 378.16
/ piece
Discount Price:
US $
75.24 -
336.13
/ piece
-8%
Built-in Bearing Type Electromagnetic Clutch 14.105.06.1.1/ 14.105.06.1.3 24VDC 7.5Nm 15W For Film Remover Sucker

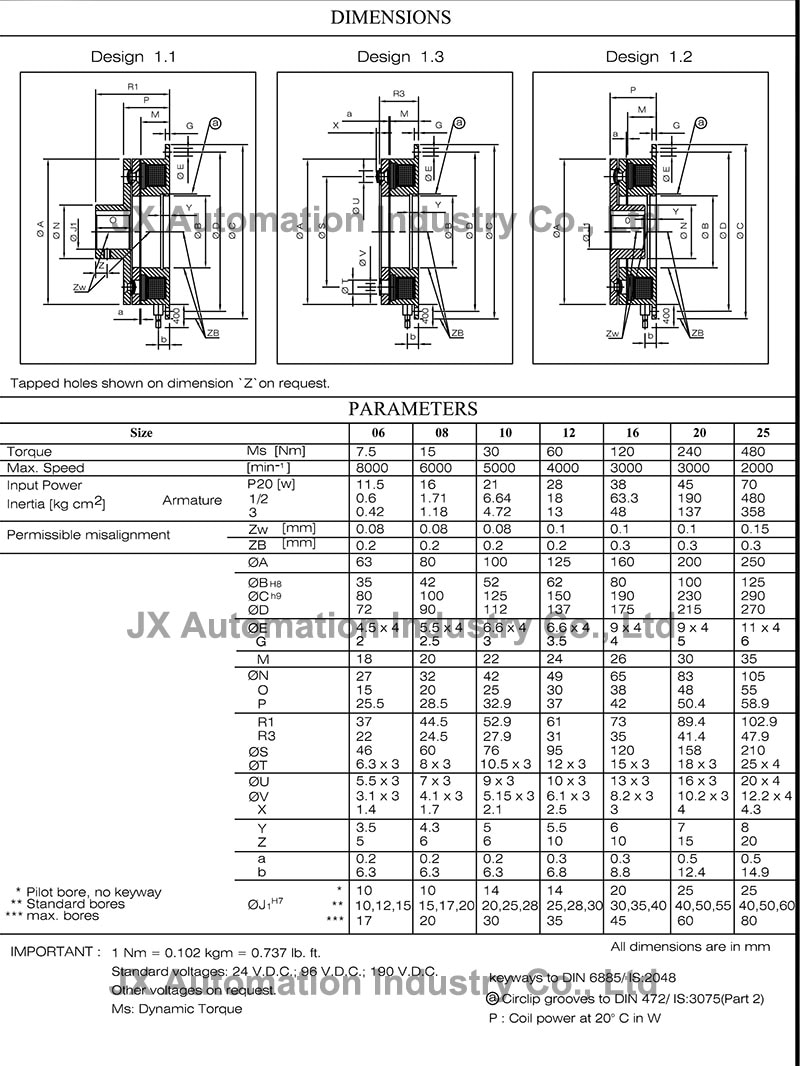

The electromagnetic clutch means that the active and the follower are combined when the power is on. The active and the follower are separated when the power is turned off. The follower is usually equipped with an energized brake; the brake pads can be installed according to different installation methods. There are three types of coils. The coils are also divided into two types according to the installation method. They are shaft-mounted and flange-mounted. Please see the diagram for the specific distinction. The common voltage is 24vdc and the common torque is 7.5-240Nm. There are 6 specifications. This link is 14.105.06, the torque is 7.5Nm, please contact customer service for specific details, thank you
Model: Built-in bearing type electromagnetic clutch (14.105..3.)
Dry single-plate electromagnetic clutch (14.105..1.0)
Regular specifications: 06/08/10/12/16/20/25

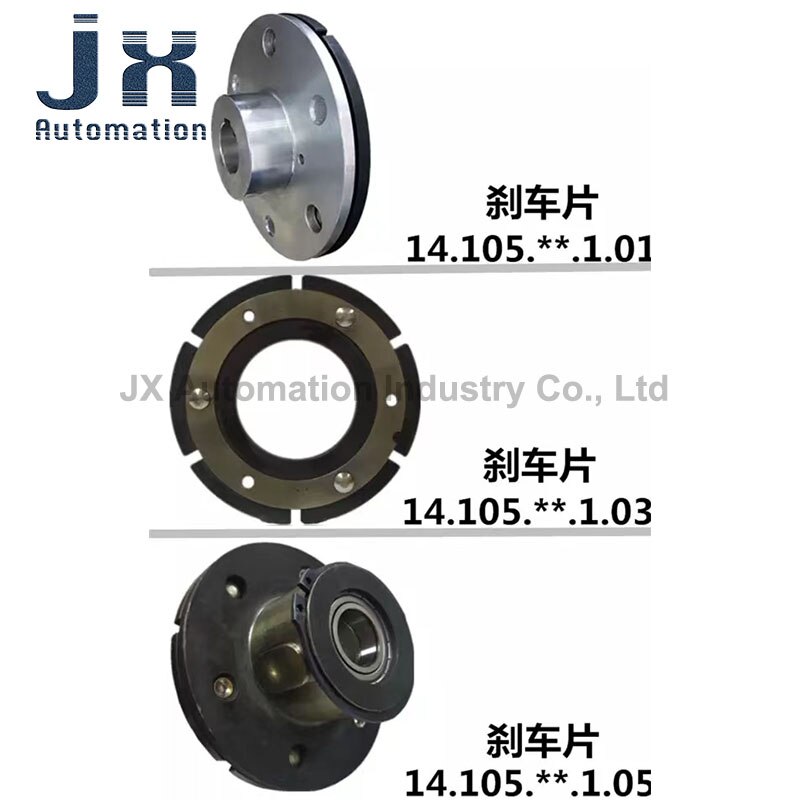

Brake Pad Model: 01/03/05
Other models: 31/40/50 special specifications and sizes can be customizedBraking torque: 7.5-48ONM
Standard voltage: 24VDC (other voltages can be customized)
Product features: small size, low voltage, low power, low energy consumption, large torque, high speed, armature wear-resistant, quick response, easy installation and maintenance.
Application areas: brake clutch combination, food and beverage machinery, winding machinery, industrial production lines, various automated production lines, packaging machinery, textile machinery, instruments, printing machinery and other industries that require frequent speed changes or frequent changes of direction are widely used.
Note: The armature plate and friction surface should not be in contact with lubricating oil or grease under any circumstances.
- Voltage: 24V
- Material: Cast Iron
- Model Number: 14.105.06.1.1/ 1.3 /1.5
- Origin: Mainland China
- Certification: CE
- Series: 14.105.06
