2 Axis Dro Set LED Digital Readout With 2PCS Linear Glass Scale Optical Encoder Ruler Digital Readout Display Set
ID: 153370

2 Axis Dro Set LED Digital Readout With 2PCS Linear Glass Scale Optical Encoder Ruler Digital Readout Display Set

5.0 (247 votes) | 268 orders
Price:
US $ 159.53 - 368.64
Color
Quantity

Buy Now
Add to Cart

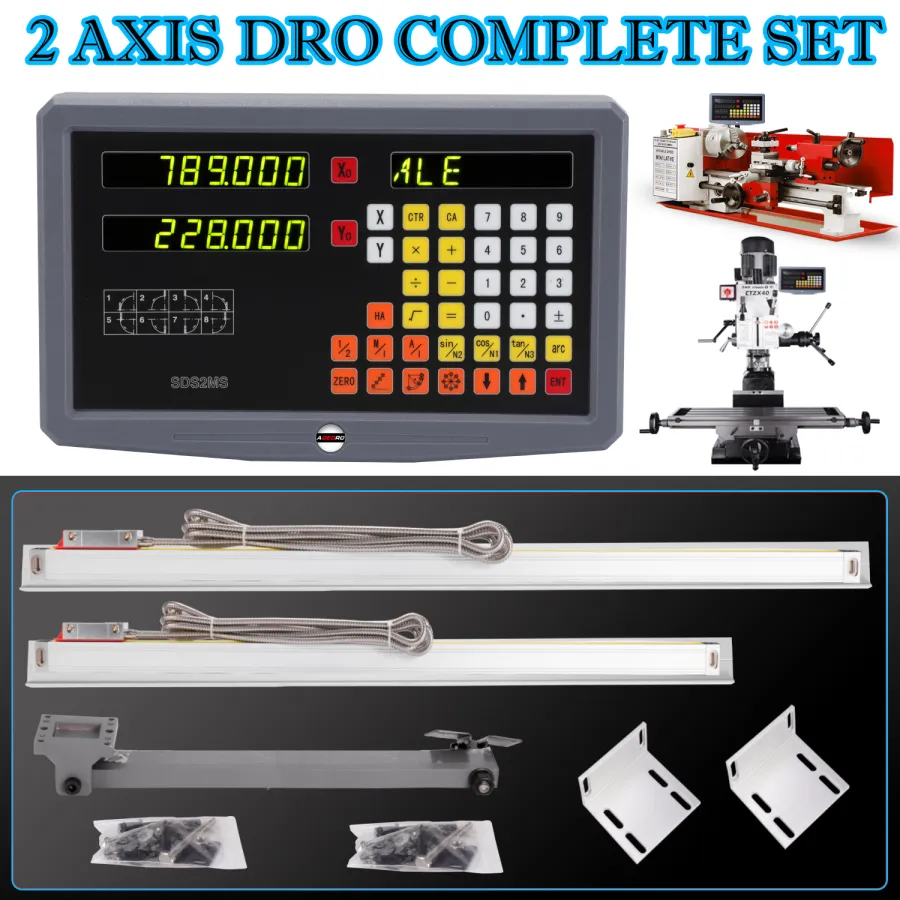

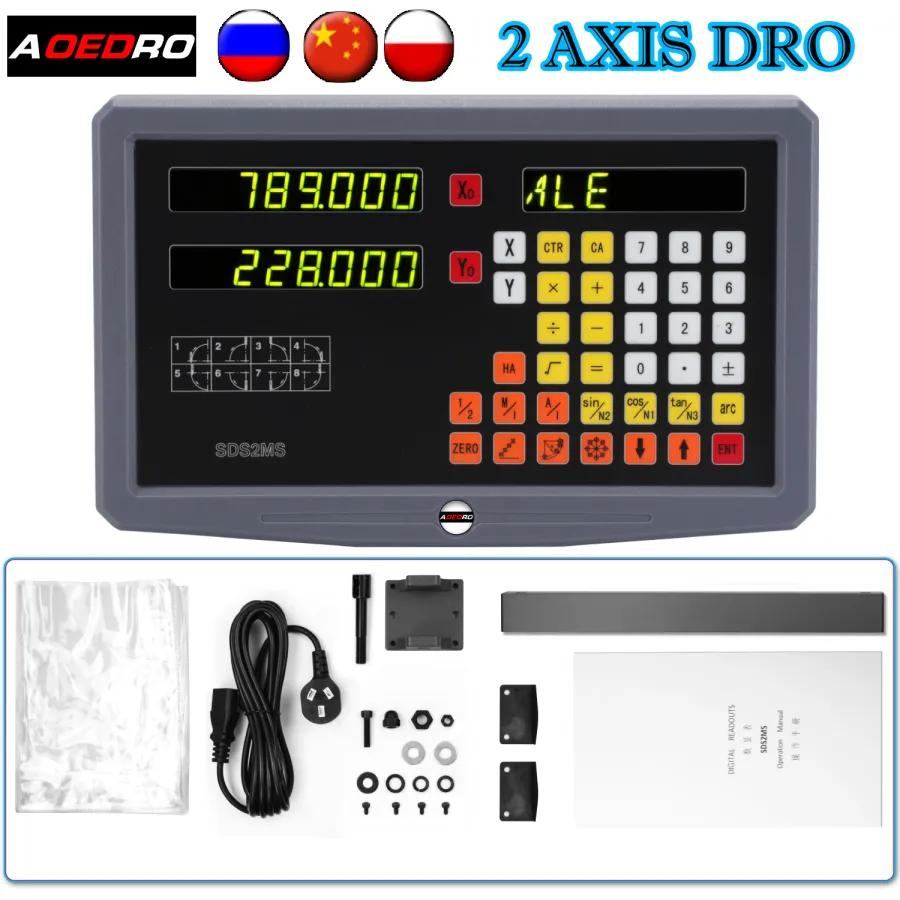

2 Axis LED DRO 1pcs：

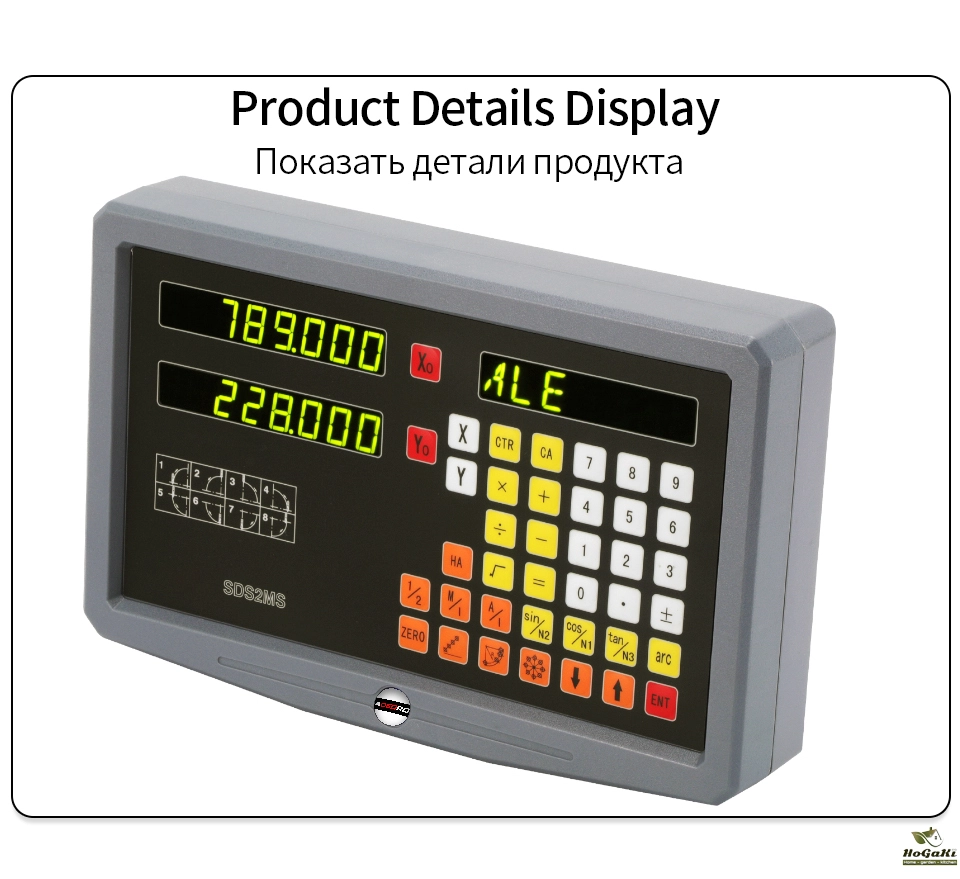

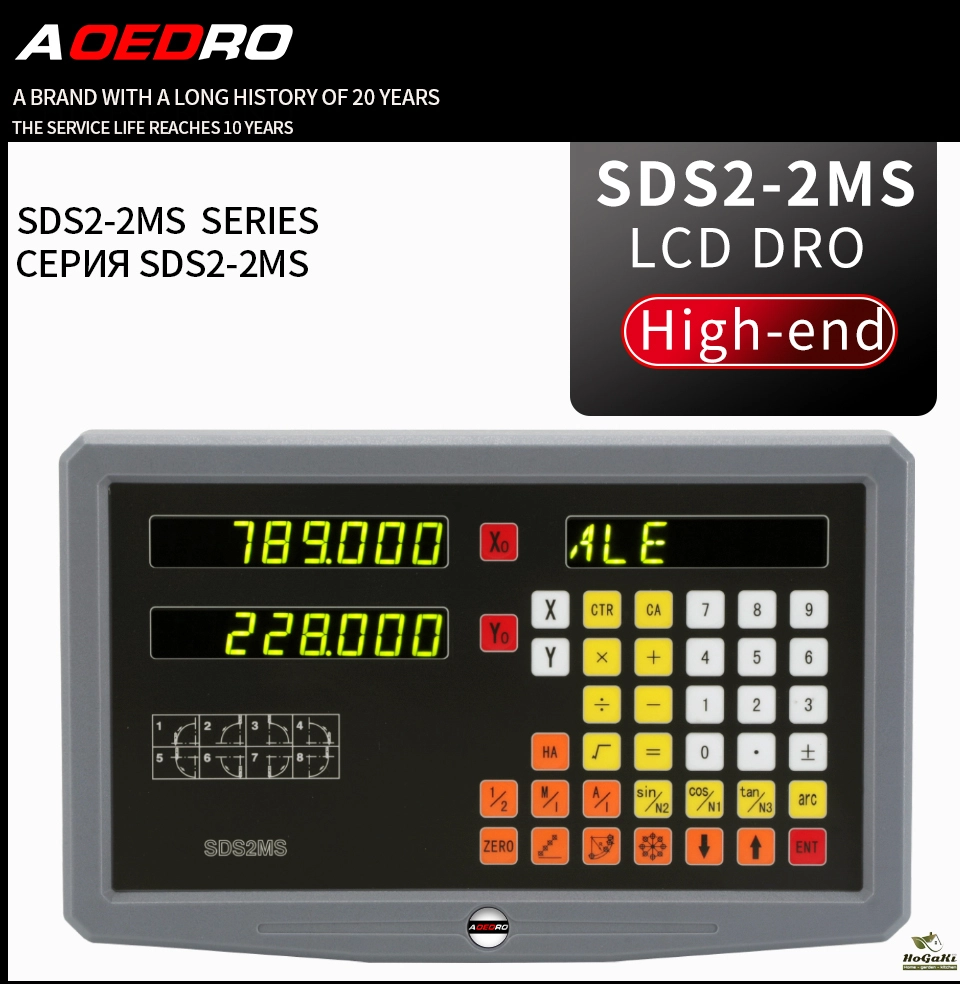

1 piece SDS2-2MS display

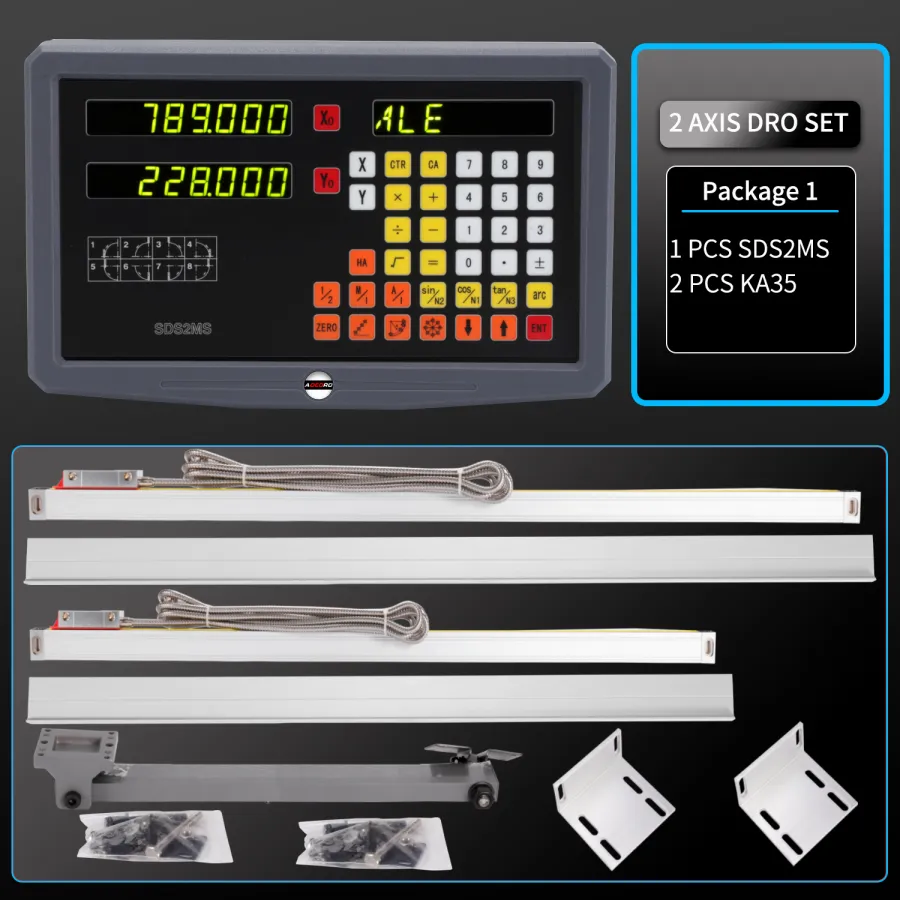

Package 1:

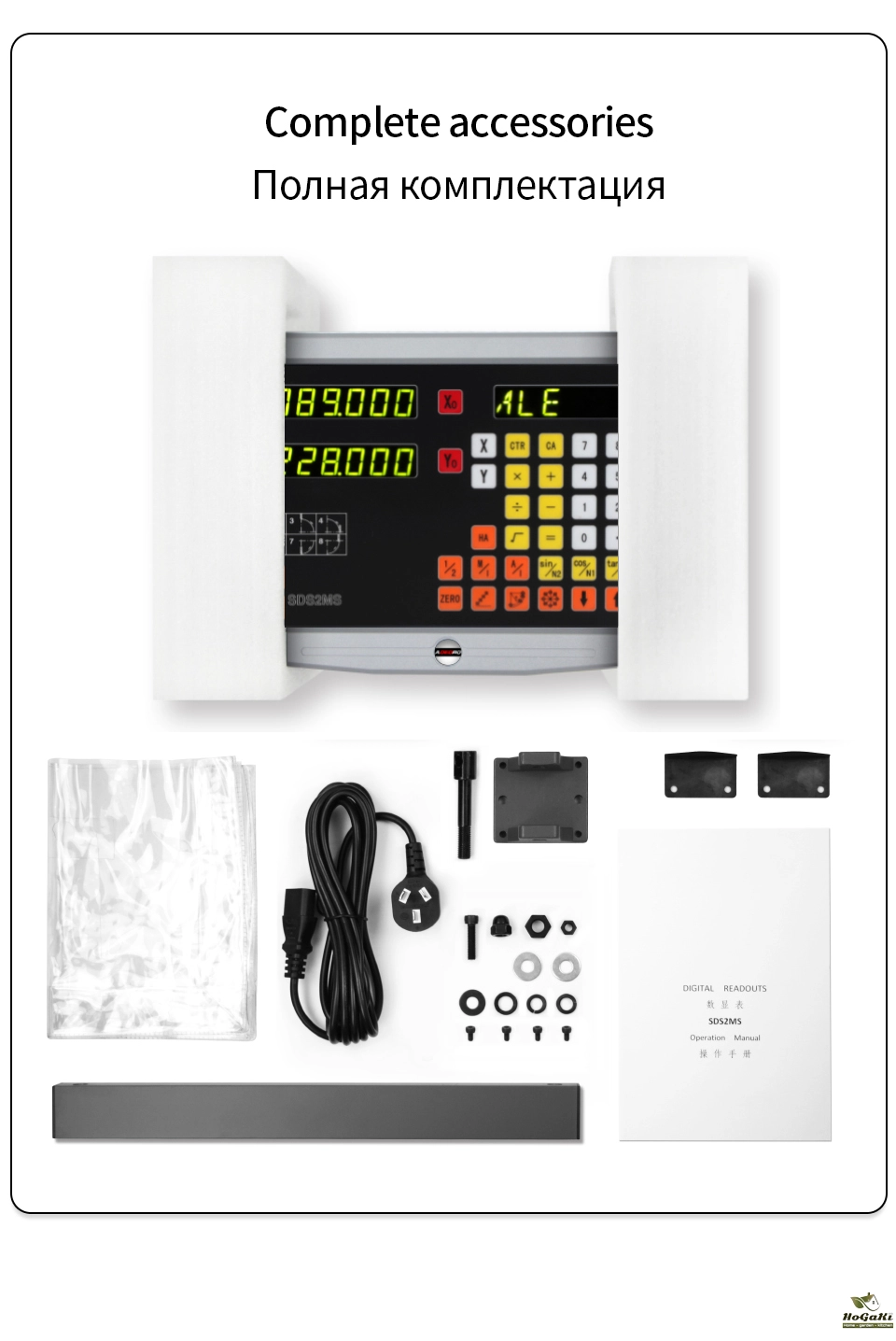

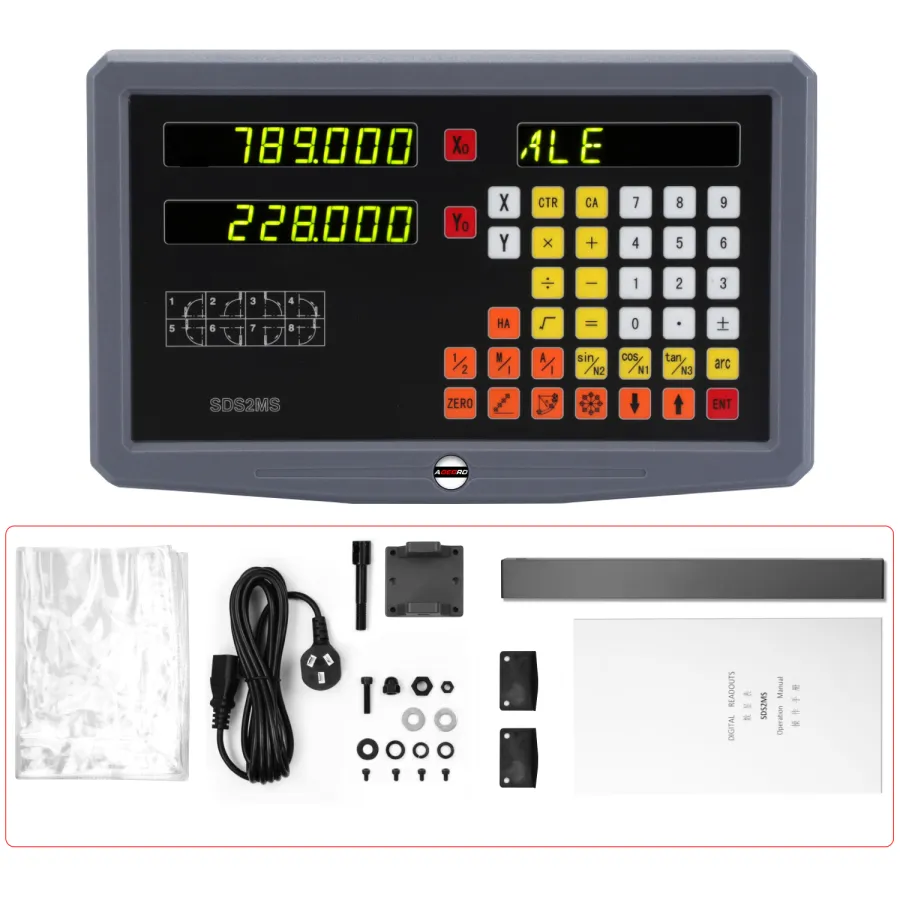

1 piece 2 Axis LED DRO, user manual, mounting bracket, power cable, screw bag

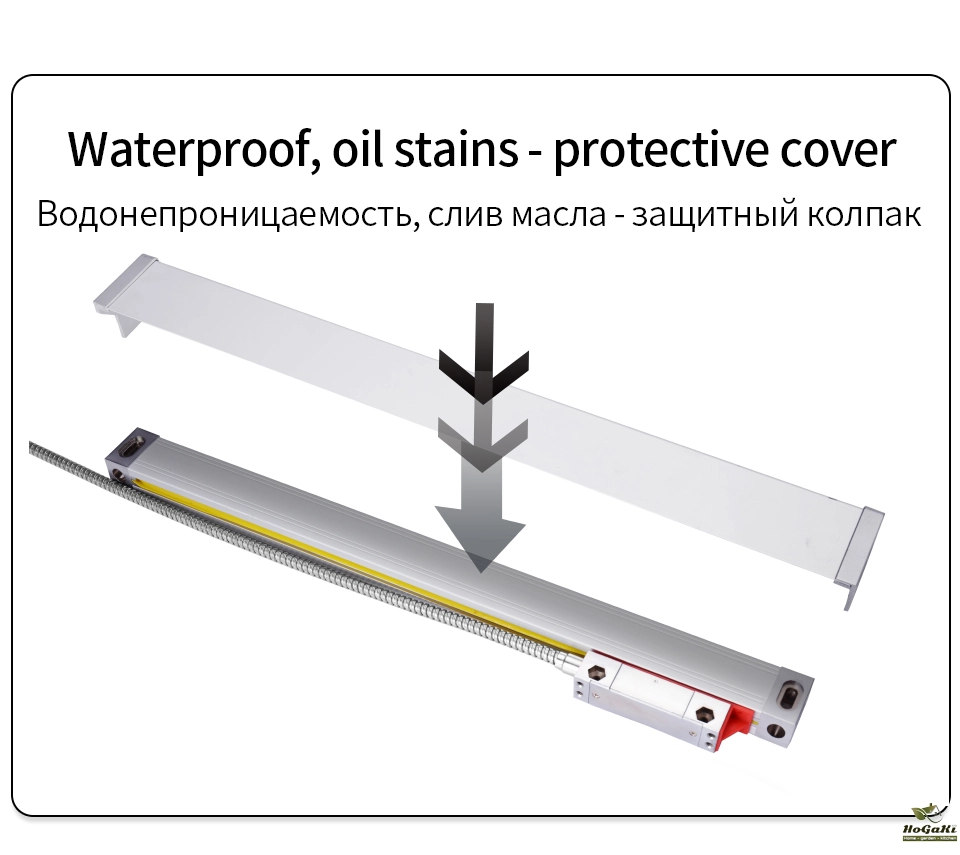

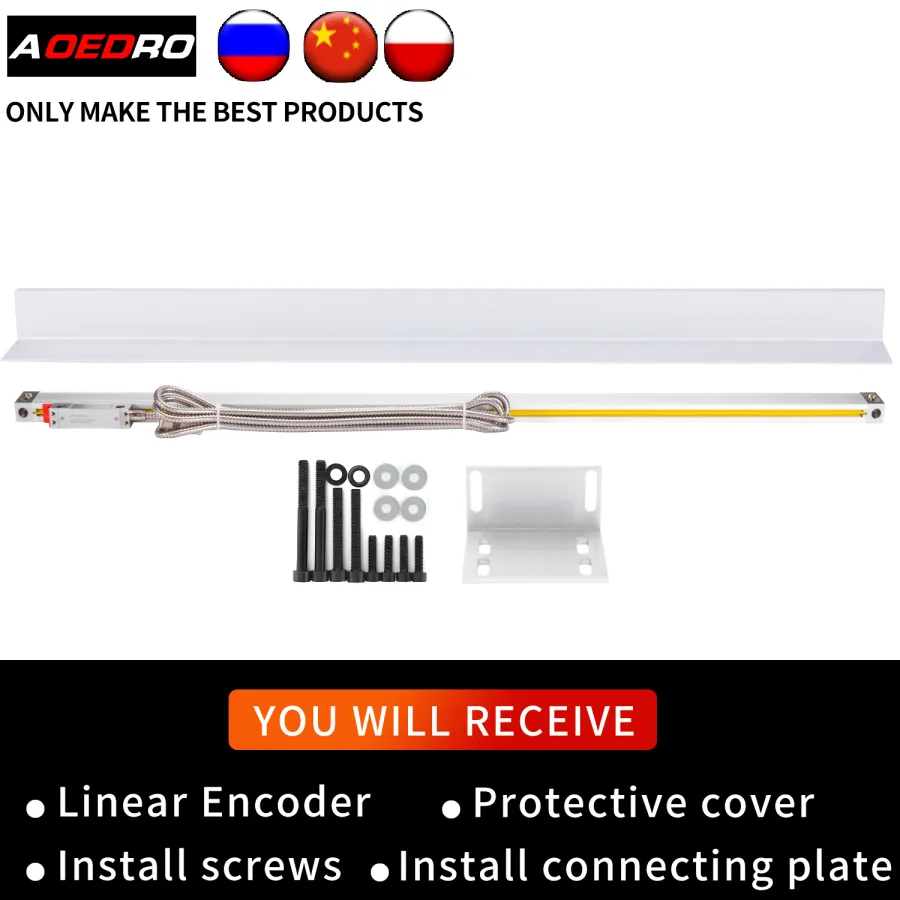

2 pieces 0.005mm Sino KA35 scales, scale covers, mounting brackets & screw bags【Travel length can be freely selected within 50mm~1000mm】



If there is no message left, we will deliver the goods according to the travel lengths of 250mm and 600mm.



1.How to select scales length?


For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.


Support 5 languages, including Chinese, German, French, English, Spanish

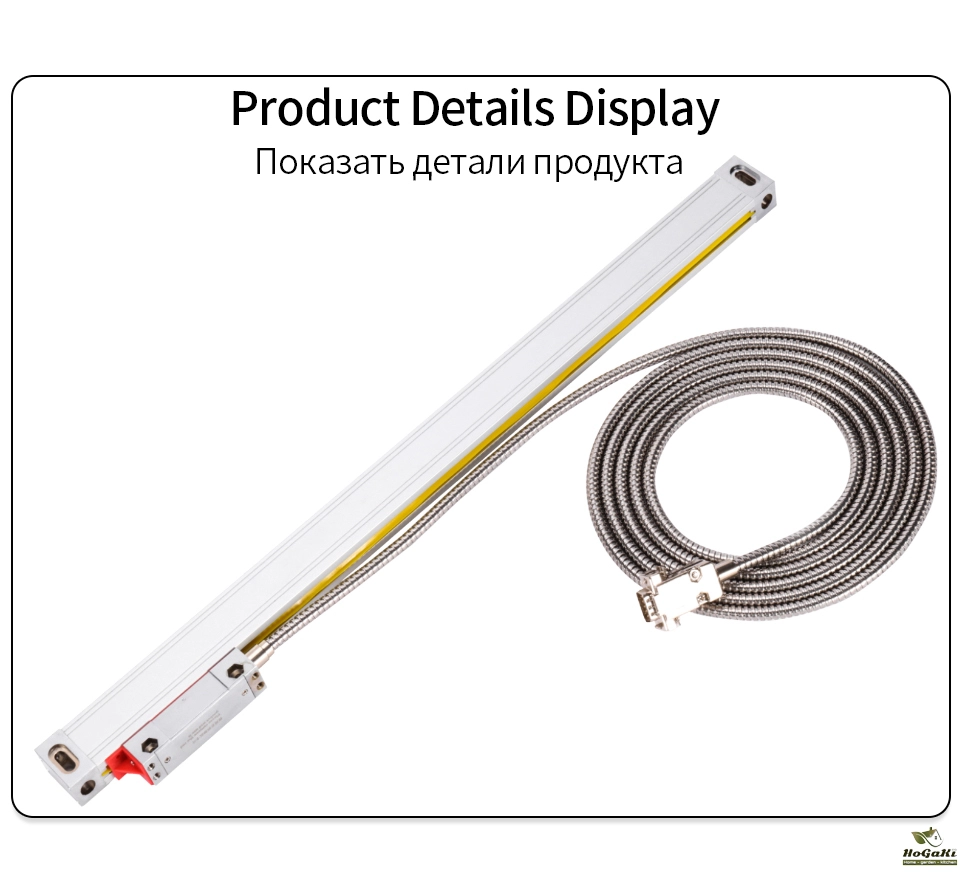

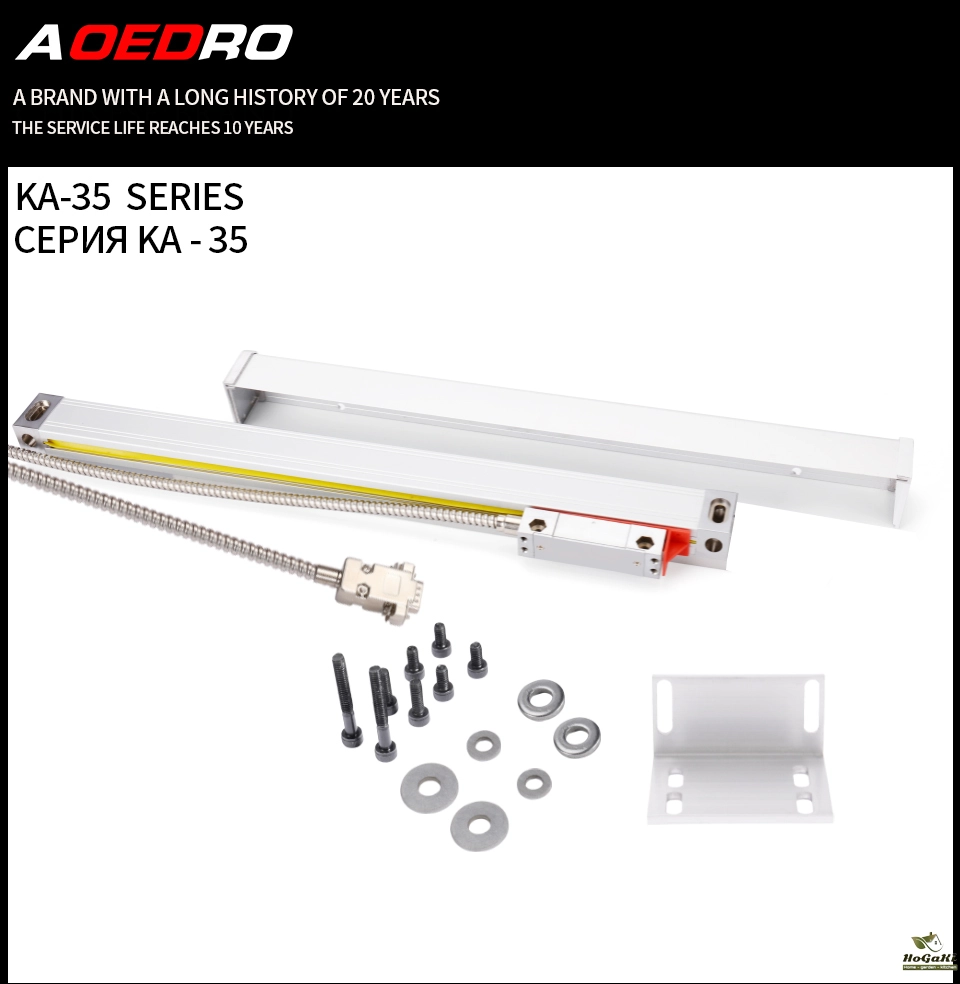

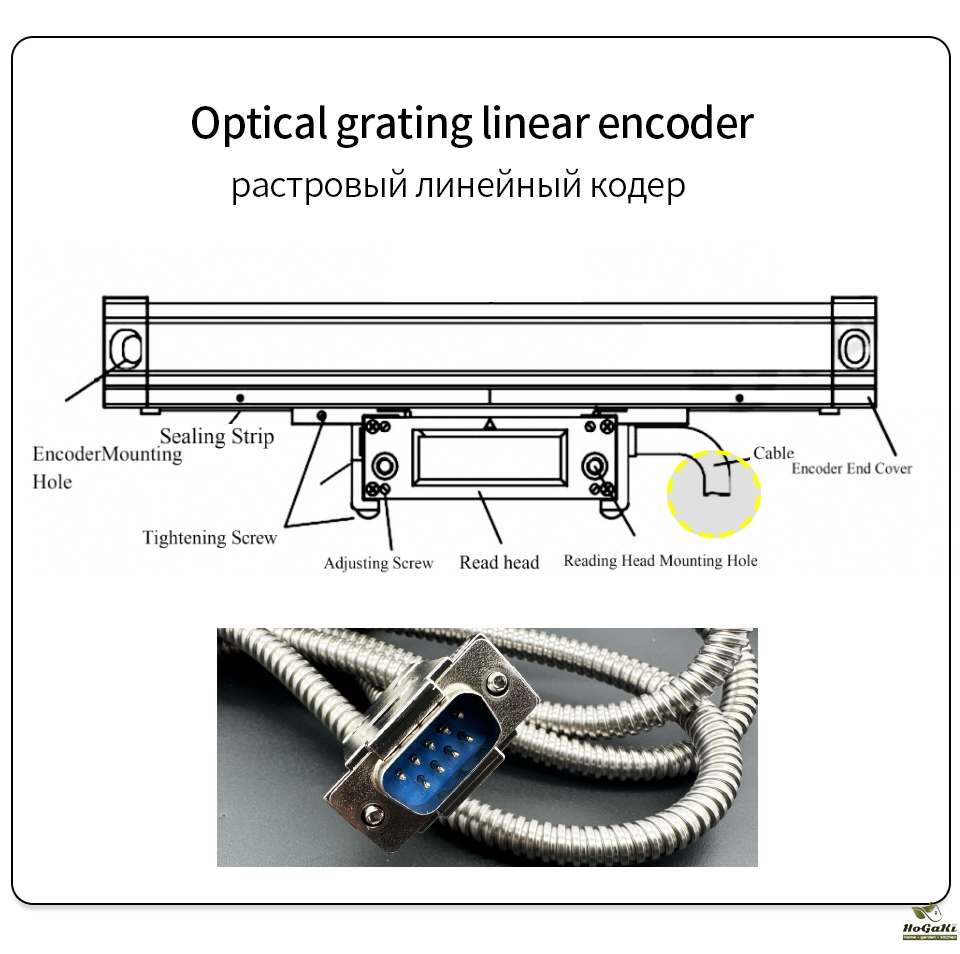

Model: KA35

Cable length: 3 meters

Resolution: 5um/0.005mm

Output signal: TTL

Input voltage: 5VDC

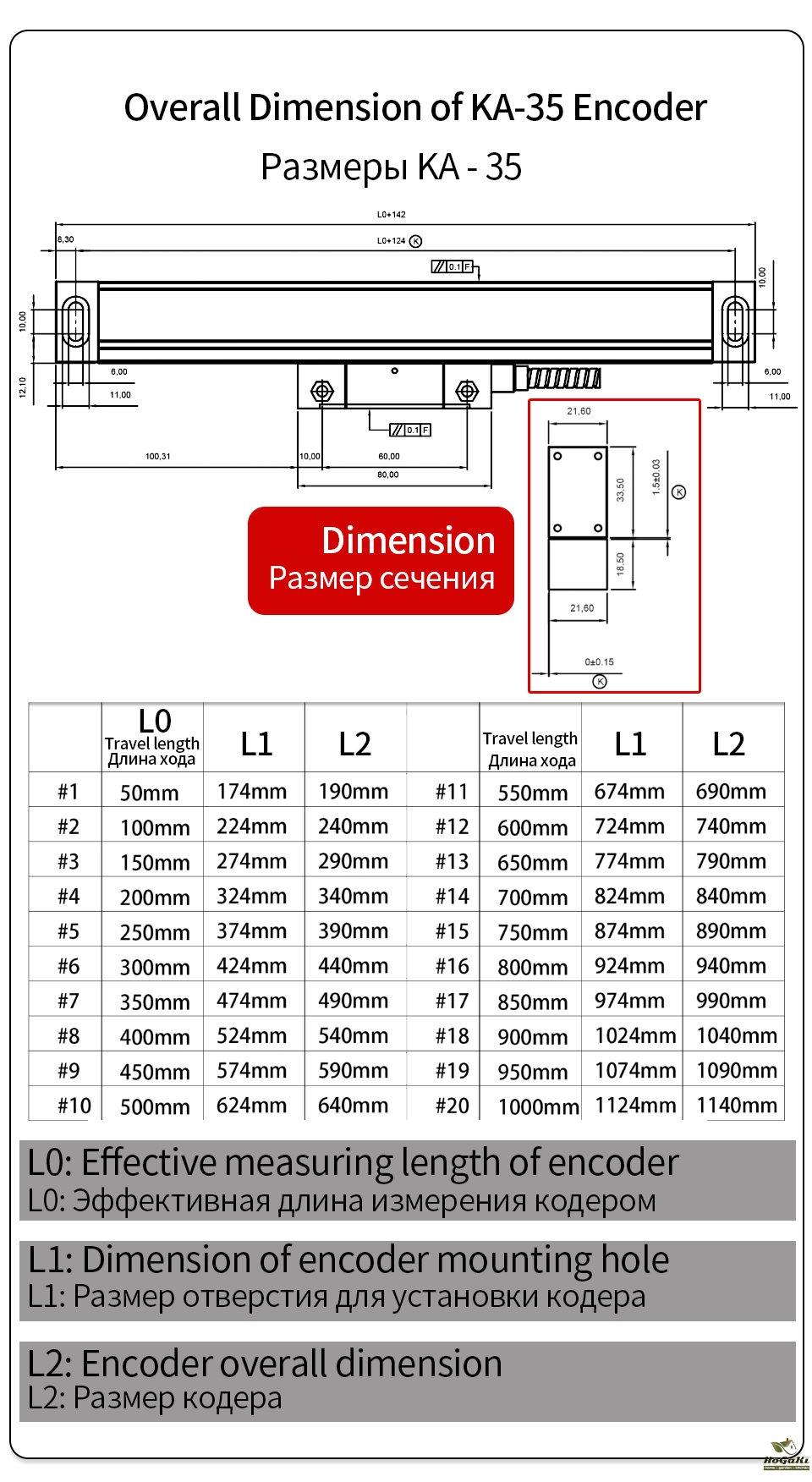

Dimensions Cross section dimensions: 21.5mmx33.5mm

Total length: measurement +140mm

Available measurement: 100mm to 1000mm


SINO 2-AXIS digital readout parameters

1. The voltage range: AC 85 v ~ 250 v / 50 hz ~ 60 hz
2. 15 w power consumption: 25 va
3. Coordinate the number: a coordinates, two coordinates, three coordinates
4. Show that signed seven display (two or three axis) output data information using eight meters words show symbols
5. Net Weight: 1.5 kg
6. The input signal: TTL, EIA - 422 open collector output signal, convenient interface with a programmable controller.
7. Allow the input signal frequency: > 100 KHZ
8. To connect a resolution: 10 microns, 5 microns, 2 microns, 1microns, 0.5 microns


Digital display advantages:
1, Professional design, beautiful appearance generous, counts the frequency response is fast and powerful.
2, Good quality shell, the surface electric pensu processing, dustproof wear-resisting, good shielding.
3, Independent power supply, to adapt to the range, high stability, strong anti-jamming capability.
4, Power supply and signal anti-interference ability, high quality and durable panel of buttons, change is simple and convenient.
5, It can directly on the digital display table for functional operation functions such as sine, cosine, tangent function, convenient processing.
6, It can be in the X and Y direction for automatic tool compensation


Basic Functions
√ mm/inch Transformation √ Absolute/Relative Transformation
√ Mid-split Function √ Simple "R" Function
√ Smooth "R" Function √ Divide the perimeter of circle
√ Save 200 workpiece zero points √ Divide holes on an oblique line
√ Mathematics calculation √ Tool diameter compensation
√ Bevel process √ Zero location autorest


Goods ship from Poland, Russia or China fast delivery !





Packaging Details

  • Unit Type:
  • Package Weight: 8.500
  • Package Size: 12x12x120

  • Brand Name: aoedro
  • Battery Included: No

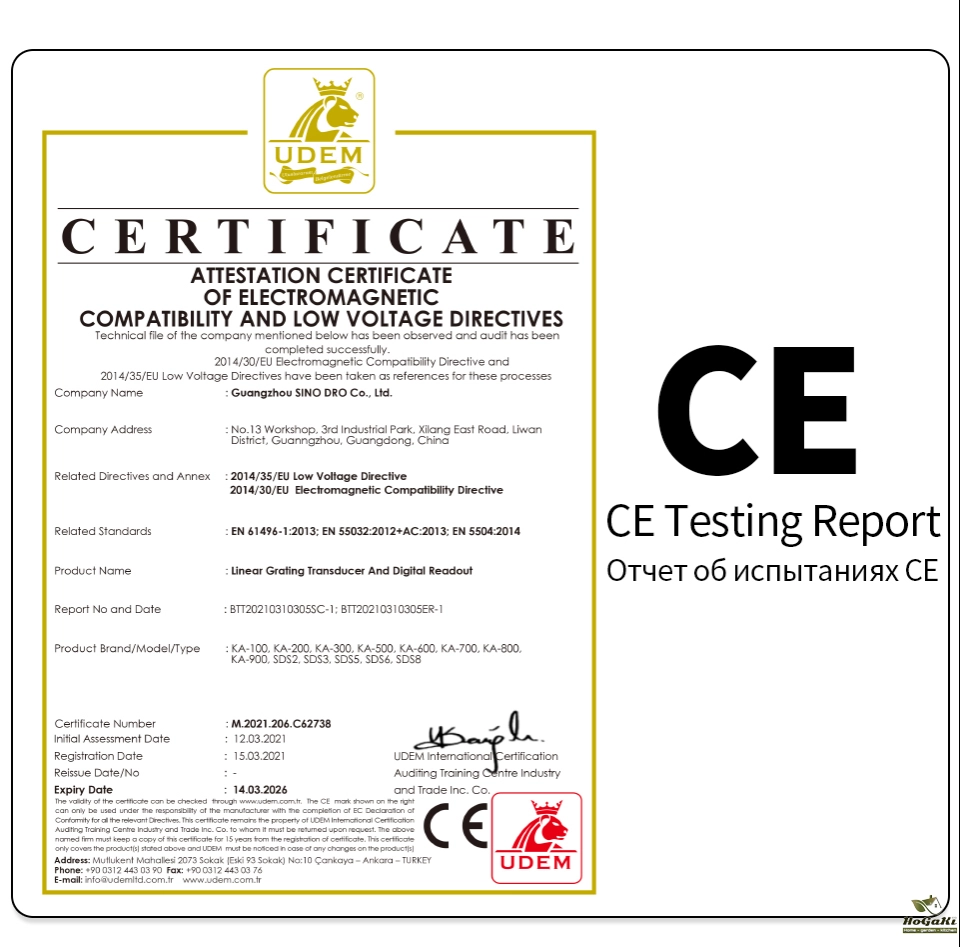

  • Certification: CE
  • Certification: RoHS
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Model Number: 2 Axis LED DRO Set
  • Product Name: 2 Axis LED DRO kit
  • Number of Axis: 2 Axis
  • Input voltage: AC110V/220V 50/60Hz
  • Resolution: 0.005mm
  • KA35 Scale Travel length: 50~1000mm available
  • KA300 Scale Travel length: 70~1020mm available
  • KA500 Scale Travel length: 70-470mm available
  • Scale cable length: 3 meters
  • Siginal: TTL
  • Application: Milling, Lathe, Turning, Boring Machine etc.

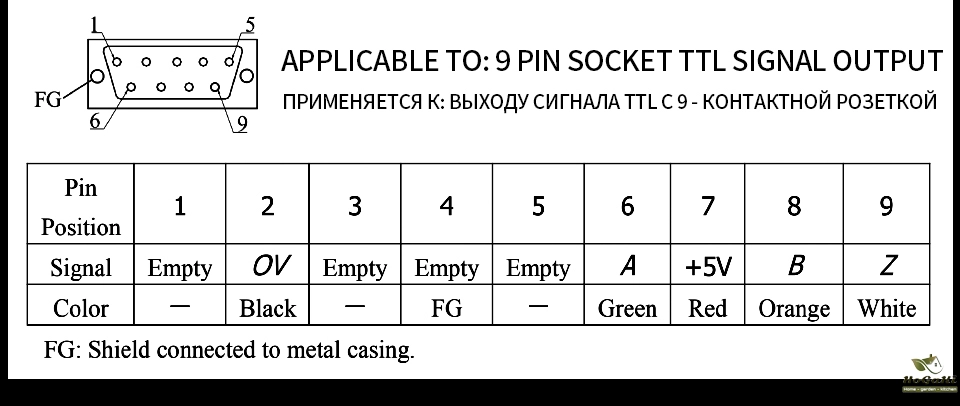

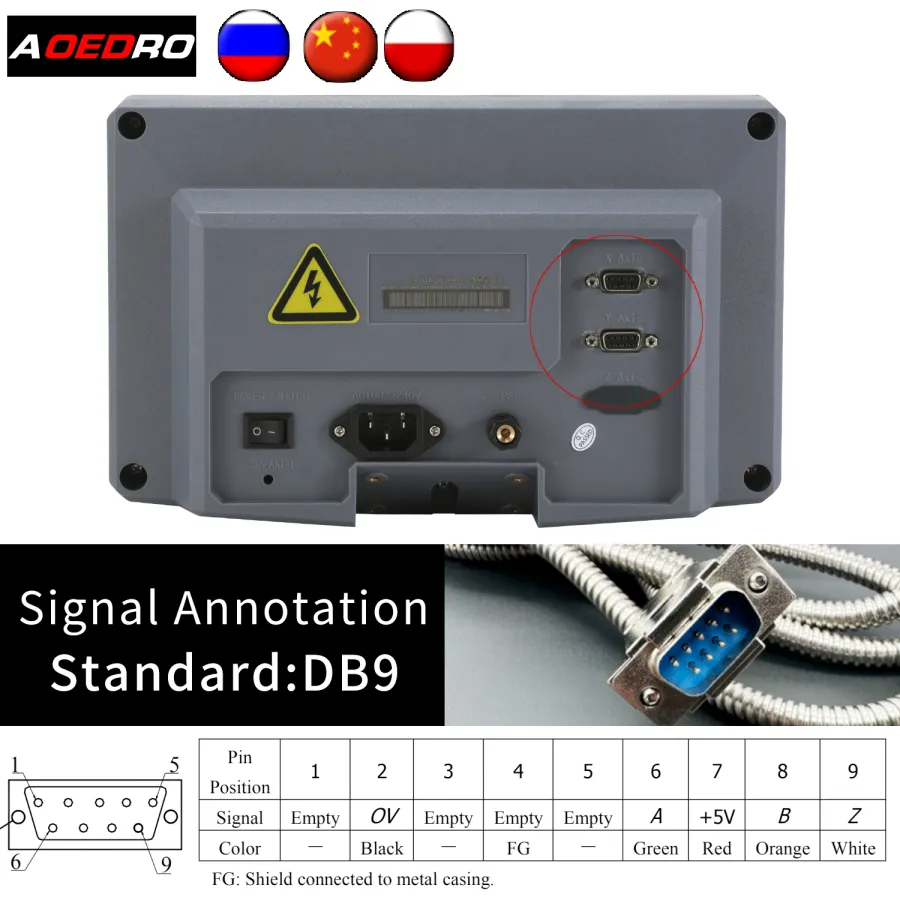

  • Interface Type: DB9
  • Protection grade: IP54
