DC 24V PCB Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings
4.4 (10 votes) | 54 orders
Price:
US $134.55 - 166.22
Discount Price:
US $
123.86 -
152.37
-8%

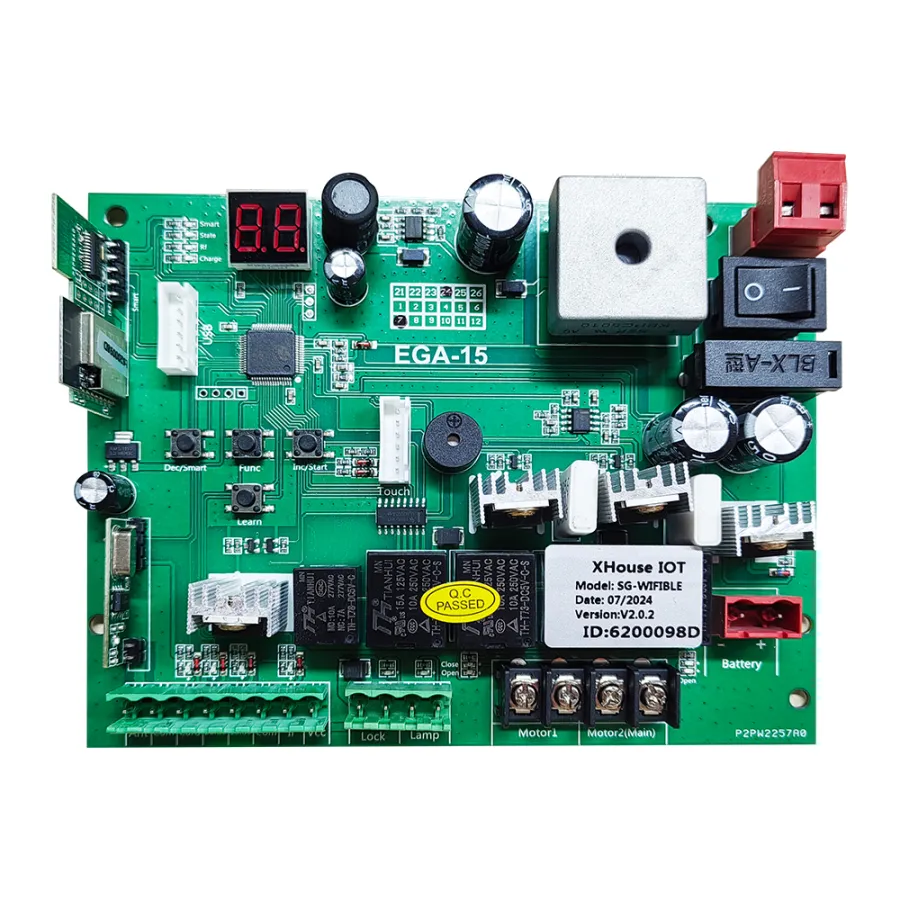

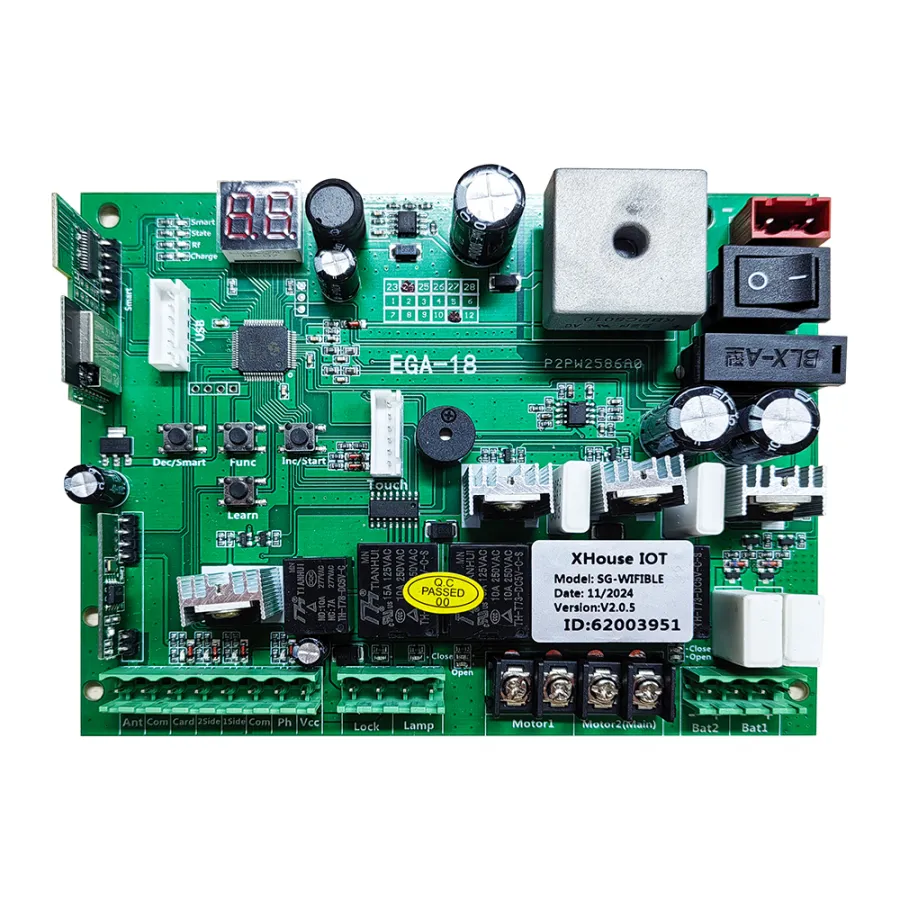

- Color
-
-

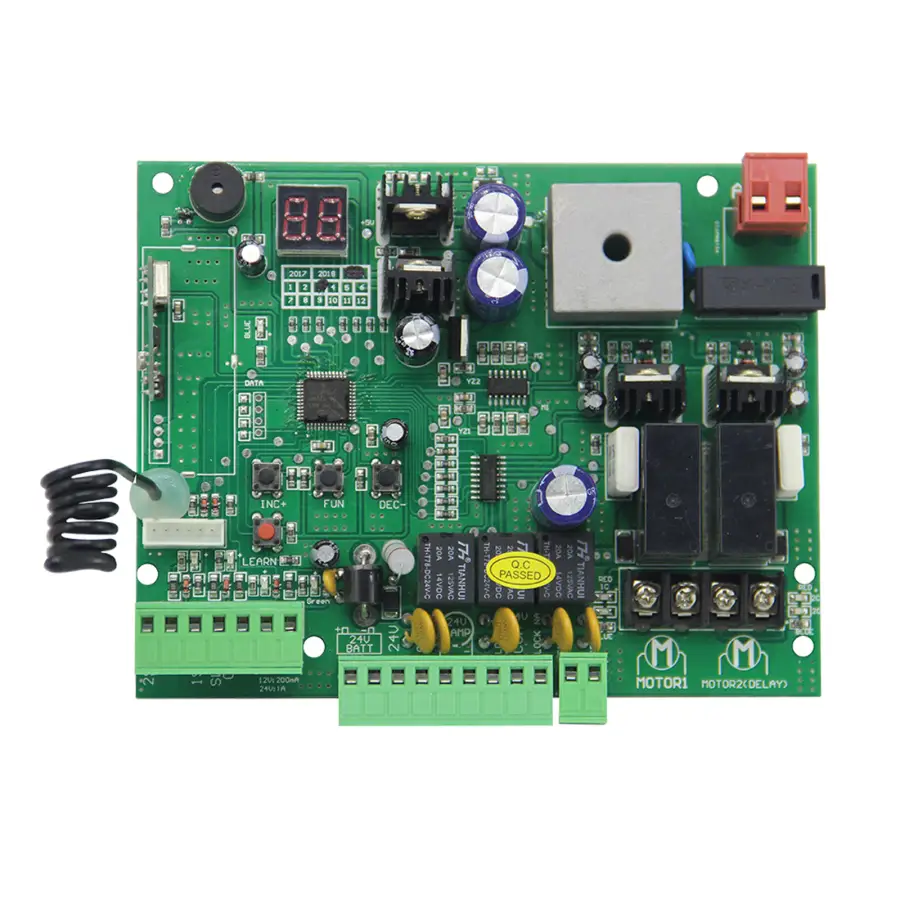

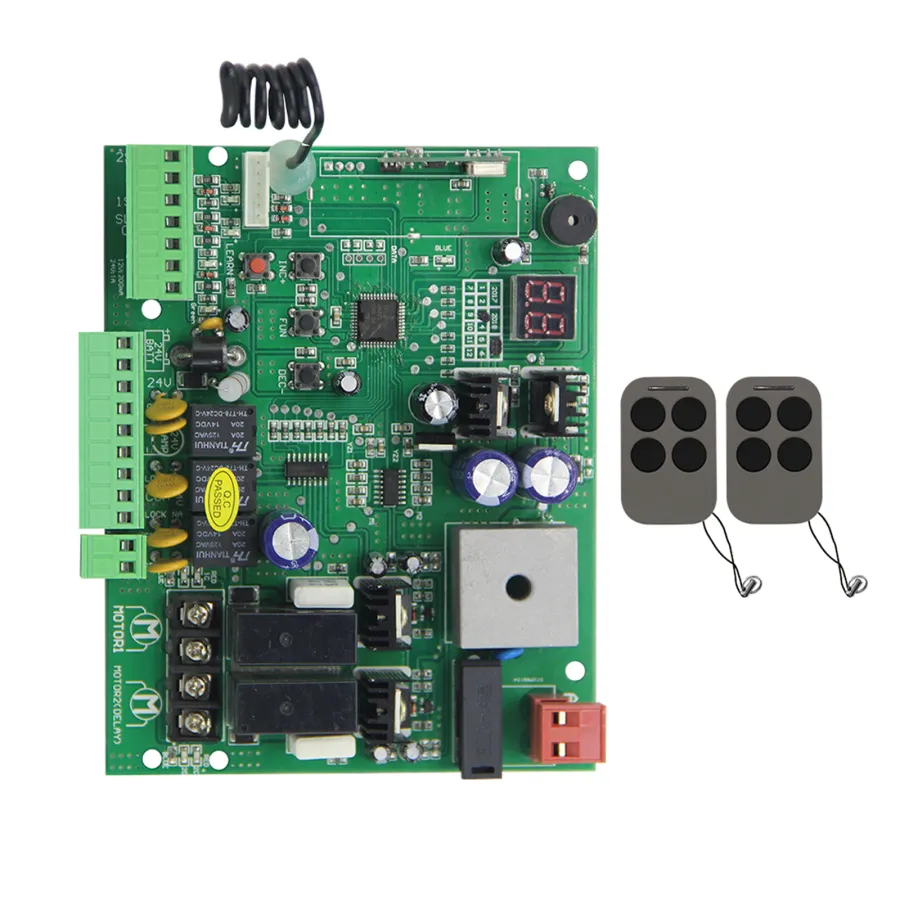

DC 24V PCB Board for Automatic Double Arms Swing Gate Opener Control Board Panel Smart Control Center System Replace Fittings
Product sellpoints
Extensive Accessory Support:Includes terminals for various accessories like loop detectors, photocells, and keypads for comprehensive gate management.
Advanced Security Features:Equipped with fail-secure with signal mode and custom rolling code for enhanced gate security.
Garage Door Wall Control Replacement|Vertical Gate Opener|Universal Type 24V PCB Board:Versatile 24V PCB board compatible with a wide range of swing gate openers, ensuring easy integration.
Customizable Functions:Offers DIY customization, allowing for tailored gate control and integration with other automated systems.
Digital LED Menu & Plug & Play:User-friendly digital LED menu for easy setup, plus plug and play functionality for swift installation.
Support DIY other functions. If you need to use it in other automated systems, please confirm the functions with the seller in advance, because the product contains difficult technicalities and there is no definite purchase, and the seller does not bear any responsibility.
Note: Both EG-22A and EGA-10 are of the same.If you purchase the control board separately, please be sure to contact us to ensure the compatibility of your remote control and our control board, because the same controller or remote control may have different frequencies in different countries.If you purchase a separate control board, without contacting us to confirm, the frequency of occurrence will be regarded as an accident and the responsibility for it will be borne by the buyer.
Features

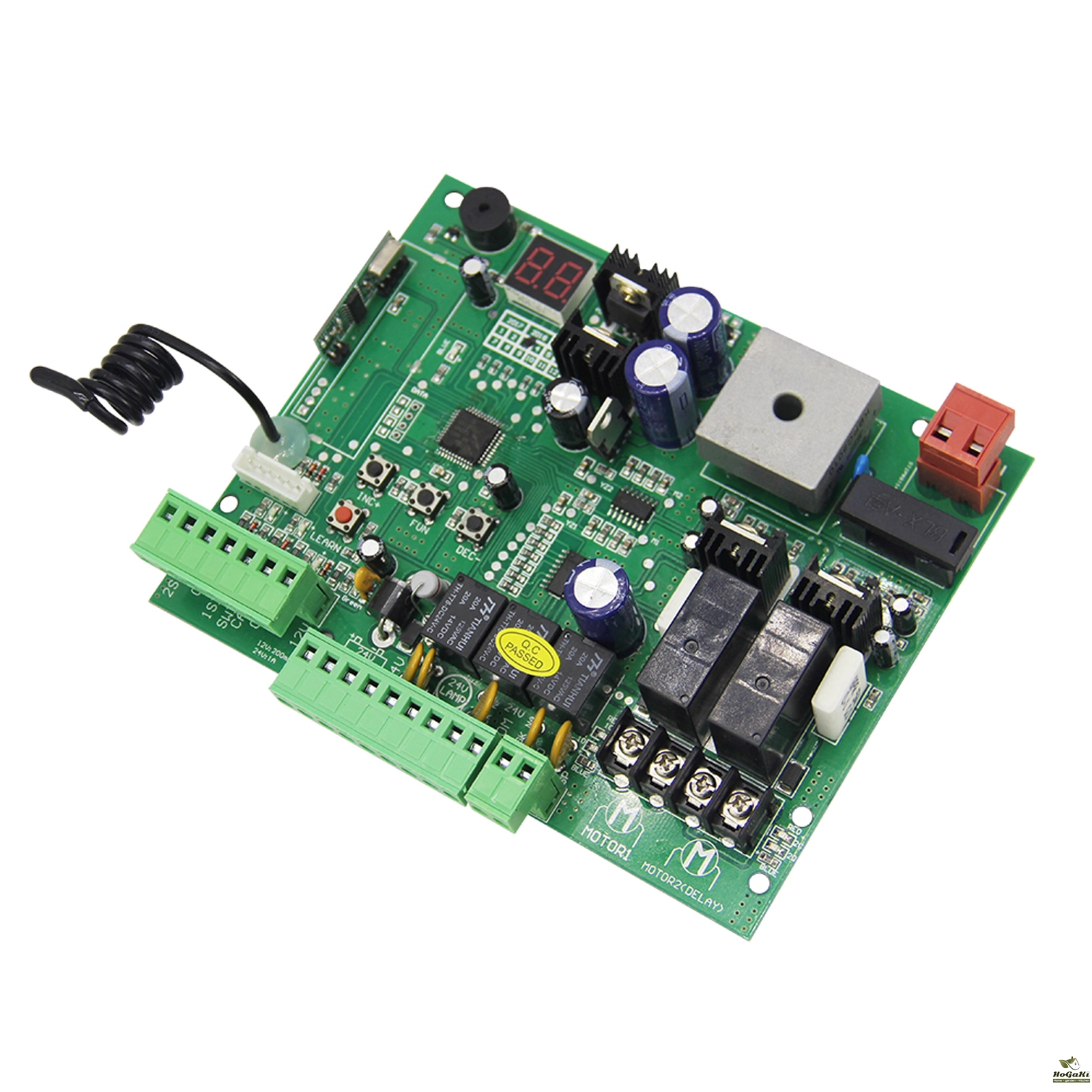

1. Digital LED Menu brings a easy setting,plug and play.
2. Open/Close single leaf or double leaves.
3. Separate force setting for motor 1,motor 2 and high speed, slow speed brings the motors working accurately.
4. Auto-closing time can be adjusted from 1 second to 99 seconds.
5. Total 60’s working time to protect the motors.
6. Terminals available for loop detector, photocell, push button, keypad, access control equipment etc.
7. Compatible with both electric lock and electromagnetic lock.Extra relay out put for lock of pedestrian door or other external devices.
8. Custom rolling code makes the system more secure.
9. Available to connect back up battery or solar system.
Technical Parameters:
1. Control Panel Power: AC 24V,available for adding 24V backup battery.
2. Application: Used for double or single DC 24V swing gate opener.
3. Encoder For transmitter: Factory owns rolling code.
4. Allowed Transmitters Quantity: Up to 120PCS.

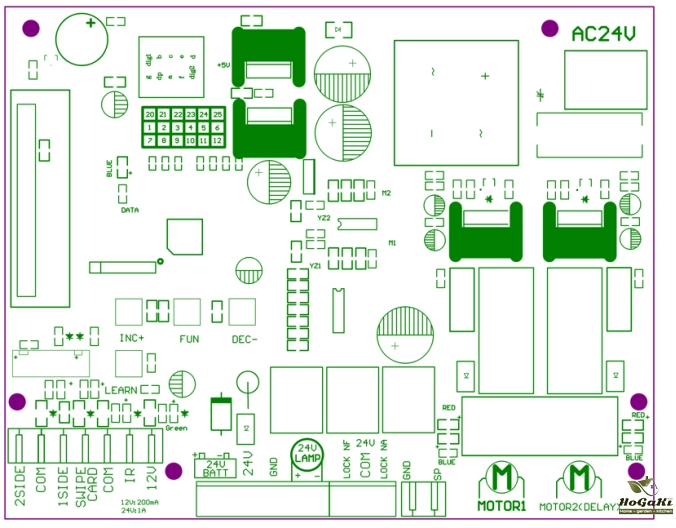

1. MOTOR 1: Master gate, close first & open last.
2. MOTOR 2 (DELAY) : Slave gate, open first & close last.
NOTE! If you only have a single gate, the motor only can connectto the Motor2 Delay terminal.
3. 2 SIDE: Same asthe“ double-leaf button ” of the transmitter, it is for connecting to any external device that operates a double gate.
4. COM: It is for connecting to the “ground”.
5. 1 SIDE: Same asthe“ single-leaf button ” ofthe transmitter, it is for connecting to any external device that operatesthe single gate.
6. Swipe Card: It is for connectingto any external devices that will operate to open the gate.
7. COM: It is for connectingto the “ground” external device.
8. 1R: Infrared terminal is for connectingto the photocell sensor.
9. 12V: The output is for connectingto the photocell sensor, continuous output current <=200mA. (24V DC output, current is 1A)
10. 24V battery +:It is for connecting the backup battery +.
11. 24V battery -:It is for connecting the backup battery -.
12. 24V: 24V DC output is for connecting to an external device. (such as photocell sensor, max current output 1A)
13. GND: It is for connectingto the “ ground ” of an external device.
14. 24V LAMP +: It is for connectingto the flash light +.
15. 24V LAMP -: It is for connectingto the flash light -.
16. LOCK(NF): The NF terminal which used for connectingto the magnetic lock.
17. COM(24V): COMMON used for connectingto the“ground”of the lock.
18. LOCK(NA): The NA terminal which used for connectingto the electric lock.
19. GND: It is for connectingto the “ ground ” ofthe alarm system.
20. SP: It is 24V DC output connecting withthe alarm system.
21. AC 24V: It is for connecting with the transformer.

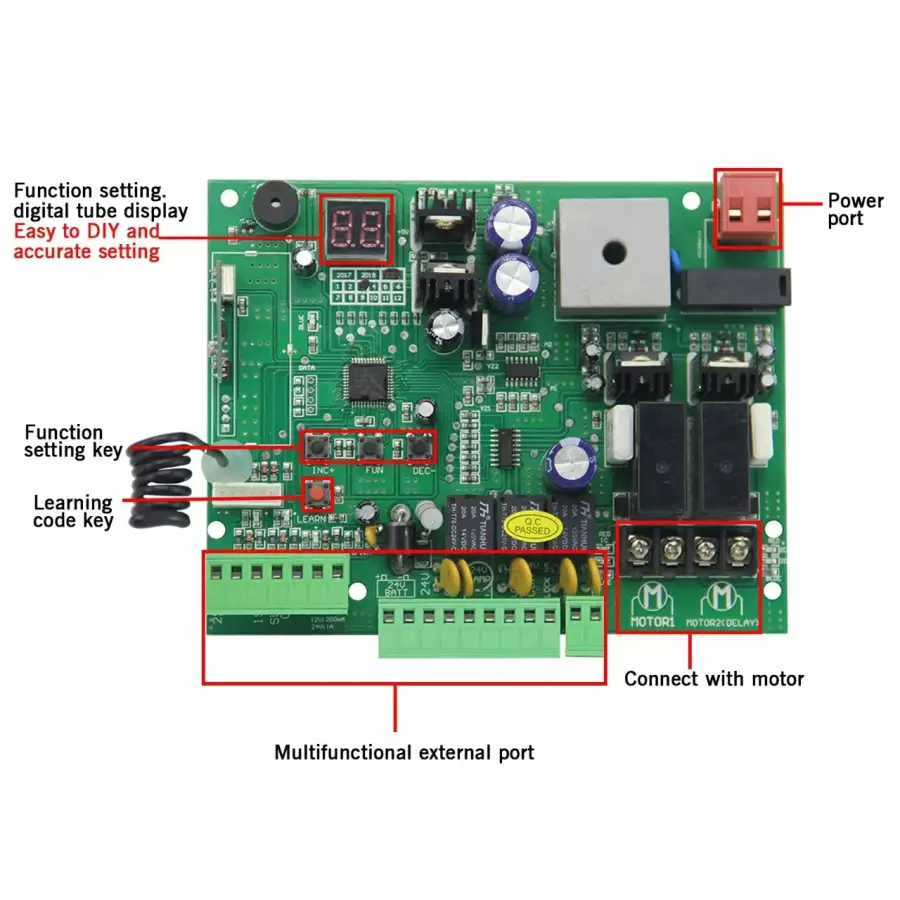

22. Digital display: It is for showing you the setting data.
23. INC+: It isfor figure increasingof setting the data.
24. FUN: It is for storing data.
25. DEC-: It is for figure decreasing of setting the data.
26. Learning button: It is for programming/removingthe remote control.
Remote Control
Button “1” is used to operatea single gate; button “2” is used to operatea double gates; button “3” is used to operate the alarm output.
Program new remote control:
n Press the LEARN button on the control board for about 1 second, and the indicator LED will turn off, then means entering the programming.
n Press any button on the new remote control for about 2 seconds. The digital display will show the remote's number while the board's indicator LED flashes four times with one buzzer, which means the programming is successful.
n Note! After you press the LEARN button, if the board does not receive the new remote signal within 5s, the indicator LED will turn on and exit programming.
Remove remote control:
n Press and hold the LEARN button for about 5 seconds. If there has one buzzer sound and indicator LED light on, then now means removing the remote successfully.
Setting of the control board:
After power on, the digital display will self-check from 00-99 with a buzzer sound. If the indicator LED light on, and the buzzer stop sound, means the system is working well.
Digital Display Setting
n Press and hold the [FUN] button for 5 seconds, and the Digital display will indicate “P0”, then release the button, now the menu can be set to [INC+] and [DEC-] for increasing and decreasing numbers or values.
n After adjusting the value, press the [FUN] button to store the data, and the buzzer will beep one time to show the store successfully.
n After the menu setting is finished, press the [LEARN] button to exit the menu setting and close the display.
Packaging Details
- Unit Type:
- Package Weight: 0.400
- Package Size: 11x2x16
- Brand Name: ezyopenteck
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: EG-22A(EGA-10)
- Batch Number: EG-22A EGA-10

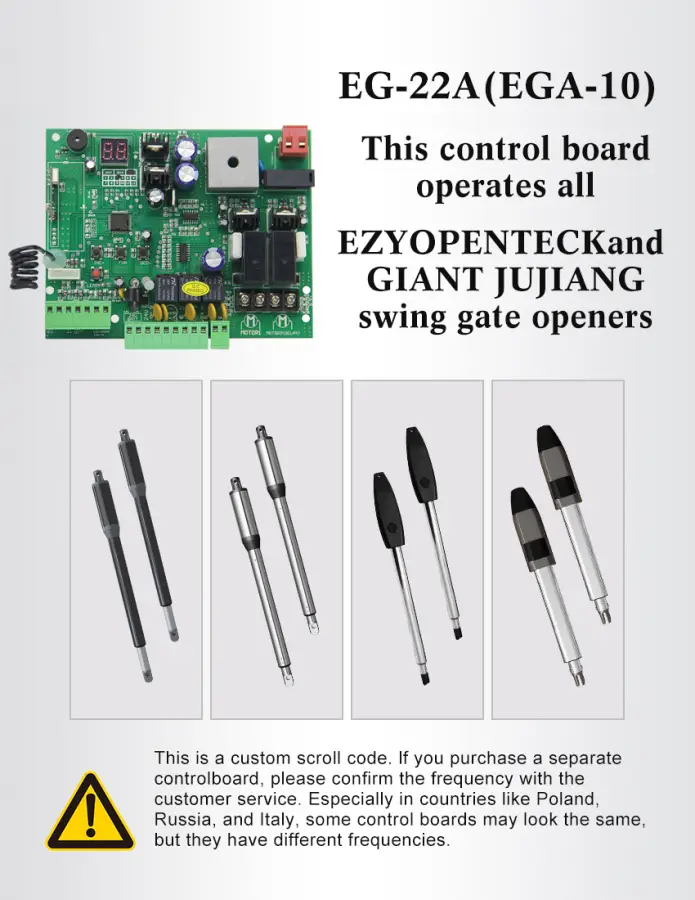

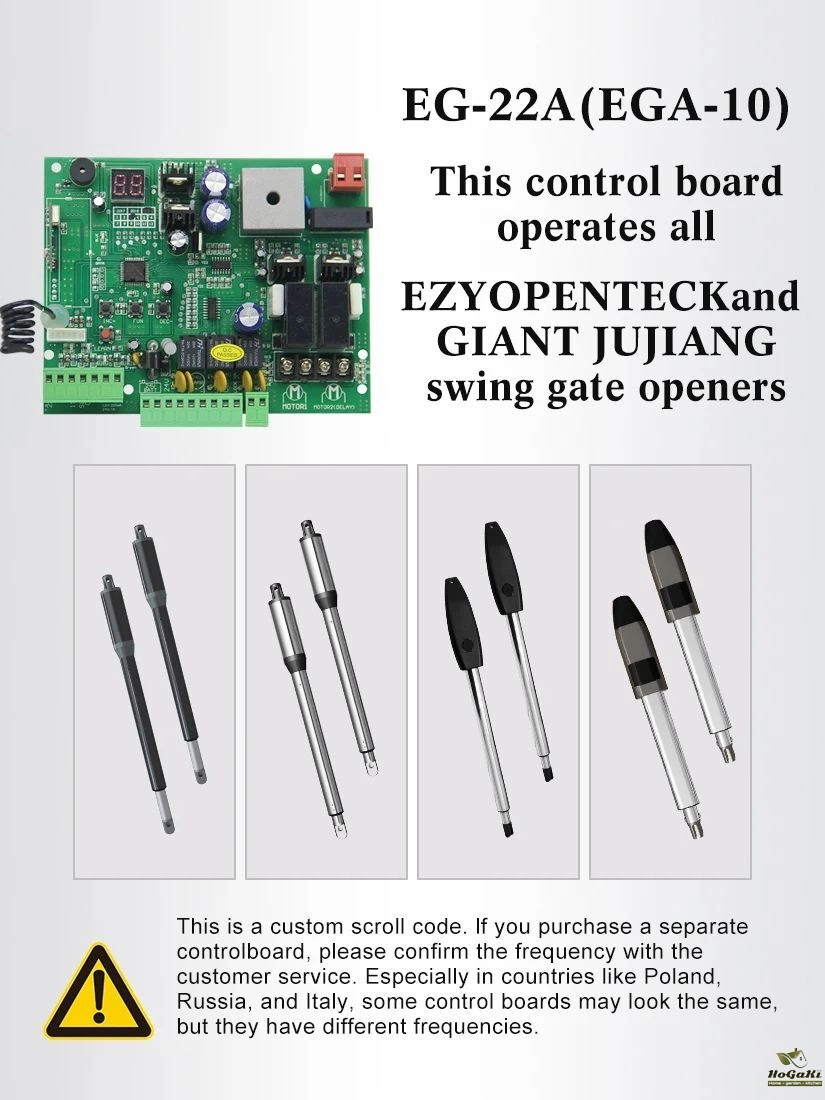

- Product Name: Swing gate control board
- Function: Swing gate opener motor control
- Power supply AC 19.6-21.6V/DC 24V: AC 19.6-21.6V/DC 24V
- Output Voltage: DC 24V
- Protection fuse: 10A
- Frequency: 433.92Mhz Encrypt(If you purchase a separate control panel, please confirm with the customer service whether it is compatible with your remote control.)
- Use for: 12/24V swing gate motor
- Universal: Giant, JUJIANG, EZYOPENTECK and so on
