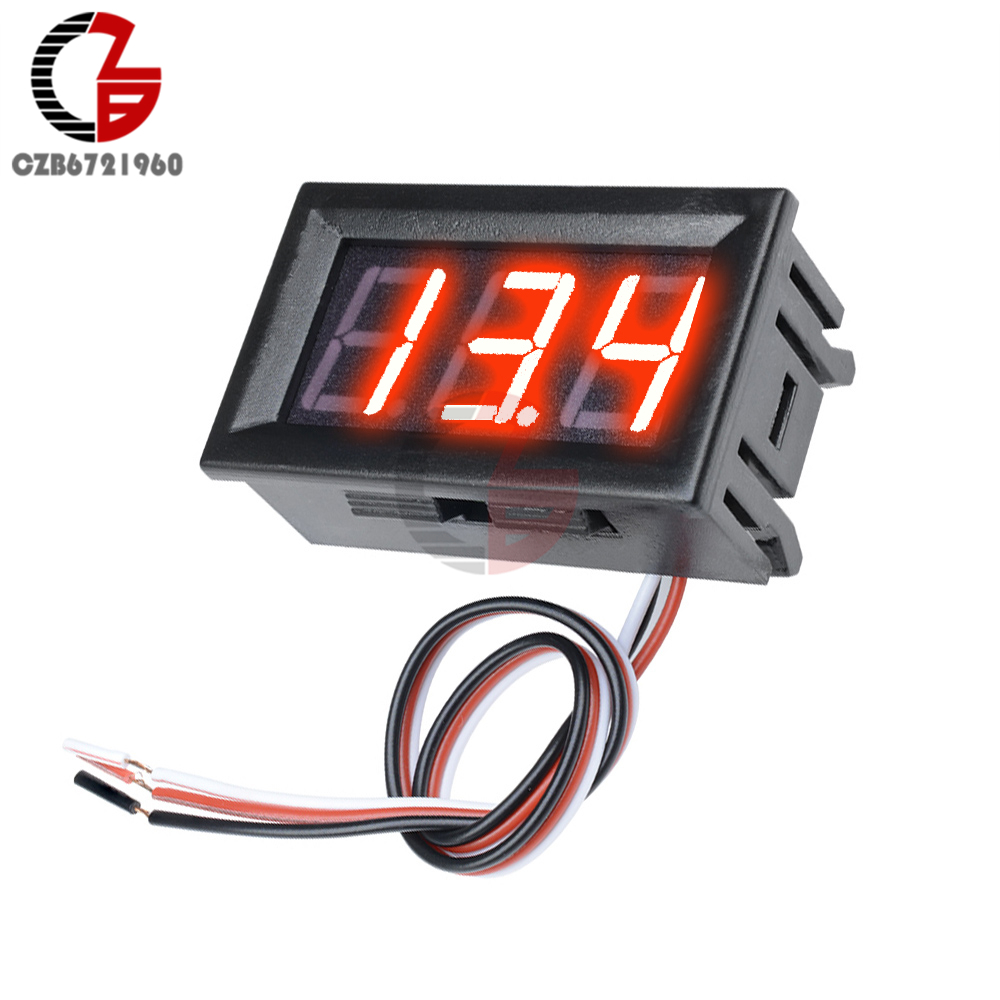

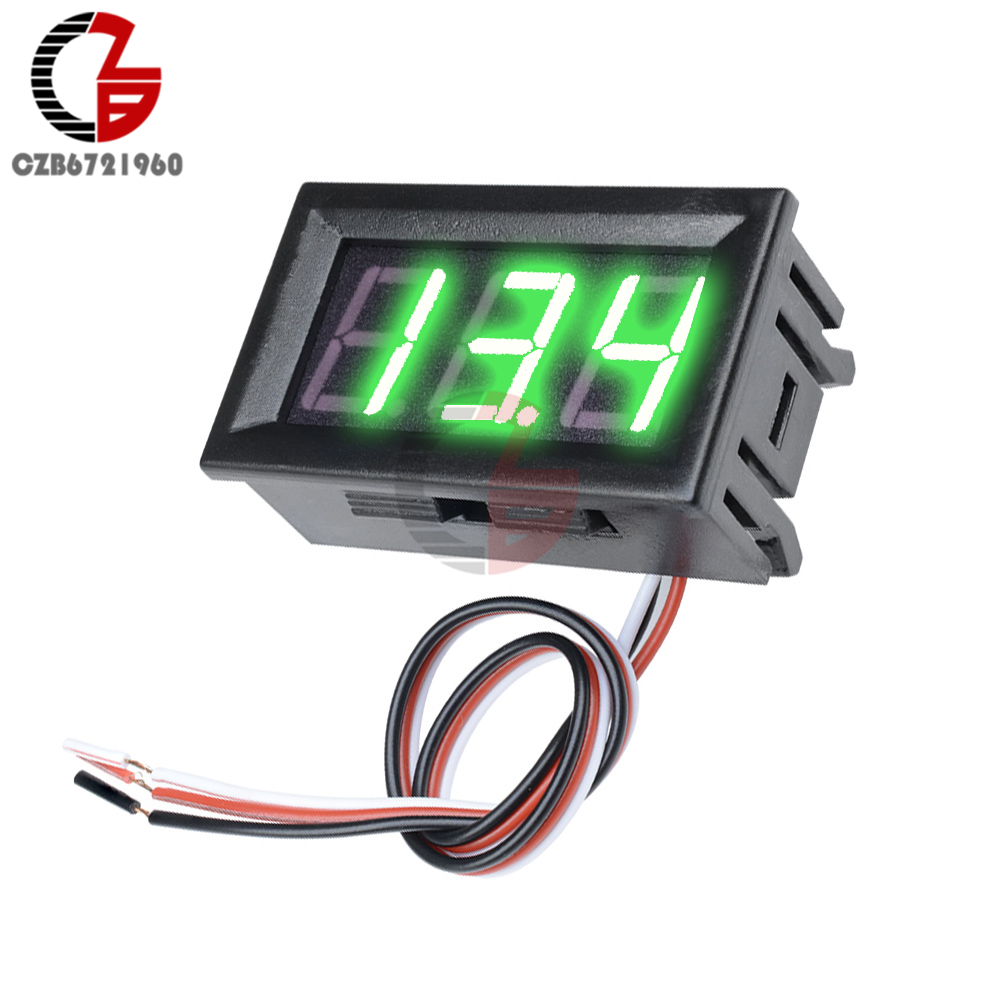

2 3 Wires 0.56" LED Digital Voltmeter Voltage Meter Car Motorcycle Volt Tester Detector DC 12V Capacity Monitor Red Green Blue
4.8 (213 votes) | 1334 orders
Price:
US $11.44
/ piece
Discount Price:
US $
9.95
/ piece
-13%
- Ships From
- Color
-
-

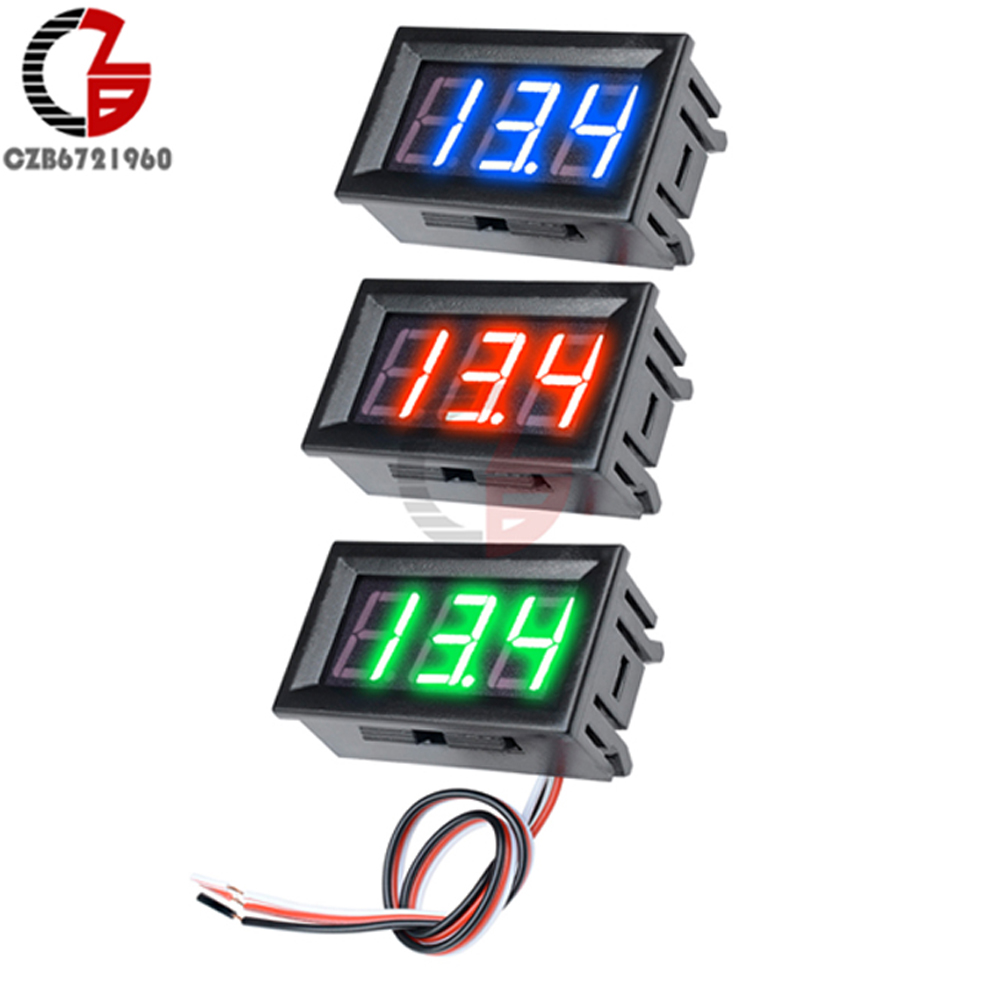

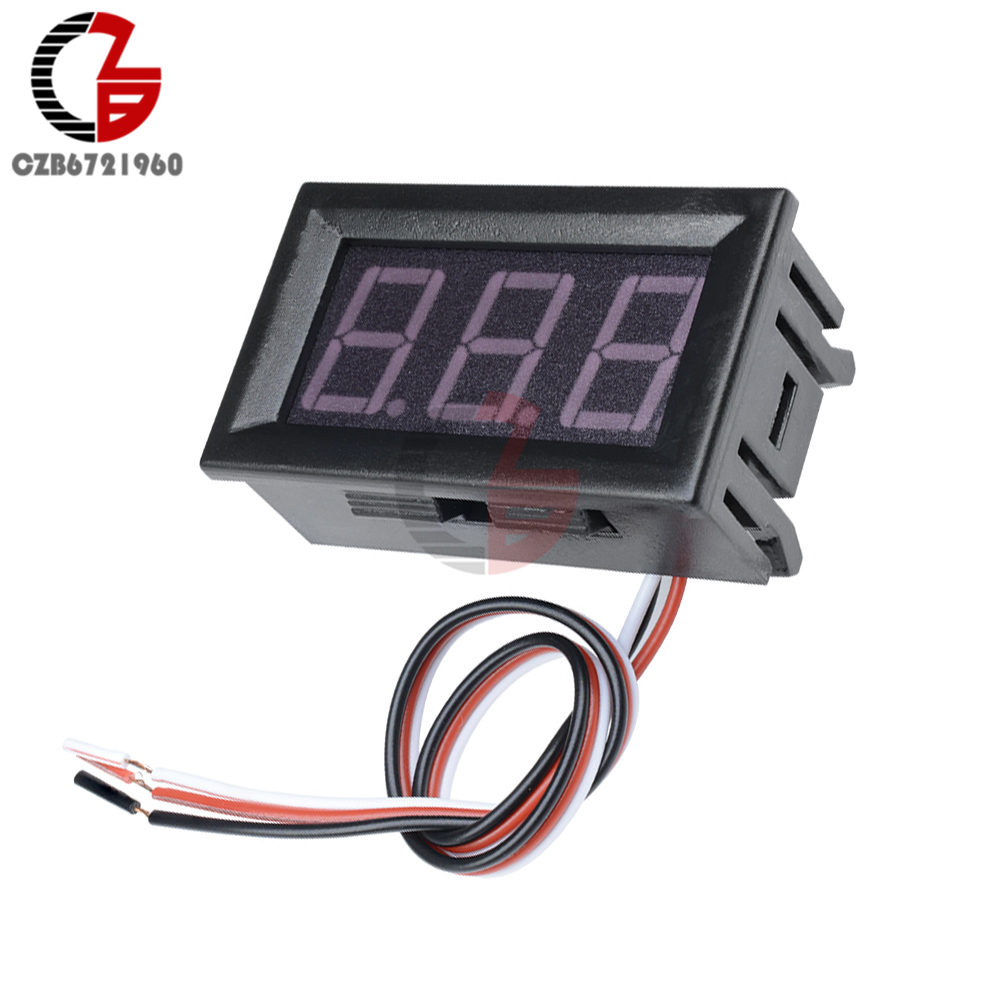

2 3 Wires 0.56" LED Digital Voltmeter Voltage Meter Car Motorcycle Volt Tester Detector DC 12V Capacity Monitor Red Green Blue

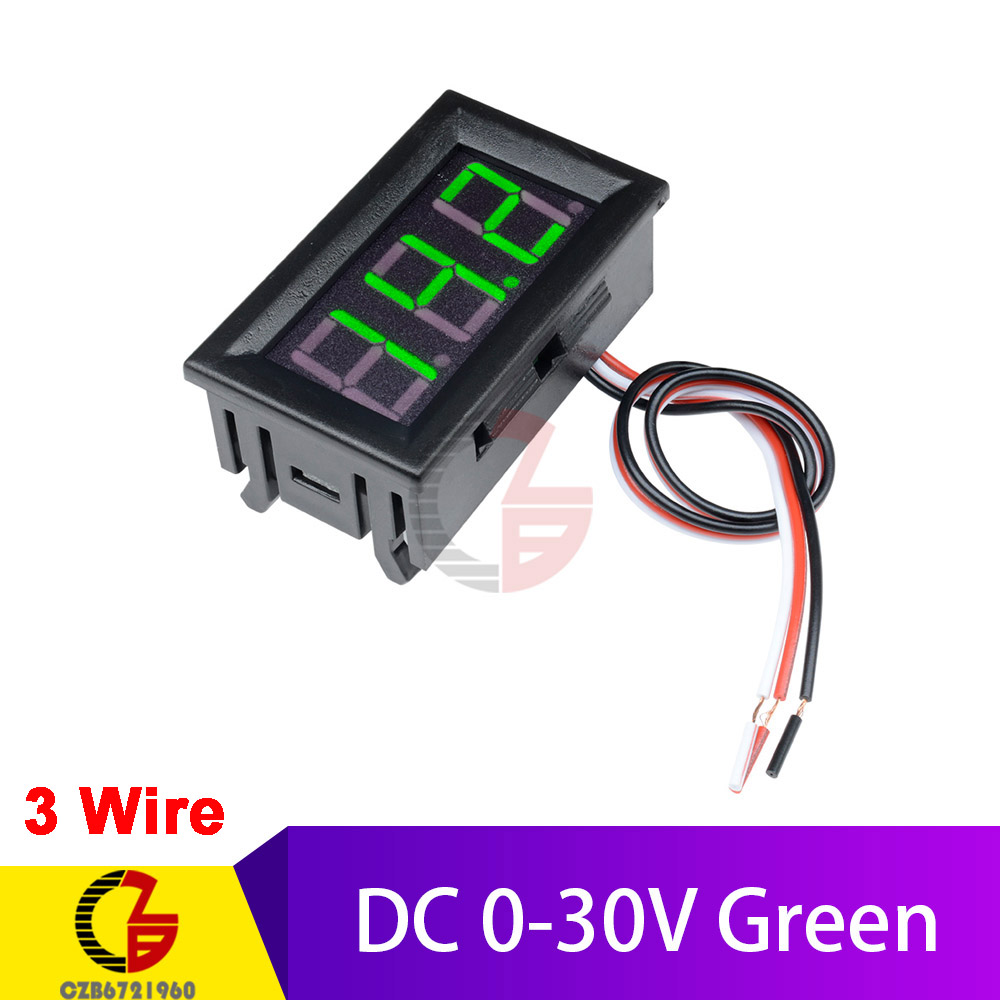

Measuring range 0.00V-30.0V
Description:

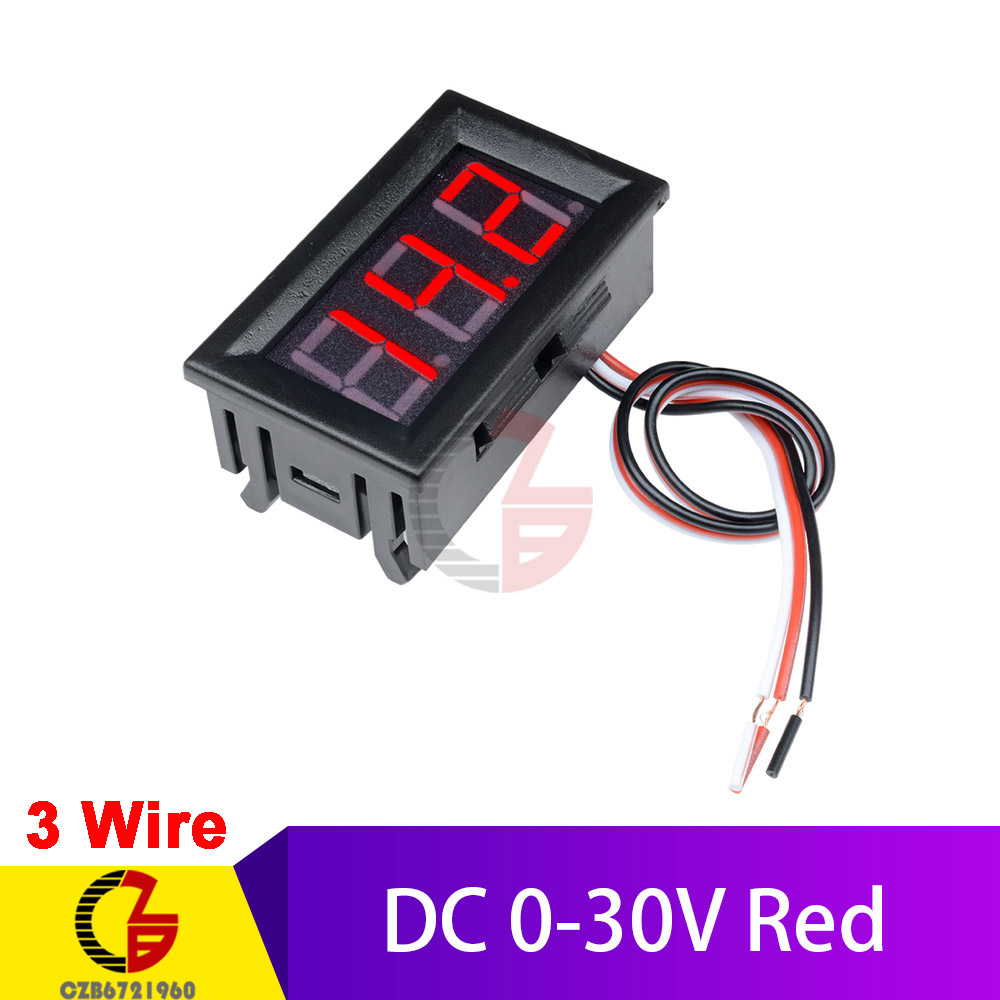

Three Wires
Ultra-low cost, high precision to meet most of the application requirements.
low starting working voltage, red minimum 4.5V, green minimum 5.0V, blue minimum 5.0V.
with reverse protection, anti-burn.
Specifications:
Measuring range 0.00V-30.0V
Power supply range red DC 4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V
Maximum input DC30.0V. Note: Input voltage higher than 30V may be permanently damaged!
Tolerance ± 1%; error greater than or equal to 10V ± 0.3V; error less than 10V ± 0.10
Input impedance> 100K ohms
Working current red <23mA, green <18mA, blue <13mA
Refresh speed of about 300mS once
Display mode three 0.56 "LED digital tube
Display color red, green, blue optional
Lead length 20cm
Dimensions 48 x 29 x 22 mm(LxWxH)
Mounting hole 46 x 27 mm
Net weight 19g
Gross weight 26g
Operating temperature -10 ℃ ~ 65 ℃
Package Included:
1 x 0.56" LED Digital Voltmeter

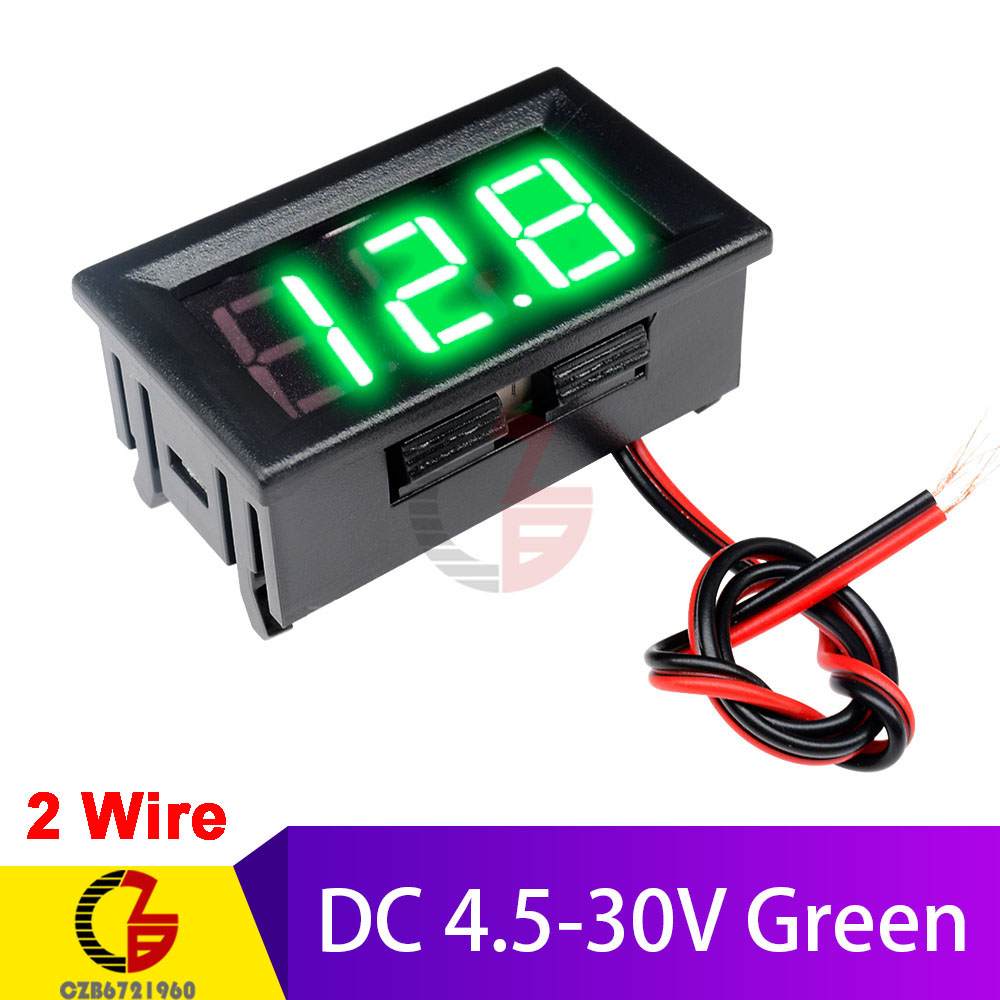

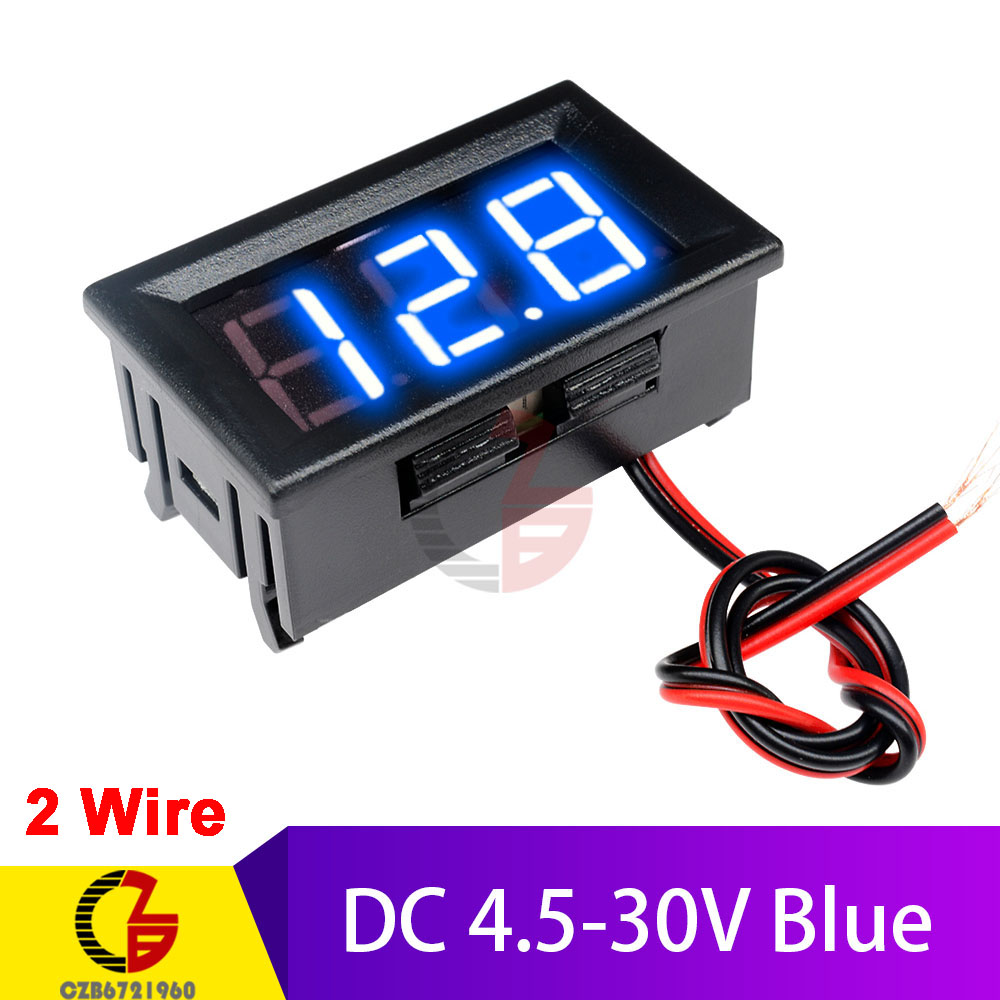

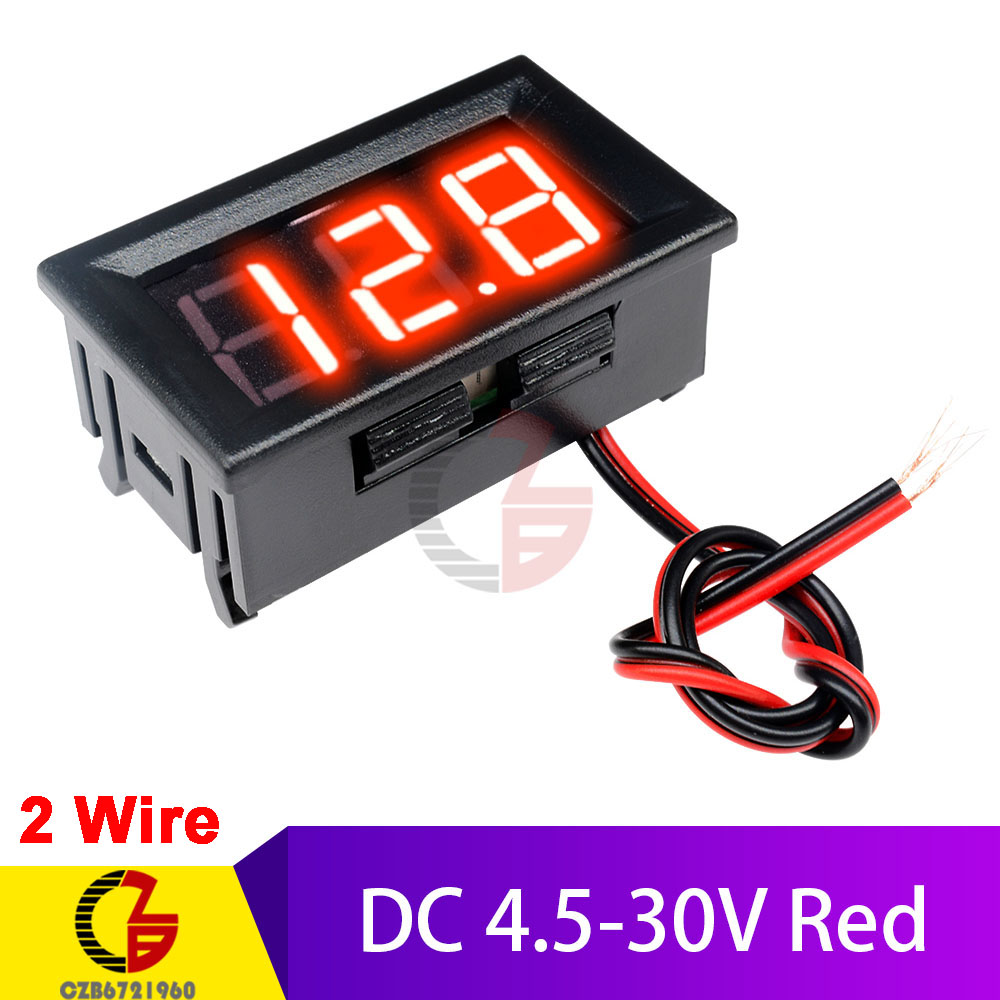

Measuring range DC4.5-30V :
The range of this voltmeter is DC4.5V--30V, and testing the voltage over 30V will cause the meter to burn! Not suitable for electric vehicles or 24V unstable power supply. Such as trucks, buses, welding machines, playground strollers, forklifts, forklifts, chargers (24V) and other large equipment! Please choose DC5V-120V for high voltage!
●Ultra low cost and high precision meet most application requirements.
●High precision
●Low start working voltage, the lowest red is 4.5V, the green lowest is 4.7V, and the blue lowest is 5.0V.
●With reverse connection protection, it will not burn when connected in reverse.
Technical parameter:
Measuring range: red DC4.50-30.0V, green DC4.70-30.0V, blue DC5.00-30.0V

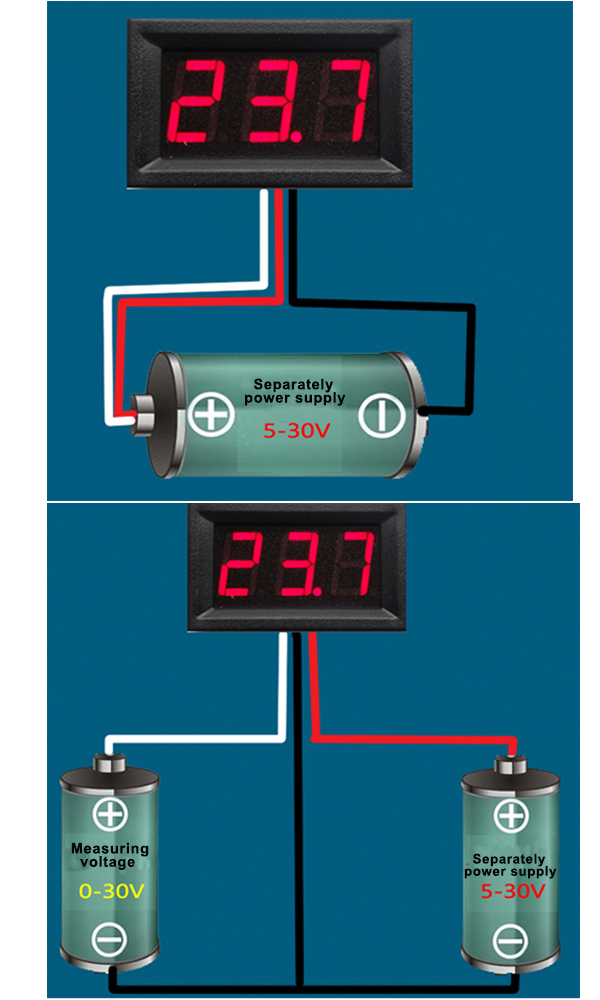

Power supply range: no need for additional power supply, directly use the tested voltage as the power supply, the range is the same as above
The highest input: DC30.0V. Note: Input voltage higher than 30V may be permanently damaged!
Allowable error: ±1%; when it is greater than or equal to 10V, the error is ±0.3V; when it is less than 10V, the error is ±0.10
Input Impedance:> 100K ohms
Operating Current: Red < 23mA, Green < 18mA, Blue < 13mA
Refresh rate: about 300mS once
Display mode: three "0.56" LED digital tube
Display color: red, green, blue optional
Lead length: 20cm
Dimensions: 48 x 29 x 22 mm, length X width X thickness;
Cutout size: 46 x 27 mm
Net weight: 18g
Gross weight: 25g
Working temperature: -20℃~65℃

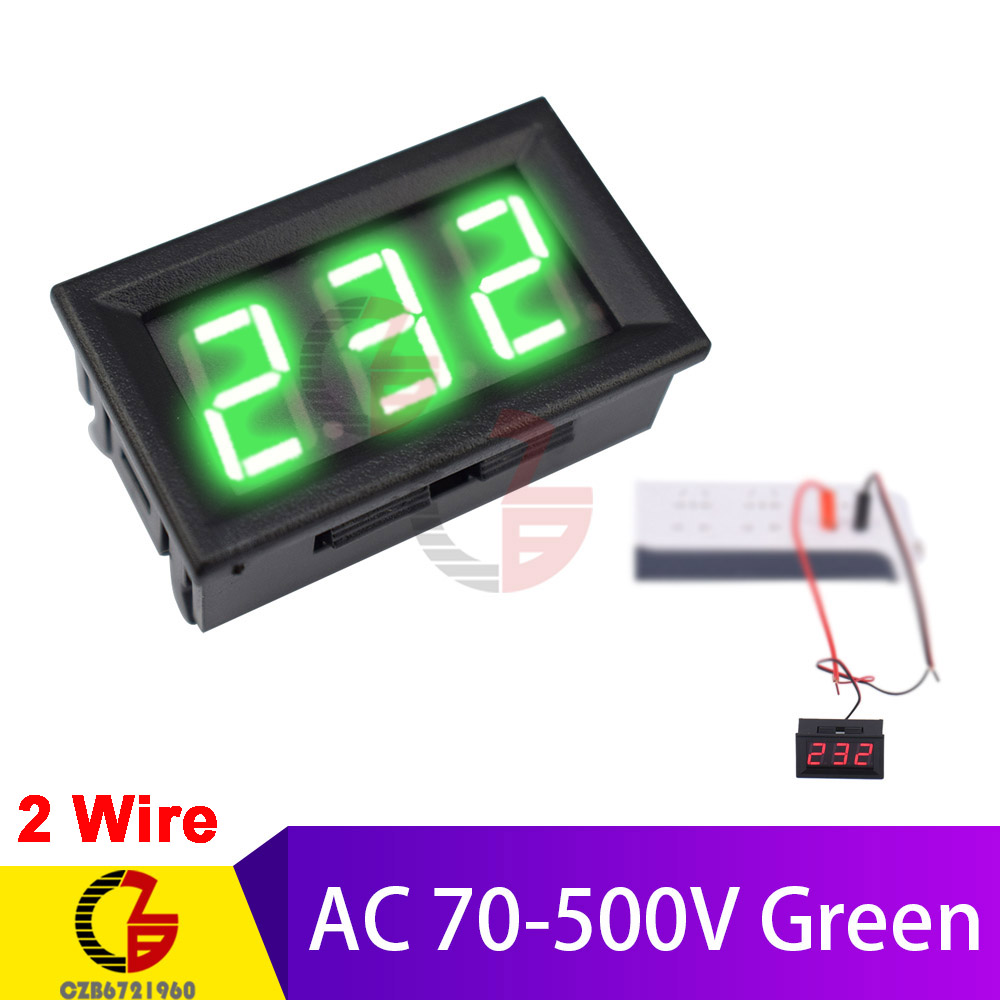

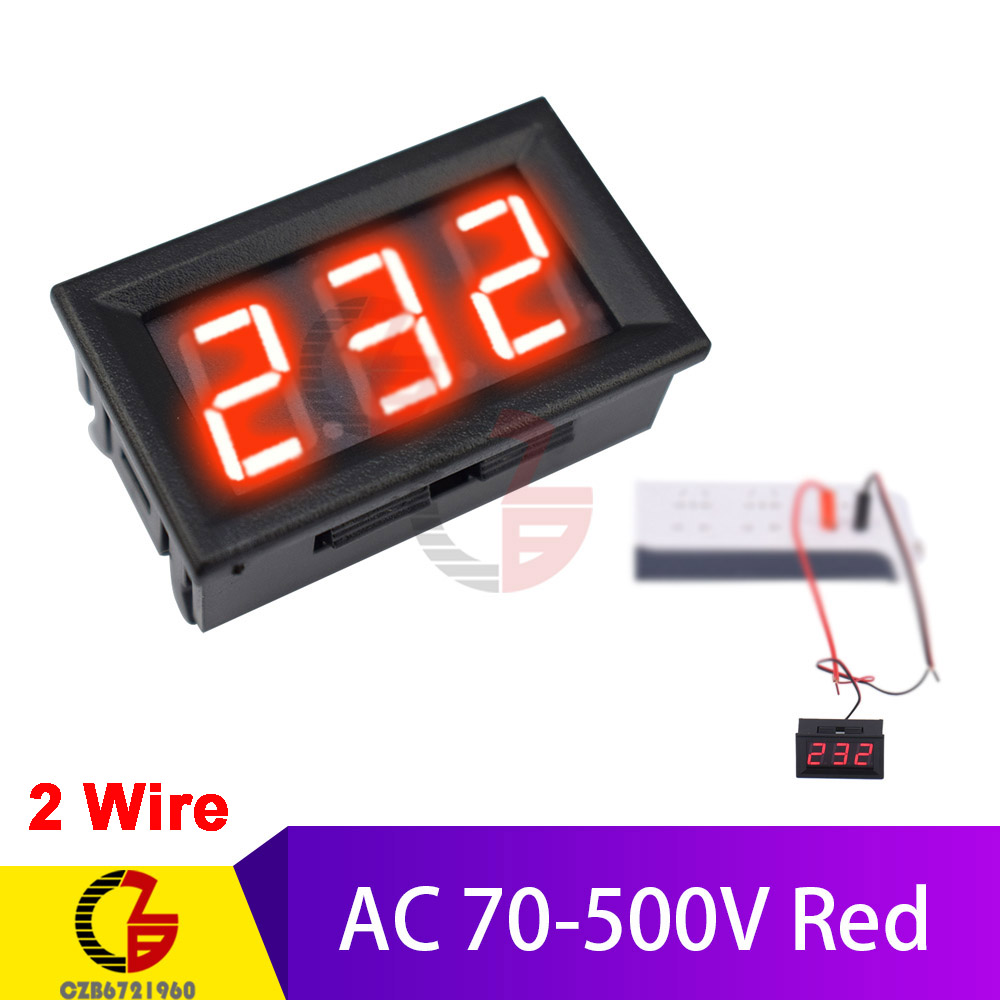

Measuring range AC 70V-500V
Features:
Operating voltage: no need to connect to any power supply, two-wire system
The two-wire voltage meter design, the wiring is simple, easy to install

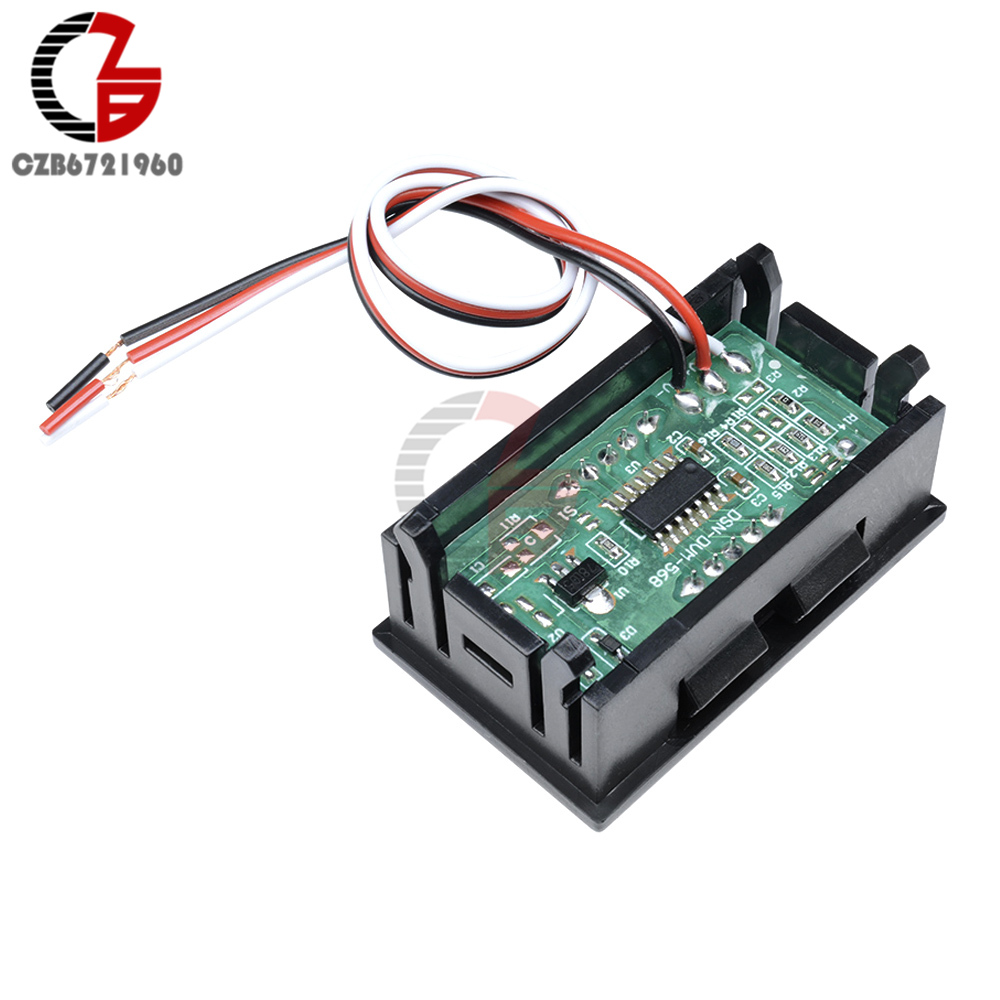

When there is a slight error, you can calibrate it through the circuit board, "fine-tuning" potentiometer for calibration
Specifications:
Measuring range: AC 70V-500V
Maximum input: AC 500V(Note: Input voltage higher than 500V may be permanently damaged!)
Allowable error: ± 1%;
Input impedance> 1M ohms
Refresh speed: About 300mS / time
Display mode: 3-digit " 0.56 " LED digital tube
Display Color: Green/Blue/Red
Lead length: about: 20cm
Outside dimensions: 4.8x2.9x2.2cm
Hole Size: about 4.6x2.7cm
Operating temperature: -20 ° C to 65 ° C
Package Included:
1 x 0.56" LED Digital Voltmeter
Measuring range 0V-99.9V
Measuring range: 0.00V-99.9V
Power supply range: red DC5-30.0V, green DC5-30.0V, blue DC5.00-30.0v
The highest input: DC30.0V. Note. Input voltage higher than 30V may be permanently damaged!
Allowable error: ±1%; when the error is greater than or equal to 10V, the error is ±0.3V; when the error is less than 10V, the error is ±0.10
Input impedance: >100K ohms
Refresh rate: about 300mS once
Display mode: three-digit 0.56"" LED digital tube
Display color: red, green, blue optional
Lead length: 20cm
Dimensions: 48 x 29 x 22 mm, length X width X thickness;
Mounting holes: 46 x 27 mm
Net weight: 19g
Gross weight: 26g
Working temperature: -10℃~65℃
More To Love
- Power Supply: DC
- Model Number: Voltmeter for cars
- Dimensions: 48 x 29 x 22 mm(LxWxH)
- Operating Temperature: -10 ℃ ~ 65 ℃
- Accuracy Class: 1
- Display Type: Digital Only
- DIY Supplies: ELECTRICAL
- Brand Name: diymore
- Origin: Mainland China
- Certification: CE
- Feature 1: voltimeter
- Type 3: voltimetro digital 12v,power distributor
- Name: voltmeter
- description: voltimetro digital 12v
- Type 1: digital voltmeter
- Type 2: 12v car voltmeter
- Type 4: dc voltmeter
