Semi-automatic welding machine 3 In 1 MIG/MAG TIG MMA IGBT Inverter MIG welder Gas Gasless No Gas Fit 0.6mm 0.8mm Flux Core
720.00 376.20 $
SALE
ID: 133022

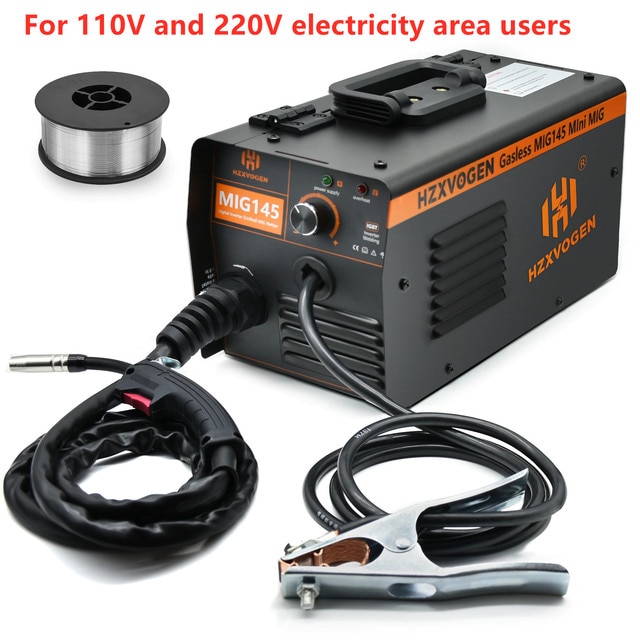

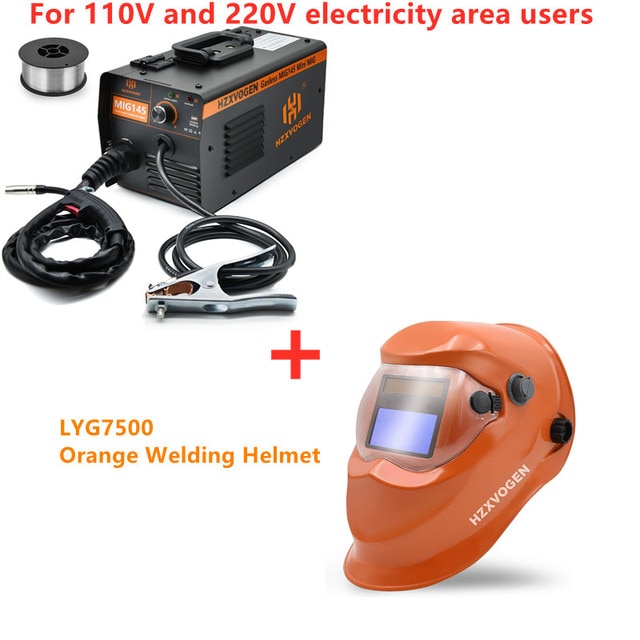

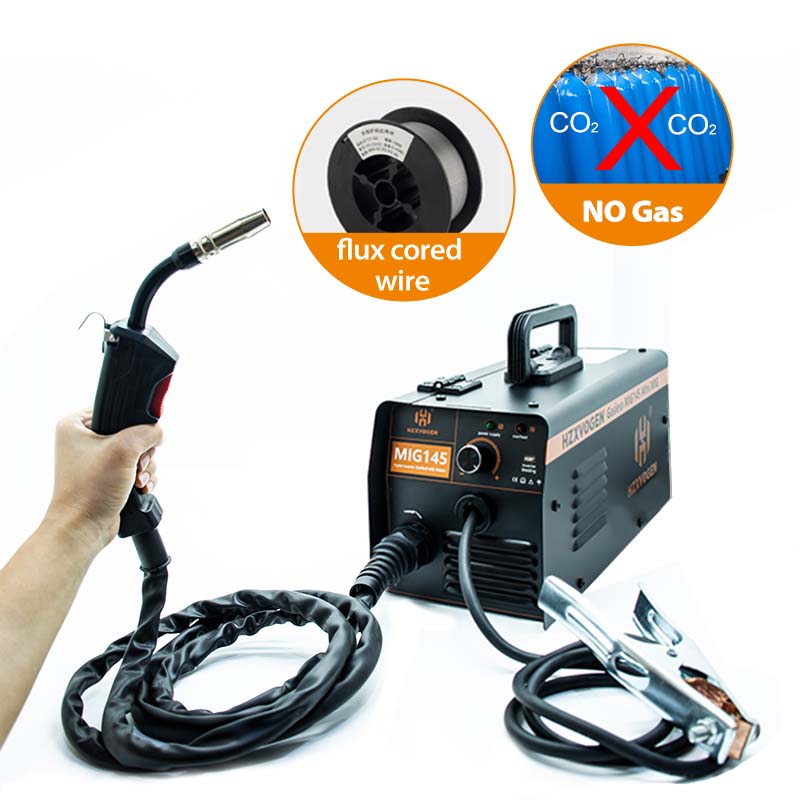

HZXVOGEN 110/220V MIG145 Semi-automatic Non Gas Welding Machine MIG Welder With 1KG Flux Core 0.4-4mm For Gasless Iron Soldering
4.9 (736 votes) | 1441 orders
Price:
US $285.00 - 852.00
/ piece
Discount Price:
US $
199.50 -
581.49
/ piece
-30%
- Ships From
- Color
-
-
Sorry! This item is out of stock
Parameters:
Input voltage: AC~220V±15%
Input current: 25A
Output voltage: 11~24V
No-load voltage: DC50V
Output current: 20-140A
Maximum rated input power: 4940
Maximum output power: 2940W
Maximum input power: 4940W
Recommended circuit breaker: 40A
Load duration: 140A 25% 70A 60%
Welding thickness: 0.4-5mm
Applicable welding wire diameter: flux core 0.6/0.8mm
Features:
1.Compatible With Flux Core,Spot Welding Quickly.And It Can Atomatically Feed Wire Without Filling When Pressed MIG Torch Button
2.One-time Molding,Don't Need To Knob Slag,Don't Need To Polish.Its efficiency is 30% Higher Than Tranditional ARC
3.With Unified Control Function,Only Has Small Splash.It Can Spot Welding Ultra-thin Material,Make The Spot Point More Sleek And Firm
4.It Can Control The Width Of Welding Bead By Adjusting Inductance.
5.With Overheating And Overcurrent Automatic Protection Function Which Effectively Protect The Internal Circuit Of The Welder From Damage
6.Easily Adjust The Current And Voltage To Welding
7.The features of this machine are as follows:
IGBT inverter technology, current mode control, reliable quality, stable performance. Closed loop feedback, constant output, strong anti network voltage fluctuation ability

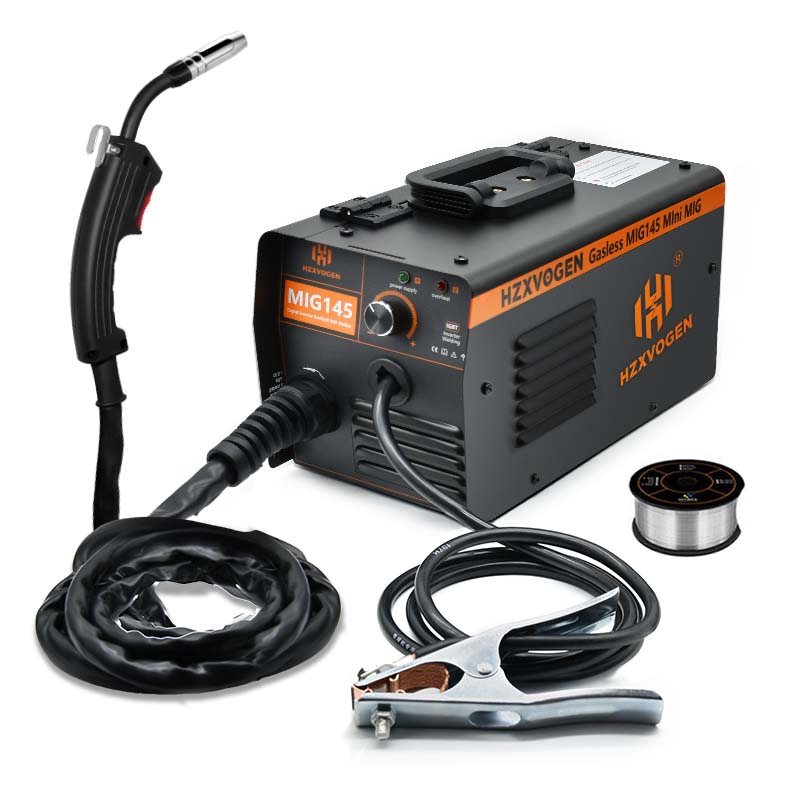

Packing list:
MIG145 Welding Machine*1
1KG 0.8mm Flux Core*1
240cm Mig Torch *1
130CM Ground clamp*1
Customer Feedback Videos：

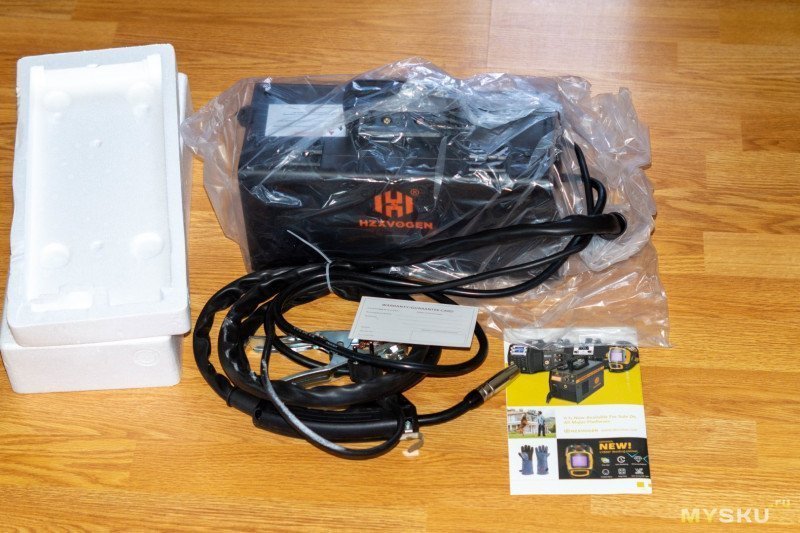

Распаковка и внешний вид

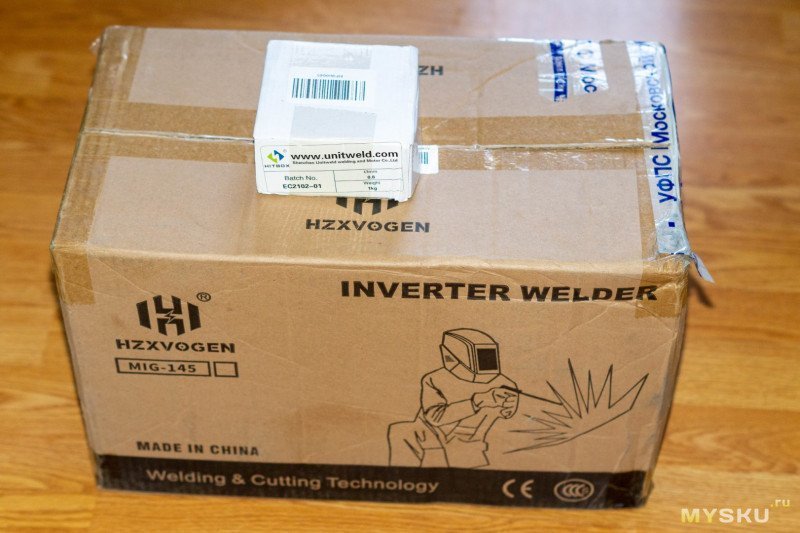

Приходит в картонной коробке. На проволоку дают отдельный трек и она приходит отдельно, в заказе этот трек основной, так что я поначалу решил, что аппарат спёрли, но открыл подробности заказа с ПК и увидел дополнительный трек
В комплекте сварочник и инструкция, все кабели уже на своих местах

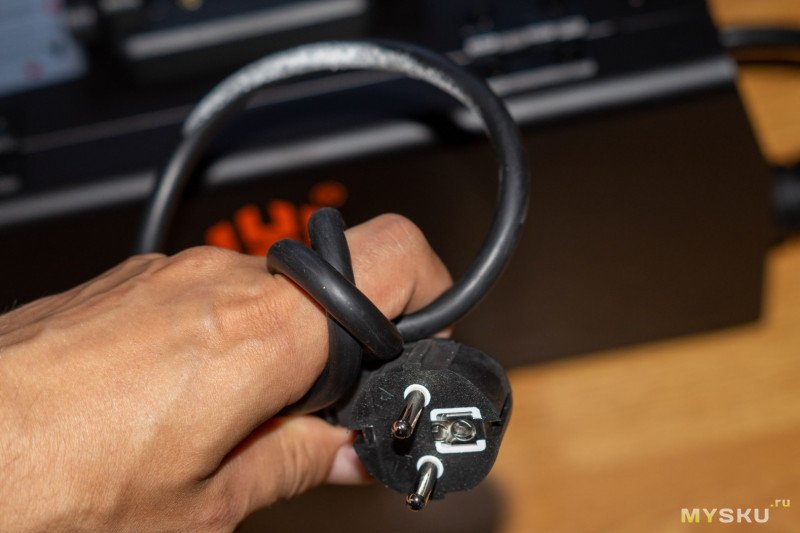

Провода как и в прошлый раз мягкие, только на питании маркировки нет

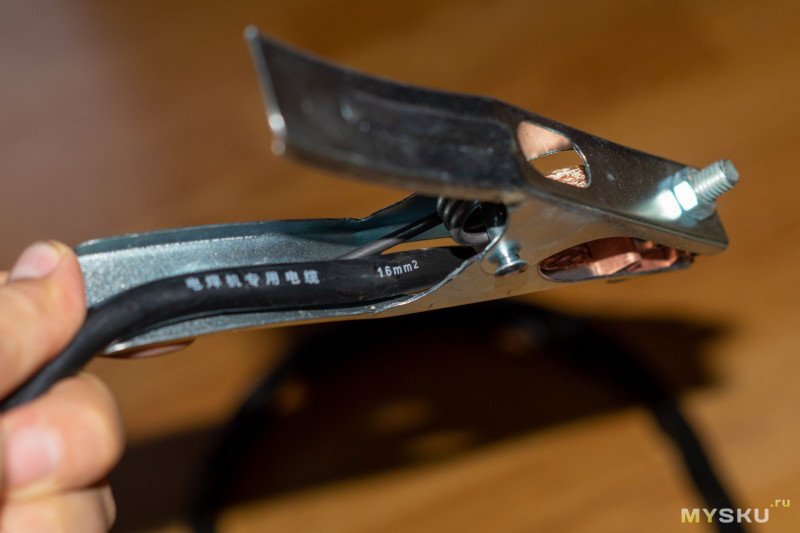

А вот на массе заявлено 16 квадратов, длина около одного метра

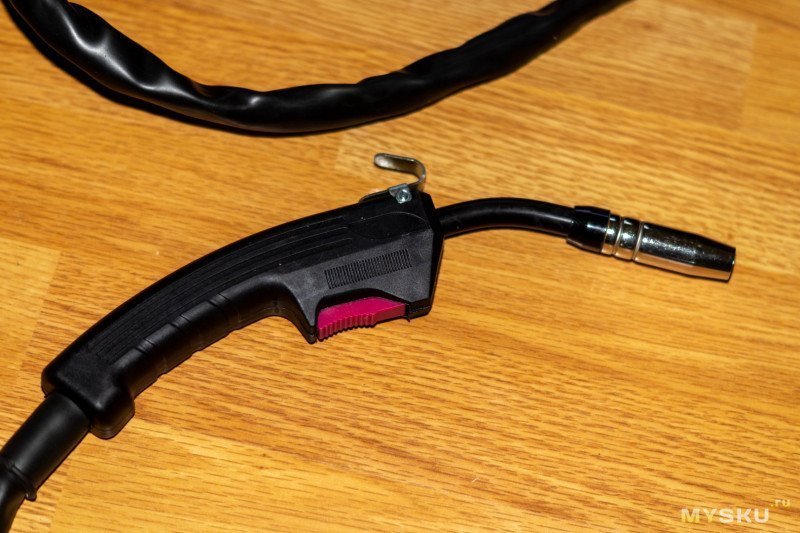

Горелка стандартная, установлен носик 0.8мм, длина кабеля два метра

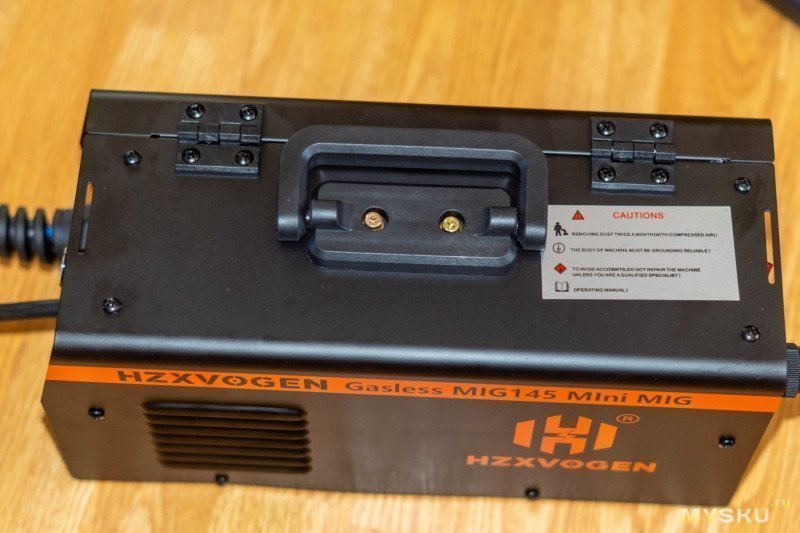

В верхней части корпуса помимо ручки есть дополнительные прорези, так что при желании можно прицепить ремень для переноски на плече. Габариты 304*143*155мм

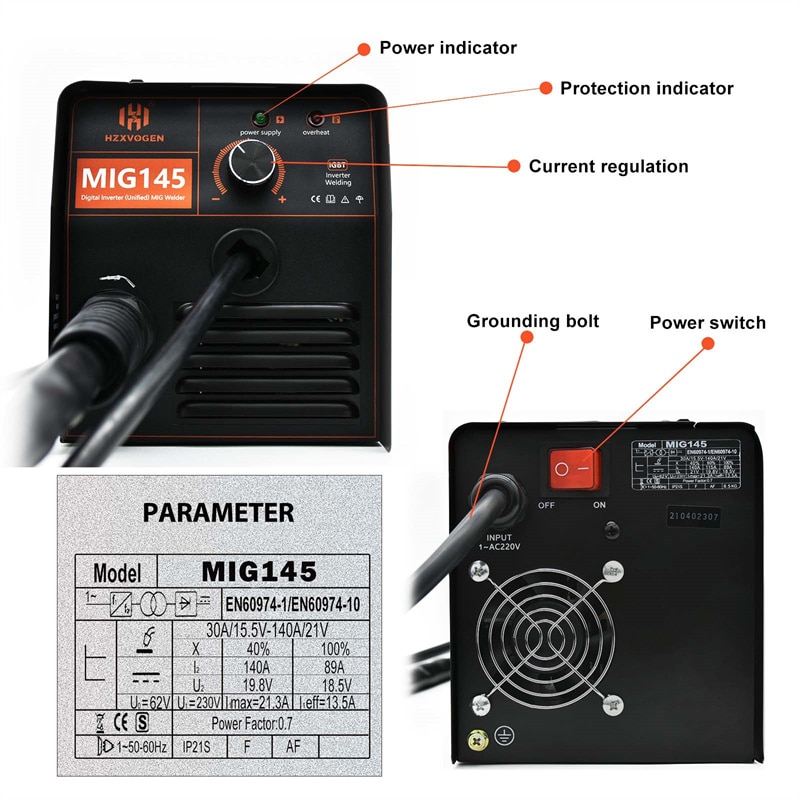

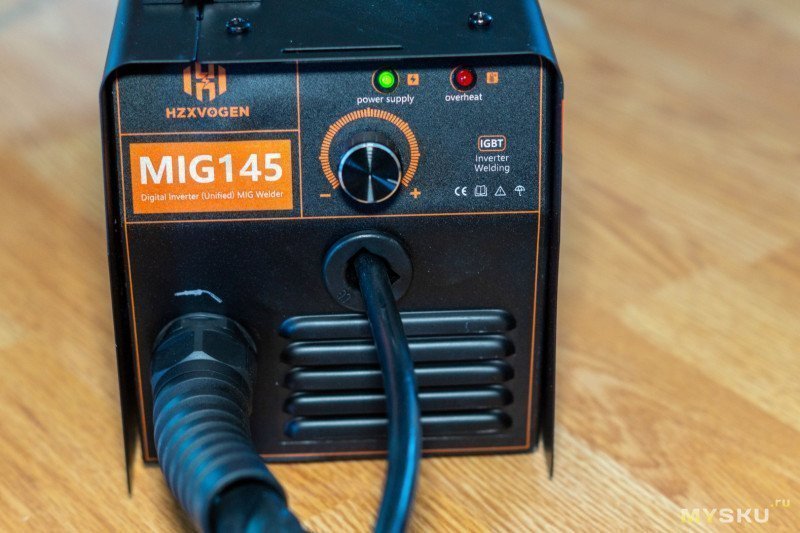

На лицевой стороне расположена крутилка «мощности», чуть выше видны индикатор сети и перегрева

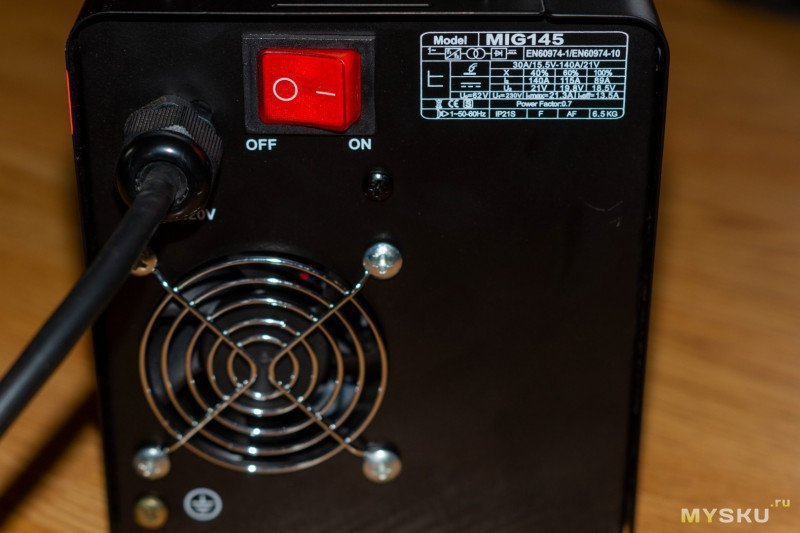

Сзади разместили выключатель питания, 80мм вентилятор и наклейку с основными характеристиками

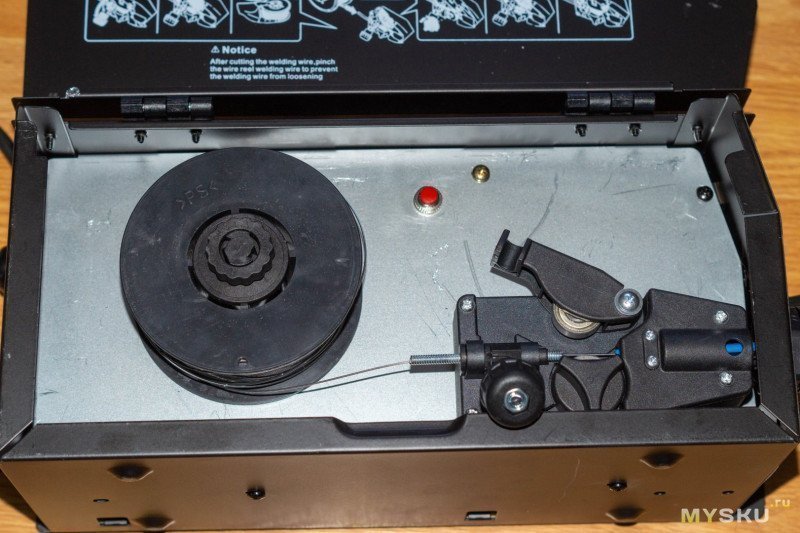

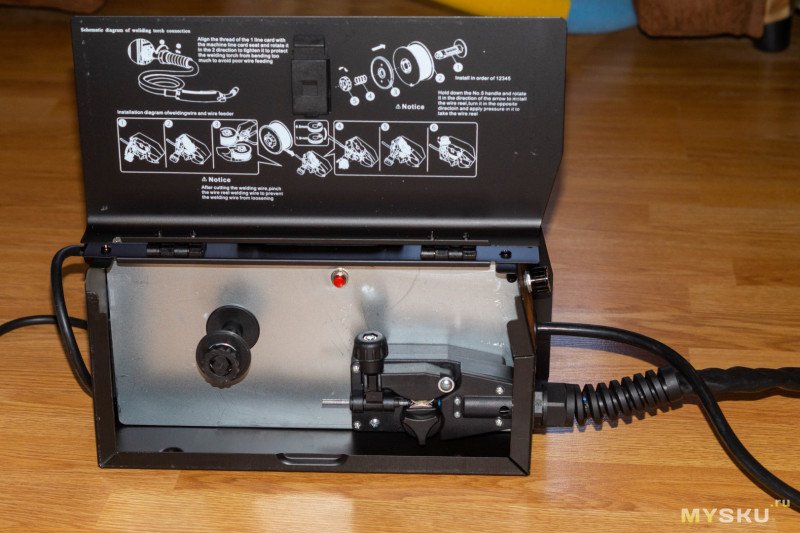

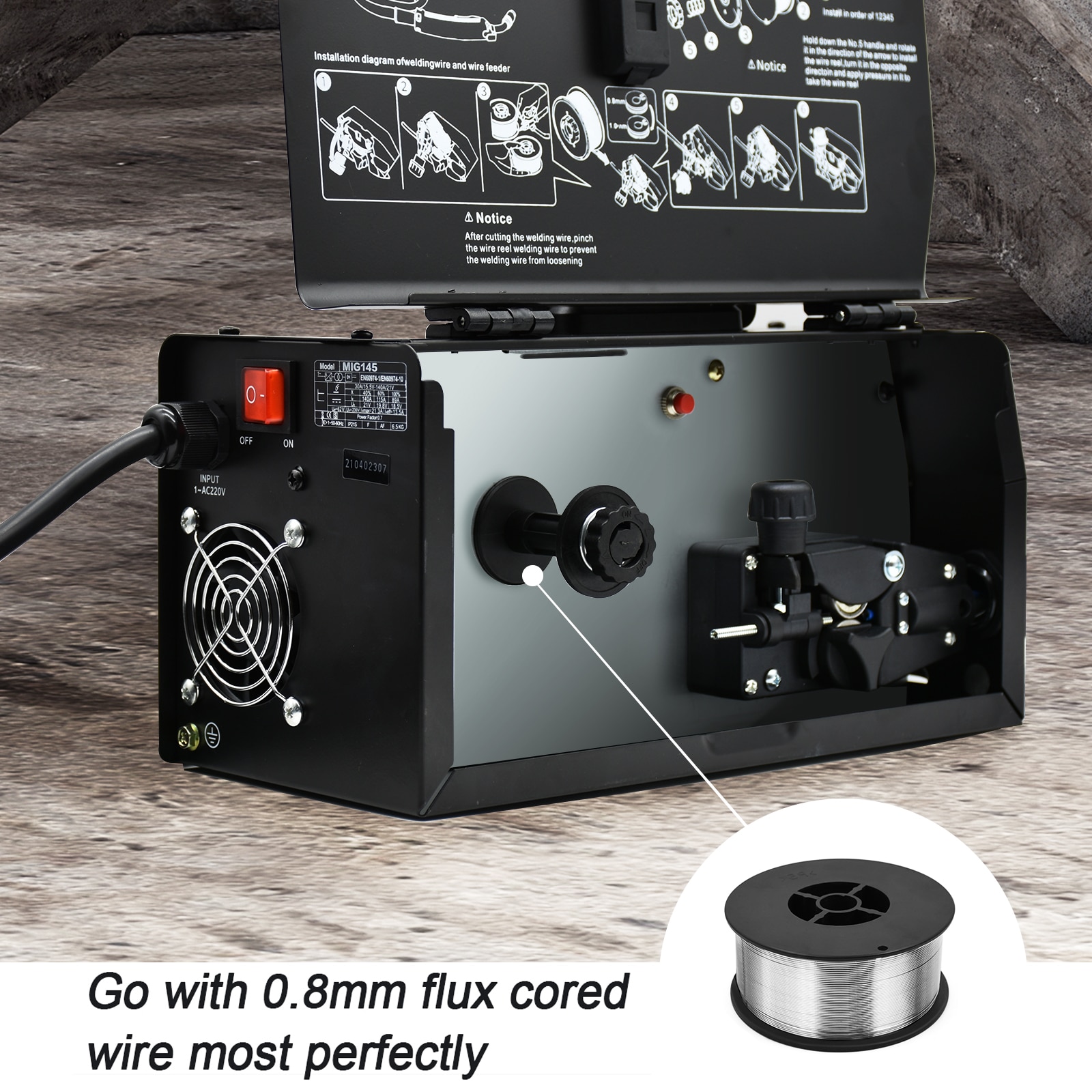

Справа откидная крышка, для открытия нужно сдвинуть подпружиненный фиксатор по центру
С внутренней стороны нанесена подробная инструкция по «заправке», красная кнопка активирует подачу вручную

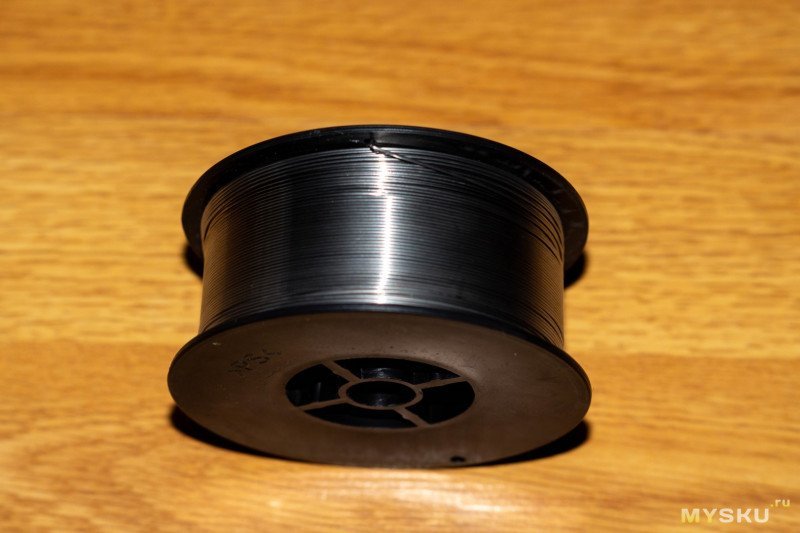

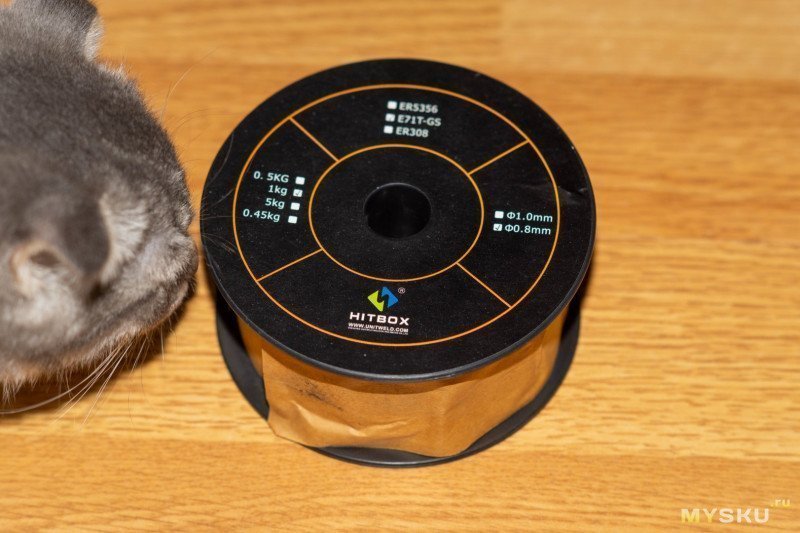

Катушка проволоки поставляется в запаянном пакете
Витки дополнительно обернуты бумагой, на торце есть бумажка с характеристиками
Свободный конец подогнут и зафиксирован в отверстии, найти его не сложно

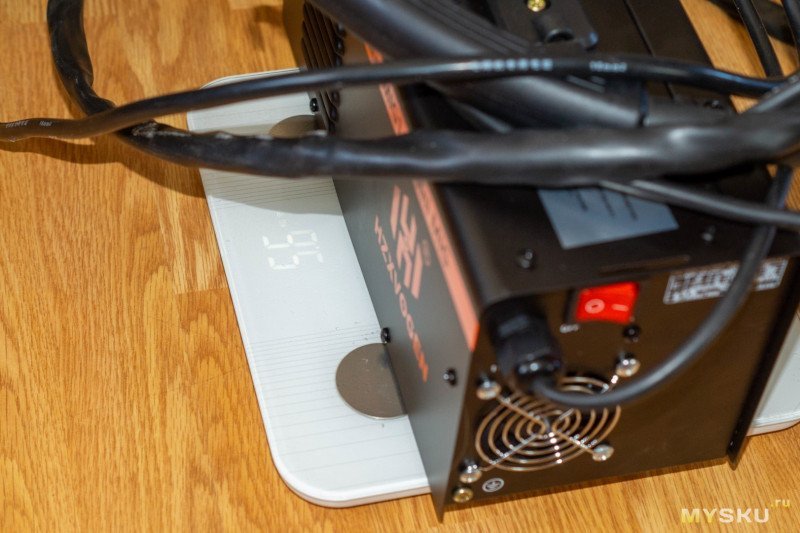

Аппарат вместе с проводами весит порядка 6кг
Инструкция вроде как к этому аппарату
Но характеристики немного отличаются от указанных на корпусе
Подготовка к работе и тестирование

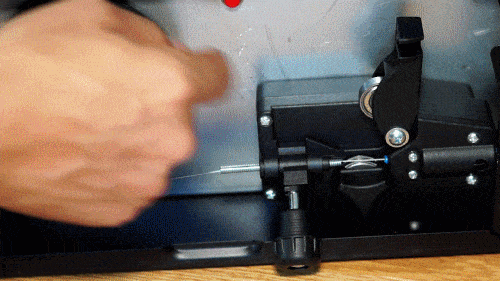

Для начала необходимо установить на место катушку с проволокой. Открываем крышку, отводим в сторону фиксатор, откидываем прижимной механизм и протягиваем проволоку в трубку подачи
Возвращаем всё на место, для того чтобы не вытягивать проволоку под напряжением, в этой модели предусмотрена кнопка принудительной подачи. Зажимаем её и держим до тех пор, пока она не вылезет из сопла

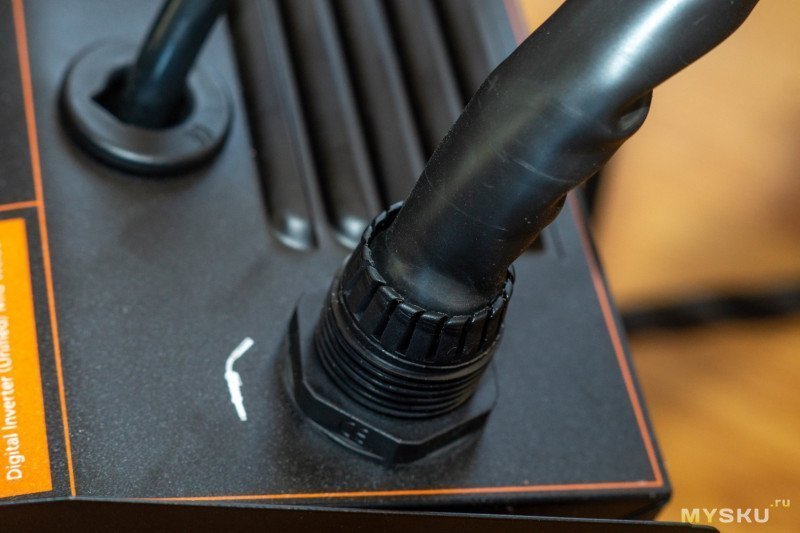

Так же заметил, что на основном проводе слезла внешняя изоляция у основания. Вроде не критично, но непорядок

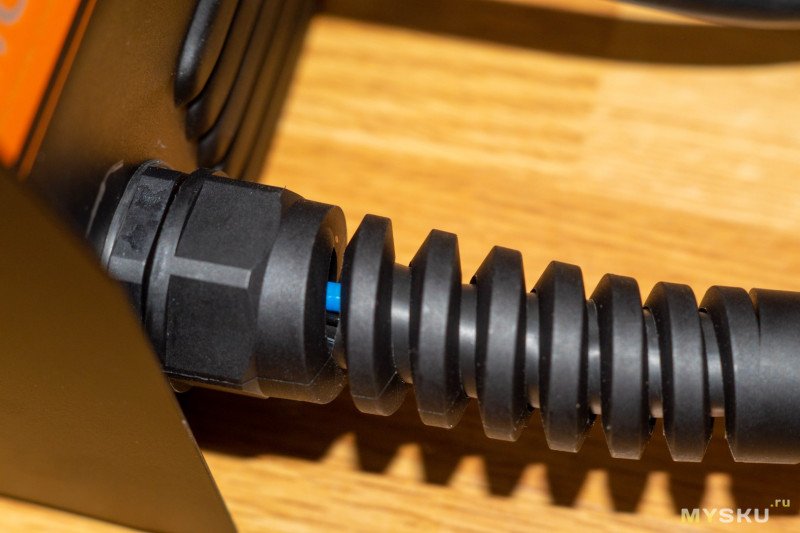

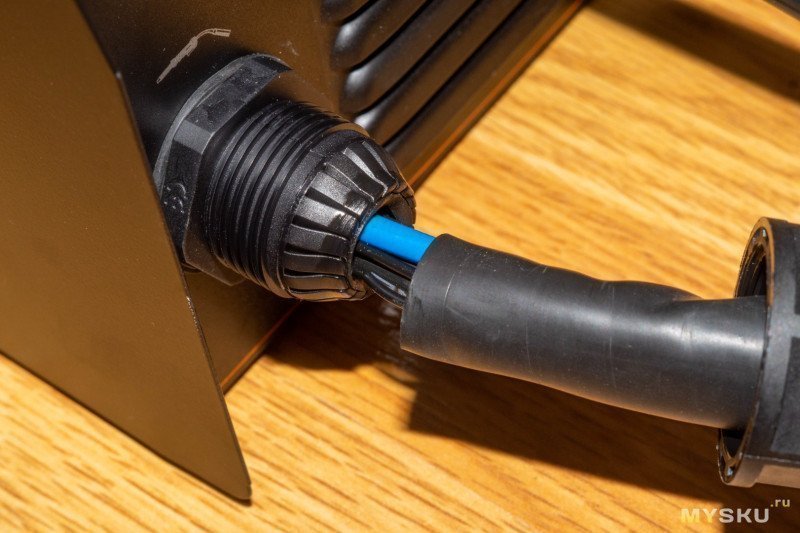

Открутил гайку, внутри оказался механизм фиксации как у садовых шлангов
Отогнул лепестки и натянул на трубку сколько смог
Затянул гайку, вот сейчас стало хорошо, можно выбираться на улицу
Как говорил выше, потенциометр тут один и он регулирует одновременно скорость подачи проволоки и напряжение. По сути это неотключаемый synergic, не нужно ловить правильные пропорции, просто корректируй мощность в зависимости от толщины заготовки и вари
Нашел лист металла толщиной 1.5мм, отрезал кусок и приварил его же край к основанию. Начал с четверти шкалы. Медленно, но верно дело пошло

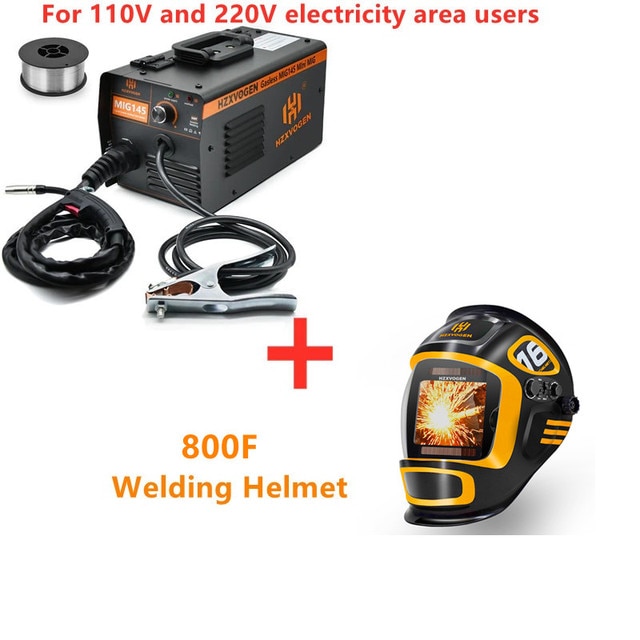

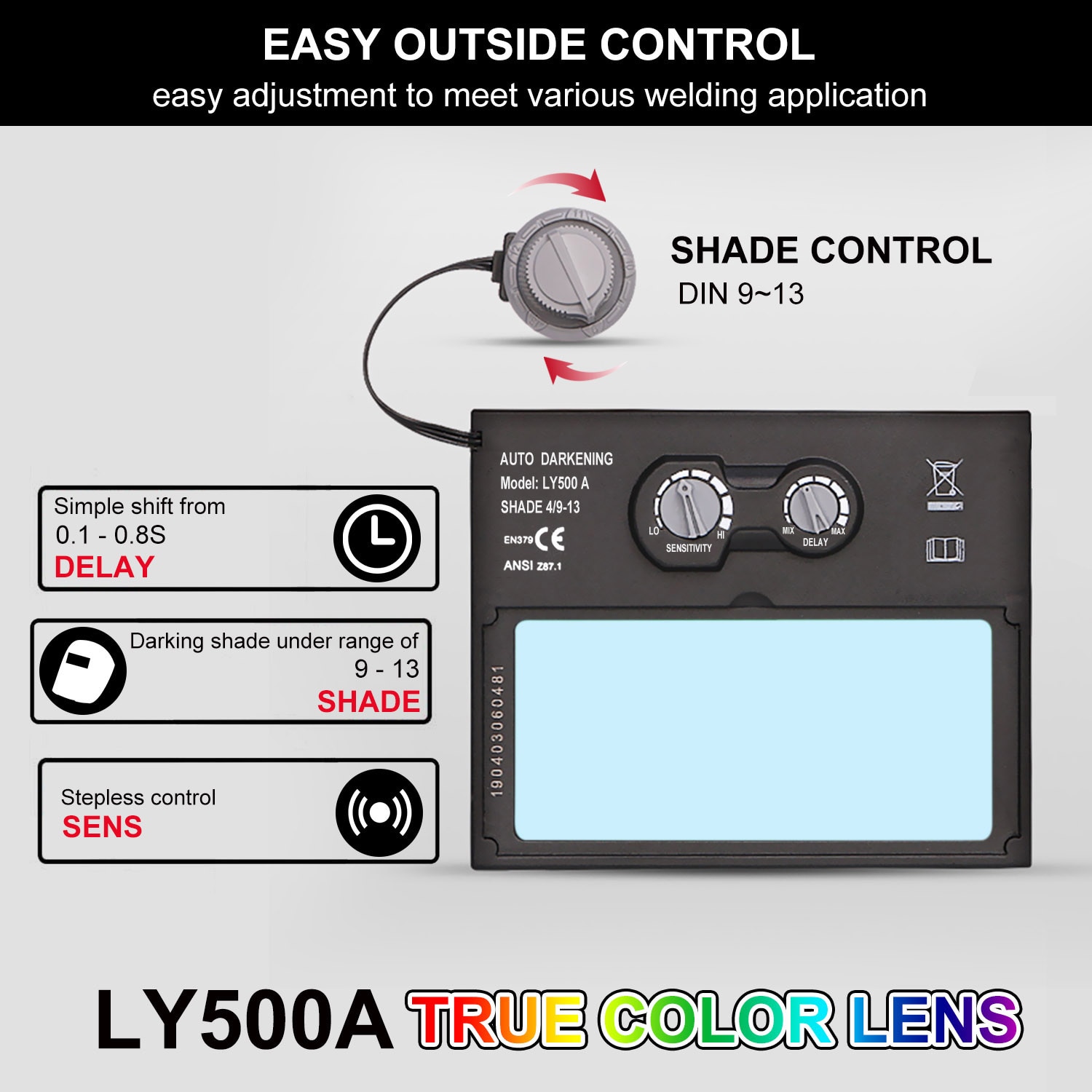

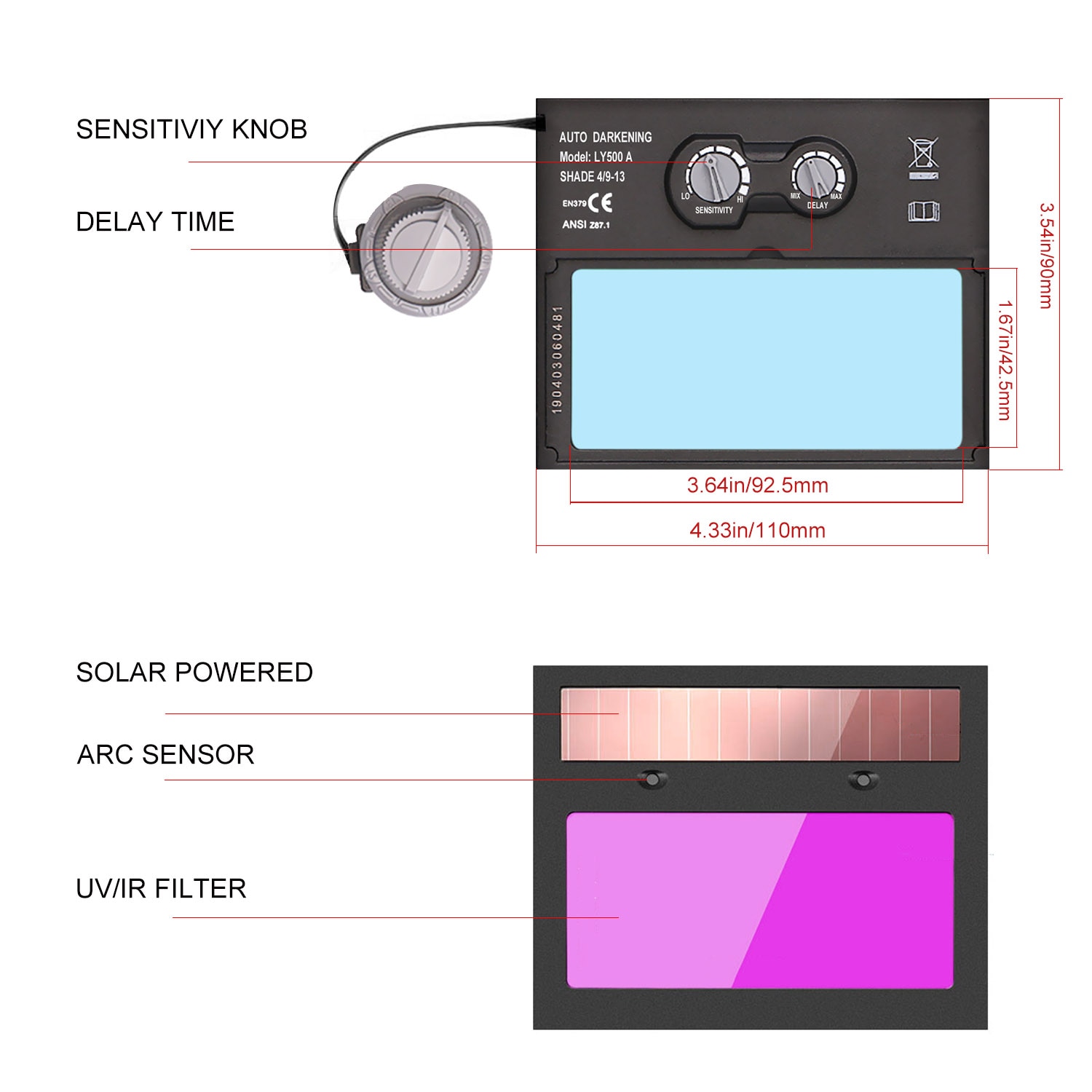

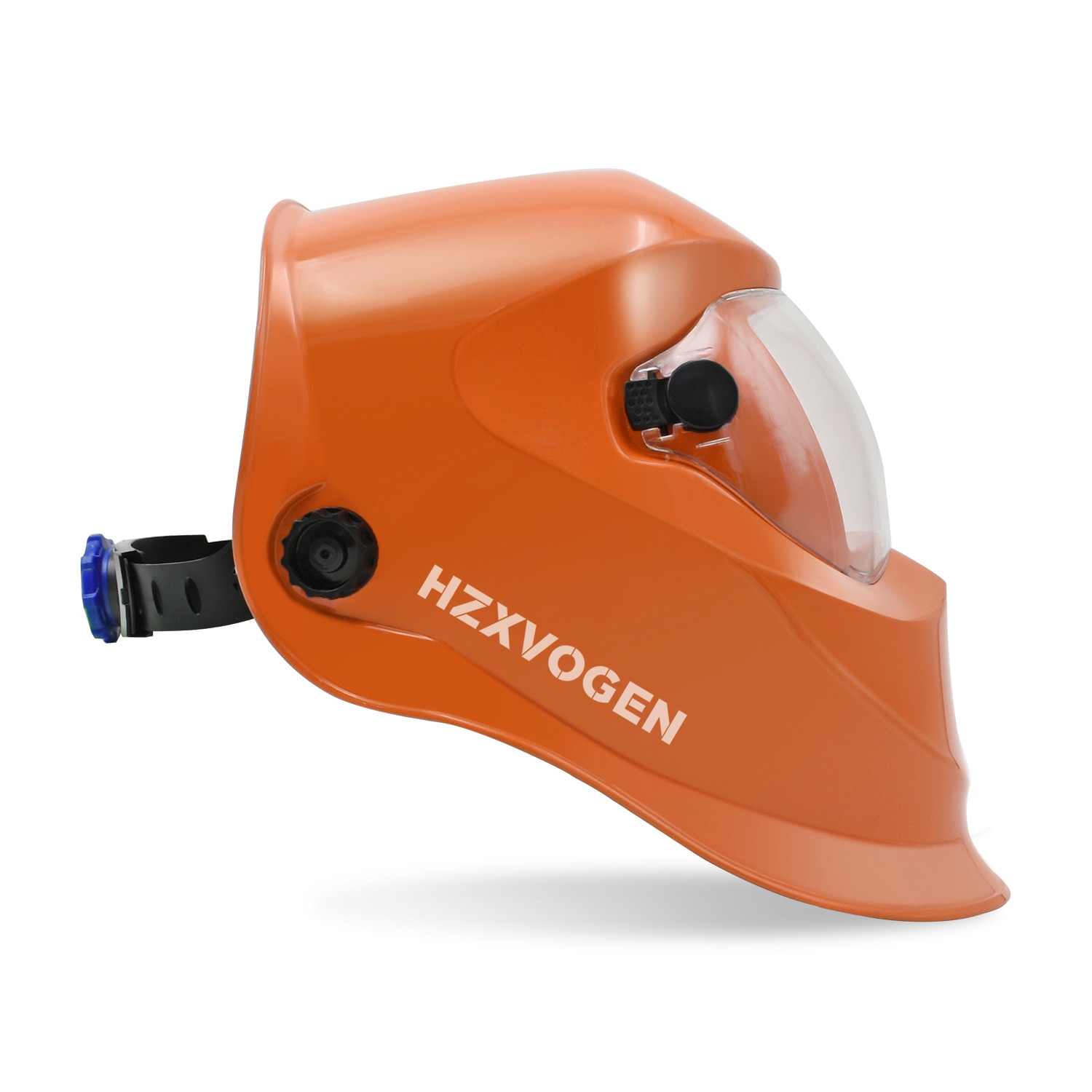

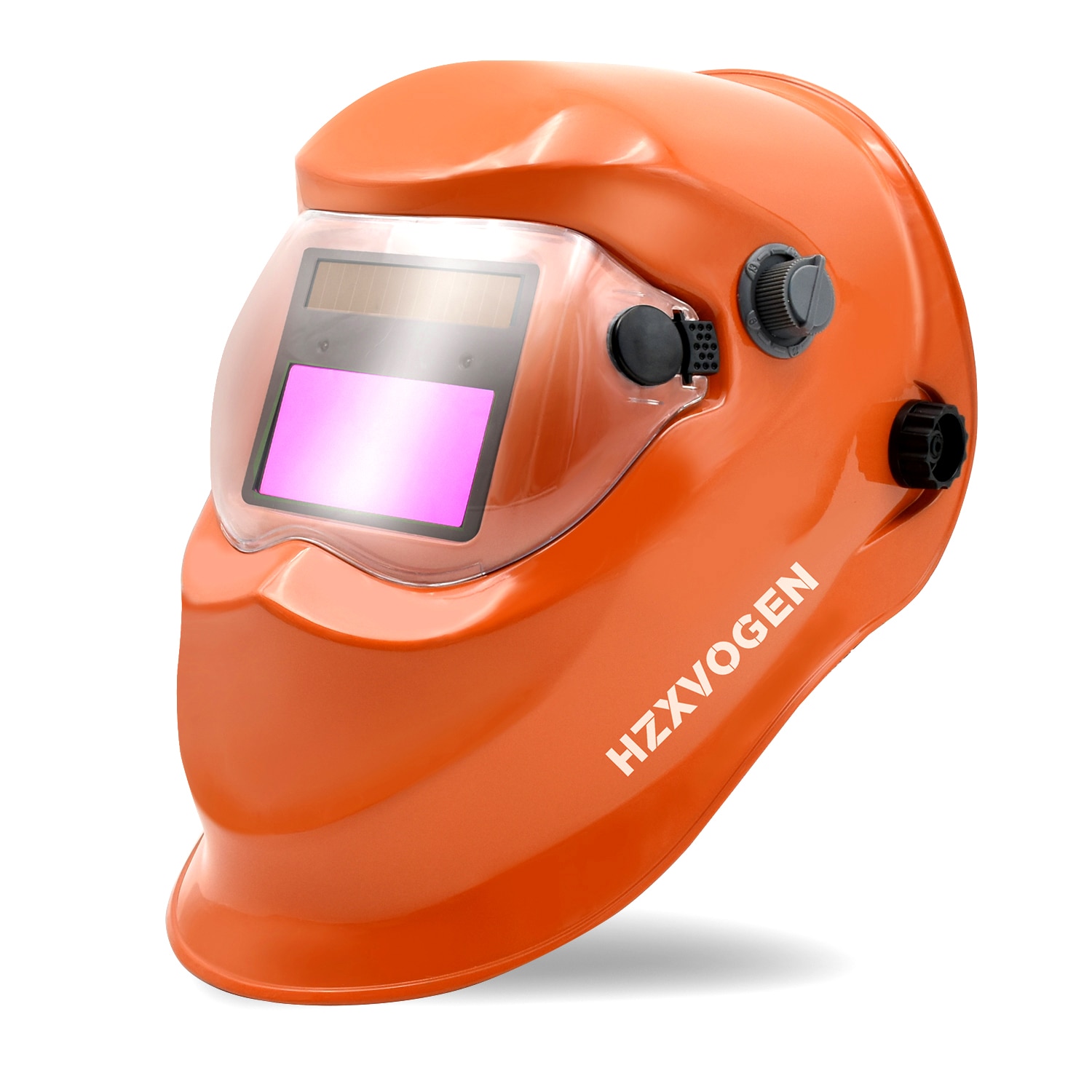

800F Welding Helmet:
Filter Size | 133mm×114mm×10mm |
Active Viewing Area | 100×93 |
Light Shade | DIN4 |

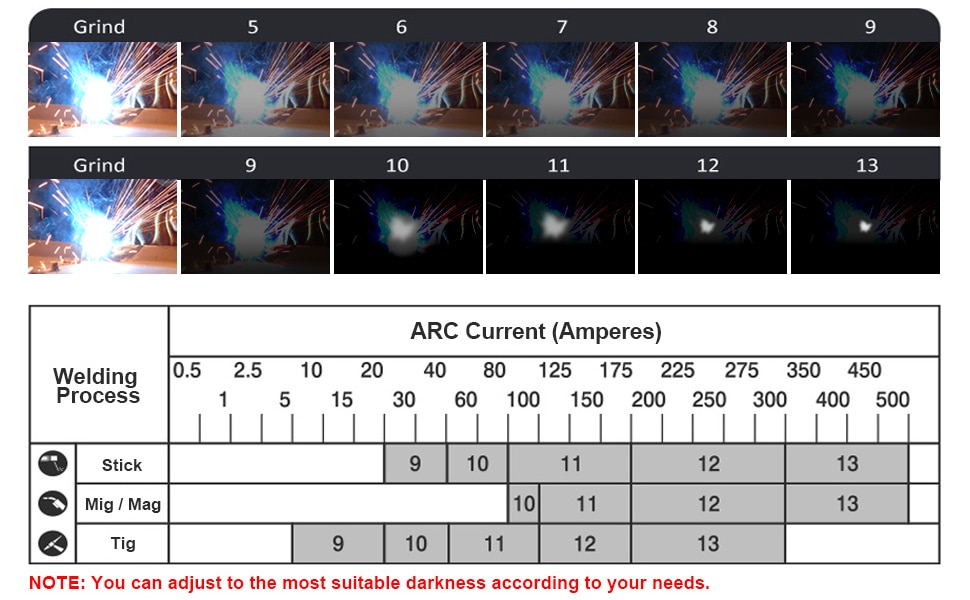

Dark Shade | DIN5～DIN9/ DIN9～DIN13 |
Way to shift Dark State | Outer , stepless shift |
Switching Time | ≤1/10000S |
Sensitivity Adjustment | Stepless Control |
Delay Time | 0.1S/0.4S/0.8S |
Power supply | Replaceable Lithium battery & Solar supply |
Rated Capacity of Battery | 600mAh |
Operating Temperature | -5℃～+55℃ |
Sensors to Weld Arc | 4 |
Protect Grade against UVB | DIN16 |
Weld Mode | Grind & Cut |
Low battery | YES |
Test | YES |

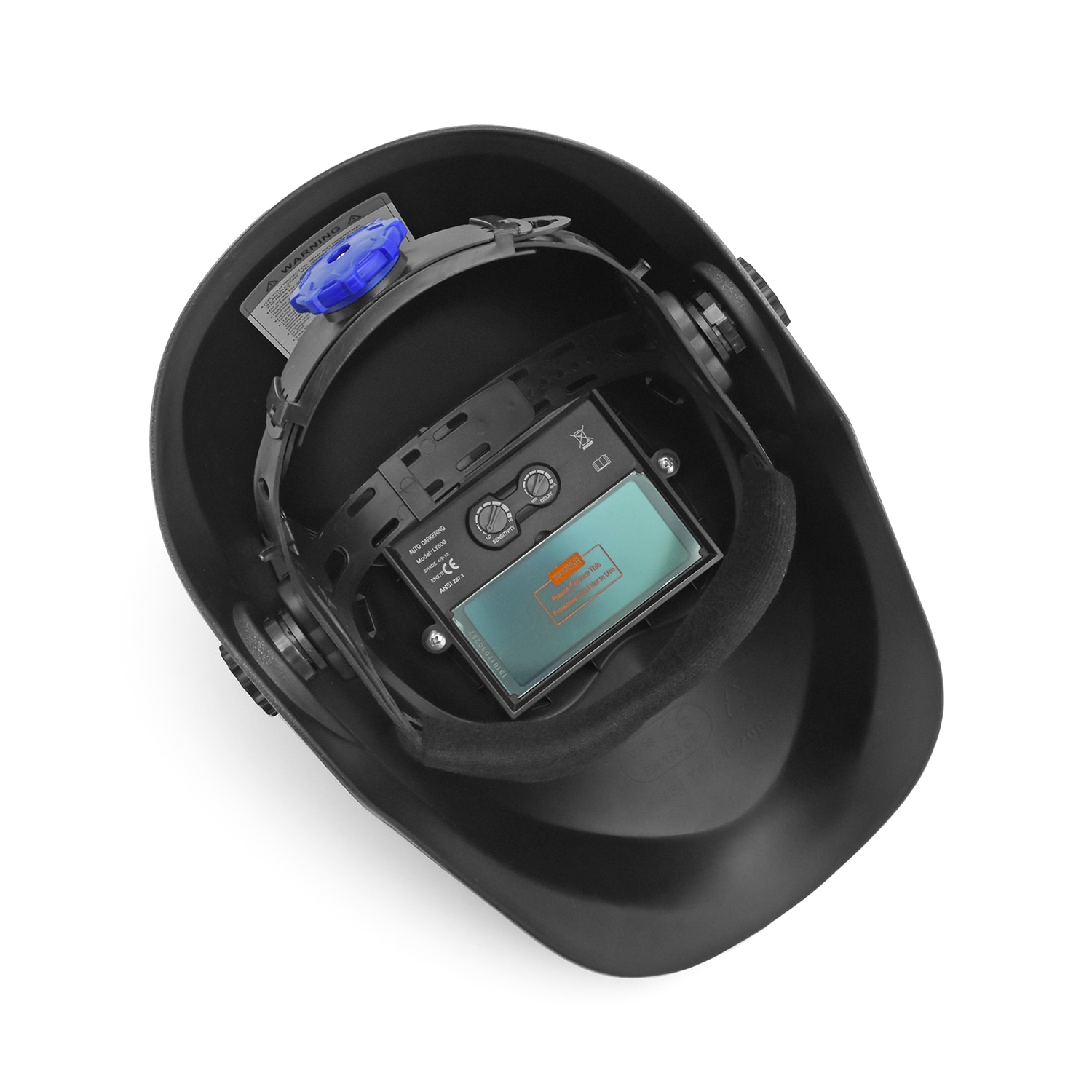

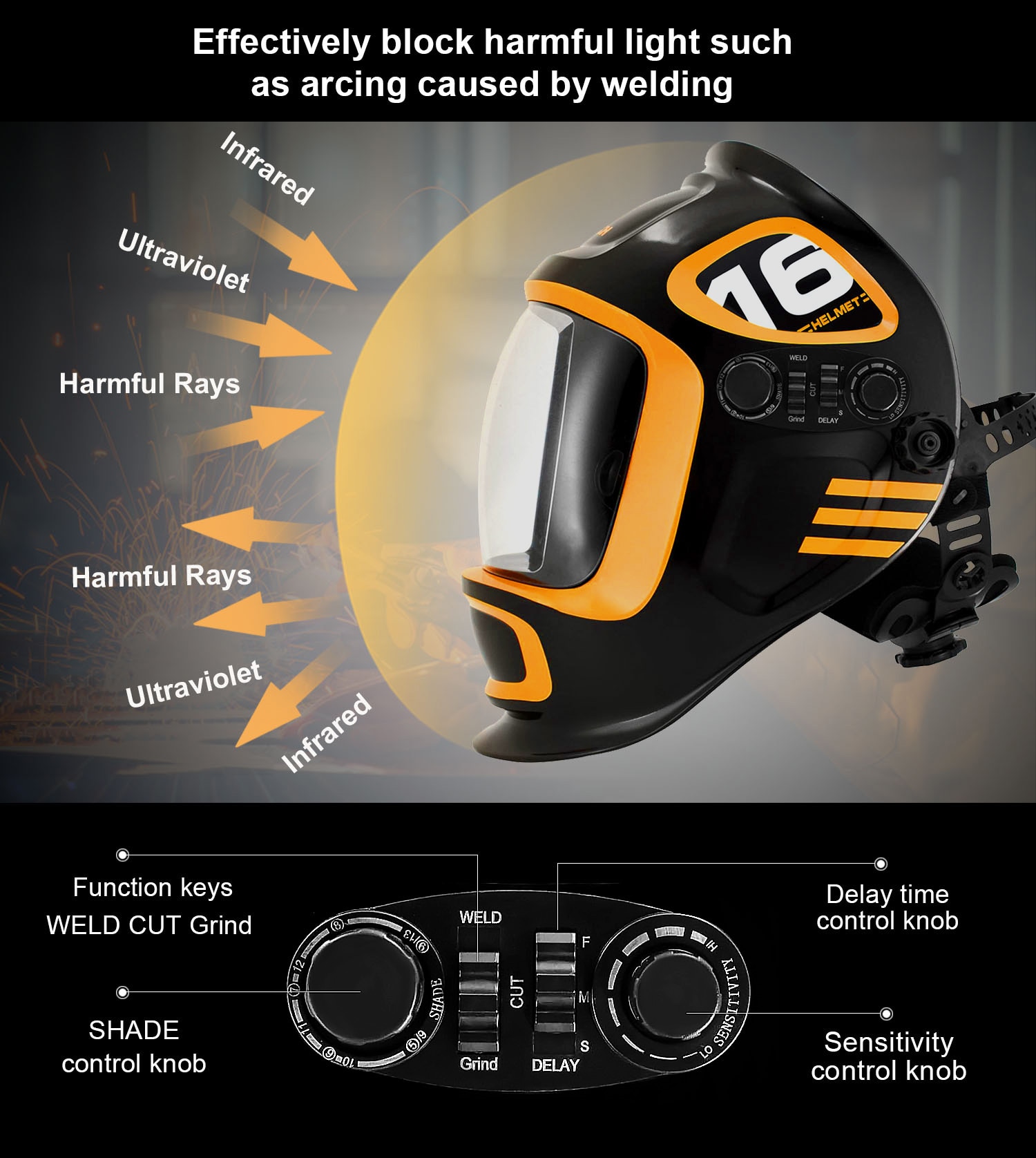

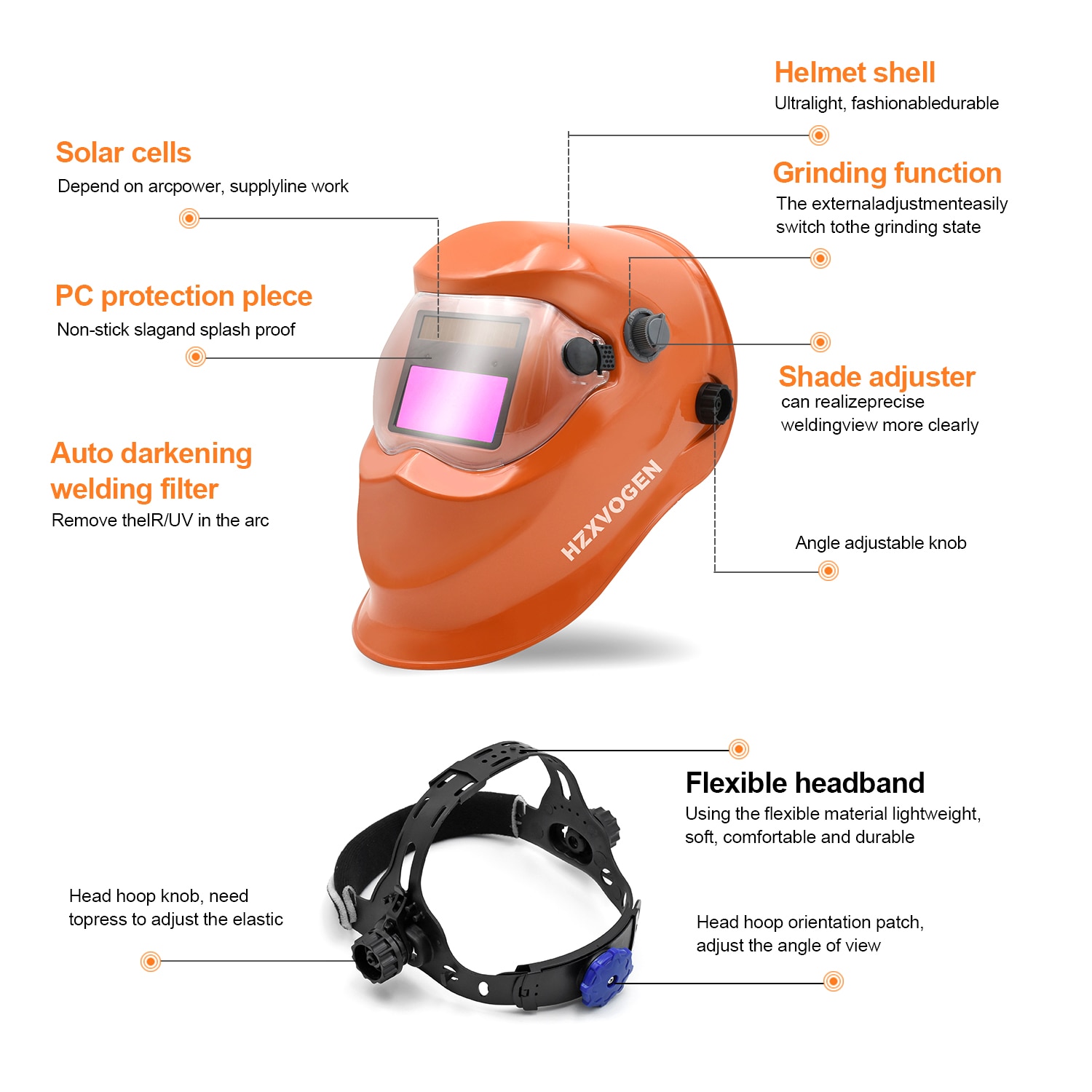

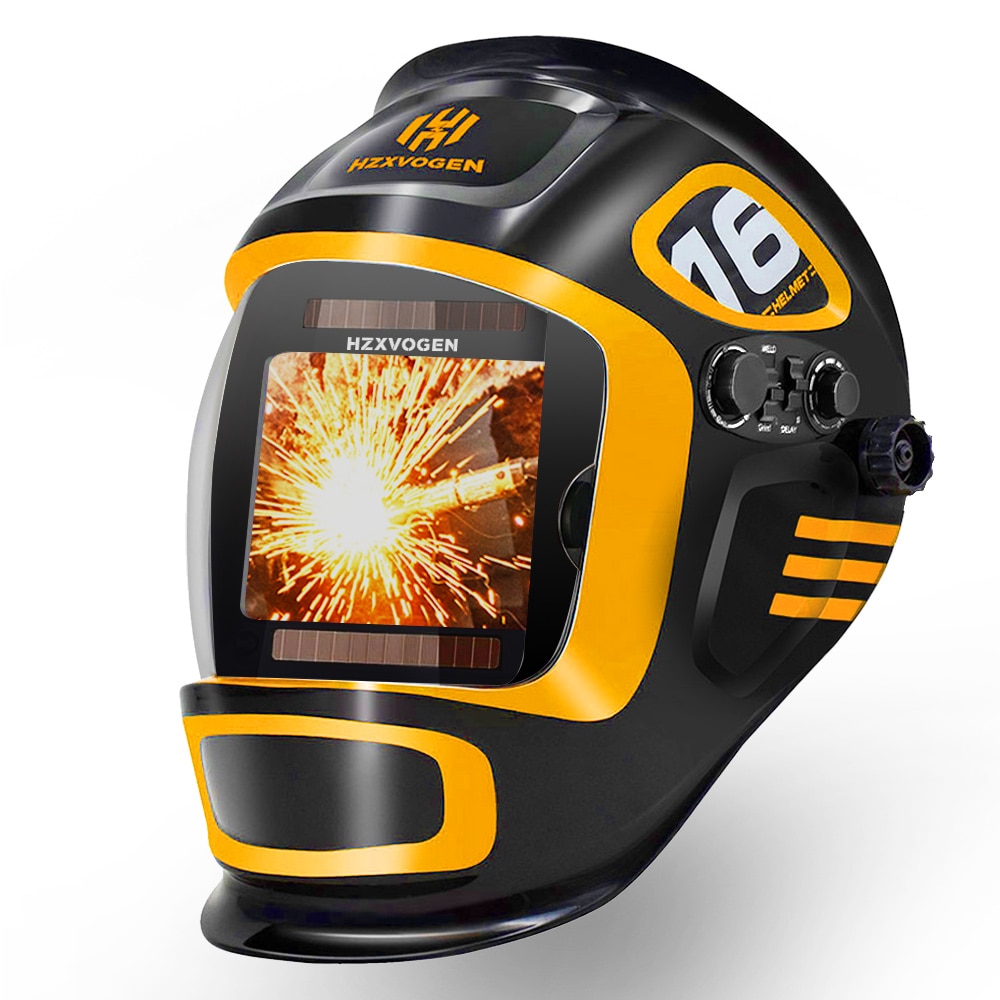

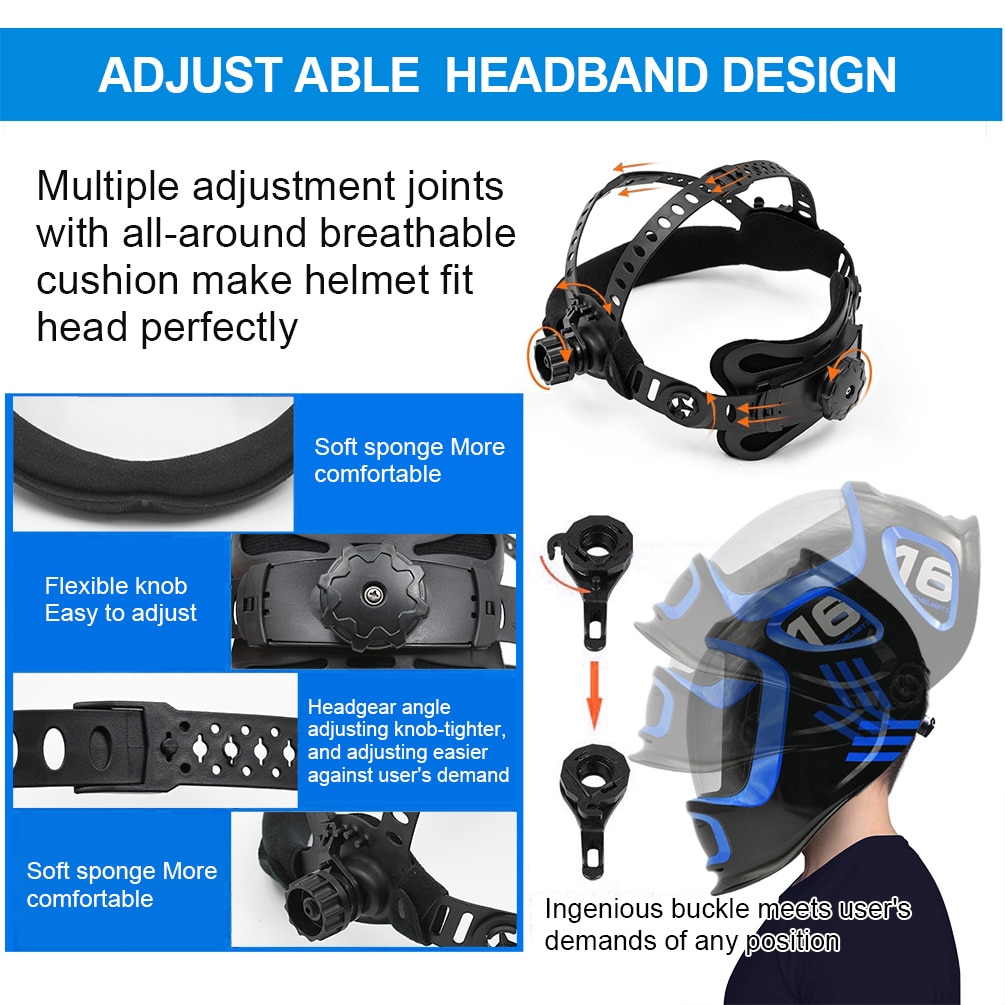

LYG-7500 Welding Helmet:
Technical Parameters
1). Light states: DIN 4
2). Dark states: DIN5-13 free adjustment
3). View Area: 105X 56mm 96X 48mm 96X 35mm
4). Response time( bright to dark): 1/30000 seconds(normal temperature conditions
5). The return time( dark to bright): adjustable: 0. 15 S-0. 8 S
6). Sensitivity(welding based on current size): adjustable: low/hig
7). Battery: lithium battery solar cells
8). Uv protection: 16 levels
9). Working temperature:-5°c-55°c(23°F~131°F)
10). Storage temperature:-20°c~70°c(-4°F~158°F)
11). Masks materials: PP
12). Weight: 450G
13). Warranty: 2 years
14). life expectancy: 10 years
- Brand Name: HZXVOGEN
- Certification: CE
- Origin: Mainland China
- Weight: 6.5KG
- Model Number: MIG145
- Dimensions: 420mm*24mm*28mm
- Wire Feeding Speed: 3-18m/min
- Is Smart Device: NO
- Usage: Mig Welding
- Mig Welder Frequency: 50/60HZ
- Mig Welding Machine OutPut Current: 30-130A
- Function 1: non gas welding machine
- Function 2: semi-automatic without gas
- Function 3: mig spawalniczy
- Function 4: Semi-automatic welding machine
