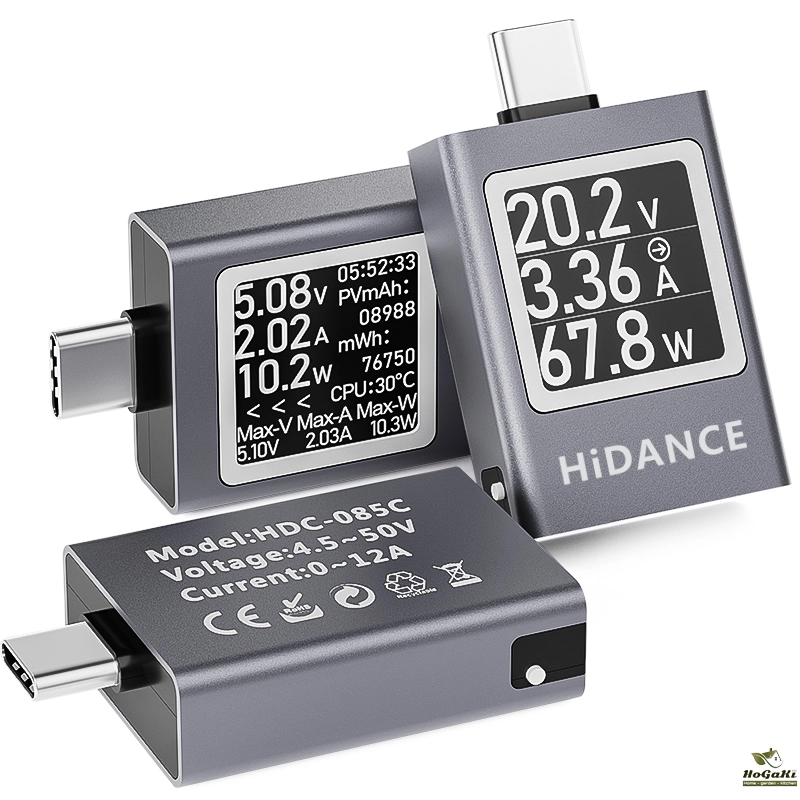

13 in 1 DC 4.5-50V 0-12A Multi-function Digital Display DC Voltage Ammeter Power Meter Type-c Cell Phone Charging PD3.1 Tester
ID: 153121

13 in 1 DC 4.5-50V 0-12A Multi-function Digital Display DC Voltage Ammeter Power Meter Type-c Cell Phone Charging PD3.1 Tester

5.0 (3052 votes) | 10000 orders
Price: US $27.11 - 40.22
Discount Price:
US $ 14.57 - 21.47
-46%
Color
Quantity

Buy Now
Add to Cart

Good news

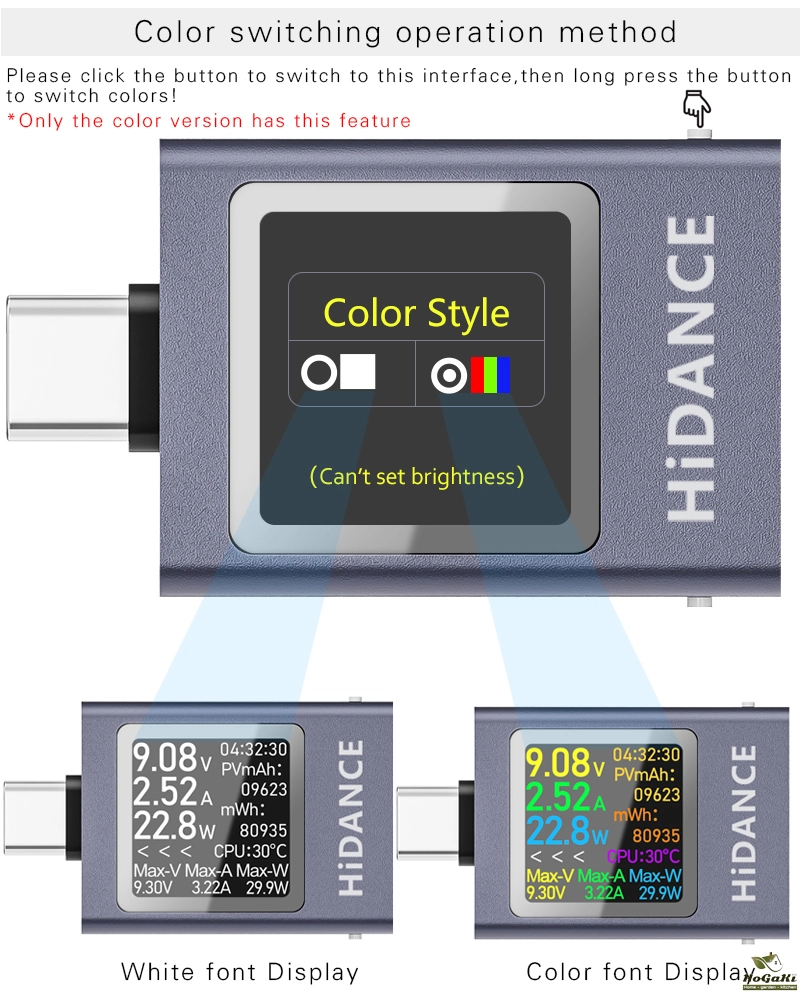

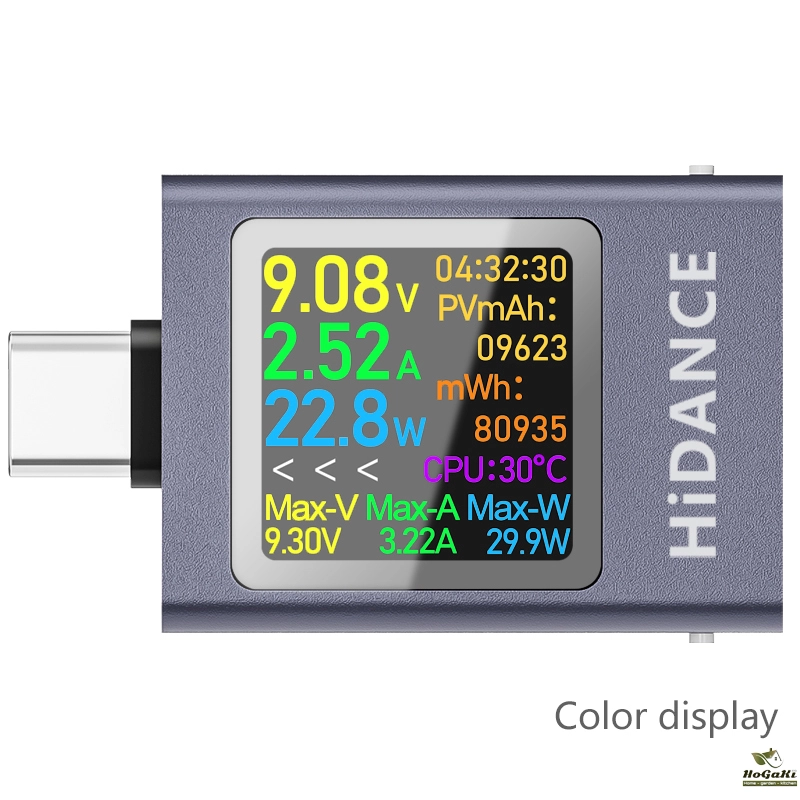

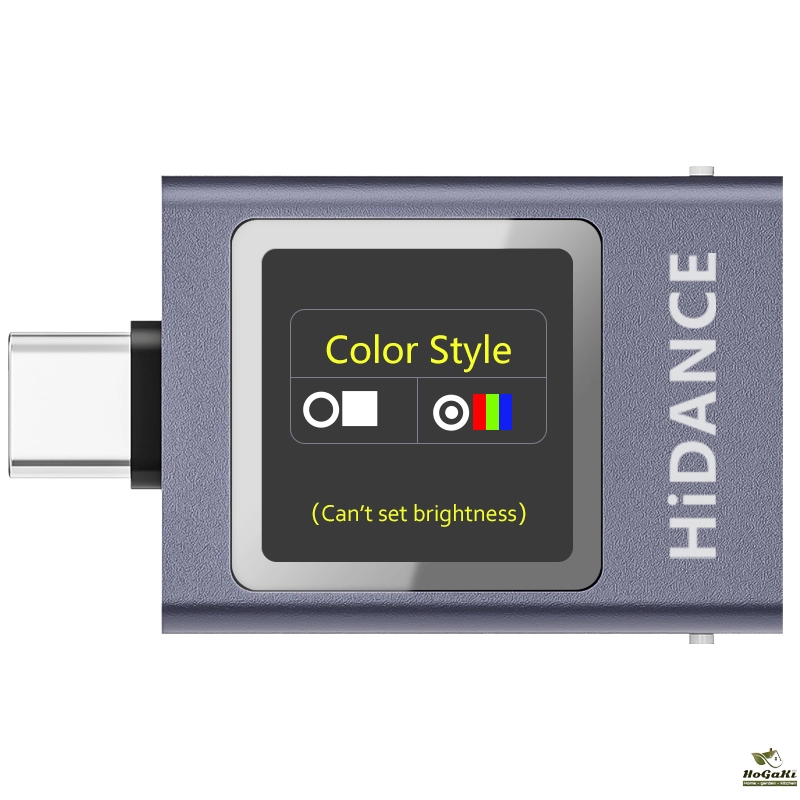

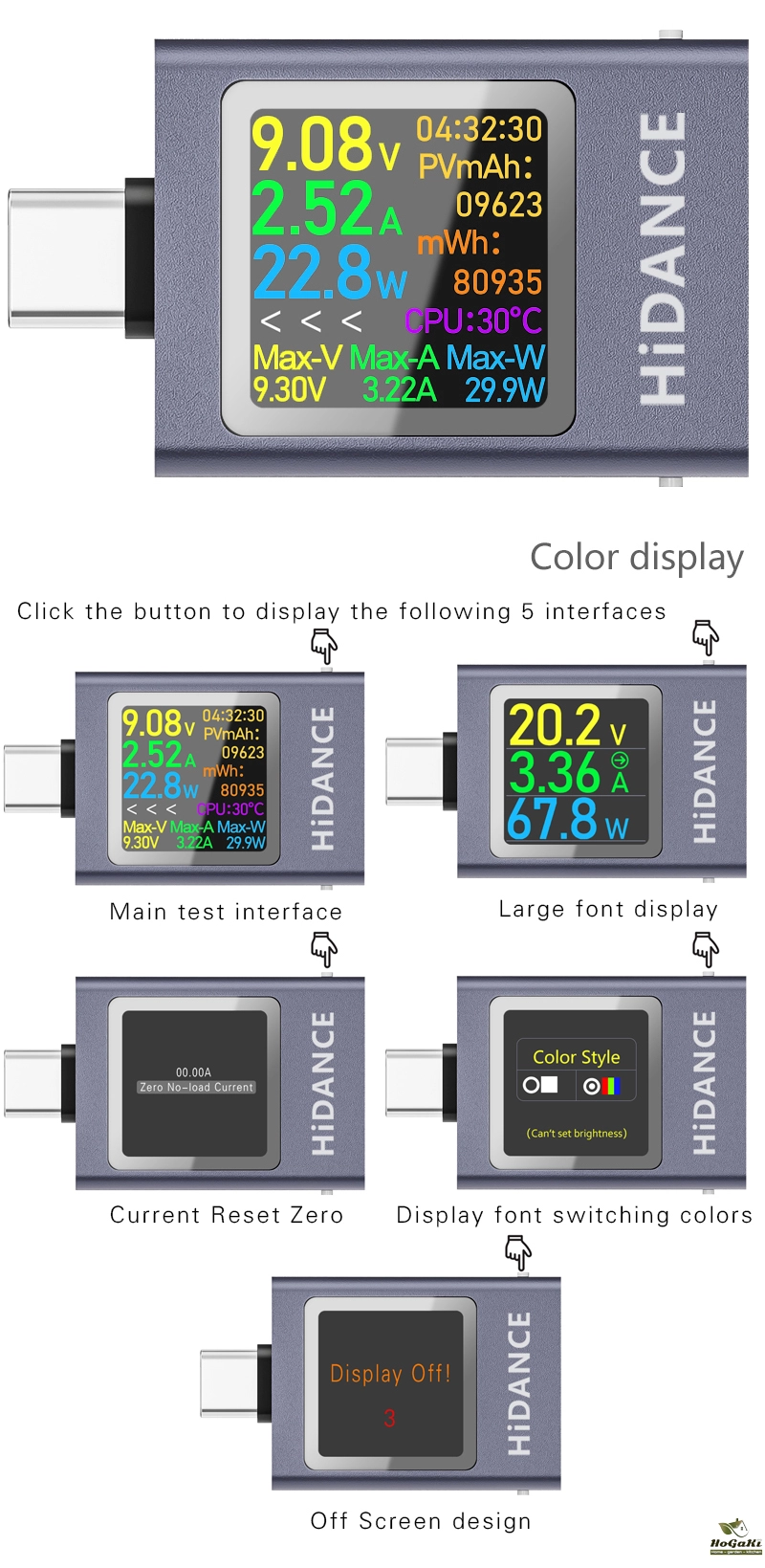

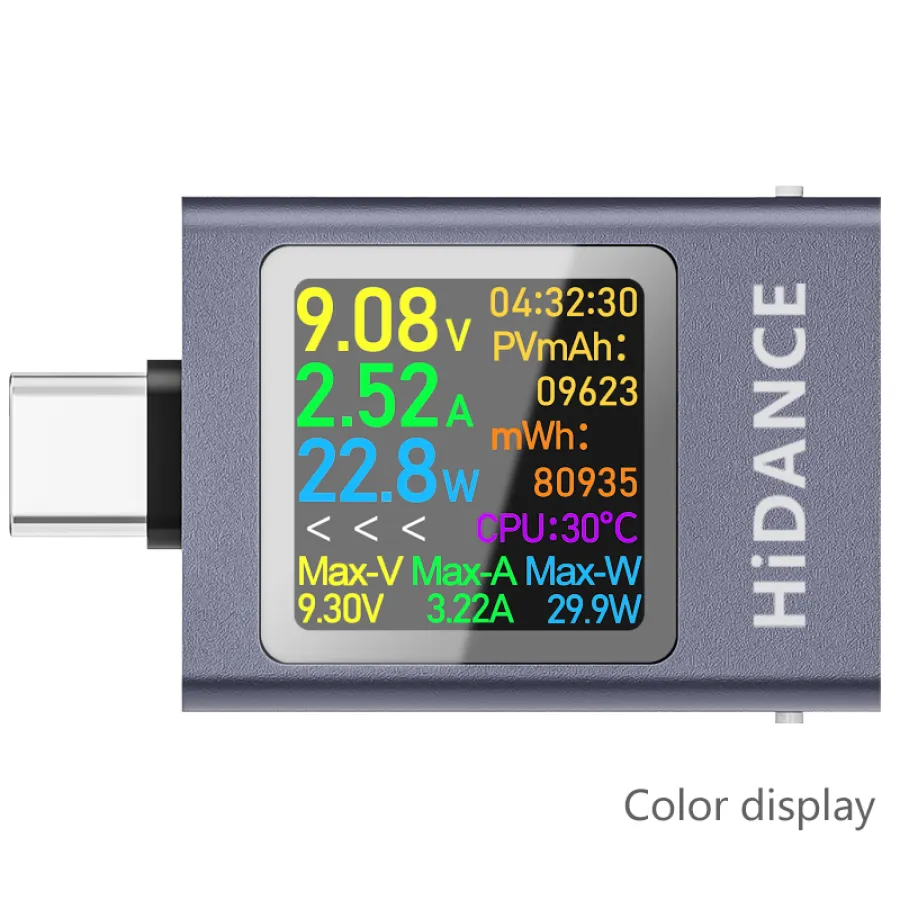

Starting today we will be sending the color version. You can adjust the color/black white font switch by following the instructions below

User Manual download

http://en.atorch.cn/upload/20240415110854.pdf

Production Description

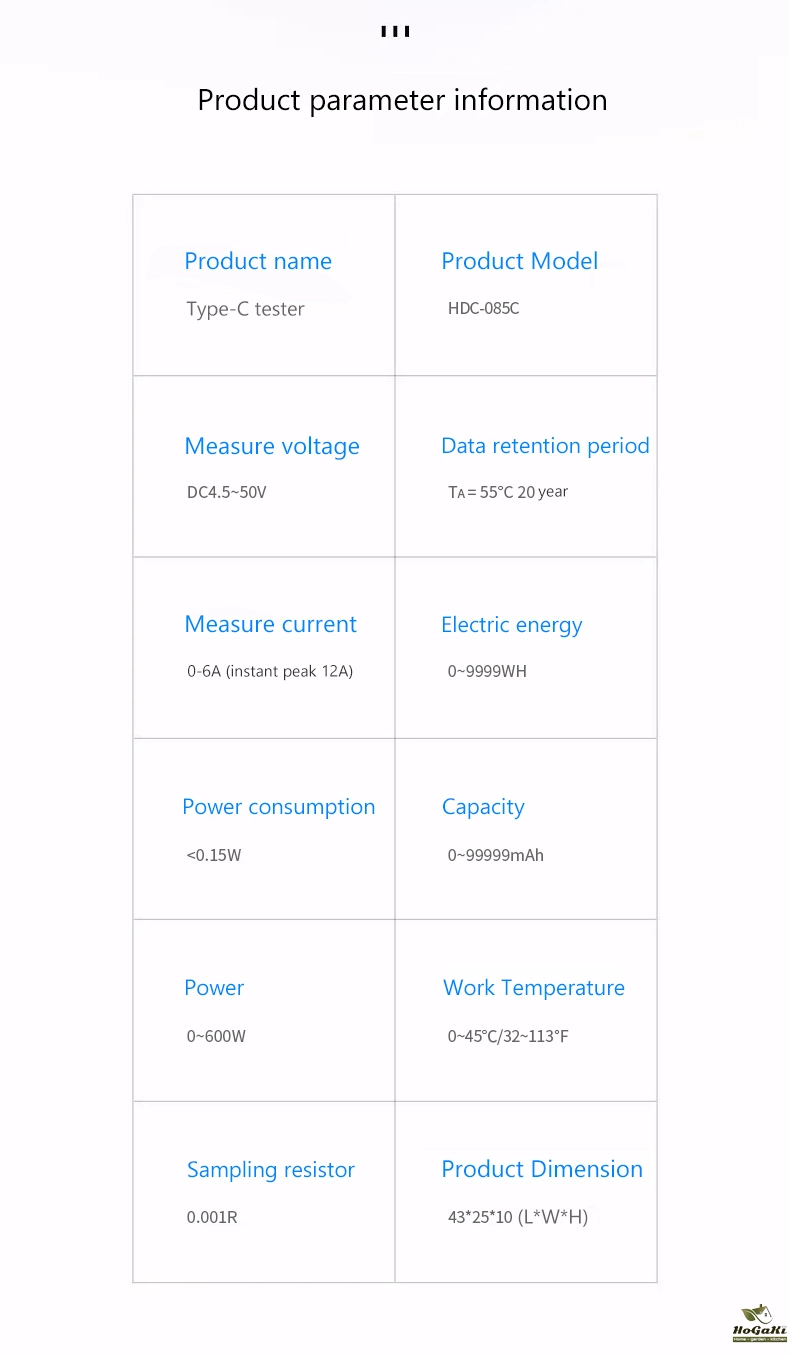

Measurement Ranges (and resolution accuracy):
Voltage: 4.50- 50.0V (0.01 V)
Current: 0.00 - 12.0 A (0.01 A)
Capacity accumulation: 0 – 99999 mAh
Energy accumulation: 0 – 9999 Wh
Power calculation: 0.00 -600.00 W (0.01 W)
Temperature: 0 - 100 °C (1 °C)
Timing time: 999H59M59 S (1 S)

Features:

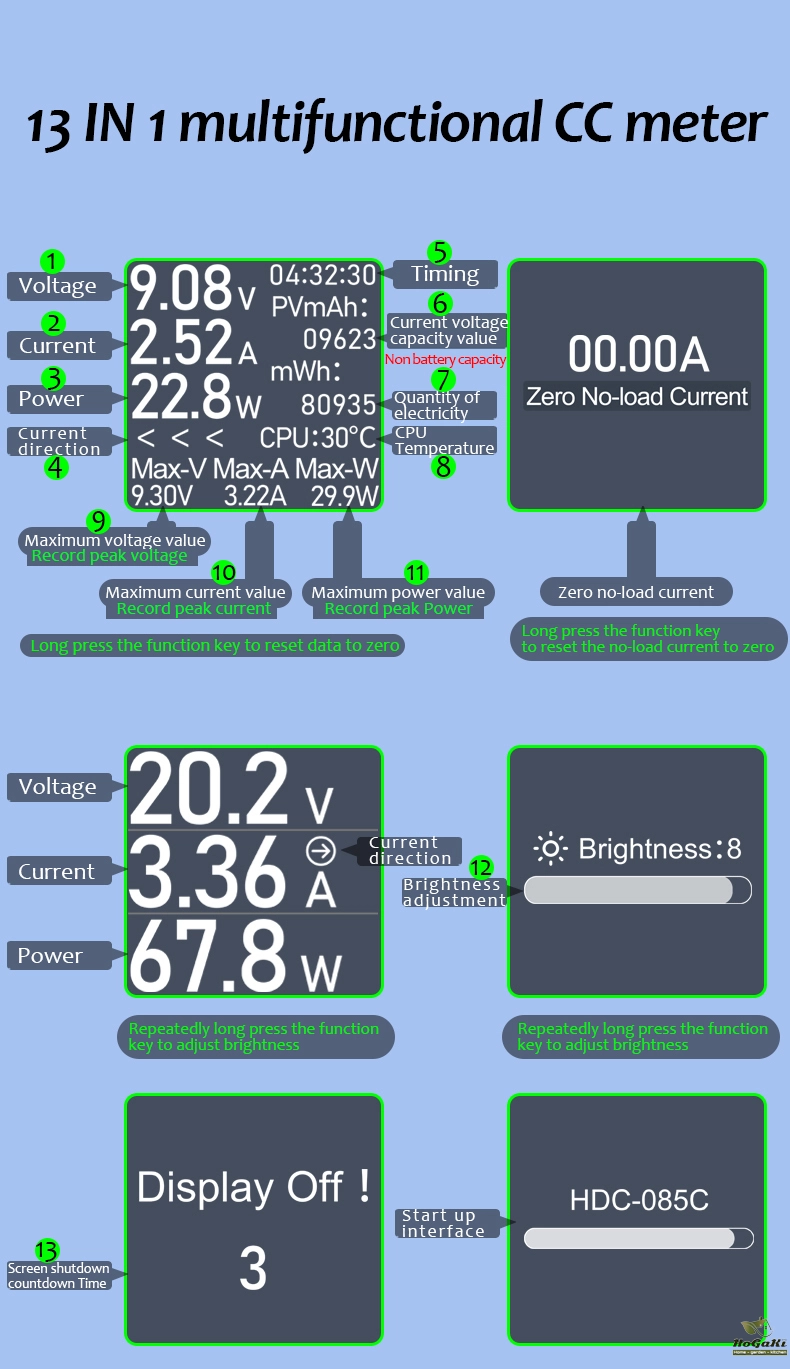

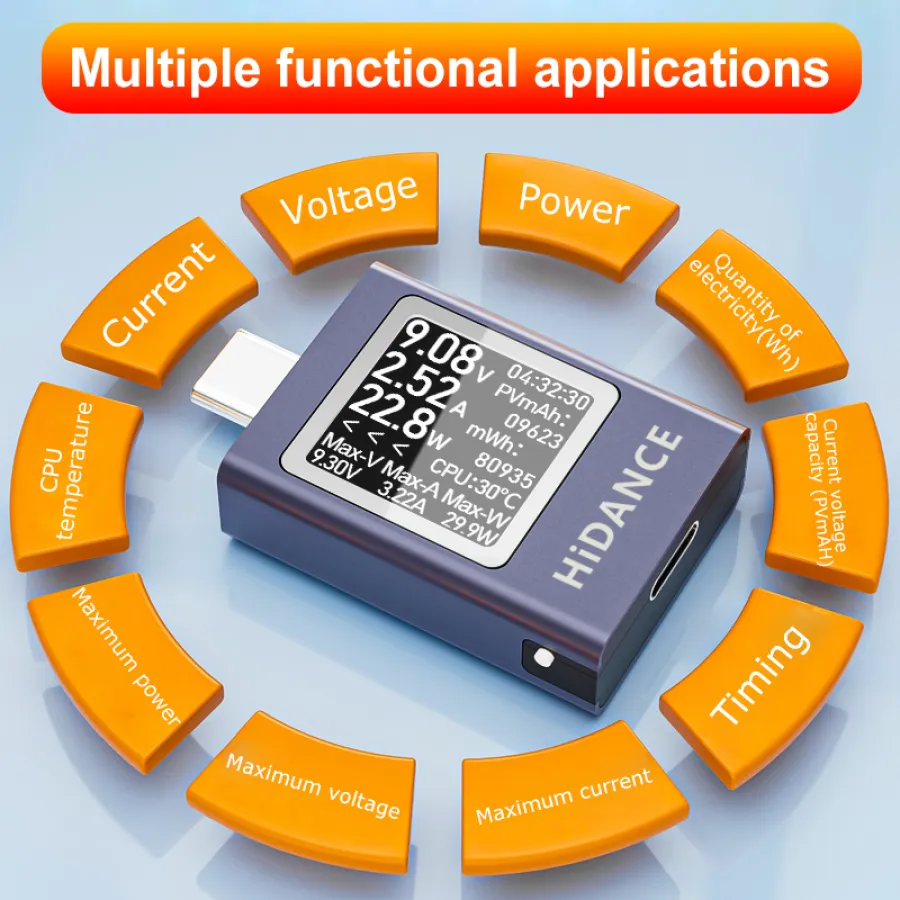

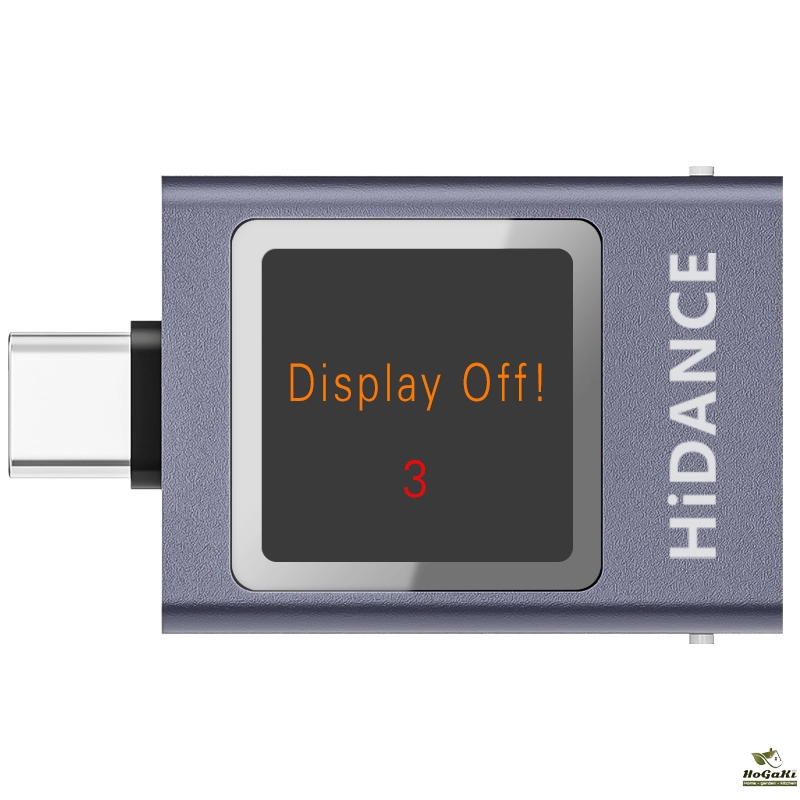

1. 13 IN 1 Current, voltage, power, electrical energy, capacity, timing ，Brightness adjustment, screen shutdown interface, current direction，Maximum voltage, maximum current, maximum power recording and other quick identification and other parameters, one screen display multiple parameters.

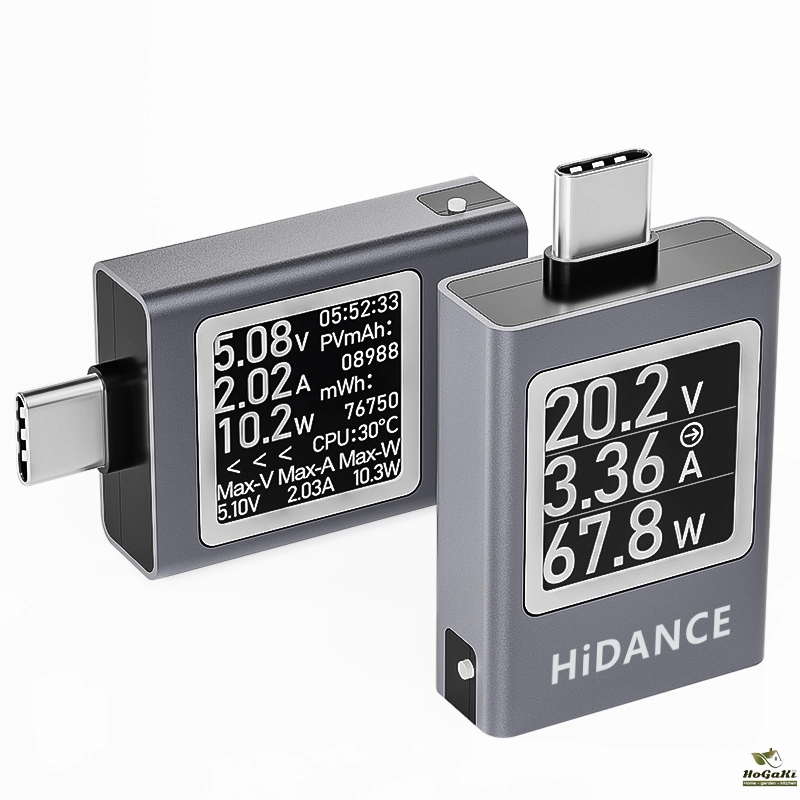

2.Adopt 0.85 inch OLED HD display, make your vision brighter at a glance, with 12A high current terminal, make the product more stable.

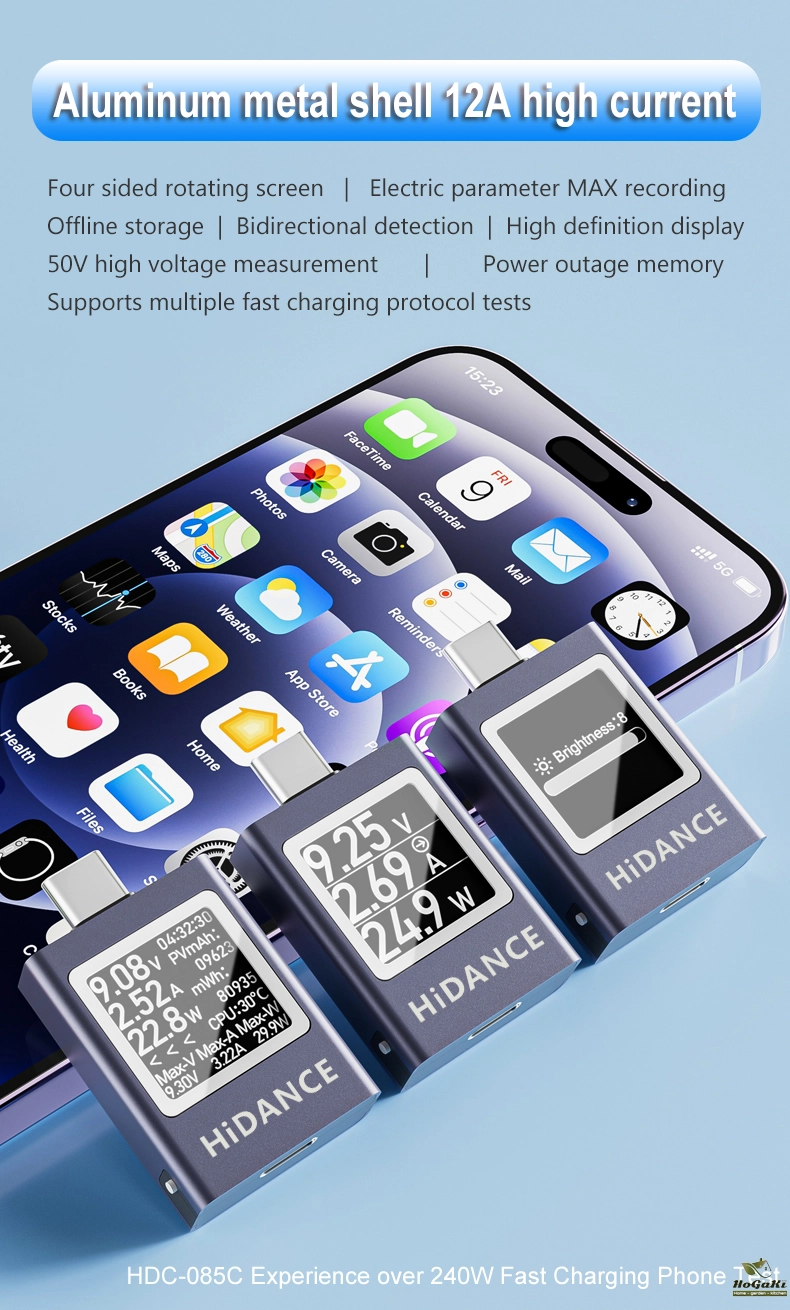

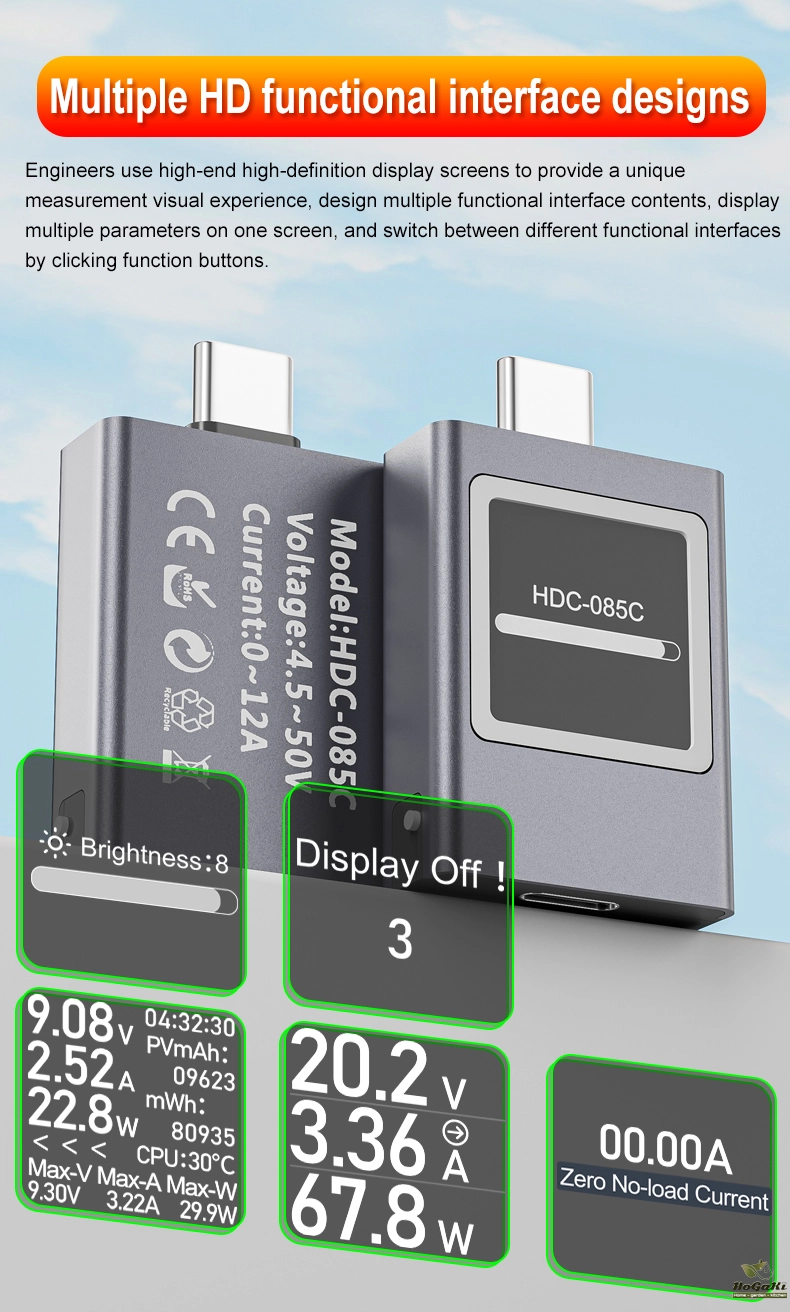

3.CNC metal shell dustproof and drop-proof, two kinds of display page, more convenient to watch, so that the function is more strengthened.

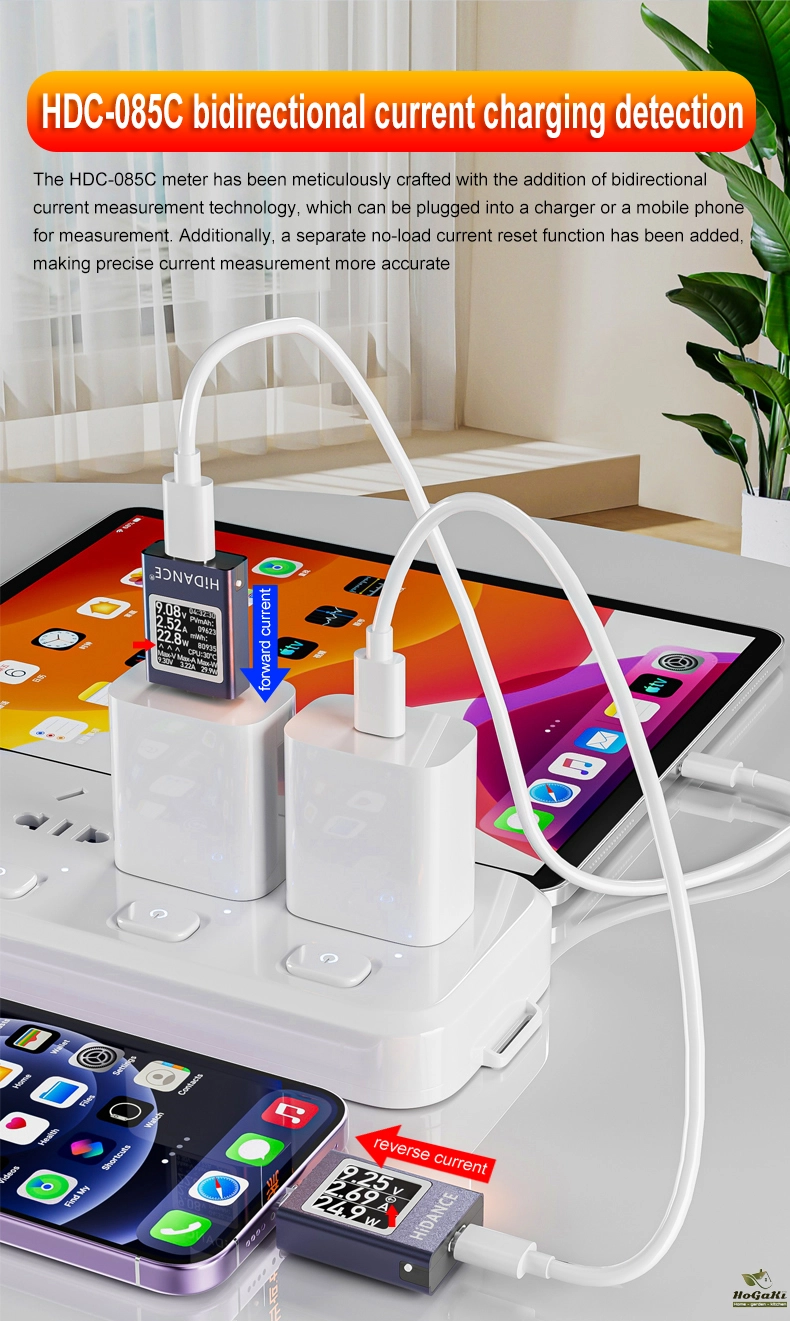

4. Full interface compatibility, two-way current test function, real-time charging power detection, support fast charging test.
5. You can detect the charging status of the electrical appliances in real time, real-time monitoring of the charging voltage and current and other parameters of information at a glance.

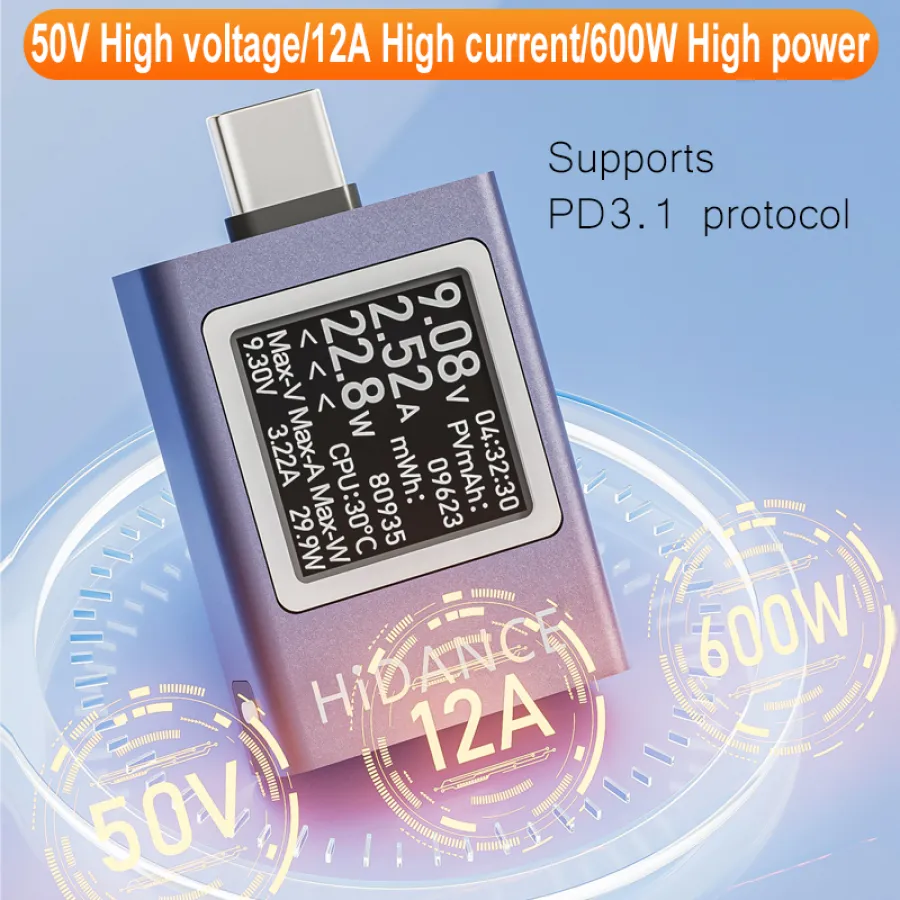

6.Supports PD2.0, PD3.0, PD3.1, PPS, QC2.0, QC3.0, FCP，SCP，AFC, PE, DASH，VOOC Power on testing of almost all protocols such as SuperVOOC

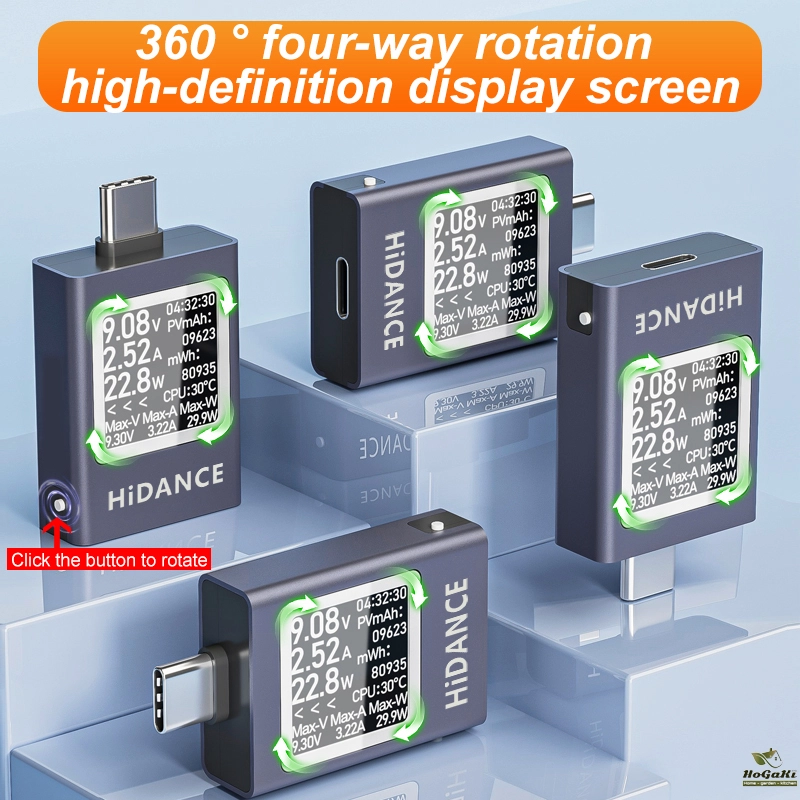

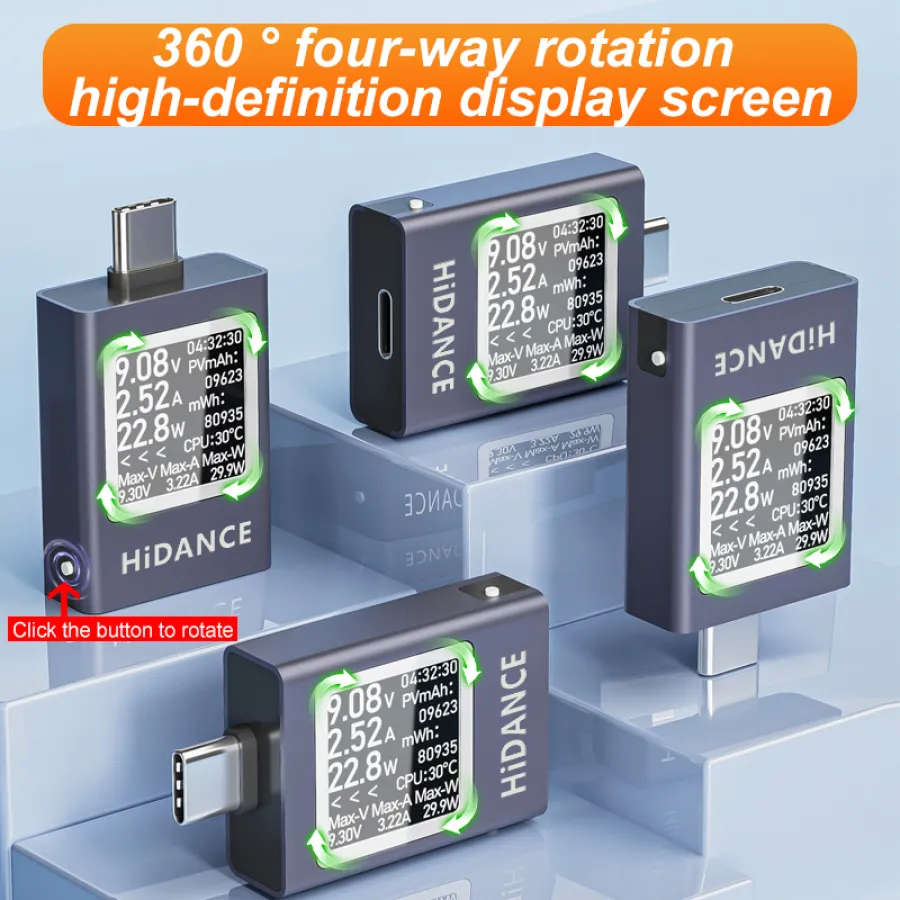

7. The screen display can be rotated 360 ° through buttons

Instructions for use:

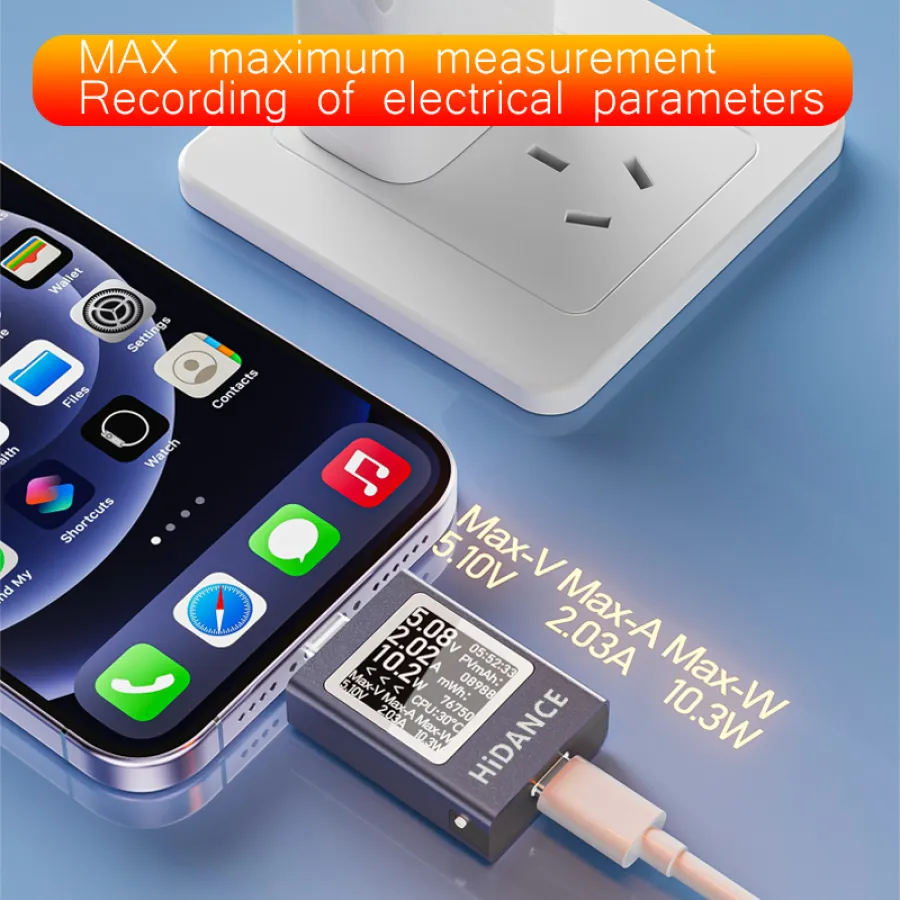

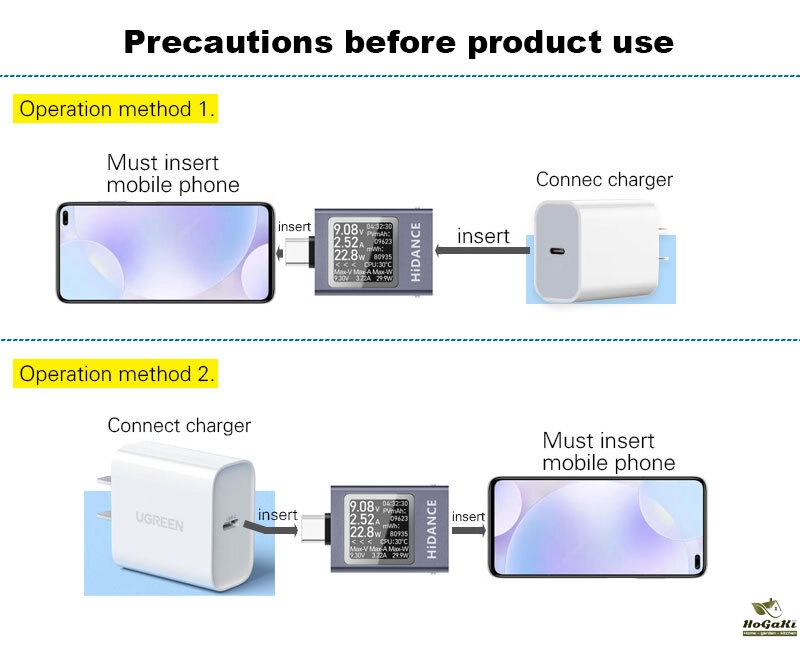

The product output must be connected to a mobile phone. Please perform the connection test according to the following diagram!

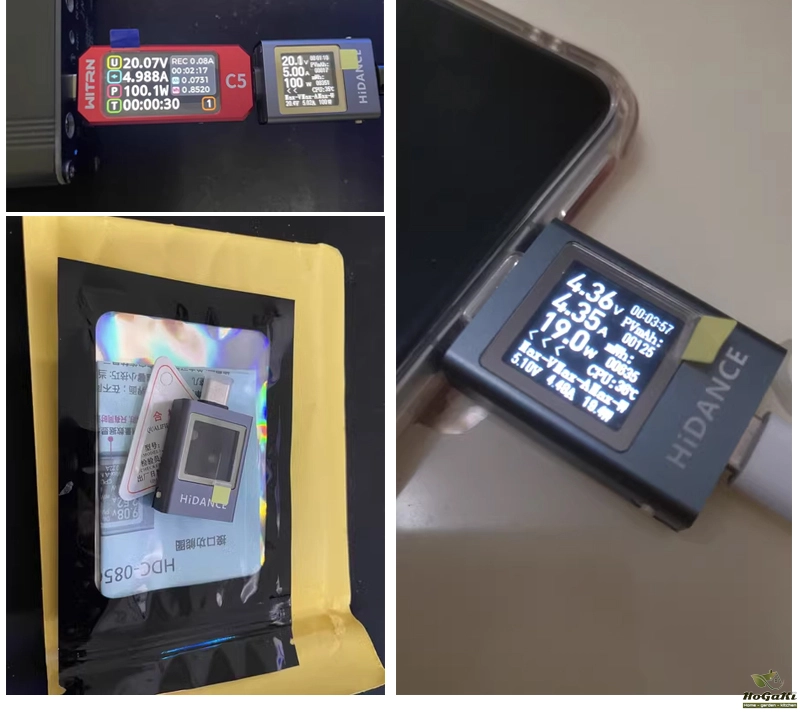

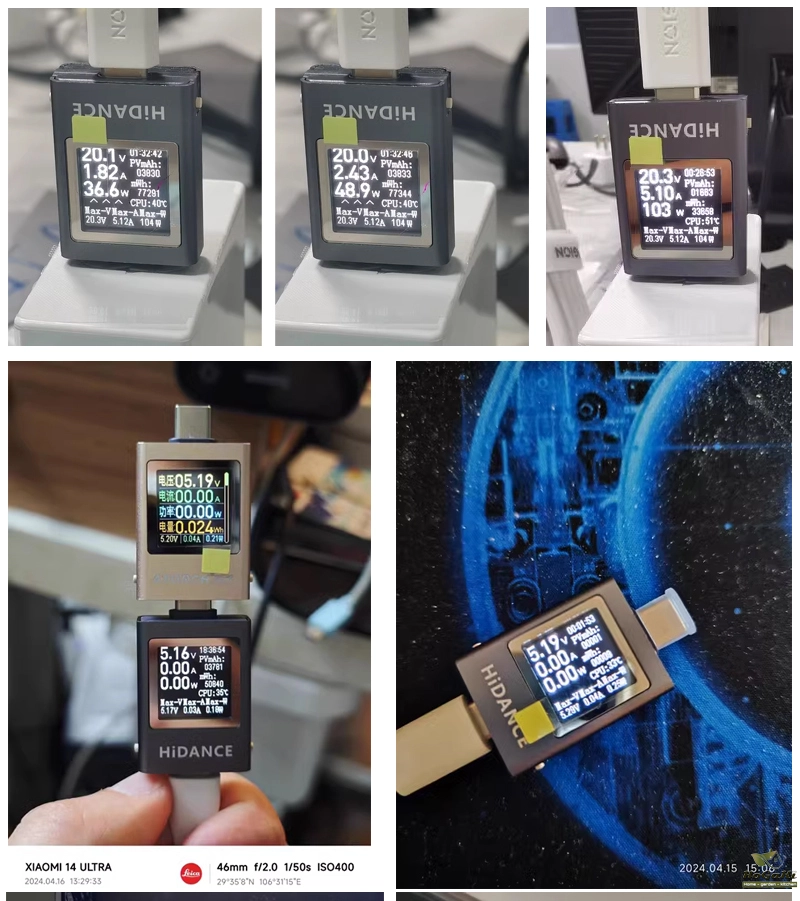

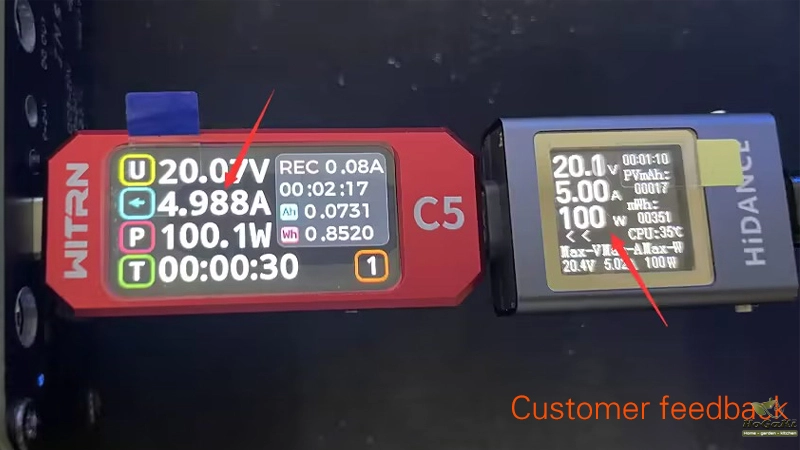

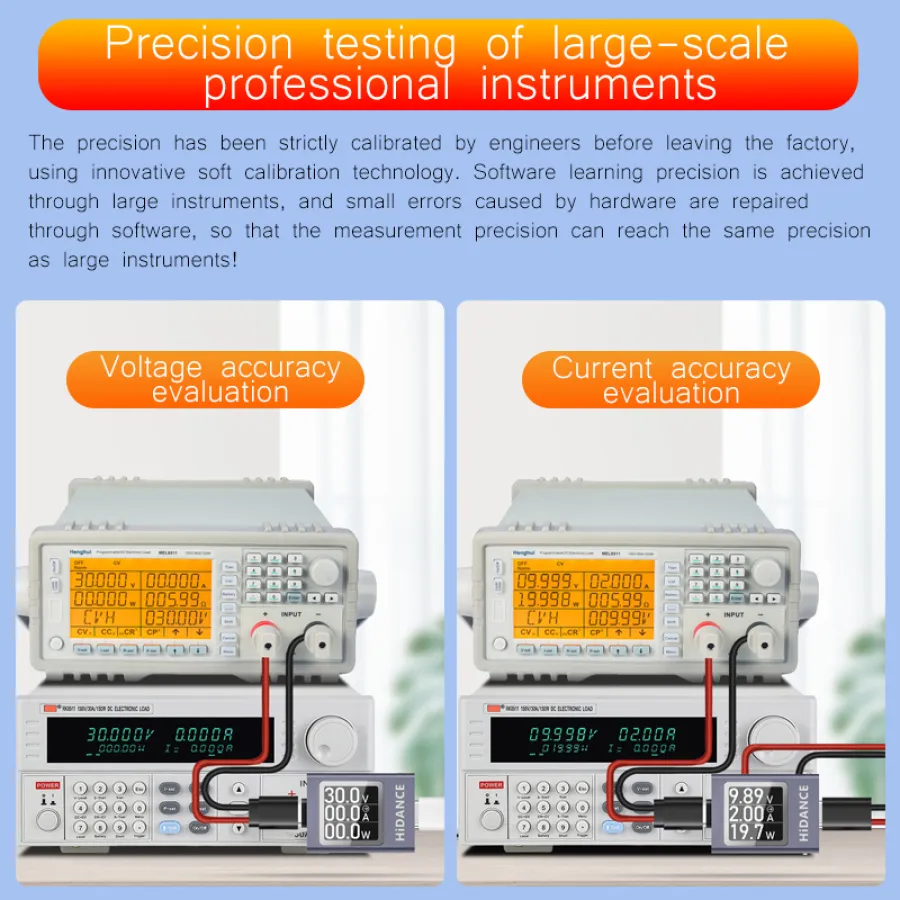

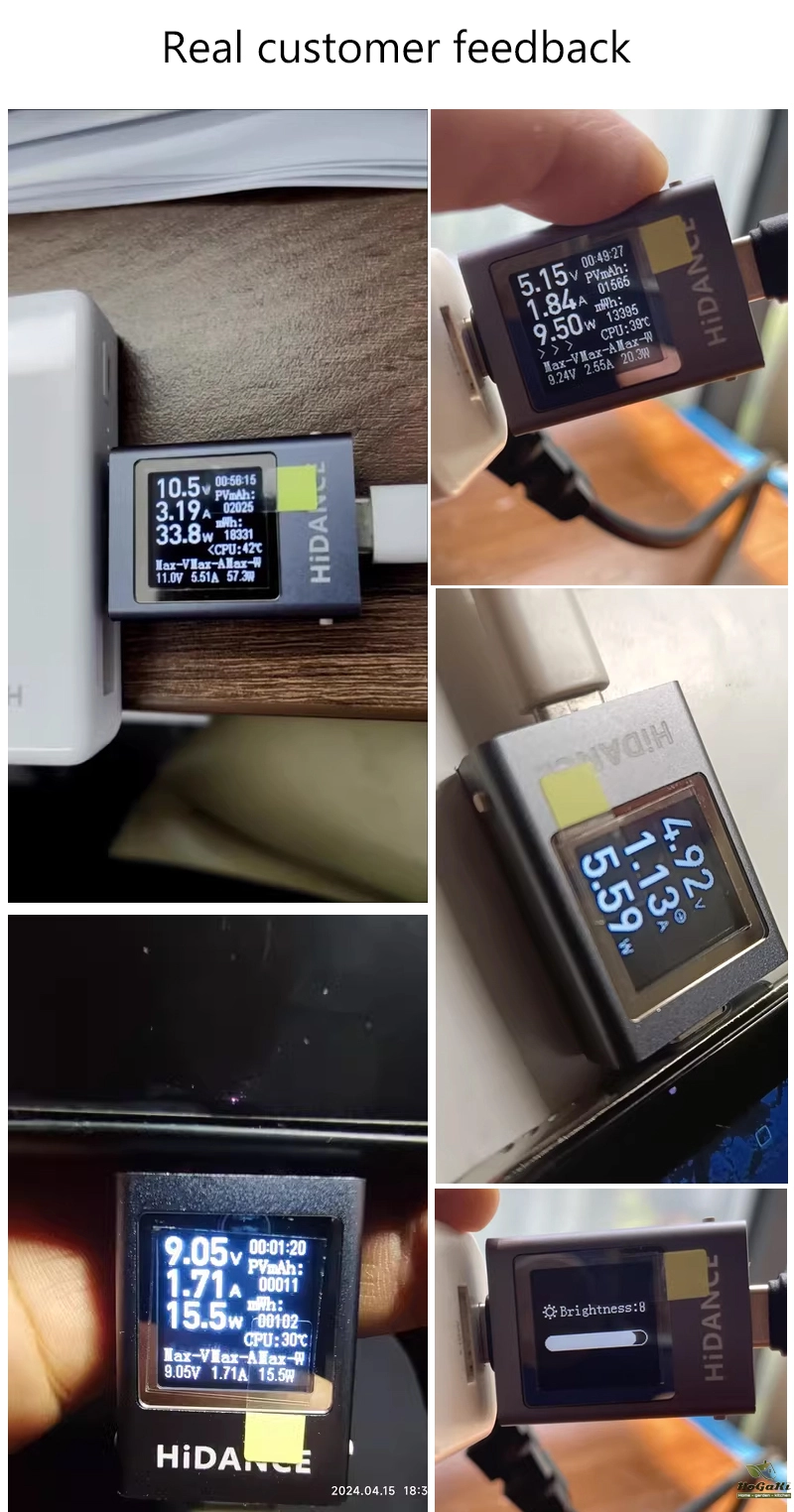

Customer testing comparison feedback

Good news:

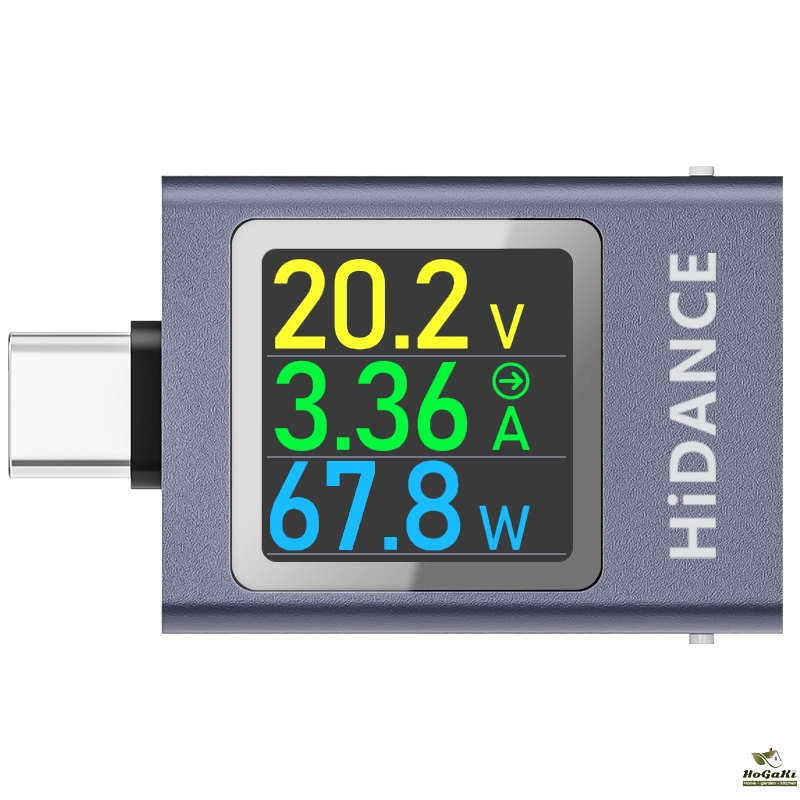

We offer two colors of products for customers to choose from. If you need them, please purchase according to SKU!

Products list 1：

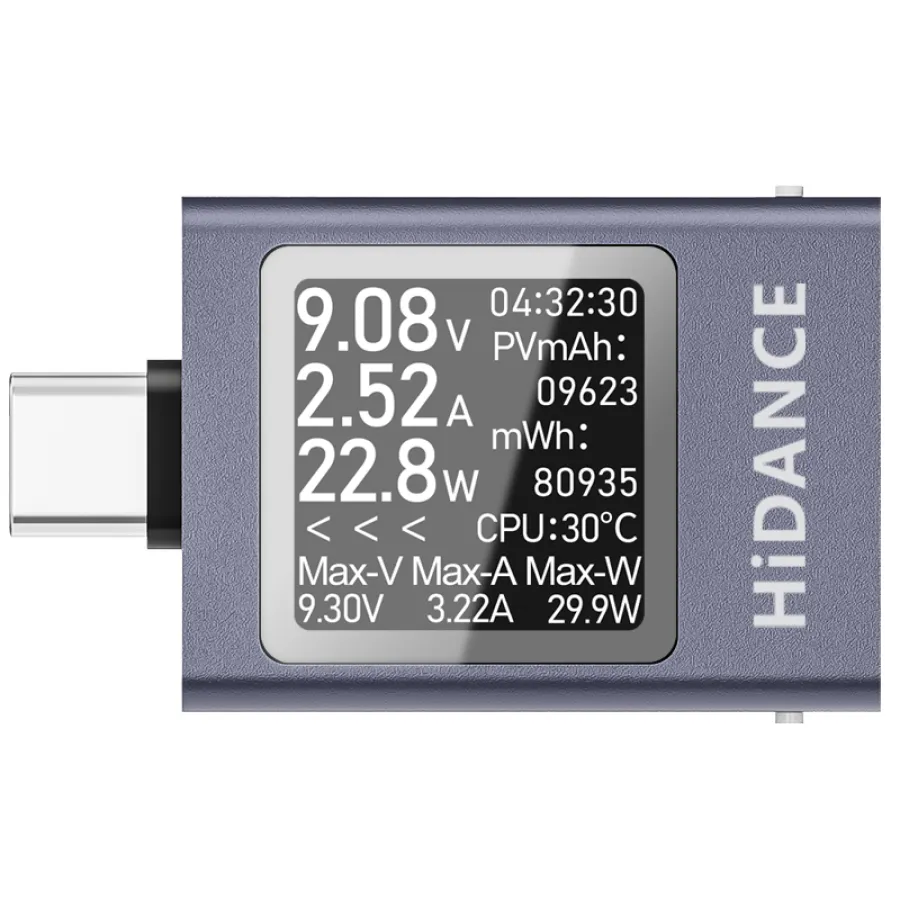

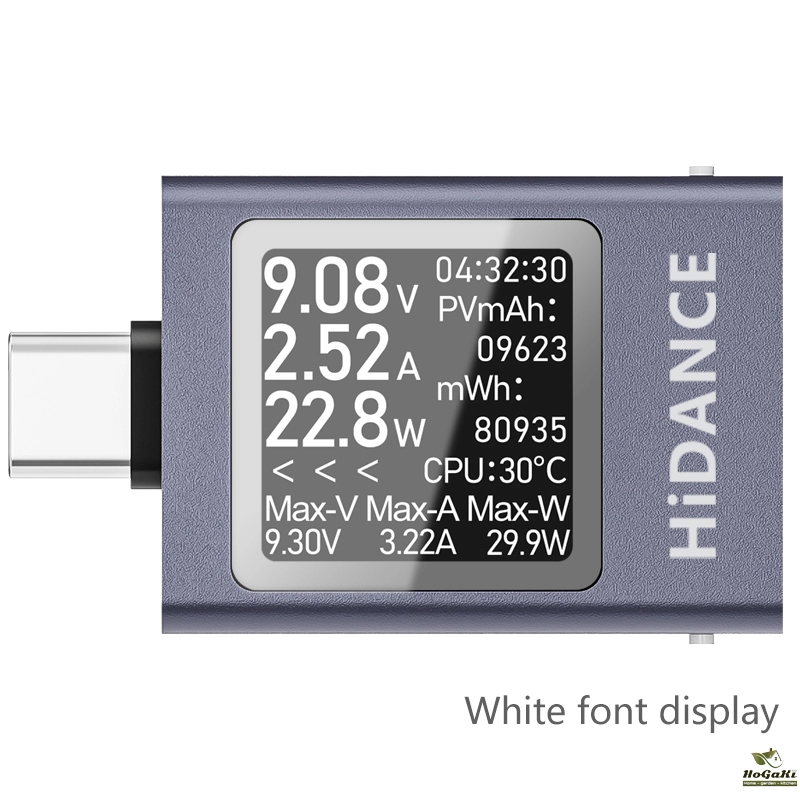

1.HDC-085C White Font Display tester x1
2.User manual x1

Products list 2：

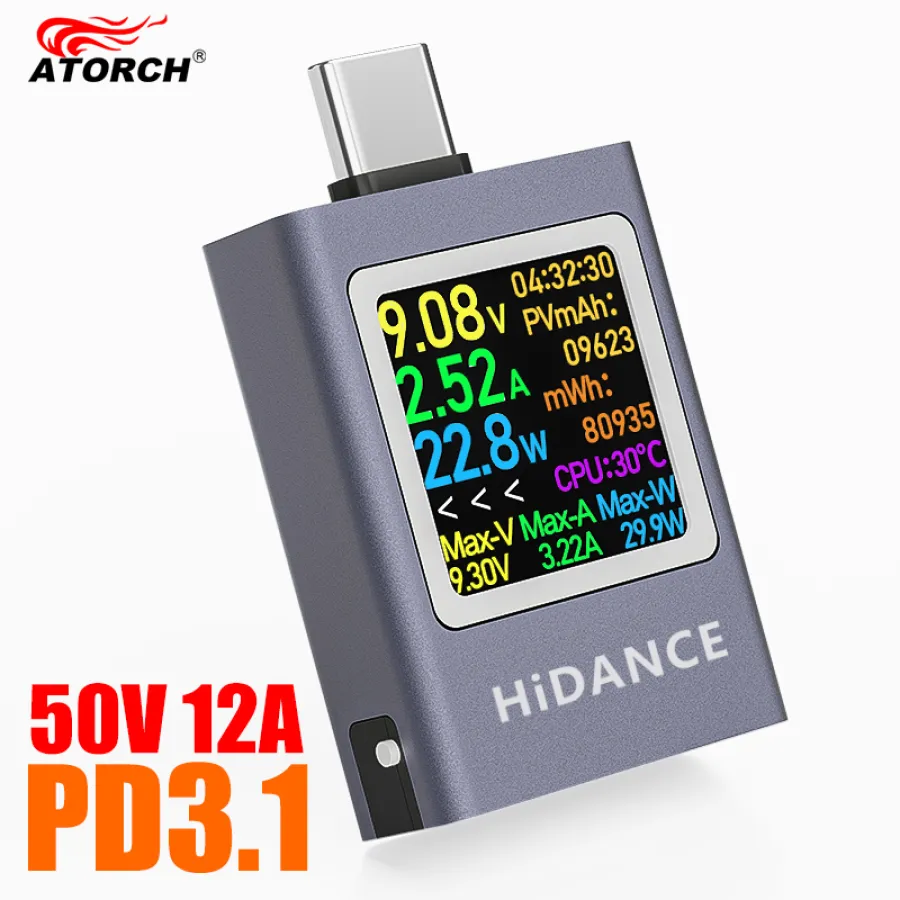

1.HDC-085C Color Font Display tester x1
2.User manual x1


Packaging Details

  • Unit Type:
  • Package Weight: 0.014
  • Package Size: 8x0x12

  • Brand Name: ATORCH
  • Hign-concerned Chemical: None
  • DIY Supplies: Electrical
  • Origin: Mainland China
  • Voltage range: Other
  • Battery Included: No

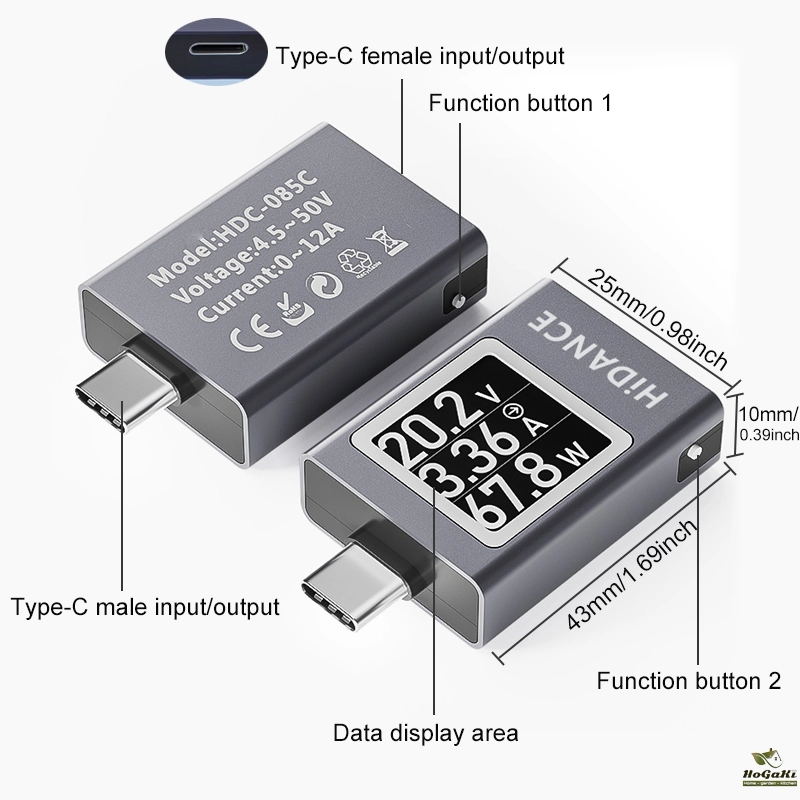

  • Dimensions: 43mm*25mm*10mm
  • Operating Temperature: -10-60Degrees

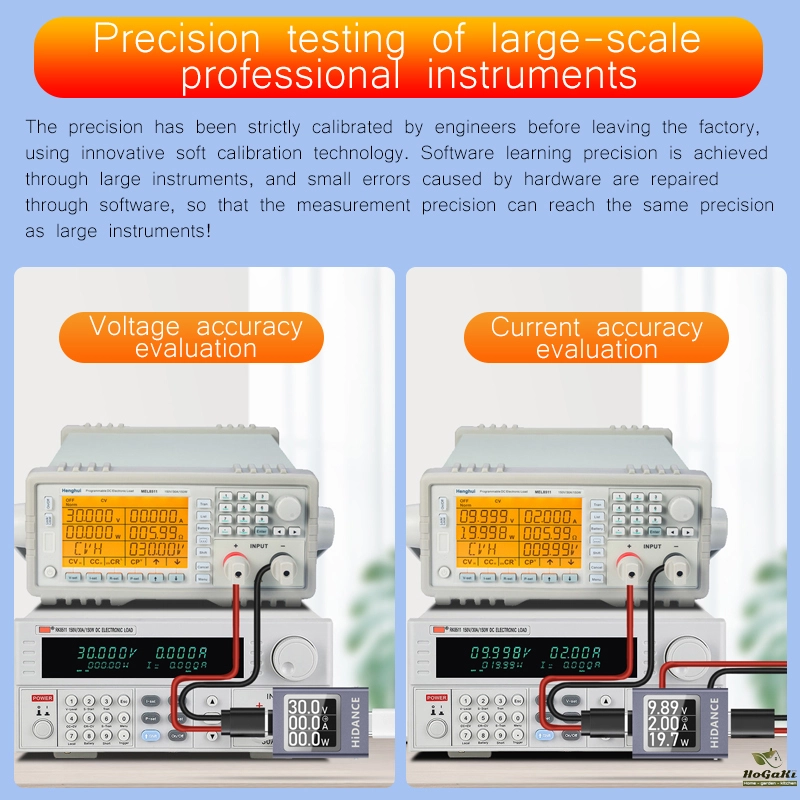

  • Accuracy Class: 1% (Software calibration technique)
  • Display Type: Digital Only
  • Power Supply: USB DC Power
  • Certification: CE

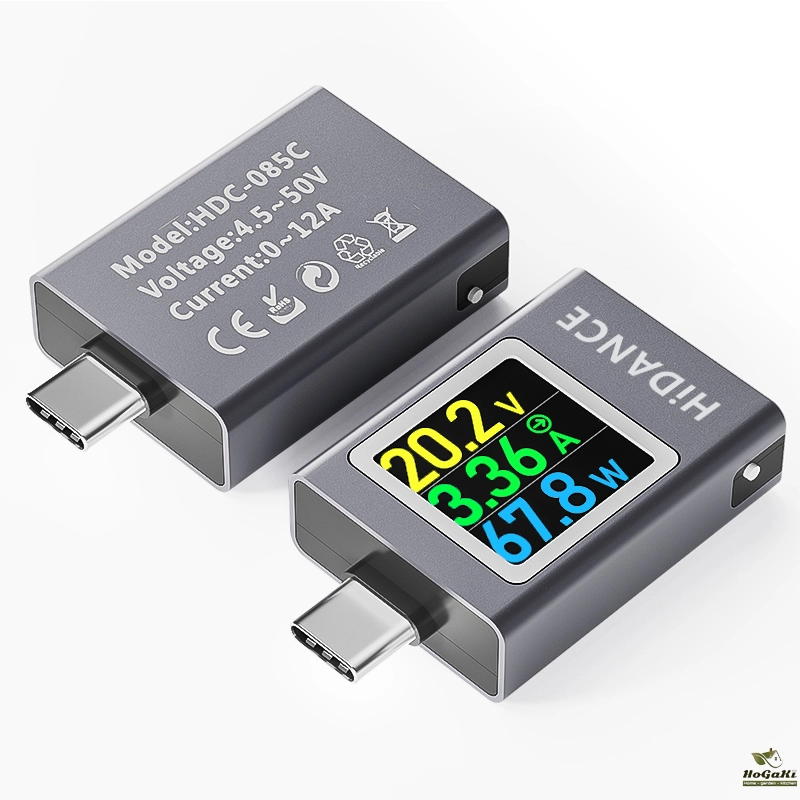

  • Model Number: HDC-085C
  • Power Source: DC
  • Measure voltage: DC4.5~50V
  • Measure current: 0-6A(Instant peak value 12A)
  • Measure power: 0~600W
  • Measure electric energy: 0~9999Wh
  • Measure capacity: 0~99999mAh
  • Housing: Silvery Metal shell+plastic

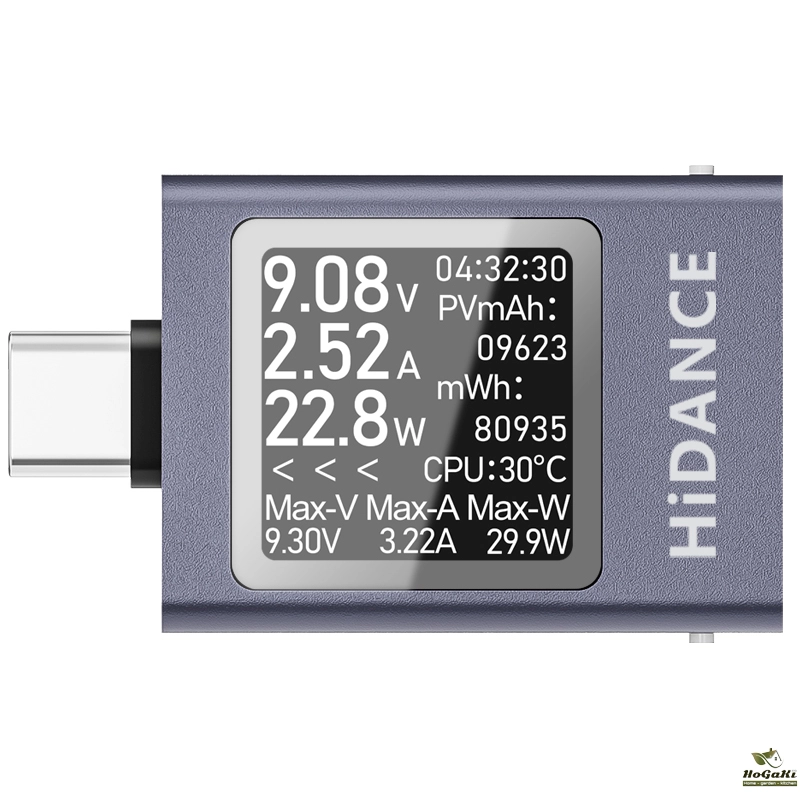

  • Screen Colour: White font display
  • Screen size: 0.85 inch
  • Backlight brightness adjustment: yes
  • G-Sensor: none
  • Screen rotation operation mode: key operation
  • Screen shutdown function: yes
  • Button mode: Double key button
  • Current, voltage, and power Peak recording: yes
  • Choice: yes
