100(N.m)/140g Japan Original Machinery Parts Hollow Shaft Type Magnetic Powder Brake ZKB-10XN
0.0 ( votes)
Price:
US $
3688.52
/ piece
- Color
-
-
- Rated Torque
Welcome to Lixinsheng Packaging Equipment Store

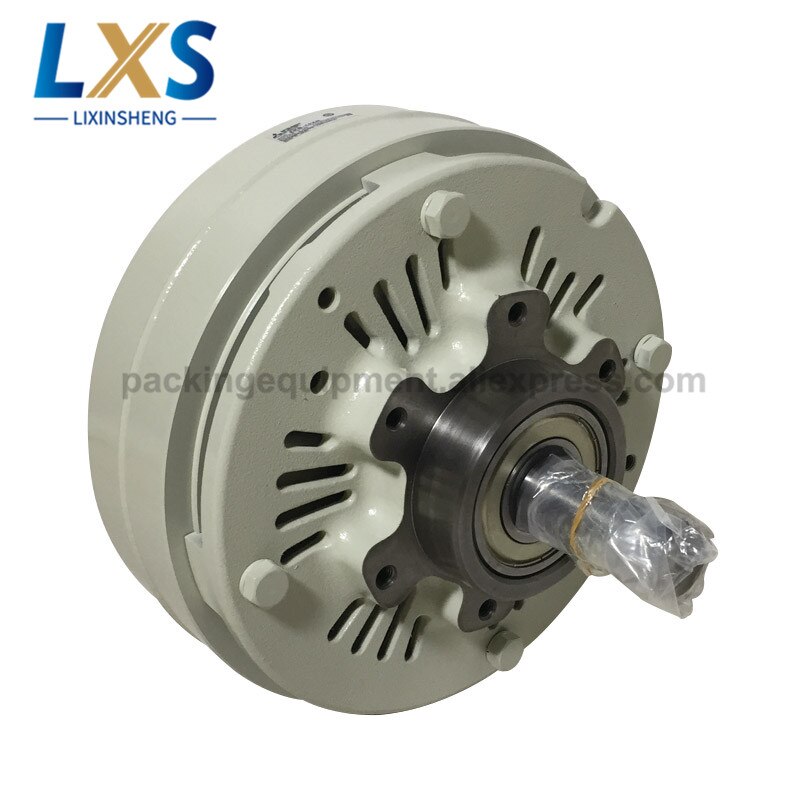

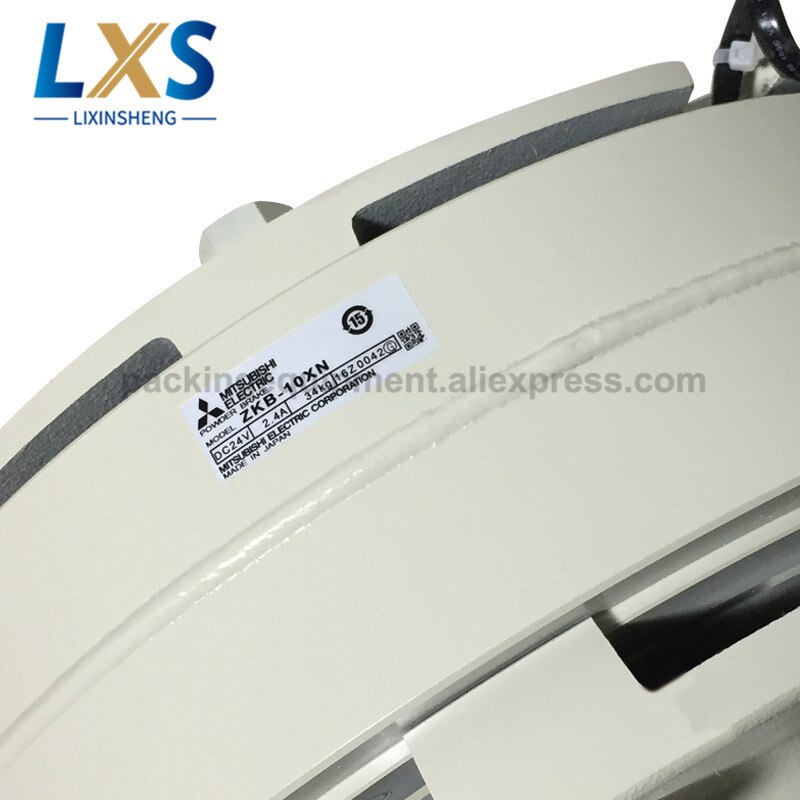

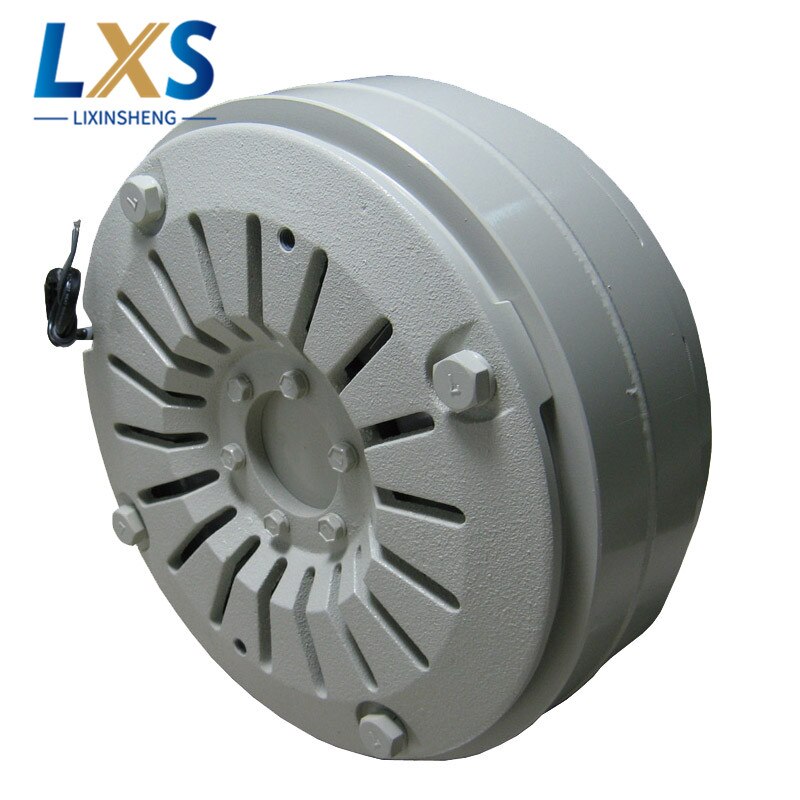

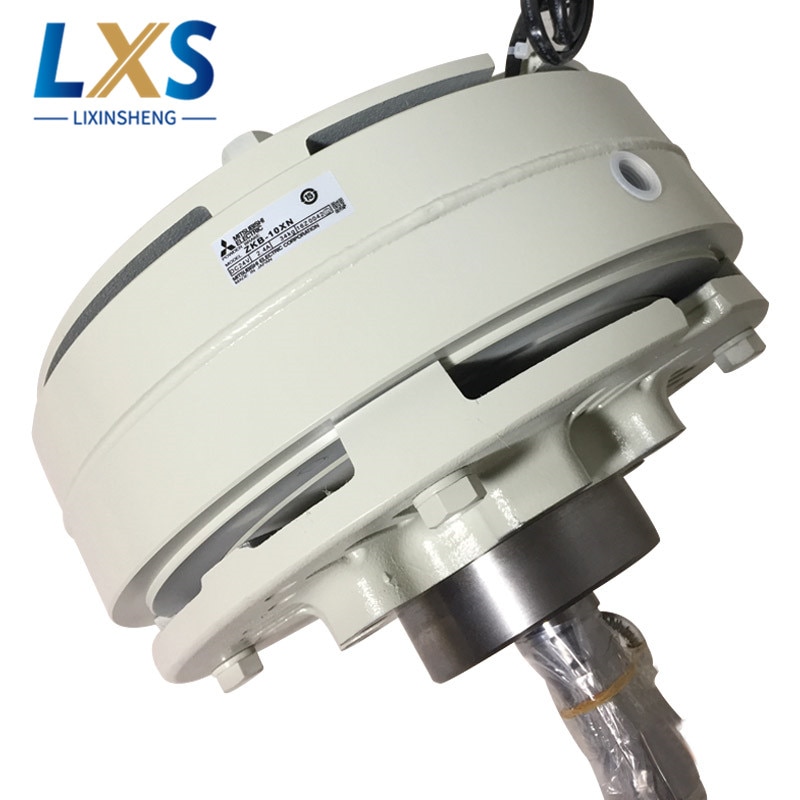

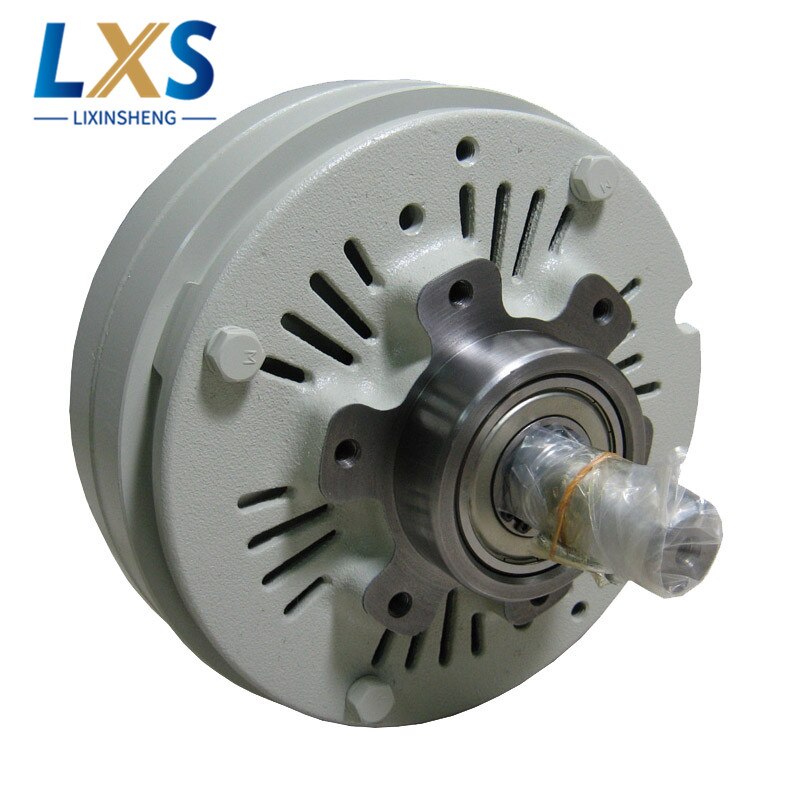

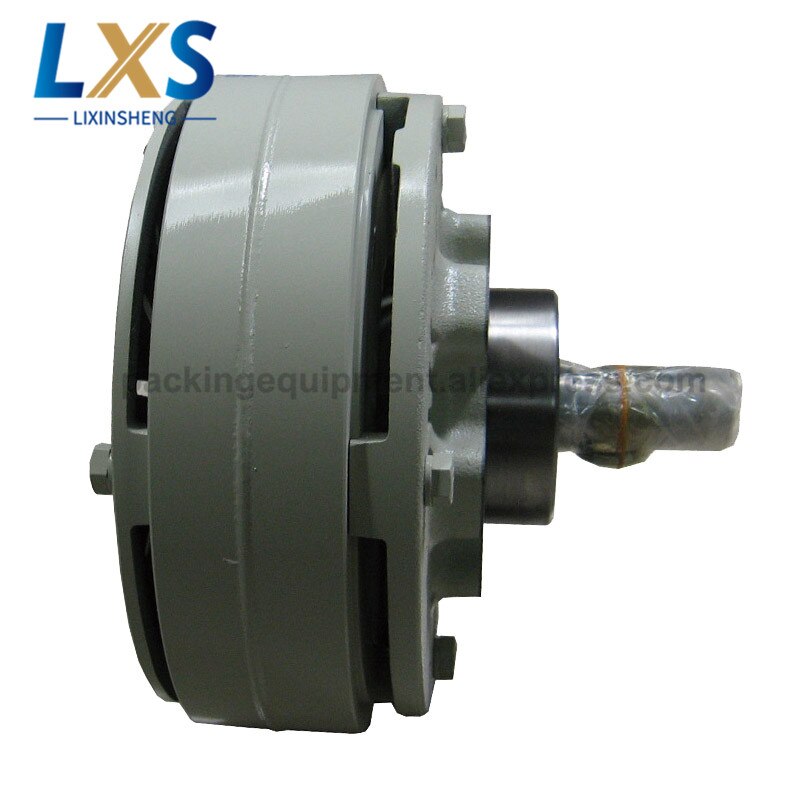

100(N.m)/140g Japan Original Machinery Parts Hollow Shaft Type Magnetic Powder Brake ZKB-10XN
ZKB-XN-type magnetic powder brake
Brand: Mitsubishi
Origin: Japan
>>>Feature
Rated torque: 12 to 400 (N · m)
Natural cooling / compulsory extended shaft type
1. 15 r / min from available
2.through the compressed air is blown into the voids in the heat to improve the thermal capacity.
>>>Specification
|
Model |
Rated torque （N·m） |
Coil（75℃） |
(kgm⊃2;) |
Wind pressure(Pa) |
Air volume (m⊃2;/min) |
Power (W) |
Weight (kg) |
Max. allowable speed （r/min） |
Magnetic particle weight （g) |
||
| Current (A) |
Power (W) |
Time constant （s） |
|||||||||
| ZKB-1.2XN |
12 |
0.94 |
22.5 |
0.10 |
1.34×10^（-3） |
3×10^（4） |
0.2 |
250 |
5..2 |
1,800 |
20 |
| ZKB-2.5XN |
20 |
1.24 |
30.0 |
0.12 |
3.80×10^（-3） |
5×10^（4） |
0.4 |
380 |
9 |
1,800 |
33 |
| ZKB-5XN |
50 |
2.15 |
51.5 |
0.13 |
9.50×10^（-3） |
1×10^（5） |
0.6 |
700 |
14.5 |
1,800 |
60 |
| ZKB-10XN |
100 |
2.40 |
57.6 |
0.25 |
3.50×10^（-2） |
6×10^（4） |
1.1 |
1100 |
34 |
1,800 |
140 |
| ZKB-20XN |
200 |
2.70 |
64.8 |
0.37 |
9.15×10^（-2） |
5×10^（4） |
1.6 |
1900 |
53 |
1,800 |
225 |
| ZKB-40XN |
400 |
3..50 |
84.0 |
0.40 |
2.40×10^（-1） |
2×10^（5） |
2.0 |
2800 |
100 |
1,800 |
370 |
Magnetic clutch is based on elPowder brake is used for tension control, overload protector, torque loader, such as printing machine, paper making machine, re-reeling machine, wire drawing machine, metal calender, film processor, textile machine etc.; or the loading device when doing loading experiments, such as motor, engine, hydraulic gear reducer.
Magnetic brake is based on electromagnetic theory and the use of magnetic torque transmission. Its exciting current and transmission of torque with a linear relationship between the basic features. Has nothing to do with the slip case to pass a certain torque, with fast response, simple structure, no pollution, no noise, no shock and vibration energy-saving advantages. It is multi-purpose, superior performance, the automatic control devices. It is now widely used in various machinery for the purpose of braking, power test load, unreeling tension control and so on.
More products pls kindly click here : Xiamen Lixinsheng Packing Equipment Co.,Ltd Store
As the following is a table of other spec. , pls choose the perfect match standard you need.
>>>DT325E LED Handheld Srobescope >>>Pneumatic Diaphragm Pump BML-15P >>>Cross Hatch Cutter
>>>JSCC Speed Control Motor >>>Intelligent Krebs Stormer Viscometer >>>Electromagnetic Clutch
- Voltage: 57.6W
- Material: Aluminium-copper Alloy
- Model Number: ZKB-5XN Mitsubishi Powder Brake
- Product Name: Magnetic Powder Brake ZKB-5XN
- Suitable industries: Printing machine, paper machine, rewinding machine, drawing machine, f
- Magnetic powder clutch used in: Tension control, overload protector, torque loader, etc
- Feature: With fast response speed, simple structure, no pollution, no noise
- The magnetic powder weight: 140g
- Available Speed : 1800 r/min
- Suitable for: Motor, engine, hydraulic press reducer when loading experiment of load
- Type: Natural cooling / compulsory extended shaft type
- Time constant: 0.13s
- Current : 2.40A
- Rated torque: 100(N.m)/140g Powder Brake Controller
- Original: Japan Mitsubishi ZKB-10XN
