ID: 88811

Emco Lenze 14.105 Series Electromagnetic Clutch 14.105.06.1.3 17H7 24V 15W 7.5Nm

0.0 ( votes)
Price: US $242.00 / piece
Discount Price:
US $ 217.46 / piece
-10%
Quantity

modname=ckeditor

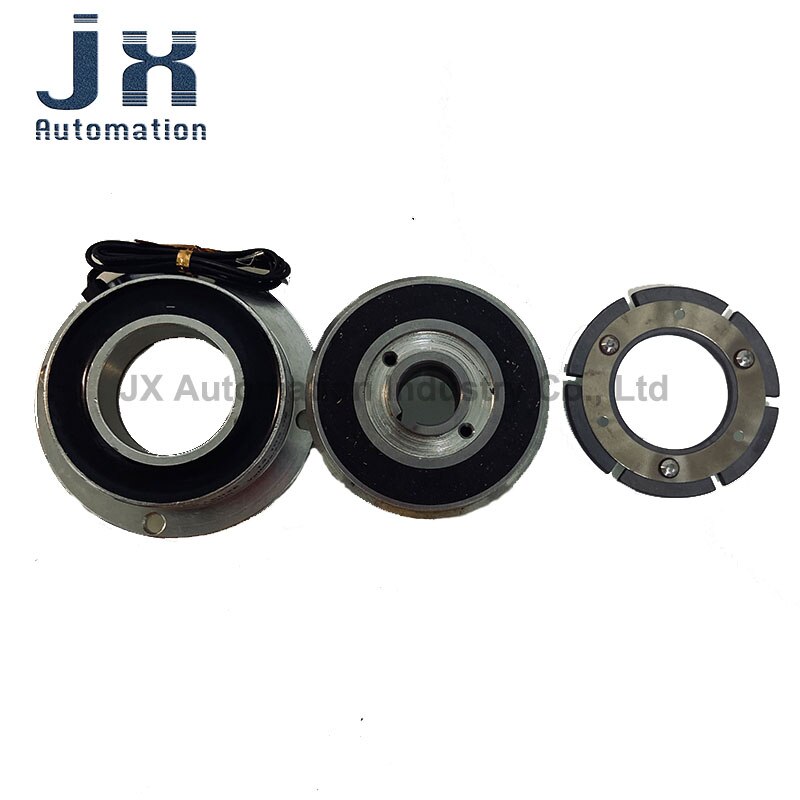

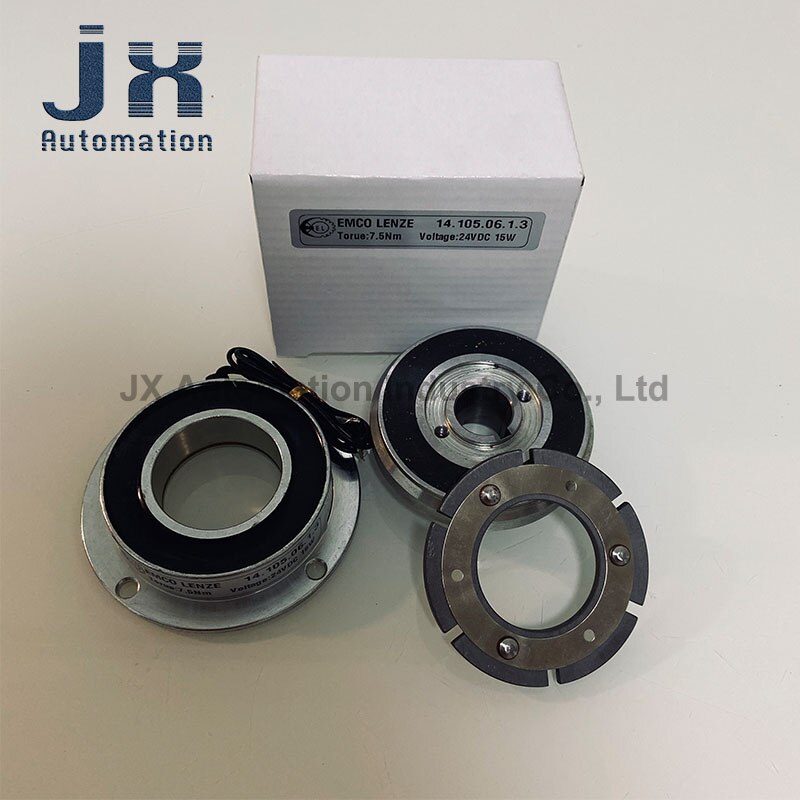

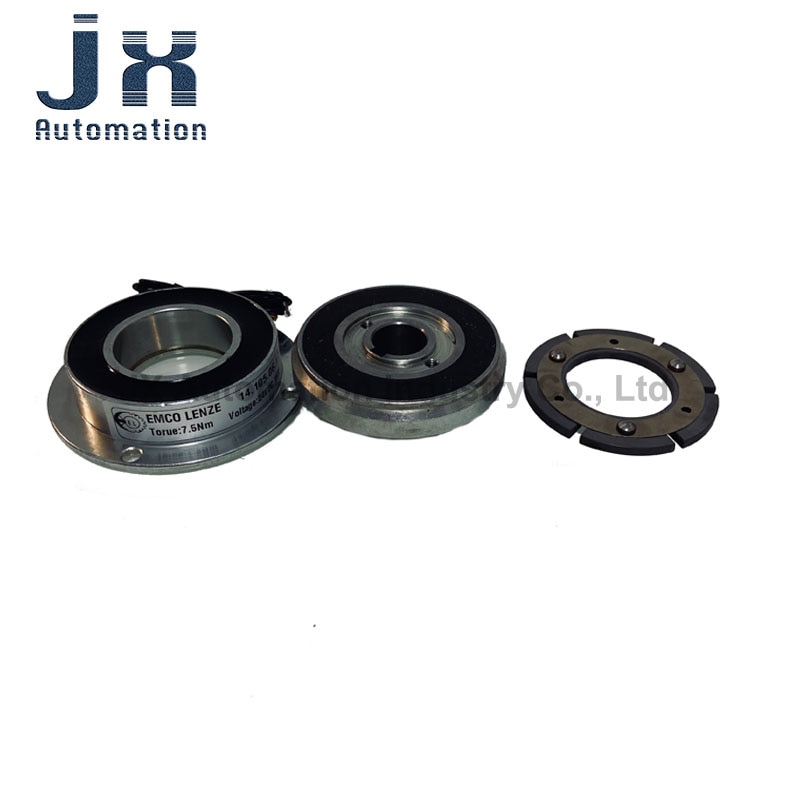

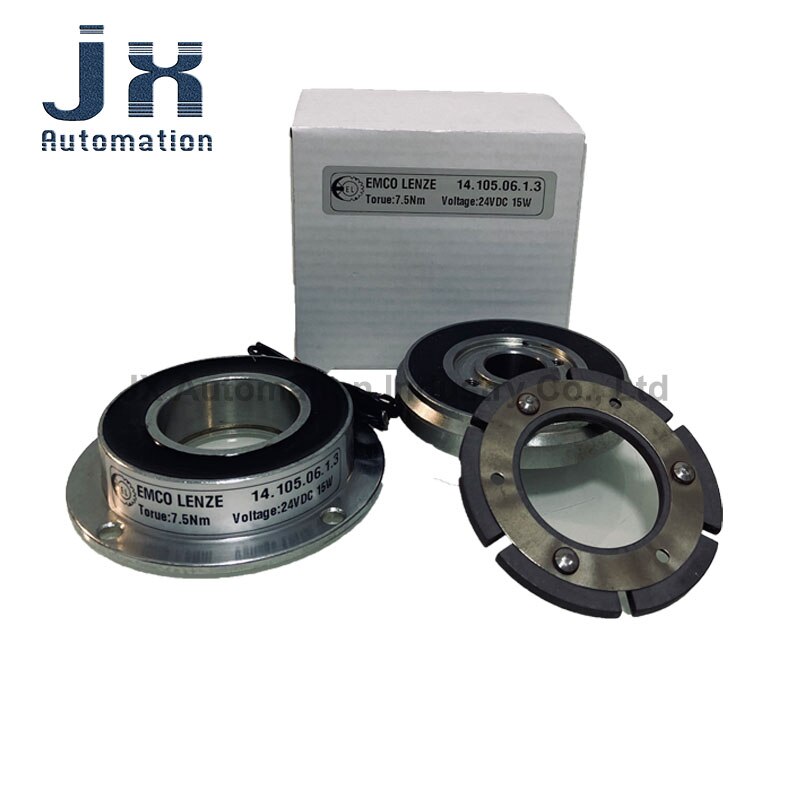

14.105 Series Electromagnetic Clutch 14.105.06.1.3 17H7 24V 15W 7.5Nm

The electromagnetic clutch (14.105 series) is divided into two series: dry single-plate clutch and built-in bearing clutch. The electromagnetic clutch is in the off state when the power is off, and the armature plate is separated from the armature; when the power is on, the armature plate is in the closed state. It is attracted to the armature.

Model: Built-in bearing type electromagnetic clutch (14.105..3.)

Dry single-plate electromagnetic clutch (14.105..1.O)

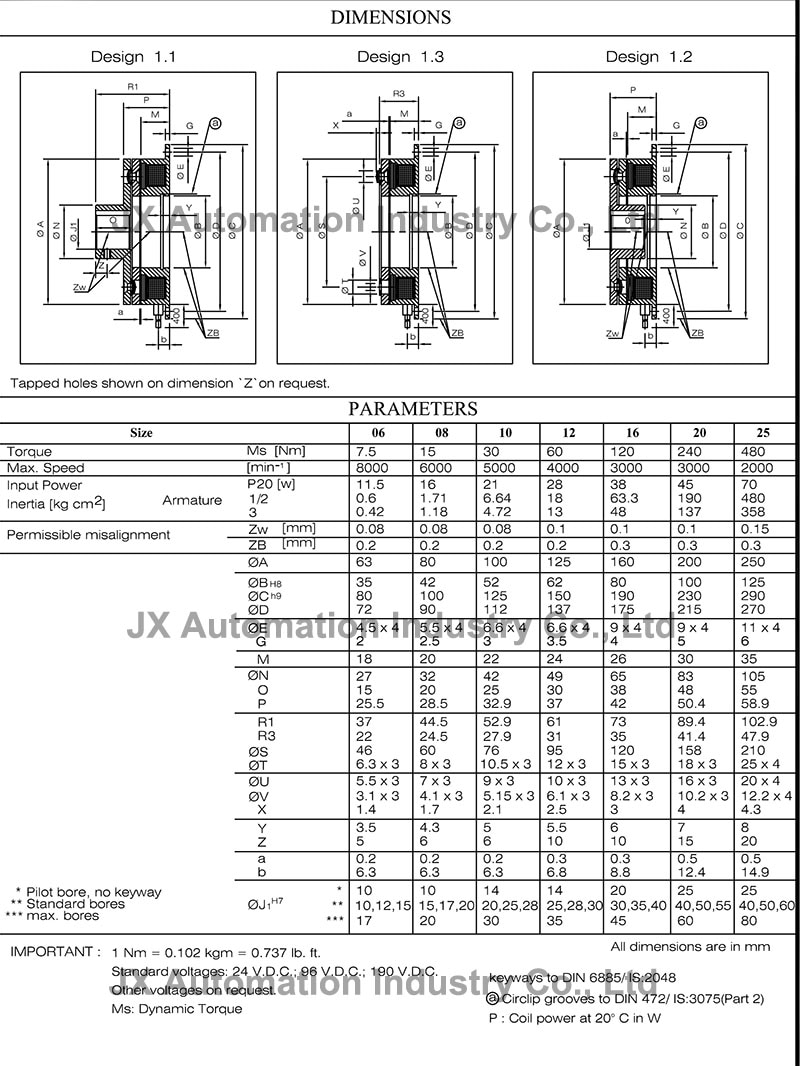

Regular specifications: 06/08/10/12/16/20/25

Brake Pad Model: 01/03/05

Other models: 31/40/50 special specifications and sizes can be customizedBraking torque: 7.5-48ONM

Standard voltage: 24VDC (other voltages can be customized)

Product features: small size, low voltage, low power, low energy consumption, large torque, high speed, armature wear-resistant, quick response, easy installation and maintenance.

Application areas: brake clutch combination, food and beverage machinery, winding machinery, industrial production lines, various automated production lines, packaging machinery, textile machinery, instruments, printing machinery and other industries that require frequent speed changes or frequent changes of direction are widely used.

Note: The armature plate and friction surface should not be in contact with lubricating oil or grease under any circumstances.



  • Voltage: 24V
  • Material: Cast Iron

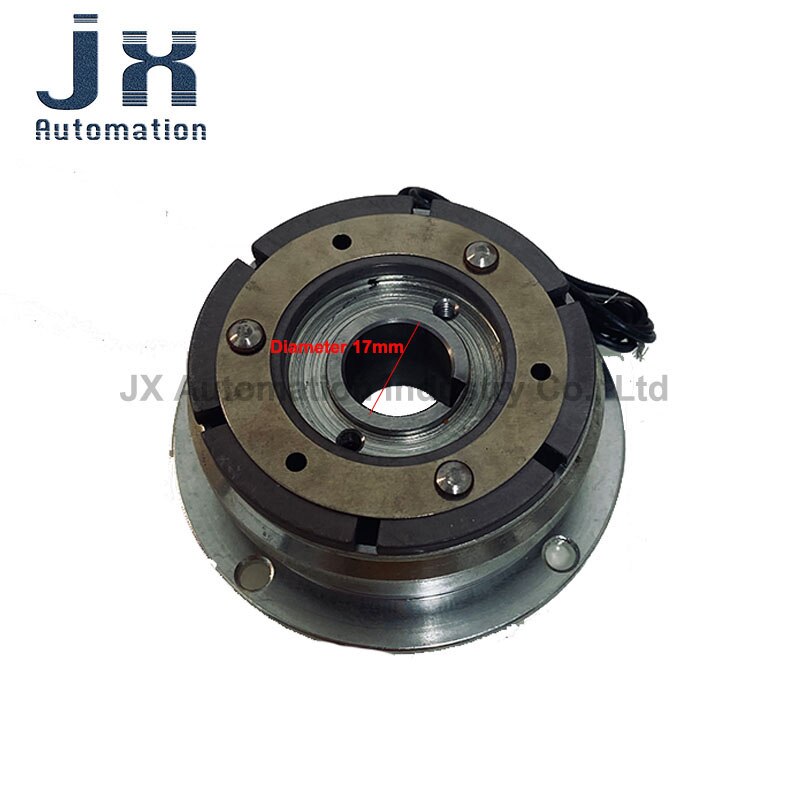

  • Model Number: 14.105.06.1.3 17H7
  • Origin: Mainland China
  • Certification: CE
