1.5KW Water-cooled spindle motor ER11/ 24000rpm & 1.5kw Inverter VFD 220V & 80mm Clamp & 75W Water pump/pipes with 1set Collet

0.0 ( votes)
Price: US $861.32 - 954.96 / piece
Discount Price:
US $ 694.32 - 763.62 / piece
-19%
Quantity











Notice:


this item will delivery from our "EU/Germany"warehouse,within European Union countries free VAT(import duty)andfree shipping by UPS/DHL, the package will be not easy broken with delivery.




The free ship and free VAT Europe countries area:


Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia, Finland, France,

Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Monaco,

Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

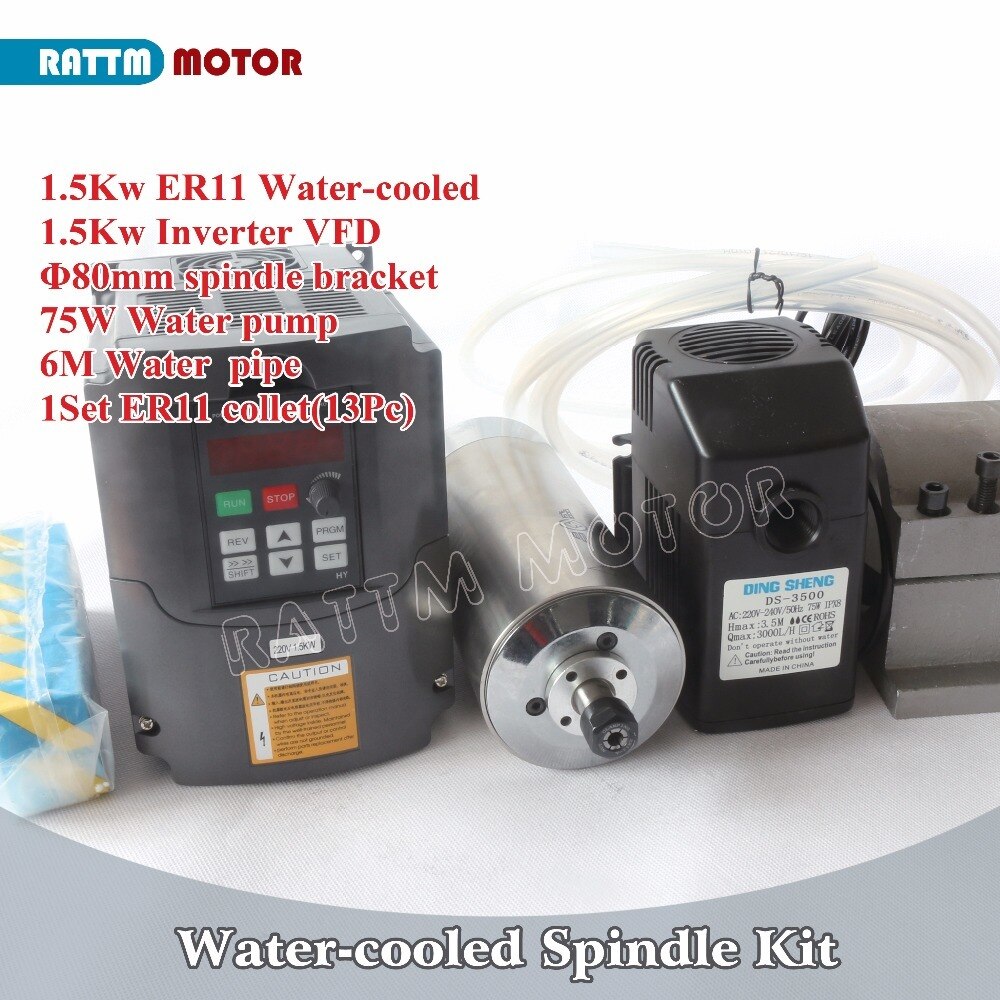

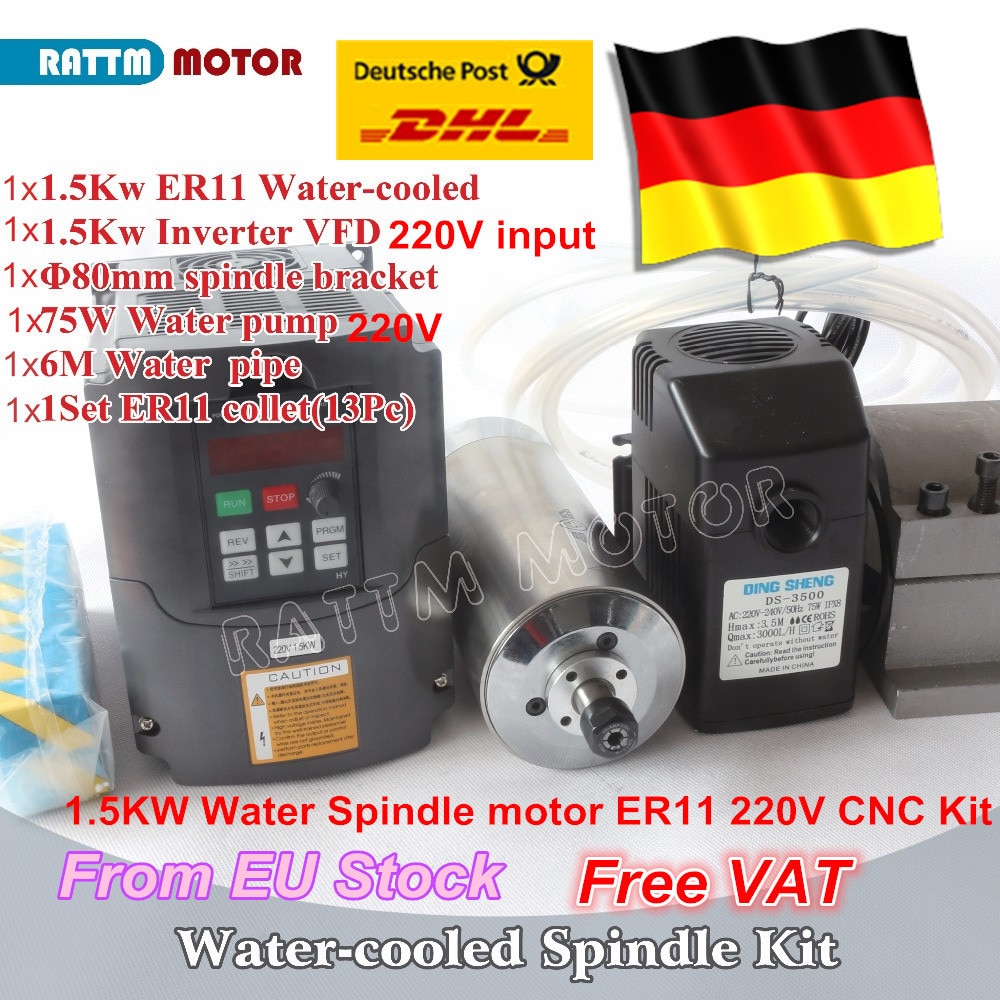

Package include:

1 x 1.5KW water-cooled spindle motor (ER11,400Hz,24000rpm,4 bearing) ( EU deliver 220V type, USA deliver 110V type , follow your choice )

1 x 1.5KW Inverter VFD 2HP 220V or 110V in USA

1 x 80mm cast aluminium bracket

1 x 75mm Water pump 220V or 110V in USA

5M water pipes as free as gift

1 set ER11 collet (1~7mm)13Pcs

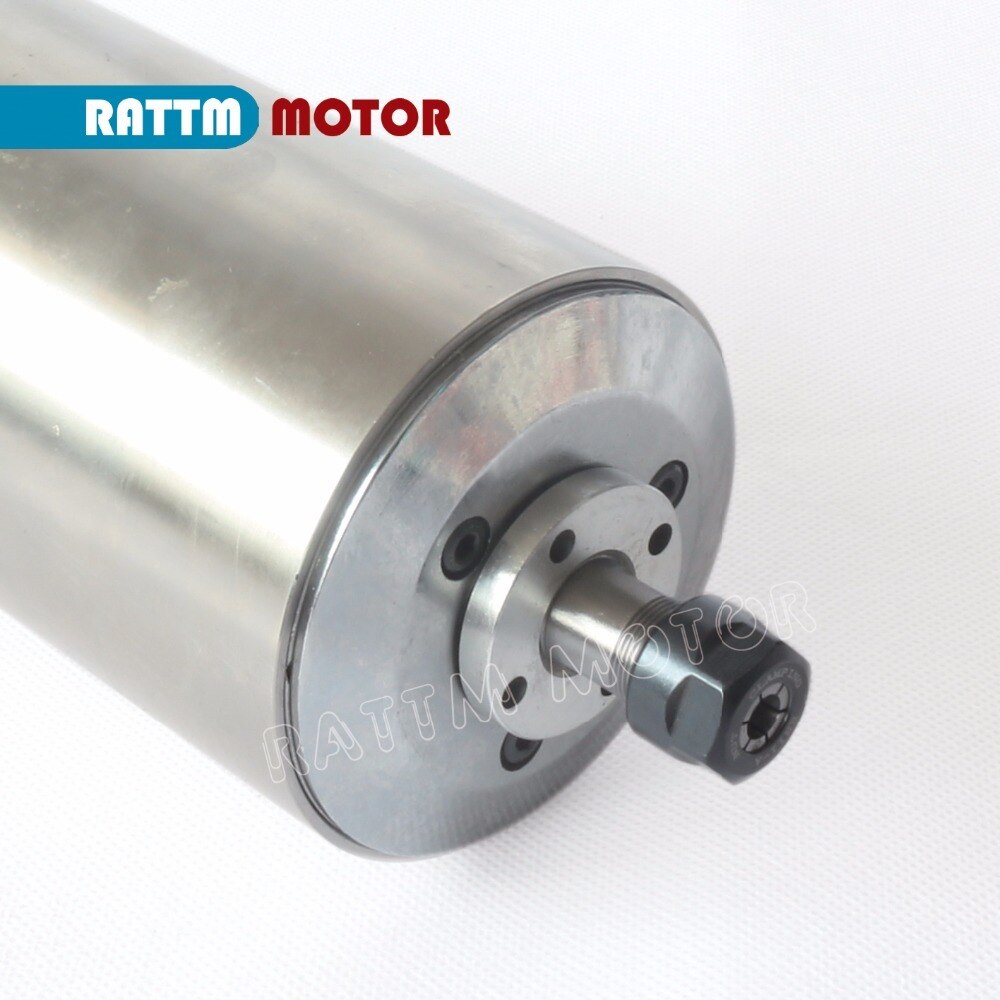

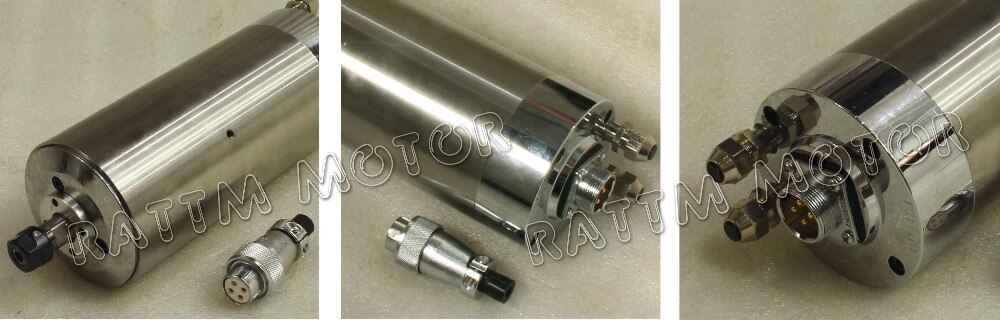

1.5KW WATER-COOLED SPINDLE MOTOR ENGRAVING MILLING GRIND

Power: 1.5Kw

Voltage: 220VAC

Current: 6A

Frequency: 400Hz

Speed: 24000rpm

Cooling: Water-cooled

Accuracy: 0.003--0.005

Runout off: Less than 0.01mm

Bearing Lubrication: Grease

Collet size:ER11

Bearings: 3 bearings (C7002x3),P4 class, Angular contact bearings

Net Weight: 4.1kg

Main application: Wood, Aluminum, Stone, metal, glass, PVC industry

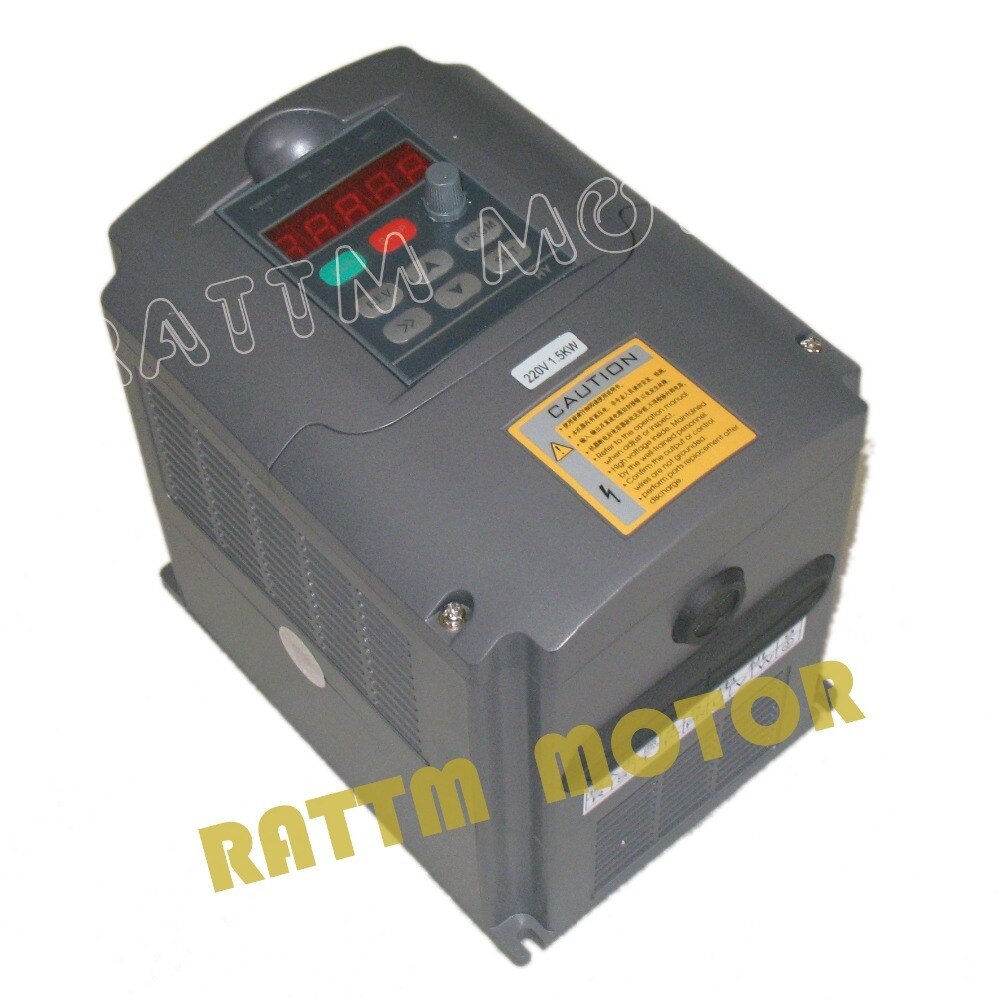

2. 1.5 kw Inverter VFD 220V input with 220V output

Tech parameters:

1) Input Voltage: 220V(+/-15%) ,We also stock 380V(+/-15%), please contact us for item stock.
2) Output Voltage 208Vac-240VAC
3) Input Frequency: 48-63 Hz
4) Output Frequency: 0-400 Hz
5) Input Phase: 1 or 3 phase
6) Output Phase: 3 phase
7) Warranty: 1 year from the date you purchased

Advantage:

1) Control mode is SPWM,it is very easy to use and convenient;

2) Protection functions are very strong;

3) Fin over-heat protection;

4) Overload protection;

5) Fuse protection;

6) Restart after instant stop,stall protection;

7) Powful function;

8) Reliable quality.



ProductFeature:

1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

2)Easy PLC function can realize 16 legs of speed and inverter control function;

3)RS485 communication port, adopting standard international MODBUS main circuit control;

4)With extremely strong anti-jamming capability

5)Low output ratting torque0.5HZ-150%, low speed running ability;

6)Carrier adjustable by 16KHZ, completely soundless working environment;

7)Broad voltage working area, normal running in 304V-456V;

8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

10)With perfect error protection and short circuit starting protection capability;

3. 80mm cast aluminium bracket

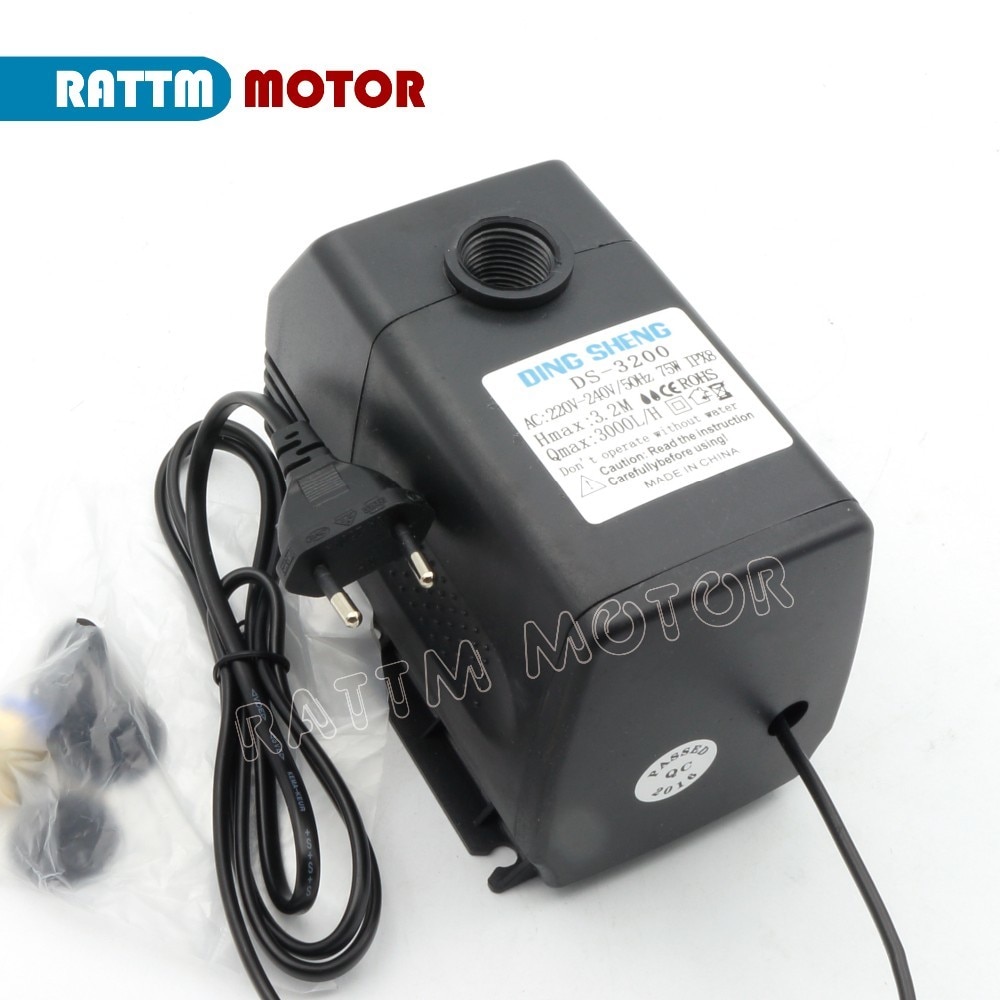

4. 75W CNC spindle motor water pump 3.2m 220VAC

Specification:

Pump length:3.2m

Voltage:220-240VAC

Power:75W

Flow:3000L/H

Size:150x80x140mm

Water nozzle diameter:6mm

Application: fit for 0.8kw,1.5kw,2.2kw,3kw,water cooled spindle even 4kw and 5.5kw too

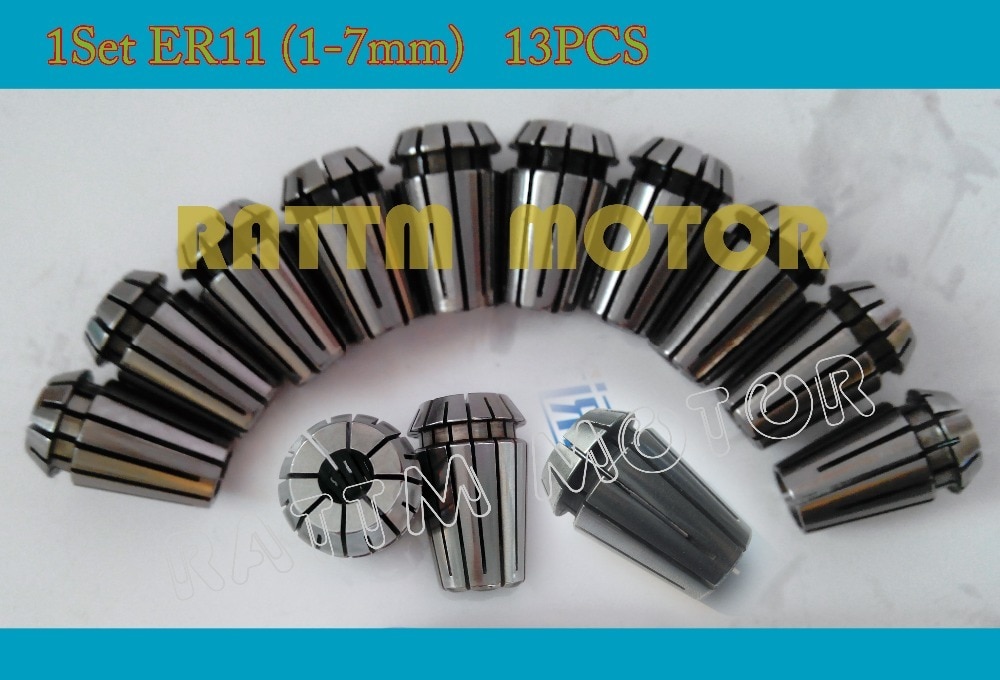

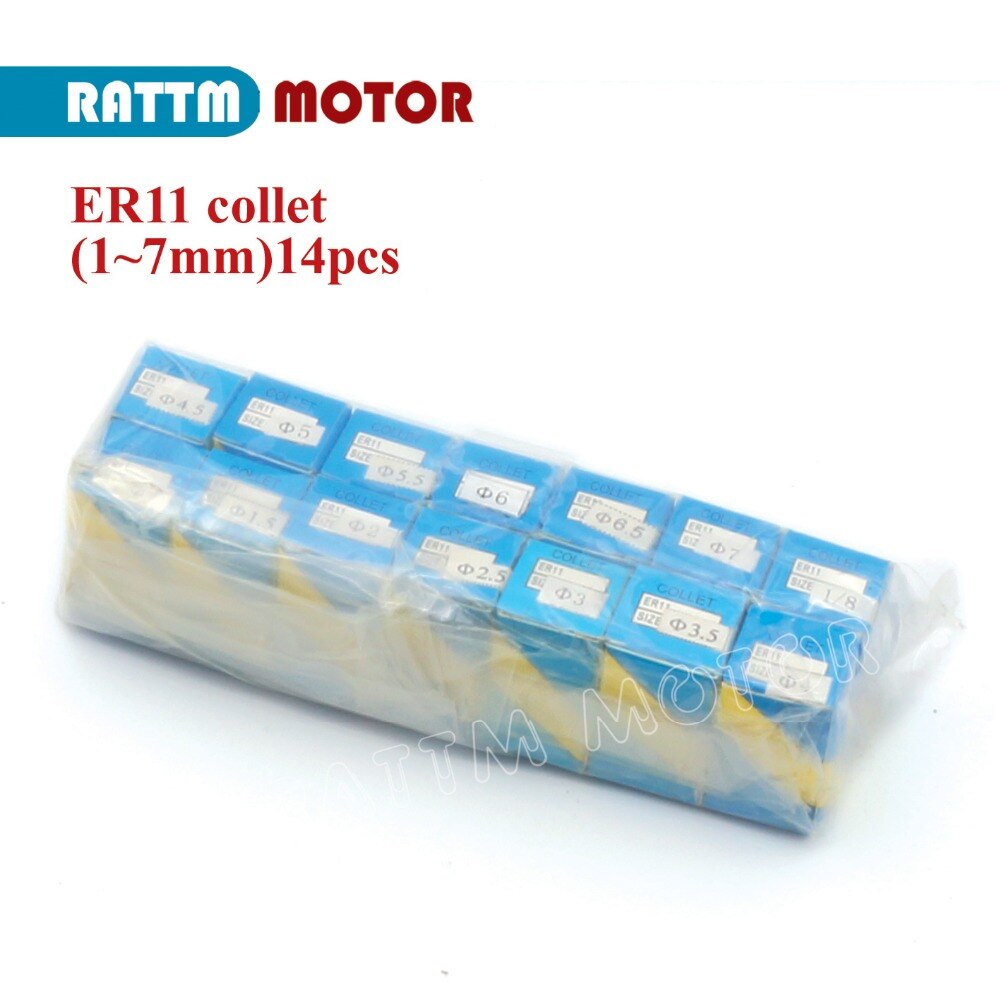

5.ER11 spring collet:

Product Description

Out dia (D1):11.5mm

Height (H):18mm

Hole dia (D2):1-7mm

Run-out tolerance 0.1mm (0.006")
First class 1065 carbon steel
Hardened & precision ground



Shipping

===================================================================

Item will ship within 2-4 business days on payment received

We are not responsible for wrong or undeliverable address,please

Double check your address when you write in Hogaki, if you want change before we ship out.pls notice us the new address.

Delivery time :

By China post Air Mail: 45-60 days or more

By China poat air parcel :35-45 or more

By EMS :25-30 days Brazil need 50days or more

By DHL/FEDEX :3-8 days

If the order is during the weekends,it will take 2 days longer,we are not responsible for any delay of order if we have shipped out,because the speed of shipping is out our control, thanks for your understanding.

Payment

===================================================================

1.Before purchasing, pls confirm details with us if you have request on items.

2.Pls make payment within 3 days of the order if possible.

3.Alipay(escrow),Credit Card,Western Union,Bank TT, paypal etc are accepted.


Problem & Feedback

===================================================================

We appreciate your positive feedback and 5 stars,this item is for getting feedback rating only without any profit

If you give us the feedback after receive the goods within 3 days,will be presented the next time you purchase a beautiful gift.

1.)we care about our valued customers,and will always try to help you,hope to establish long business with you.

2.)Pls give us the opportunity to resolve any problem, we understand the concerns and frustrations you might have,and will try our best to resolve the issues.

3.)Pls contact us by Trademanager or email before leaving any negative feedback or opening any dispute on the site,we will help you to resolve the problem,


Refund

===================================================================

Any reason required for all refund. Item must be in it's original condition and no physical damage,buyer responsible for all shipping cost.

When you have the parcel,and not satisfied the goods or it is other problem like as broken,pls tell us the detail reason and provide the photos.


Contact us

===================================================================

Welcome worldwide customer inquire and questions,we will try to do our best to feedback customer’s email within 1-2 business days,if not pls check the mail box again.

Customer’s satisfaction is very important to us.



  • Operating Speed: 24000rpm
  • Maximum Torque: None
  • Application: Milling
  • Model Number: 1.5 KW Spindle & VFD
  • Drive: Motor
  • Certification: CE
  • Origin: Mainland China
  • Cooling: Water cooled
  • Size: 80x188mm
  • Power: 1.5KW
  • Lubrication: Grease
  • Bearing: 3pcs(c7002x3)
  • Frequency: 400Hz
  • Collet: ER11 (1-7mm)
  • Voltage: 220V/110V
  • Water pump: 75W
  • Place of Origin: Jiangsu, China (Mainland)
