1.5KW/2.2KW Water Cooled Spindle + 110V/220V Inverter + 65/80mm Clamp + Water Pump/5m Pipe + 13pcs ER20/ER11 for CNC Wood Router
4.9 (15 votes) | 94 orders
Price:
US $738.92 - 1105.72
/ piece
Discount Price:
US $
609.82 -
862.92
/ piece
-17%

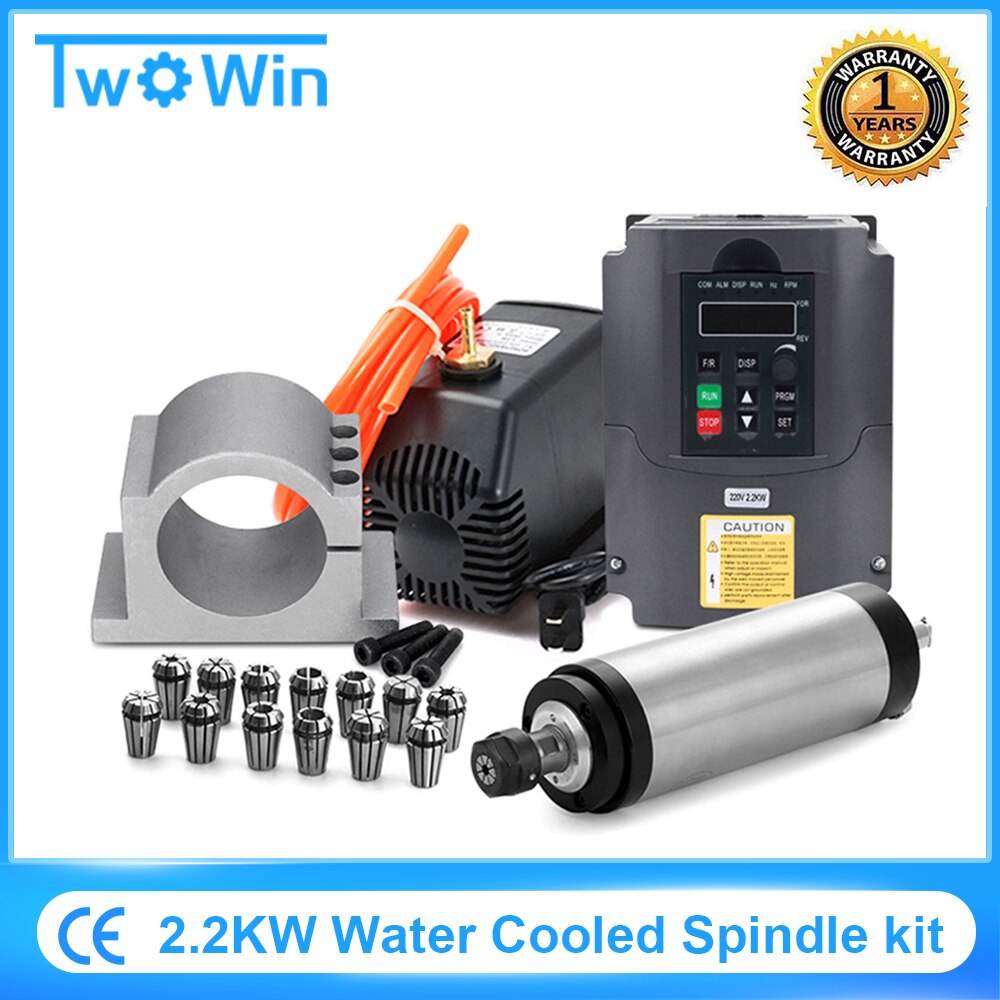

1.5KW/2.2KW Water Cooled Spindle + 110V/220V Inverter + 65/80mm Clamp + Water Pump/5m Pipe + 13pcs ER20/ER11 for CNC Wood Router
Packages include:
2.2kw set:
1 x 2.2KW CNC Water Cooled Spindle
1 x 2.2KW VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 80mm Spindle Clamp
13 x ER20 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

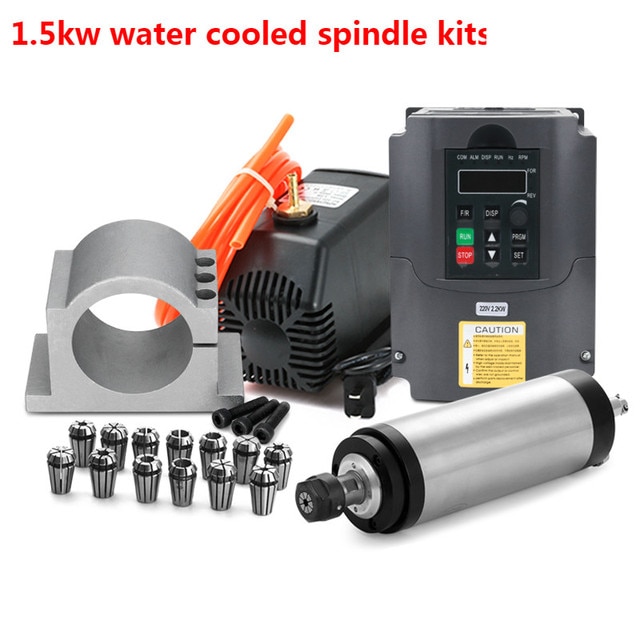

1.5kw set:
1 x 1.5KW CNC Water Cooled Spindle
1 x 1.5KW VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 65mm Spindle Clamp
13 x ER11 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
Feature:

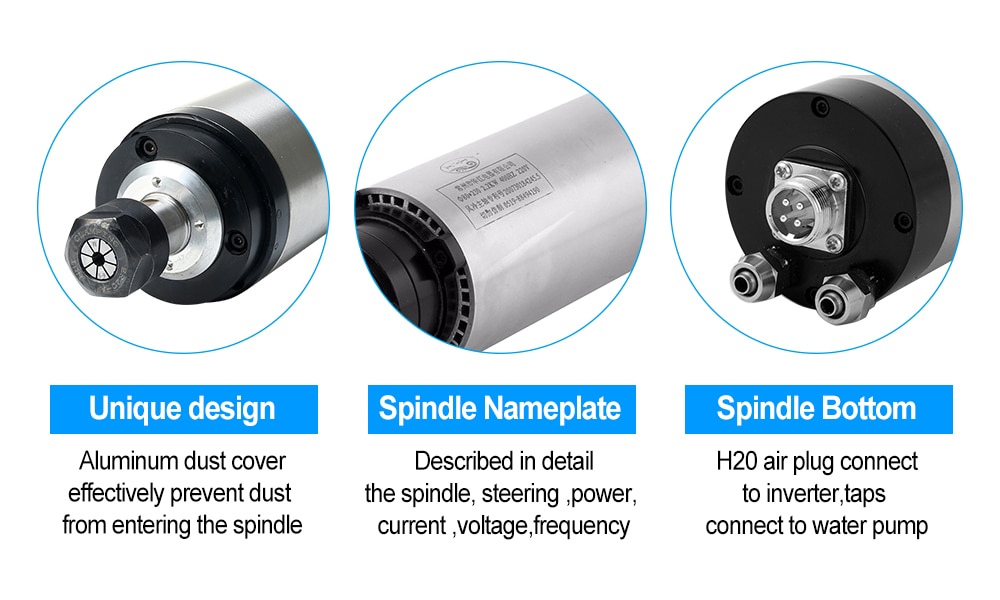

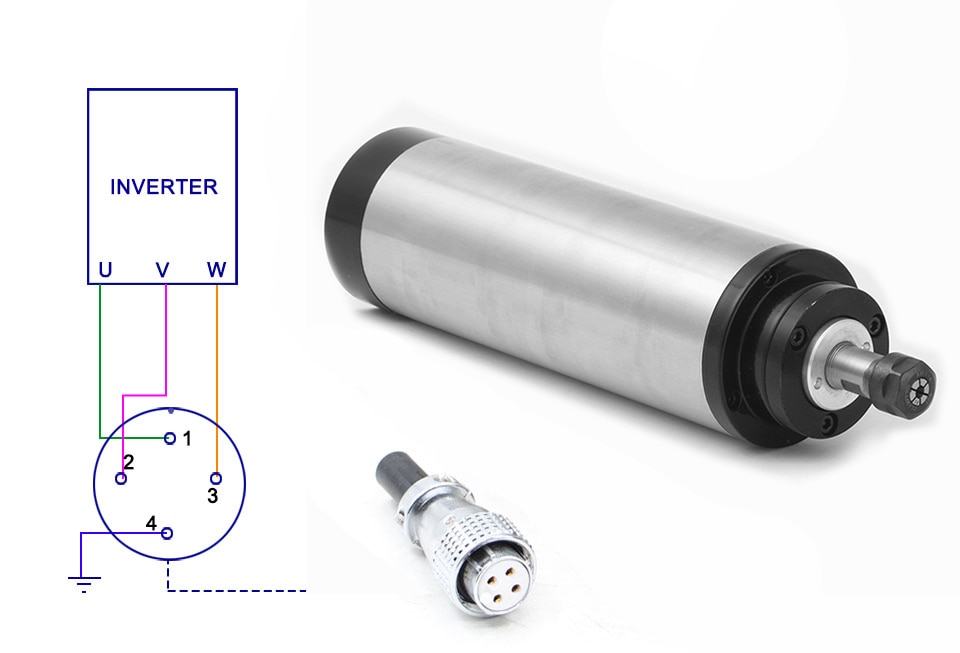

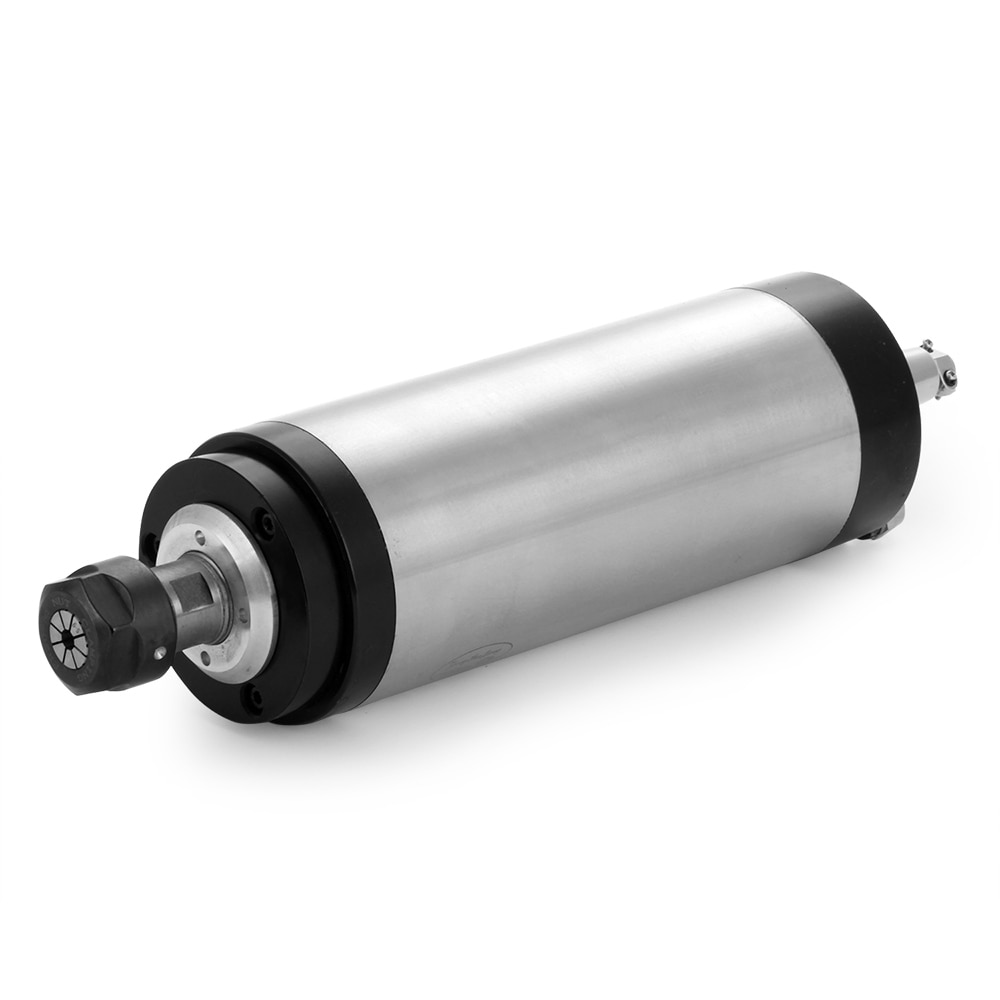

1. CNC Spindle Motor
Size:65mm(1.5kw) / 80mm (2.2kw)
Power:1.5KW / 2.2KW
Voltage:110V / 220V (Automatically match different countries）
Frequency:0-400Hz
Speed:0-24000rpm
Water Cooling：ER11 /ER20 collet
Runout off: less than 0.1mm
Grease Lubrication
Bearing:4pcs Bearing C7005X2 C7002X2

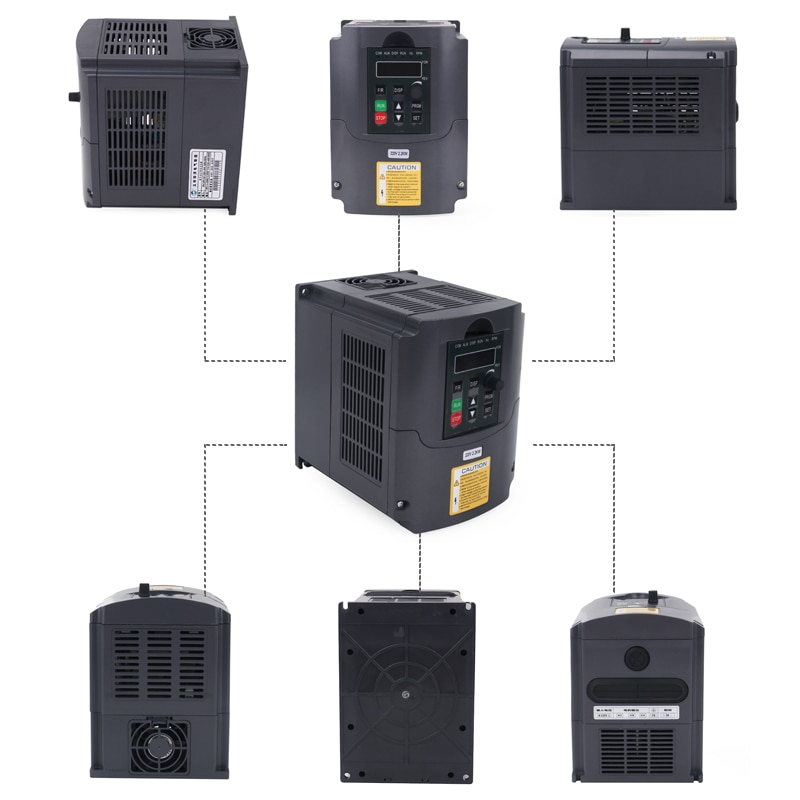

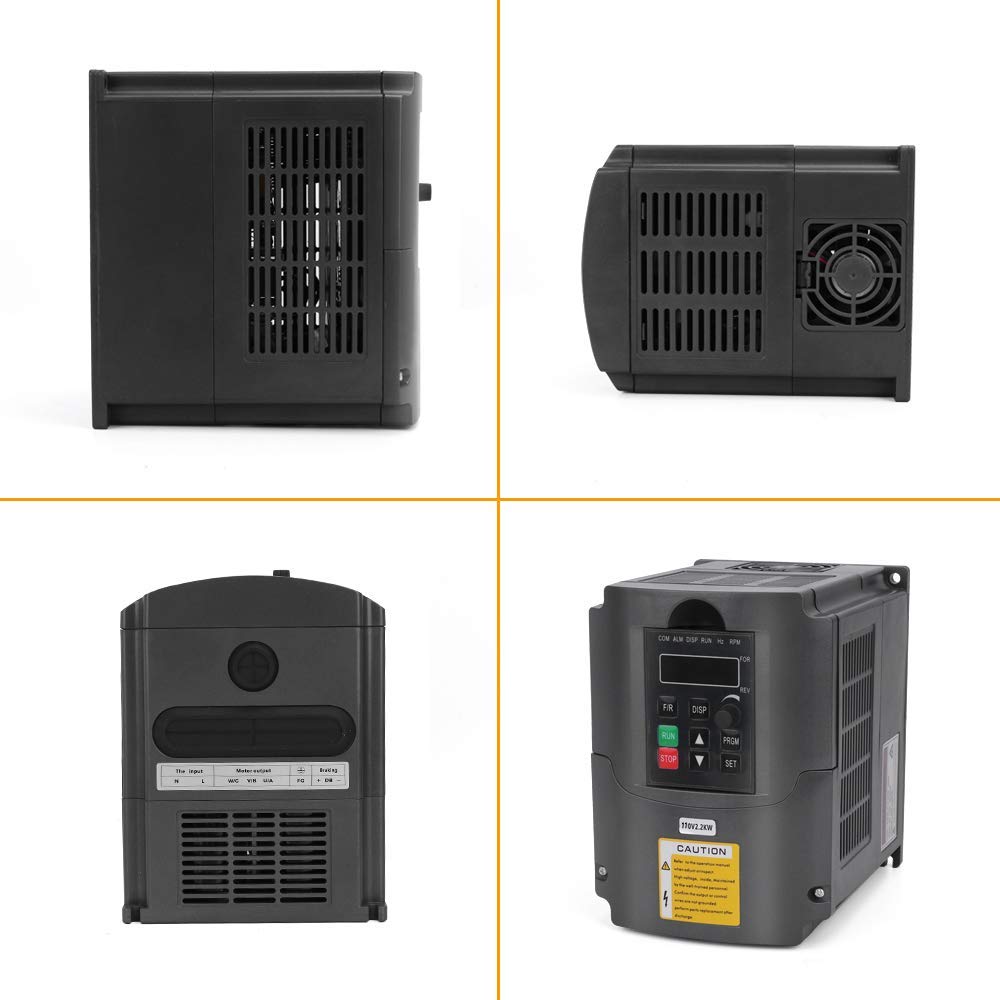

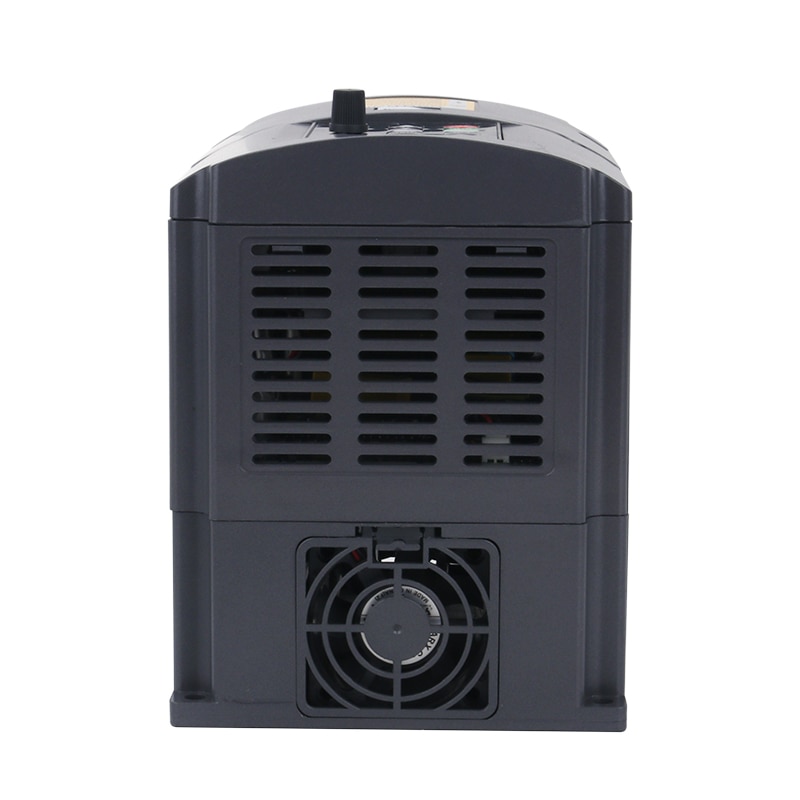

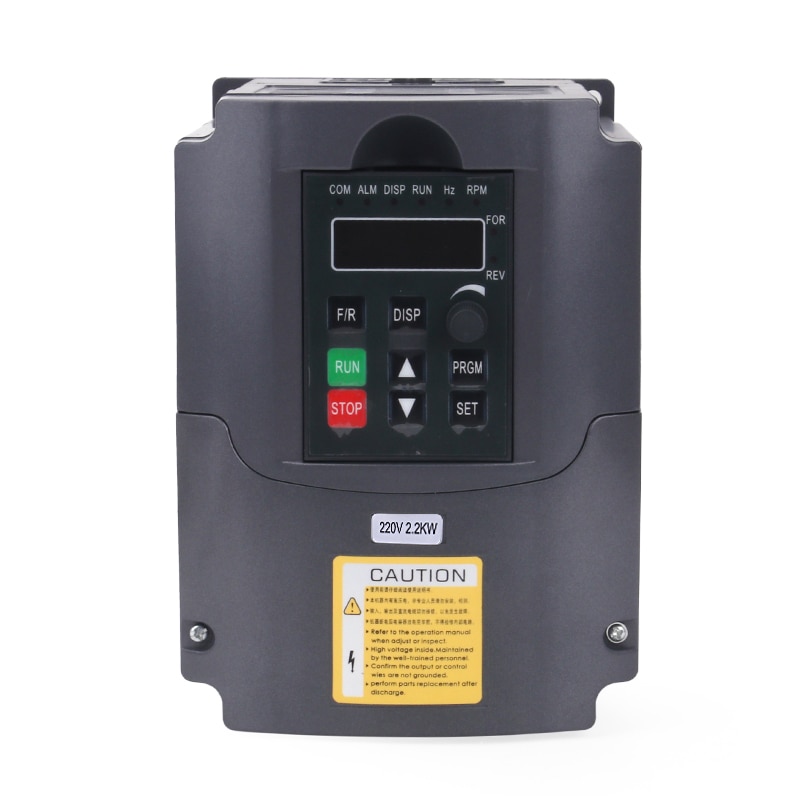

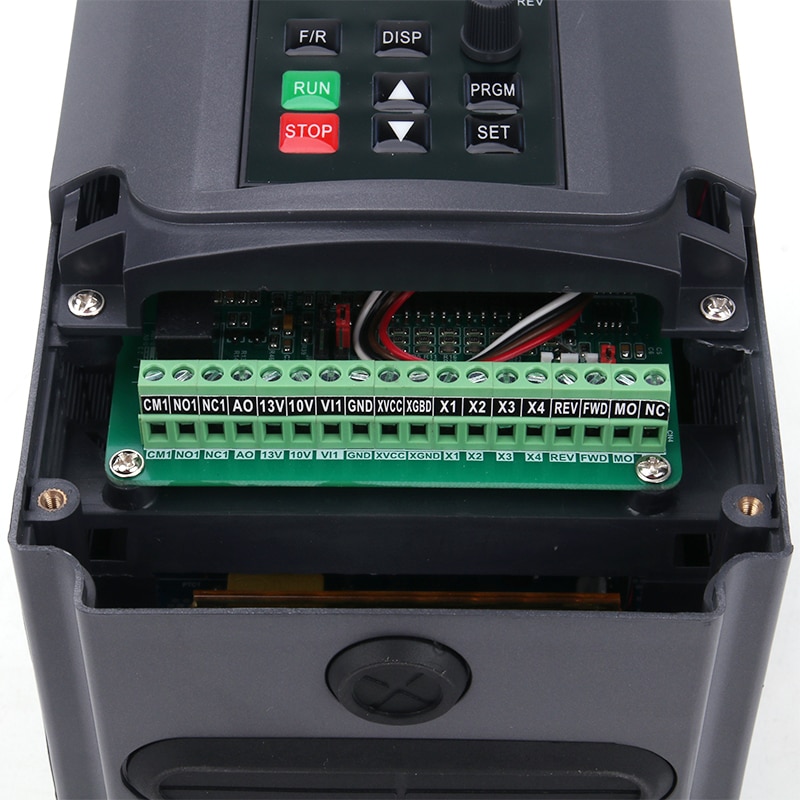

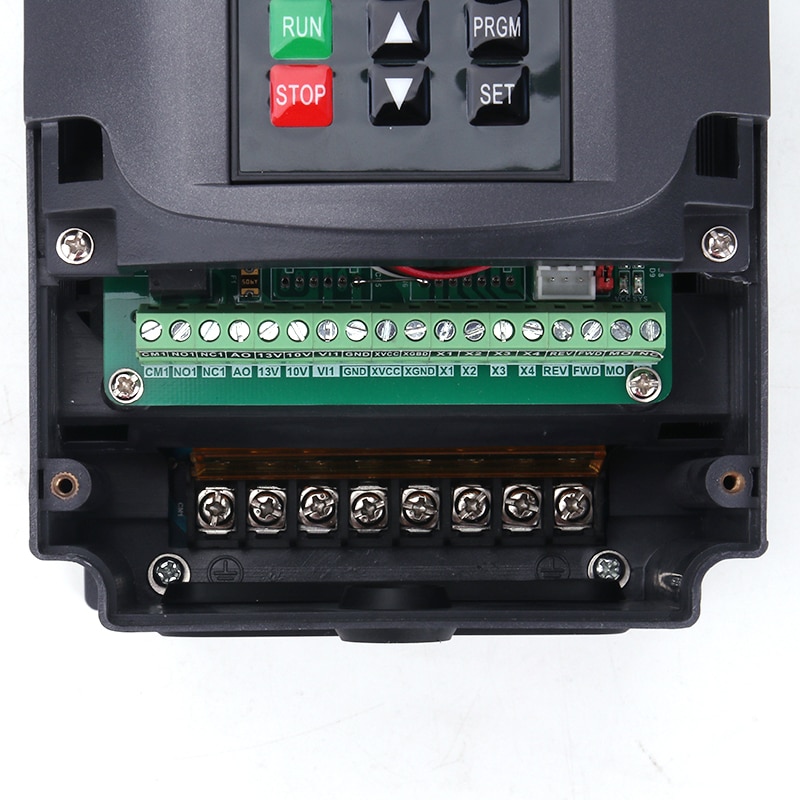

2.Inverter (Automatically match)
Type: 1.5KW-220V / 2.2KW-220V / 1.5KW-110V / 2.2KW-220V
Input: 110V/220V, AC 50Hz
Output: 0-220V / 0-110V, AC 3-phase
Frequency: 0-400Hz
the parameter of the inverter is :
PD005=400
PD004=400
PD003=400
Note:If there is no problem, please do not change the parameters of the inverter.

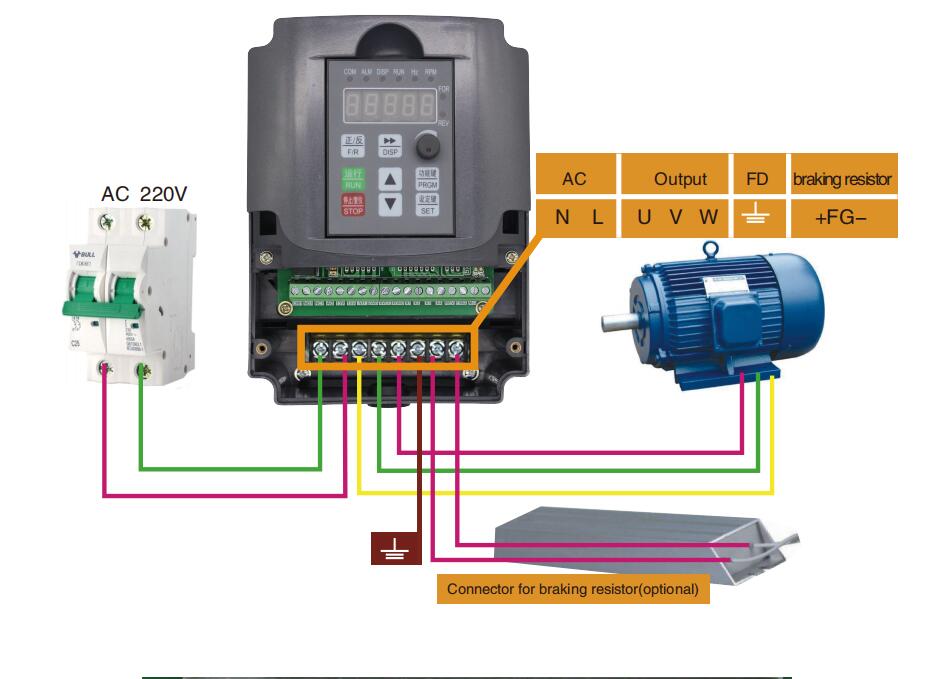

Variable Frequency Drive VFD Inverter 110V/220VAC
1)PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;
2)Easy PLC function can realize 16 legs of speed and inverter control function;
3)RS485 communication port, adopting standard international MODBUS main circuit control;
4)With extremely strong anti-jamming capability
5)Low output ratting torque0.5HZ-150%, low speed running ability;
6)Carrier adjustable by 16KHZ, completely soundless working environment;
7)Broad voltage working area, normal running in 304V-456V;
8)Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
9)Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
10)With perfect error protection and short circuit starting protection capability;

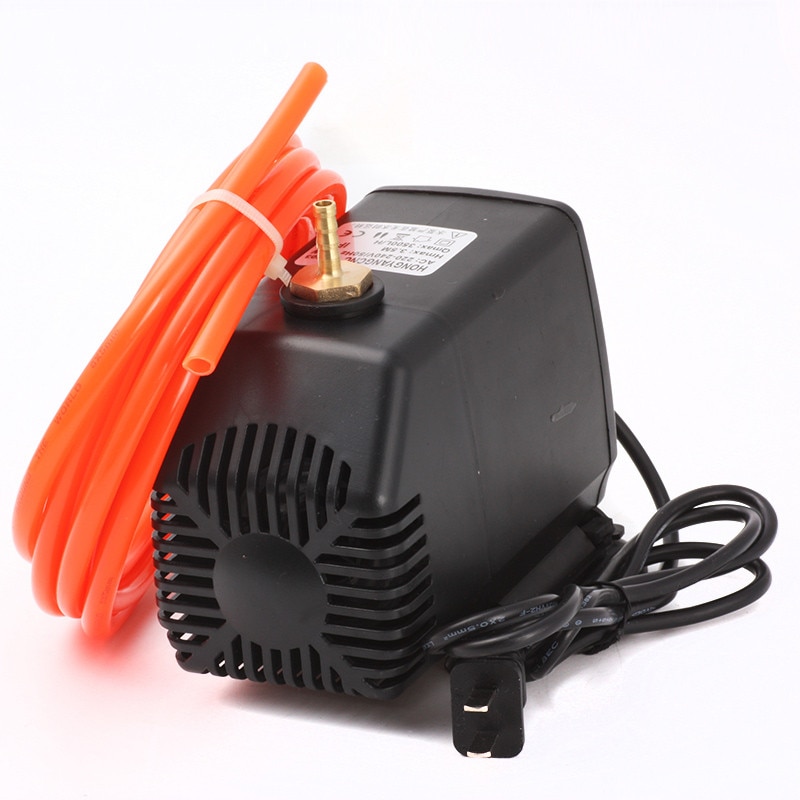

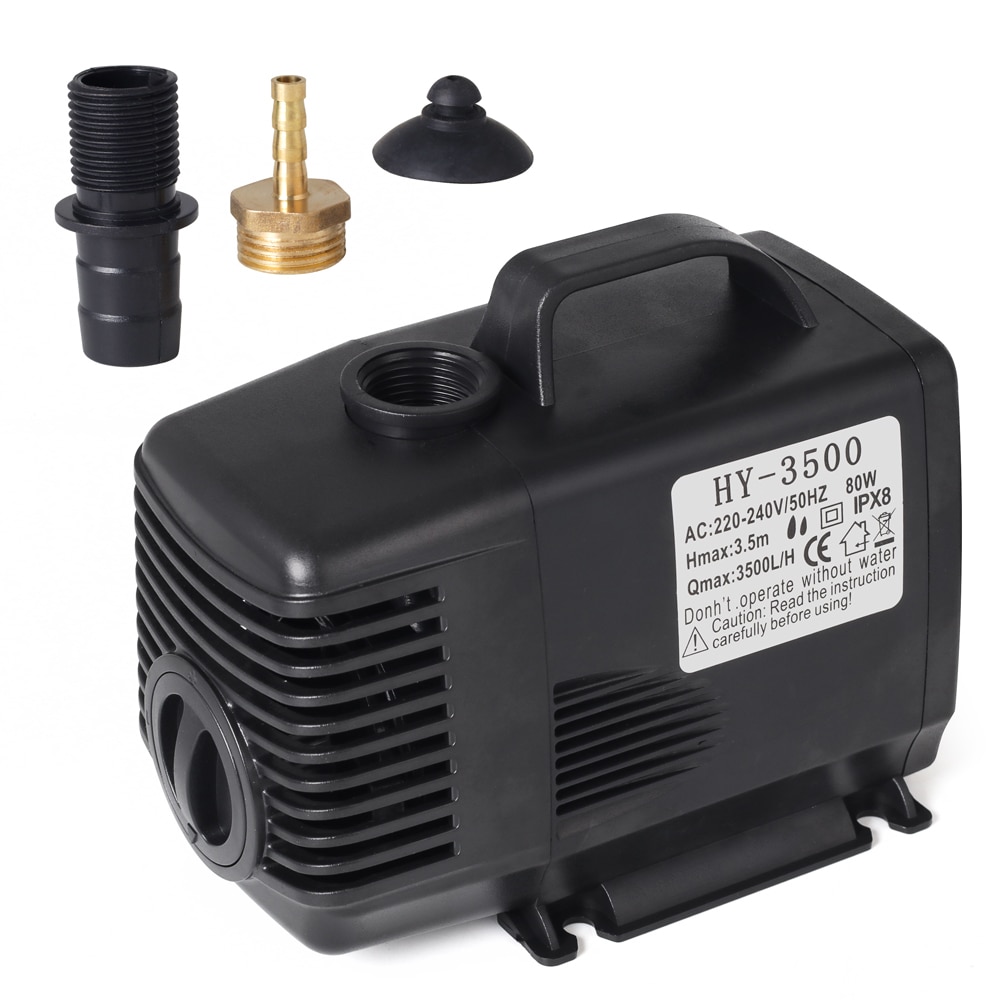

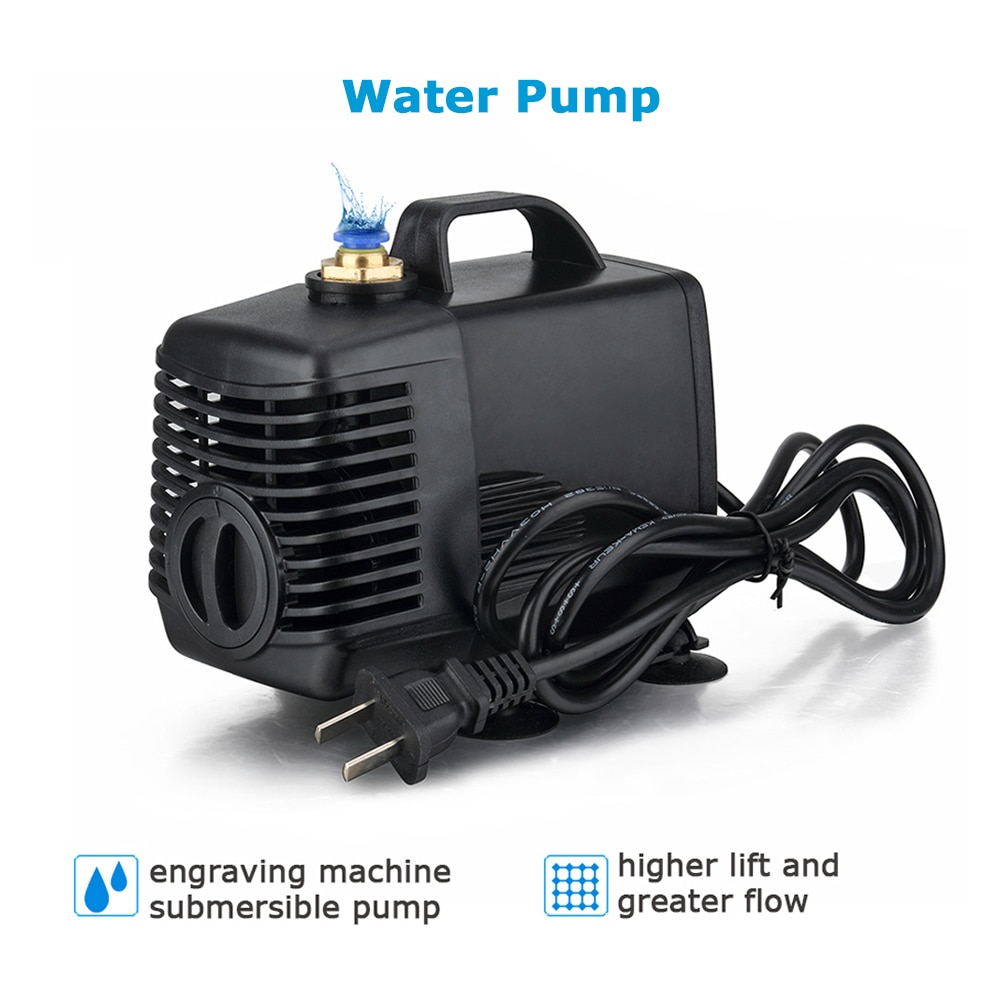

3.water pump
AC Voltage: 220v-240v/50hz
Flow: 3500L / h
Power: 80w
Qmax:3500L/H
Structure:single-stage pump
Pressure :high pressure
Don't operata without water.
Caution:read the instrution carefully before using !

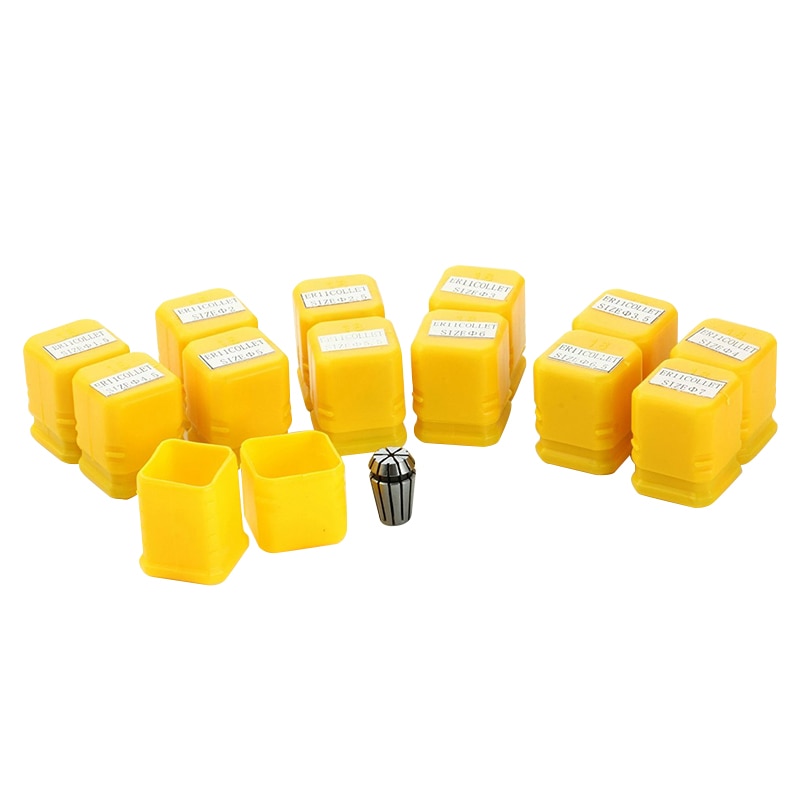

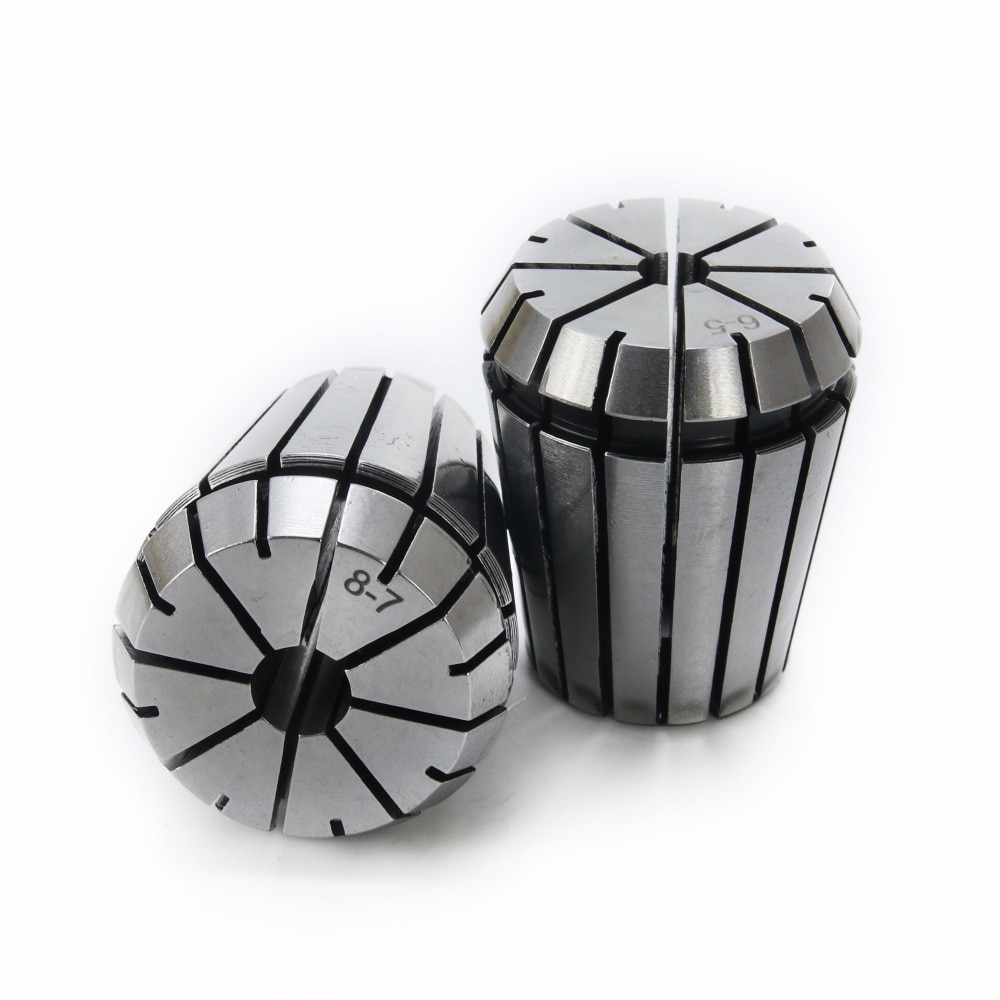

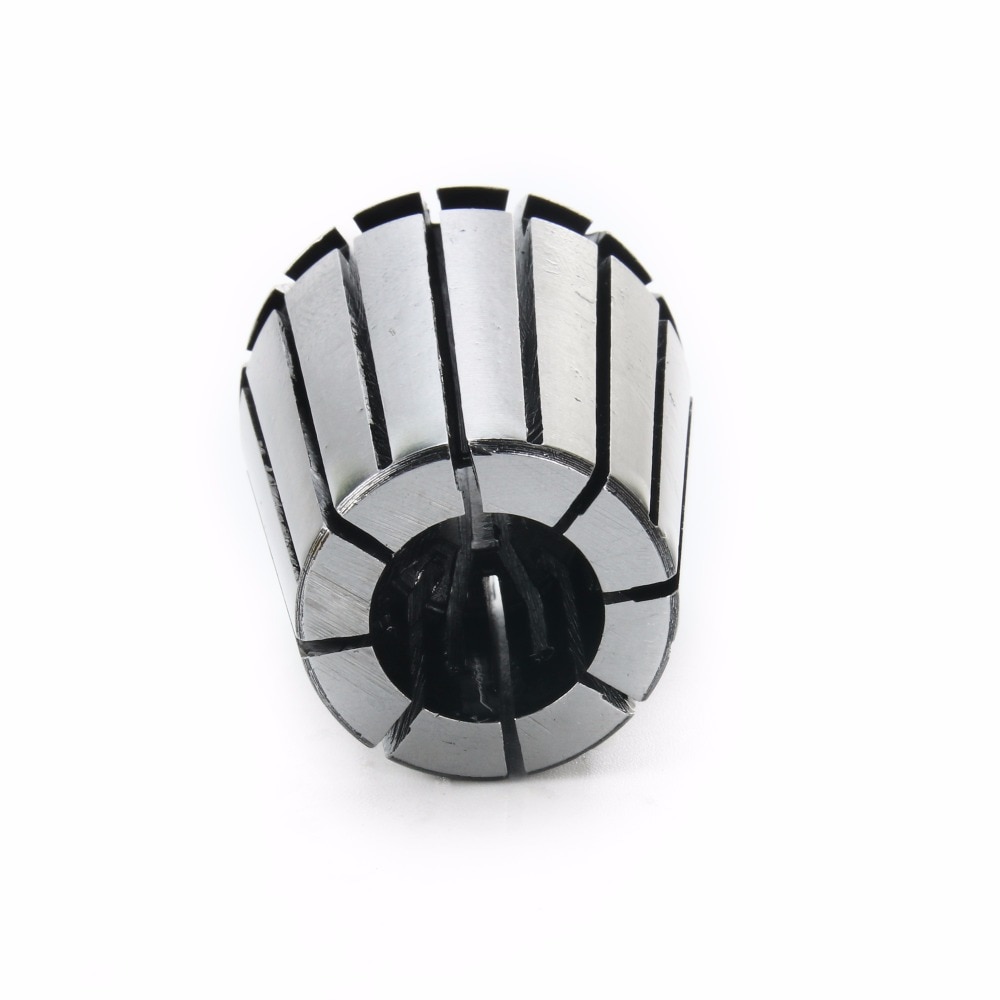

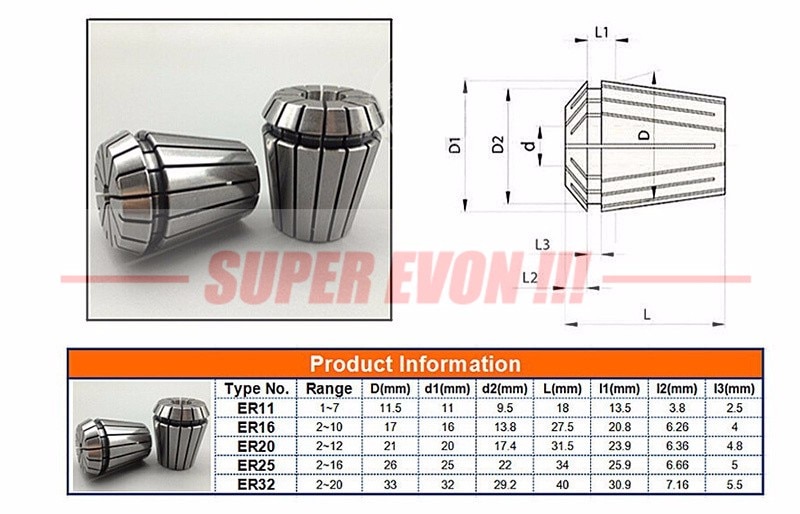

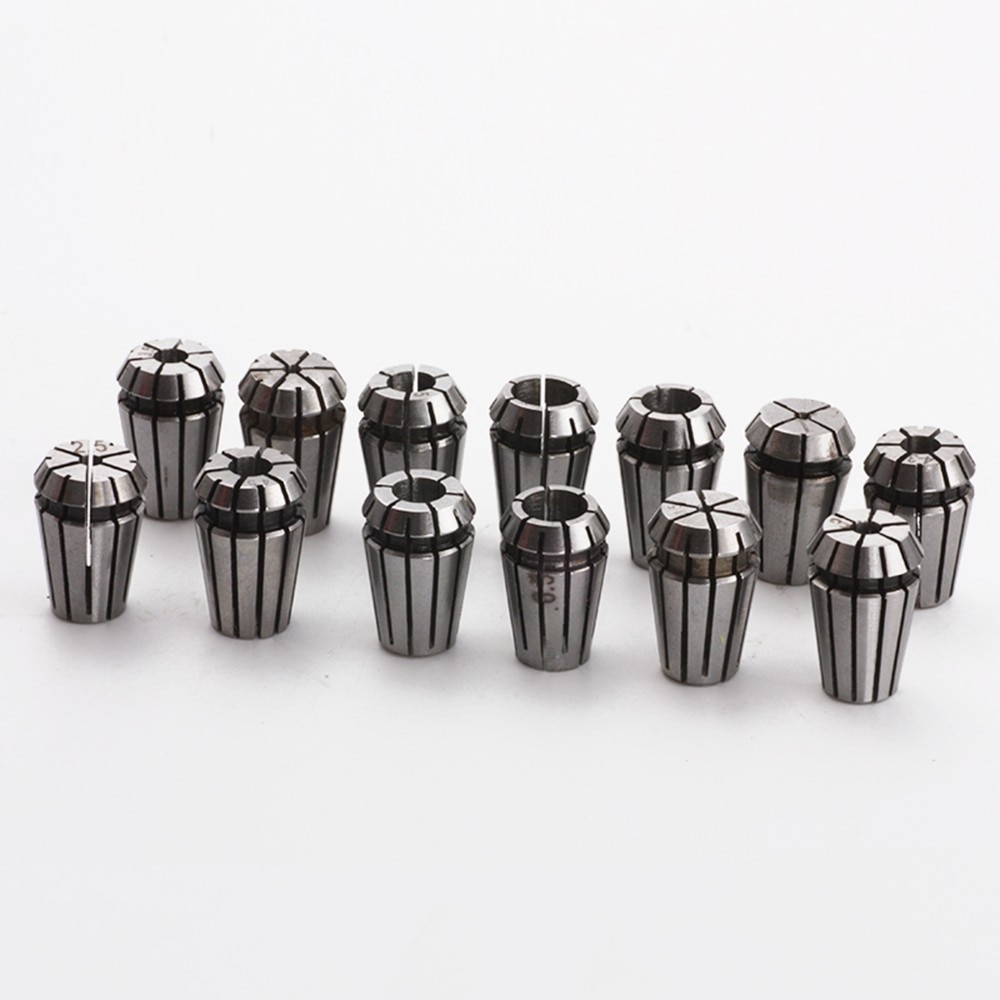

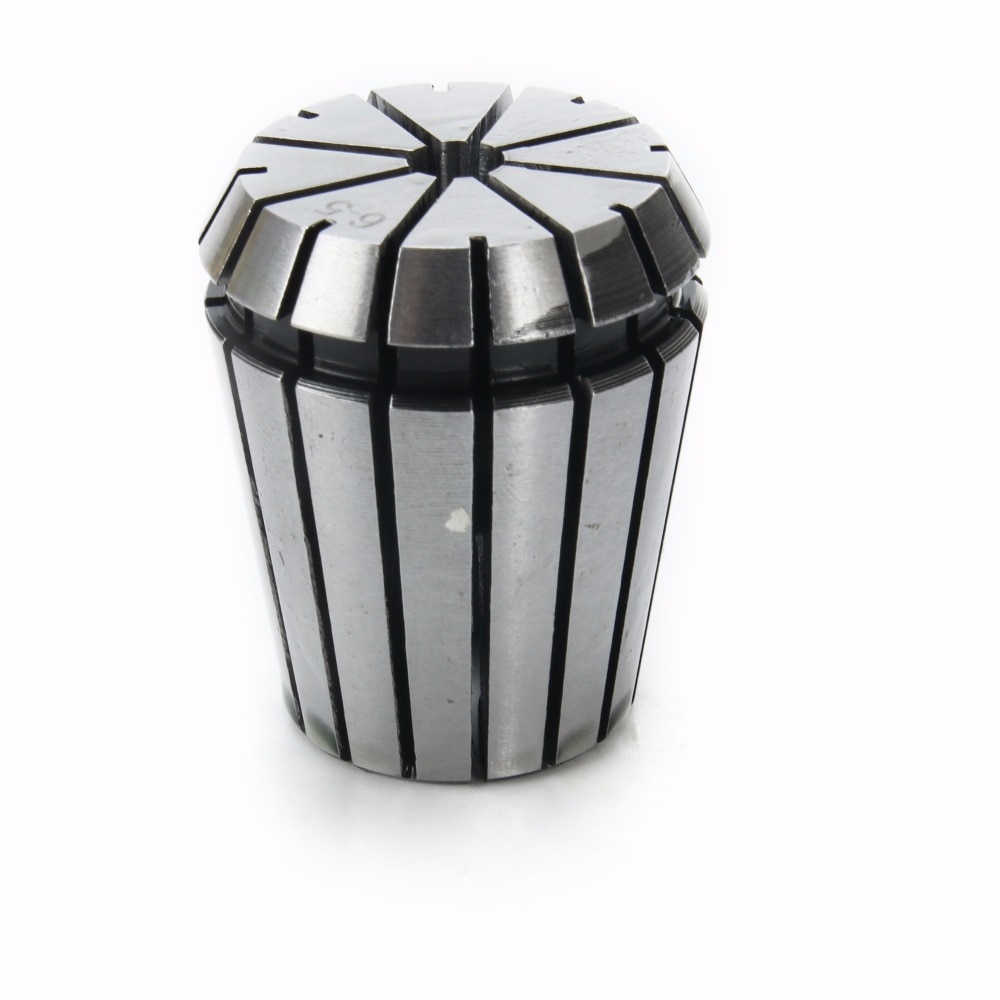

4.ER20 Collet 1 Set:
Gripping Range: 1MM to 13MM(1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

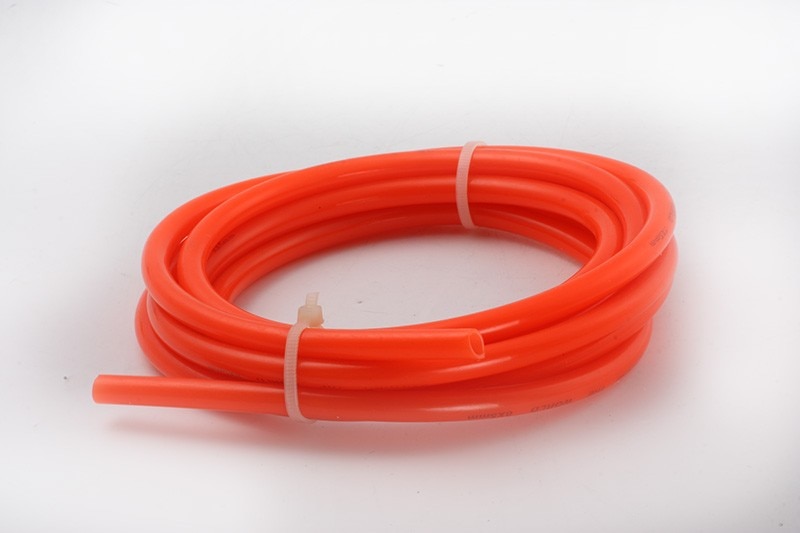

5.5M Water Pipes:
Size:5M 6mm (ID)*8mm (OD)

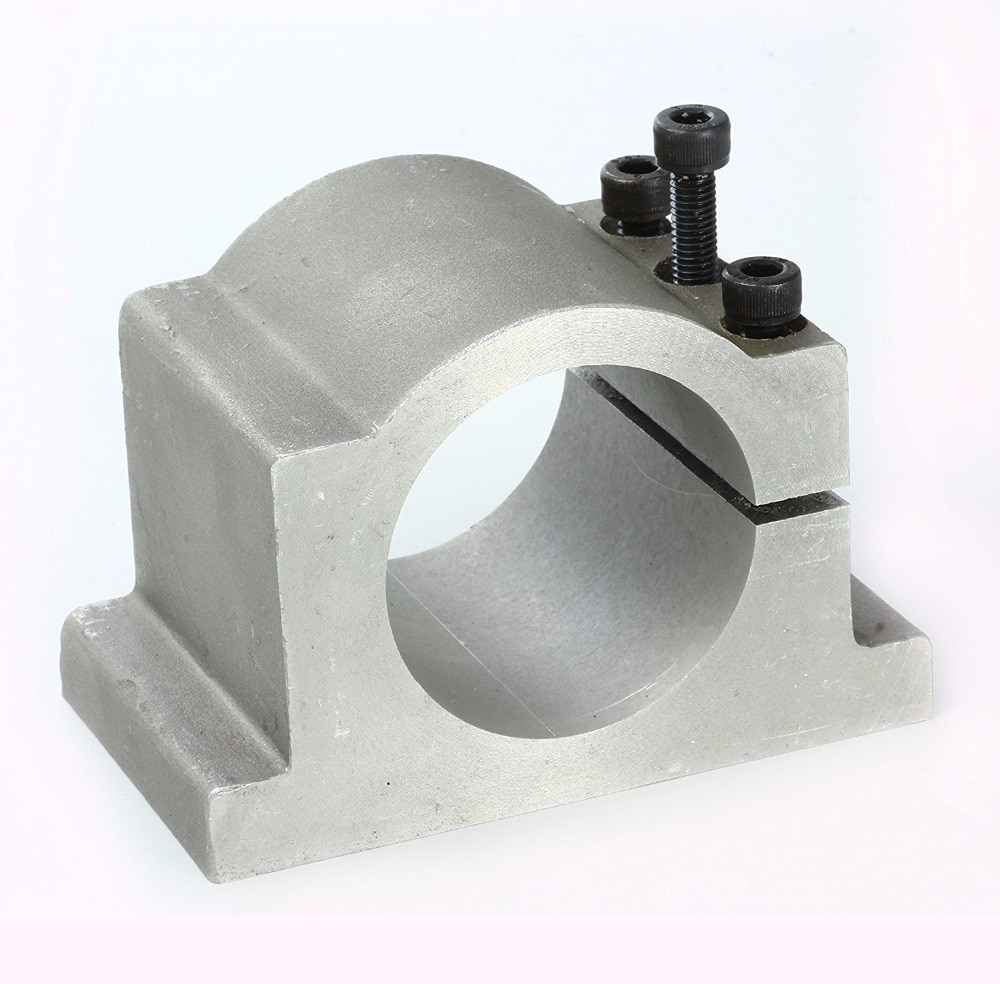

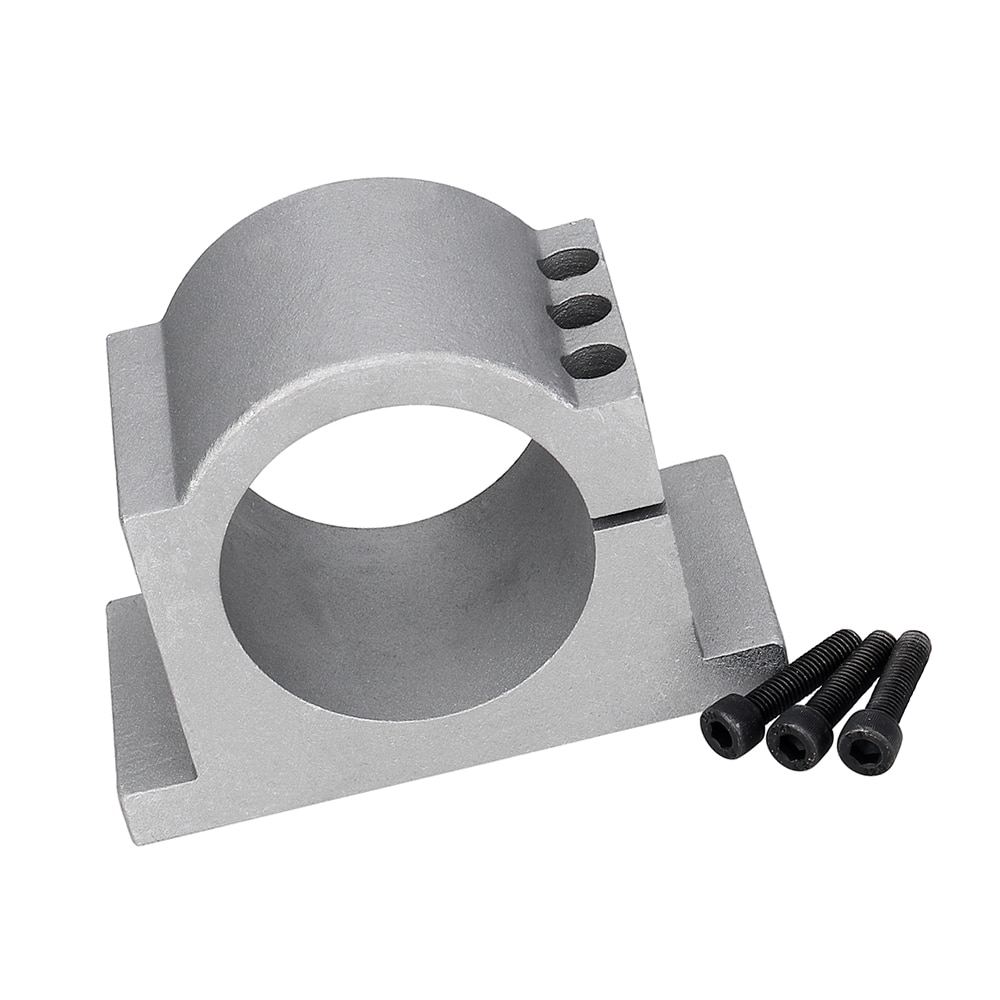

6.Spindle Motor Clamp :
Diameter: 80mm
Material: Aluminum,Surface sandblasted
Application: Wood working industry rourter, such as wood door milling engraving and cutting, furniture producing
Reminder
A new electric spindle is received to start from low speed 6000. It will increase by 3000 after every ten minutes, and it will be used normally after 24,000 revolutions. The bearing inside the new spindle needs to be preheated and run-in, remember! In order to extend the service life of the spindle, it is best to start the test run for 10-15 minutes when the spindle is used normally.
Take the 24000 rpm spindle as an example, the other speed spindles are the same.
- Operating Speed: 10-24000rpm
- Maximum Torque: --
- Application: Milling
- Model Number: 2.2kw water cooled spindle Motor kit
- Drive: Motor
- Brand Name: TwoWin
- Origin: Mainland China
- Certification: CE
