2.2KW Air cooled spindle motor ER20 4 bearings & 2.2kw Inverter VFD 3HP 220V & 80mm aluminium Clamp + 1 set ER20 collet (14pcs)
1,058.52 845.26 $
SALE
ID: 29463
Quantity
2.2kw Air-cooled Square Spindle Motor Kit 2200w Spindle +2.2kw 220V Inverter + ER20 Collet Air Spindle Motor Engraving Milling
0.0 ( votes)
Price:
US $998.46
/ piece
Discount Price:
US $
687.06
/ piece
-31%
- Color
-
-
2.2kw Air-cooled square spindle motor kit 2200w spindle +2.2kw 220V inverter + ER20 collet air spindle motor engraving milling

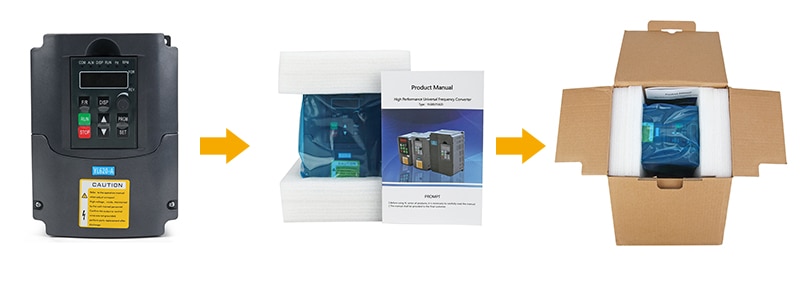

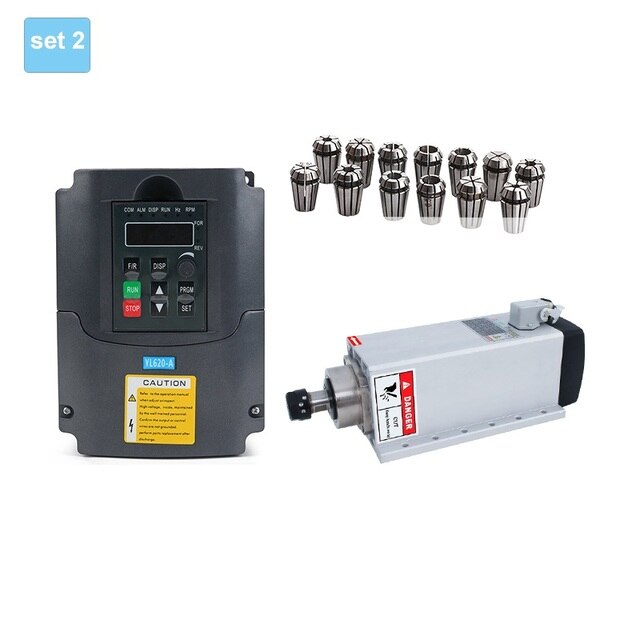

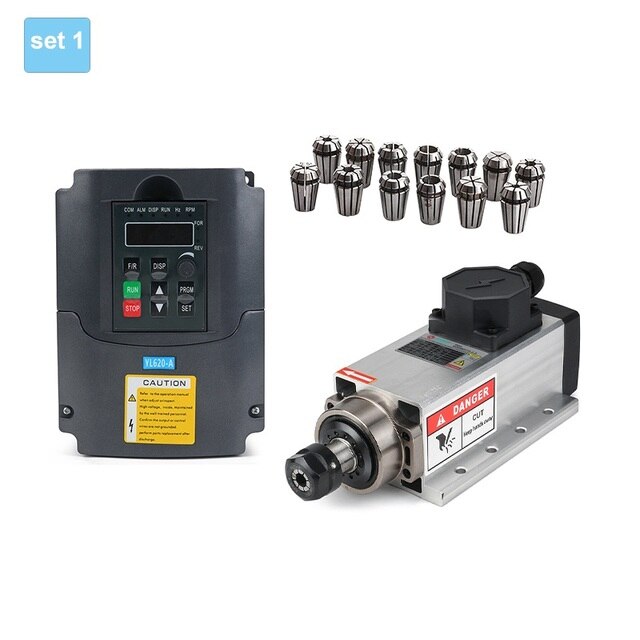

① Package include:
1 x 2.2KW Spindle Motor
1 x 2.2kw 220v Inverter
1x ER20 Collet (13pcs/set) (1mm,2mm,3mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12mm,13mm)
② Specification：

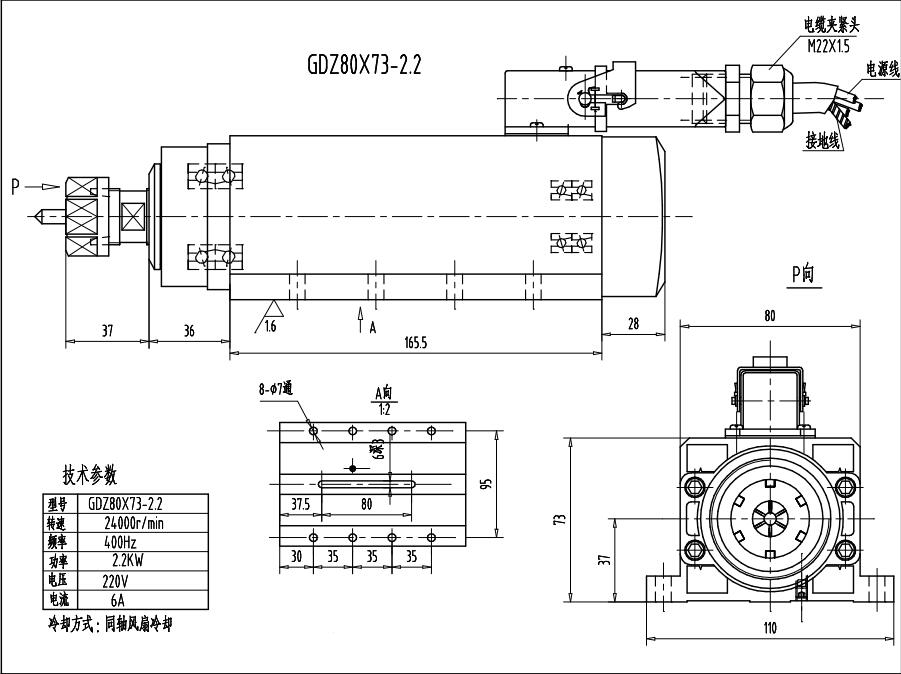

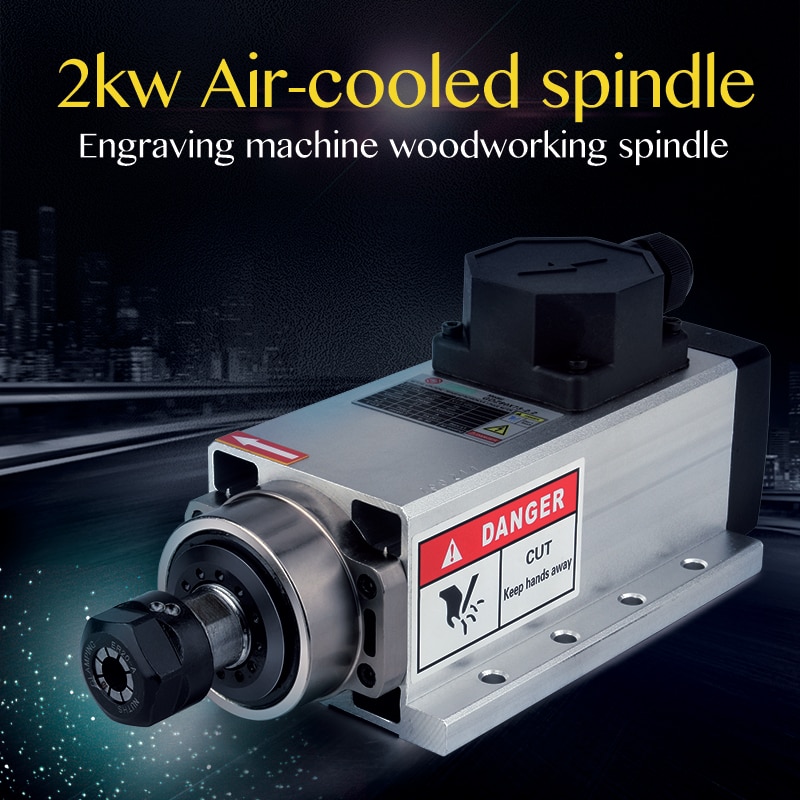

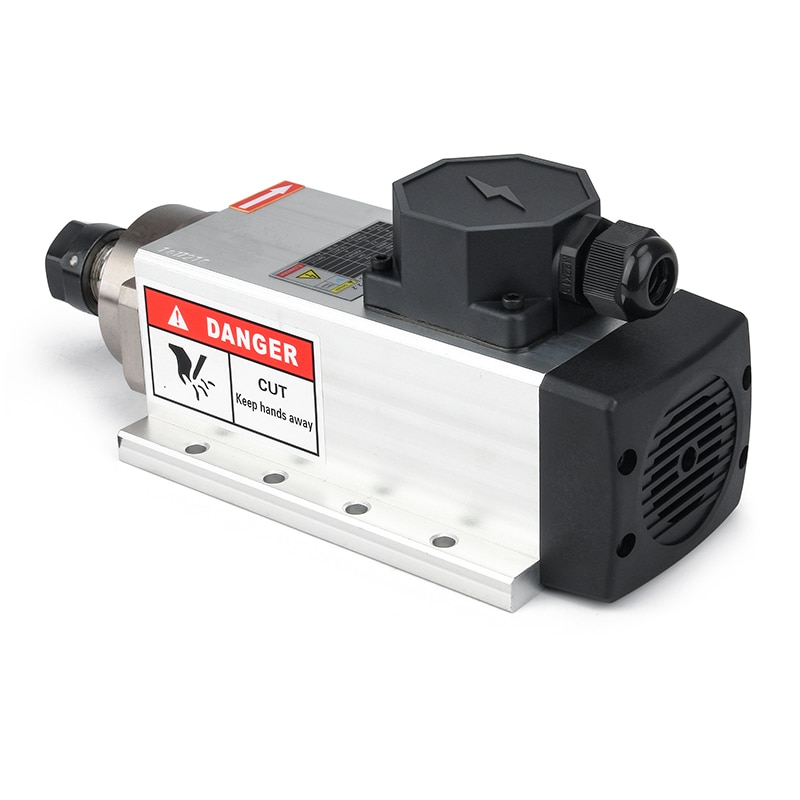

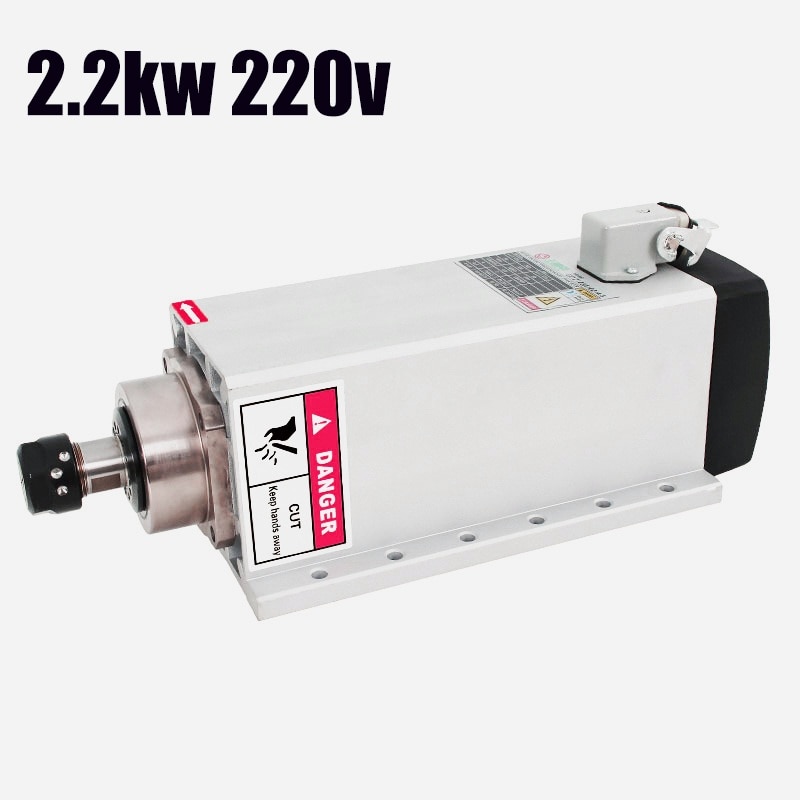

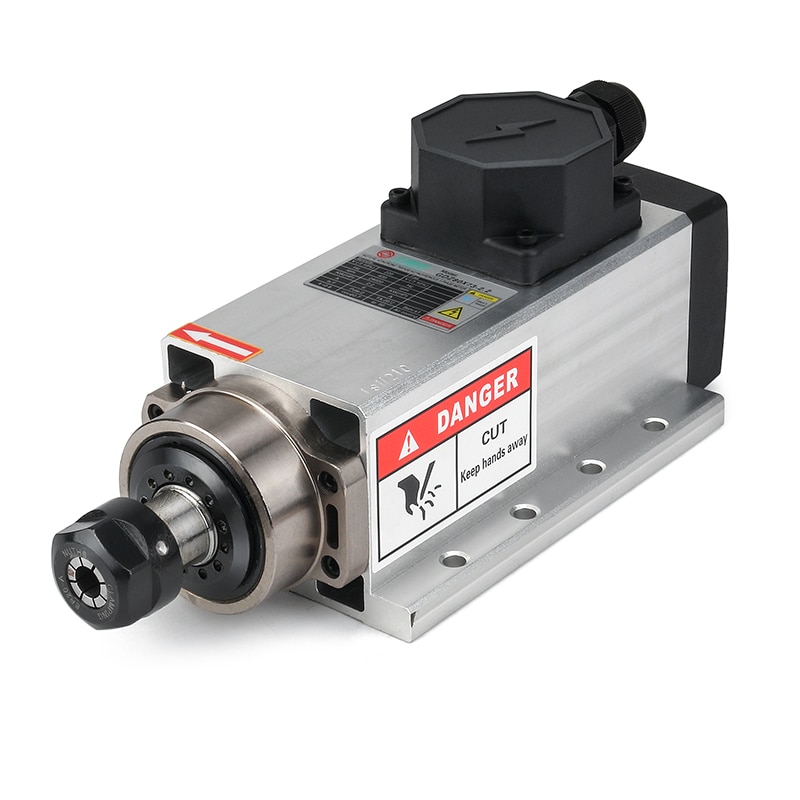

1. 2.2kw spindle
Power: 2.2KW
Voltage: 220VAC
Current:6A
Frequency:400Hz
Speed: 24000rpm
Cooling: Air cooling
Runout Off: less than 0.01mm
Collet: ER20
Bearing Lubrication: Grease

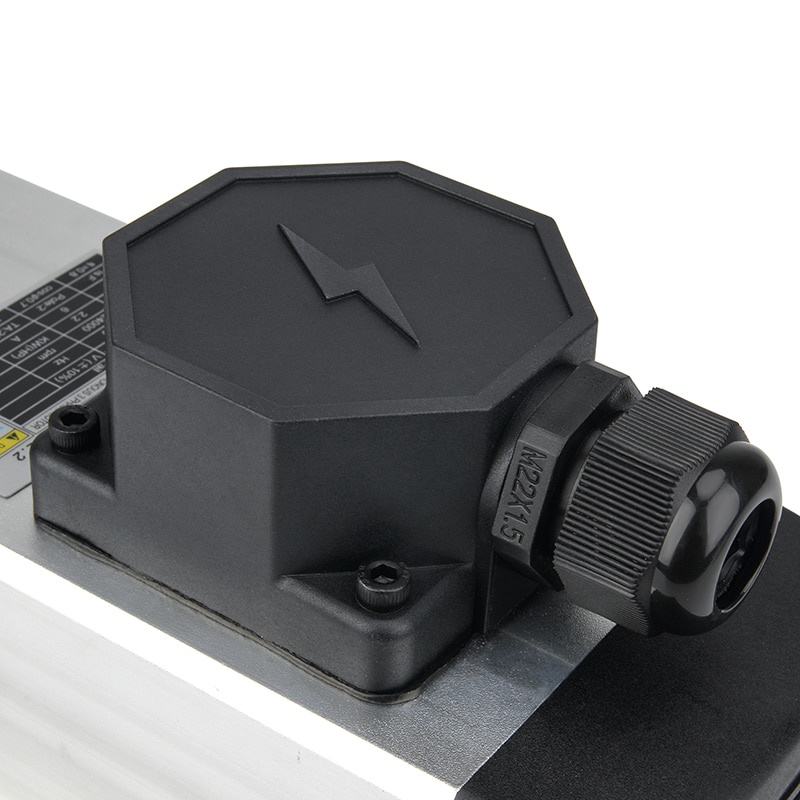

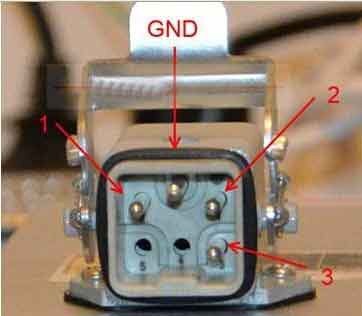

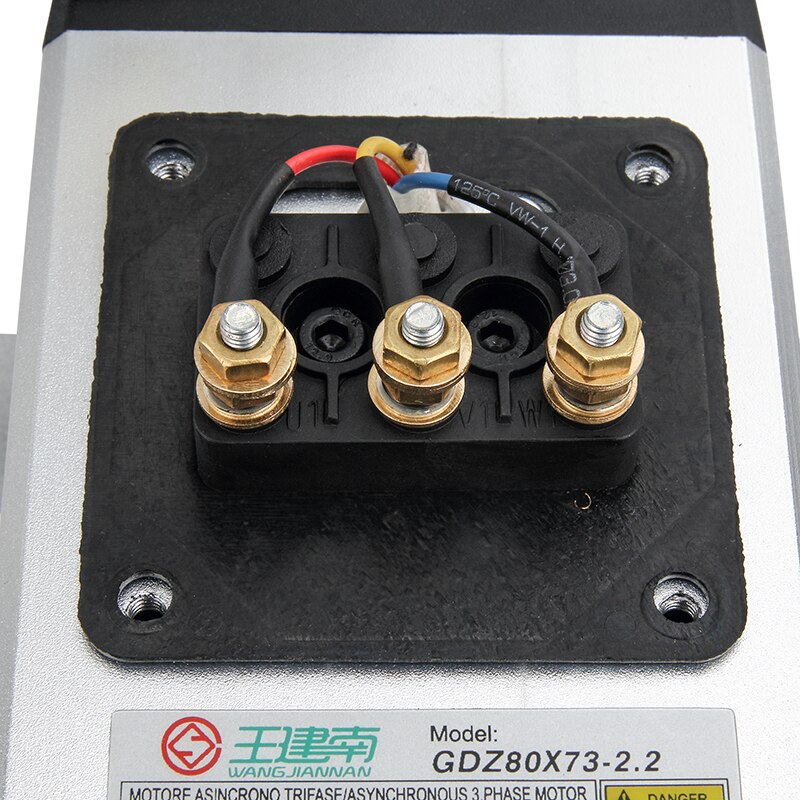

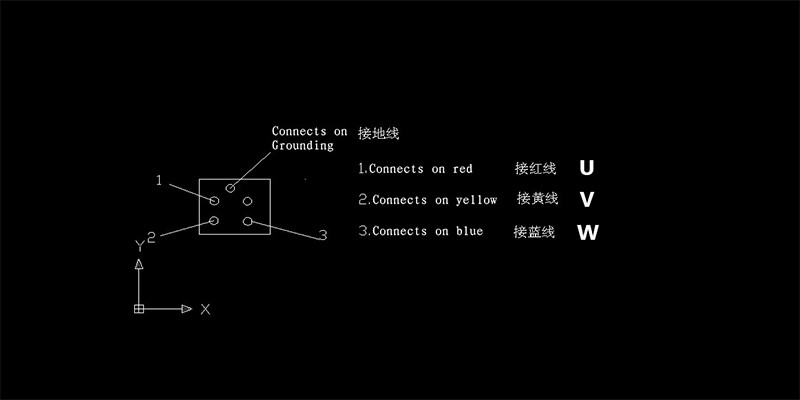

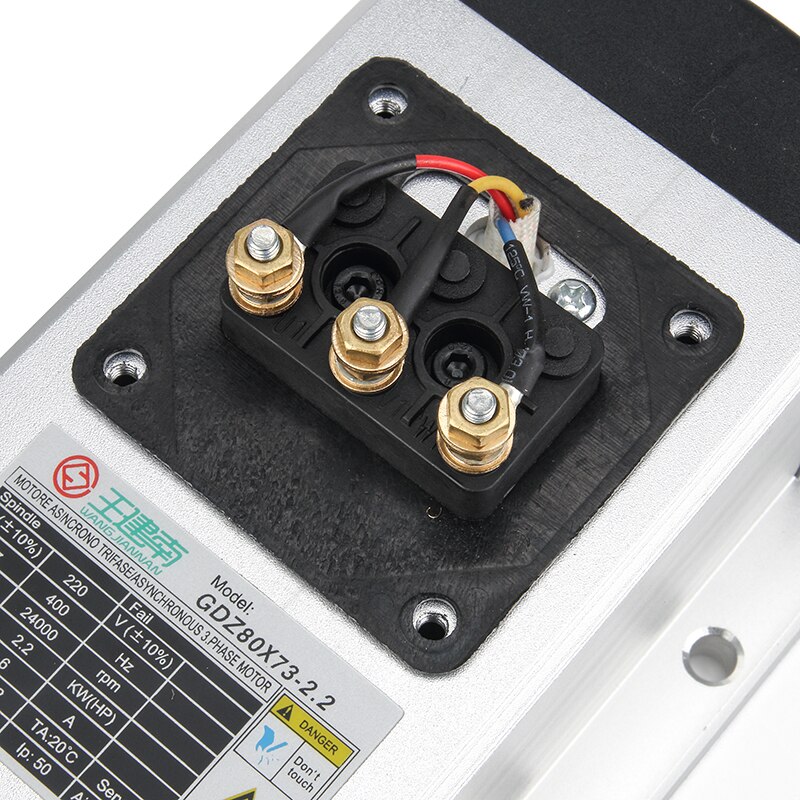

Power Interface: Optional GX16 waterproof air plug, there are marked 1234,123 were connected to the inverter power supply (U, V, W), 4 connected inverter ground.

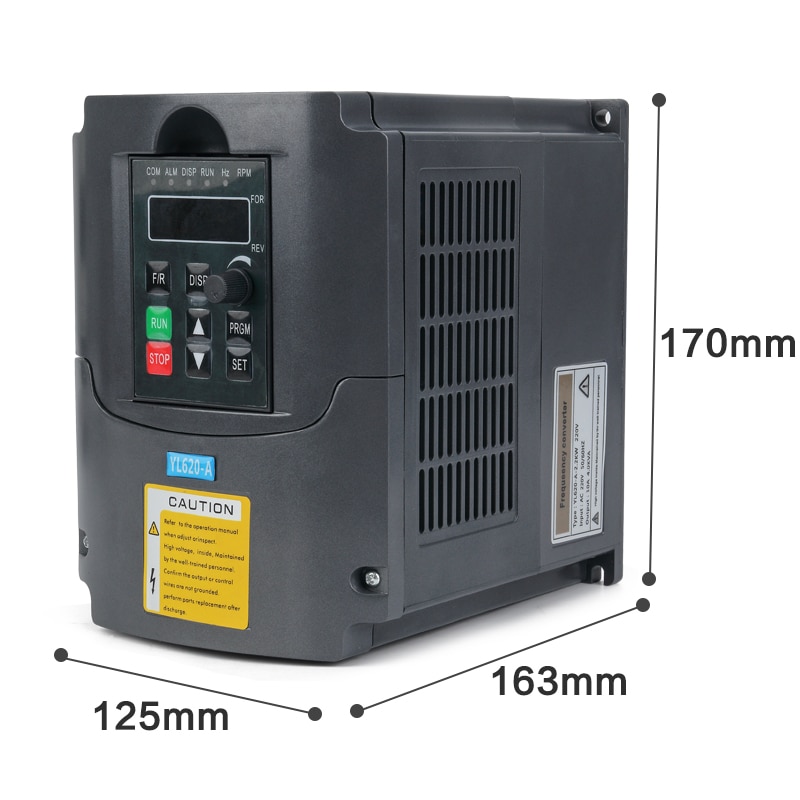

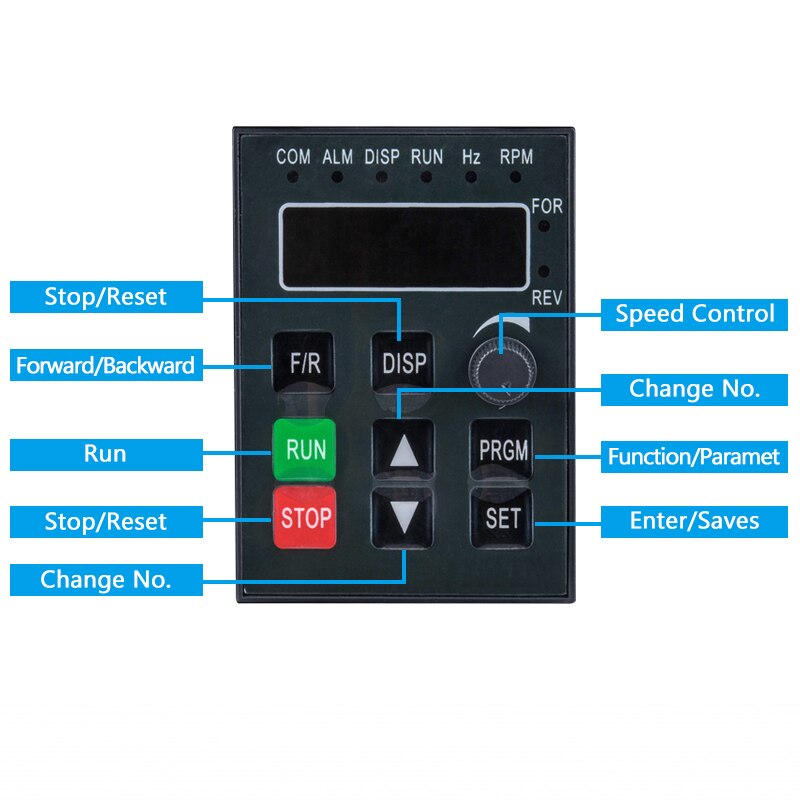

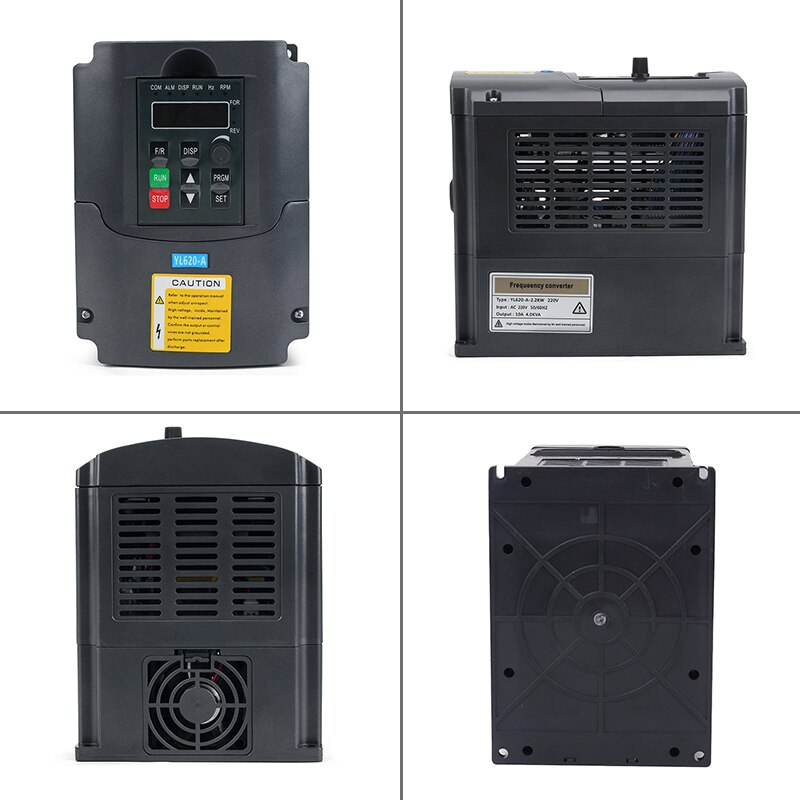

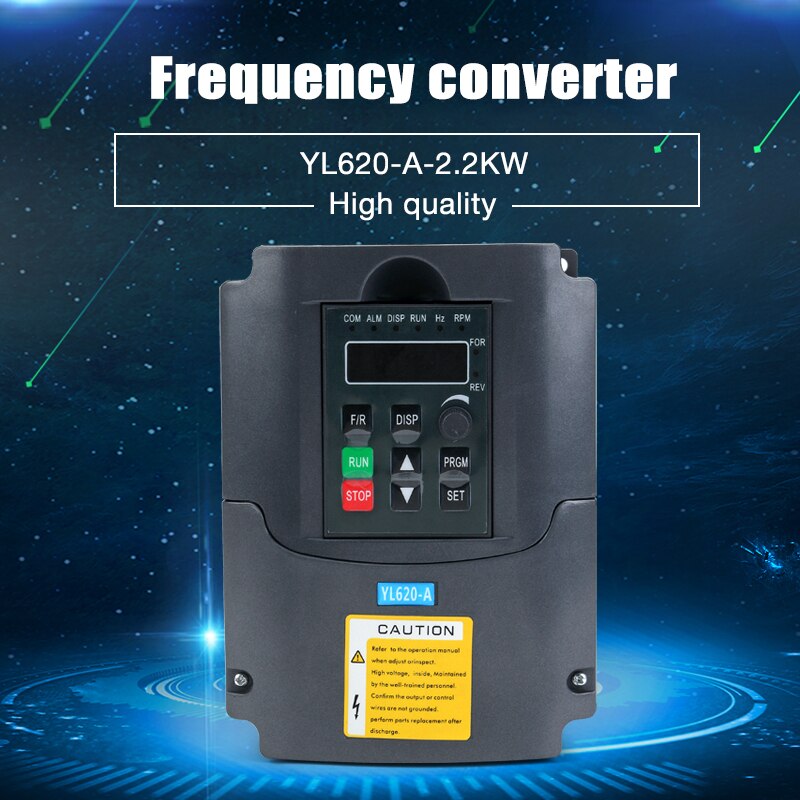

2. inverter
Type:2.2KW
Input Voltage:AC 220V
Input Frequency:48-63 Hz
Output Voltage:220VAC
Output Frequency:0-400 Hz
Input Phase:1 or 3 phase
Warranty:1 year from the date you purchased
Application:
Machinery: winding machine, mixer, extruder, slitter, winder, compressor,ventilator, pump, grinder,conveyor, elevator, centrifuger and other speed control machines.
Feature:
1）PID Control: advanced calculous PID closed-loop arithmetic, quick responding speed and high suitability;
2）Easy PLC function can realize 16 legs of speed and inverter control function;
3）RS485 communication port,adopting standard international MODBUS maincircuit control With extremely strong anti-jamming capability;
4）Low output ratting torque 0.5HZ-150%,low speed running ability;
5）Carrier adjustable by 16KHZ,completely soundless working environment;
6）Broad voltage working area,normal running in 304V-456V;
7）Auto voltage regulation (AVR) technique,for ensuring the inverter load capability;
8）Various control technique by both synchronization and non-synchronization,
9）dynamically realize fast starting without changing brakes;
10）With perfect error protection and short circuit starting protection capability;
11）Dead-time compensation and auto torque slip compensation function,can realize 180% high torque output at low frequency 0.25Hz;
12）Unique EMC design,can minimize inverter’s pollution to power;
13）Overall reinforcement layer to suit all kinds of harsh environment
Advantage:
Control mode is SPWM, it is very easy to use and convenient
Protection functions are very strong,
Fin over-heat protection,
Overload protection,
Fuse protection,
Restart after instant stop, stall protection.
Powful function
Low price

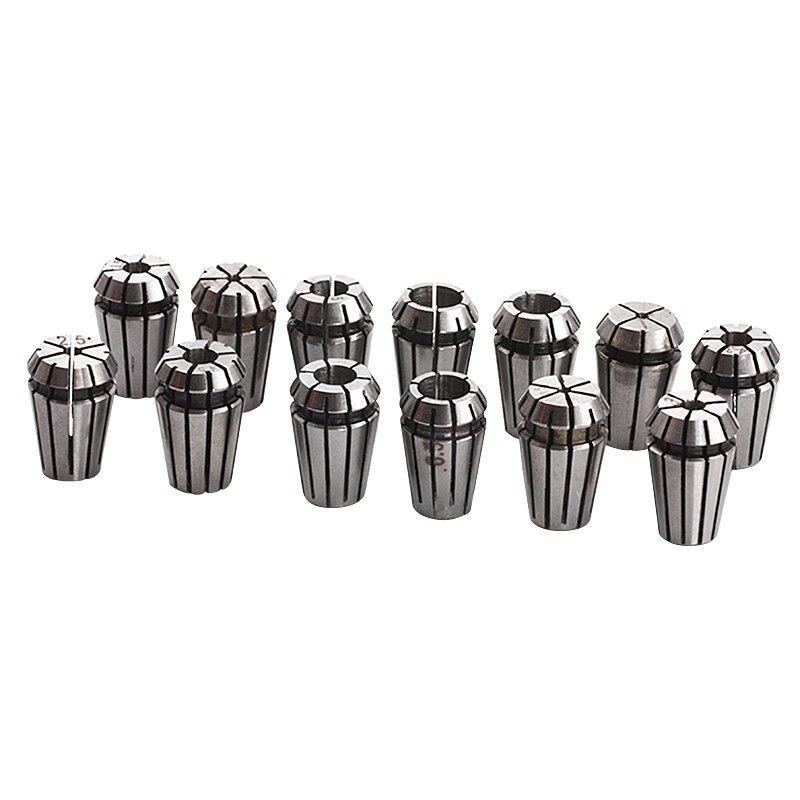

3. ER20
Size:1-13mm(1mm,2mm,3.175mm,4mm,5mm,6mm,7mm,8mm,9mm,10mm,11mm,12.7mm,13mm)
Product Description:
100% Brand New
Model: ER20(13pcs,1mm-13mm)
Run-out tolerance 0.01mm (0.0006")
First class 1065 carbon steel
Hardened & precision ground
Made of high grade specially formulated spring steel.
Hardened and precision ground.
Built in self-Release design and tools will never get stuck in holder.
Made of high grade specially formulated spring steel.
Hardened and precision ground.
Built in self-Release design and tools will never get stuck in holder.
- Operating Speed: 24000rpm
- Maximum Torque: --
- Application: Milling
- Model Number: 2.2kw Air Cooled Spindle
- Drive: Motor
- Brand Name: TwoWin
- Origin: Mainland China
- Certification: CE
- Type: 2.2kw air cooled spindle
- Frequency: 400Hz
- Power: 2.2kw
- Current: 6 A
- Collet: ER20
- Voltage: 220V
