YUNSYE Camera control keyboard CCTV keyboard controller DVR pan tilt zoom rotation PTZ control keyboard Pelco P/D protocol RS485

4.0 (1 votes) | 2 orders
Price: US $258.40 / piece
Discount Price:
US $ 138.79 / piece
-46%
Ships From
Quantity

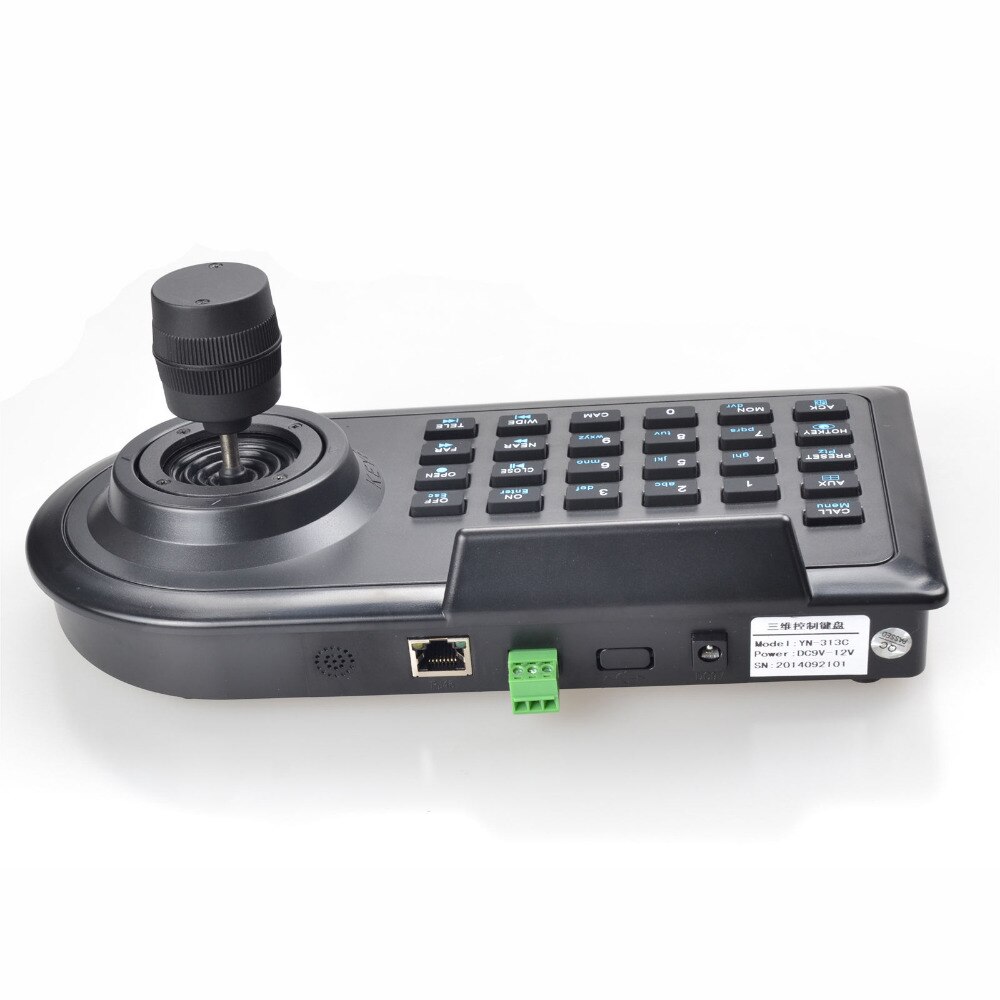

Camera control keyboard CCTV keyboard controller DVR NVR pan tilt zoom rotation PTZ control keyboard Pelco P / D protocol RS485

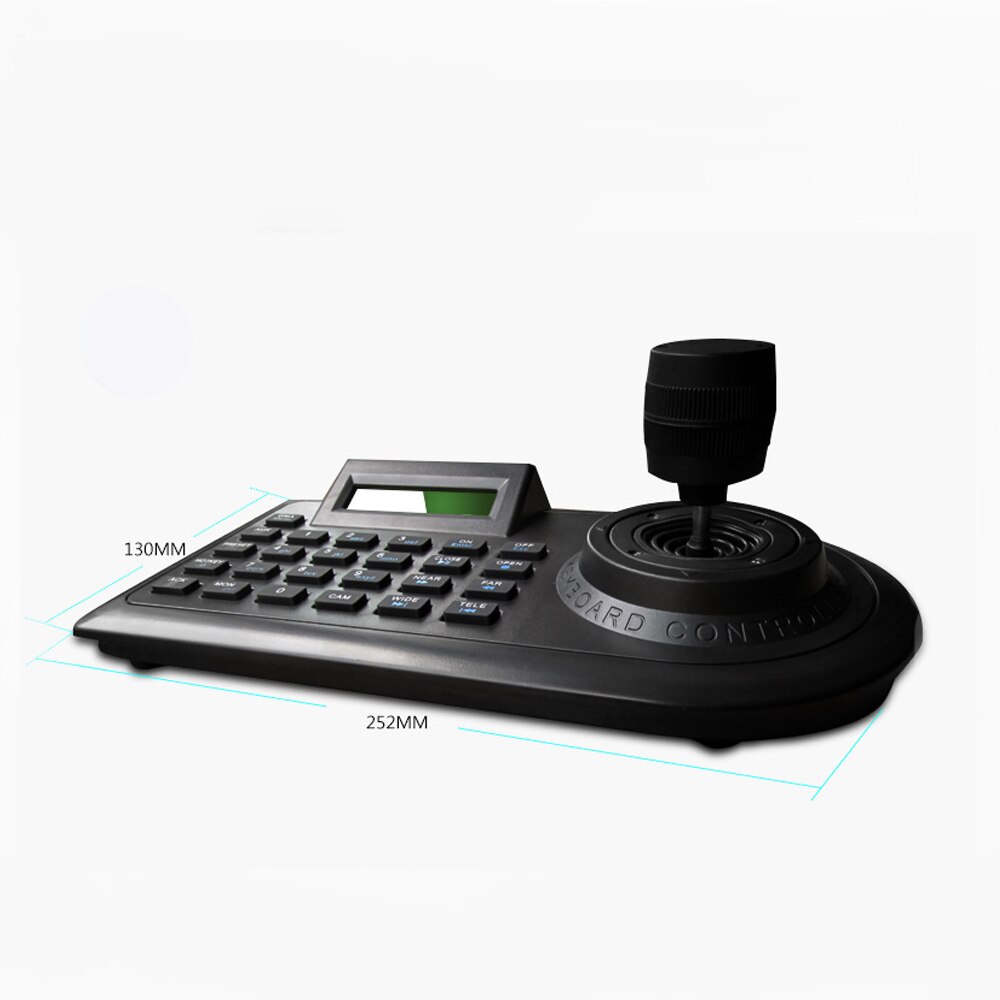

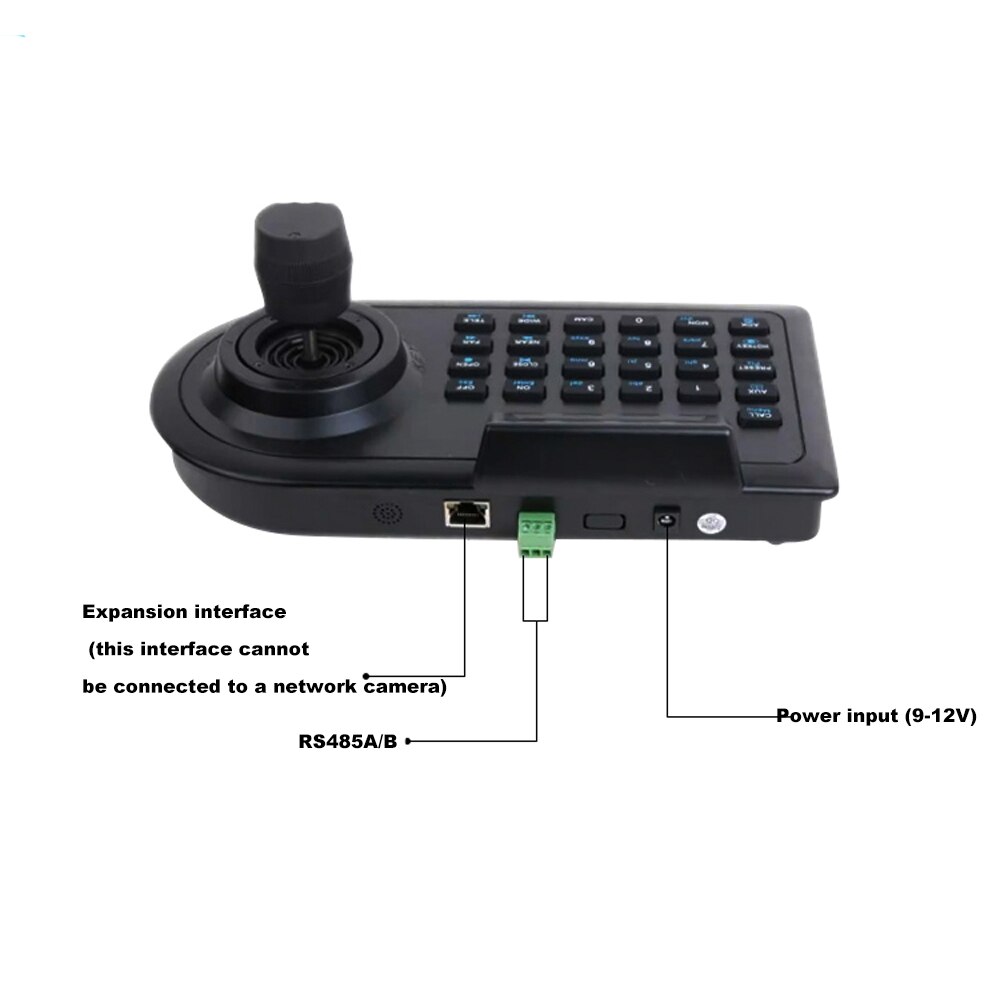

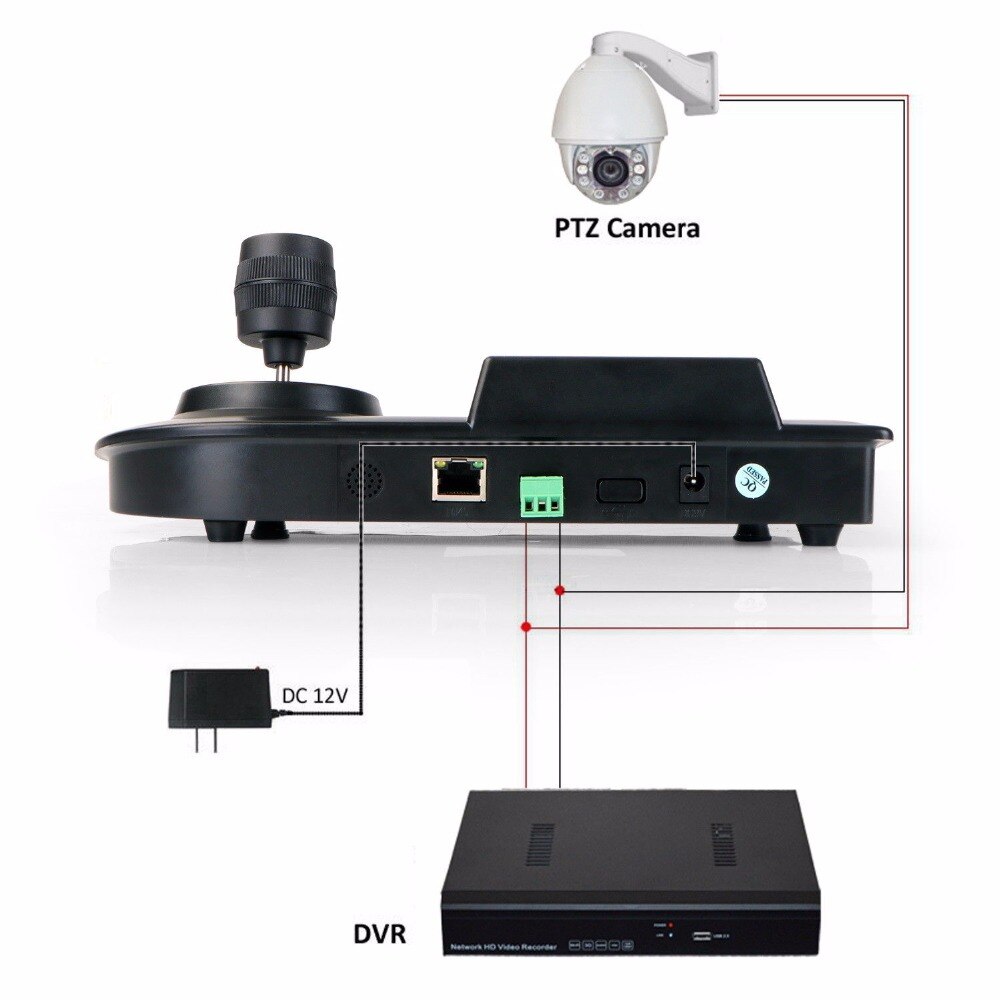

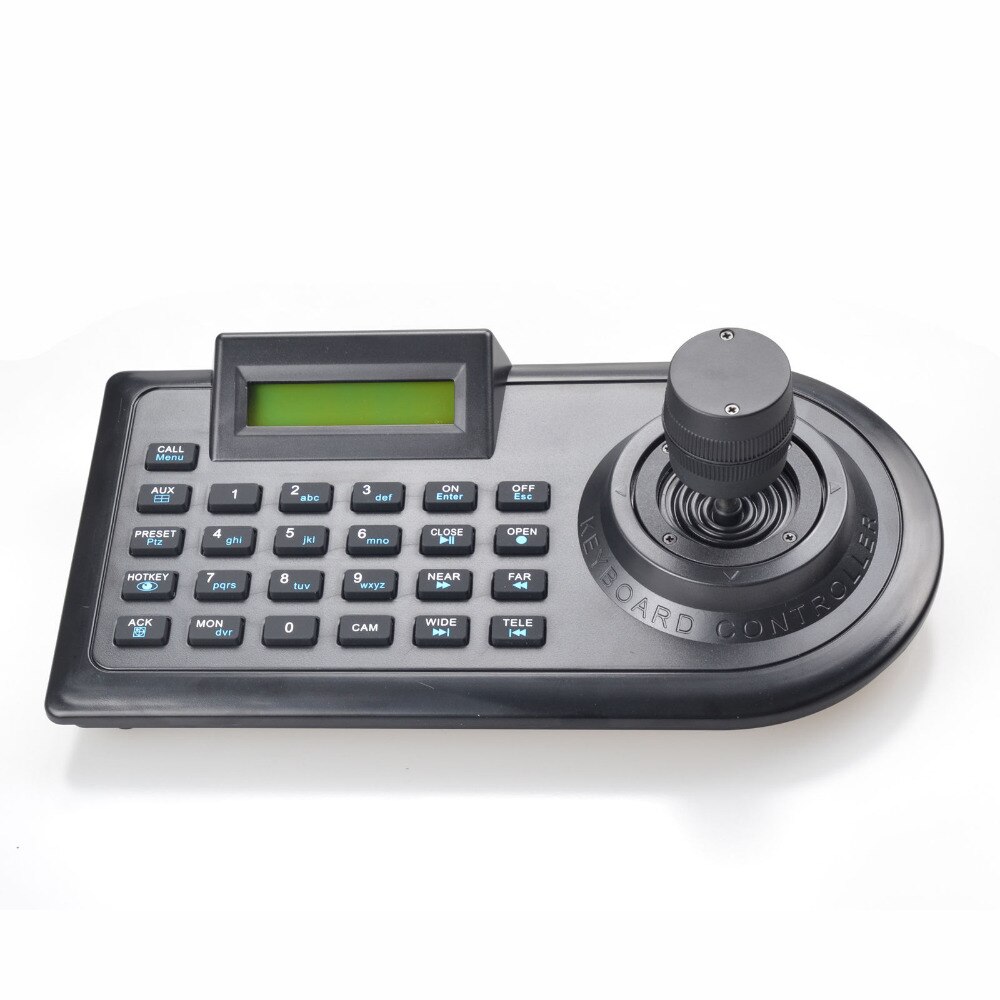

Features: 3-axis CCTV keyboard controller 3D joystick for convenient pan/tilt/zoom control Real-time display current control address and baud rate Available to set device protocol, baud rate, address ID, etc. RS485 BUS control Support control over 16 units of DVR/NVR Support sync control 64 units of PTZ camera and pan/tilt device Support straight end decoder control to operate pan/tilt, lens, lights, rain brush, etc. Lightning-proof communication interface design, excellent anti-interference performance Standard transmission distance up to 1.2km (0.75mi) Multiple protocols built in with better compability LCD screen to display operate status Support Hikvision, Dahua and Han Bang DVR and NVR Specifications: Communication Mode: point-to-multipoint half-duplex Communication Port: RS485 Baud Rate: 1200/2400/4800/9600bps Protocol: Pelco P/D Joystick: 3-axis movement Supported DVR/NVR: Hikvision, Dahua, Hanbang, etc. Maximum Transmission Distance: 1.2km/0.75mi Maximum DVR/NVR Supported: 16 units Maximum PTZ Camera/Decoder Supported: 64 units Power Input: DC 9~12V Power Consumption: About 3W Working Temperature: -20 ~ 50C degrees Weight: About 0.6kg Dimension: 292x133x93mm Package Content: 1x Keyboard Controller 1x Power Adapter (Default US/CN type power plug. Please leave message for EU/UK/AU type.) 1x User Manual

Product packaging picture

1CPS control keyboard 1PCS power supply 1PCS instructions for use fast


  • Model Number: YSY-3DK
  • Brand Name: YUNSYE

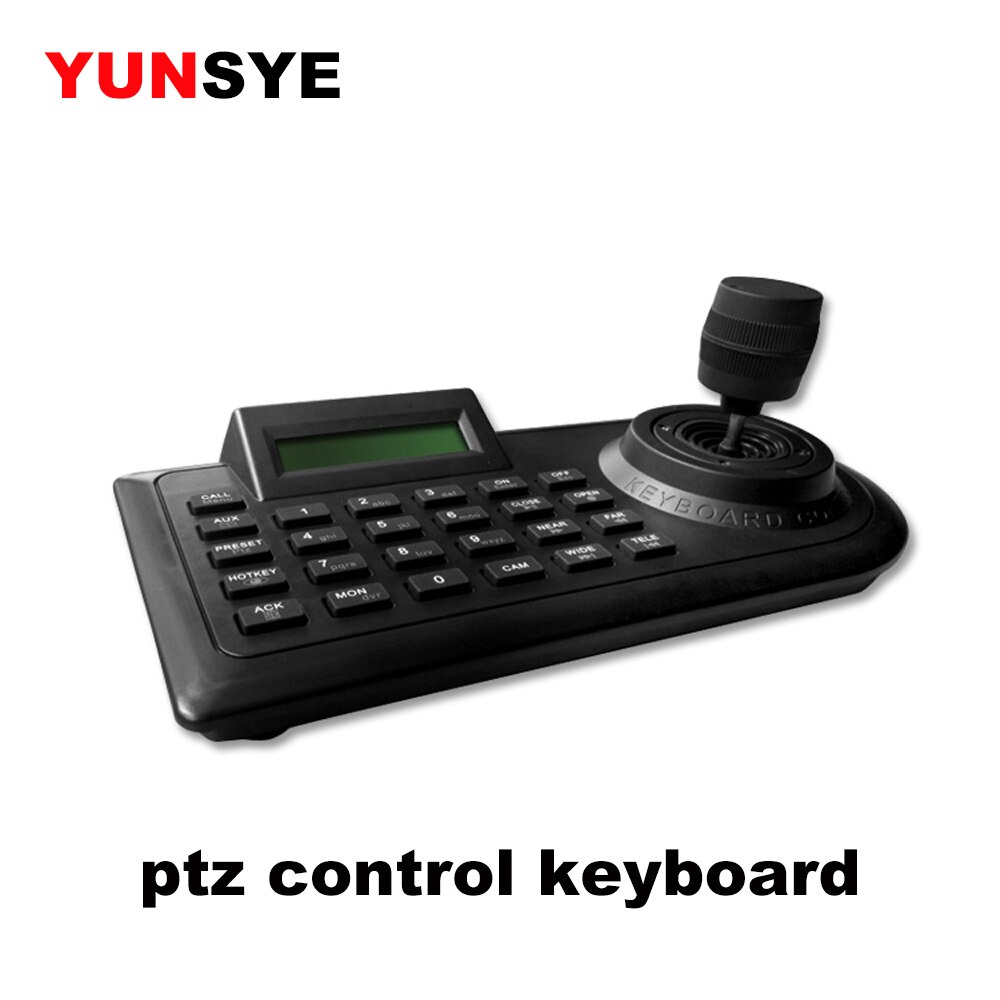

  • product name: ptzr control keyboard
  • protocol: PELCO-D/P
  • Porter filter: 1200/2400/4800/9600
  • Input power: DC9-12V
  • Types: Camera keyboard
