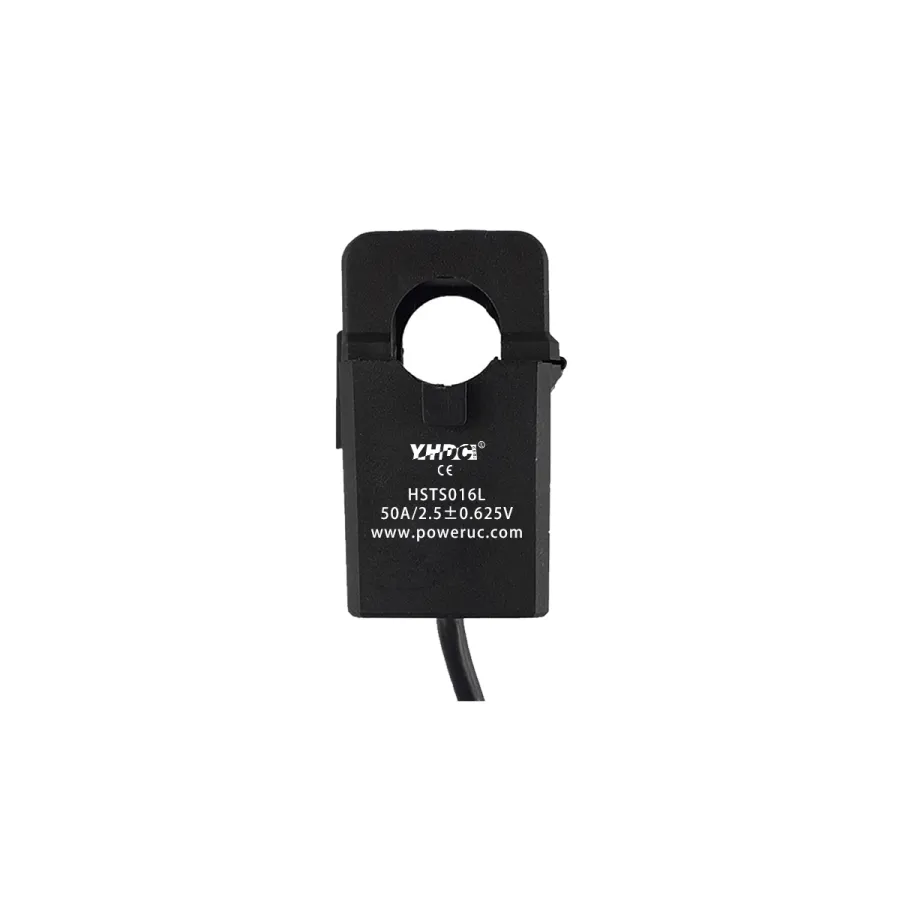

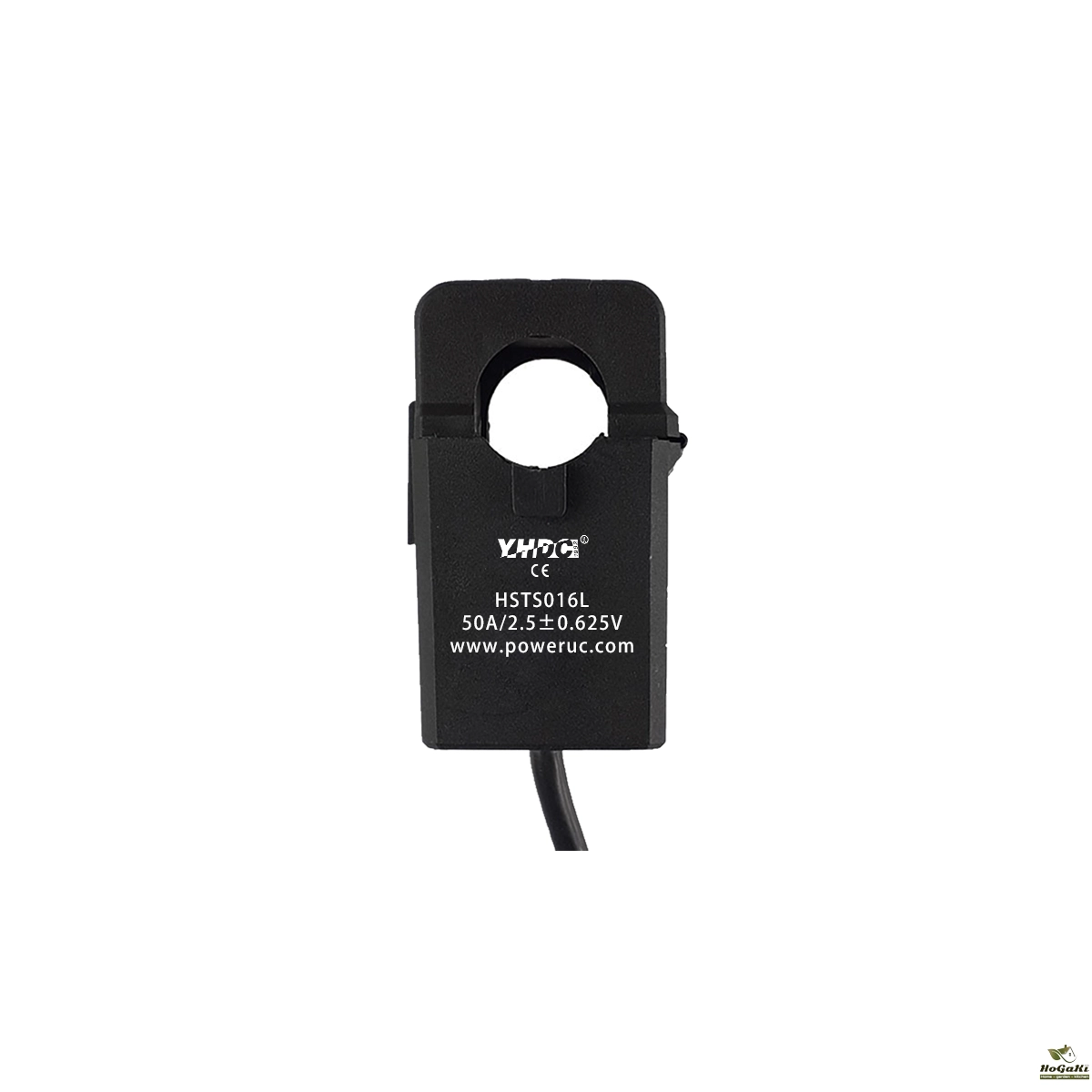

Hall Split core current sensor HSTS016L input ±10A/20A/30A/50A/100A/150A/200A output: 2.5±0.625V +5V 1%
Hall closed loop current sensor
Model：HSTS016L
Open loop, split core type, hanging installation;
Detects DC, AC and pulse current.
Technical indicators:
Brand:YHDC
Rated input: ±10A/20A/30A/50A/100A/150A/200A
Rated output: 2.5±0.625V
Supply voltage(±5%) +5V
Accuracy: 1%
Linearity: 1%
Flame resistance：UL94-V0
Working temperature：-10 ~ + 70 ℃
Storage temperature: -25 ~ + 70 ℃
Bandwidth：DC -25KHz
Dielectric strength：2,5KV 50Hz 1min
Current consumption: 12mA
Load impedance: ≥10KΩ
Zero offset TA=25℃ ≤±15mV
Response time: 5μ s
Weight: 86g
Please select the appropriate parameter for you,thank you. ^_^

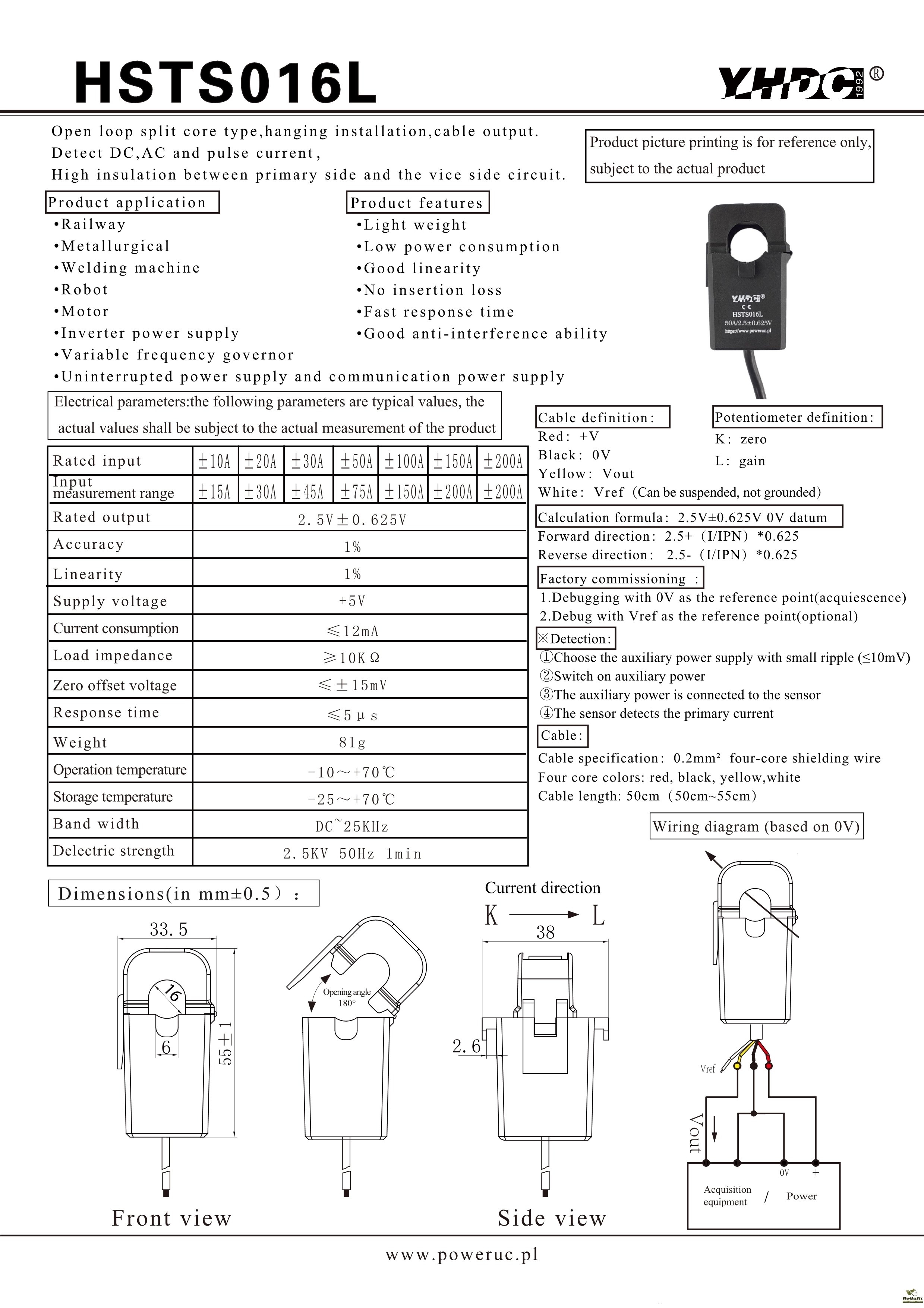

Product specification
Company Profile:
Dechang Electronic Co.,Ltd. was founded in 1992. We mainly produce power transformer, currrent transformer, hall effect sensor, trigger transformer and common mode chock.
Our factory covers over 12,000 square meters, including 4 workshops. We have more than 100 sets automatic wire winding machine. So we can achieve mass production and short time delivery.
Our products have got CE, ROHS, CQC certificate. The quality is guaranteed. At the same time, we promise low price and regular supply.
Packaging Details
- Unit Type: piece
- Package Weight: 0.220
- Package Size: 10x7x10
- Brand Name: YHDC
- Hign-concerned Chemical: None
- Origin: Mainland China
- Model Number: HSTS016L
- Phase: SINGLE
- is_customized: Yes
- Certification: CE
- Certification: RoHS
- Use: Current
- Coil Number: current transformer
- Coil Structure: Hall Split core current sensor
