Waterproof Magnet Lock 180KG/350lbs Electric Magnetic Lock DC 12V Electromagnetic Locks ZL Bracket for Wooden/Metal Door Access
4.7 (7 votes) | 41 orders
Price:
US $38.84 - 80.71
/ piece
Discount Price:
US $
33.82 -
69.37
/ piece
-13%
- Color
-
-

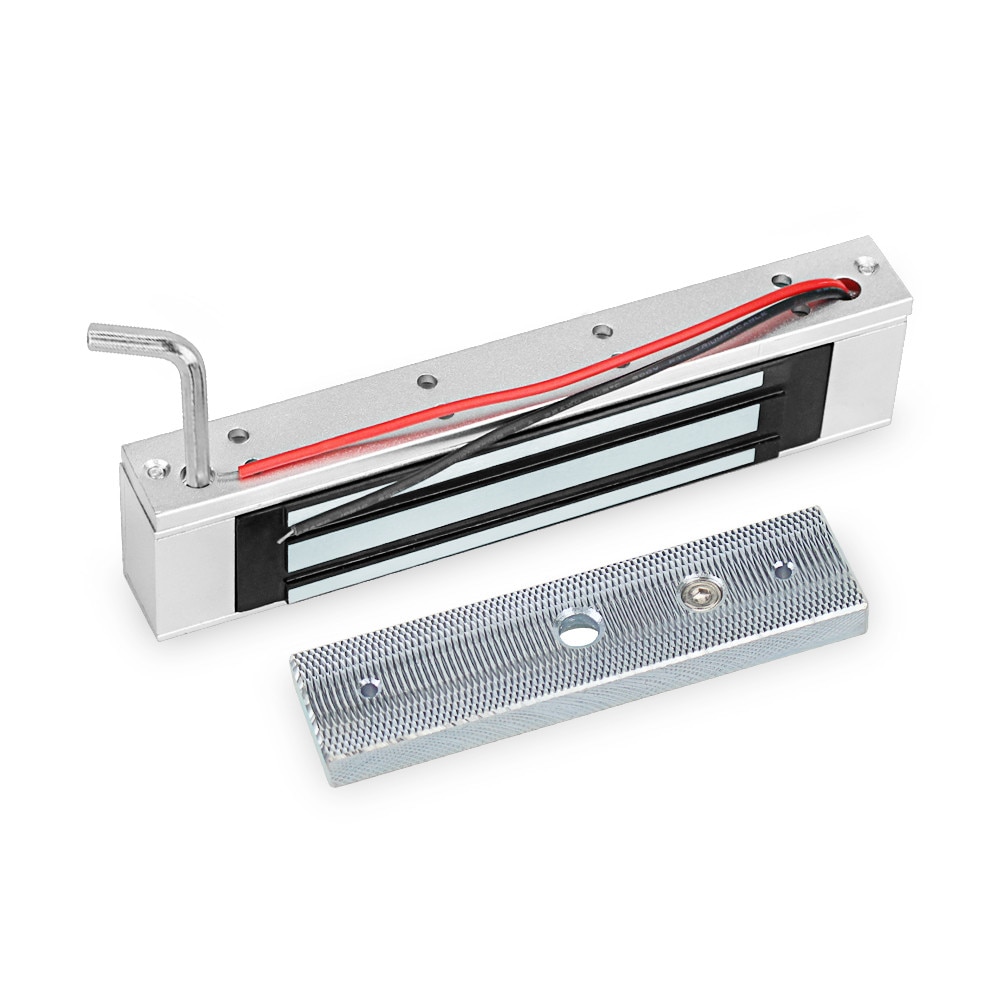

Access Control Electric Magnetic Door Lock 180KG (350lbs), 12V Electric Lock Holding Force High Quality
This door lock is special in design with durable material. It can protect your home or business shops. Low operational and standby current. It's especially suitable for wooden, glass and metal doors.
Product Features:
1. 100% brand new and high quality 2. Secure mode: NC model (Locked when power on, unlocked when power off) 3. Especially suitable for wooden/ glass/ metal/ security doors. 4. It is made from durable and high aluminum alloy material, durable for use 5. Can be opened by push button, remote controller, etc. 6. Built-in reverse current protection device (MOV). 7. Waterproof, can be install outside. Suitable for wooden, glass, metal, security door.
Product Specifications:

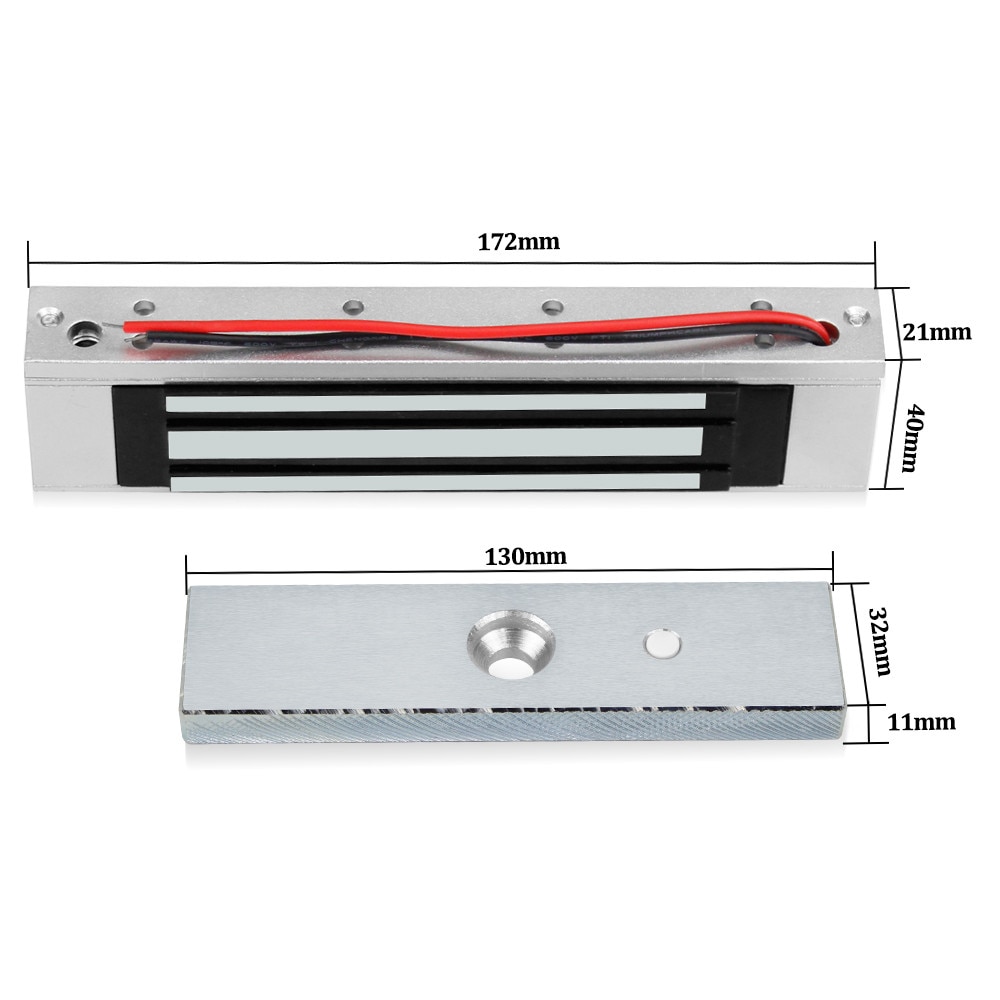

Lock Name: 180KG Magnetic Lock Material: Aluminium Alloy Working Voltage: DC12V Working Current: 380-500mA Working temperature: -20℃ to 55℃ Time of unlock: ≤1s Safe Mode: NC mode(Fail-safe type, unlocked when power off, locked when power on.) LED Working Indicate Light: none Holding Force: 180KG/350lbs Waterproof: yes, can be installed at outside Signal Feedback: not support Time Delay: without Function: can be used with building intercom, door access control system Suitable For: Wooden, metal, security, glass door etc (frameless doors need to work with bracket) Installation: unfold install mode (Don't need to punch a hole.) Dimension: 172*40*21mm/ 130*32*11mm

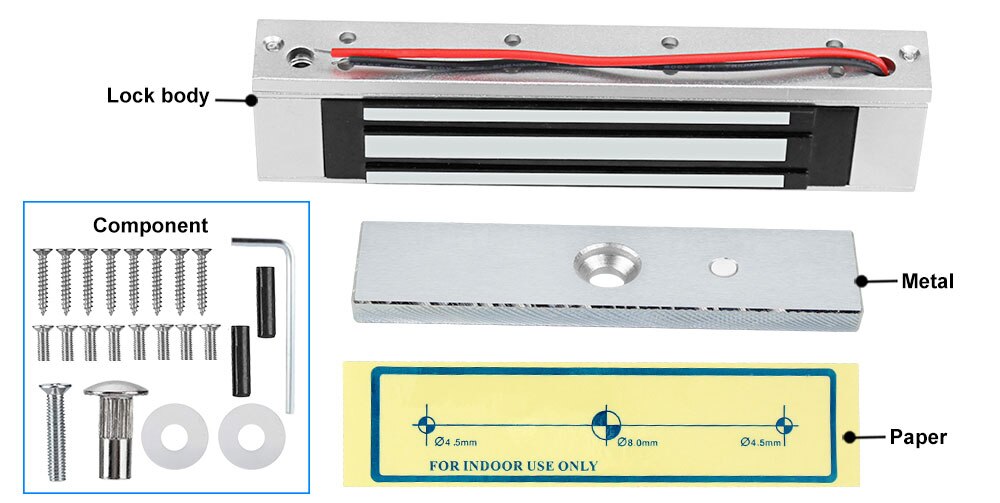

Product Details:
1, DC12V electromagnetic lock Fine workmanship design/Made of aluminum alloy. Sturdy and safety in use.
2, Holding force with 180KG(350lbs), Built-in reverse current protection device(MOV).

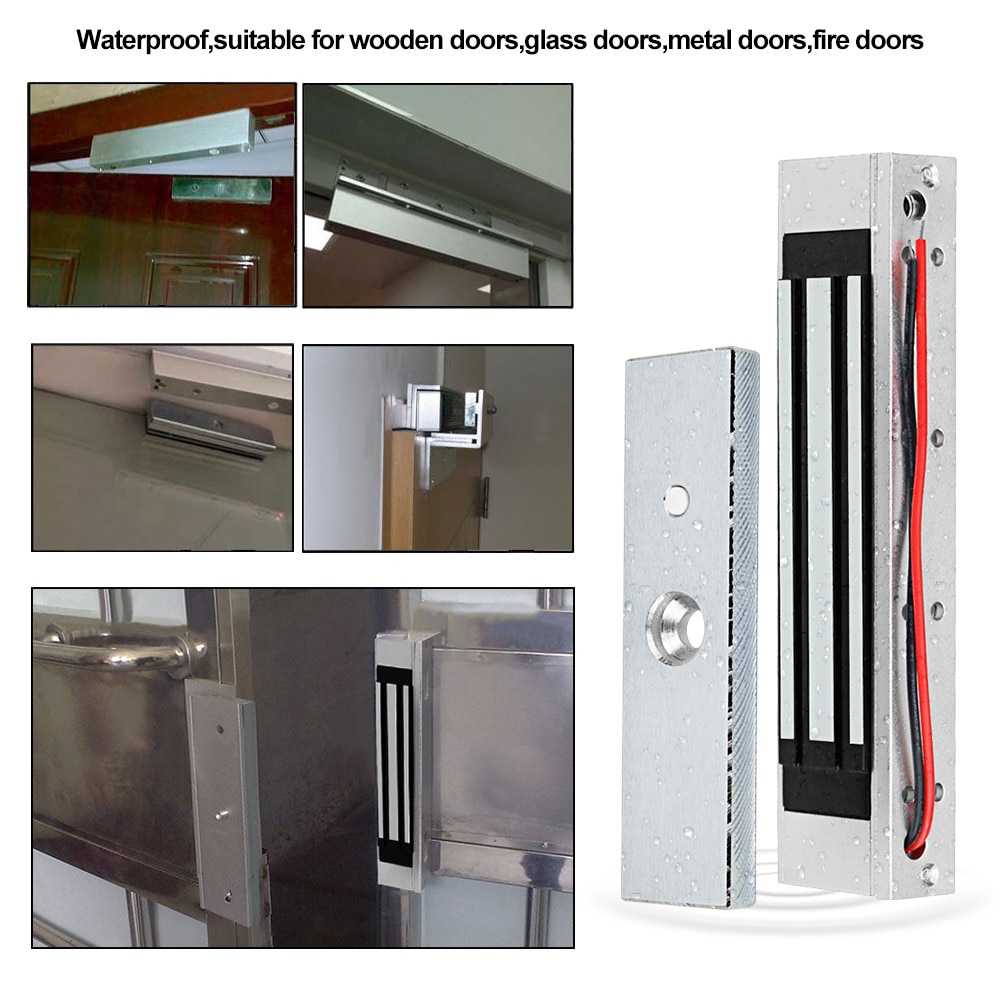

3, Waterproof, can be installed outside. Suitable for wooden doors, glass doors, metal doors, fire doors, etc.
Installation 1:
1. Put the dowel pin into the suction plate; 2. put the bonded washer; 3. The bonded washer make suction stronger; 4. Remove the hanging plate; 5. Fixed hanging plate; 6. using the spanner and inner hexagon screws to fix the plate on the lock body; 7. Close the door to test the pulling force, can add or delete the bonded washer to adjust the adsorption surface of plate between with the lock body; 8. Tighten the tamper screws.
Installation 2:
For in-swing door, install the lock body inside and then need to install the ZL bracket at the same time. Discharge the mounting plate from lock body. Fix the L bracket on the door frame and then fix the lock body on the L bracket. Assemble the Z bracket and then fix it on the door frame. Fix the armature plate on the Z bracket.

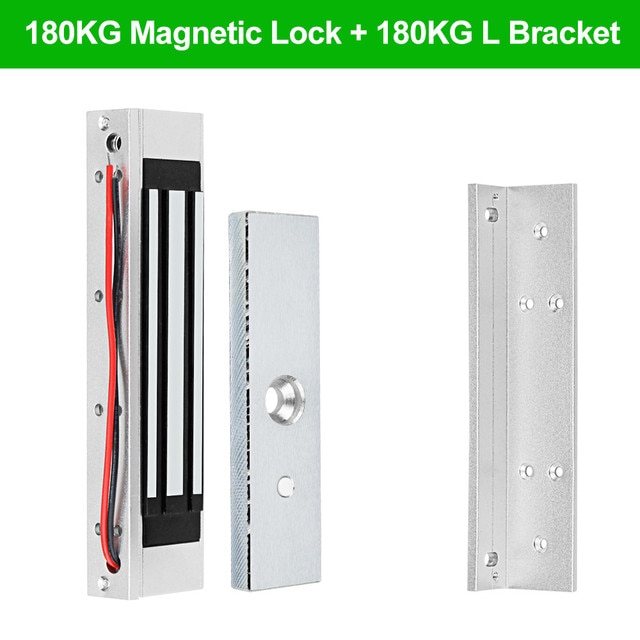

180KG L Bracket:
Dimension: L bracket: 168*39*24mm Material: High strength aluminum alloy, the surface spray sand Use type: all kinds of narrow and open from inside door Open angle: 90 ° Suitable for : wooden door, fireproof door, security door

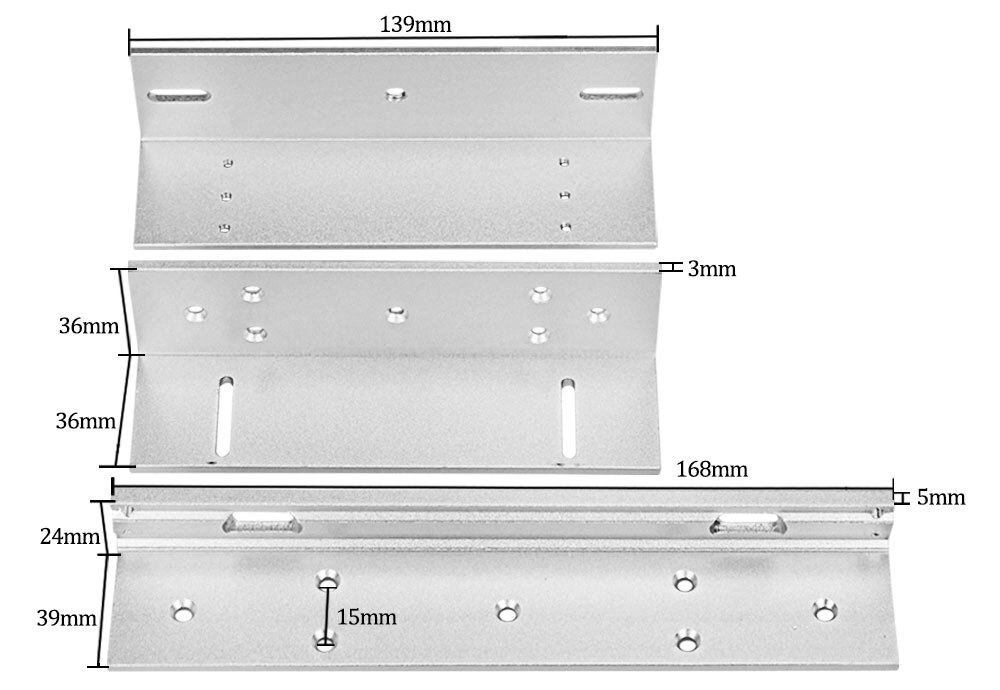

180KG ZL Bracket:
Dimension: L bracket: 168*39*24mm Z bracket: 139*6*36mm Material: High strength aluminum alloy, the surface spray sand Open angle: 90 ° Suitable for : wooden door, fireproof door, security door
Wiring Diagram:
This wiring diagram is for reference only. The power supply, access controller exit button and door bell, which shows in below picture, are not included in the package. If you need them, you have to buy them in additional.
- Model Number: 180KG-MZ
- Brand Name: OBO HANDS
- Type: 180KG Magnetic Lock
- Material: Aluminum alloy shell & iron plate
- Holding Horce: 180KG/350lbs
- Working Voltage: DC12V
- Working Current: 380-500mA
- Security Mode: NC mode (Fail-safe mode)
- Open Door Mode: unlocked when power off, locked when power on.
- Time of Unlock: ≤1s
- Temperature: -20℃ ~ 55℃
- Suitable for: Wooden, metal, security, framed glass door, etc.
- Waterproof: with full sealed waterproof
- Work indicator: without
- Installation: unfold install
- Dimension: 190*30*20mm/ 130*33*10mm
