water oil fuel gas air pressure transmitter G1/4 12-36V 4-20mA 0-600bar optional stainless steel pressure transducer sensor

4.9 (193 votes) | 946 orders
Price: US $36.06 - 43.66 / piece
Discount Price:
US $ 35.70 - 43.23 / piece
-1%
Ships From
Measuring Range
Quantity

Descriptions

XDB305 series of pressure transmitters adopts the international advanced piezoresistive sensing technology to produce, can be selected depending on the application different sensing core, all stainless steel package, suitable for most media, with good long-term stability, multiple signal outputs to choose from, it can be used in various environments and climates, so it is widely used in various fields.

Features

◆ CE conformity ◆ Low cost and high quality ◆ All stainless steel integrated structure ◆ Small size, convenient to install and operate ◆ 4-20mA, 0.5-4.5V, 0-5V, 0-10V, I2C, various voltage output ◆ Complete surge voltage protection function ◆ For applications such as air, water, oil ◆ Provide OEM, flexible customization

Applications

◆ Intelligent IoT constant pressure water supply ◆ Engineering machinery, industrial process control and monitoring ◆ Energy and water treatment systems ◆ Steel, light industry, environmental protection ◆ Medical, agricultural machinery, testing equipment ◆ Flow measurement equipment ◆ Hydraulic and pneumatic control systems ◆ Air-conditioning unit and refrigeration equipment ◆ Water pump, air compressor pressure monitoring

Parameters

Measuring range: 0~600Bar Accuracy: ±1.0%FS Output signal: 4-20mA (2 wire) Supply voltage: 12~36(24)VDC Operating temperature: -40~105℃ Compensation temperature: -20~80℃ Operating current: ≤3mA Temperature drift (zero&sensitivity): ≤±0.03%FS/℃ Long-term stability: ≤±0.2%FS/year Response time: ≤3ms Overload pressure: 150%FS Burst pressure: 300%FS Cycle life: 500,000 times Pressure medium: Non-corrosive liquid or gas Pressure connection: G1/4, Other pressure connection is on request Electrical connection: Hirschman DIN43650C Housing material: 304 Stainless Steel Protection class: IP65 Explosion-proof class: ExiaⅡCT6 Weight: ≈0.120kg

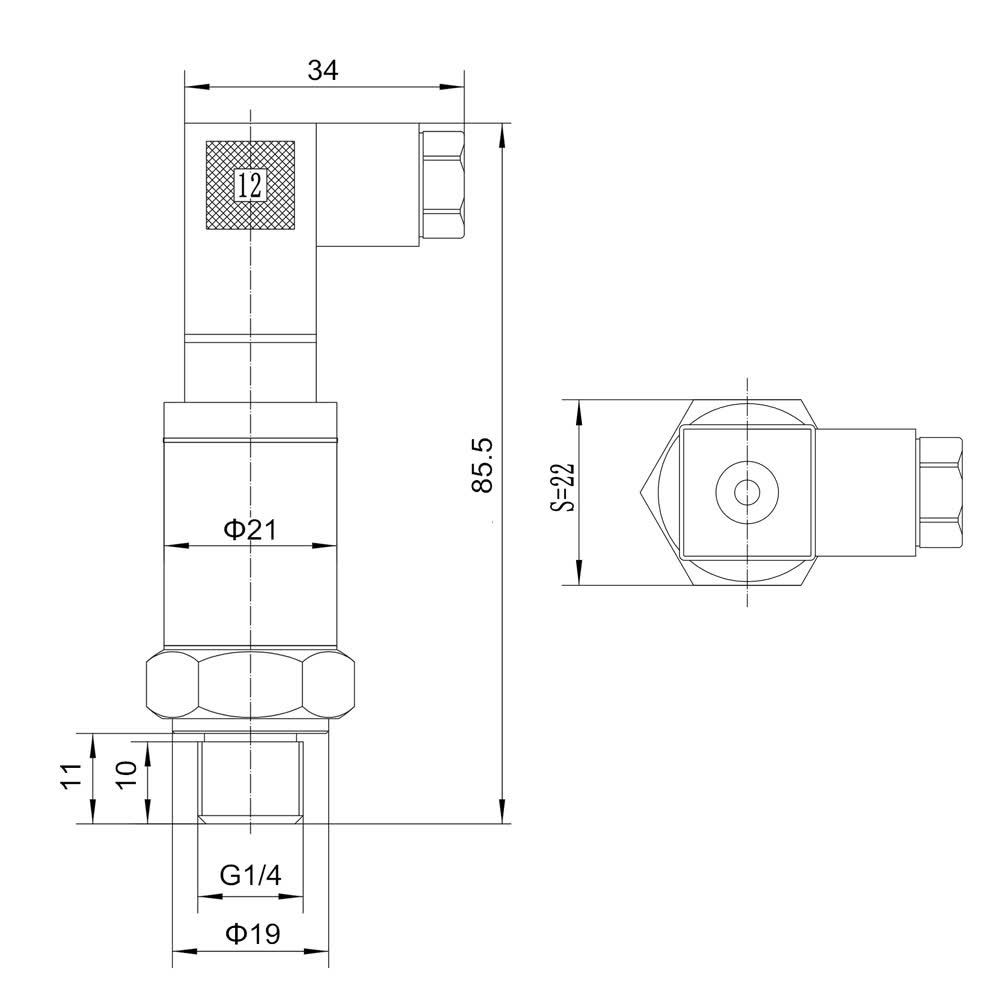

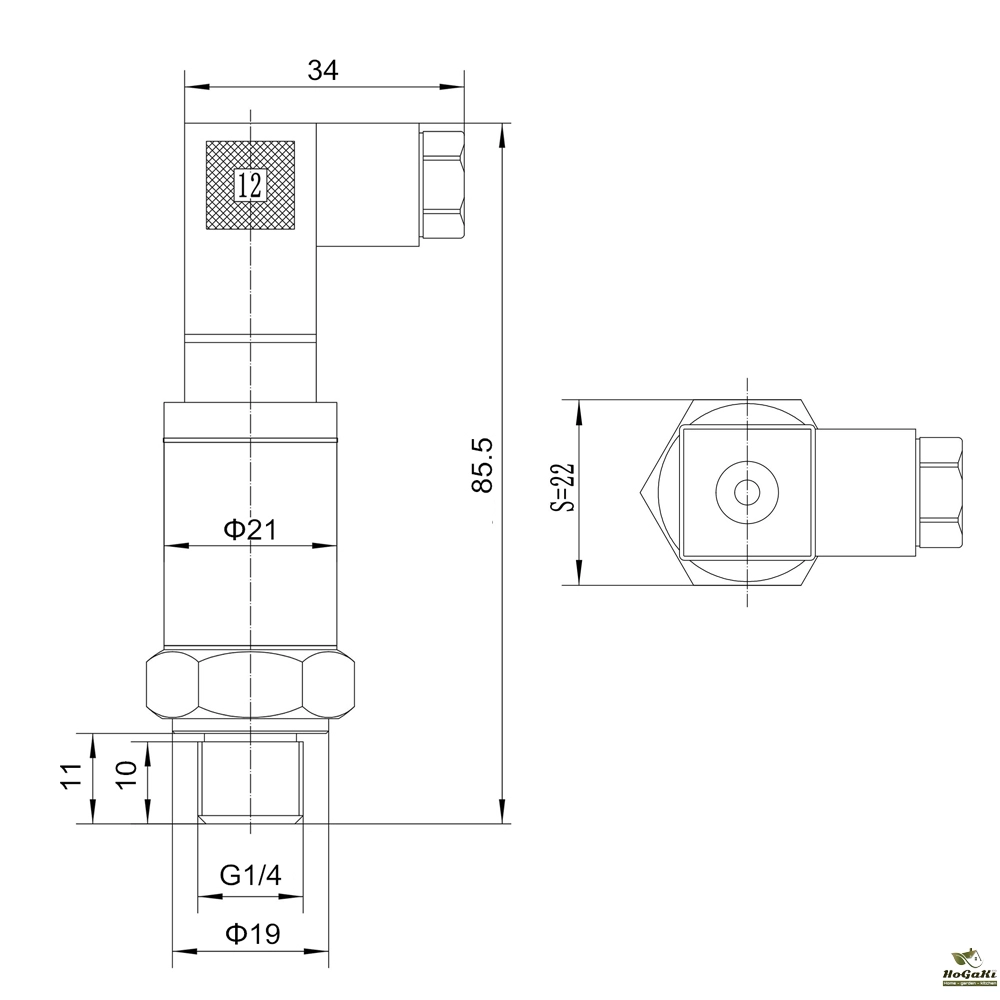

Dimension (unit:mm)

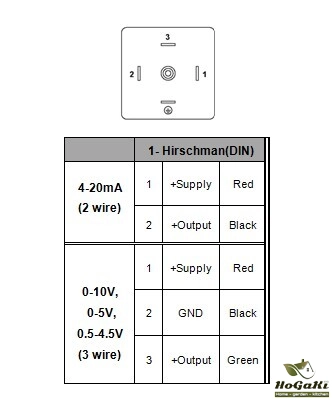

Electrical connection

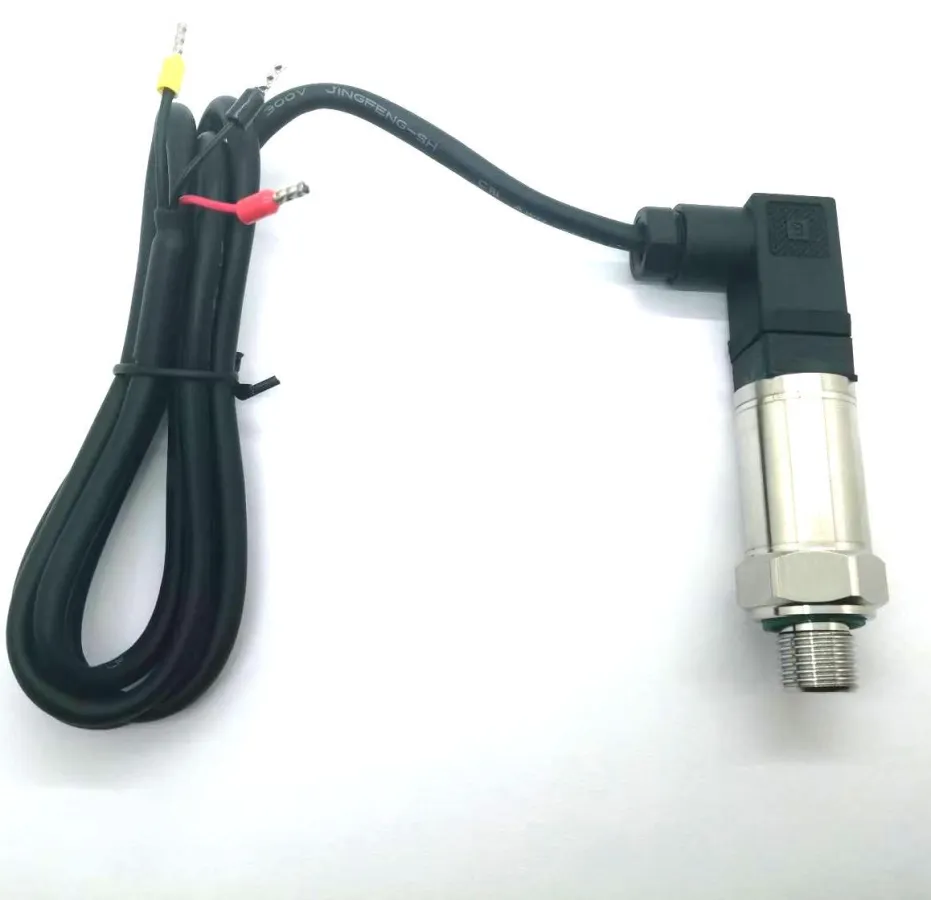

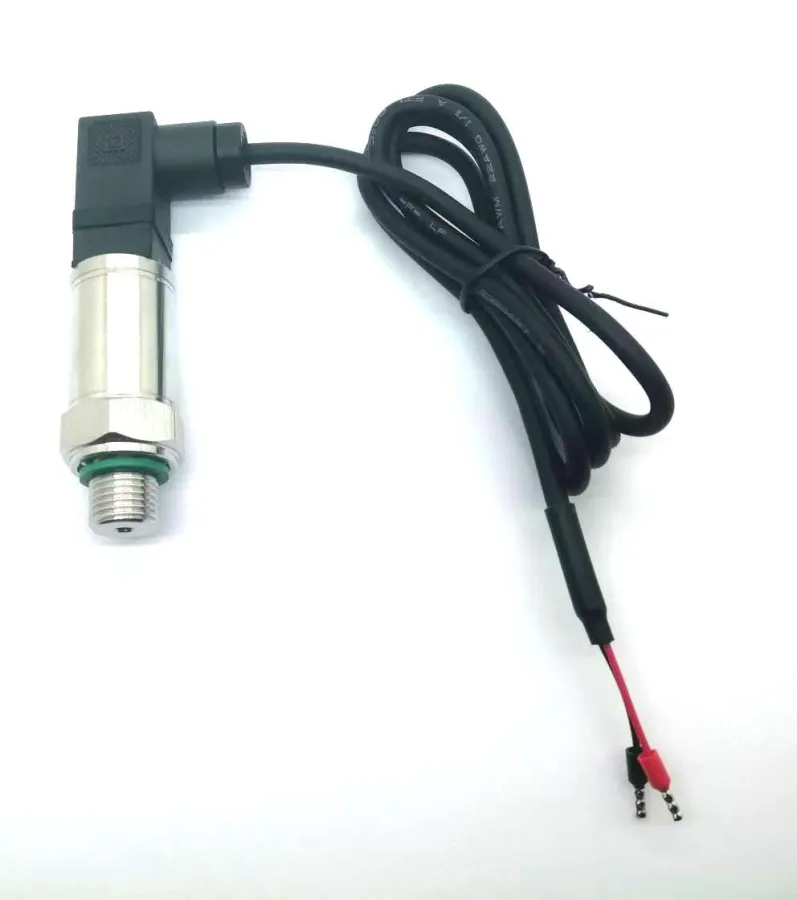

Pin1: Supply + (Red) Pin2: Output + (Black) With shielded cable

Ordering information

Default cable length: 1.0m / 11.8inch cable. If you have other special requirements, please contact us and note in the order.

Contact us

Mr Steven Zhao (Sales Manager) Mob/Whatsapp: +86 18918696561 Skype/We Chat: xdbsensor E-mail: steven@xdbsensor.com Web: www.xdbsensor.com


  • Model Number: XDB305
  • Max Measuring Range: 400 Bar & Above
  • Brand Name: XIDIBEI
  • Measuring range: 0-600bar gauge pressure
  • Supply voltage: 12-36VDC
  • Output signal: 4-20mA
  • Accuracy: ≤±1.0%FS
  • Operating temperature: -40-105℃
  • Housing material: 304 Stainless Steel
  • Pressure connection: G1/4 or other
  • Electrical connection: Hirschman DIN43650C
  • Protection class: IP65
  • Explosion-proof class: Exia2CT6
  • Electromagnetism Compatibility: EN50051-1
  • Paired cable: 1m
