Water Cooled Spindle Kit 2.2KW CNC Milling Spindle Motor + 2.2KW VFD + 80mm Clamp + Water Pump Pipe + 13pcs ER20 for CNC Router
0.0 (1 votes) | 4 orders
Price:
US $888.30 - 1318.30
/ Set
Discount Price:
US $
699.30 -
1000.30
/ Set
-21%

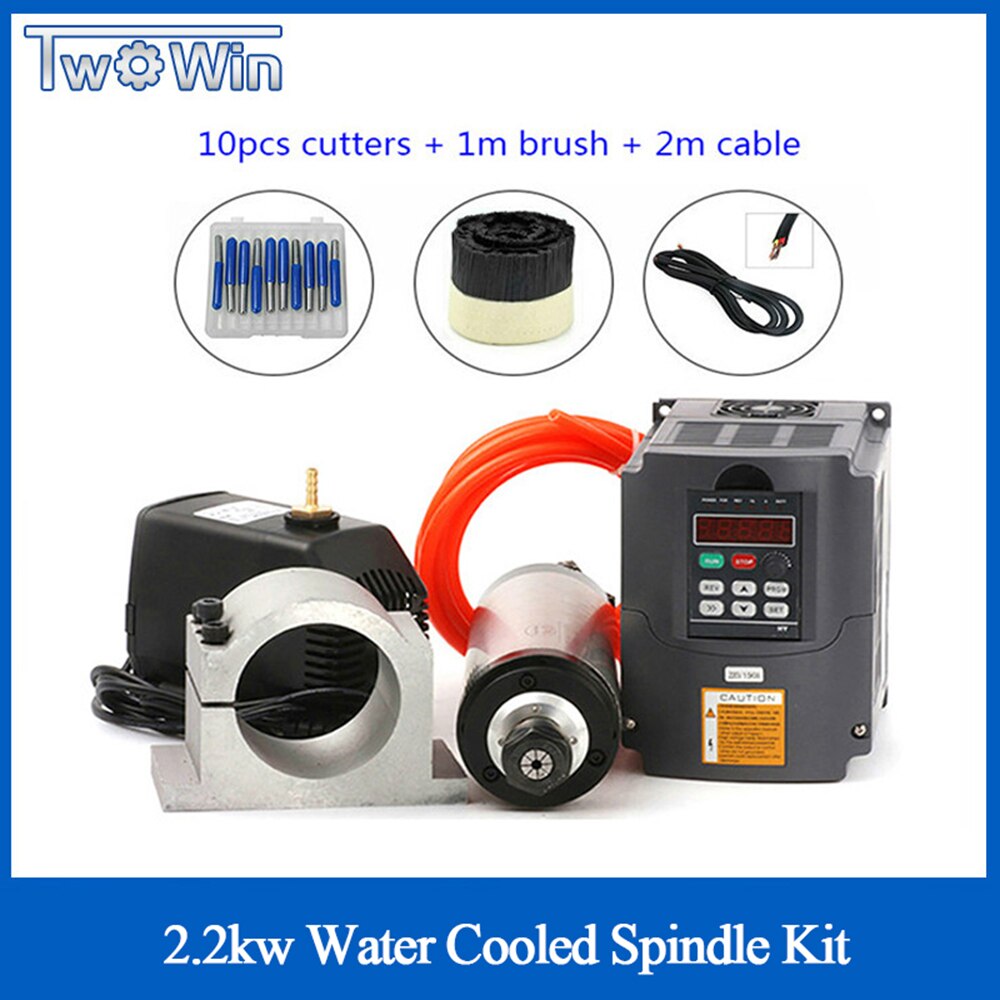

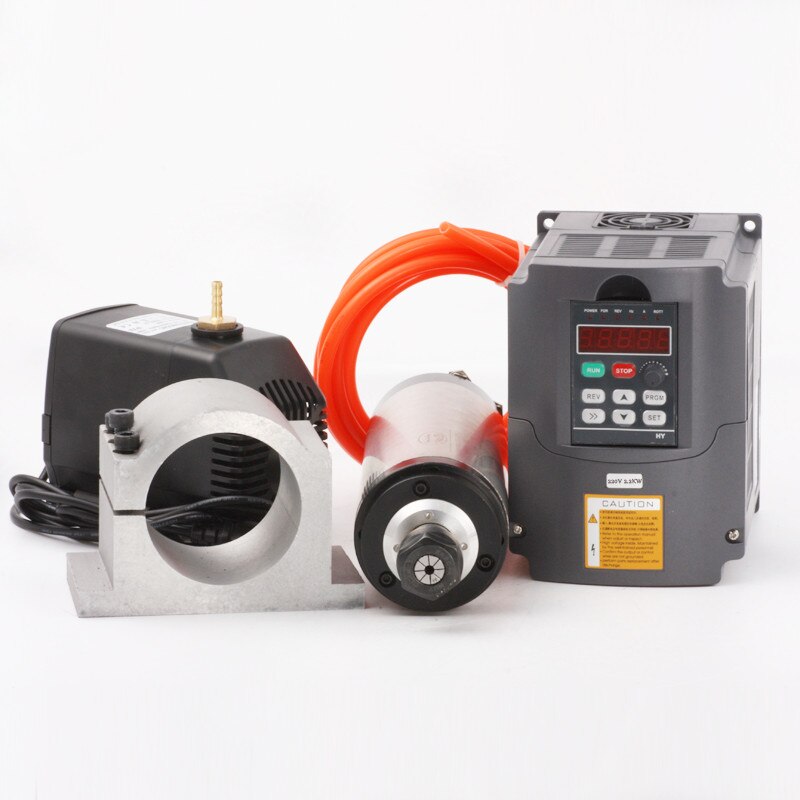

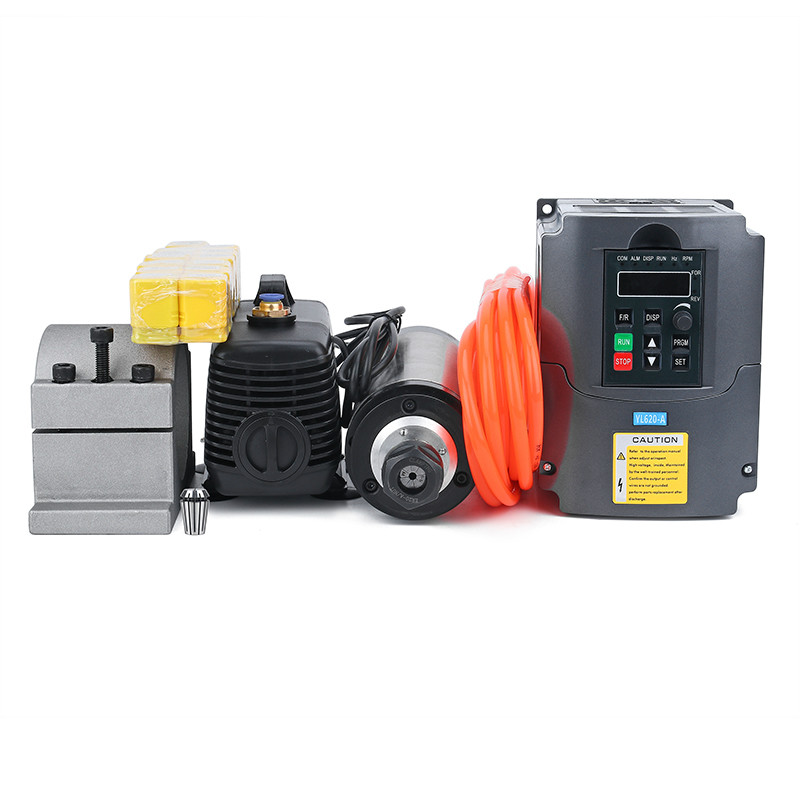

Package include:
1 x 2.2KWCNCWater Cooled Spindle Motor
1 x 2.2KW/220V VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 80mm Spindle Clamp
13 x ER20 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
Notice : there are two types of frequency converter , HY type is better shell and the mainboard .

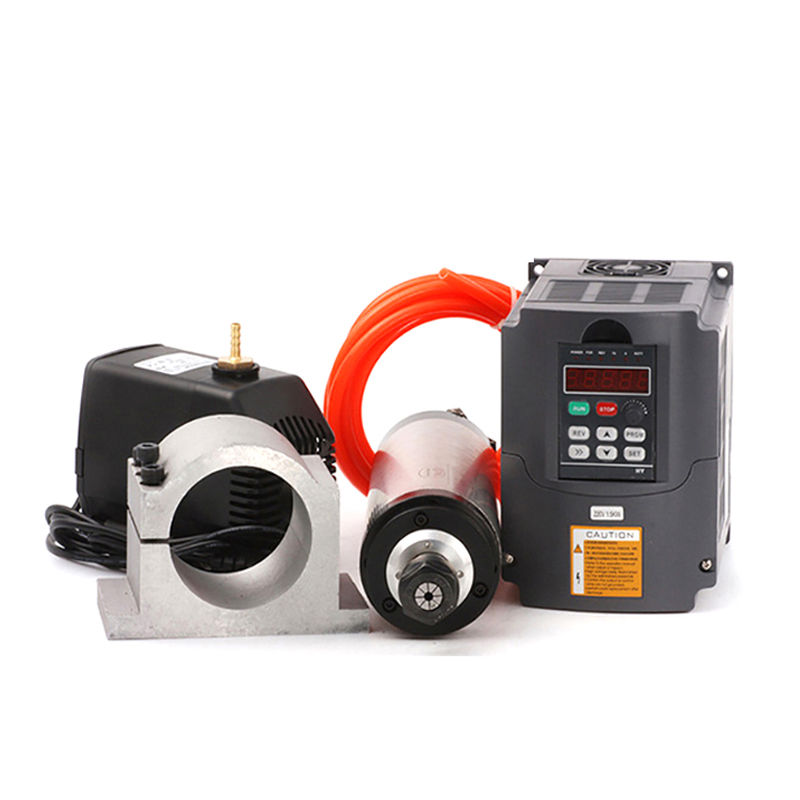

no cable:
1piece2.2kw inverter+1piece2.2kw water cooled spindle+1piece water pump+ 1 piece 5m water pipes+1piece 80mm clamp+13pcs ER20

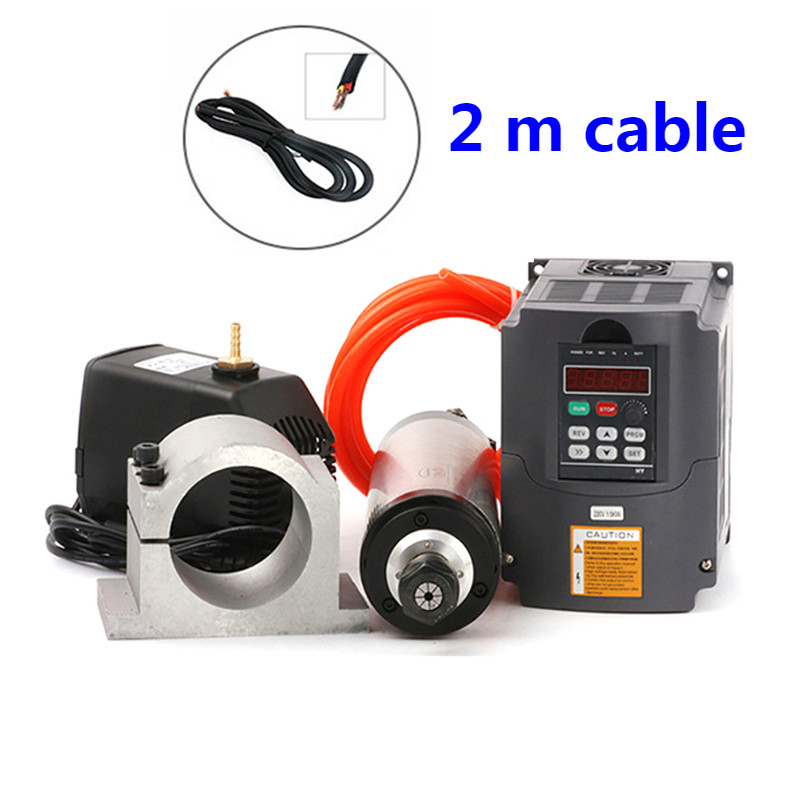

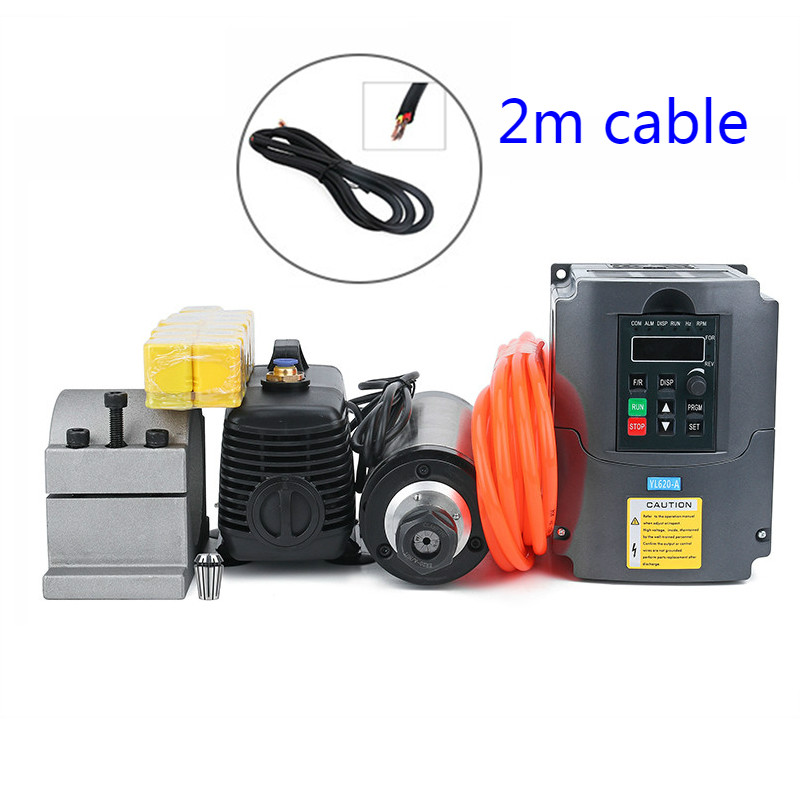

with 2m cable:
1piece2.2kw inverter+1piece2.2kw water cooled spindle+1piece water pump+ 1 piece 5m water pipes+1piece 80mm clamp+13pcs ER20 + 2m cable

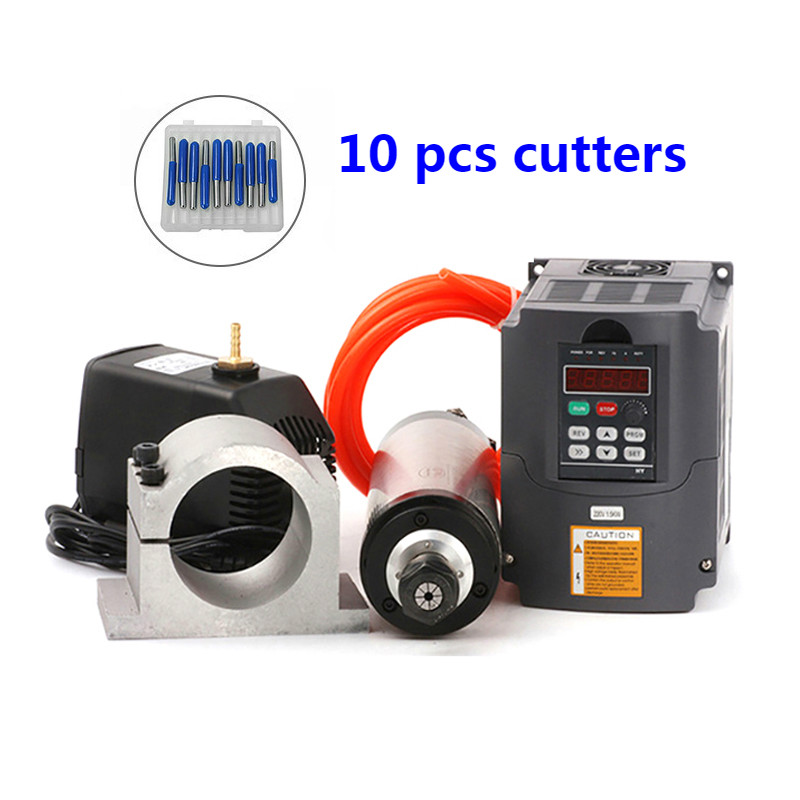

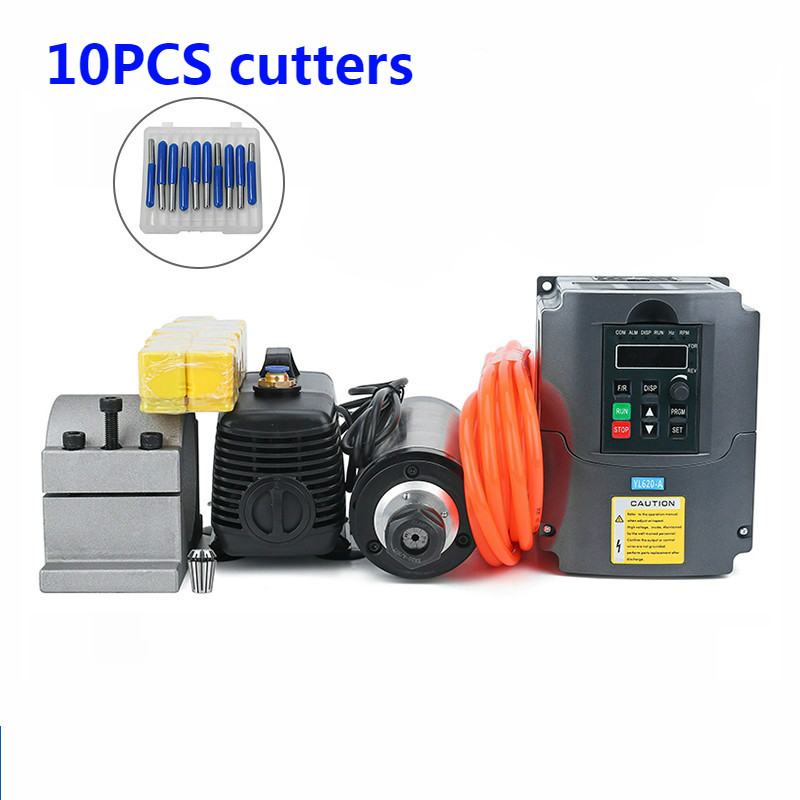

with Cutters:
1piece2.2kw inverter+1 piece 2.2kw water cooled spindle+1piece water pump+ 1 piece 5m water pipes+1piece 80mm clamp+13pcs ER20+10pcs cutters

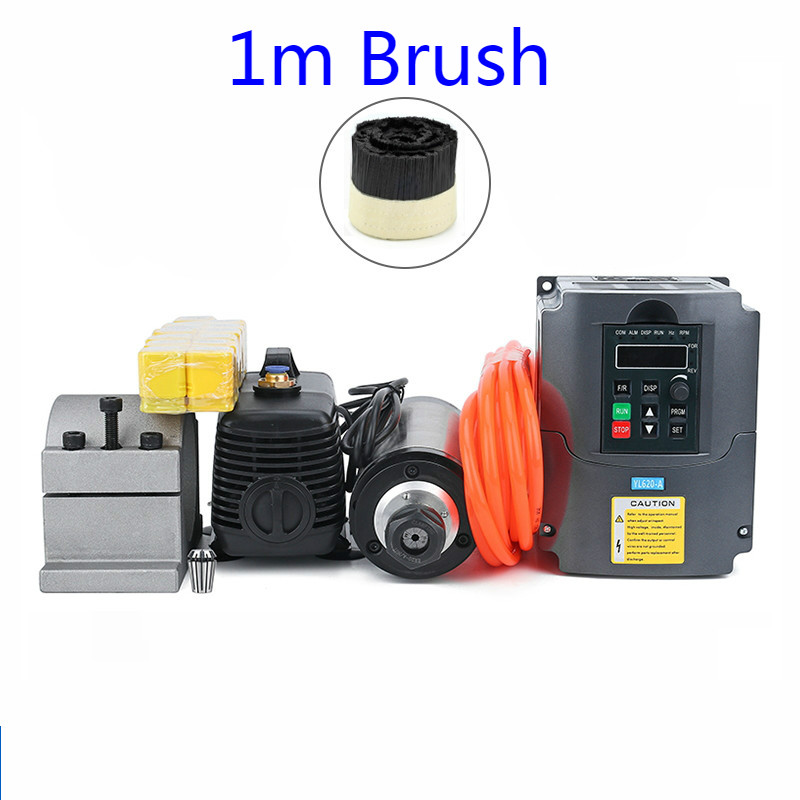

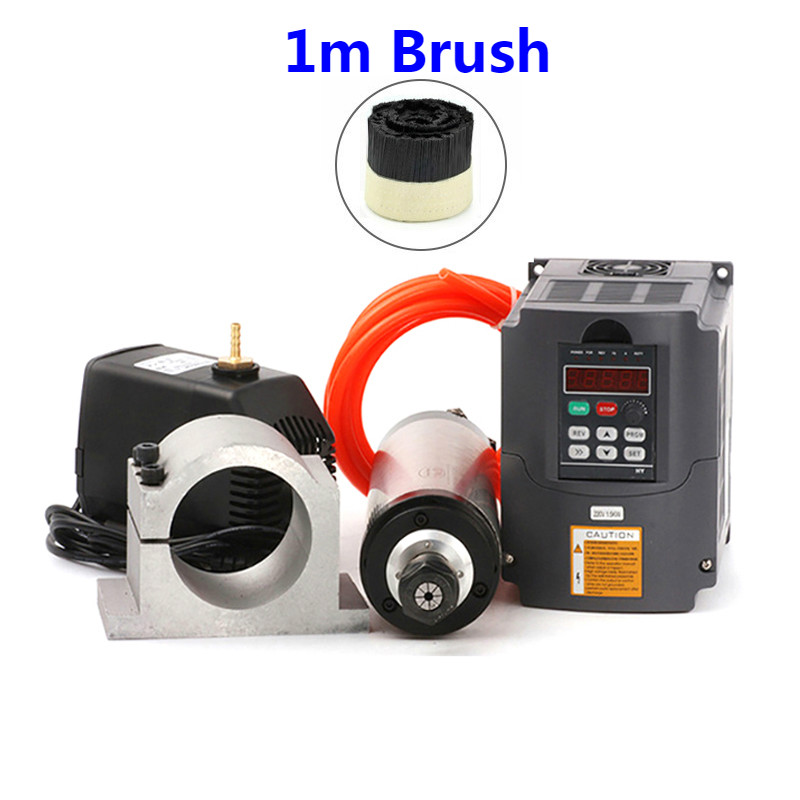

with Brush:
1piece2.2kw inverter+1 piece2.2kw water cooled spindle++1piece water pump+ 1 piece 5m water pipes+1piece 80mm clamp+13pcs ER20+100mm brush

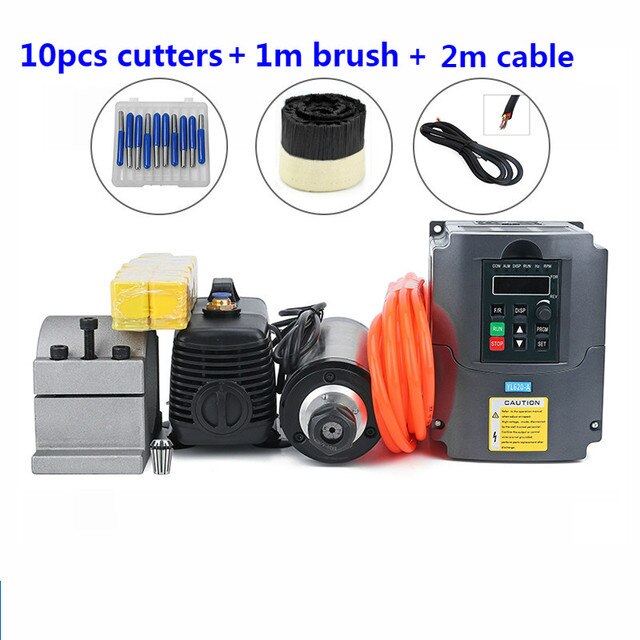

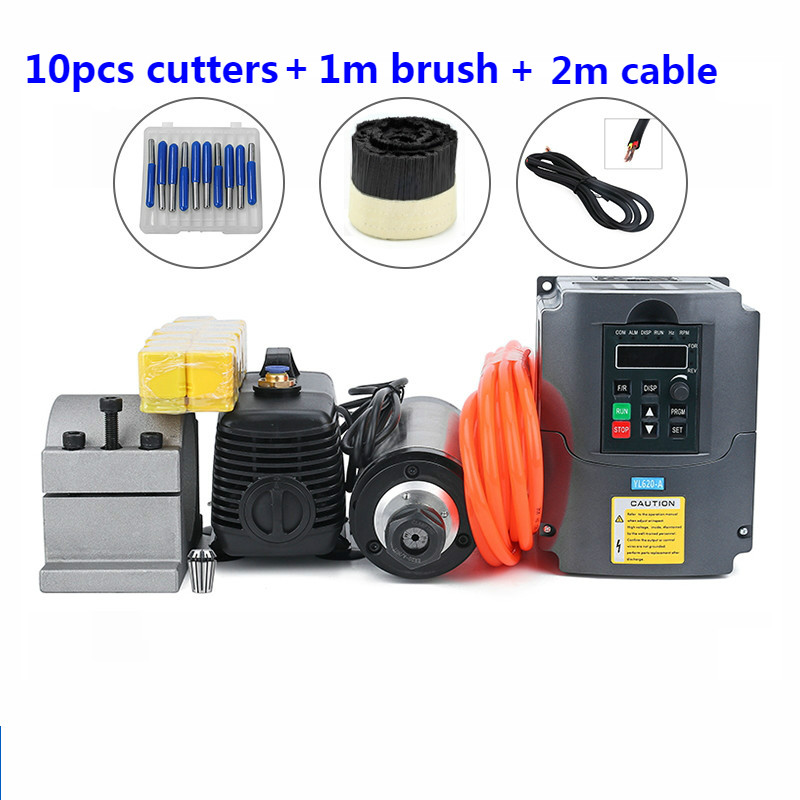

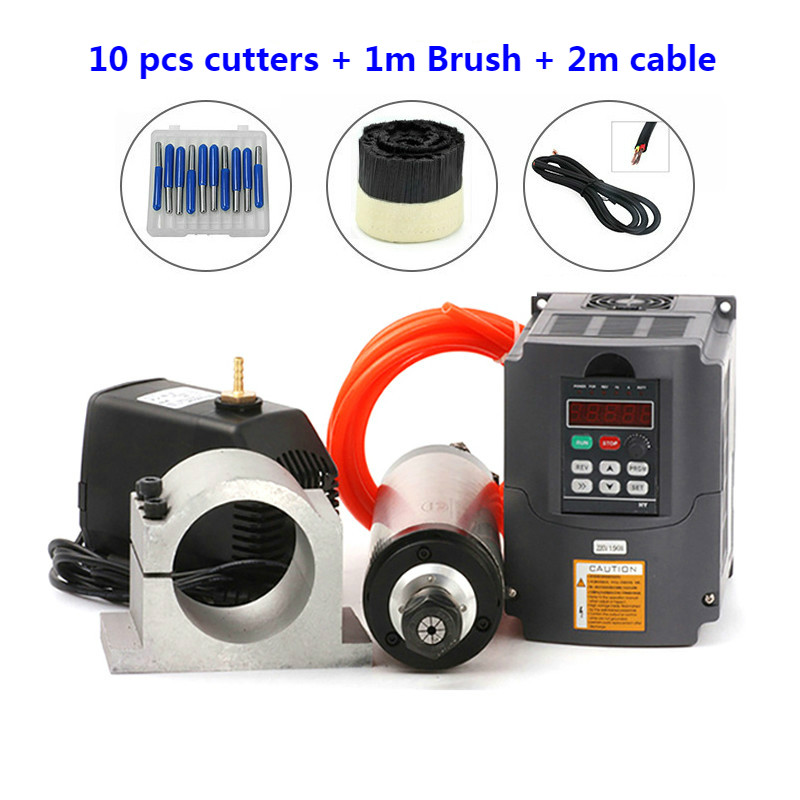

with cutters cable brush:
1piece2.2kw inverter+1 piece2.2kw water cooled spindle+1piece water pump+ 1 piece 5m water pipes+1piece 80mm clamp+13pcs ER20+2m cable +10pcs cutters+ 100mm brush
Warranty :1 year from the date you purchased!!
Basic Date

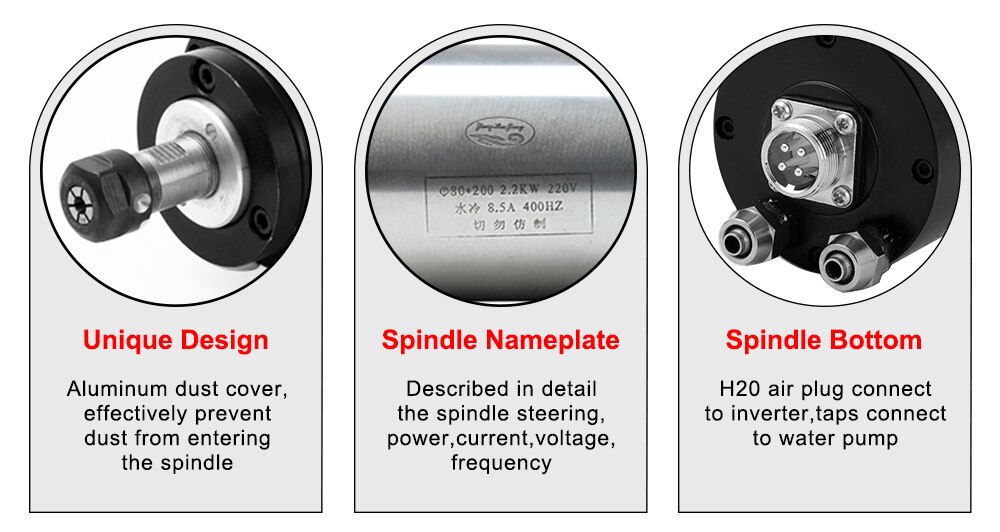

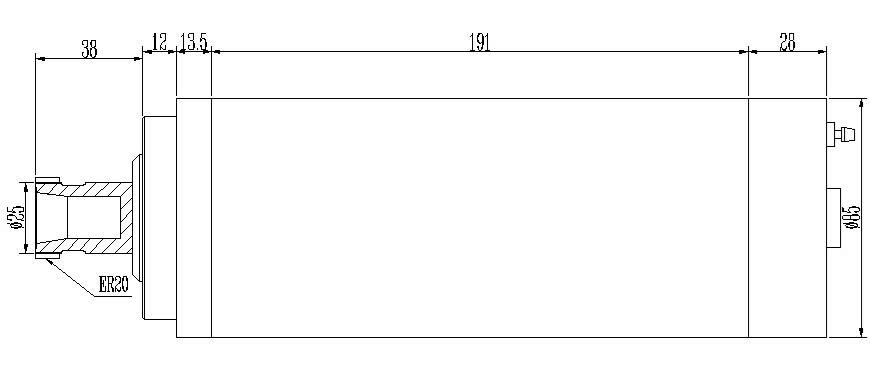

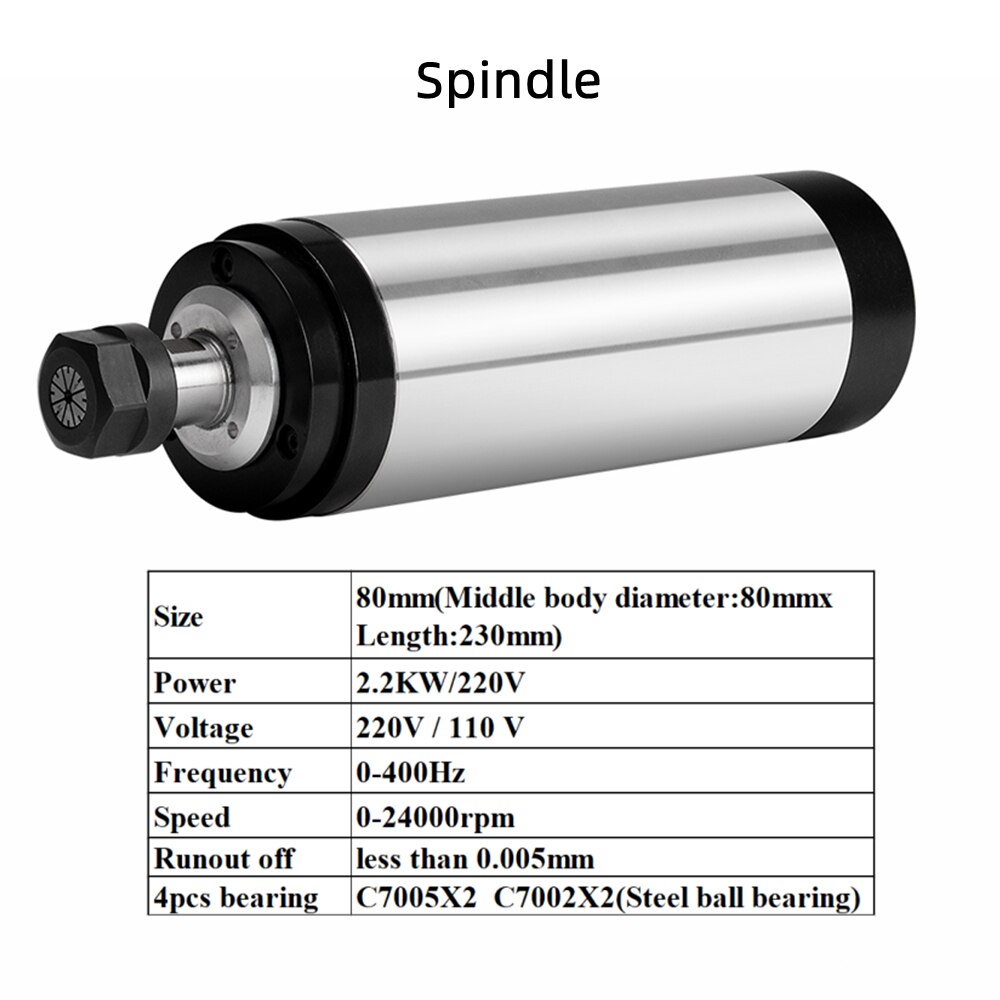

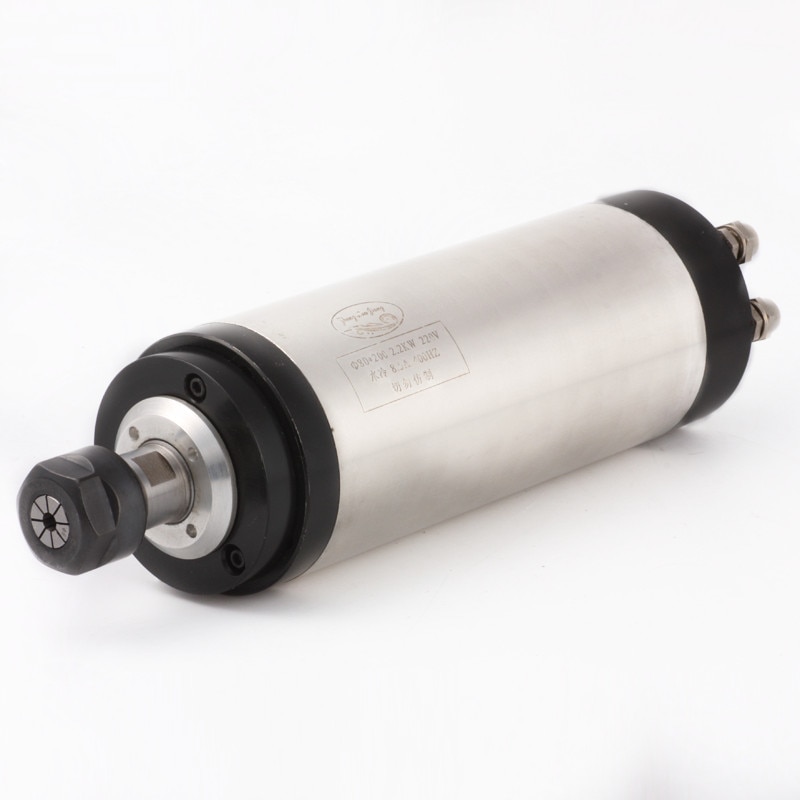

1.CNC Spindle Motor
Preparations before using：
1.Spindle working environment temperature is usually -10 ~ 40 .
2.Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.
About spindle using:
1.Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

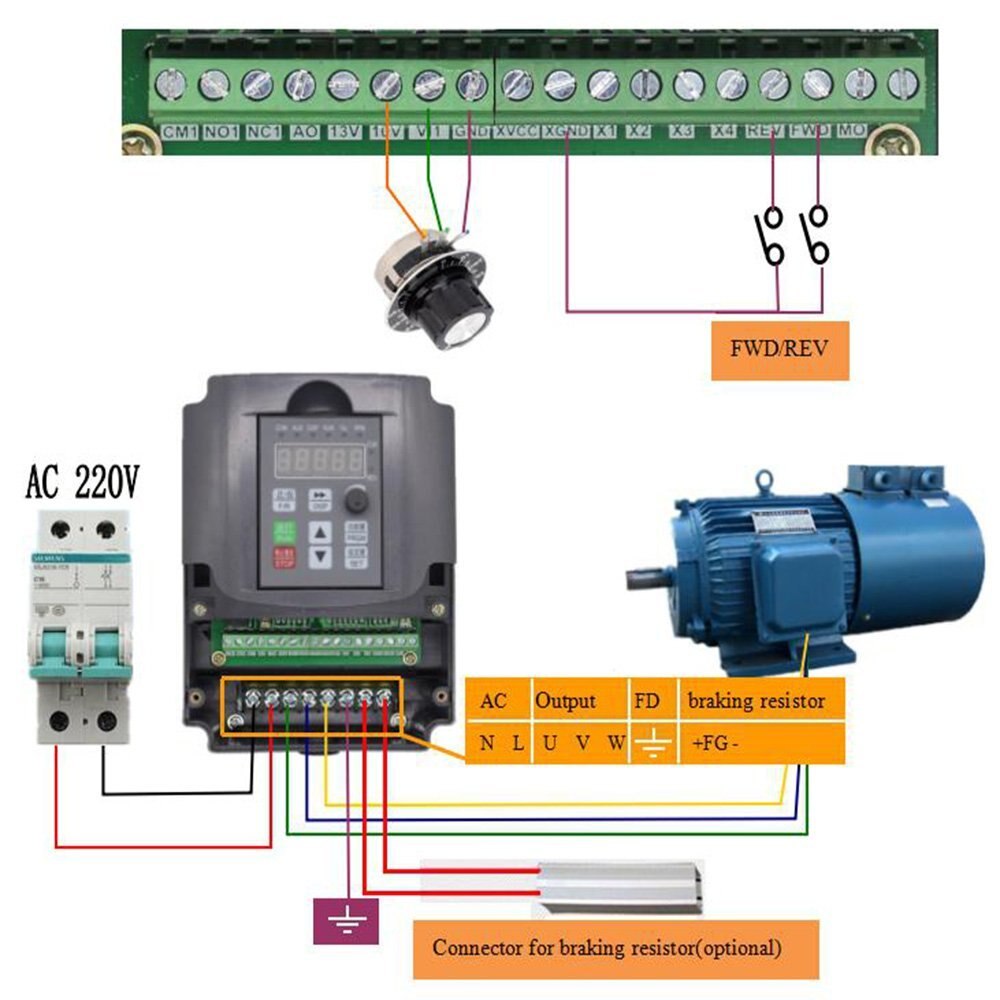

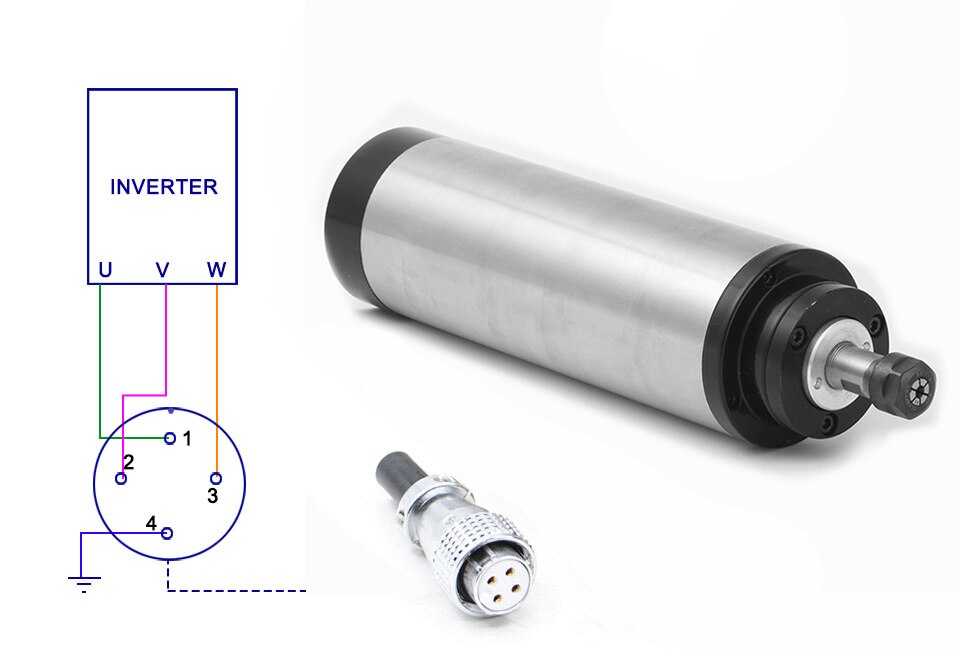

2.Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.
3.It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.
Care and maintenance
1.Water cooled spindle MUST be used with water pump. Otherwise the spindle will soon broken.
2.AC spindle motor MUST use with inverter. The power of inverter need equal or bigger than the spindle power. Before using,please set up the inverter parameters suitable for spindle. Otherwise the spindle and inverter will broken at once.
3.When you use the spindle,the noise is not same as always,please STOP the spindle at once. You may need to replace the spindle bearings.
PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

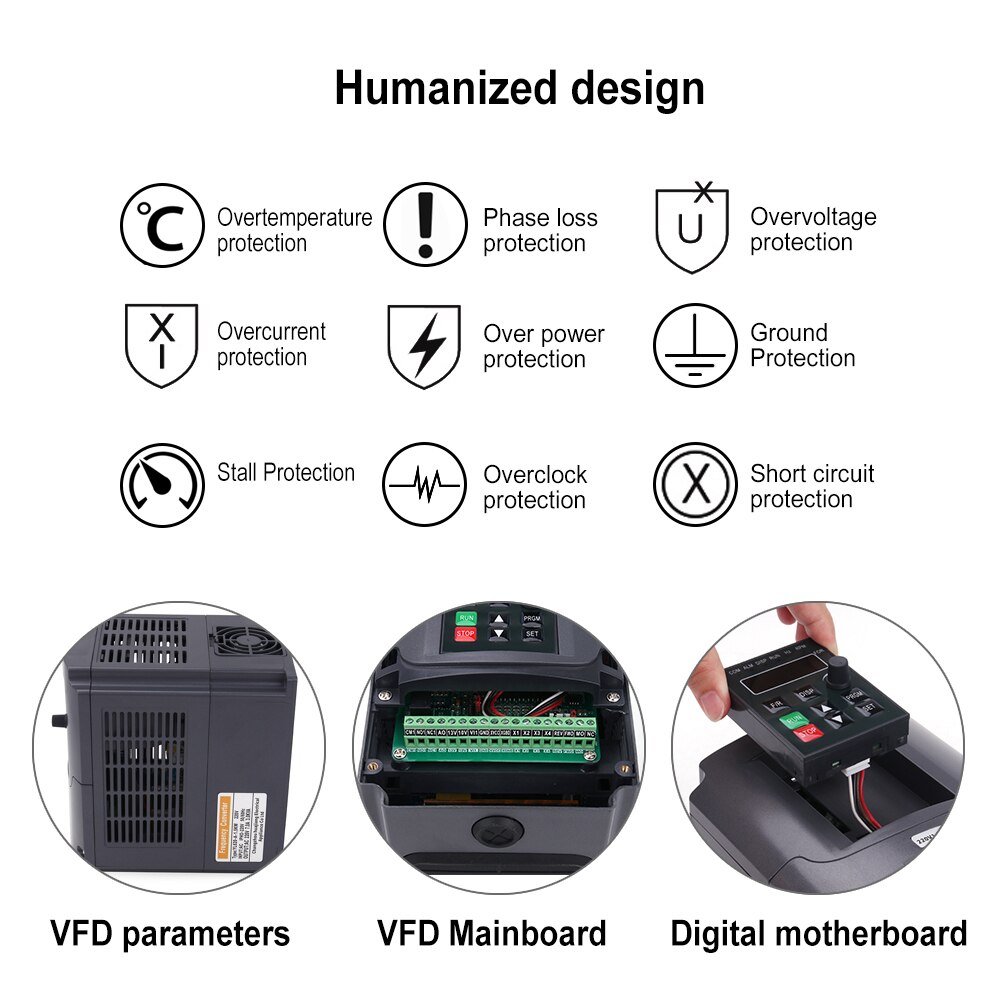

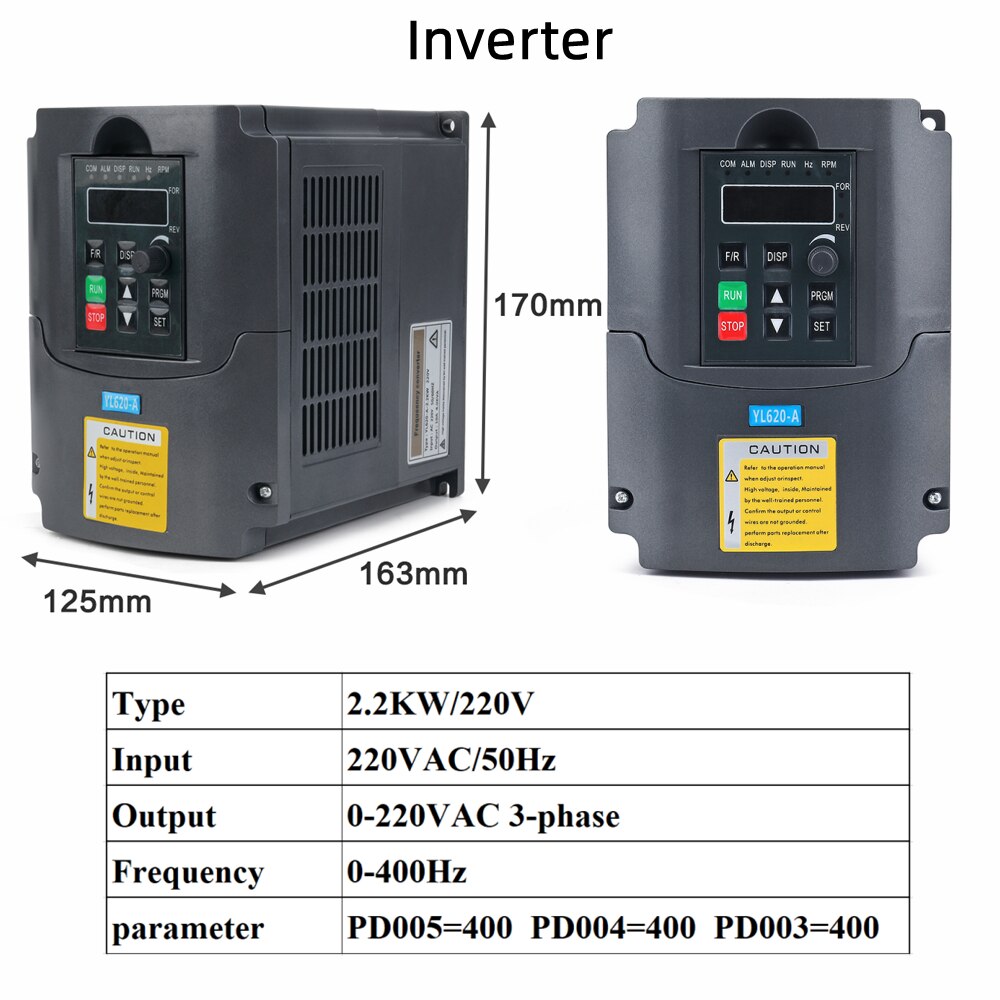

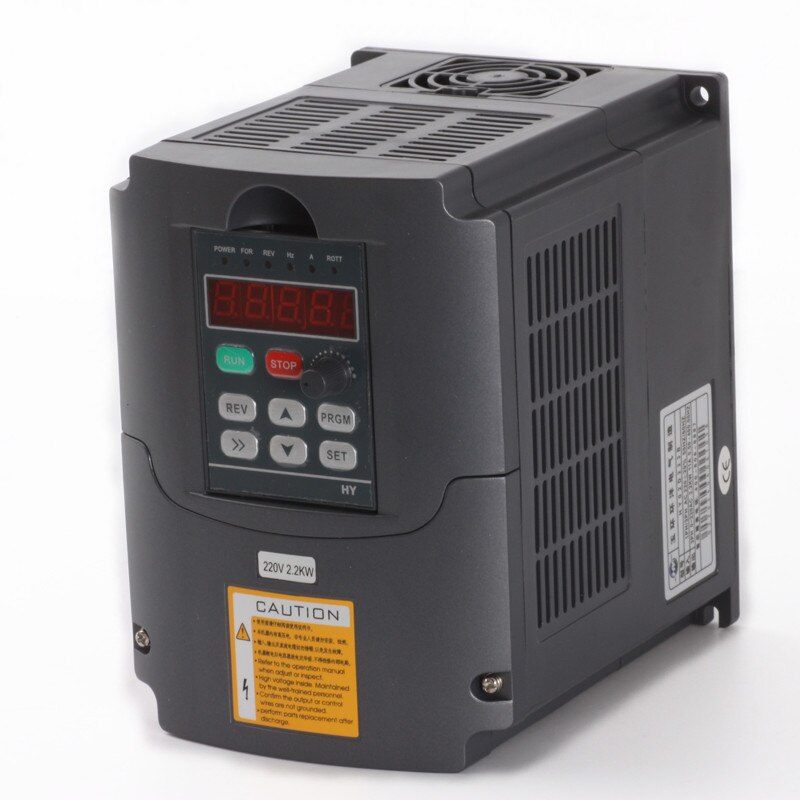

2.Inverter

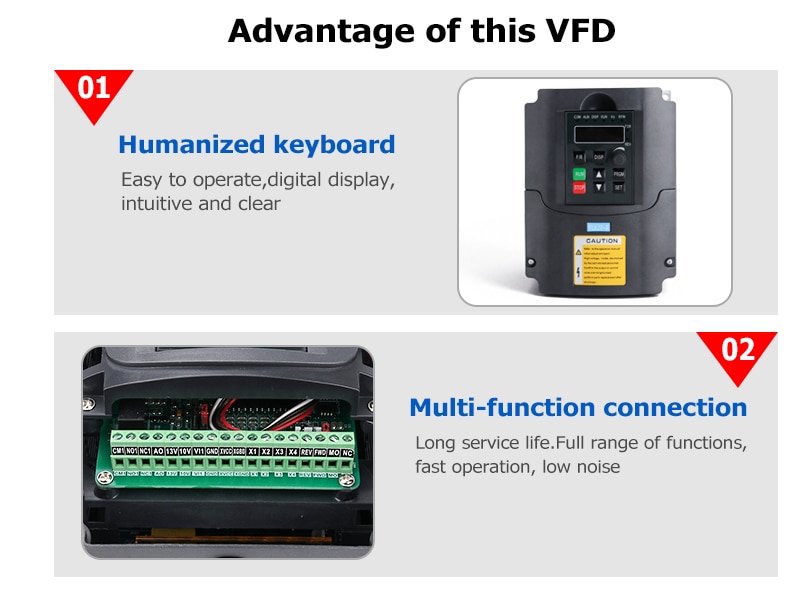

Inverter Feature
1.Easy PLC function can realize 16 legs of speed and inverter control function;
2.RS485 communication port, adopting standard international MODBUS main circuit control;
3.With extremely strong anti-jamming capability
4.Low output ratting torque0.5HZ-150%, low speed running ability;
5.Carrier adjustable by 16KHZ, completely soundless working environment;
6.Broad voltage working area, normal running in 304V-456V;
7.Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;
8.Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;
9.With perfect error protection and short circuit starting protection capability;

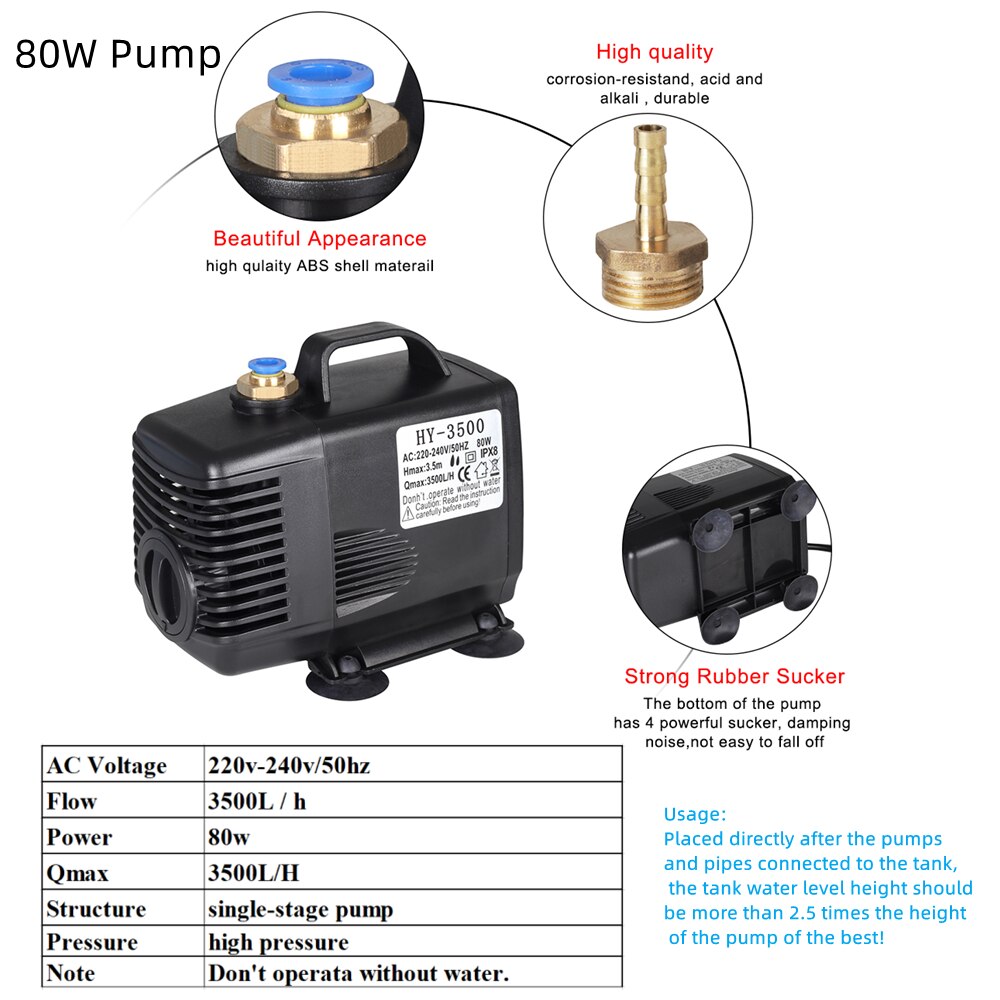

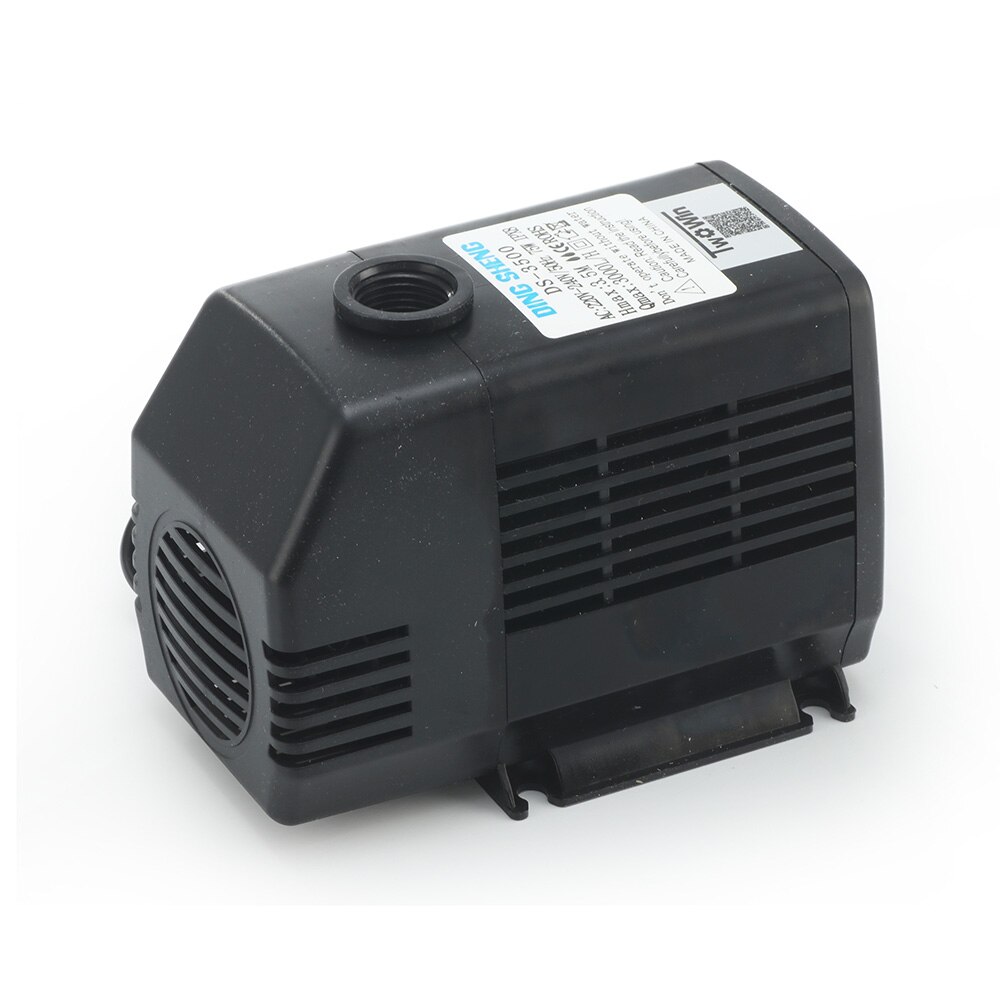

3.water pump

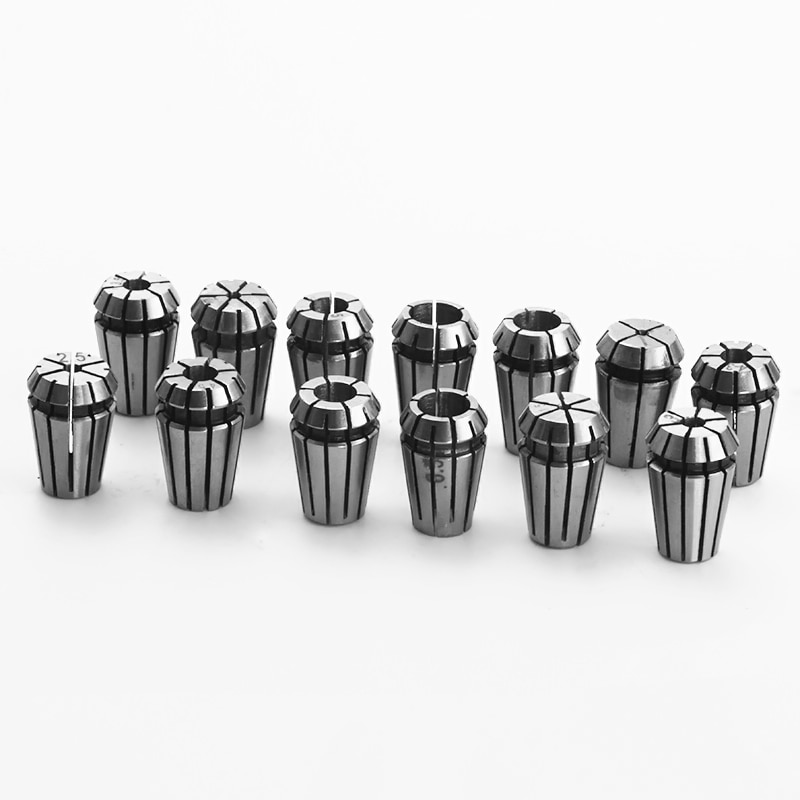

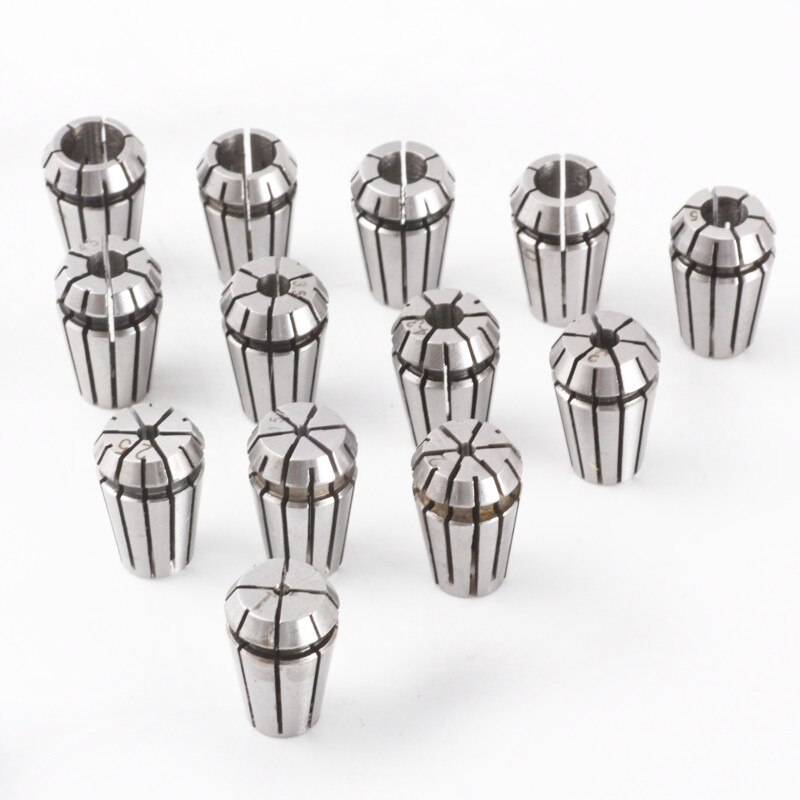

4.collet :1set er20 13pcs(1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

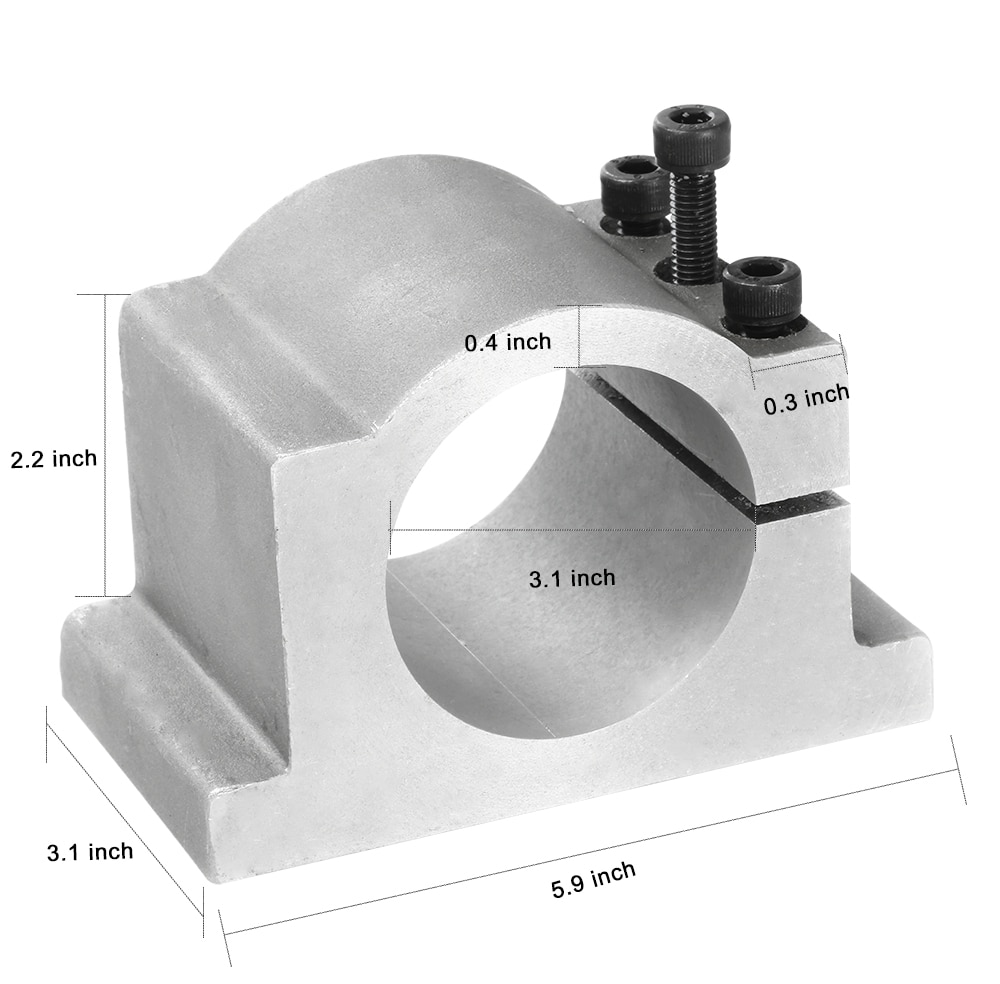

5.clamp:80mm clamp

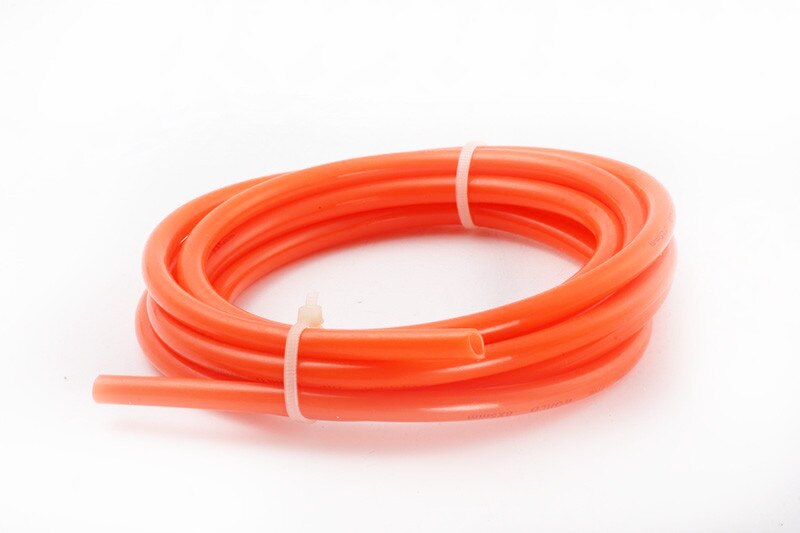

6.5M Water pipe:Size:5M 6mm (ID)*8mm (OD)
If you want to purchase ITEMS from China, please give me your product list, let me give you a quote.
Our company is focused on providing CNC /3D PRINTER parts and accessories. We have our own cnc processing plant, and cooperate with some other factories, this will help control costs and ensure quality.
Friend, We really hope to be your < CHINA SOURCING AGENT >, make your China sourcing work more convenient and efficient!
- We accept Escrow, Credit Card,T/T,Western Union,WebMoney Qiwi wallet and Brazil Boleto.
-We send goods within 1-5 business days after receiving the payment.
- Orders will be canceled if payment is not received within 10 days of purchase.
- If you receive a wrong or defective item please email us within 7 days from the date you receive the product.
- Later than 7 days the item cannot be accepted for returning.
- If the order is defective,we will send replacement parts to you after receiving the proof of the defective photos of the items that you received, and no additional charge. Shipping and handling are not refundable. All returns must include all original items undamaged, in re-saleable condition,all packaging including manuals, warranty forms,etc.
- Please be sure that the address you give is correct.If the address is incorrect, the parcel fail to delivery and is sent back to the seller ,the buyer should pay for the first and returning shipping fees.
- Delivery time depends on destination and other factors, it may takes up to 20 business days.(Brazil and Russia would take 20-60 days,because of the local customs.
- If it happens to be any duties, taxes and any other fees charged by the courier company and your respective country, the buyers are duty to pay.(The buyer from Brazil should provide the VAT number when you order.)
-If you satisfied with our product,please give us postive feedback and Five Star Detail Seller Rating. Your approve is the most encourage for us!!
-If you have any questions, please contact us, we will service to your satisfaction!!
Thank you!!!
- Operating Speed: 0-24000rpm
- Application: Milling
- Model Number: 2.2kw Water Cooled Spindle Kit
- Drive: Motor
- Brand Name: TwoWin
- Origin: Mainland China
- Certification: NONE
- Type: 2.2kw Water Cooled Spindle Kit
- Cooling: Water Cooling
- Speed: 0-24000rpm
- Voltage: 220V
- Runout off: less than 0.005
- Inverter: 2.2KW/220V
- Input: 220VAC/50Hz
- Output: 0-220VAC 3-phase
- Clamp: 80mm
- Pump: 3.5m 80W
