Air cooled 0.8kw DC110V 20000RPM CNC spindleMotor Kit ER11/ chuck 800W Spindle Motor + Power Supply speed governor For Engraving

5.0 (4 votes) | 28 orders
Price:
US $ 150.96 - 398.95 / piece
Ships From
Color

Sorry! This item is out of stock

 0.8kw spindle motor Air cooled spindle 1Pcs ER11 chuck CNC 800W Spindle Motor 20000rpm


Package introduce:

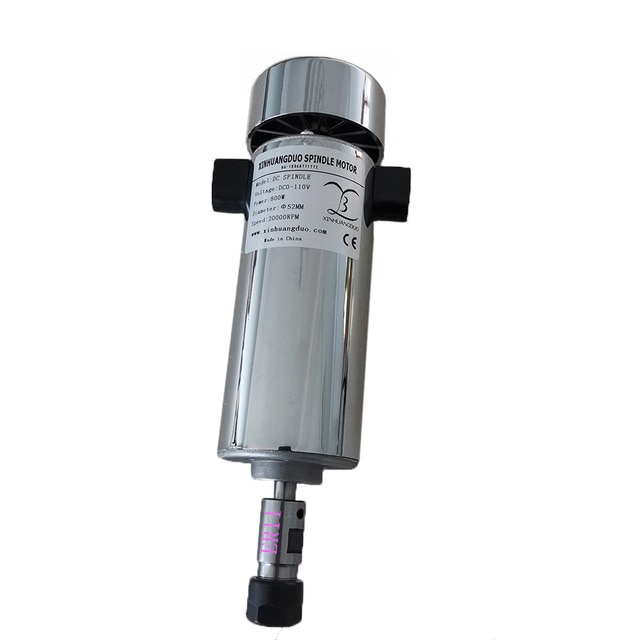

package 1: 1pcs 800w spindle

package 2: 1pcs 800w 220v/110v mach3 power supply

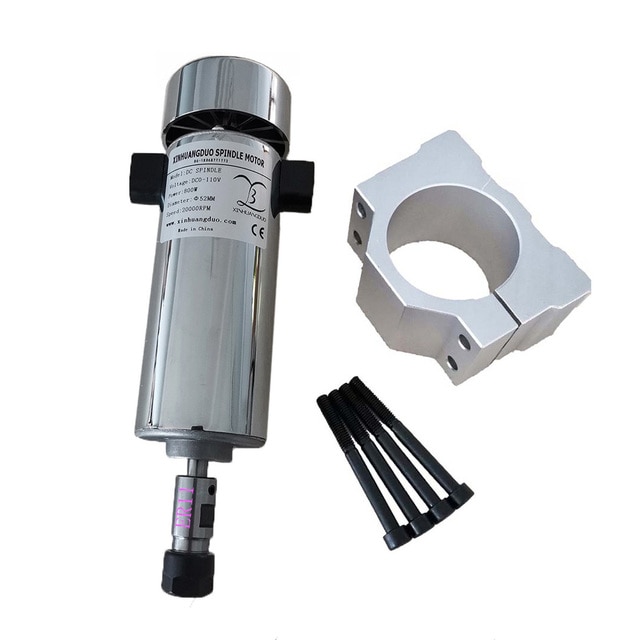

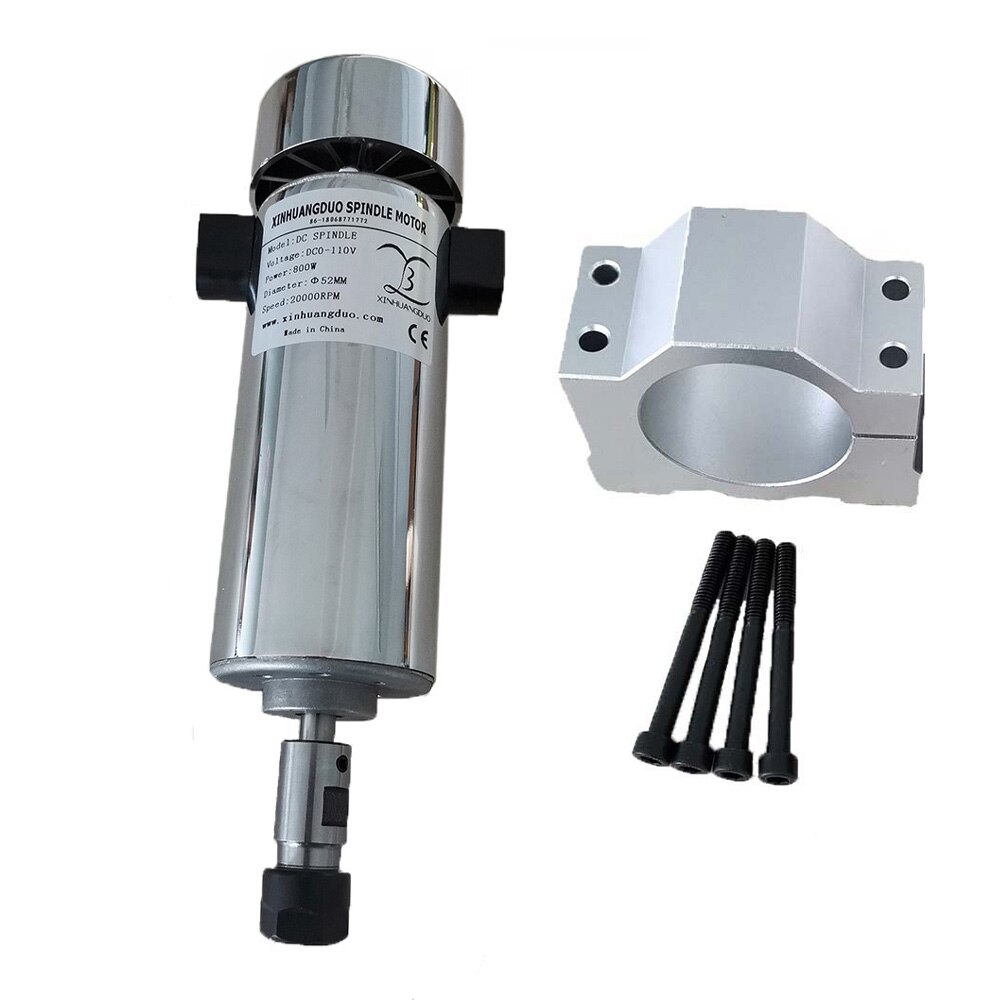

package 3: 1pcs 800w spindle+1pcs 52mm clamp

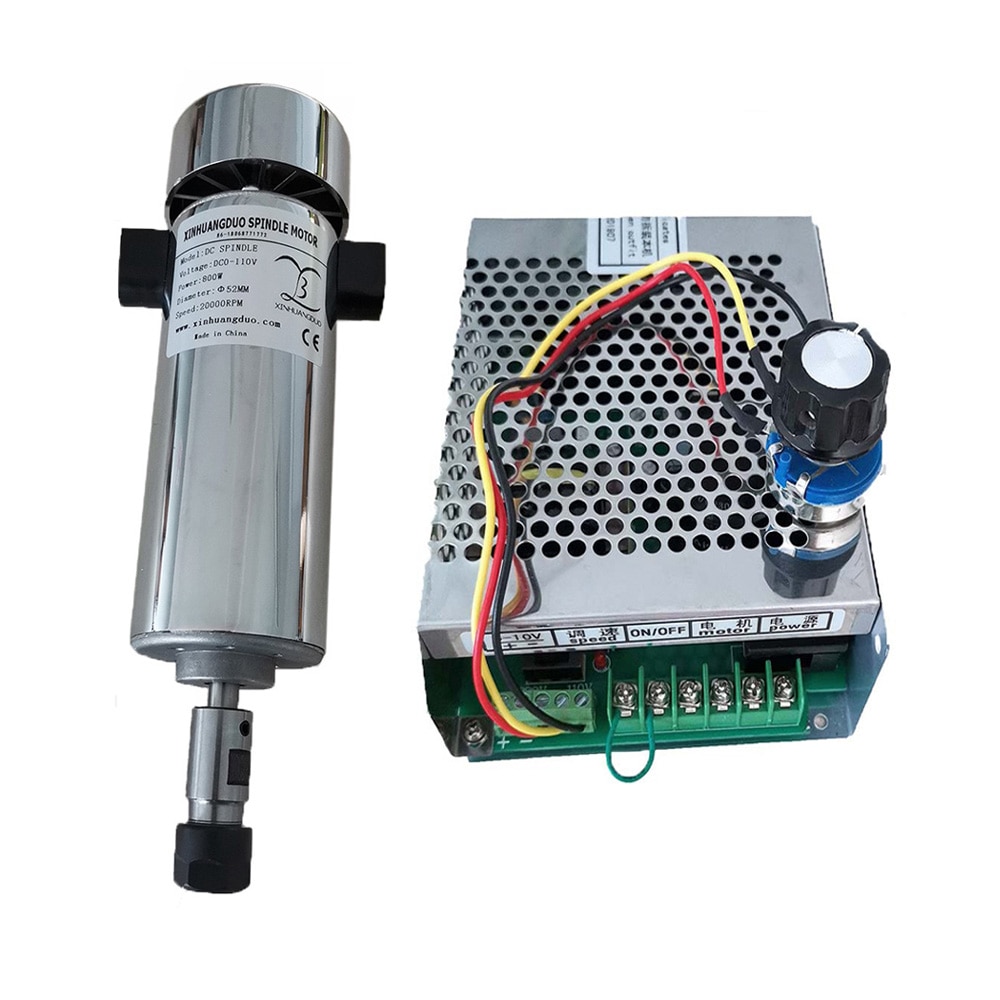

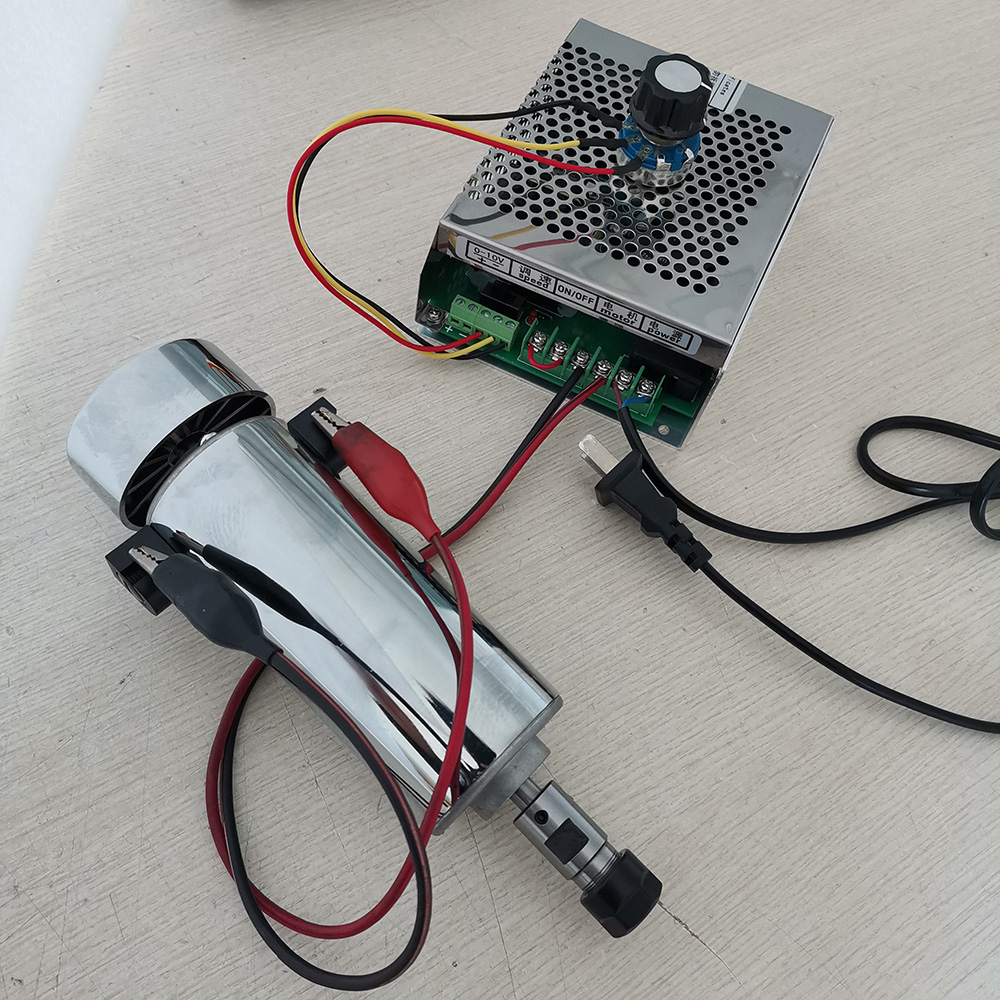

package 4: 1pcs 800w spindle+1pcs 800w 220v/110v mach3 power supply

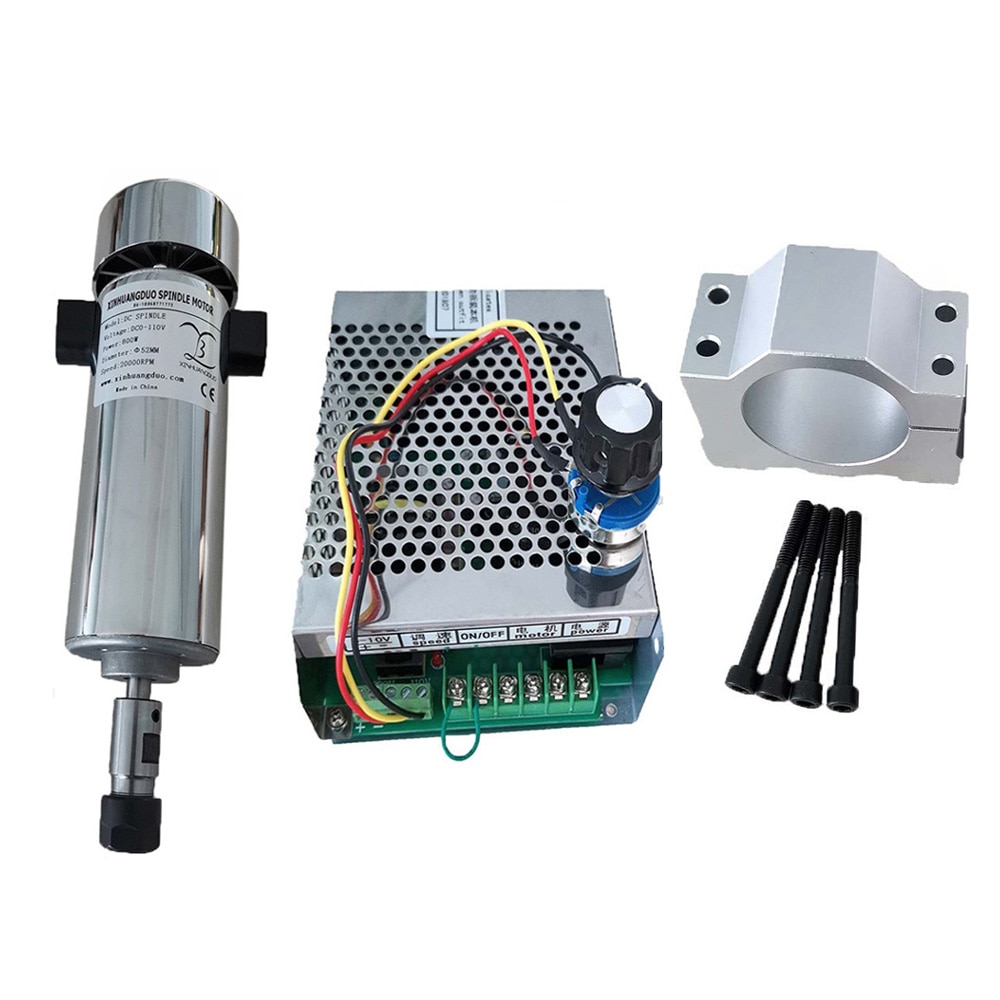

package 5: 1pcs 800w spindle+1pcs 800w 220v/110v mach3 power supply+1pcs 52mm clamp

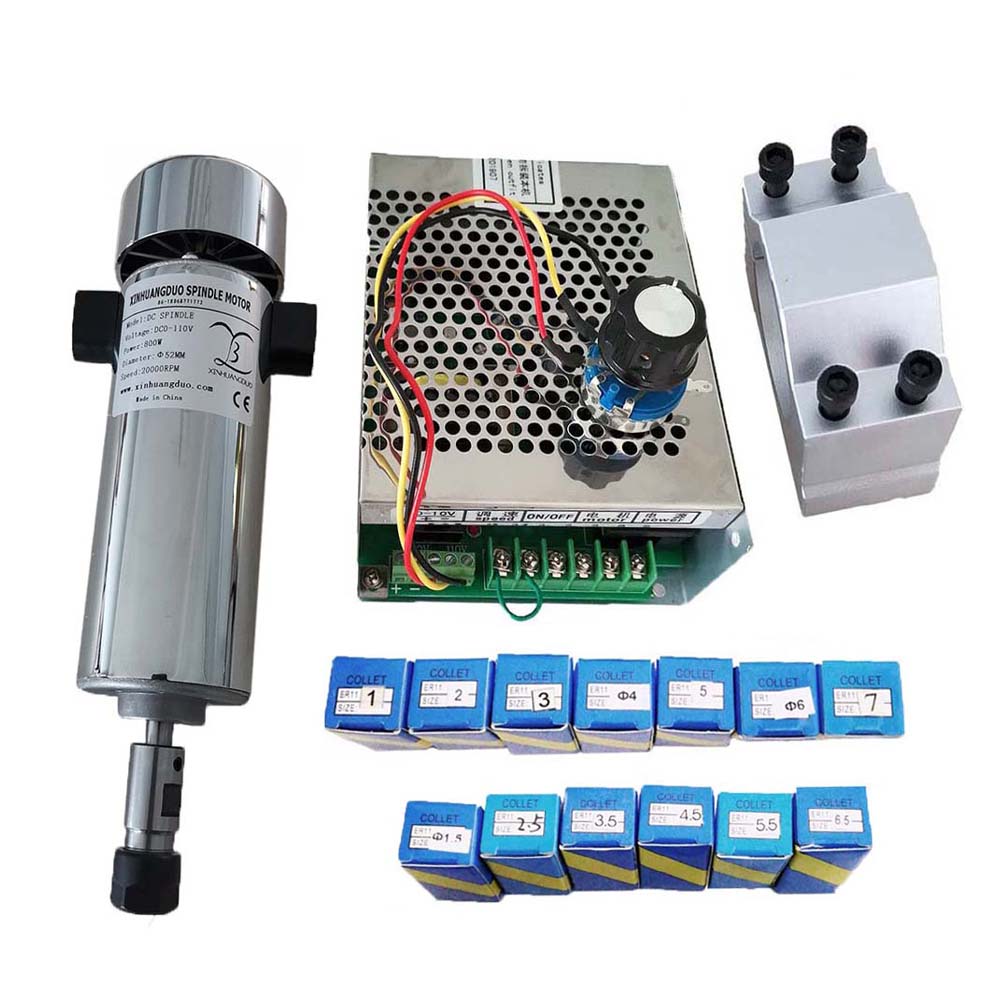

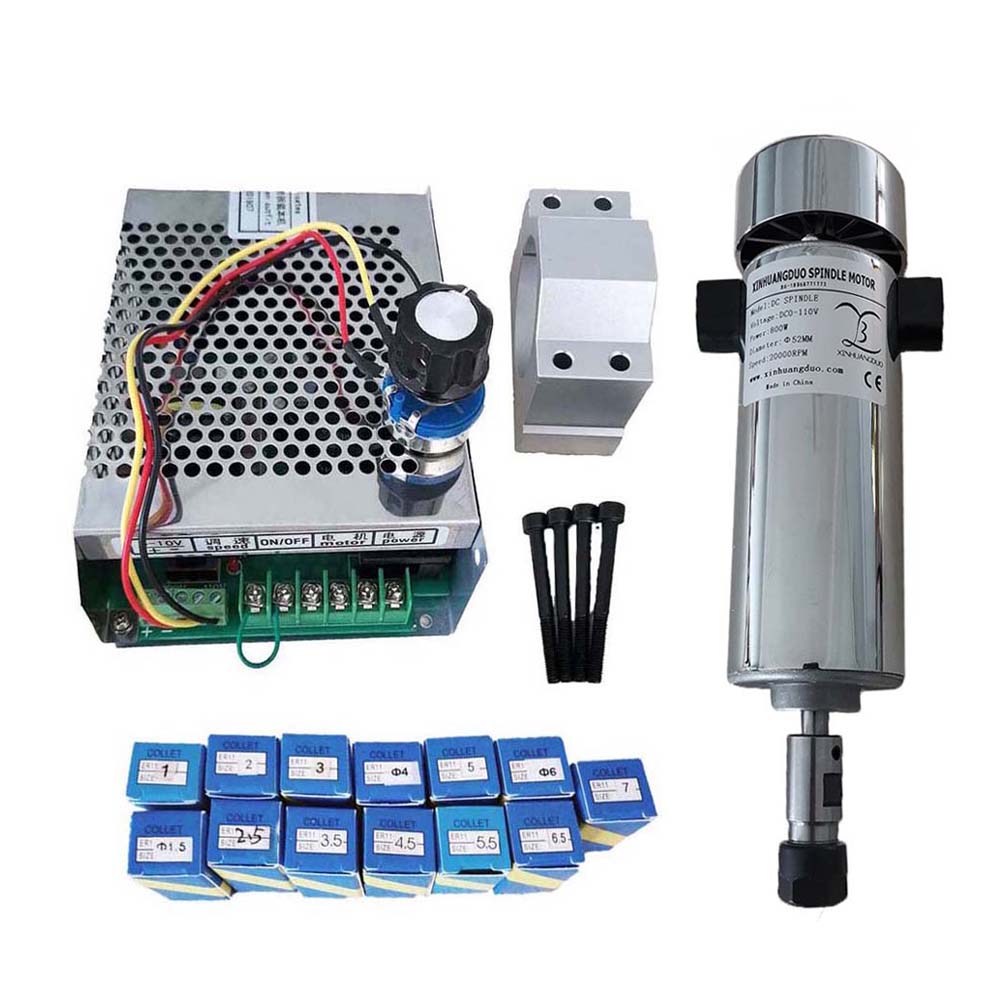

package 6: 1pcs 800w spindle+1pcs 800w 220v/110v mach3 power supply+1pcs 52mm clamp+13pcs ER11 collect

Feature:

1. Air Cooled Spindle:
Size:52mm
Power:800W
Maximum Torque:0.79Nm
Runout off:0.01mm-0.03mm
work Voltage:110VDC
Speed:5000-20000rpm
ER11 collet (3.175mm)

2. Power Supply:

Power Supply with speed governor:(Manual speed regulation)

Input:AC220V ± 10%50/60Hz

 Adapter power:800W

Support mach3 function

this power regulator can adjust 110/220v according to customers' needs

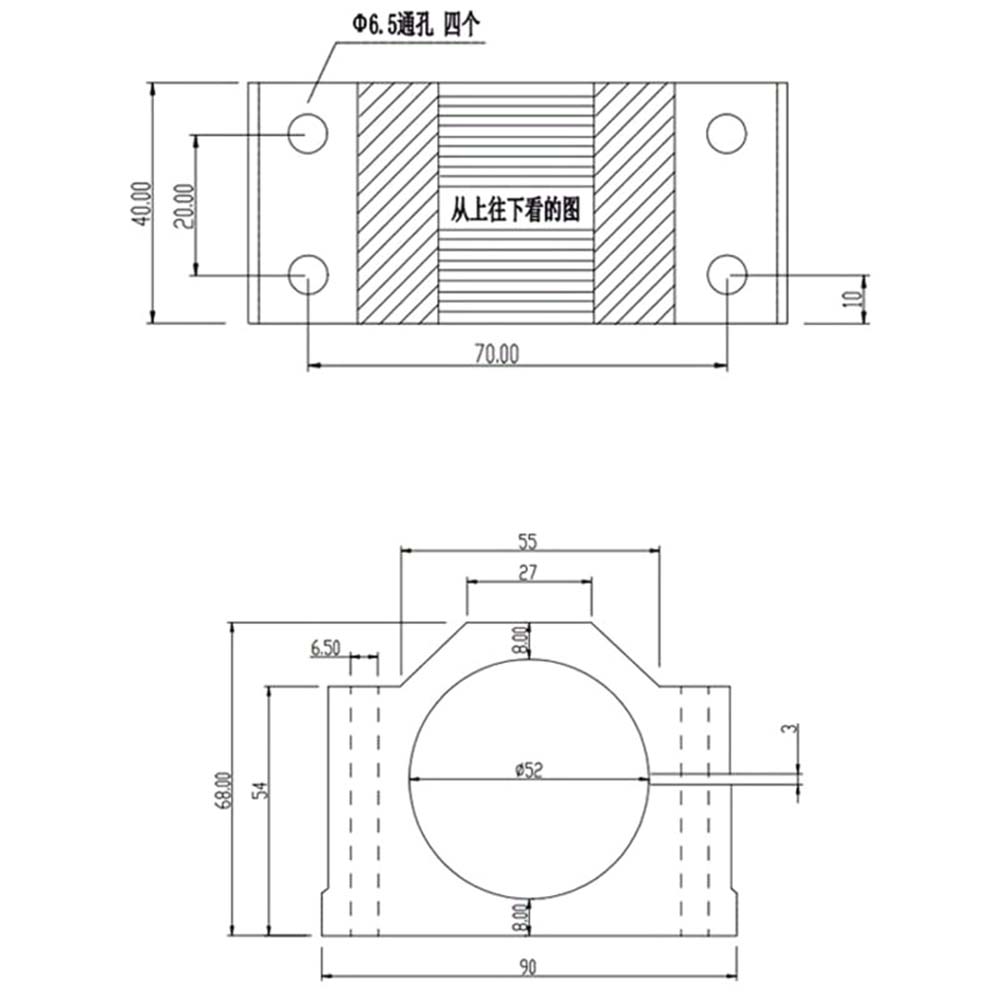

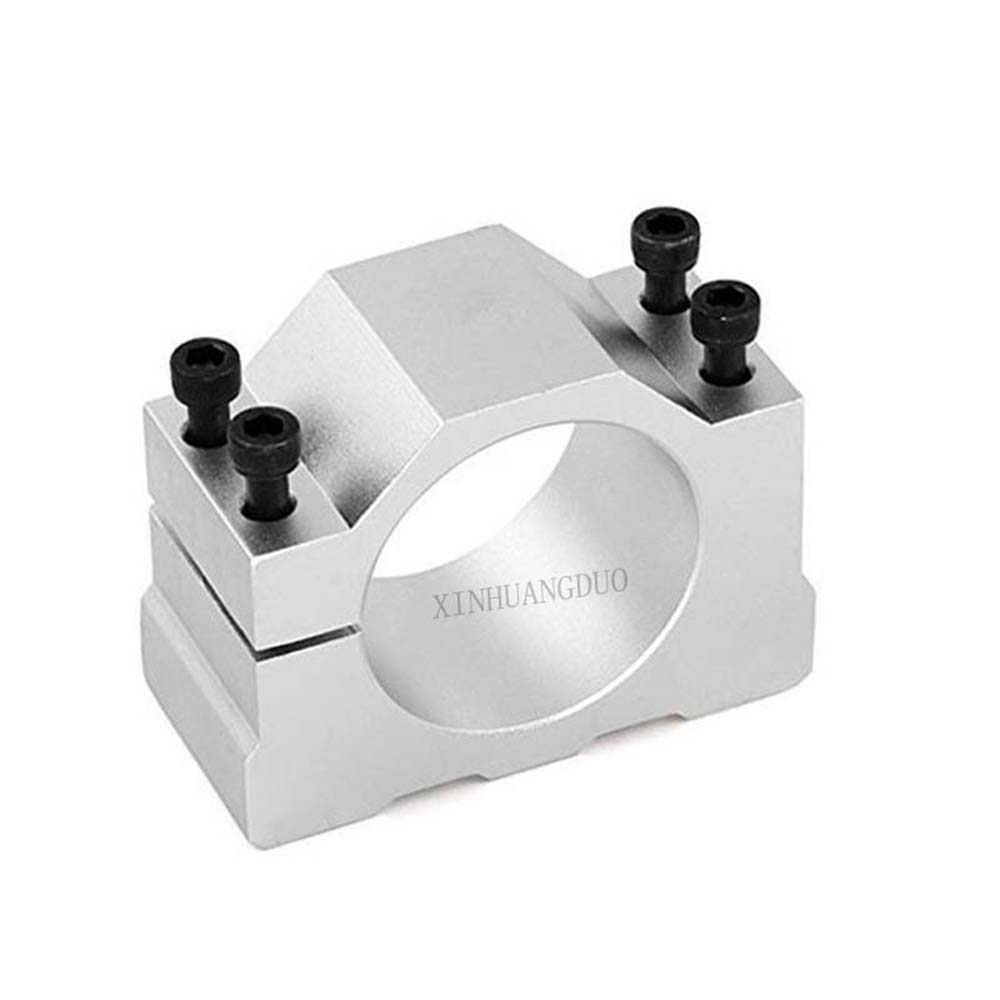

3. 52mm clamp :

1x 52mm Mount Bracket+4x Screws

Applicable to:300w 400w 500w  spindle motor

Model: 52mm Spindle motor mount bracket

Diameter: 52mm

Material: Aluminum alloy

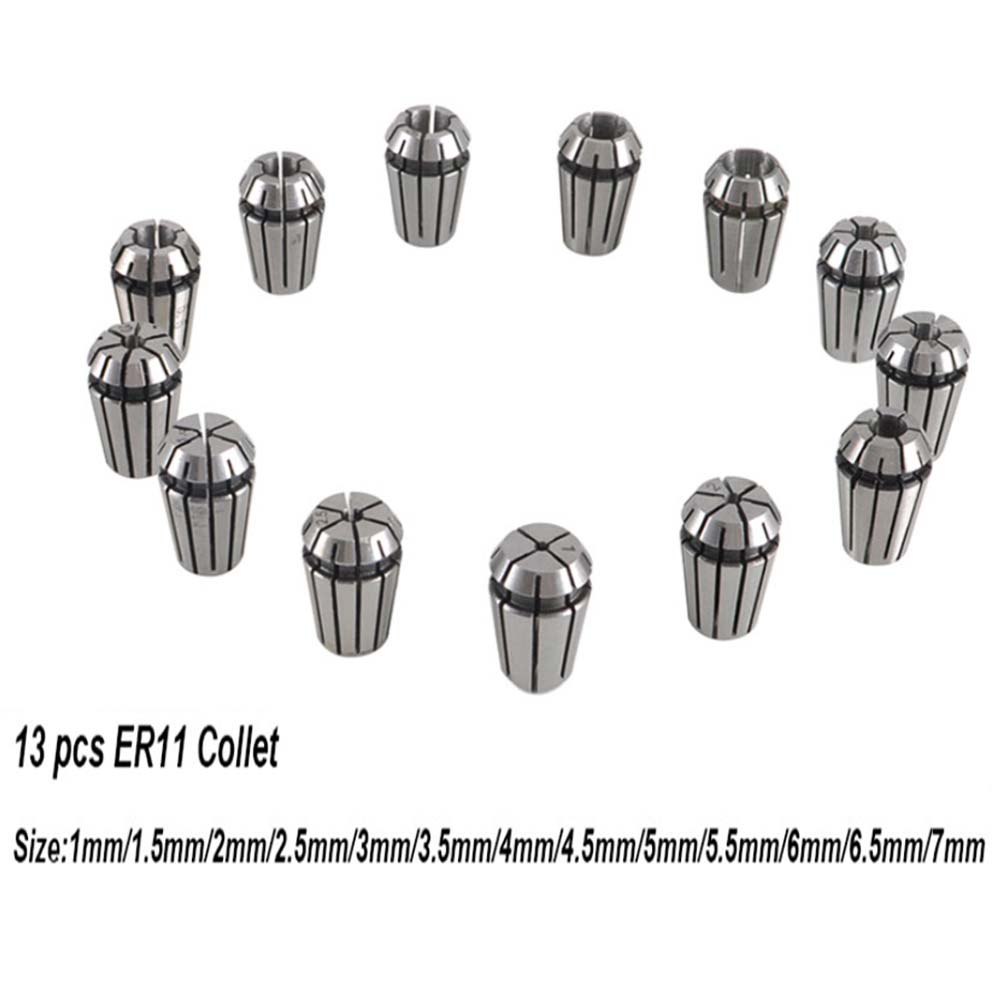

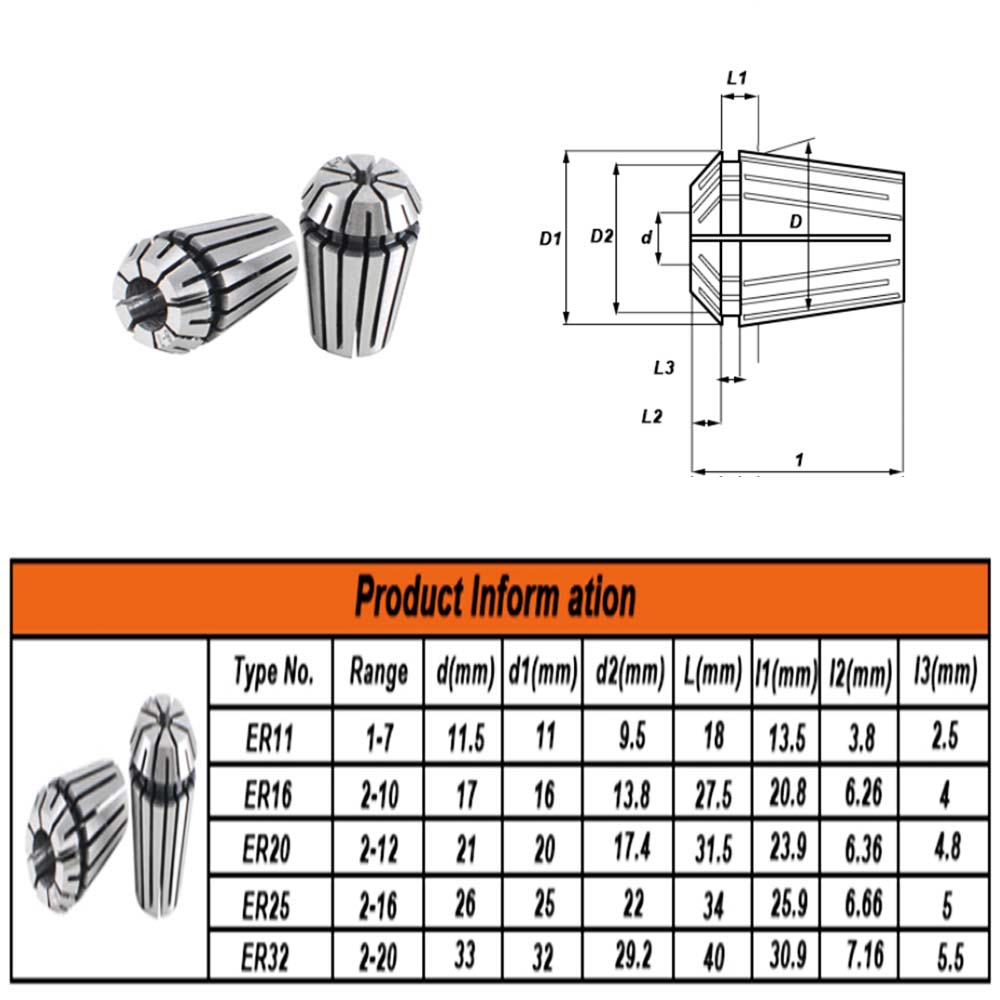

4. 13pcs ER11:


13pcs ER11 Size: 1mm / 1.5mm / 2mm / 2.5mm / 3mm / 3.5mm / 4mm / 4.5mm/ 5mm / 5.5mm / 6mm / 6.5mm / 7mm

80 (1)80 (3)80 (2)81803ER11 (2)501709

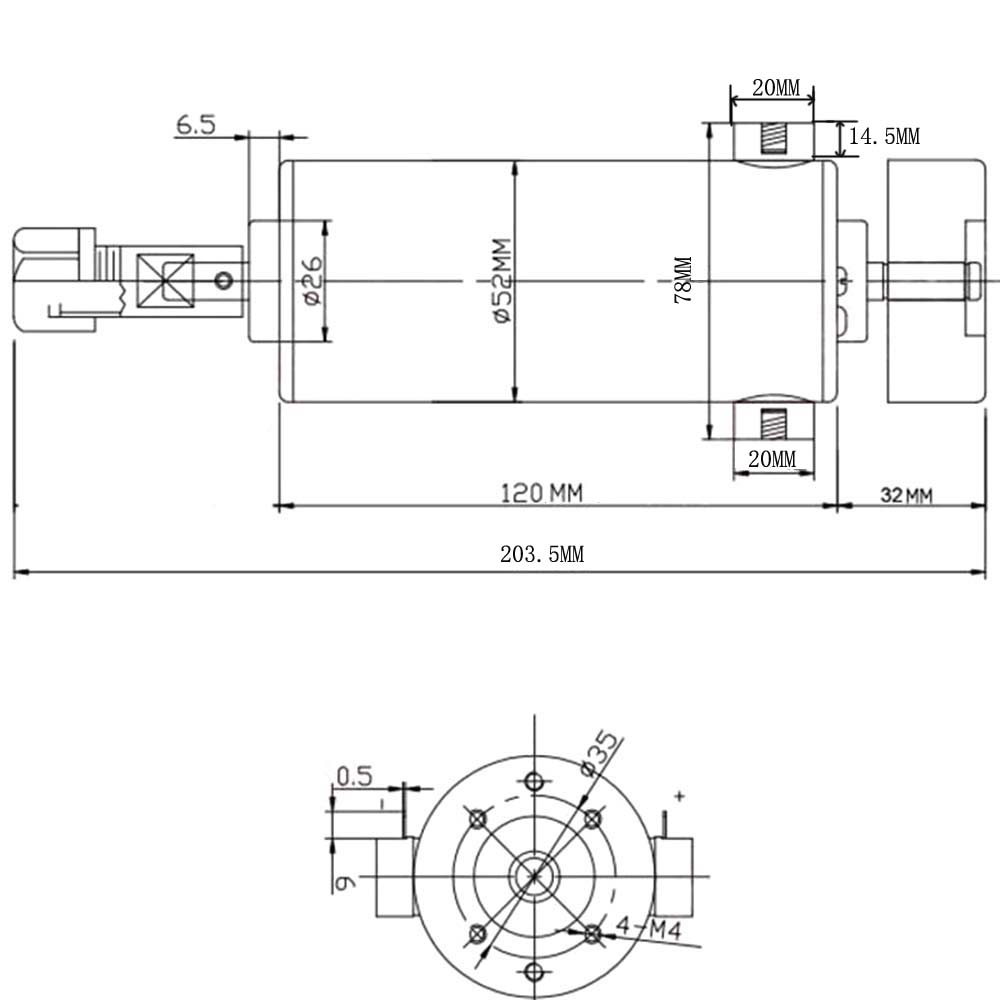

Spindle Motor Parameter:

Work voltage: 0-110VDC

Rotation speed: 5000-20000r/min

Power: 800W

Torque:0.79NM

Insulation resistance:>2Megohm

Dielectric strength:500V

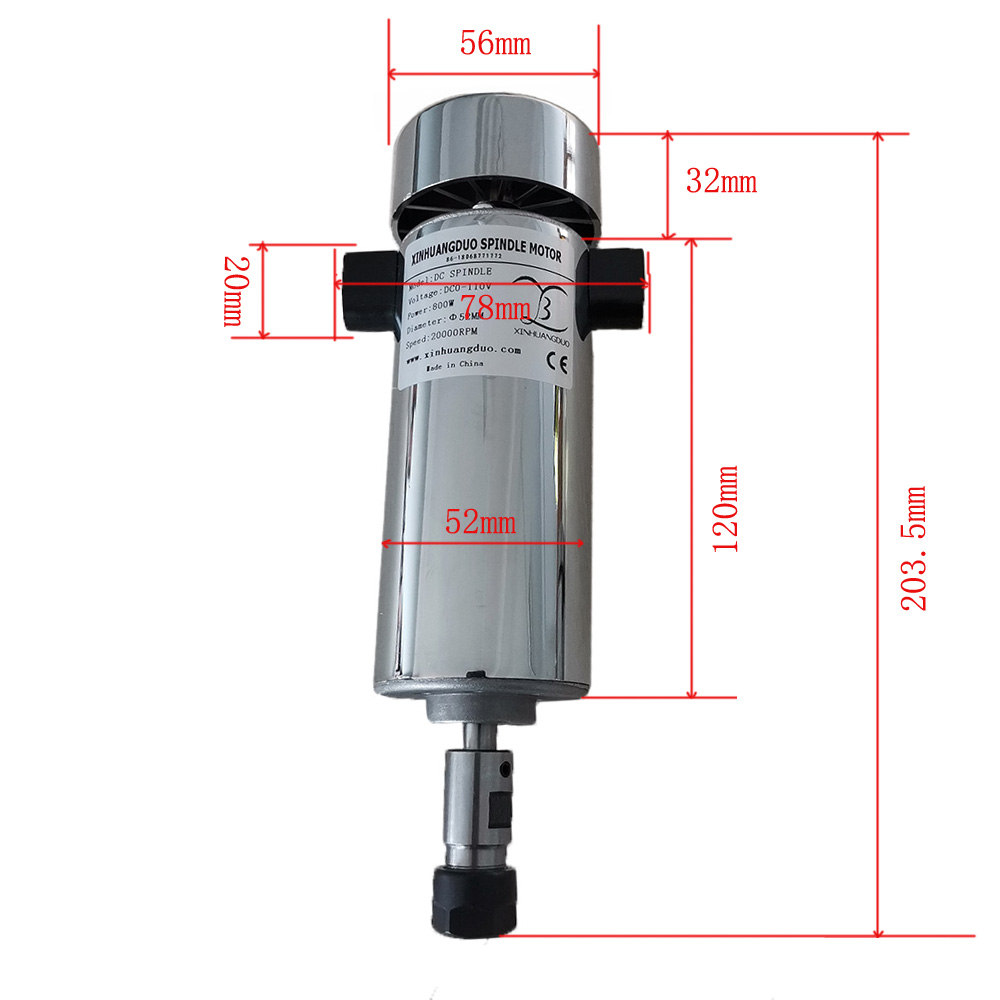

Total length: 203.5mm

Diameter:52mm

Axis collet Length: 45mm

Repeat accuracy: 0.01-0.02mm

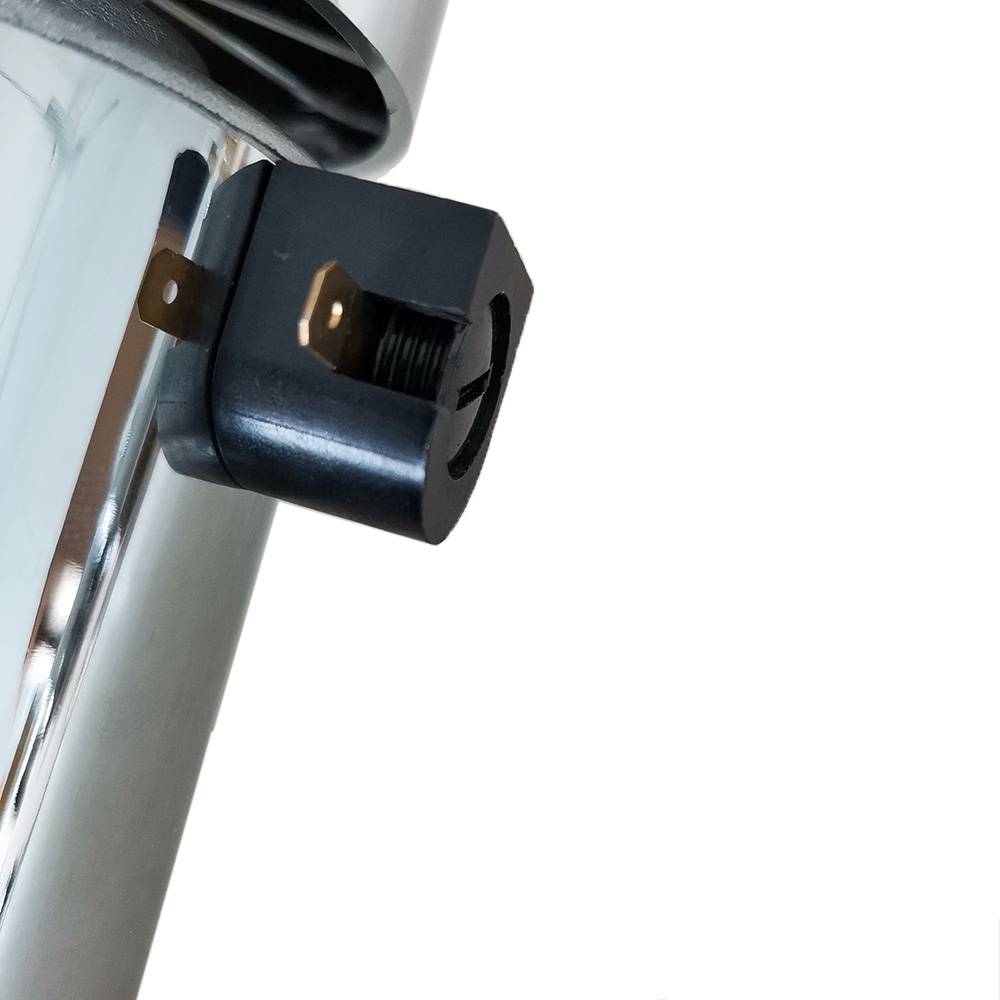

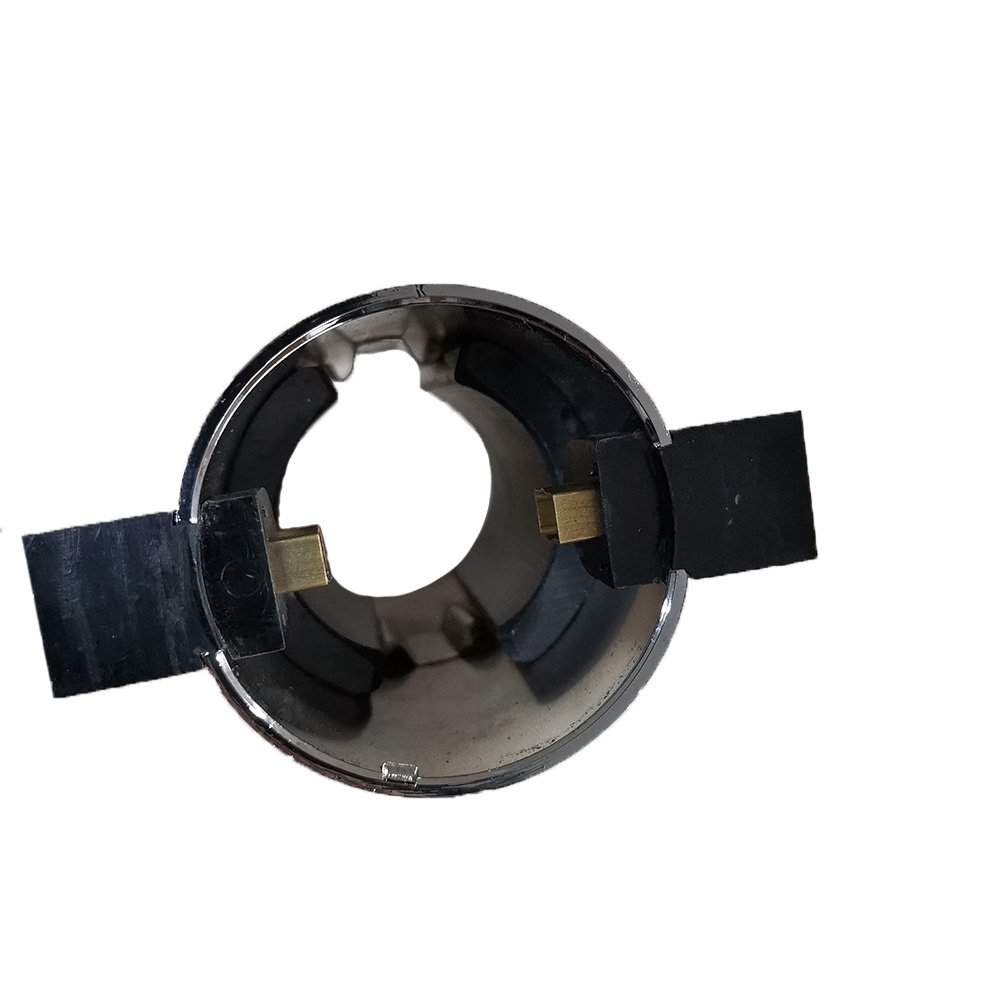

   External to carbon brush, simple and convenient



1000 (3)1000 (1)1000 (4)1000 (5)1002 (4)

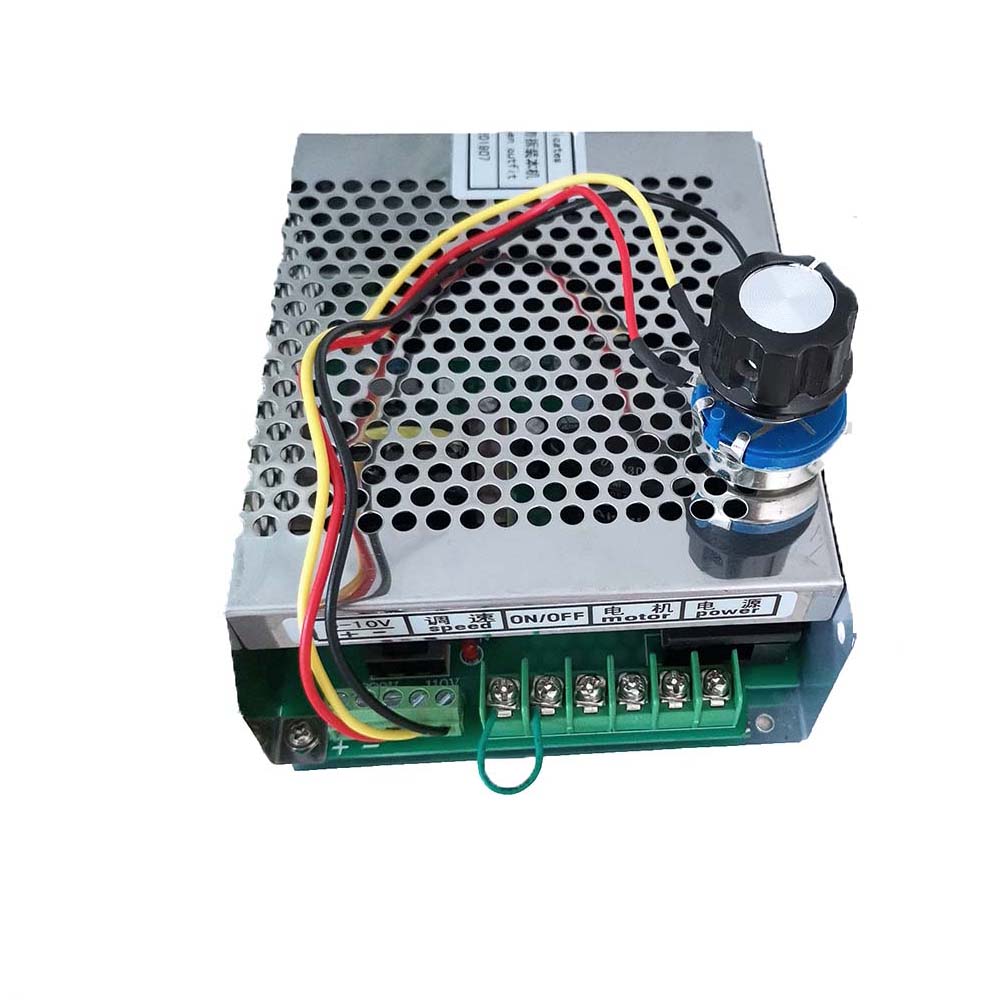

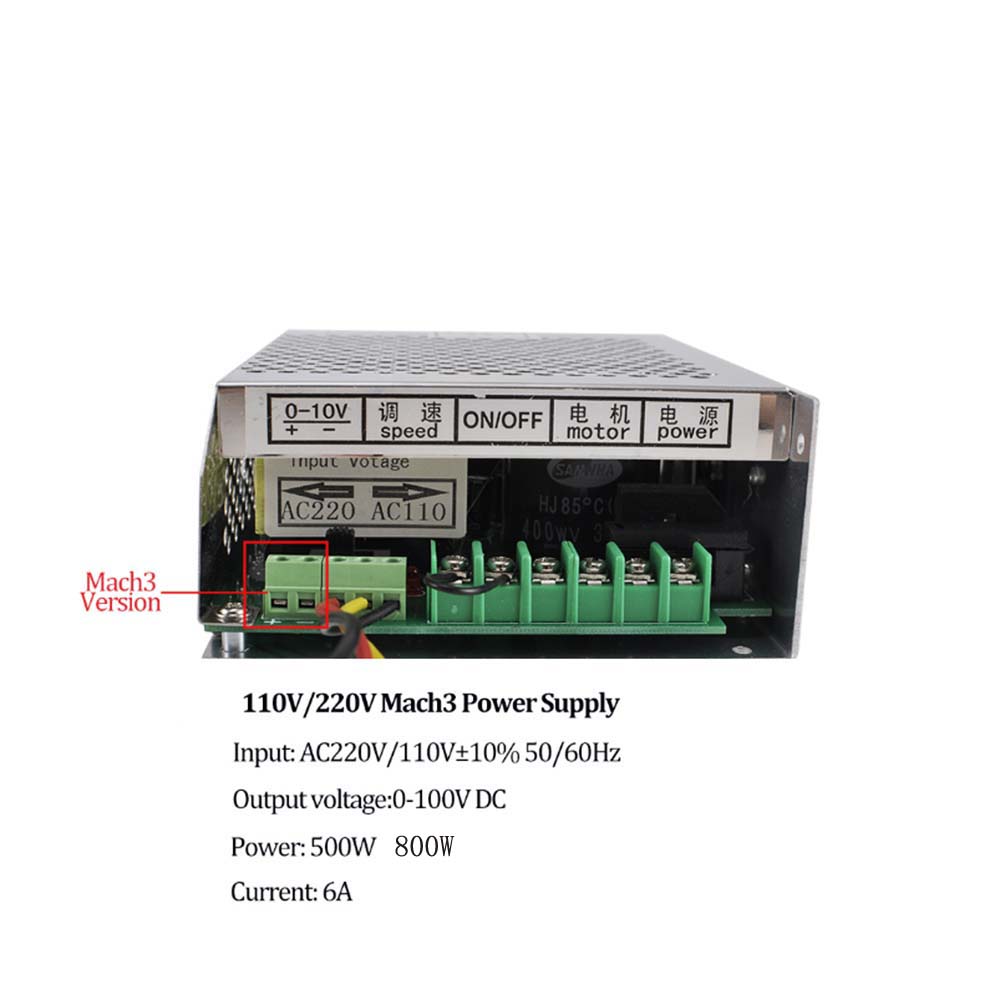

0.8KW Power Supply Speed Governor 800w Spindle Power Supply 110V/220V For DIY Engraving machine tool

Feature:


with speed governor--------------Wasy to control the speed of 800w spindle motor !
1.Input:AC220V/110V ± 10%  50/60Hz   (Default )
2,Power :800W
3,Output voltage: 0-110V DC
4,Current: 6A
5. Dimension:  L190mm × W105mm × H60mm
6. Controller: Mach3

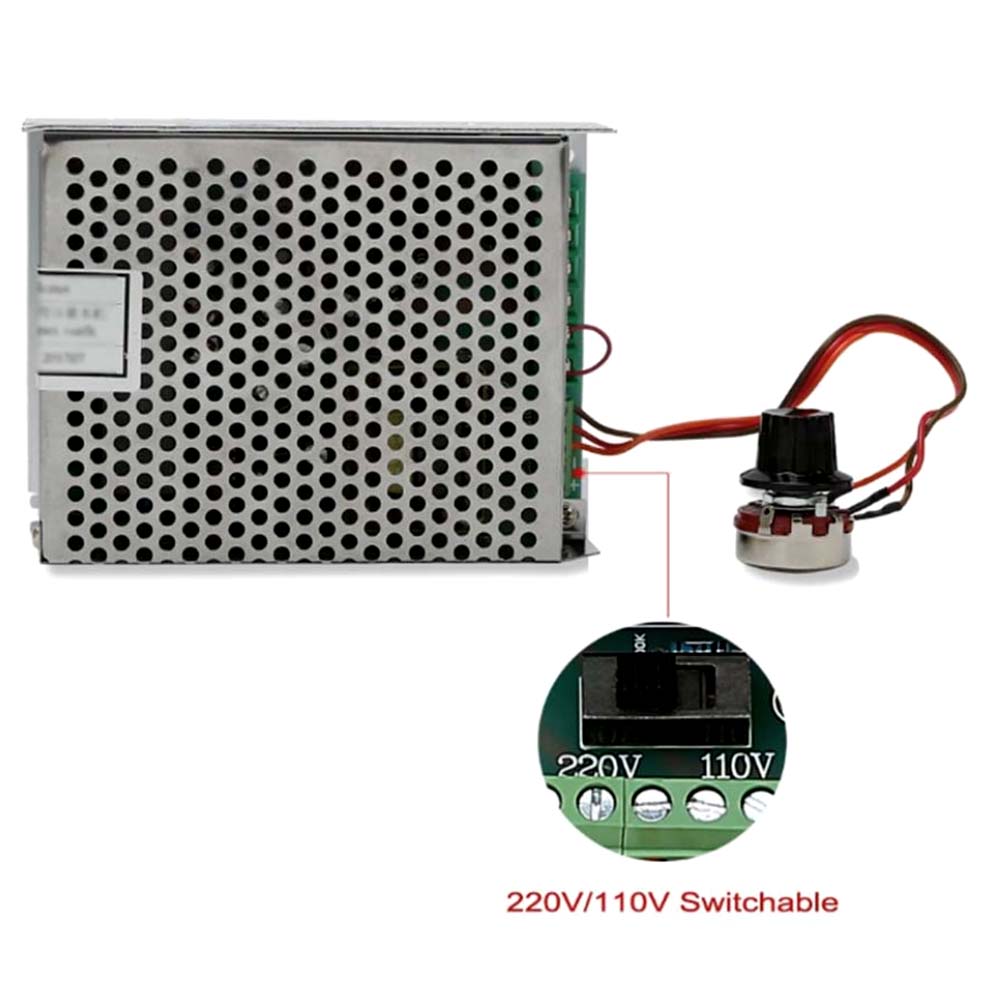

Note: If you need 110V, please adjust the power supply to 110V. Thanks


52MM (3)
1001 (4)81800
38







  • Brand Name: GKTOOLS
  • Origin: Mainland China
  • Operating Speed: 20000RPM
  • Certification: NONE
  • Application: Milling
  • Drive: Motor
  • Model Number: 800w 110V DC
  • Maximum Torque: 790mN.m
  • Type: Tubular Motor
  • Voltage(V): 0-110VDC
  • Construction: Permanent Magnet
  • Protect Feature: Drip-proof
  • Output Power: 800W
