2200W/2.2kw 1500w/1.5kw 24000rpm air cooled cnc spindle motor+HY/YL inverter+1set ER20/ER11 collet for CNC milling machine
620.00 341.62 $
SALE
ID: 75819
Quantity

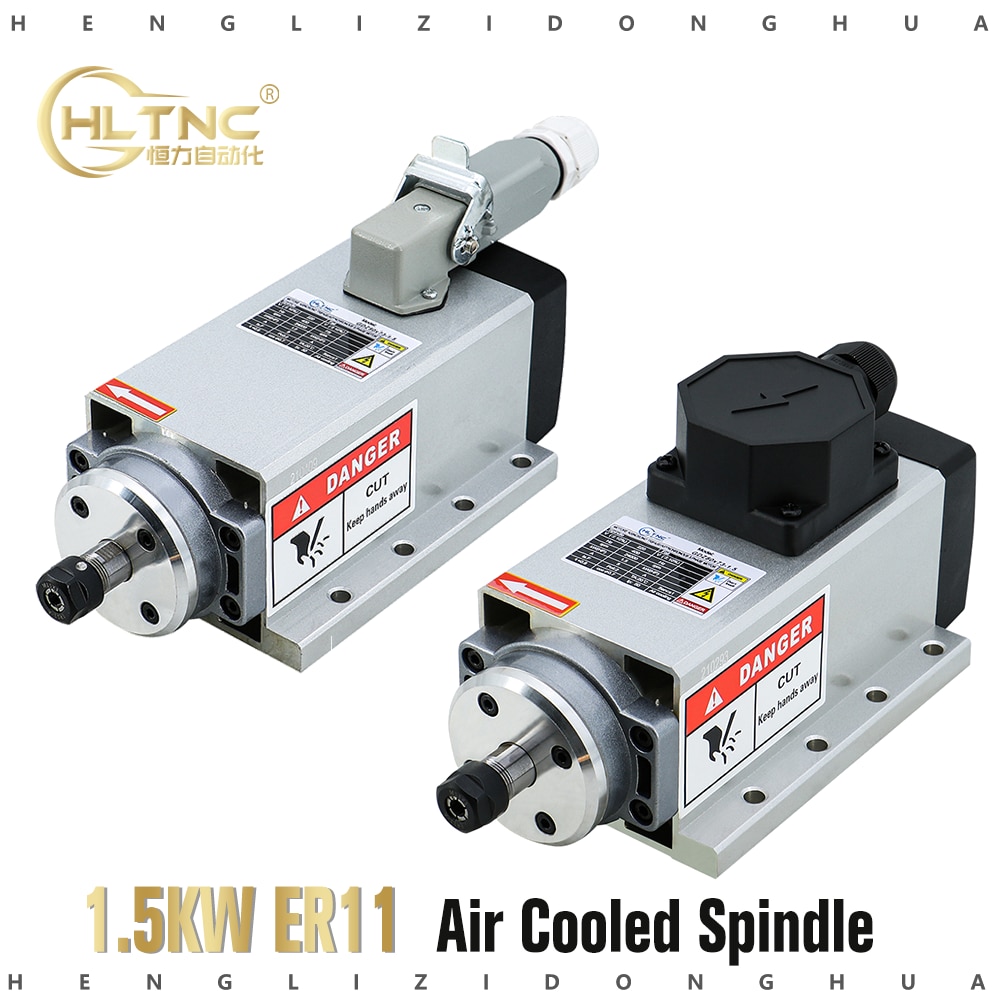

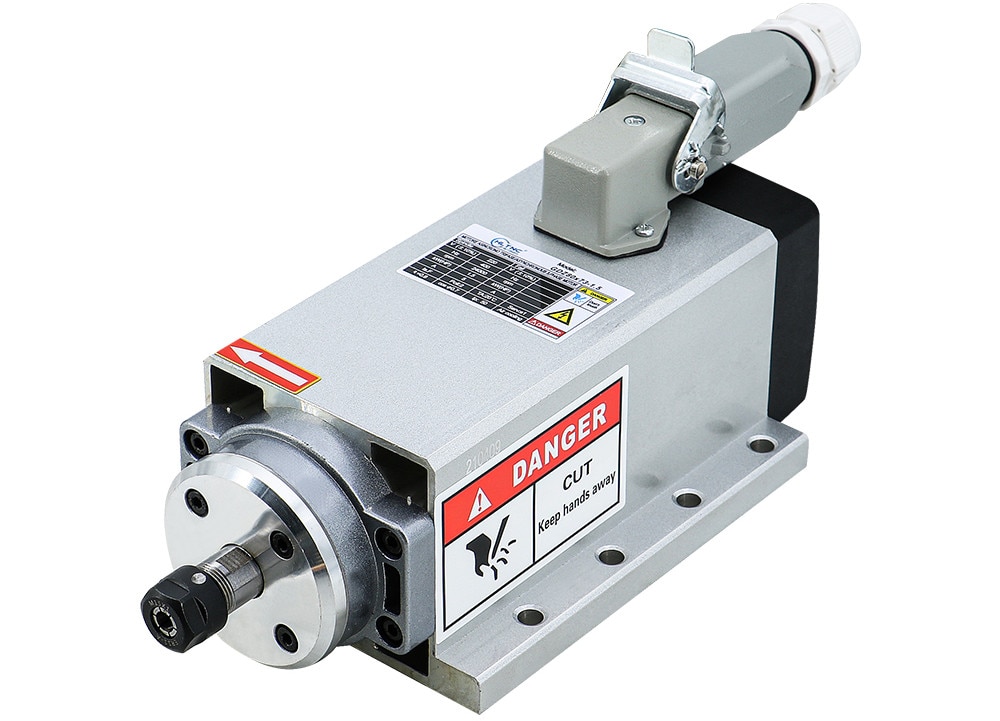

HLTNC 110V 220V 1.5kw ER11 Air Cooled Spindle Motor Square Air-cooling Milling Spindle for CNC Engraving Wood Working Router
5.0 (2 votes) | 6 orders
Price:
US $487.31 - 694.42
/ piece
Discount Price:
US $
204.17 -
283.67
/ piece
-58%

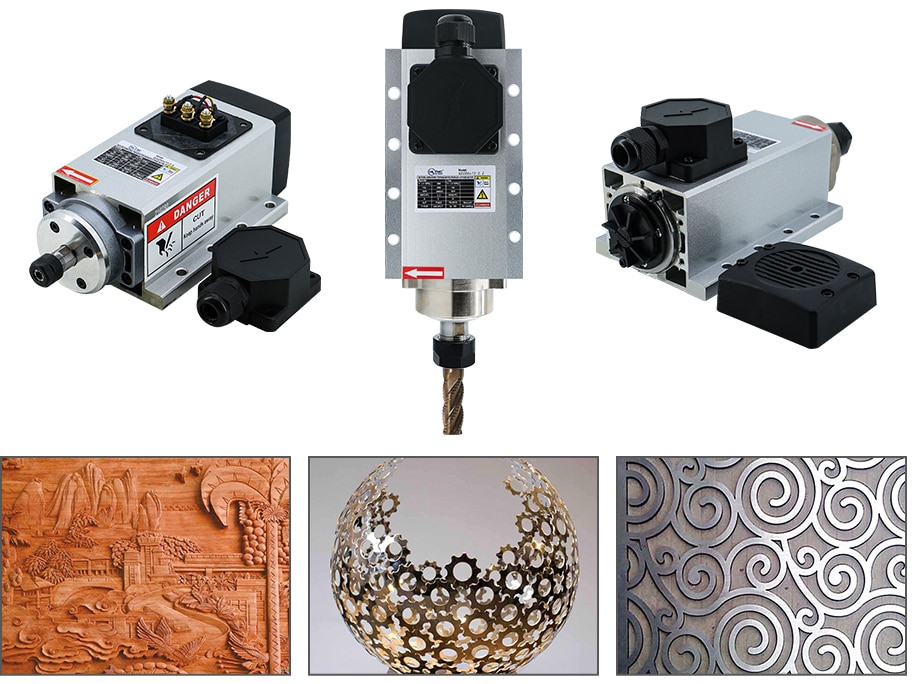

Different Power Applications of Air-cooled Square Spindle
Relief carving, advertising carving, material wood, pvc, acrylic board | |
Relief carving, advertising carving, material wood, aluminum, part of soft metal, pvc, acrylic board | |
Relief carving, advertising carving, hollow cutting process of PVC, acrylic, MDF, LED and other materials, and need faster speed and cutting power, materials wood, aluminum, some soft metals, pvc, acrylic board. | |
For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole. | |
For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole | |
7.5KW | For solid wood cutting and perforating, it can also be used as a cutting machine, 4.5-7.5kw, select the appropriate power according to the hardness of the material and the depth of the hole |
6KW ATC Spindle | Automatic tool change spindle: automatic tool change engraving machine or woodworking machining center |
Automatic tool change spindle: automatic tool change engraving machine or woodworking machining center |
Option 1
| |

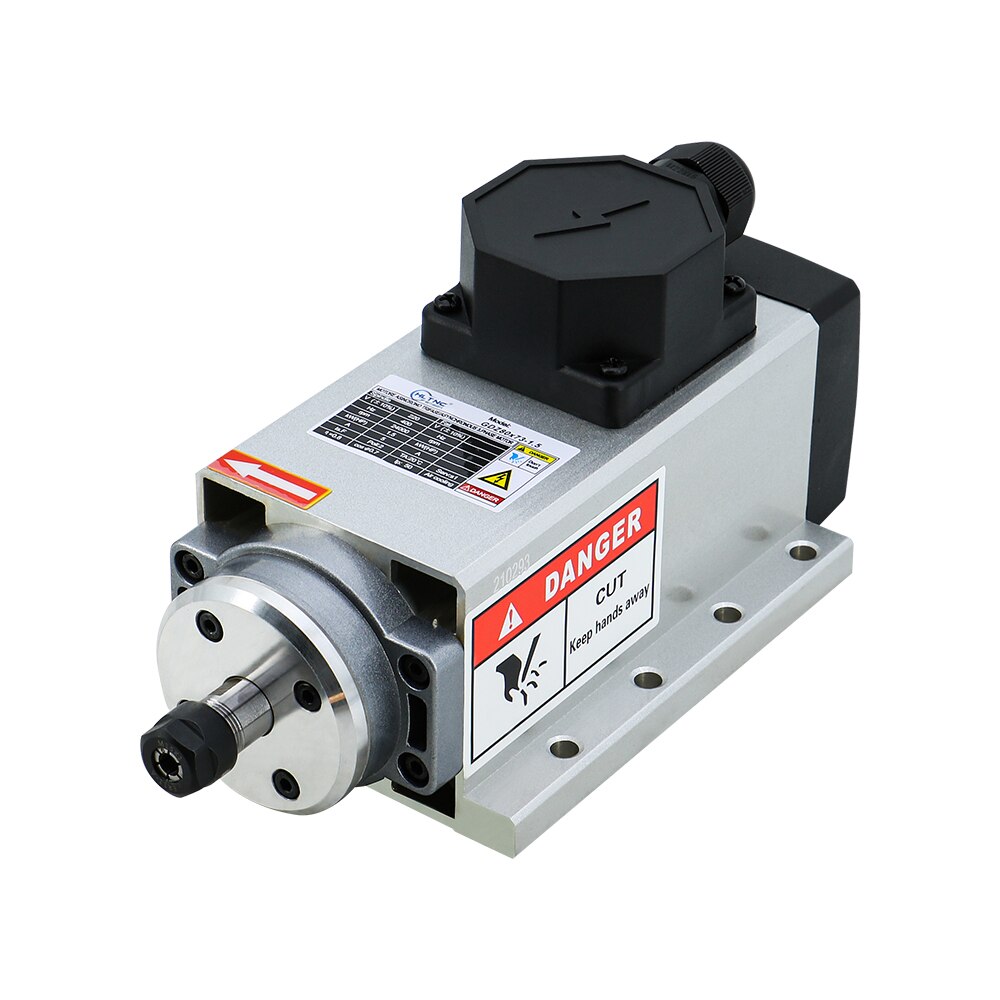

| 1 pcs 1.5KW Air Cooled Spindle with terminal box |
Option 2
| |

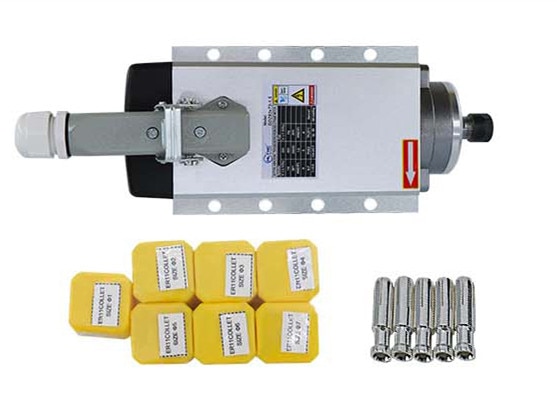

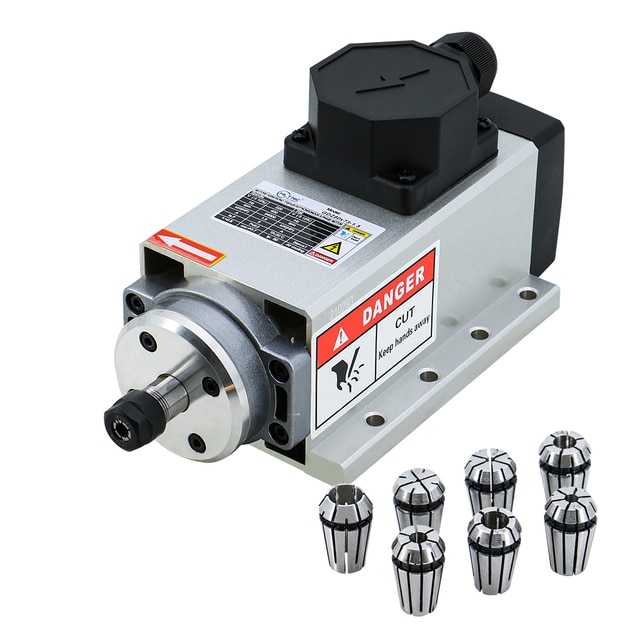

| 1 pcs 1.5kw air cooled spindle with terminal box |

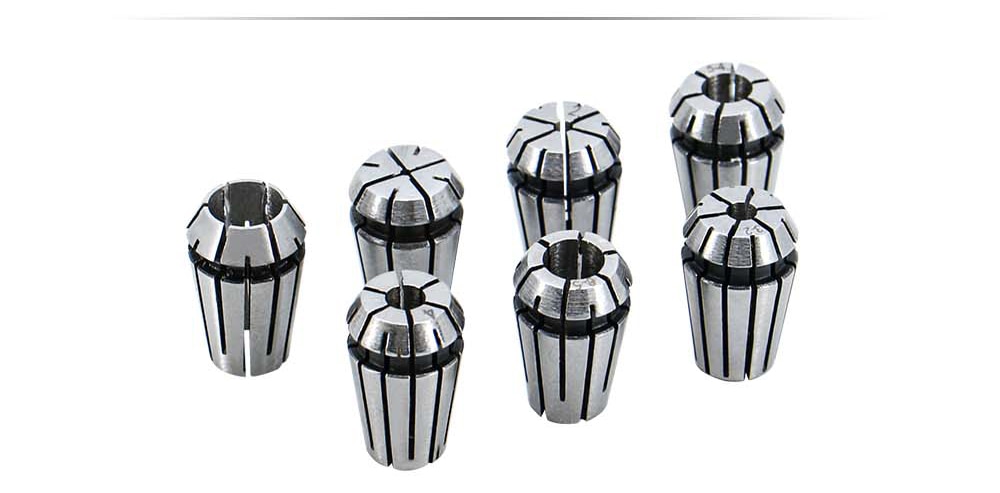

| 1 set er11 collects (1-7mm) |
Option 3
| |

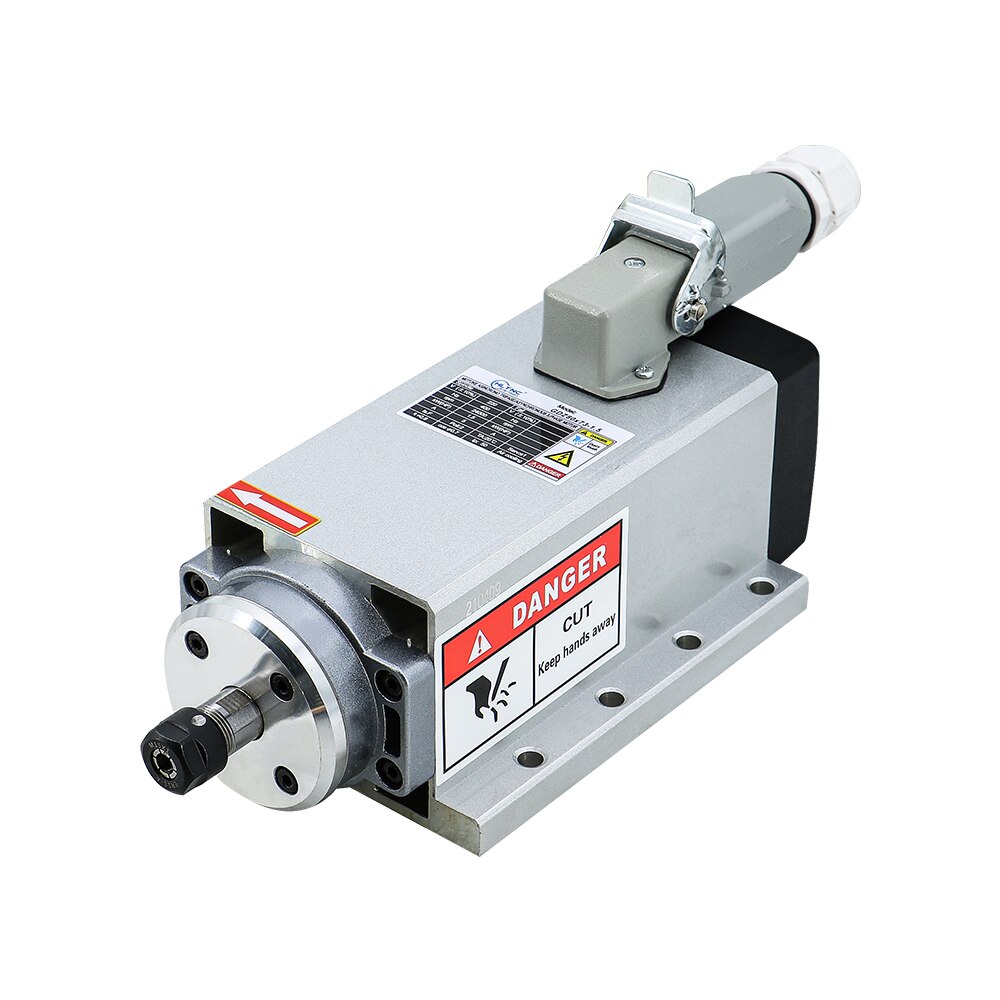

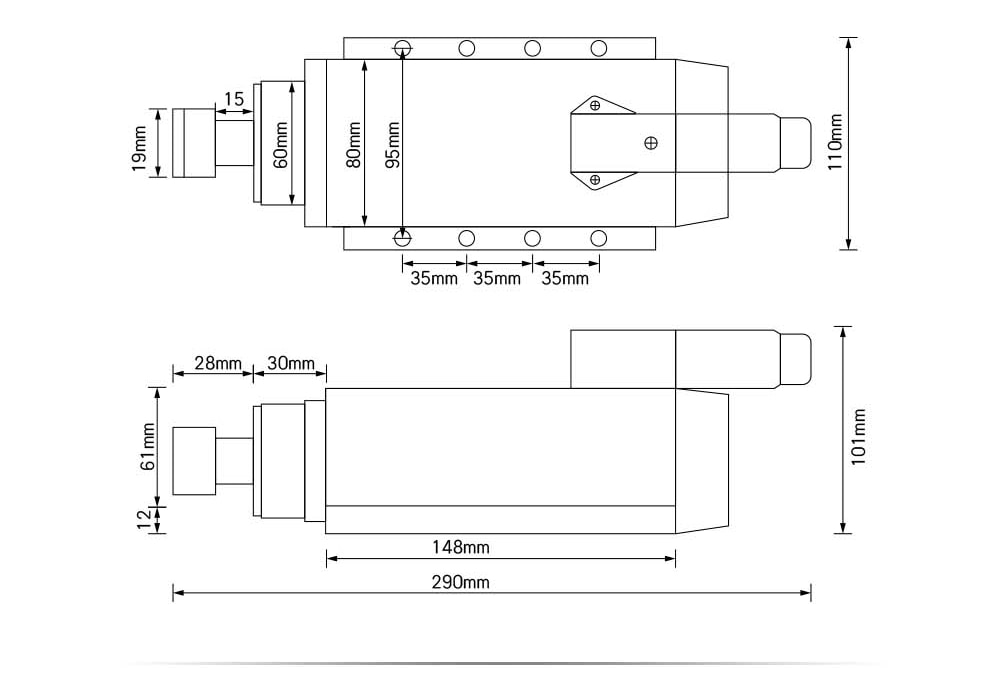

| 1 pcs 1.5kw air cooled spindle with aviation connector |

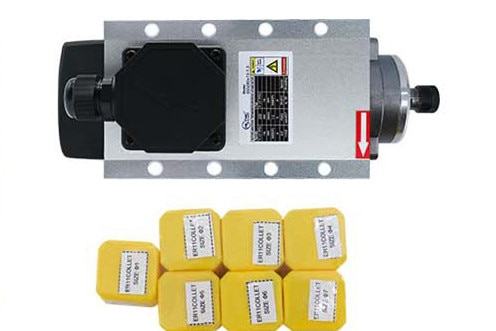

Option 4
| |

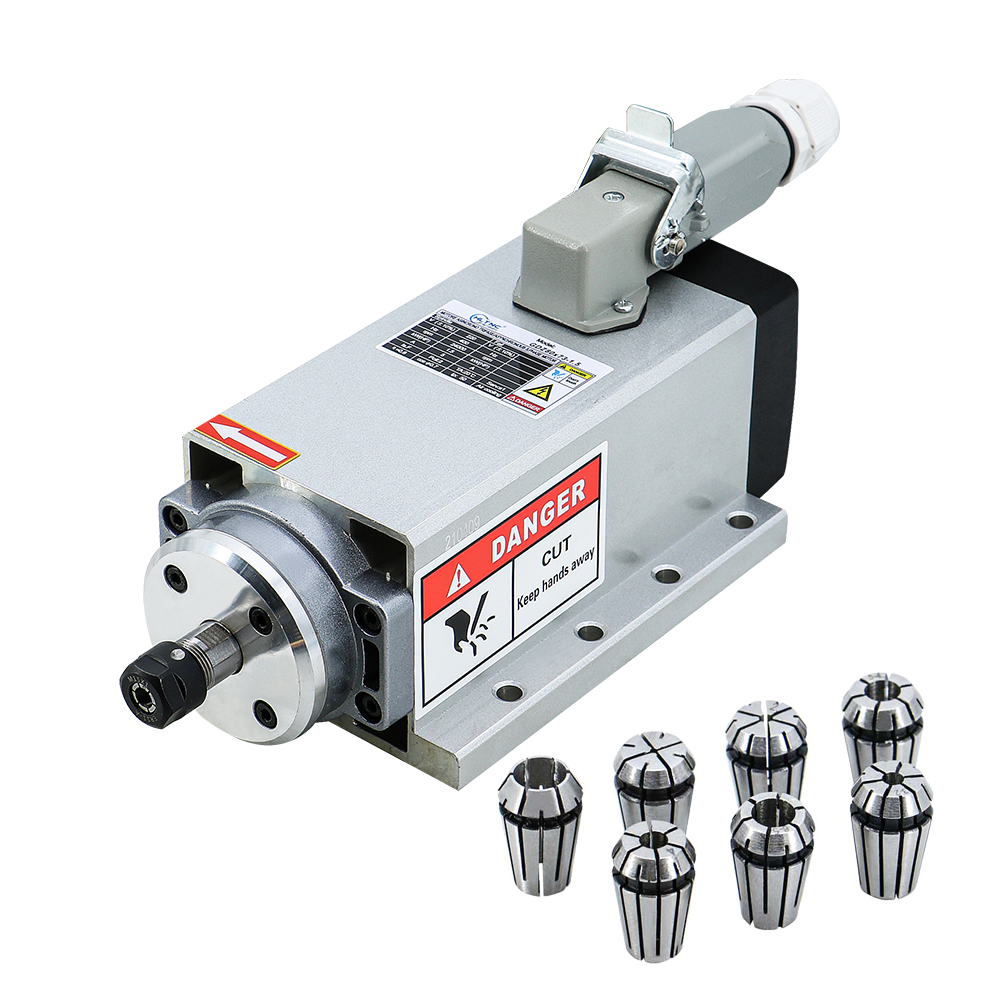

| 1 pcs 1.5kw air cooled spindle with aviation connector |
| 1 set er11 collects (1-7mm) |

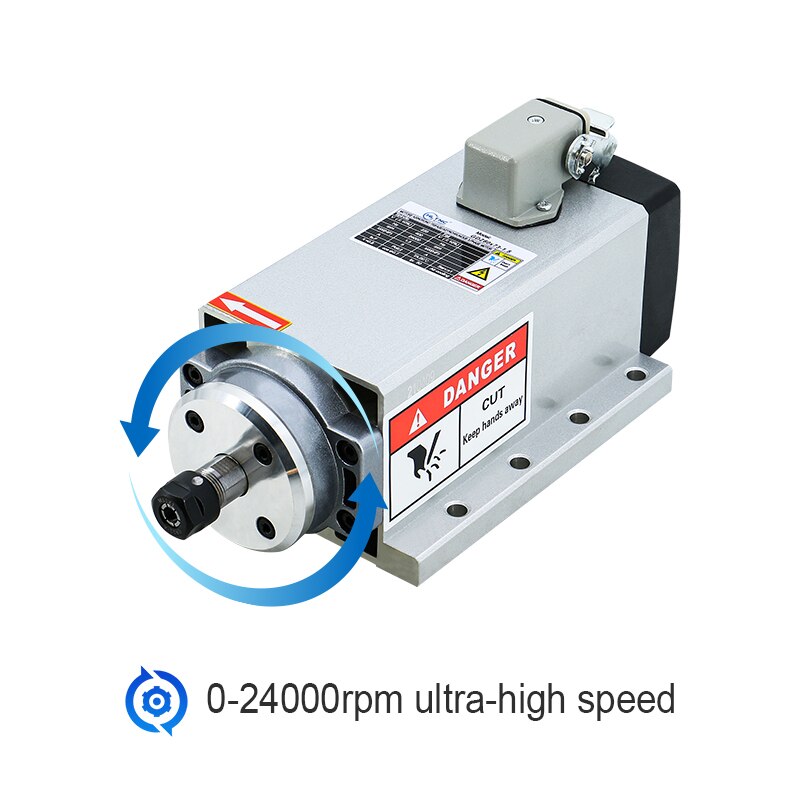

1. 0-24000rpm ultra-high speed

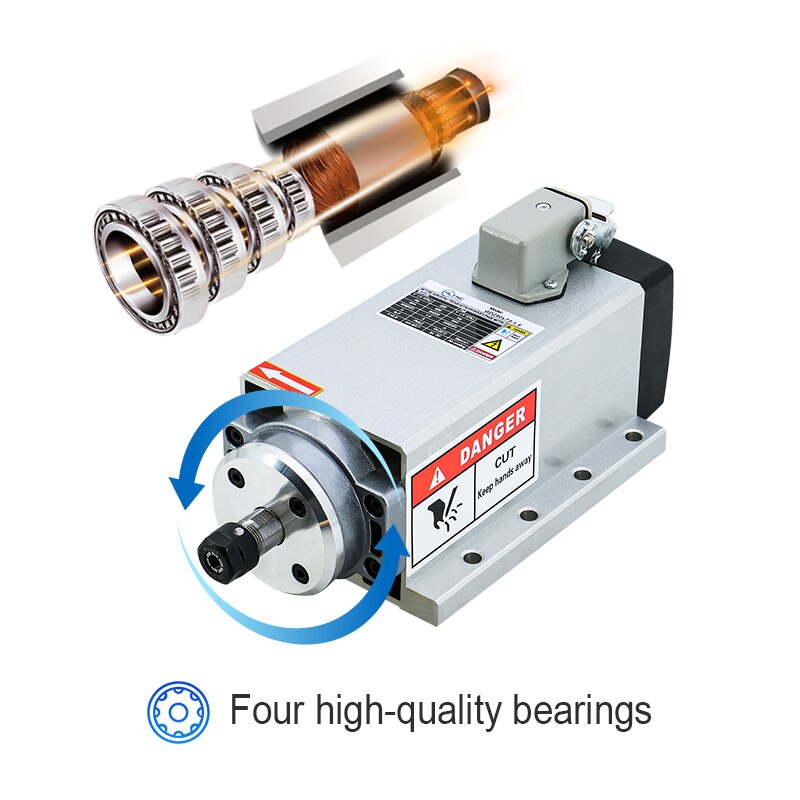

2. Four high-quality bearings
3. Run silent
4. High temperature resistance
5. long life
|

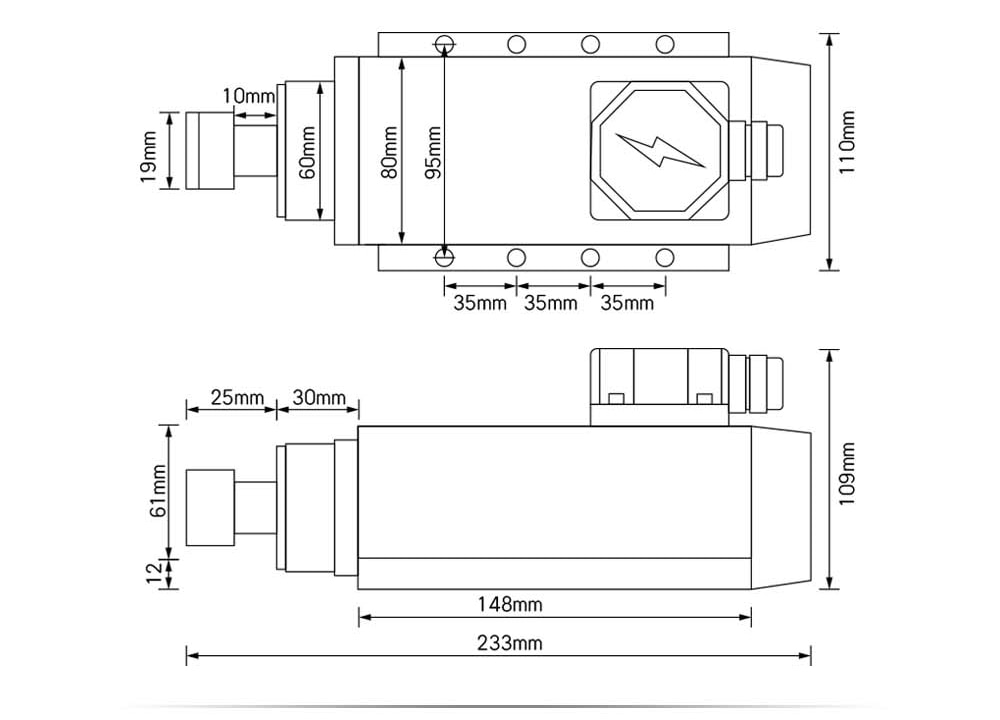

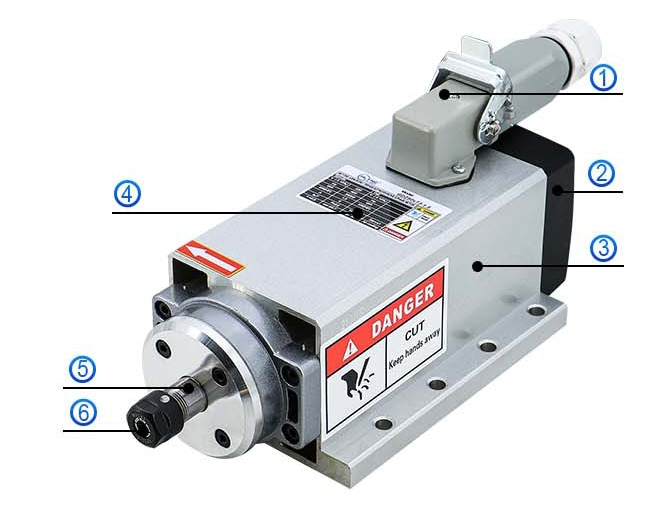

| Aviation Connector |
| Cooling Fan | |
| Metal body | |
| Parameter | |
| Lengthened rotor | |
| Chuck |
MOTORE ASINCRONO TRIFASE/ASYNCHRONOUS 3 PHASE MOTOR
Spindle | Fail | ||
V（±10%） | 220 | V（±10%） | |
Hz | 400 | Hz | |
rpm | 24000 | rpm | |
KW (HP) | 1.5 | KW (HP) | |
A | 5 | A | |
IS .F | Poli:2 | TA :20℃ | Serv:S1 |
=0.8 | Cosφ0.7 | IP：50 | Air Cooling |
| ||||||
φ1*1 | φ2*1 | φ3*1 | φ4*1 | φ5*1 | φ6*1 | φ7*1 |

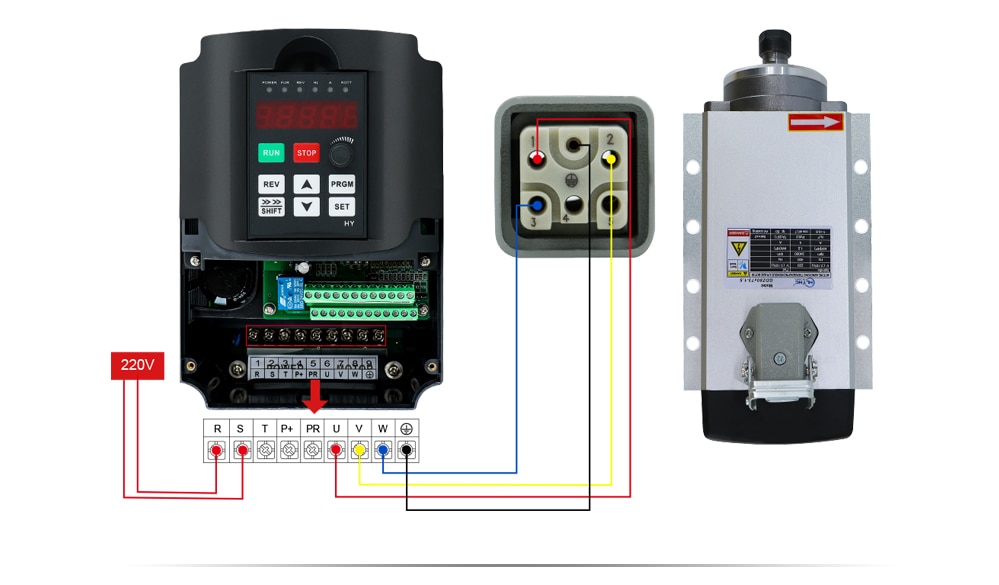

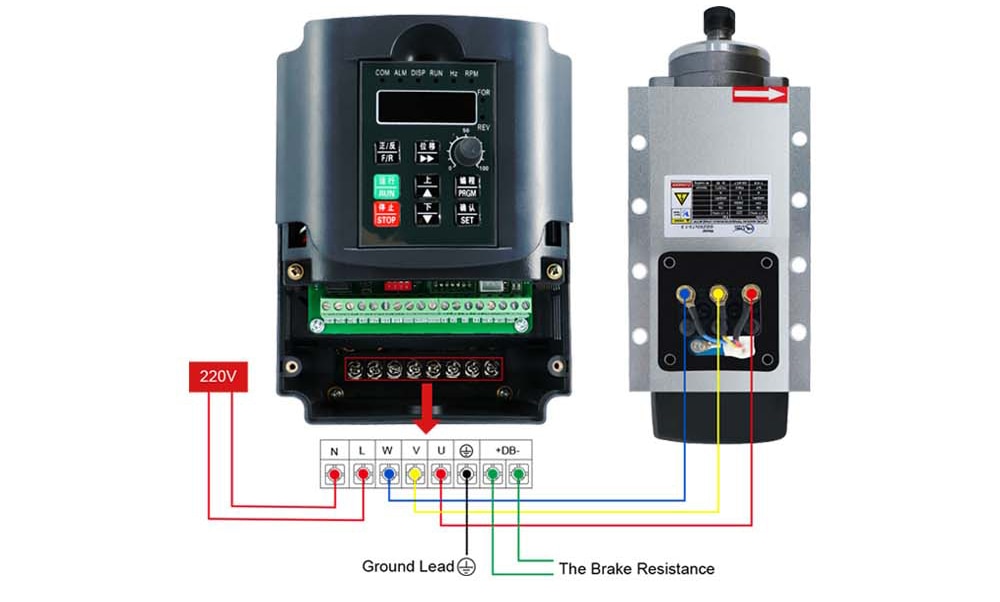

Inverter Setting Scheme | |
PD013=8 | Restore factory setting |
PD005=400 | Set max operating frequency |
PD004=400 | Set base frequency |
PD002=1 | Set board potentiometer control |
PD070=1 | Set analoy input |
PD072=400 | Set high analoy frequency |

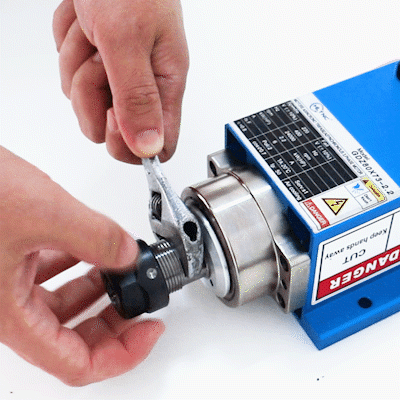

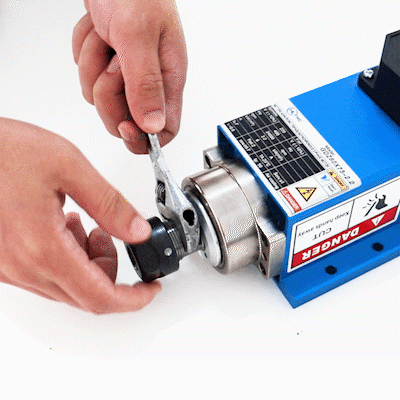

CHUCK REPLEACEMENT
| ||
Wood Carving | Soft Metal Engraving | Aluminum Alloy Carving |
| ||

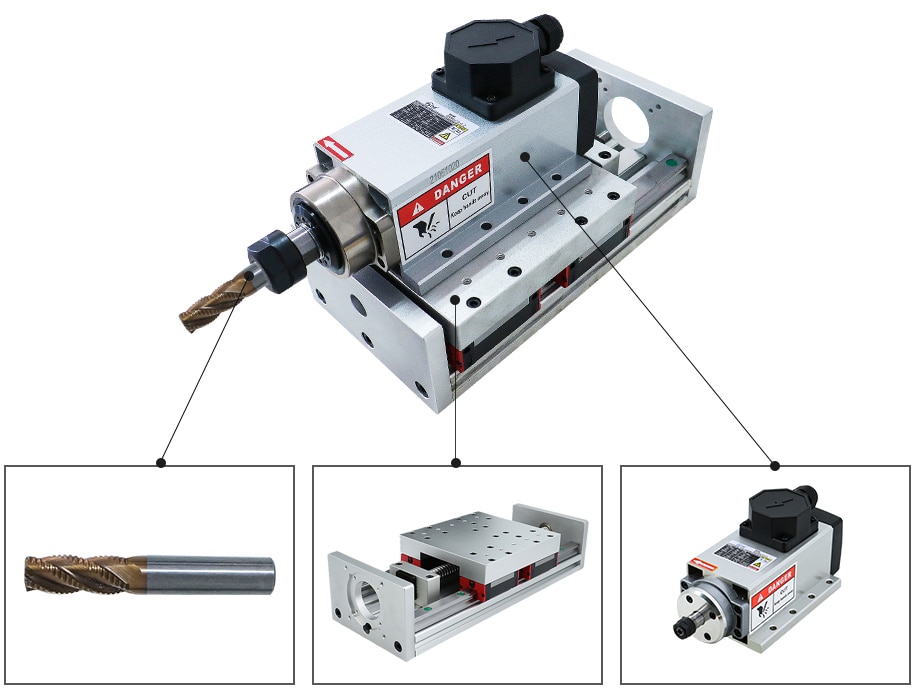

Milling Cutter | Sliding Table | Air Cooled Spindle |
1:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
Answer:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c
2: Application of air-cooled spindle
Answer:This air-cooled spindle is suitable for woodworking, aluminum and some soft metals, and can be used with a variety of milling cutters
3:Number and material of bearings
Answer:4 steel ball bearings, model C7002
4:Continuous working time
Answer:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.
5: Can the spindle run vulgarly?
Answer: Yes, the maximum speed of this spindle is 0-24000rpm, which is all possible within this range
6:Abnormal sound
Answer:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.
- Operating Speed: 0-24000
- Maximum Torque: 0.88N
- Application: Milling
- Model Number: 1.5KW Air Cooled Motor
- Drive: Motor
- Brand Name: HLTNC
- Origin: Mainland China
- Certification: CE
- Collet:: ER11
- Voltage:: 110V220V
- Cooling mode:: cooling fan
- Product name: 1.5kw Italy Hsd Atc Spindle Motor For Cnc
- Power: 1.5KW
- Runout: 0.01mm
