48v 500W ER16 Brushless Spindle+57MM Clamp with Screws+ 48V Brushless Motor Driver+48VDC 10.5A Power Supply

4.6 (12 votes) | 28 orders
Price: US $156.16 - 496.43 / piece
Discount Price:
US $ 118.05 - 318.46 / piece
-24%
Ships From
Color
Quantity

48v 500W ER16 Brushless Spindle+57MM Clamp with Screws+ 48V Brushless Motor Driver+48VDC 10.5A Power Supply

Specification Package:

Package1: 500W ER16 brushless spindle

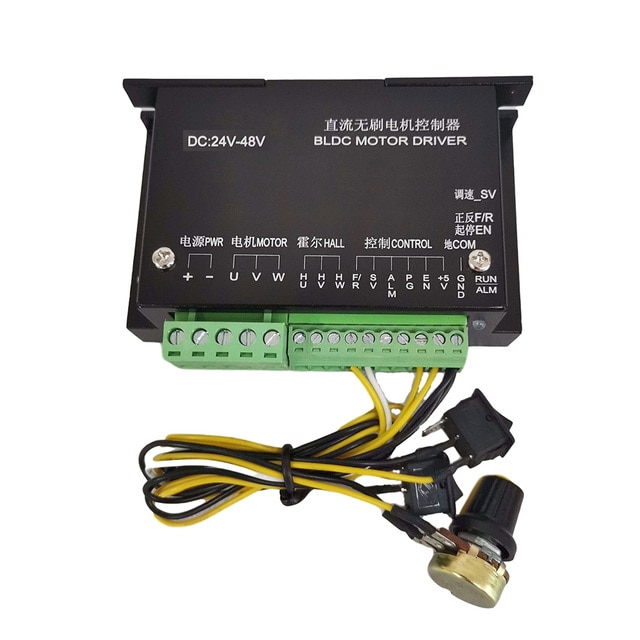

package 2: 24-48VDC brushless Driver

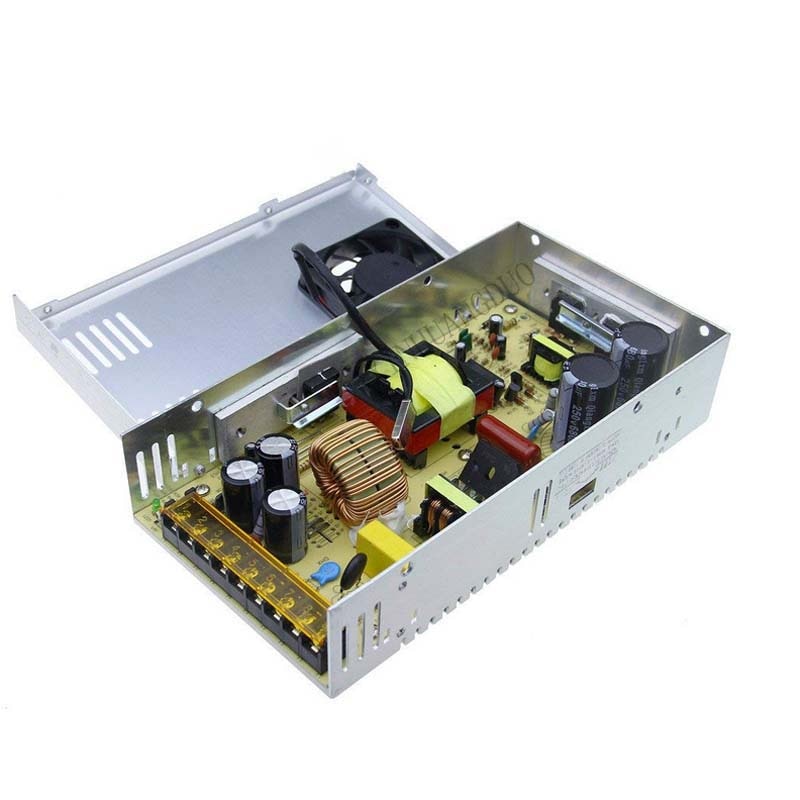

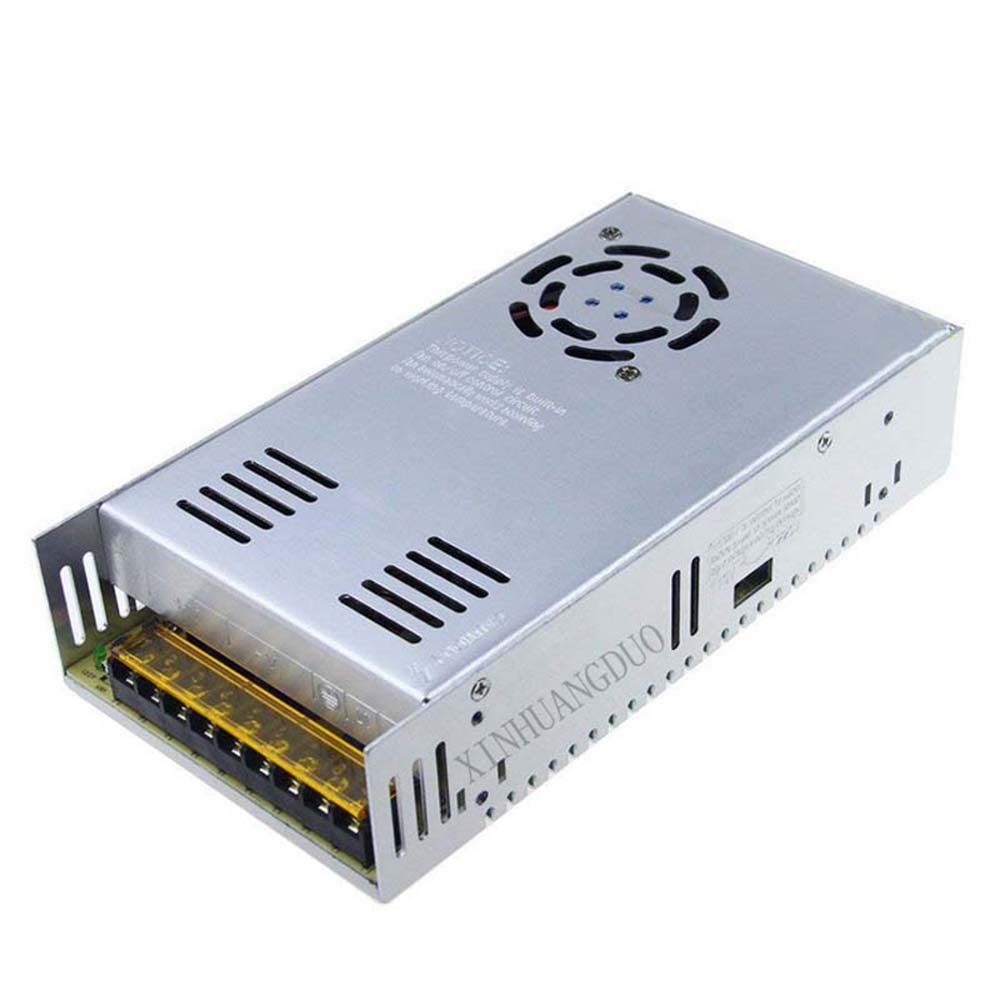

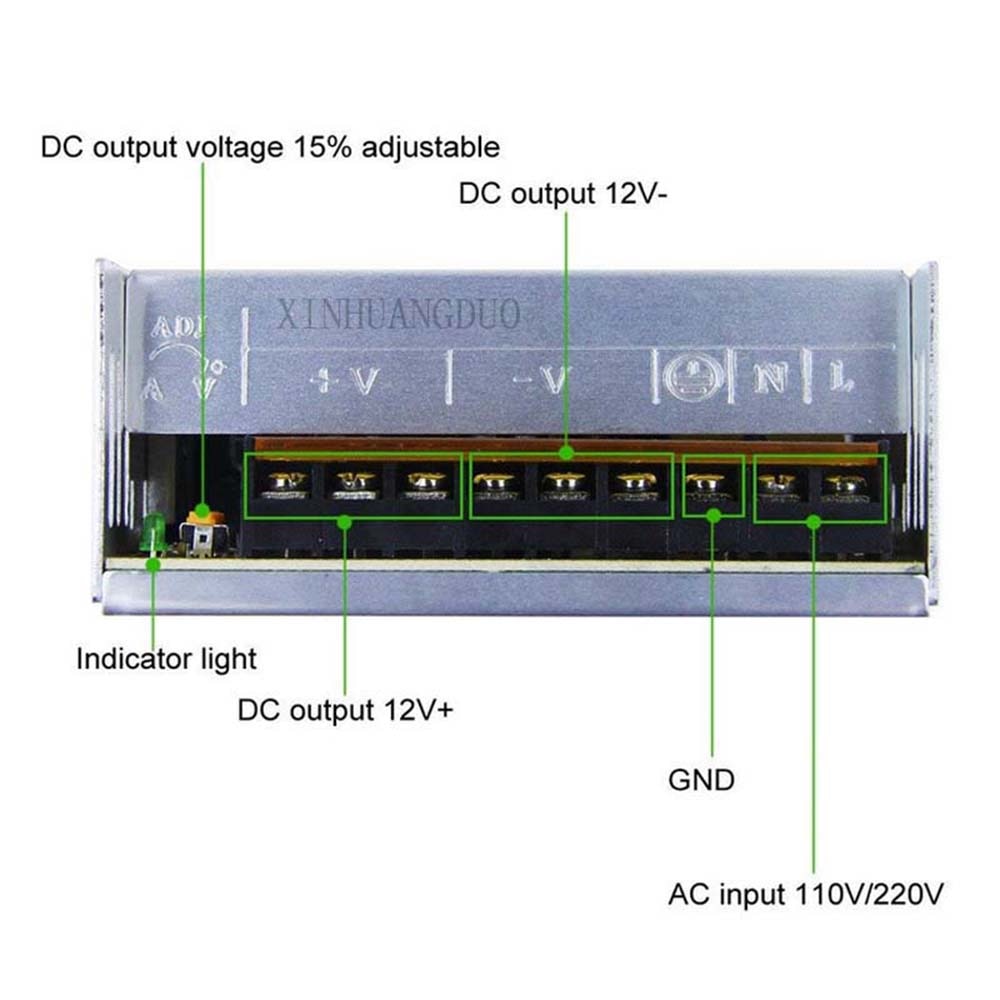

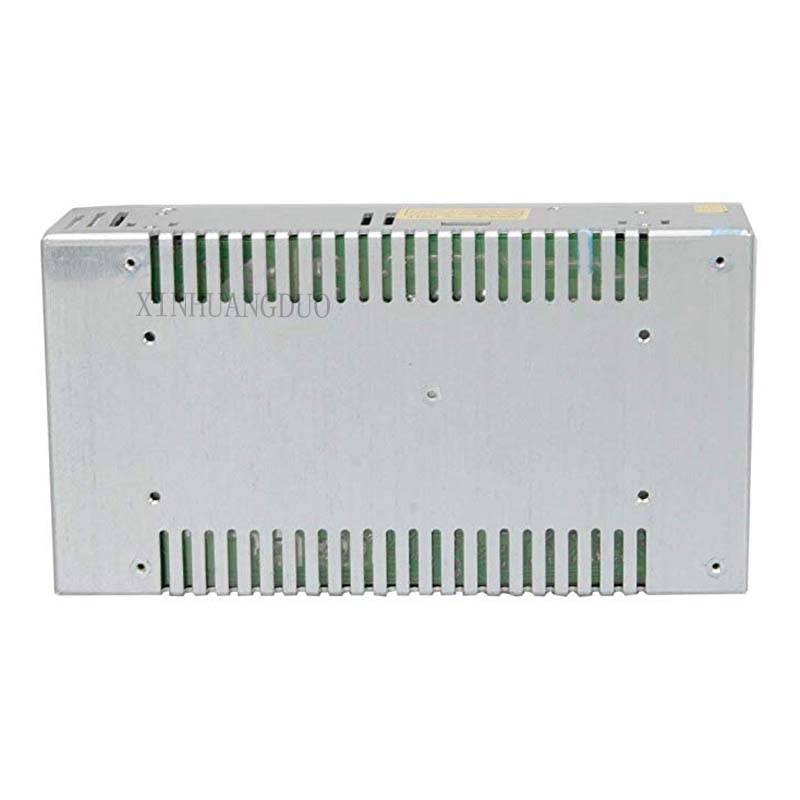

package 3: 48v 500W Power Supply

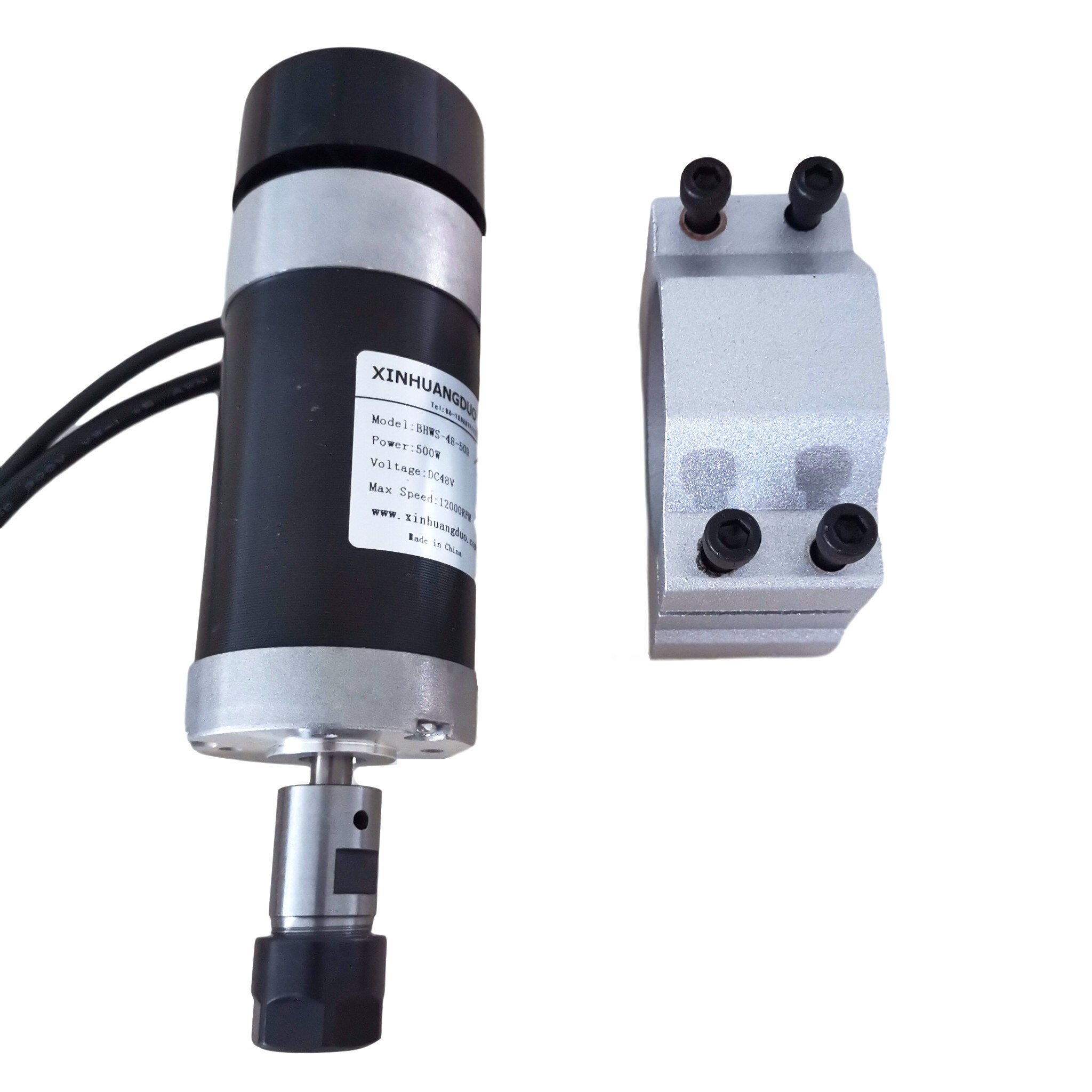

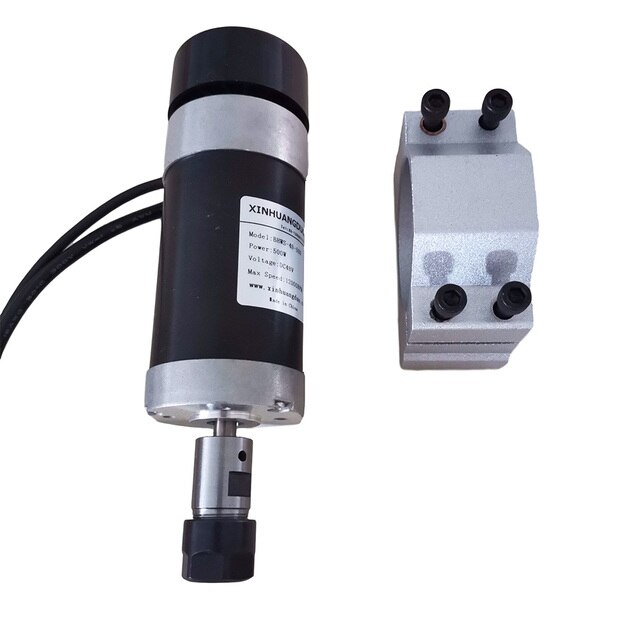

package 4: 500w ER16 Spindle+ 57mm Clamp

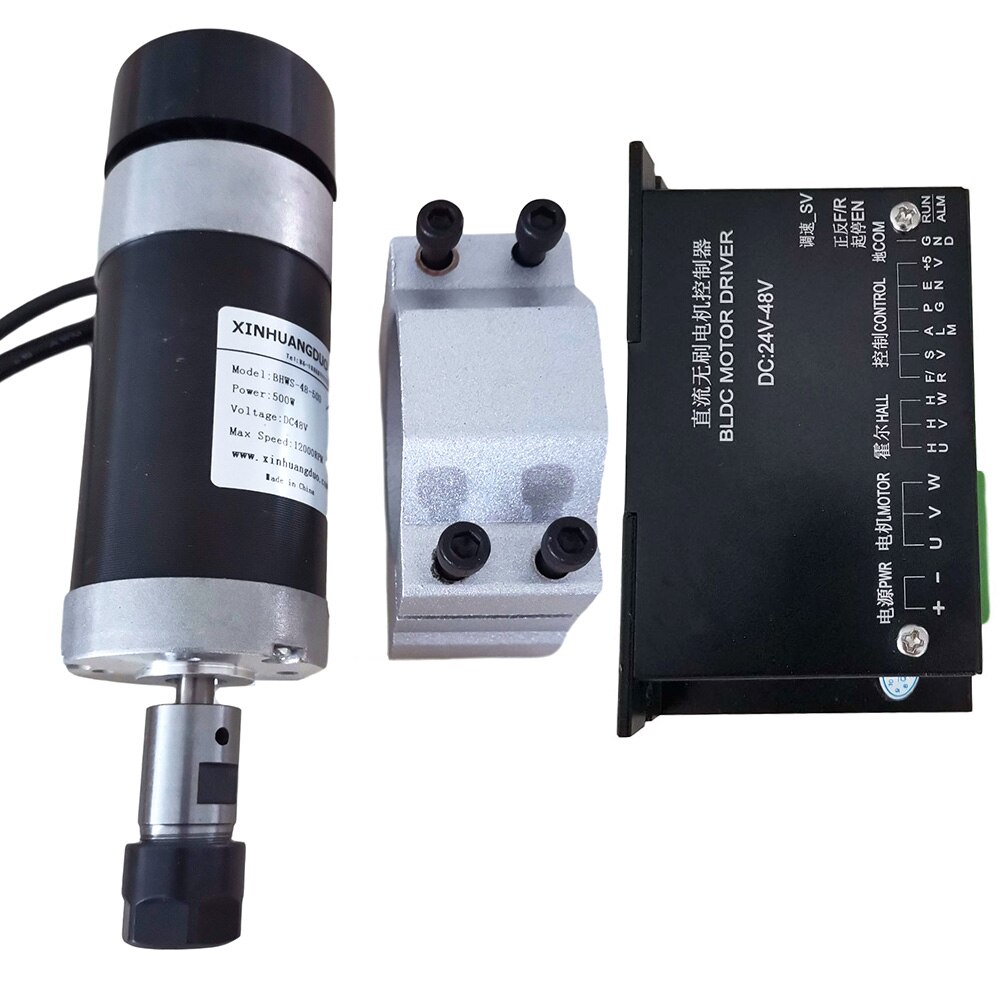

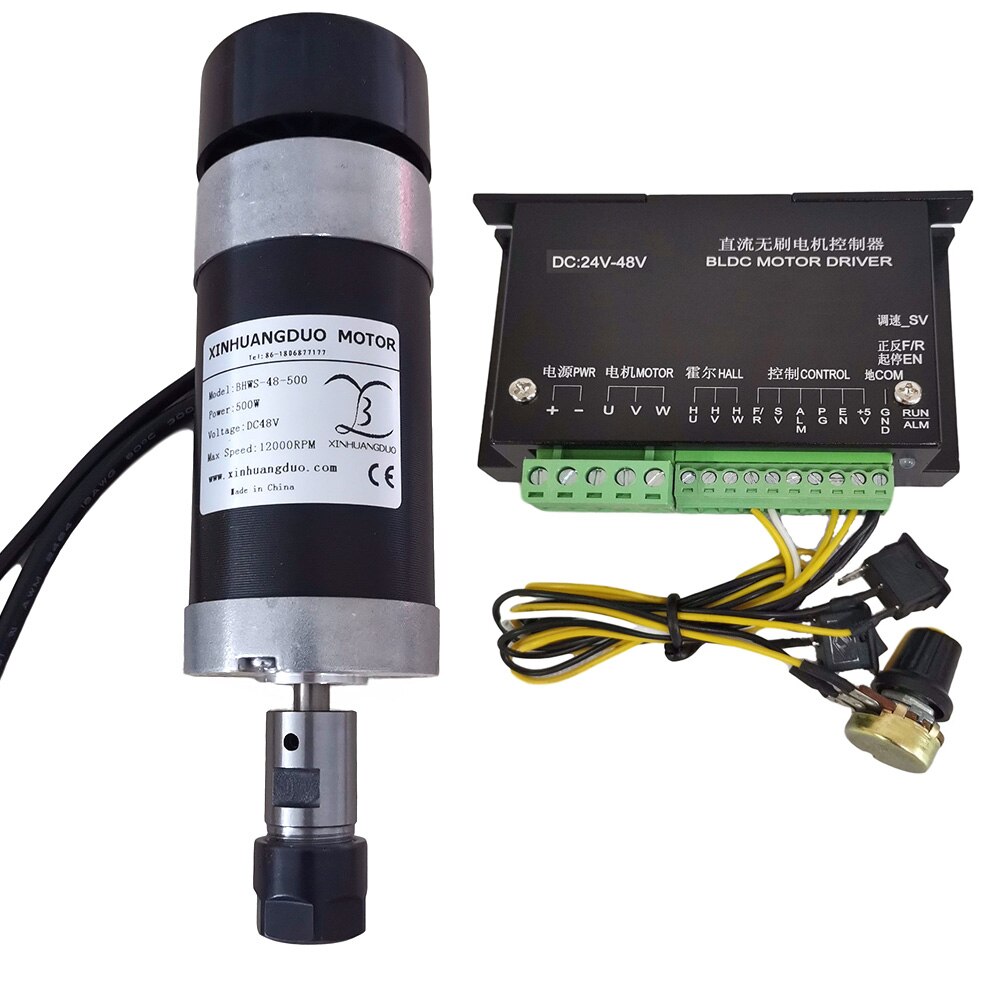

package 5:  500w ER16 Spindle+57mm Clamp+Driver

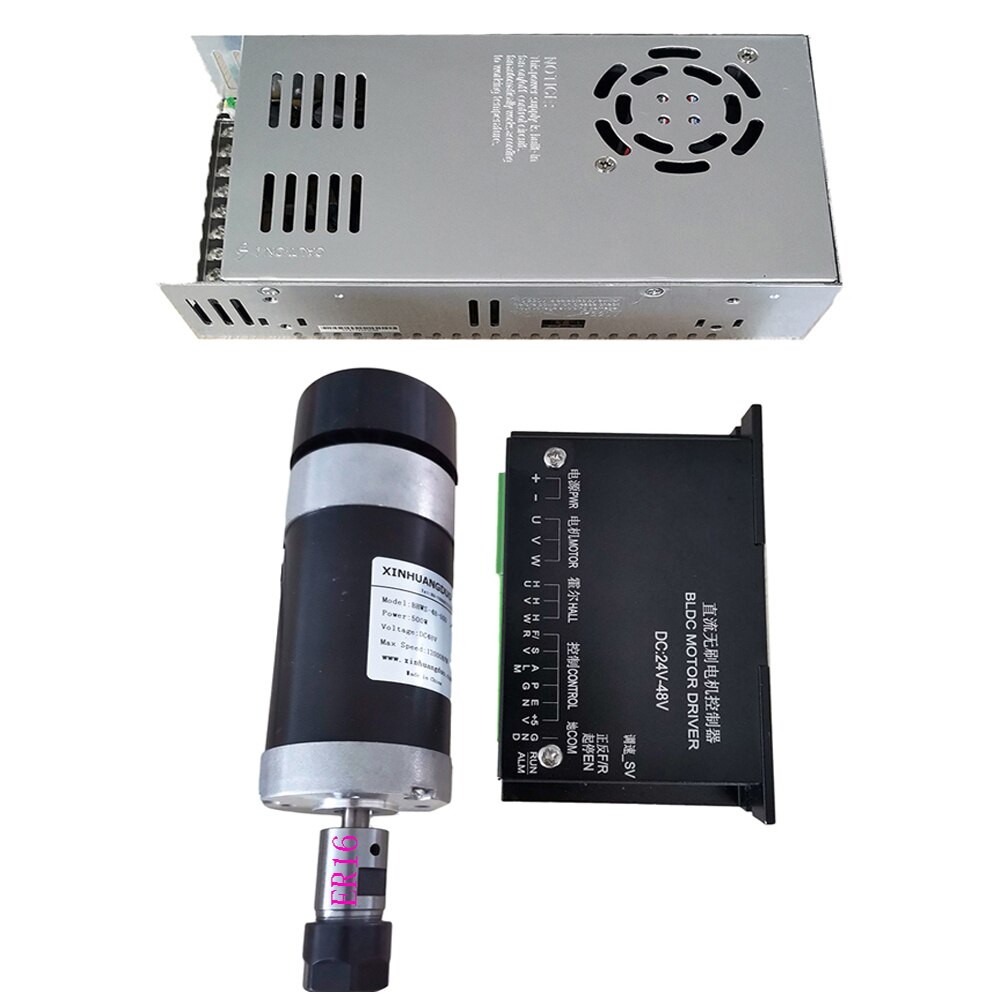

package 6: 500w ER16 Spindle+Driver+48v500w Power Supply

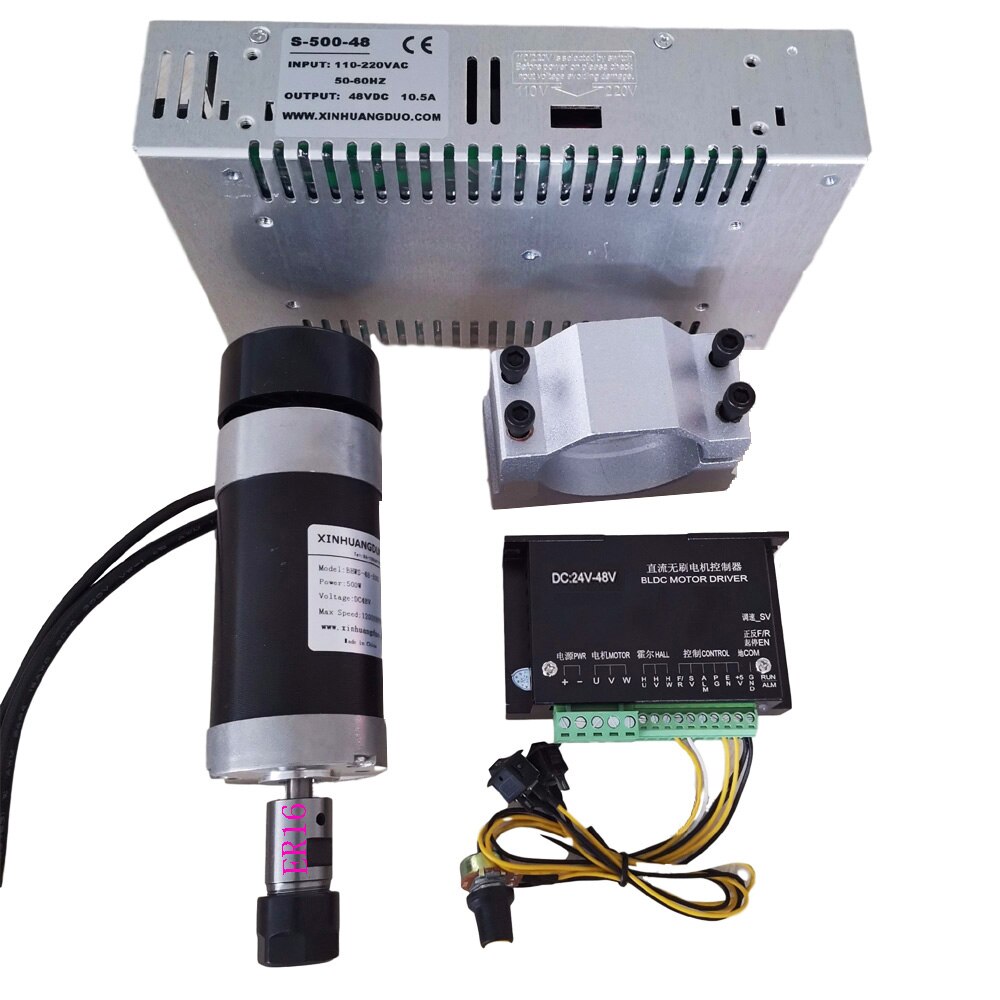

package7: 500w ER16  Spindle +Driver+48v 500w Power Supply+57mm Clamp

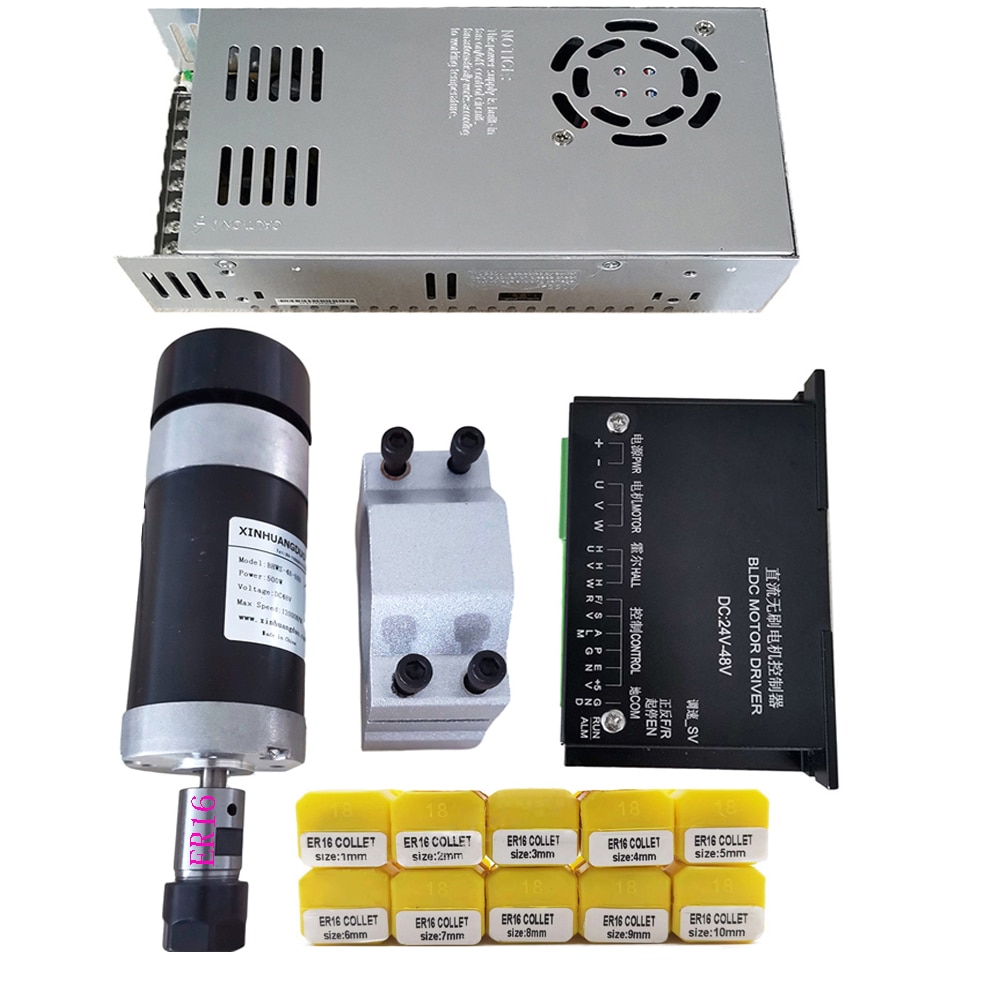

package8: 500w ER16 Spindle +Driver+48v 500wPower Supply+57mm Clamp+ ER16 Collect 10 Pcs


If you need CNC Brushless Spindle Motor Mini Speed Display Tachometer

Please click the link to buy

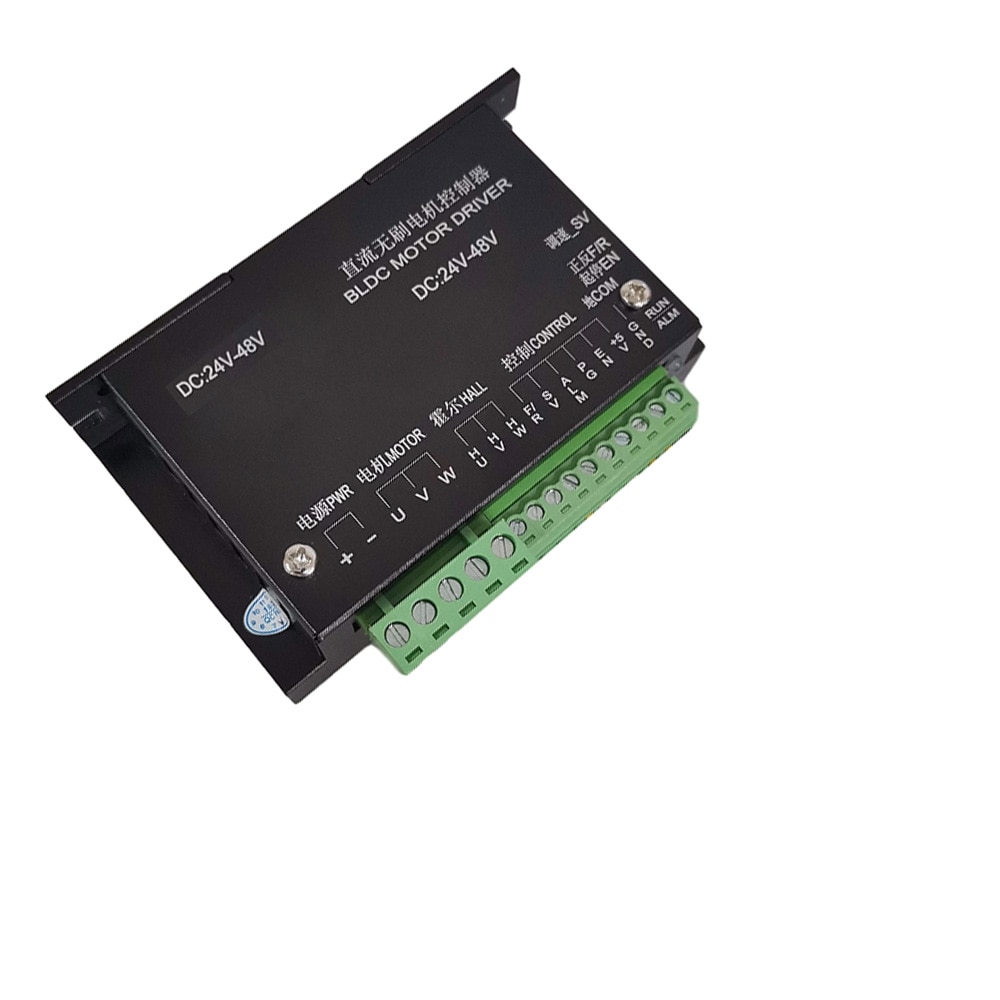

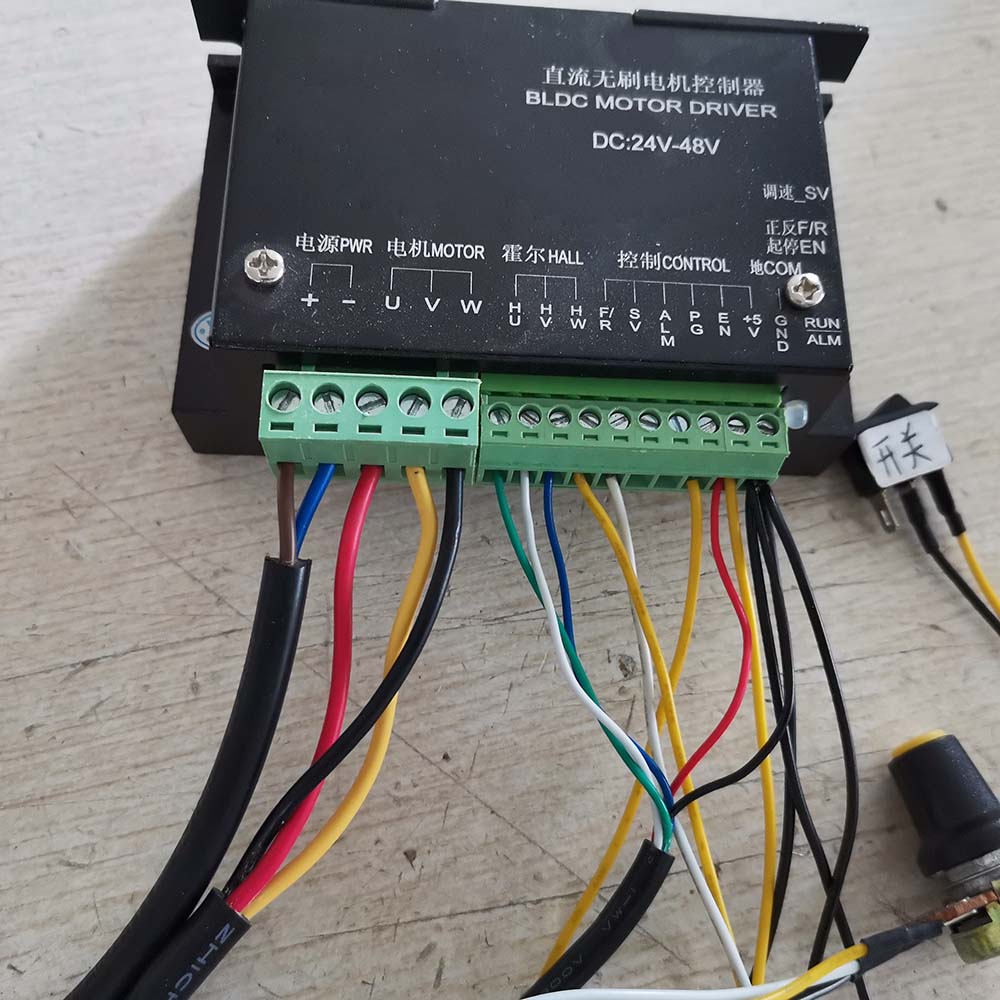

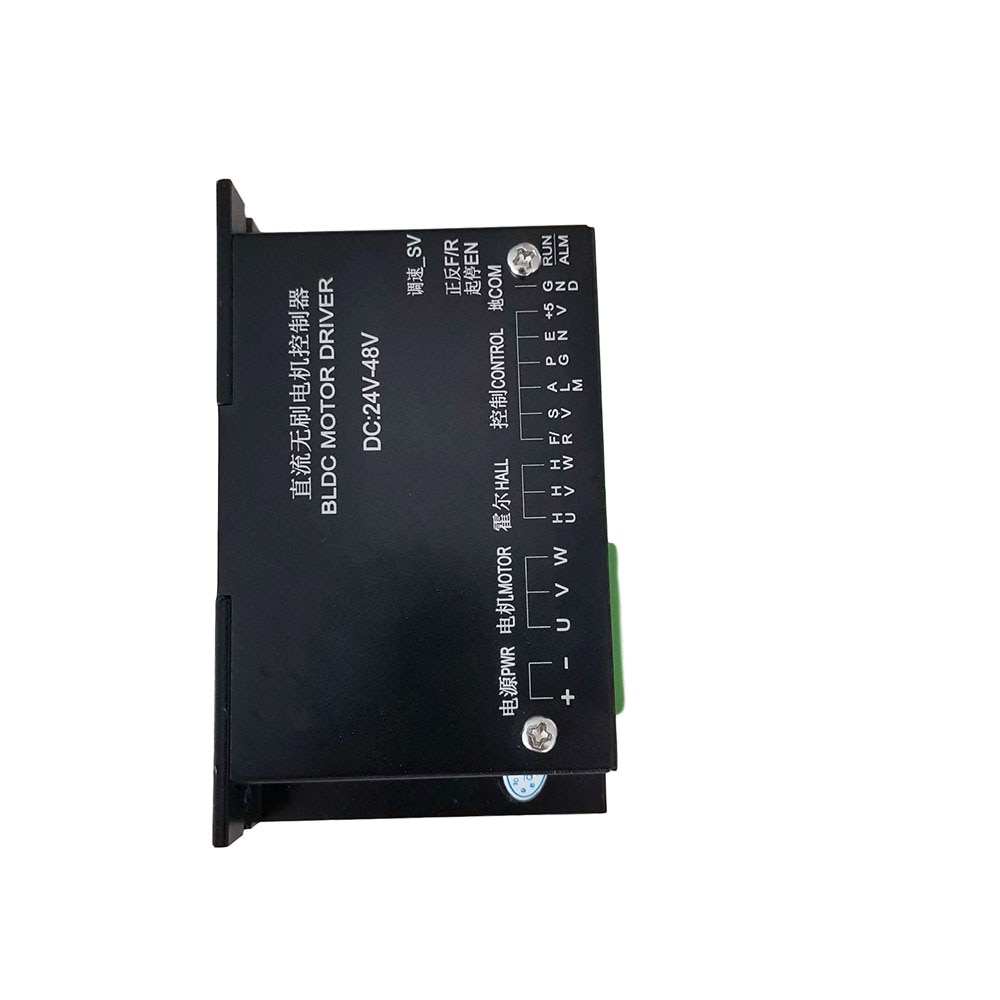

II. Specification Feature:
1) High performance, low prices
2) DSP main control module
3) No current passing when no movement
4) Voltage range 24VDC-48VDC
6) Maximum driver power 500W
7)  Maximum driver motor running speed 12000R/Min.
8) Speed testing port for user to inspect the real speed.
9) Internal over-voltage, over-current and stalling inspection

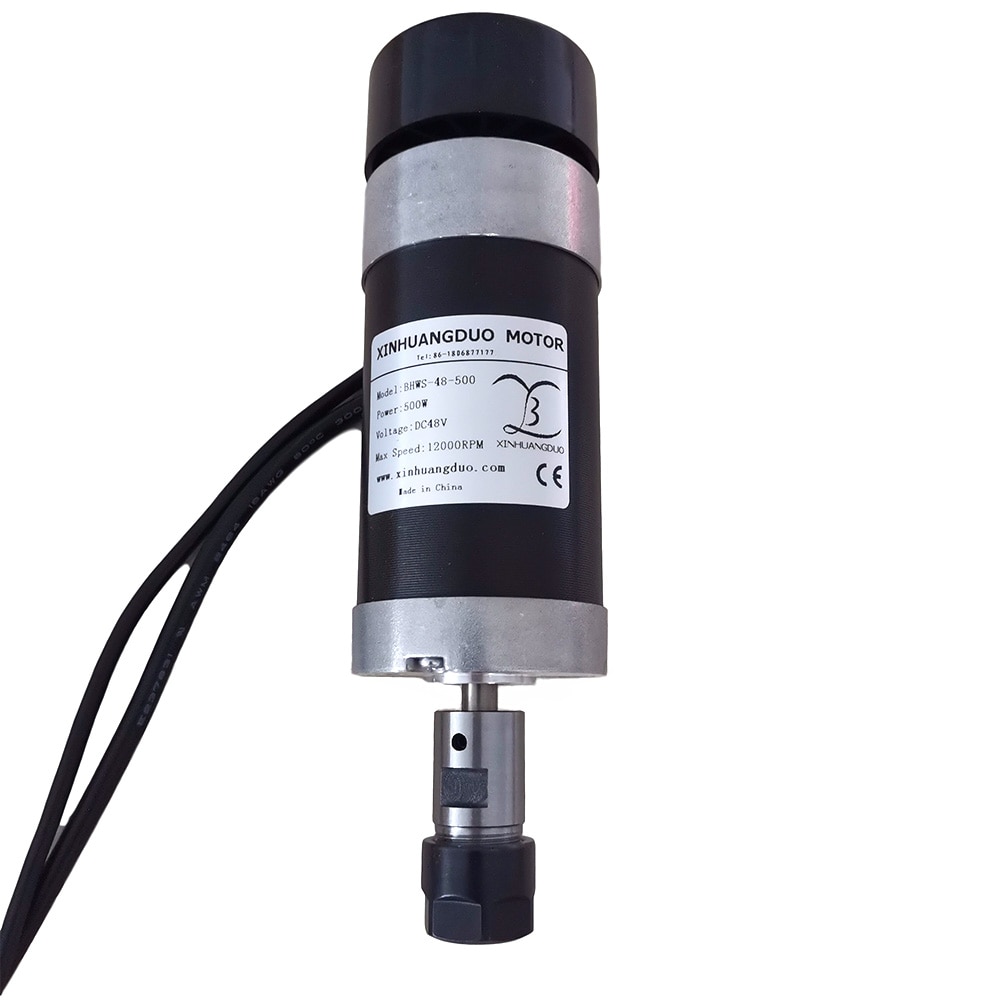

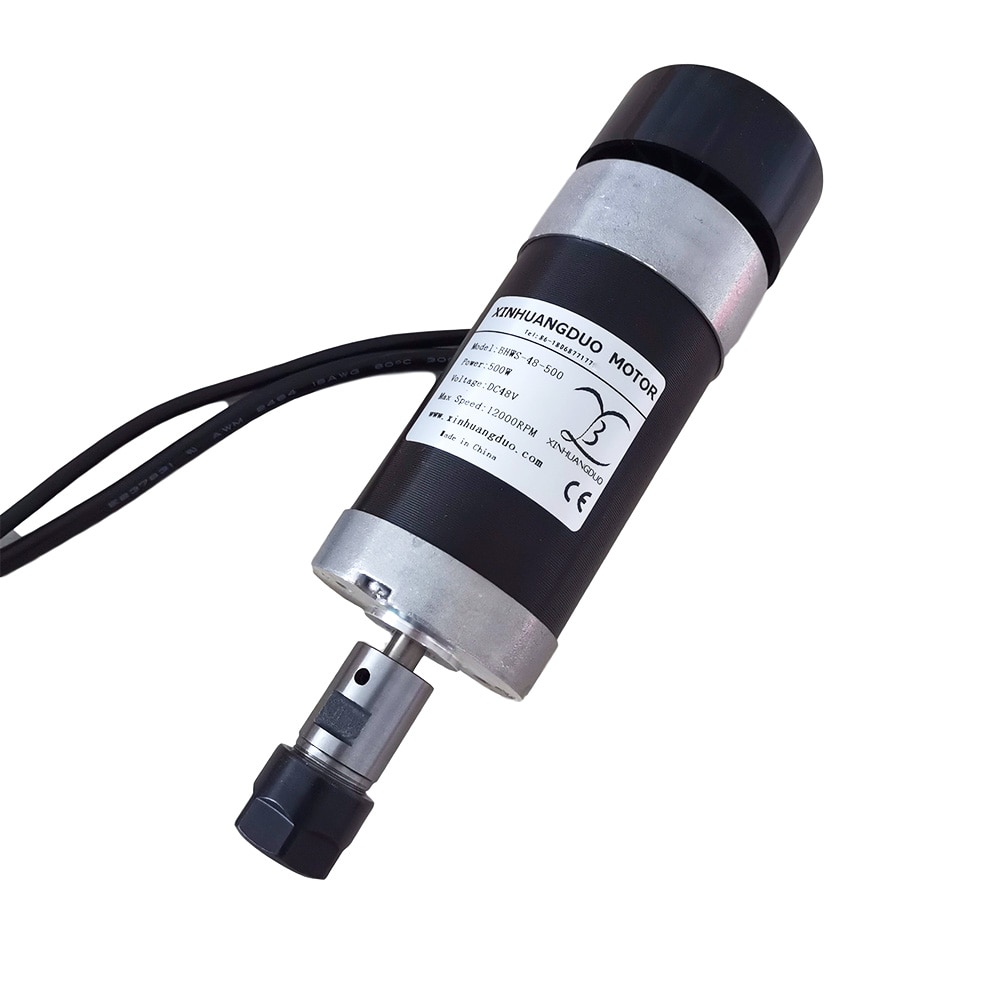

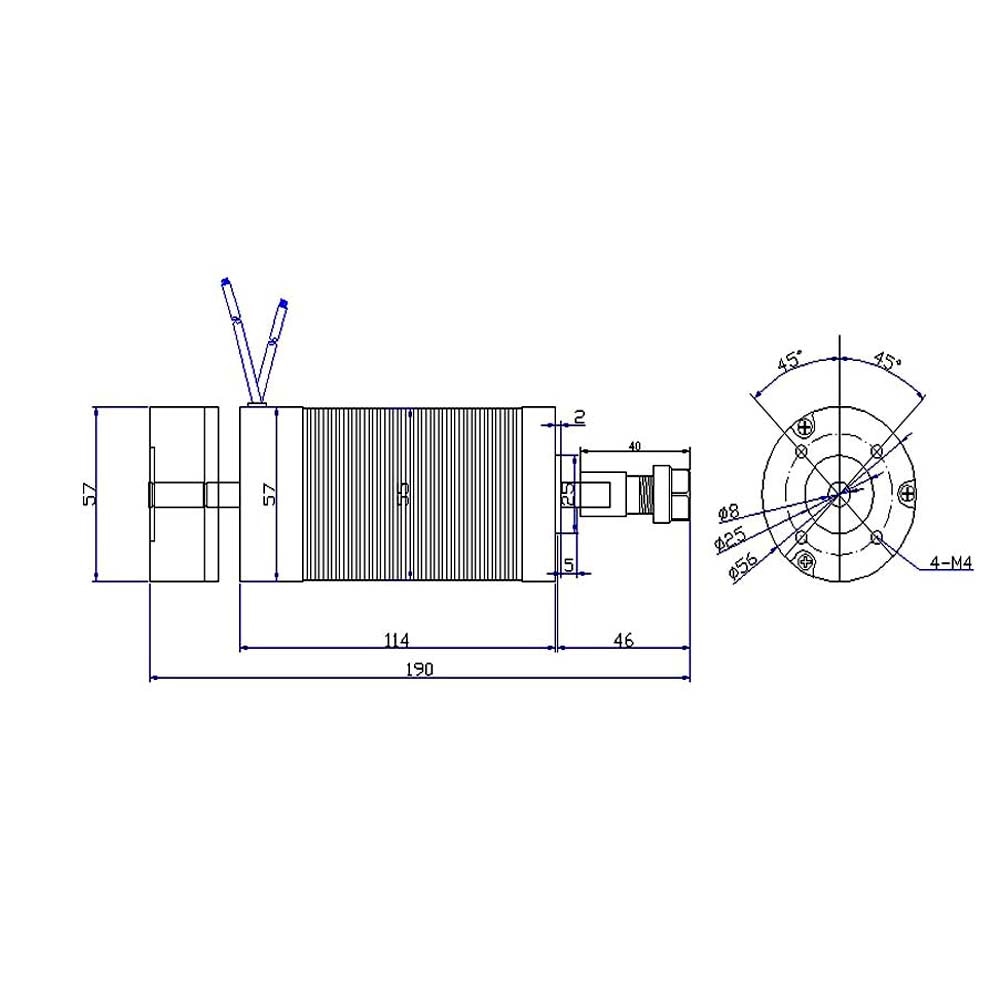

Spindle Motor:
Input Voltage: 48V
Max speed: 12000 R/Min
Torque: 1N.m
Insulation resistance: > 2ohms
Dielectric strength: 400V

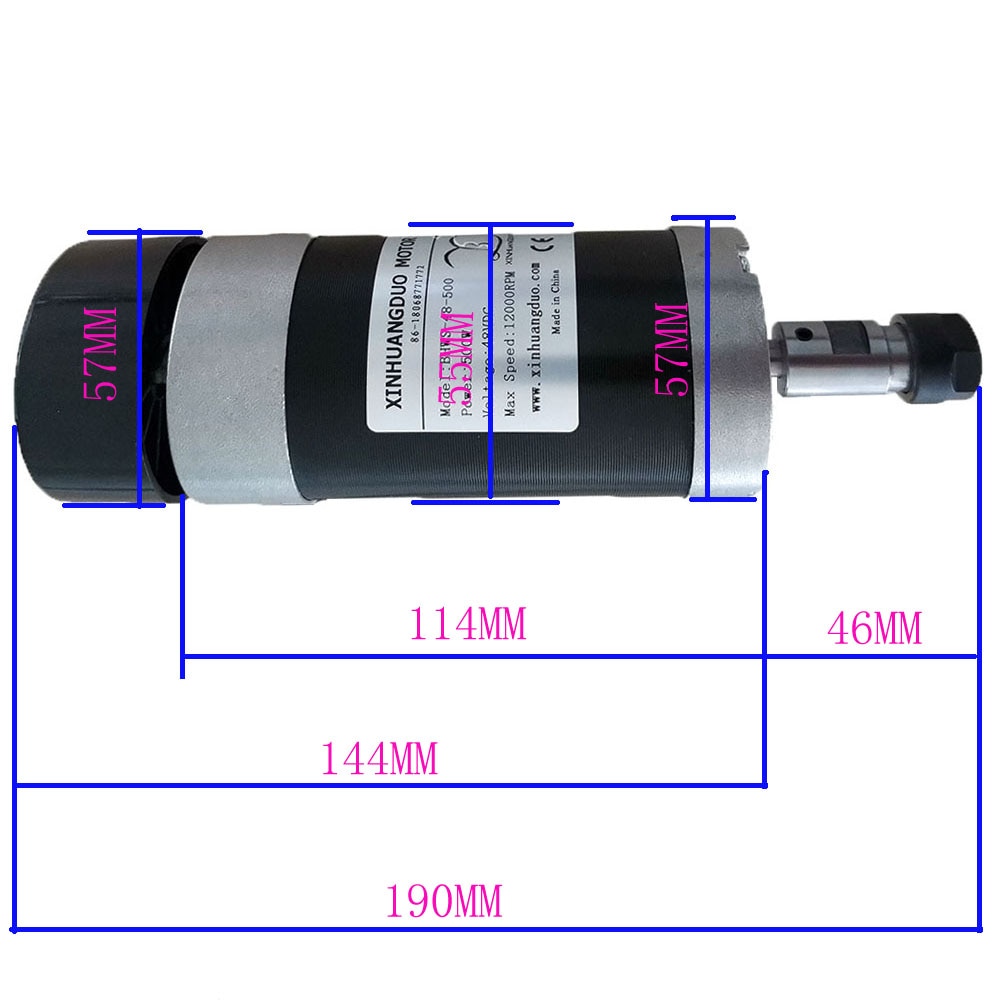

Diameter: 55mm
Spindle runout: about 0.01-0.03.

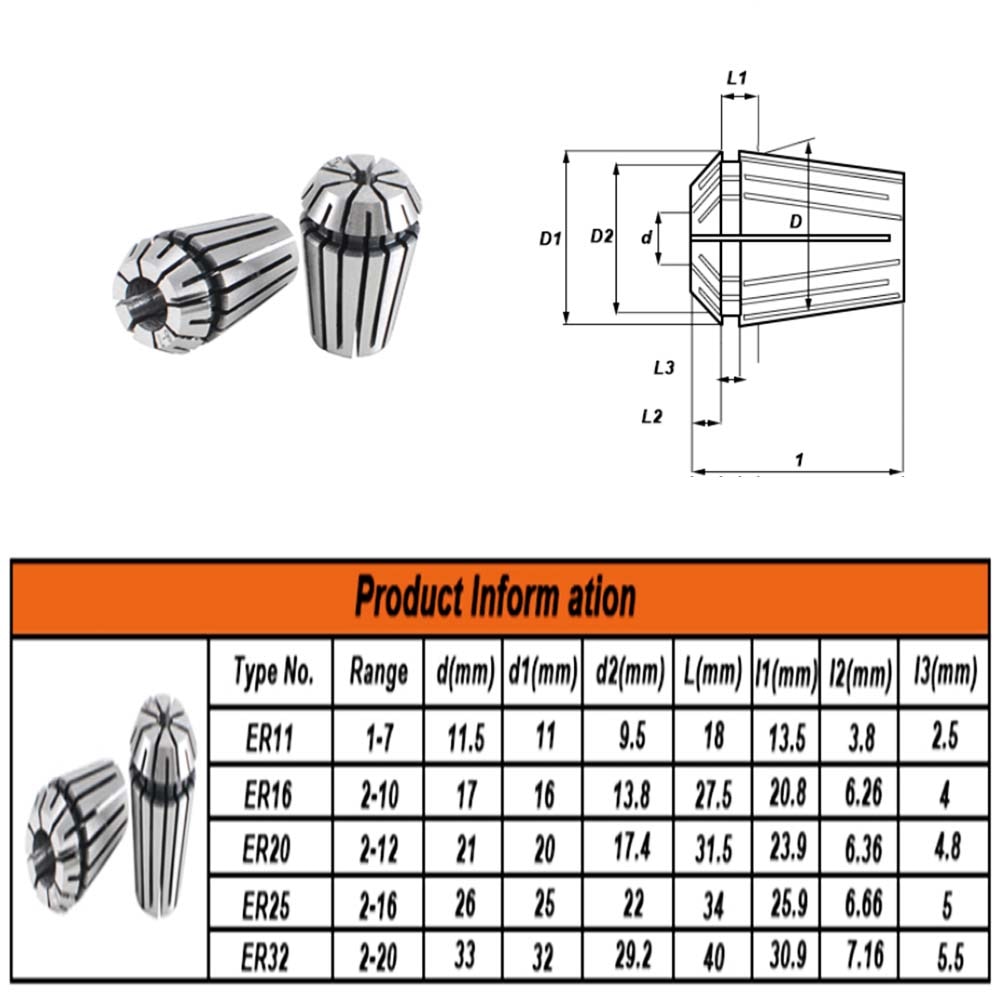

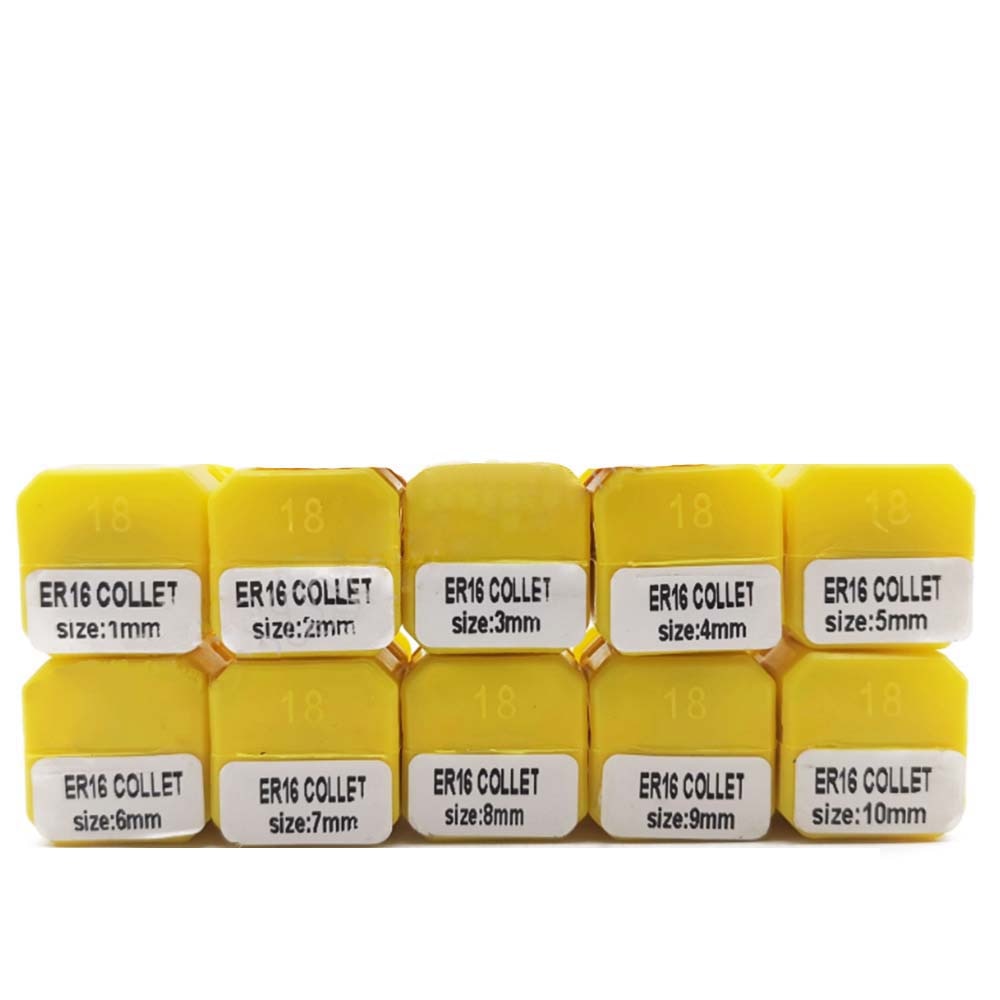

3. 10pcs ER16 Chuck:
10 pcs ER16 Size: 1mm / 2mm / 3mm / 4mm / 5mm / 6mm  / 7mm / 8mm / 9mm / 10mm

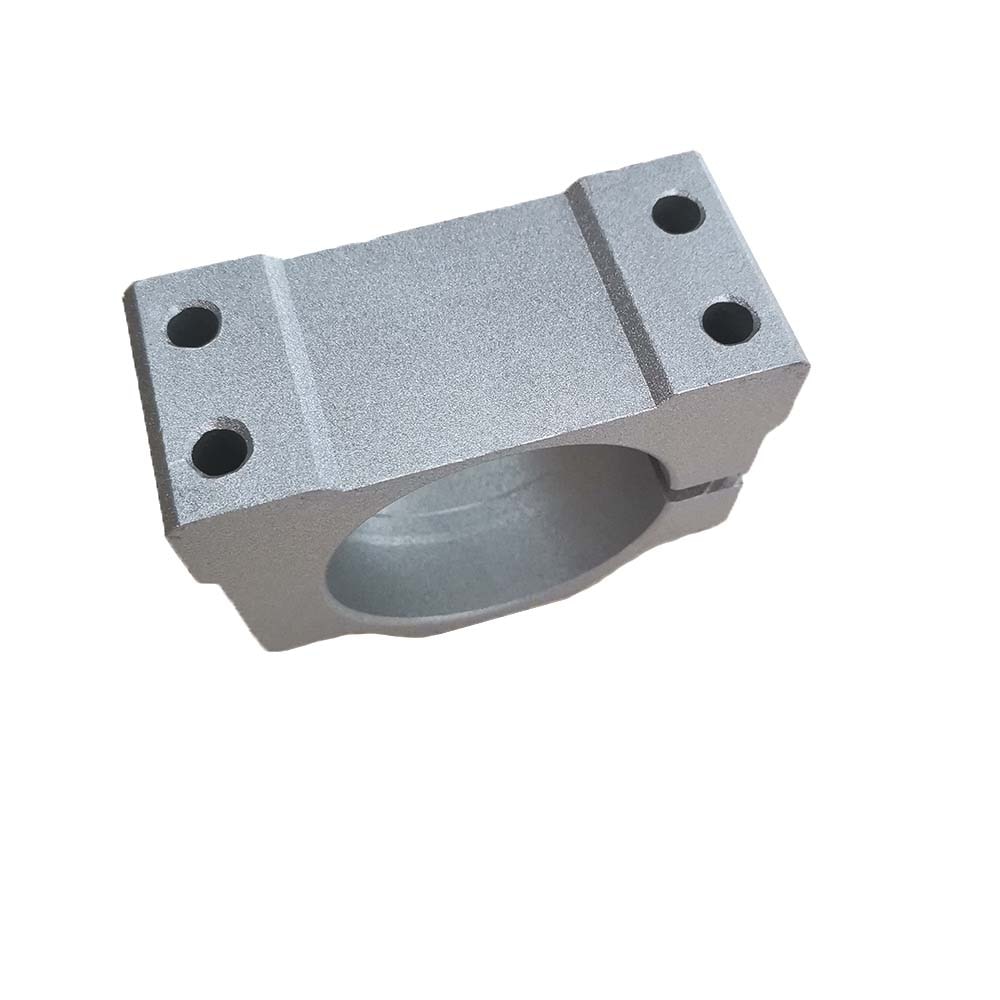

4. High quality spindle clamp 57mm aluminum spindle mounts/fixture/chuck/ bracket Clamp/holder Clamps/ hold seat
Package Content:
1pcs 57MM Bracket
Free 4pcs screws

Feature of spindle:

Power: 500W

Size: 55mm

Operating Voltage: 48VDC

Frequency: 0-400Hz

Speed: 0-12000rpm

Cooling: Air cooled

Spindle Accuracy: less than 0.005mm

Can be used for wood carving PCB drilling

Spindle Arbor ER16 Arbor Clip (1mm-10mm)     Default Hair 8 MM Chuck

 Need other chucks to leave a message



  • Operating Speed: 12000rpm
  • Maximum Torque: 1NM
  • Application: Drilling
  • Model Number: BHWS-48-500
  • Drive: Motor
  • Brand Name: XINHUANGDUO
  • Origin: Mainland China
  • Certification: CE,RoHS
