1.5kw/2.2kw water cooled spindle CNC spindle motor+2.2KW VFD+ 80mm clamp + water pump +13pcs ER20 Collet for CNC Router
4.6 (10 votes) | 23 orders
Price:
US $771.50 - 1255.50
/ piece
Discount Price:
US $
631.38 -
965.34
/ piece
-18%
- Ships From

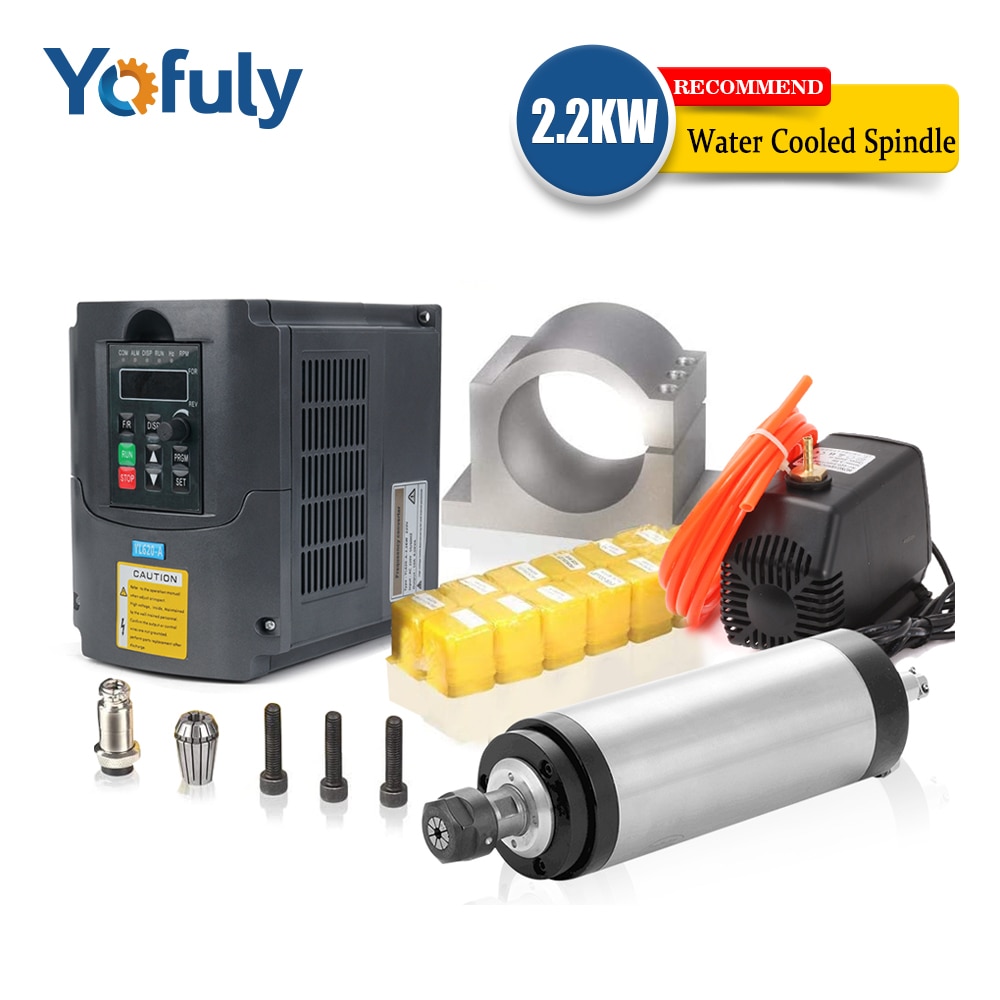

2.2kw Spindle Water Cooled Kit er20 Milling Spindle Motor +2.2kw Inverter +ER20+2.2kw spindle +80w pump+5m pipes for CNC Router
Packing Includes：
2.2kw set:
1 x 2.2KW CNC Water Cooled Spindle
1 x 2.2KW VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 80mm Spindle Clamp
13 x ER20 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
1.5kw set:
1 x 1.5KW CNC Water Cooled Spindle
1 x 1.5KW VDF
1 x 3.5M Water Pump
1 x 5M Water Pipes
1 x 65mm Spindle Clamp
13 x ER11 Collet (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)
Fearture：

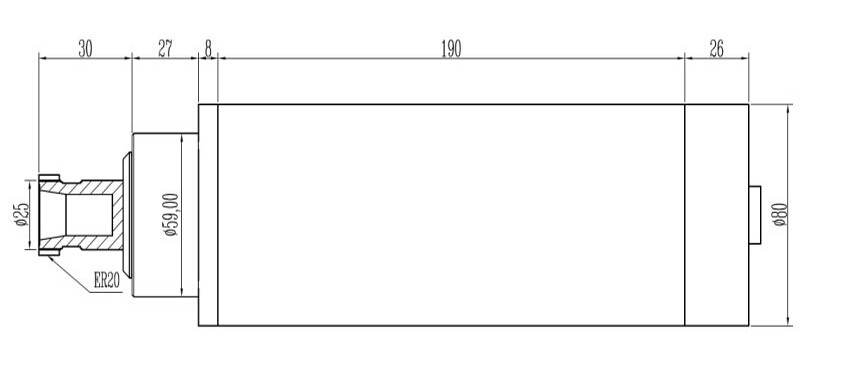

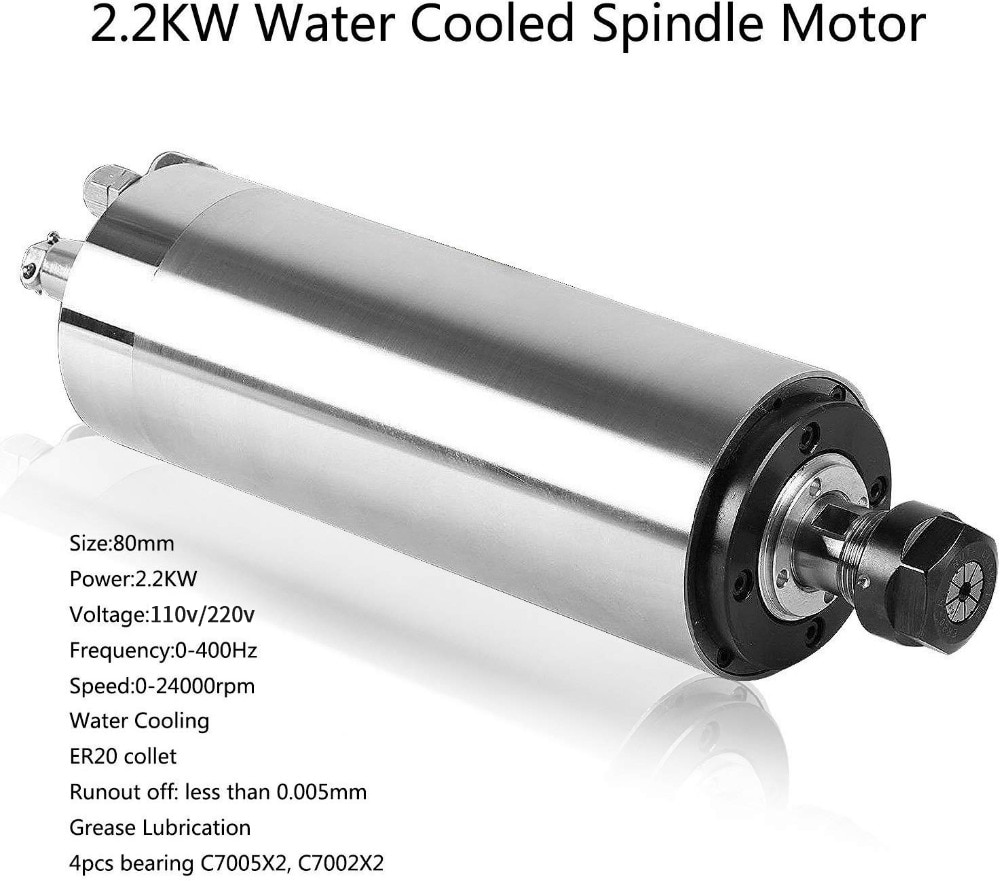

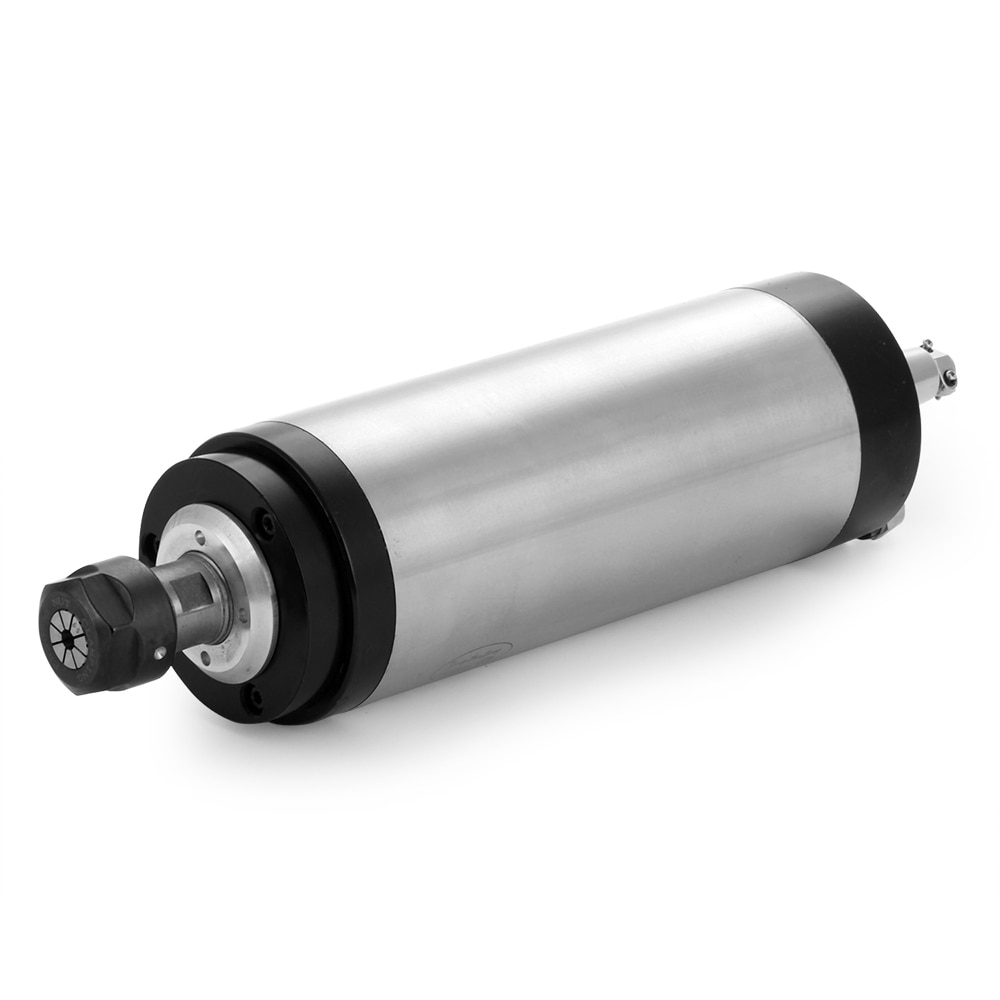

1. Water-cooled spindle motor
Size: 80mm
Power: 2200W
Voltage: 220V
Frequency: 0-400Hz
Speed: 0-24000rpm
Water Cooling ER20 collet
Runout off: less than 0.1mm
Germany SKS 4pcs bearing
Bearing type: 4pcs bearing C7005X2 C7002X2
Grease Lubrication

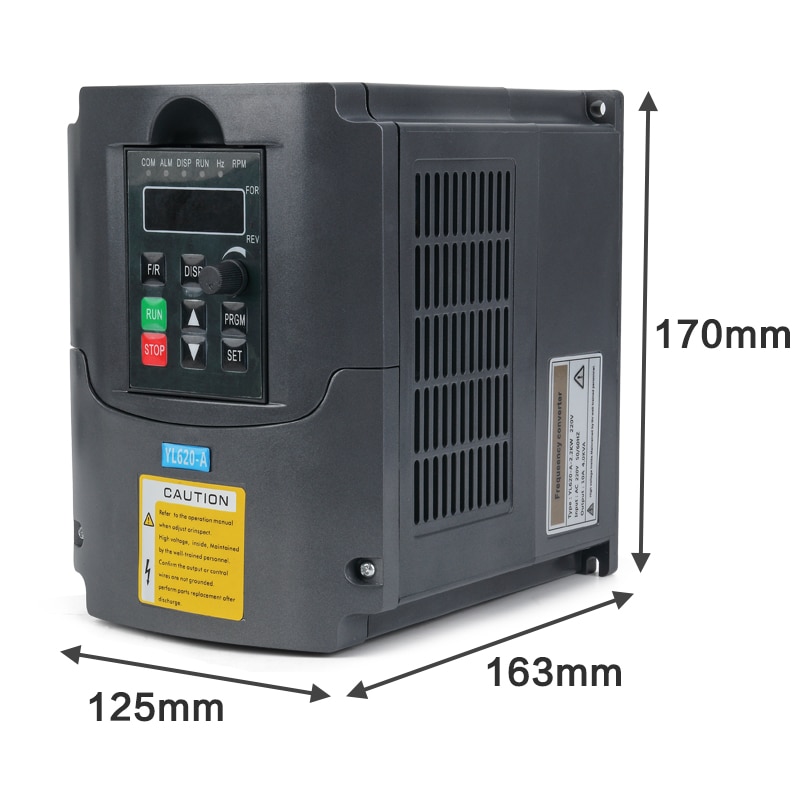

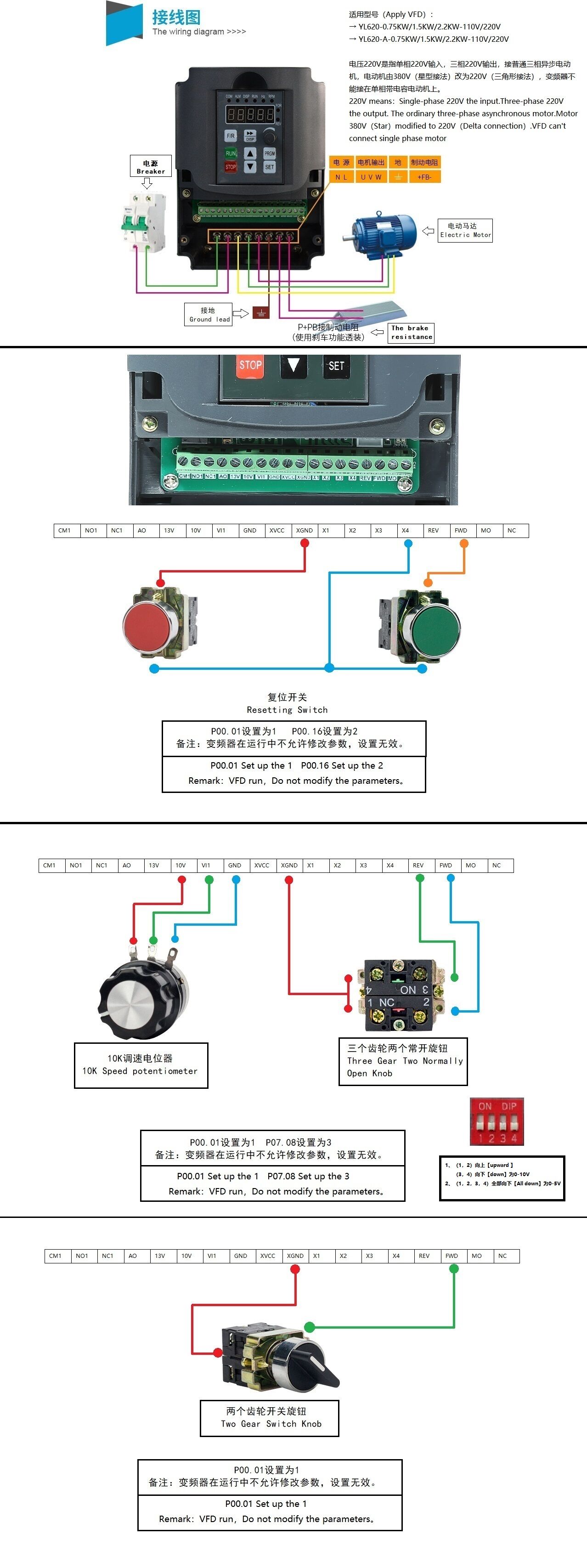

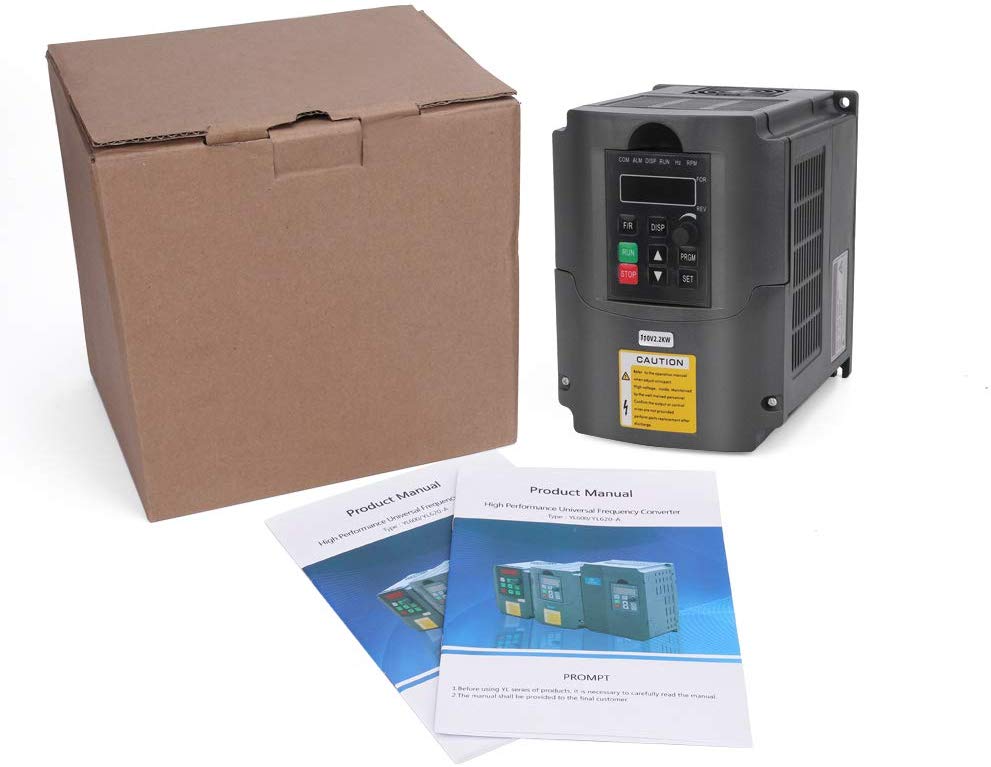

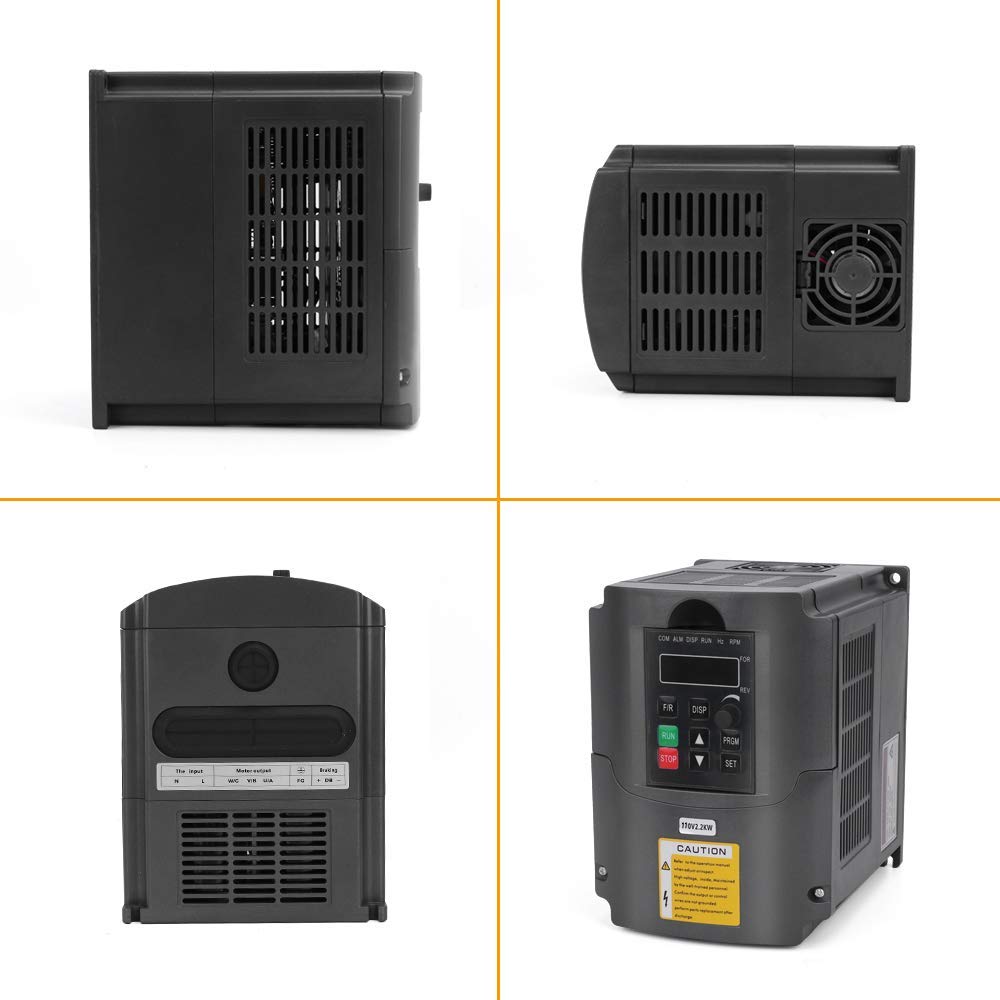

2.Inverter:
Input Voltage: 110V/0220V(+/-15%)
We also stock 380V(+/-15%), please contact us.
Output Voltage: 110V/220V AC
Input Frequency: 48-63 Hz
Output Frequency: 0-400 Hz
Input Phase: 1 or 3 phase
Output Phase: 3 phase

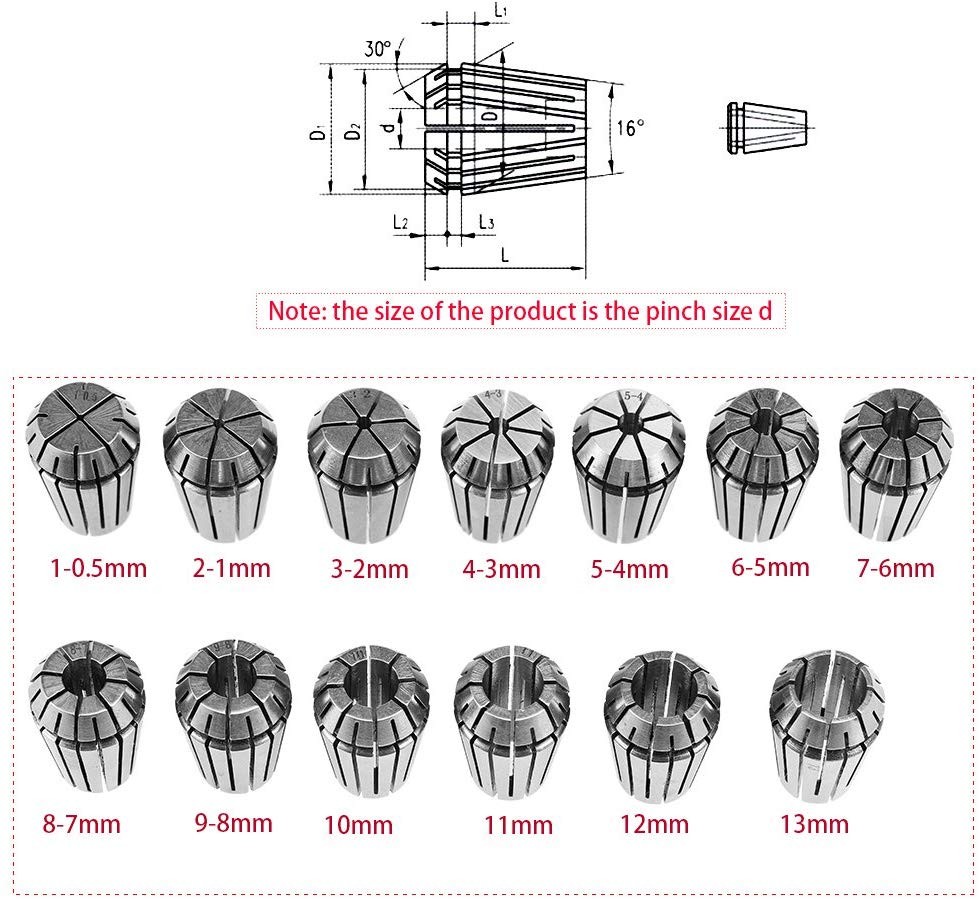

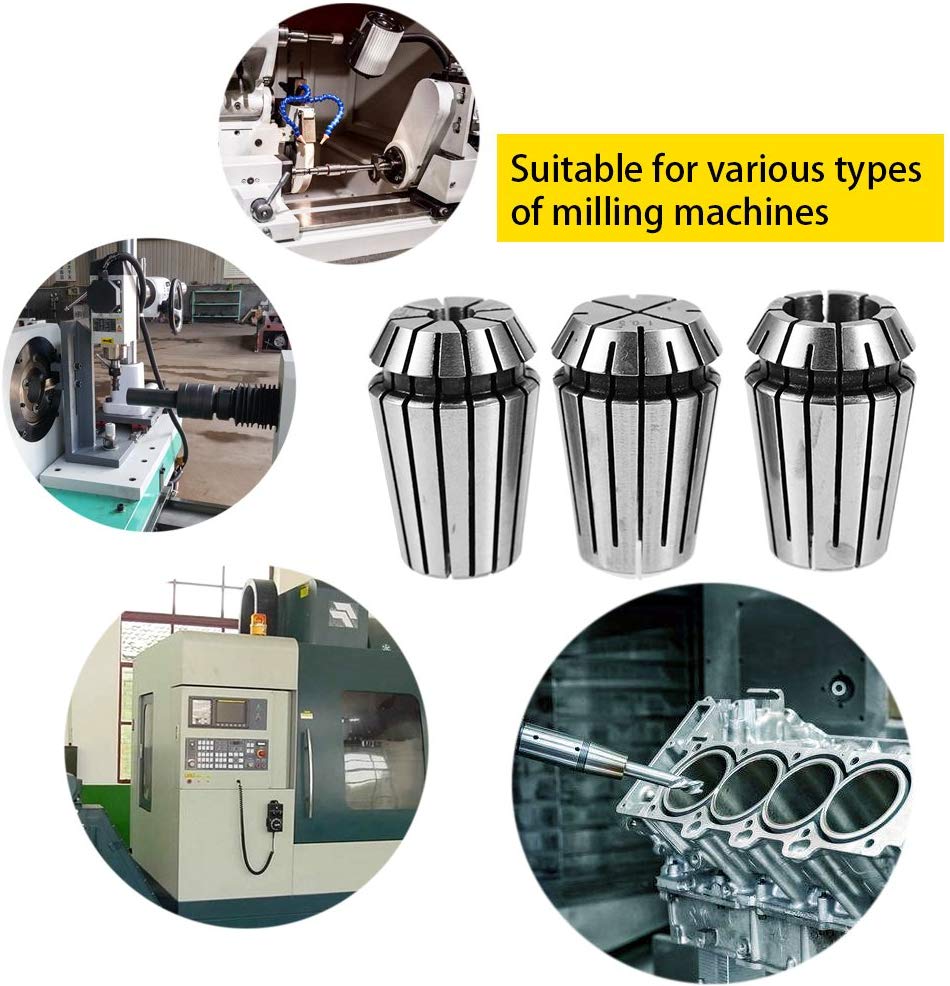

3.ER20 Collet 1 Set:
Gripping Range: 1MM to 13MM (1,2,3.175,4,5,6,7,8,9,10,11,12.7,13mm)

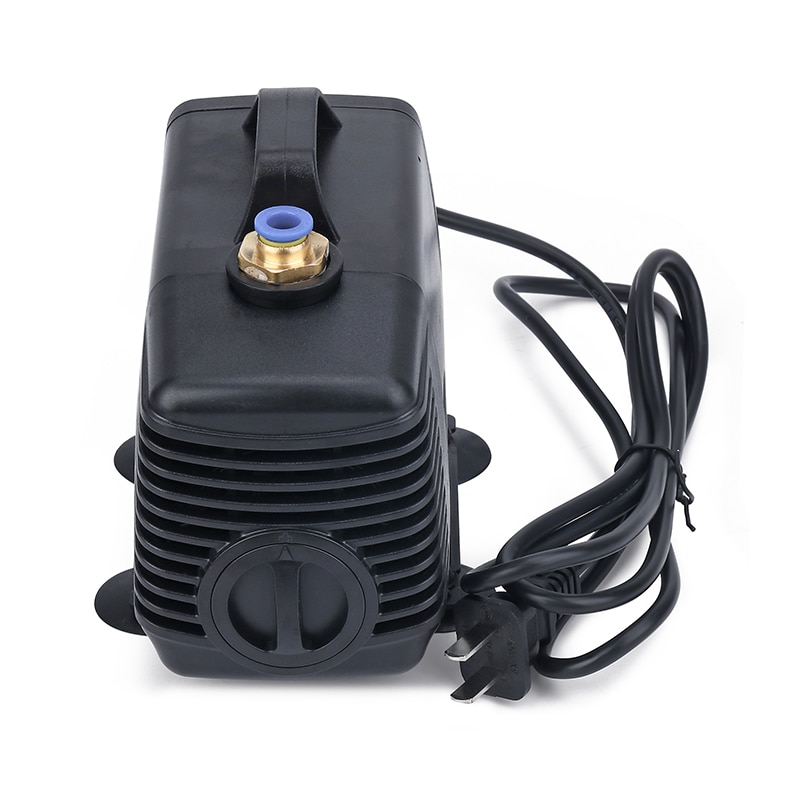

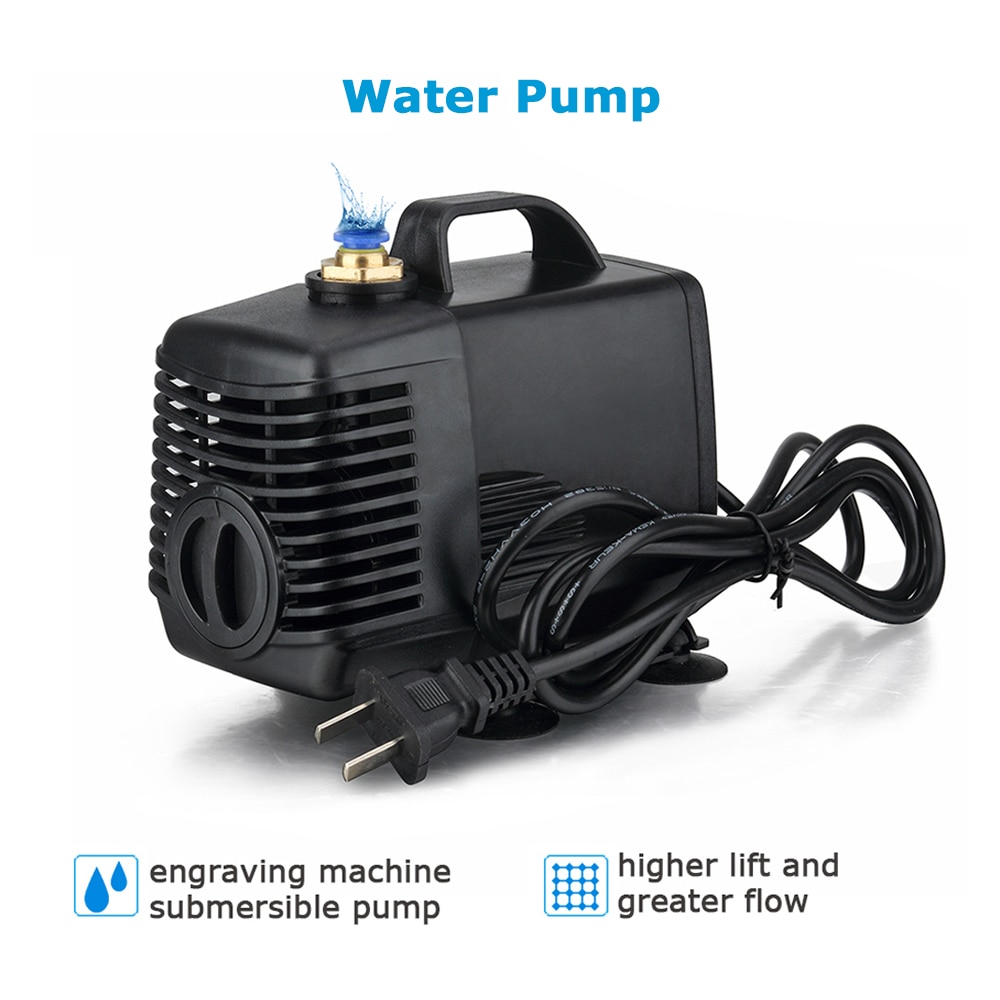

4.Water Pump:
Voltage: 220V
Structure: Single-stage Pump
Pressure: High Pressure
Application: Submersible
Usage: Water

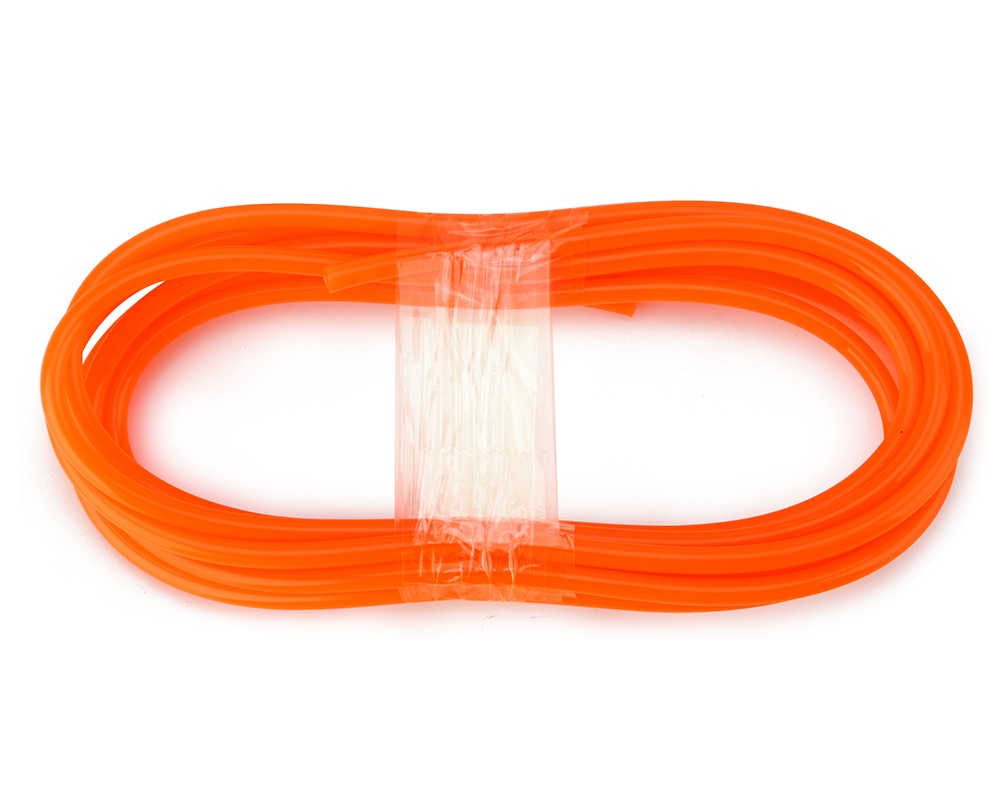

5.5M Water Pipes:
Size:5M 6mm (ID)*8mm (OD)

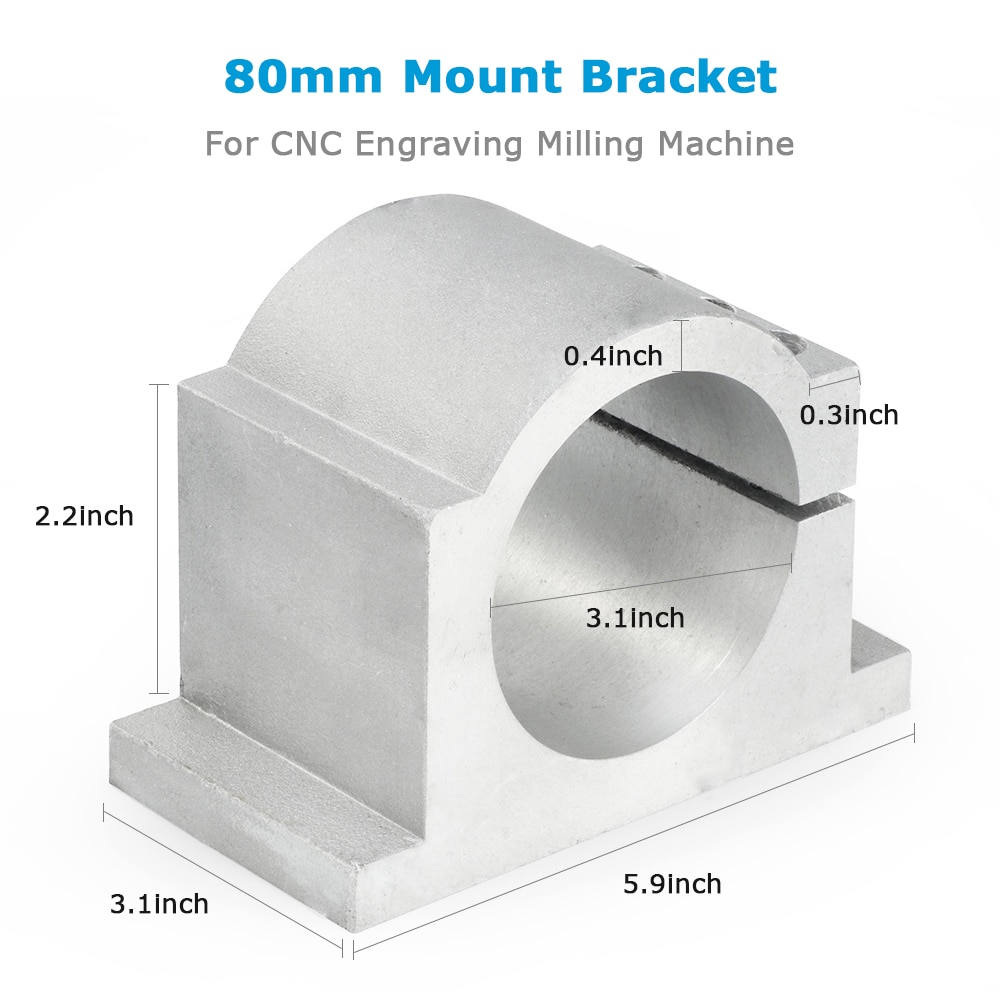

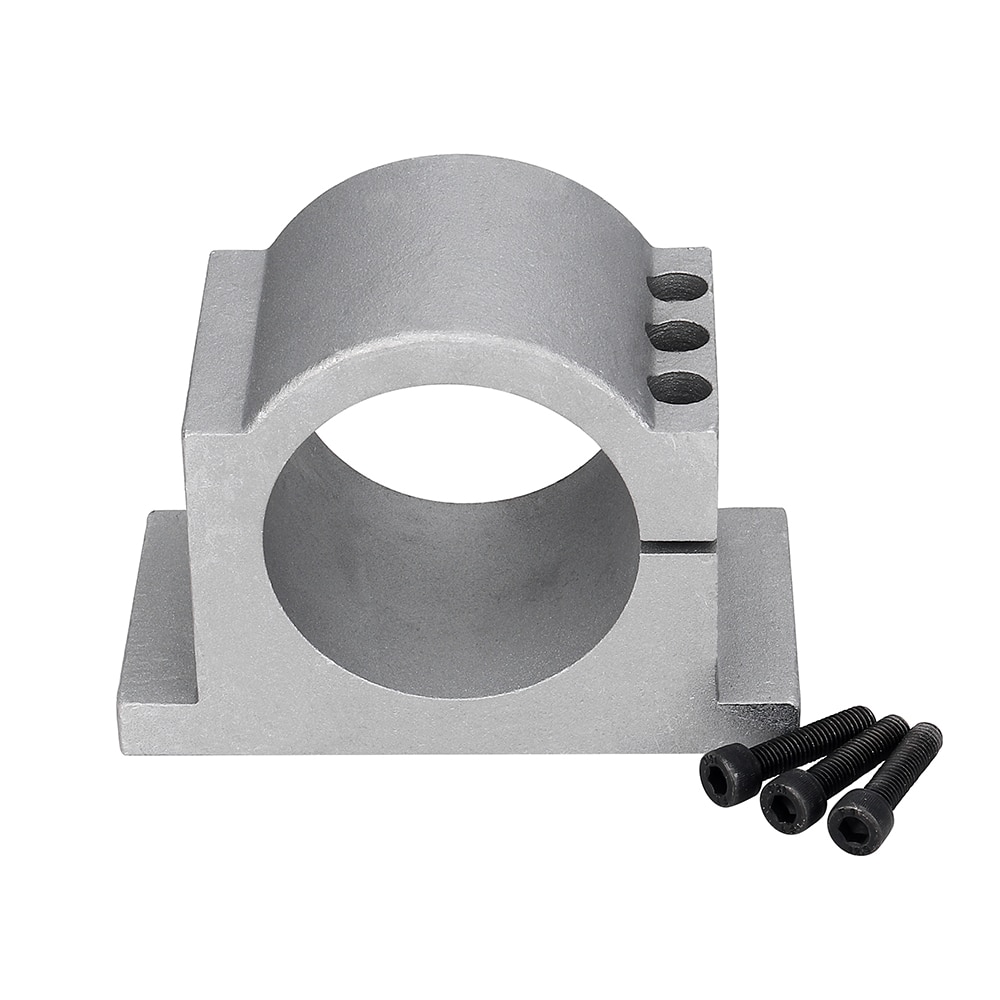

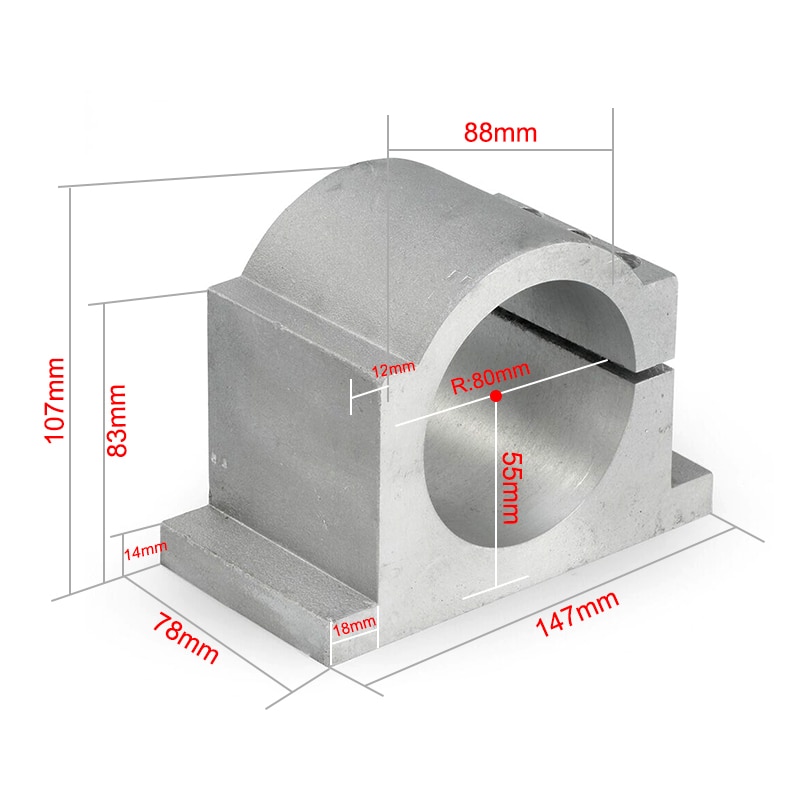

6.Spindle Motor Clamp Mount:
Diameter: 80mm
Material: Aluminum,Surface sandblasted
Application: Wood working industry rourter, such as wood door milling engraving and cutting, furniture producing
Noted:The hole in the middle of our clamp is not punched through. The middle screw is the jack screw. The function of the two screws on the left and right is to lock. The middle screw function is used when disassembling the spindle. Loosen the screws on both sides and tighten the middle screw, the whole fixture will be opened. the function is easy to take out the spindle.

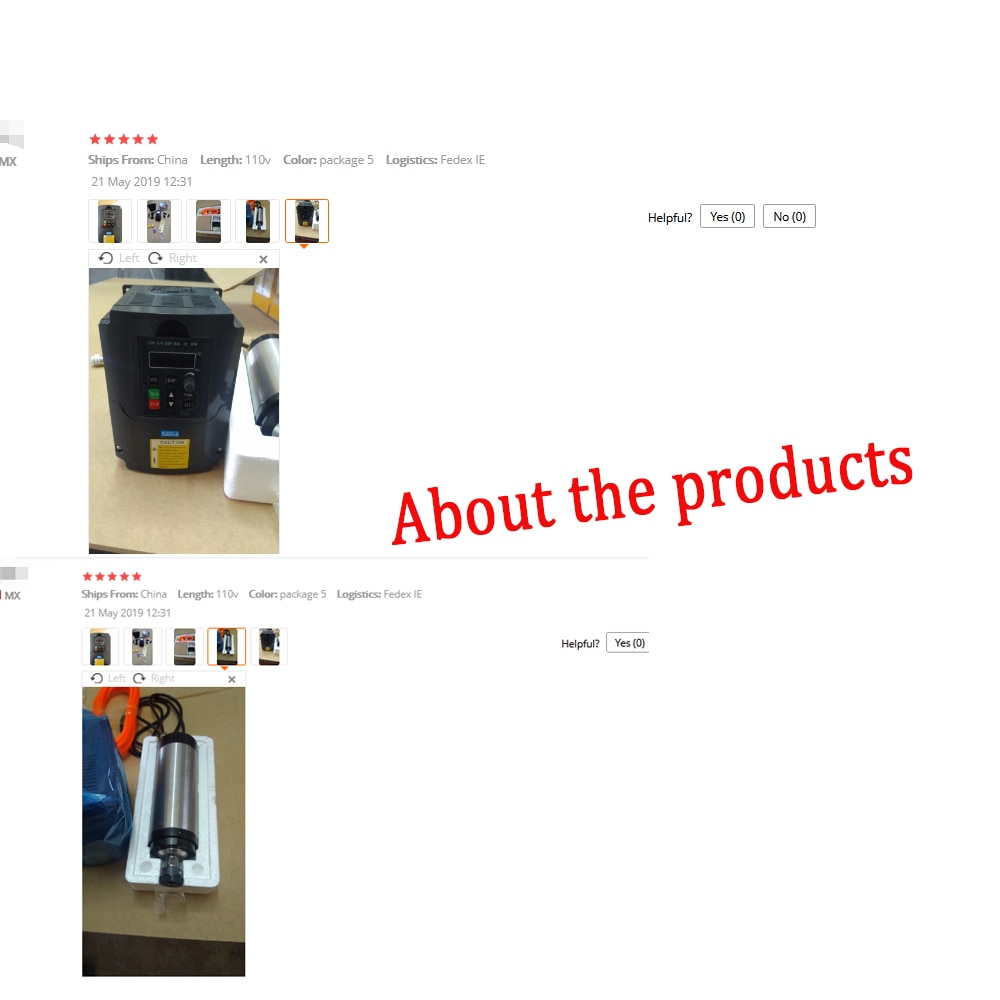

Customs Feedback:
- Operating Speed: 0-24000rpm
- Maximum Torque: 0.597
- Application: Milling
- Model Number: 2.2kw Water Cooled Spindle Kit
- Drive: Motor
- Brand Name: yofuly
- Origin: Mainland China
- Certification: CE
- Type: 2.2kw Water Cooled Spindle Kit
- Cooling: Water Cooling
- Speed: 0-24000rpm
- Voltage: 220V
- Run out off: less than 0.005
- Inverter: 1.5kw/2.2kw
- Input: 220V or 110V/50Hz
- Clamp: 80mm
- Pump: 75W
- Collet: 13pcs ER20
- Type 1: 2.2kw spindle motor
