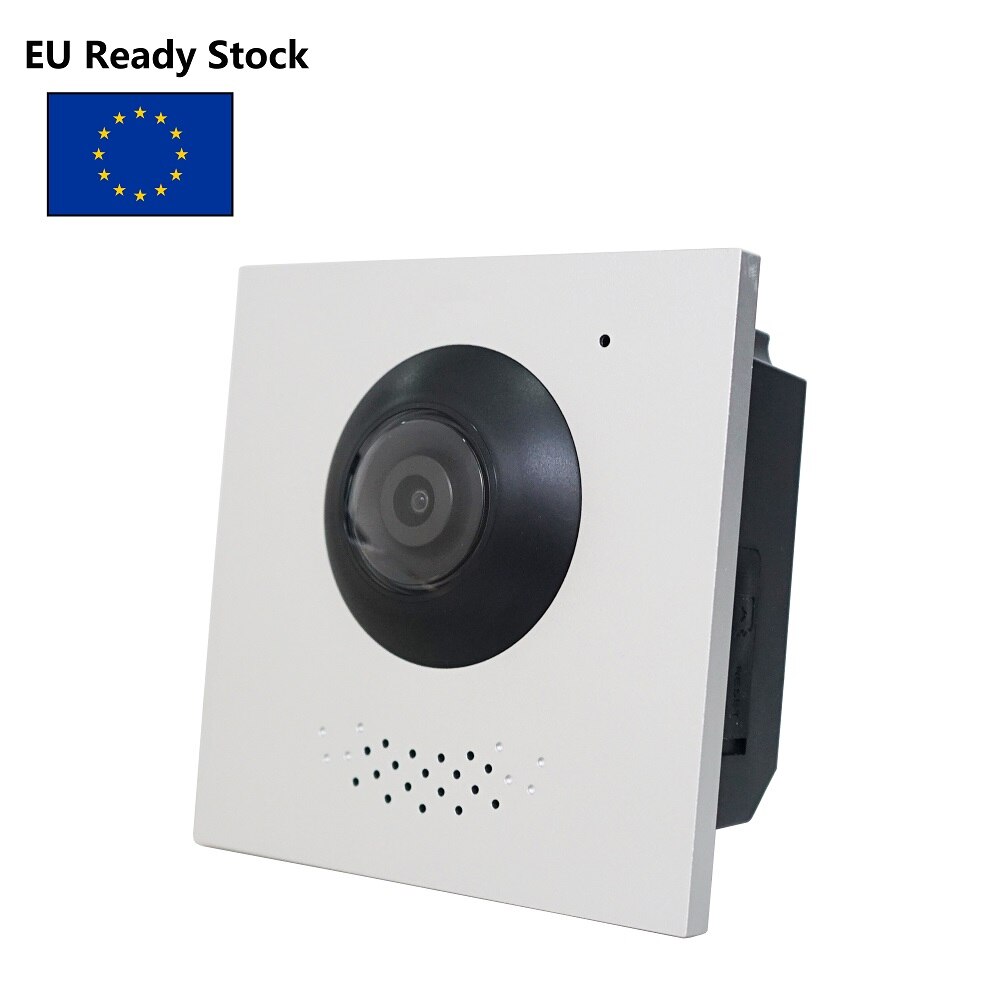

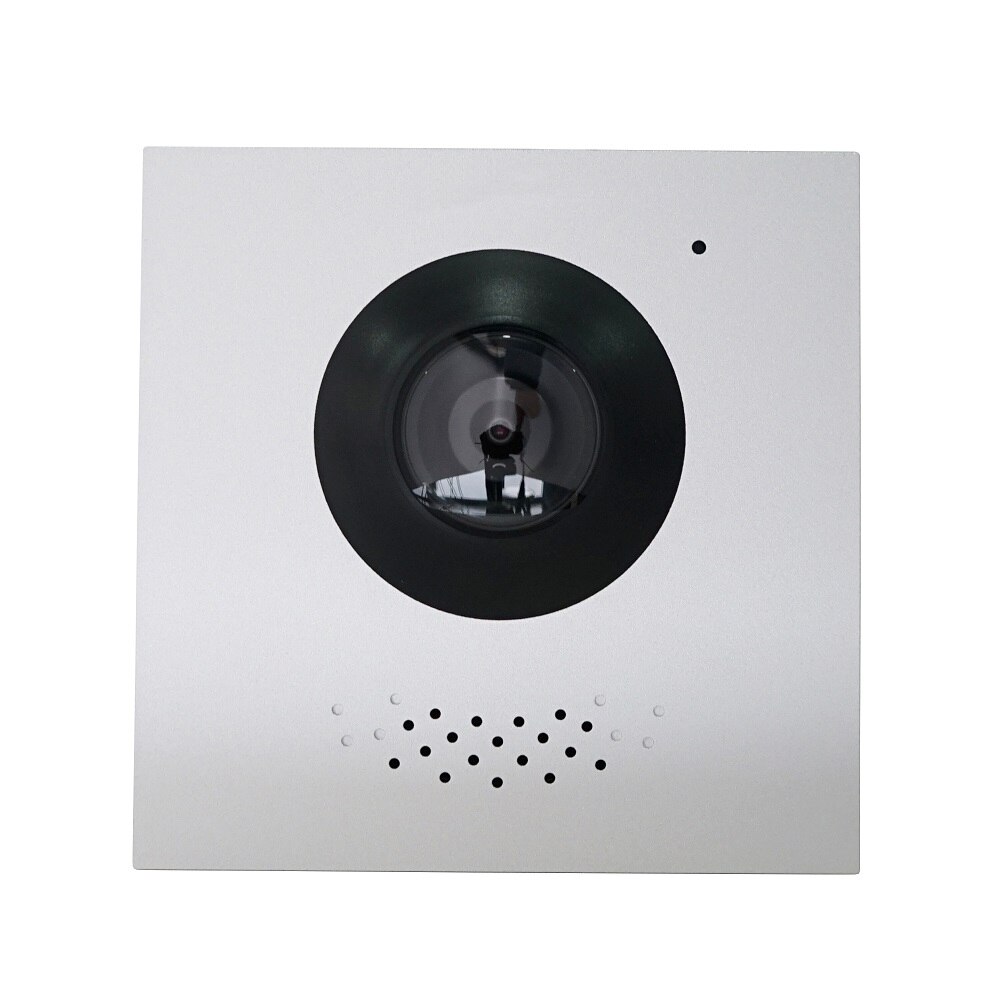

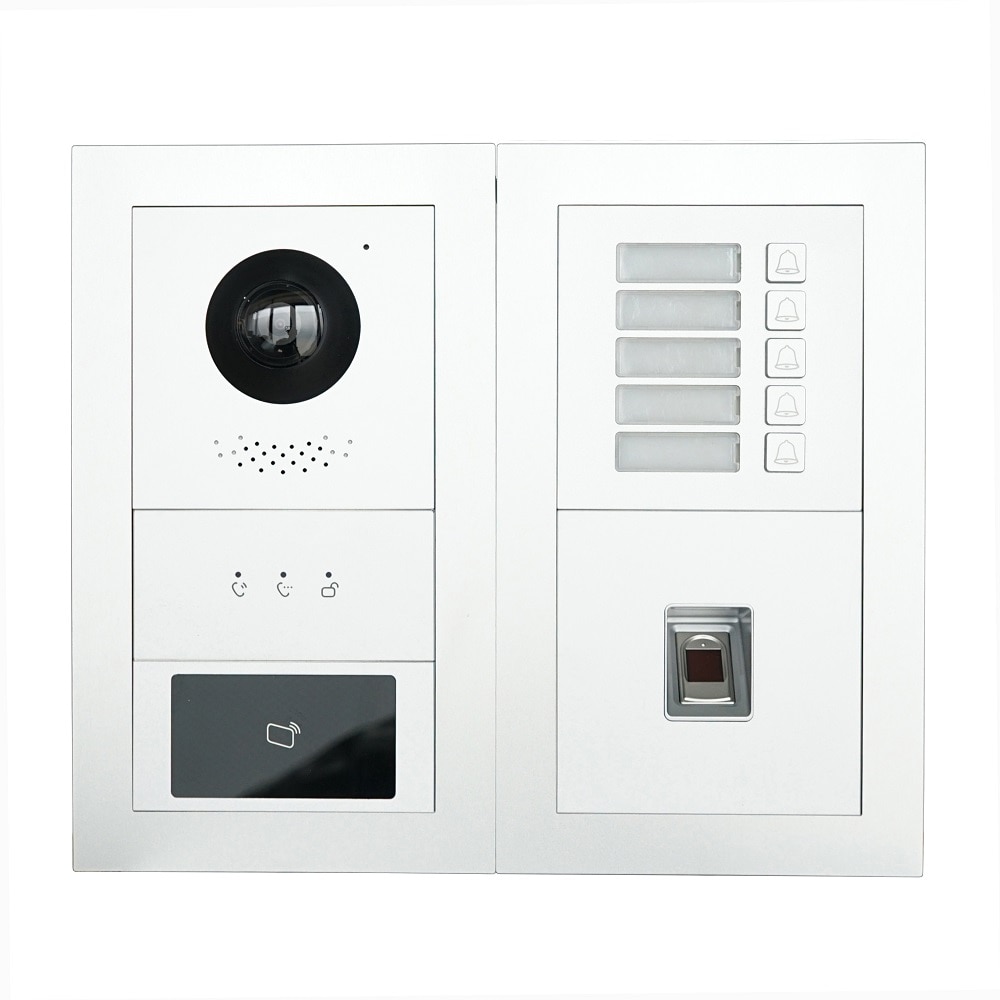

VTO4202F-P-S2 camera Module, POE port / 2-wire port, IP doorbell parts,video intercom parts,Access control parts,doorbell parts

5.0 (1 votes) | 22 orders
Price: US $344.14 / piece
Discount Price:
US $ 299.25 / piece
-13%
Ships From
Color
Quantity


Important:

If you have any questions about EU Tax, Please chat with me

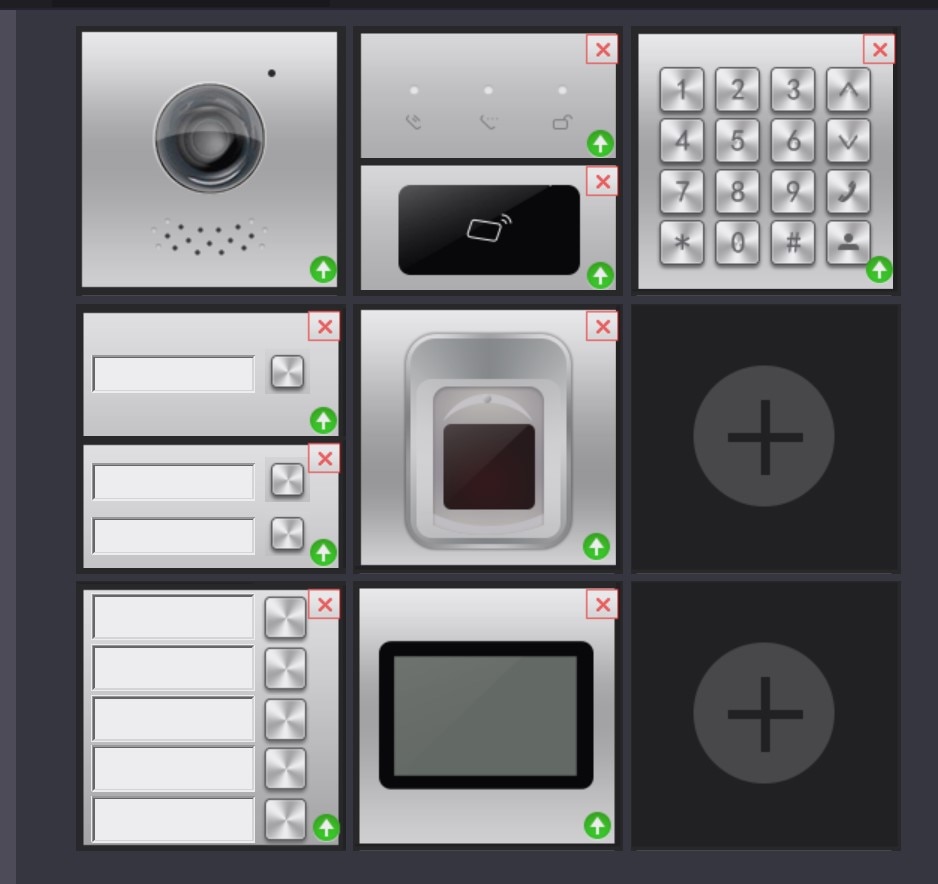

If you need a other modules and Box, press this photo to buy:

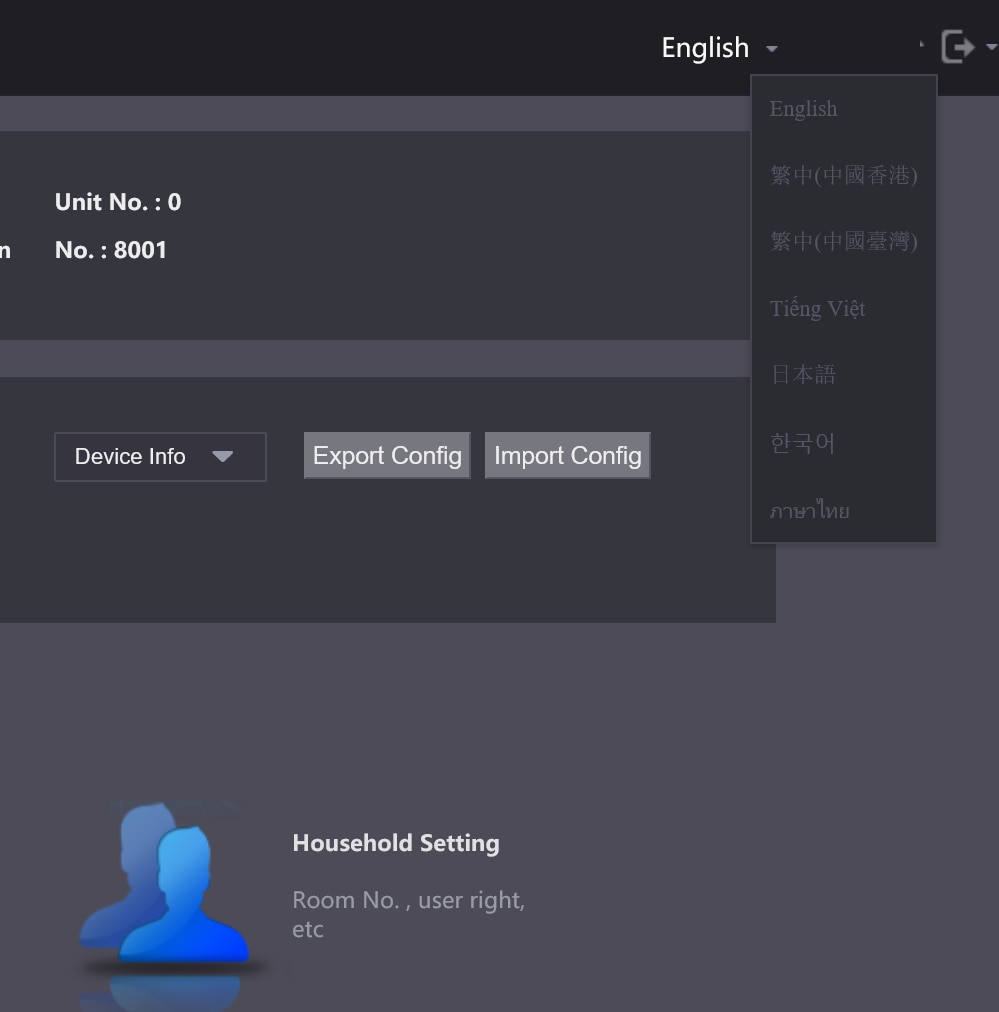

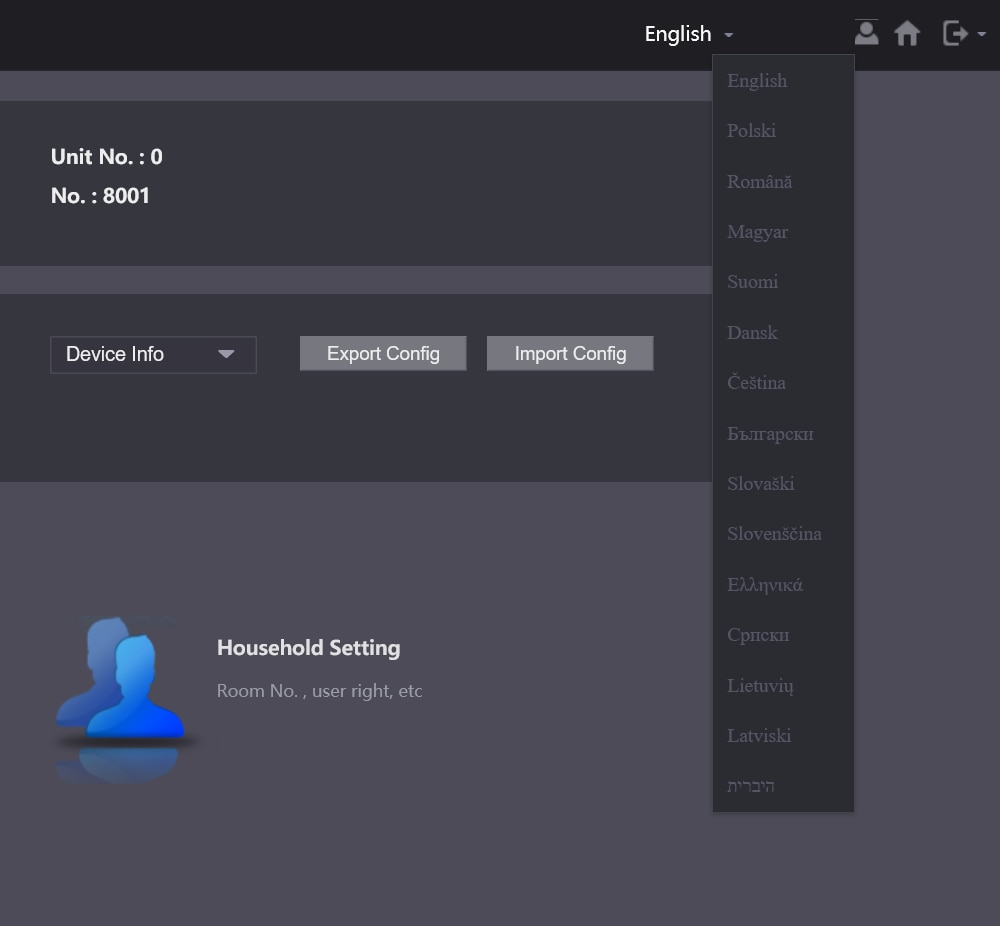

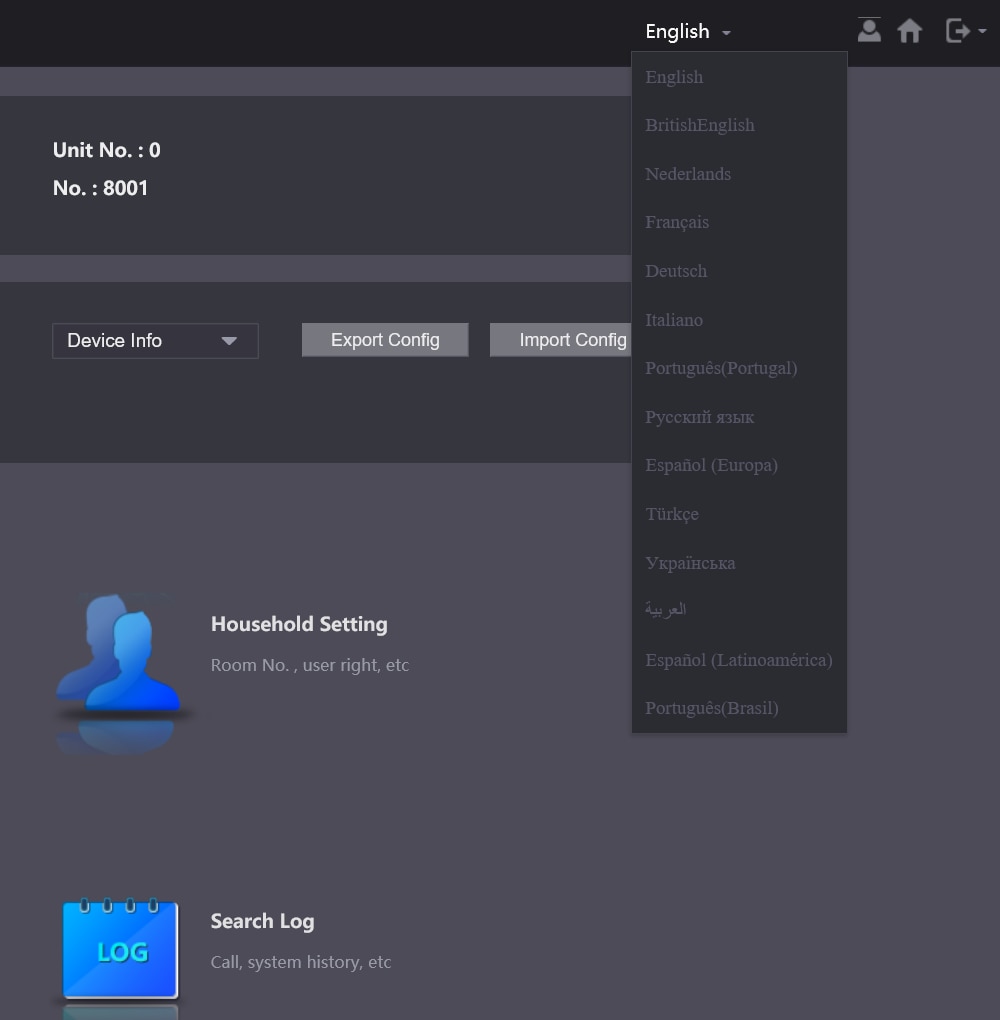

Support Language:

English, Russian, Dutch, French, German, Italian, Polish, Portuguese, Spanish, Ukrainian, Arabic, Bulgarian, Czech, Danish, Finnish, Greek, Hungarian, Latvian, Lithuanian, Romanian, Hebrew, Japanese, Korean, Thai,Serbian, Slovak, Slovenian, Vietnamese, Turkish, Portuguese (Brazil), Spanish (Latin America);

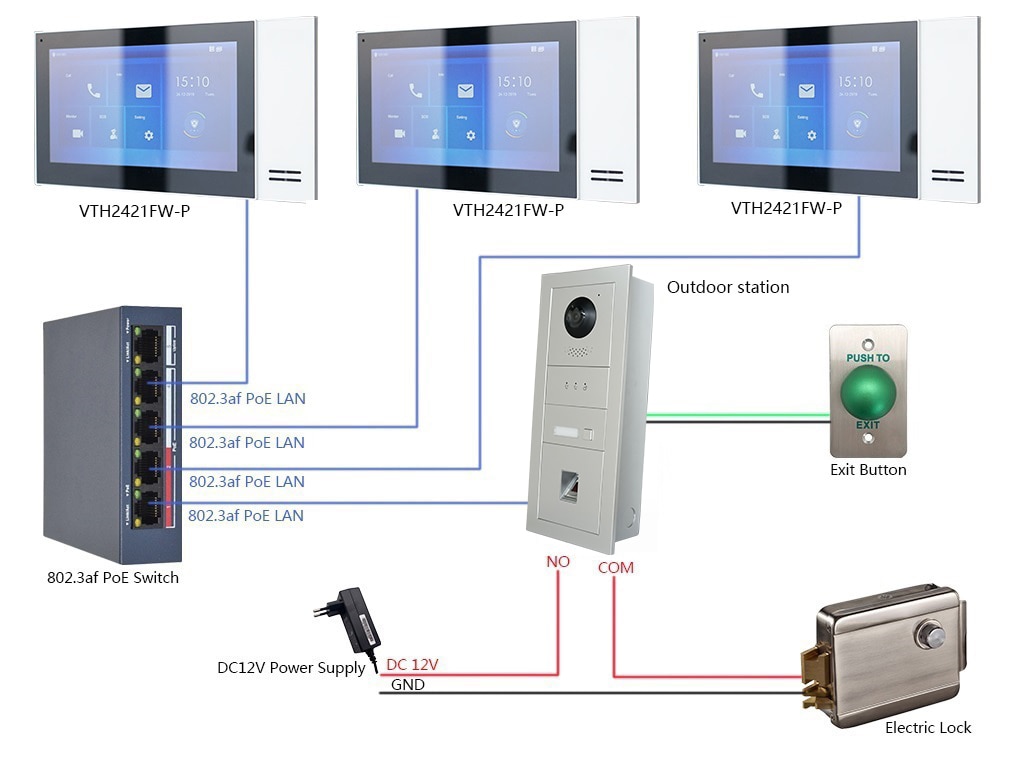

Scenes 1: multiple monitors

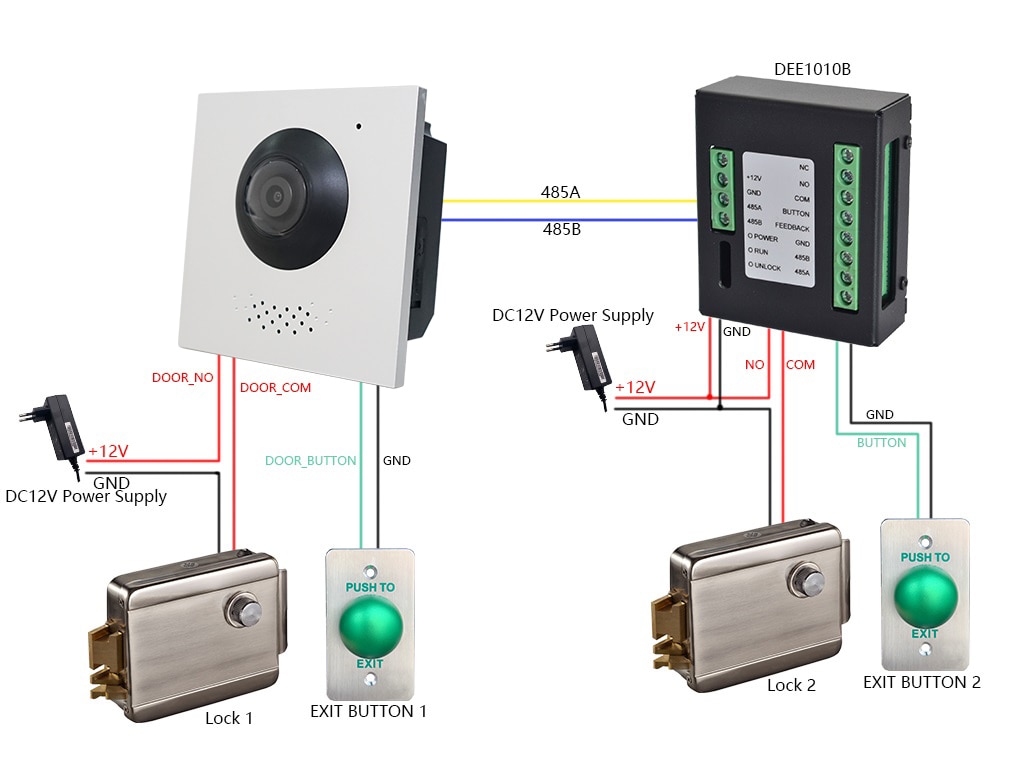

Use Access Control Extension Module(DEE1010B) to control two locks


System

Main Processor

Embedded processor

Operating System

Embedded Linux Operation System

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP

Basic

Camera

1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera

Field of View

Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°

Focal Length

1.9 mm

WDR

120 dB

Noise Reduction

3D DNR

Video Compression

H.265

Video Resolution

50Hz:

Main Stream (720P@25 fps), sub stream (1080P@25 fps)

60Hz:

Main Stream (720P@30 fps), sub stream (1080P@30 fps)

Video Frame Rate

25 fps

Video Bit Rate

256 Kbps to 4 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)

Audio Compression

G.711a; G.711u; PCM

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

2-way voice communication

Audio Enhancement

Echo suppression/digital noise reduction

Audio Bit Rate

16 KHz, 16 Bit

Status Indicator Light

3

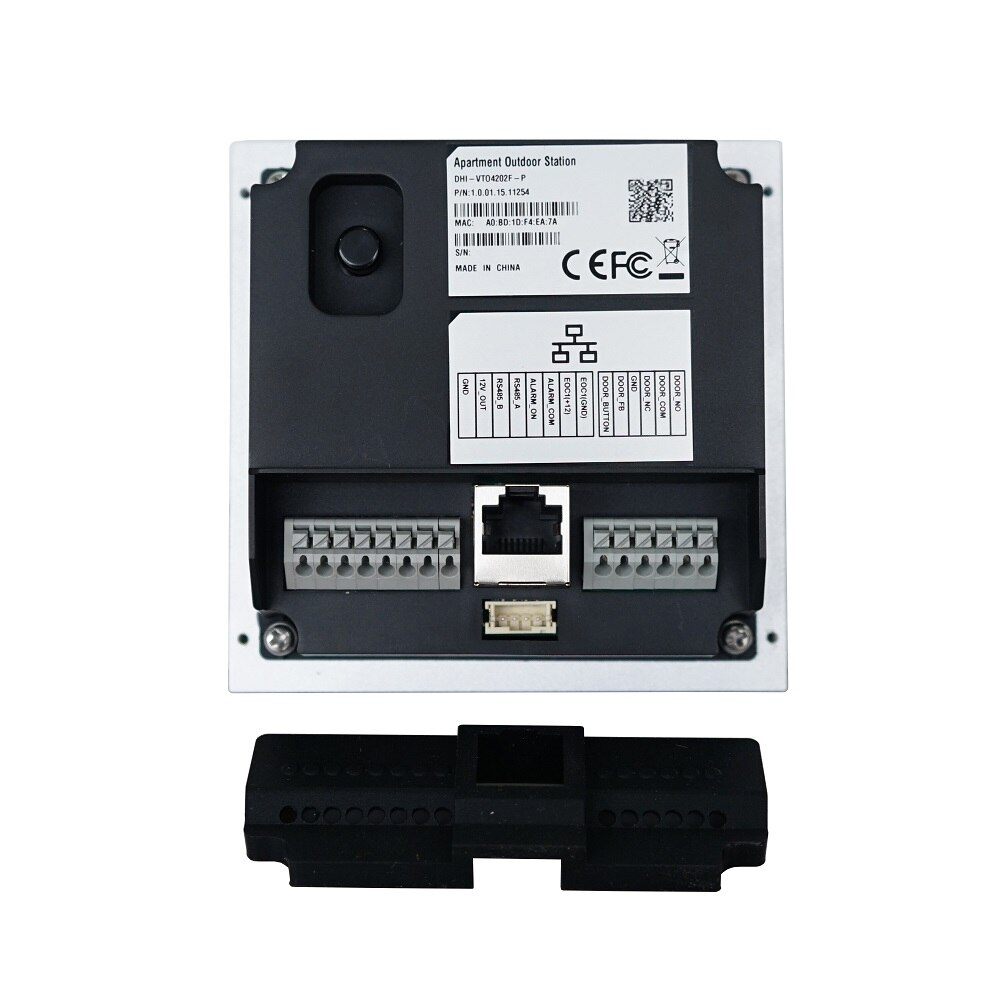

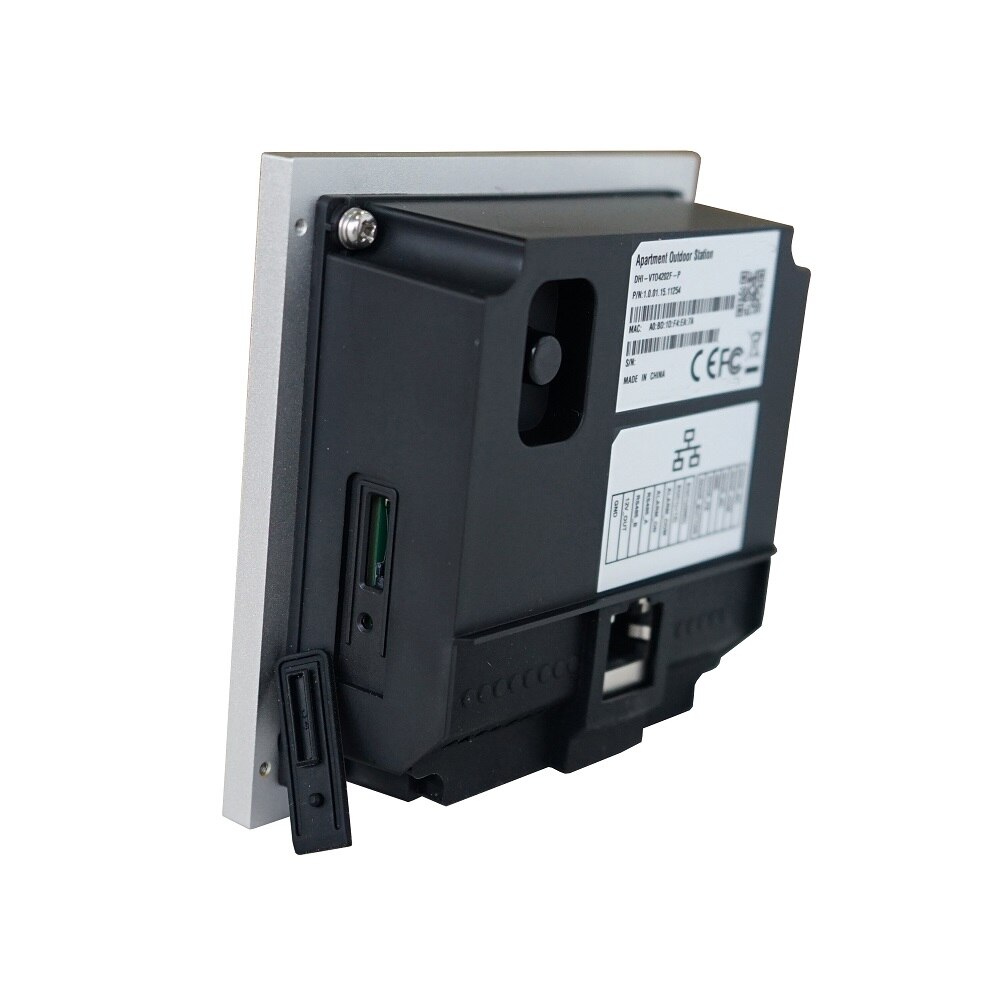

Port


RS-485 Port

1

Alarm Output

1

Power Output

1-ch 12 VDC 100mA

Exit Button

1

Door Status Detection

1

Lock Control

1

Network Port

One RJ45 10M/100M network port

General

Appearance color

Silver

Power Supply

Dahua 2-wire switch (max. power supply distance 50 m)

DC 48V 1A

Standard PoE

Power Adapter

Optional

Installation

Flush/surface mount

Certifications

CE; FCC; UL

Accessory

Flush/surface mount

Product Dimensions

100 mm × 100 mm × 36 mm (3.94" × 3.94" × 1.41")

Protection

IK07; IP65

Operating Temperature

–30°C to +60°C (–22°F to 140°F)

Operating Humidity

10%–90% (RH, non-condensing)

Operating Altitude

0 m–3000 m

Power Consumption

≤ 12W

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.4 kg (0.88 lb)

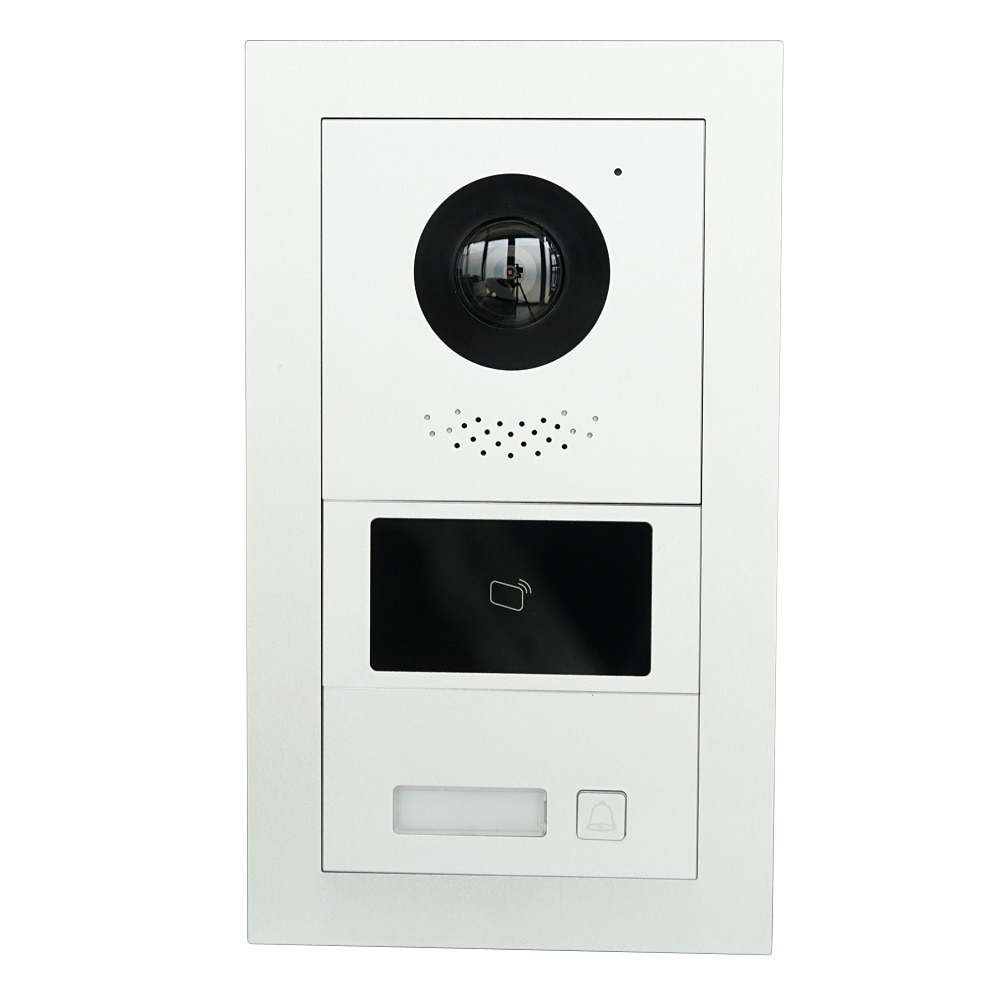

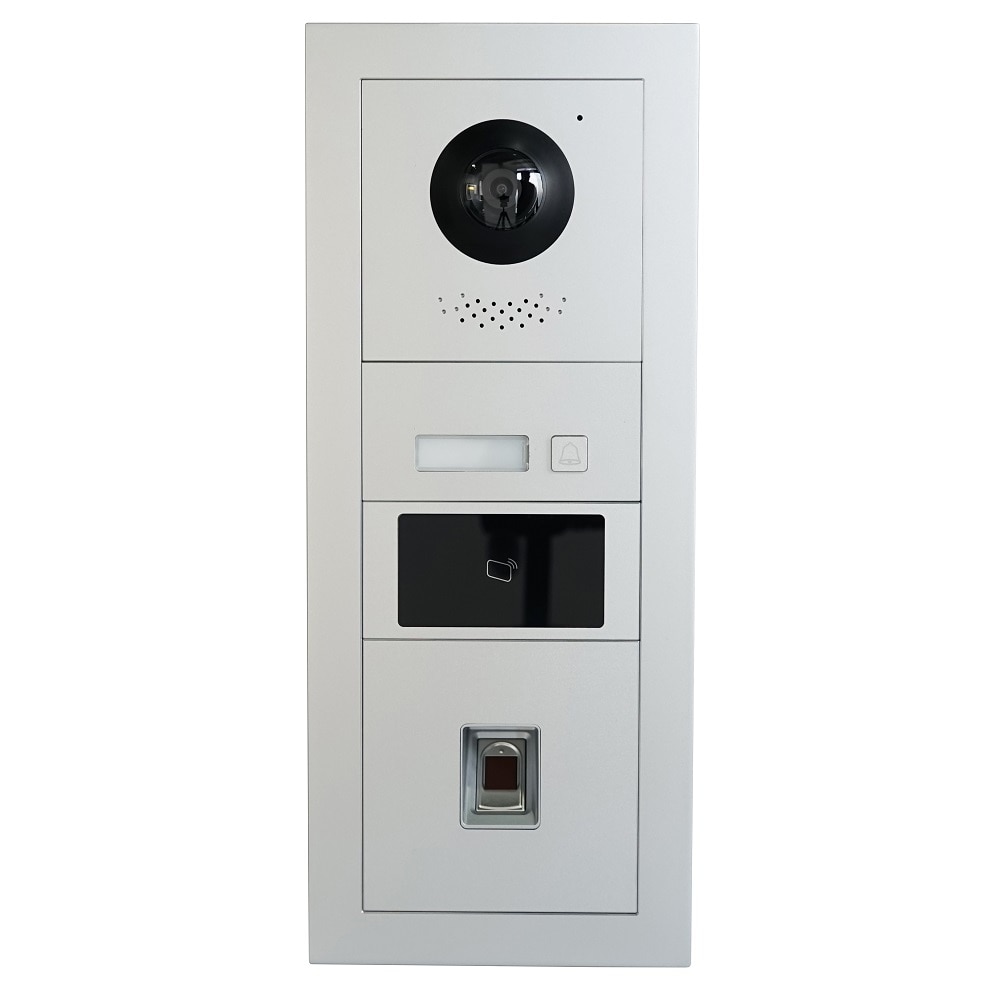

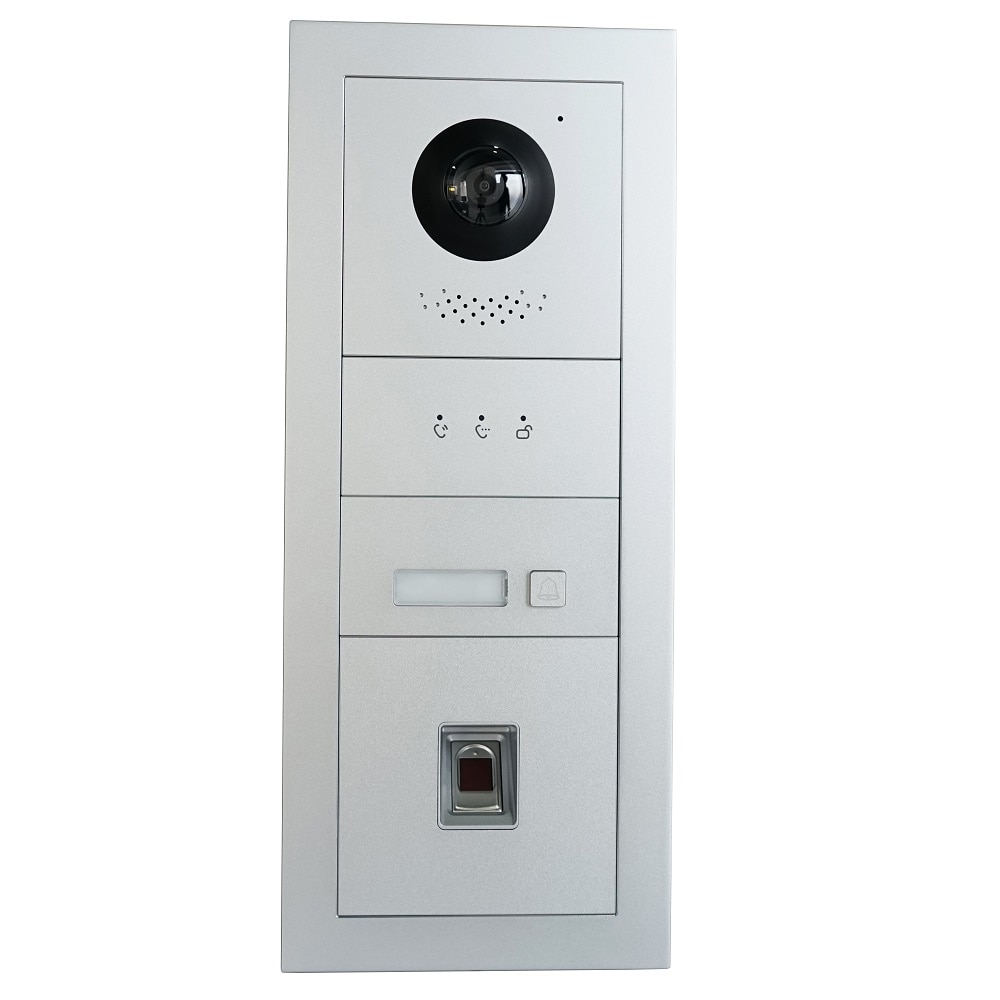

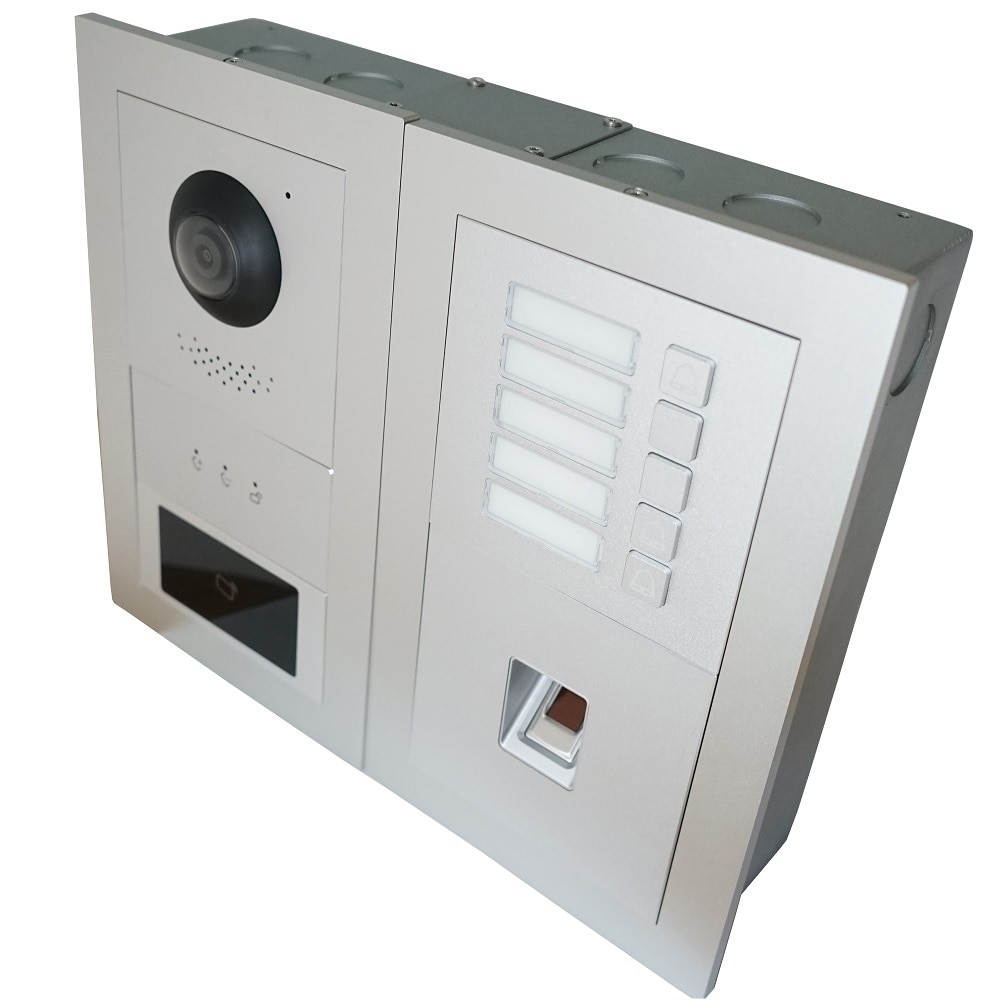

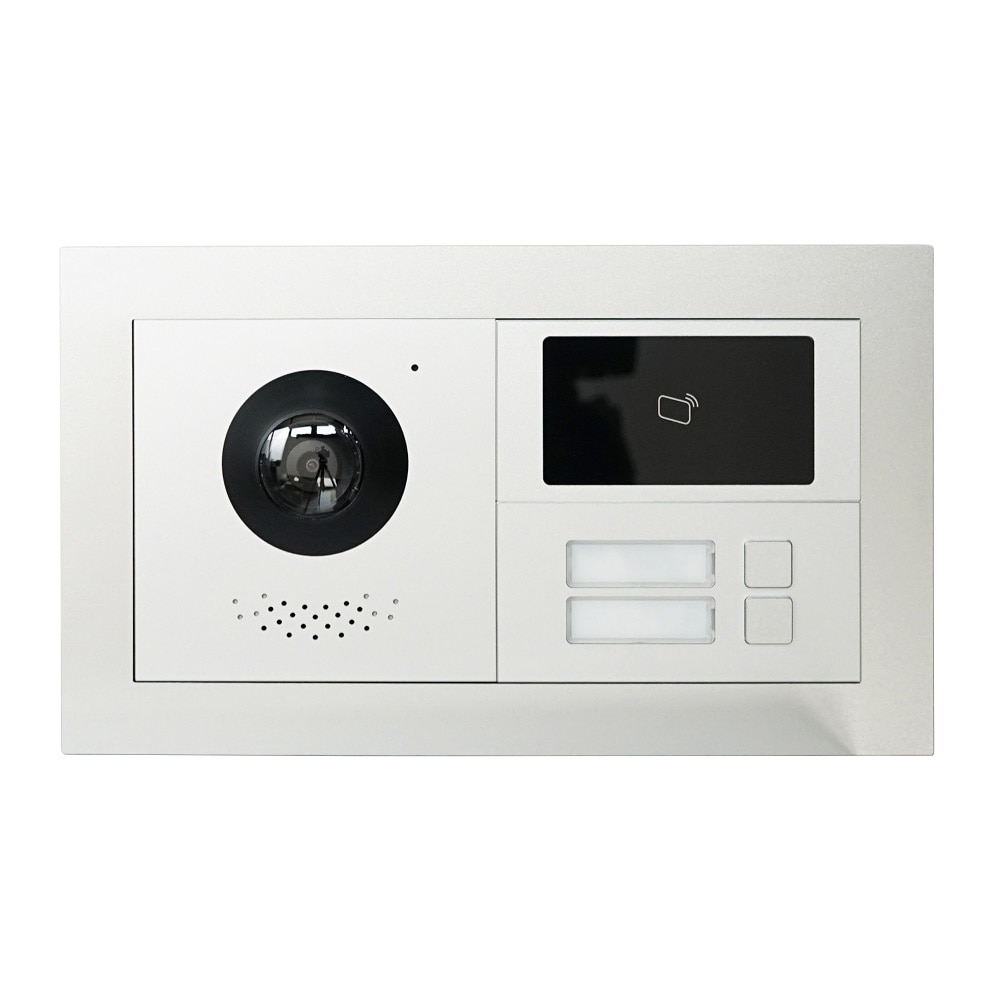

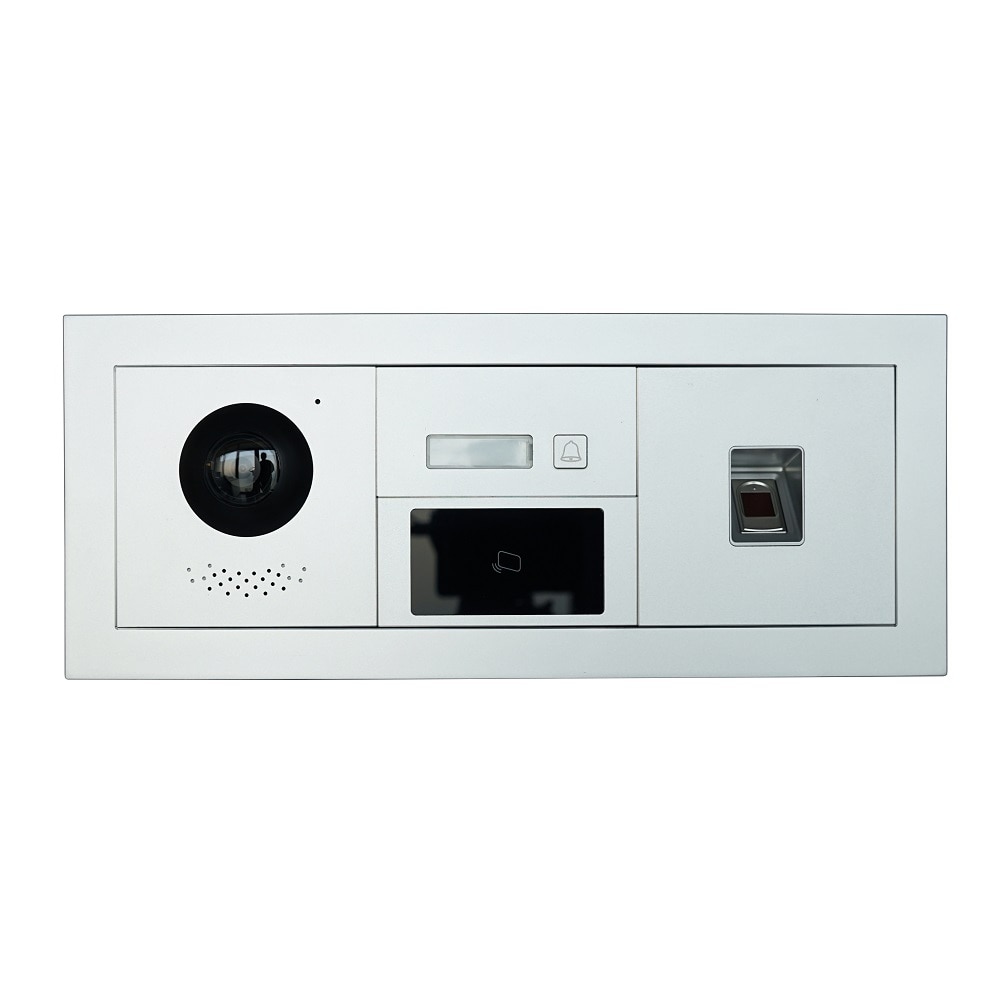

DHI-VTO4202F-P-S2 installation effect diagram

DHI-VTO4202F-P-S2 installation effect diagram

DHI-VTO4202F-P-S2 installation effect diagram

DHI-VTO4202F-P-S2 installation effect diagram

DHI-VTO4202F-P-S2 installation effect diagram

DHI-VTO4202F-P-S2 installation effect diagram

DHI-VTO4202F-P-S2 installation effect diagram












  • Size: 100mm*100mm*49.30mm
  • Material: Aluminum
  • Power: 802.3af PoE/12 VDC/2-Wire IP Inteface
  • Power: 12W
  • Camera: color
  • Model Number: DHI-VTO4202F-P-S2 VTO4202F-P-S2
  • Waterproof: Yes
  • Installation: Surface&flush
  • Connection Type: WIRED
  • Type: Entrance Machine
  • Viewing Angle (°): H:160°, V:82°, D:180°
  • Display Size: None
  • Answering Mode: Hands-free
  • Camera Sensor type: CMOS
  • Connection Method: WIRED
  • Brand Name: XHJYVISION
  • Origin: Mainland China
  • Smart home platform: Other
  • Certification: CE,FCC
