SmartYIBA Video Ring Doorbell Camera Visual Intercom Night Vision Two-Way Intercom Video Door Phone Video Door Entry Phone Call

4.7 (18 votes) | 20 orders
Price: US $142.65 - 249.11 / piece
Discount Price:
US $ 110.74 - 192.74 / piece
-22%
Color
Quantity





>>>Introduction

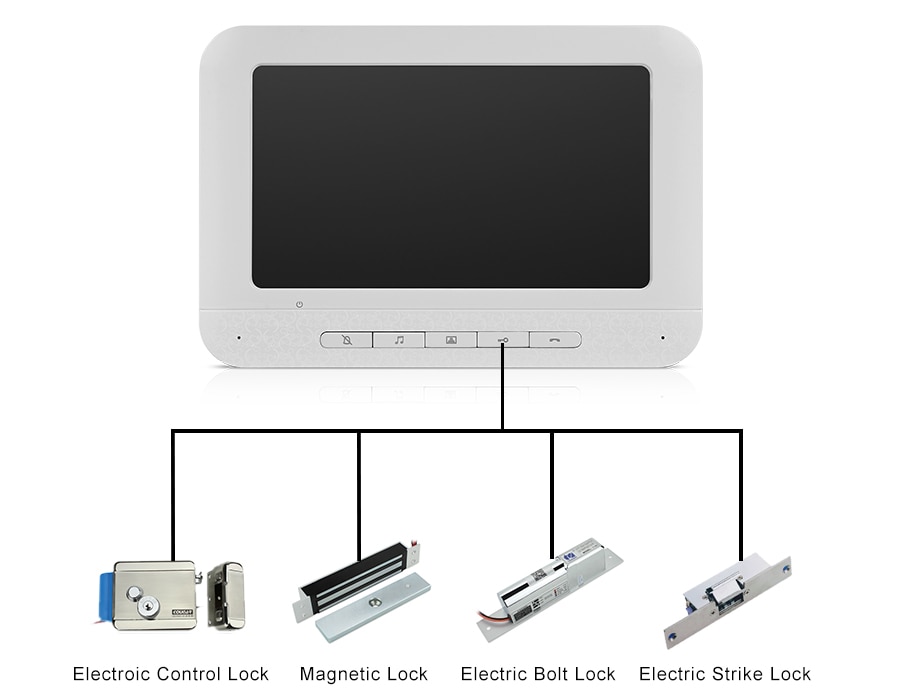

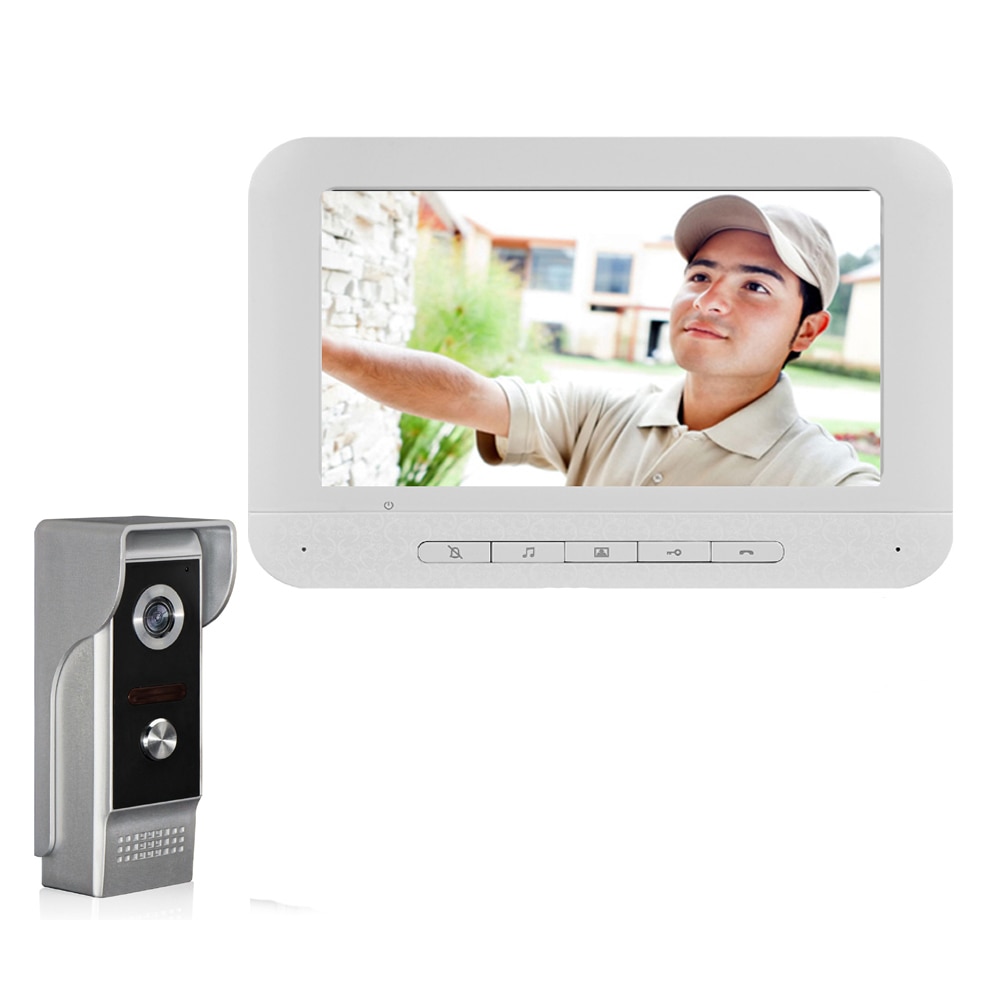

The product is a wired color video intercom doorbell system. The system is composed of two parts, outdoor unit and indoor unit. The two units are connected with four-core cables. 15V DC is used for the indoor unit to realize the functions
such as doorbell calling, monitor, intercommunication, and remote unlocking.

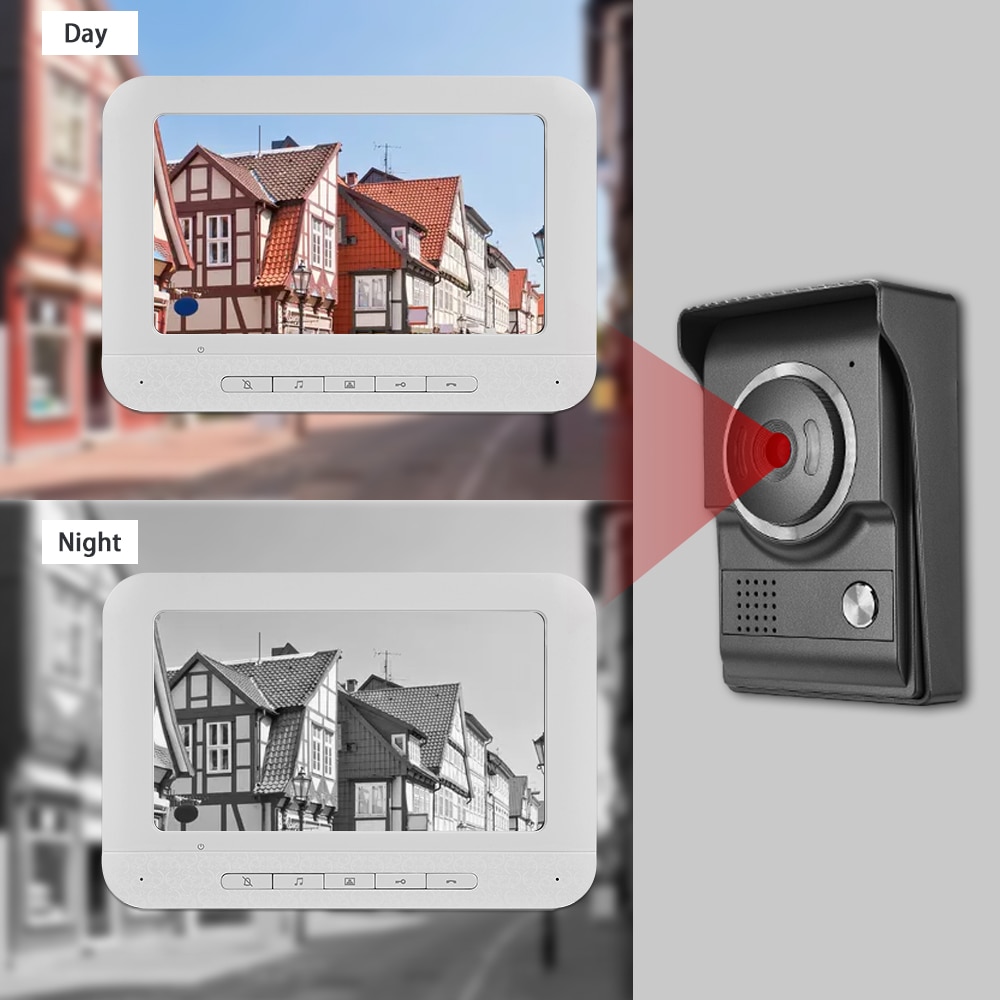

Imported TFT-LCD is used for the display screen to provide clear images,bright and distortionless colors. A high-definition CMOS camera is used to provide good night vision effects.

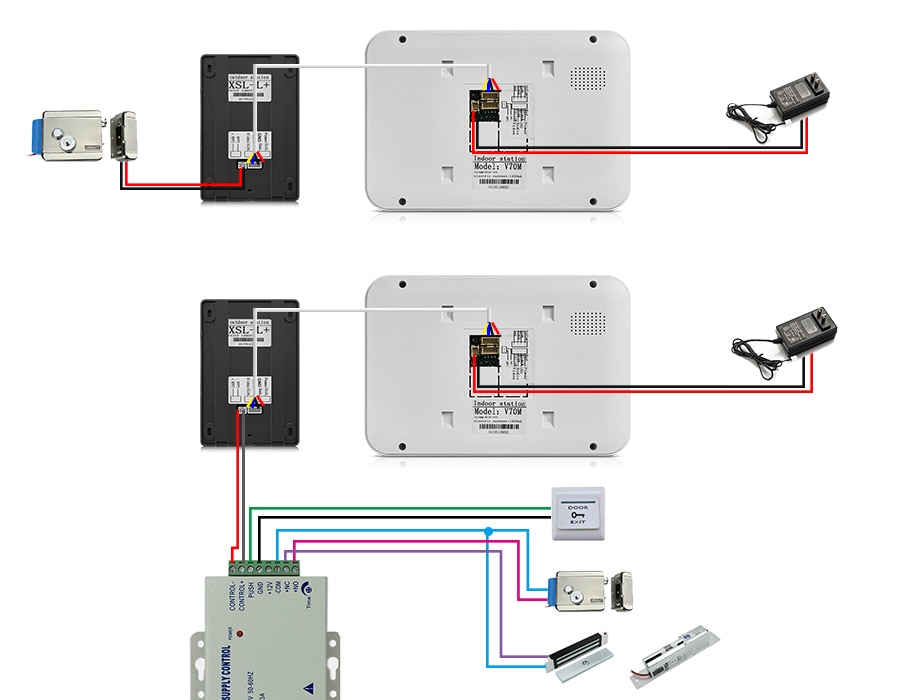

The intercom and doorbell are loud and clear. According to the manual, the effective transmission distance is as long as 100m (Page 9 of the manual Wiring Requirements); if it is used with a multi-door controller, at most four outdoor unit extensions can be extended to realize the access control for various entrances.
It is applicable to places such as households, villas, apartments, offices, and hospitals.
>>>Technical parameter:

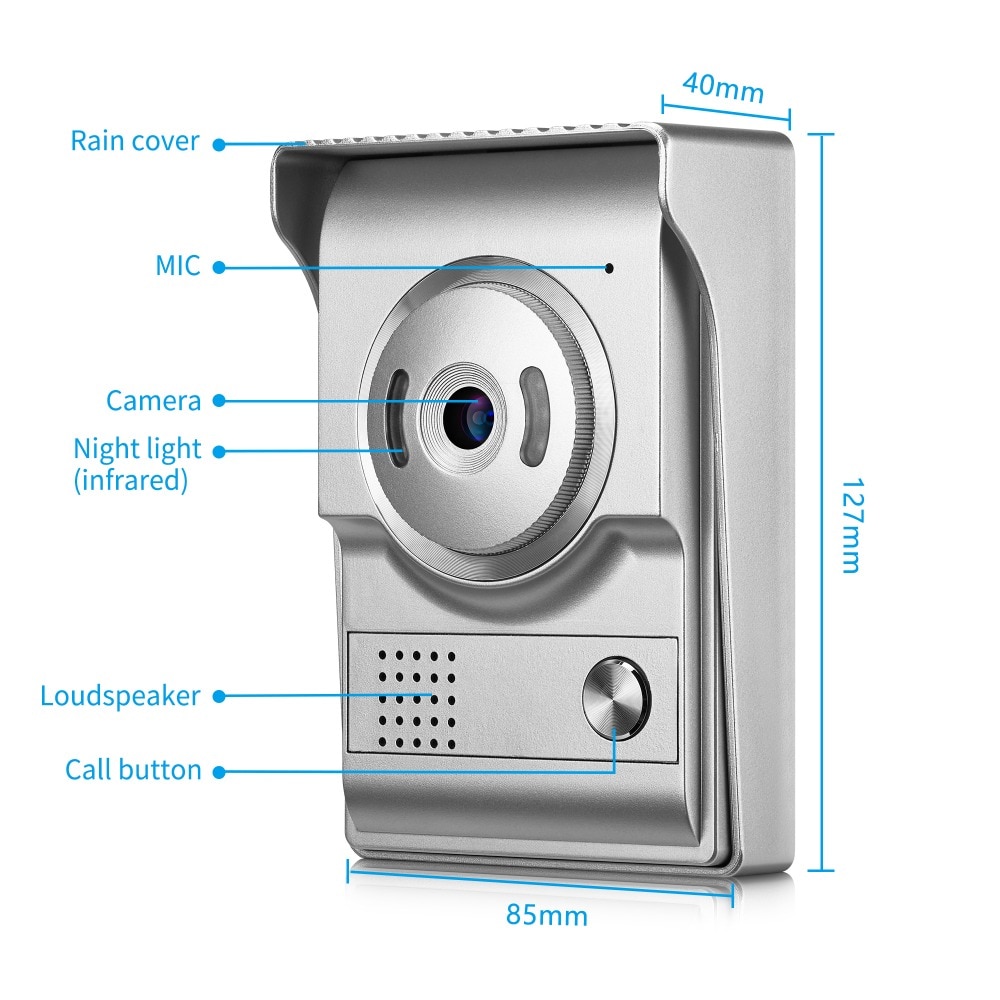

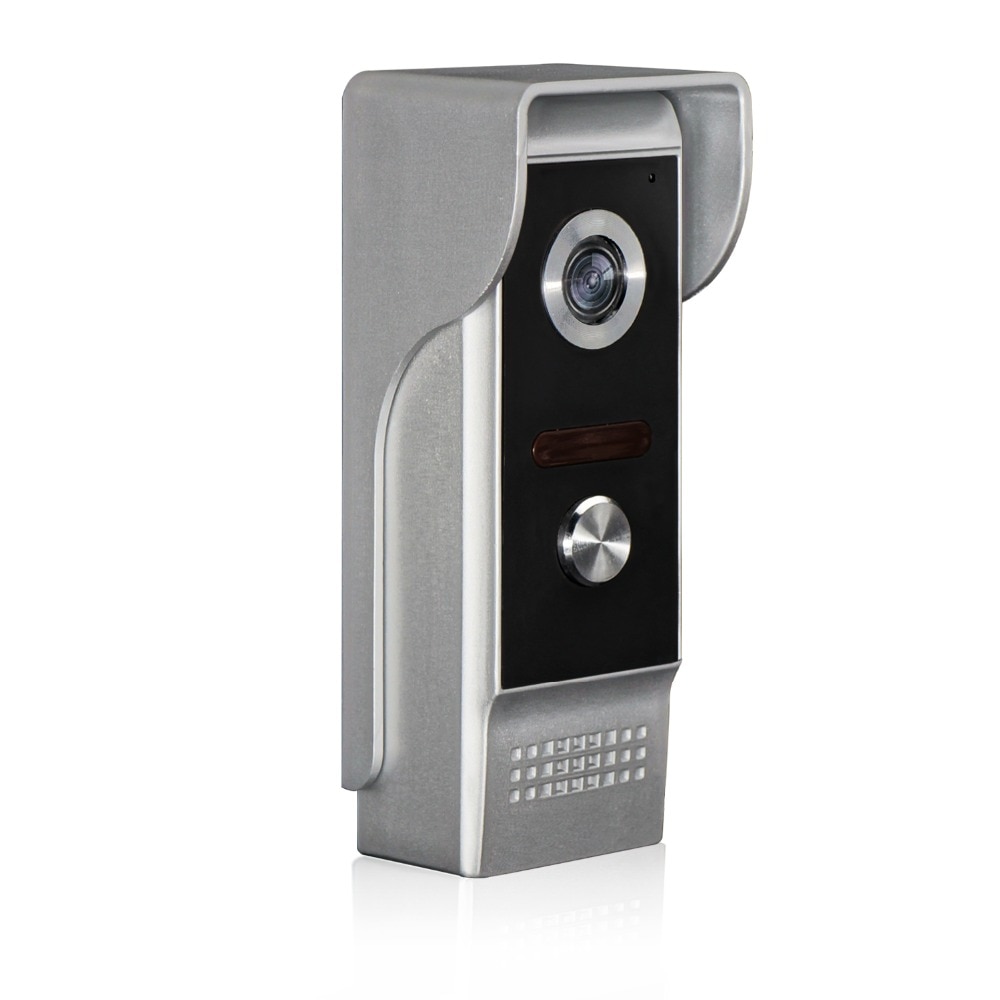

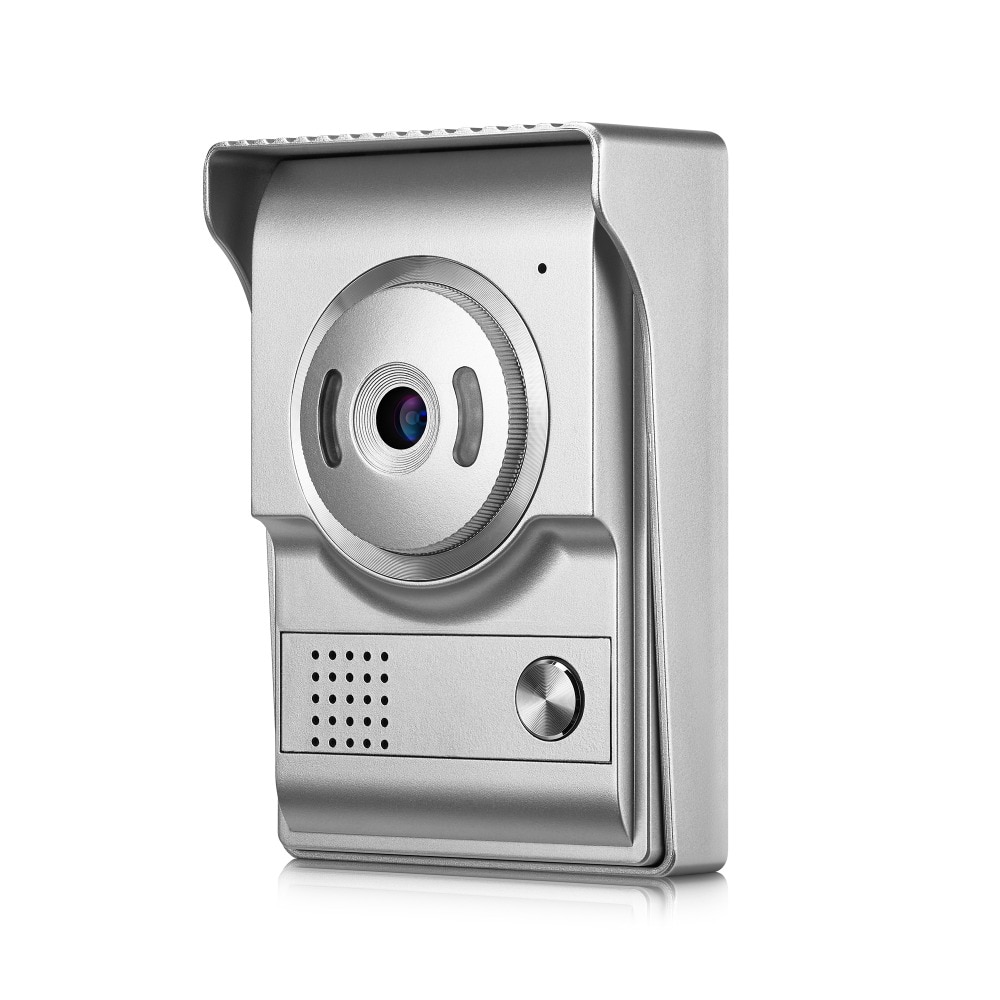

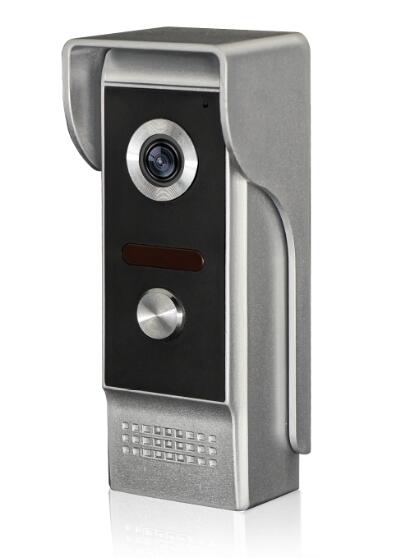

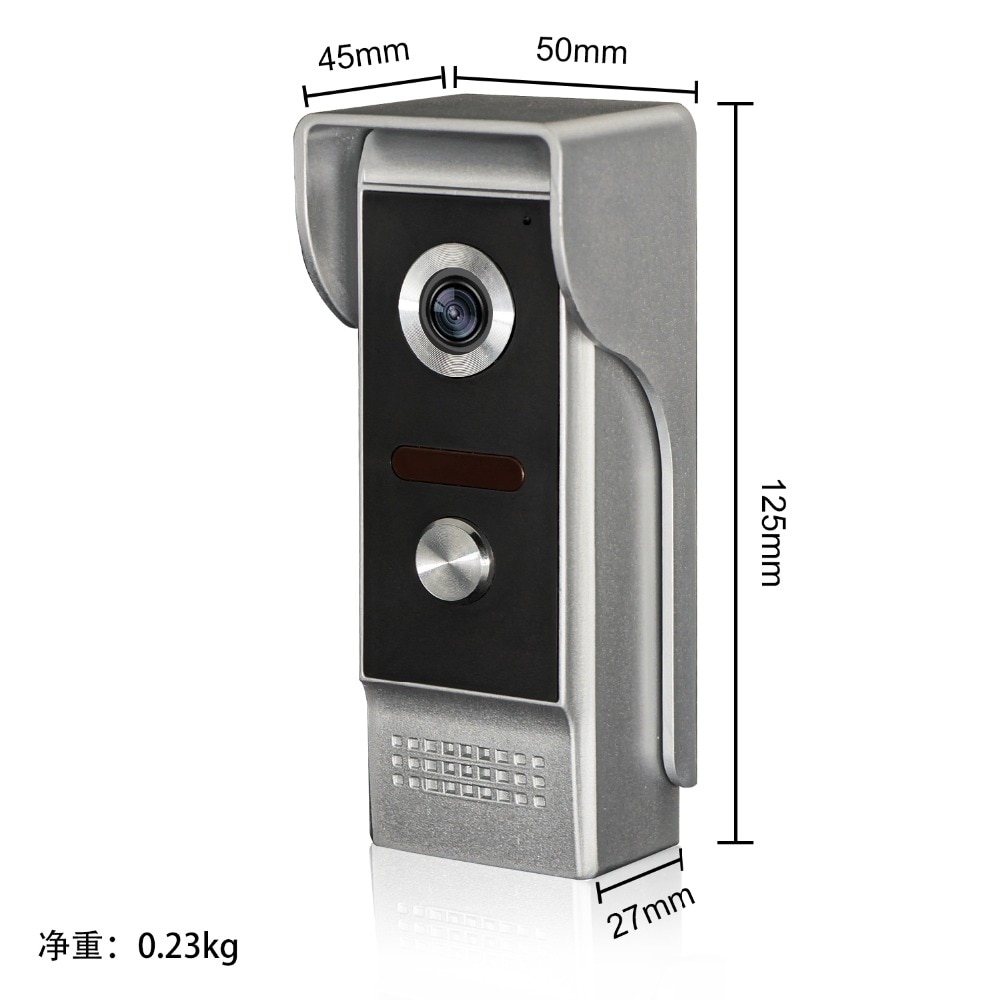

Outdoor Camera
Camera: HD CMOS camera
Rain cover With a rain cover
Power supply: Indoor unit power supply
Power Standby: ≤1W
Operating: ≤2W
Wiring terminal 4PX2.54
Operating temperature -20℃-60℃
Night vision Infrared or white light night vision lamp
Unlocking voltage:DC12V

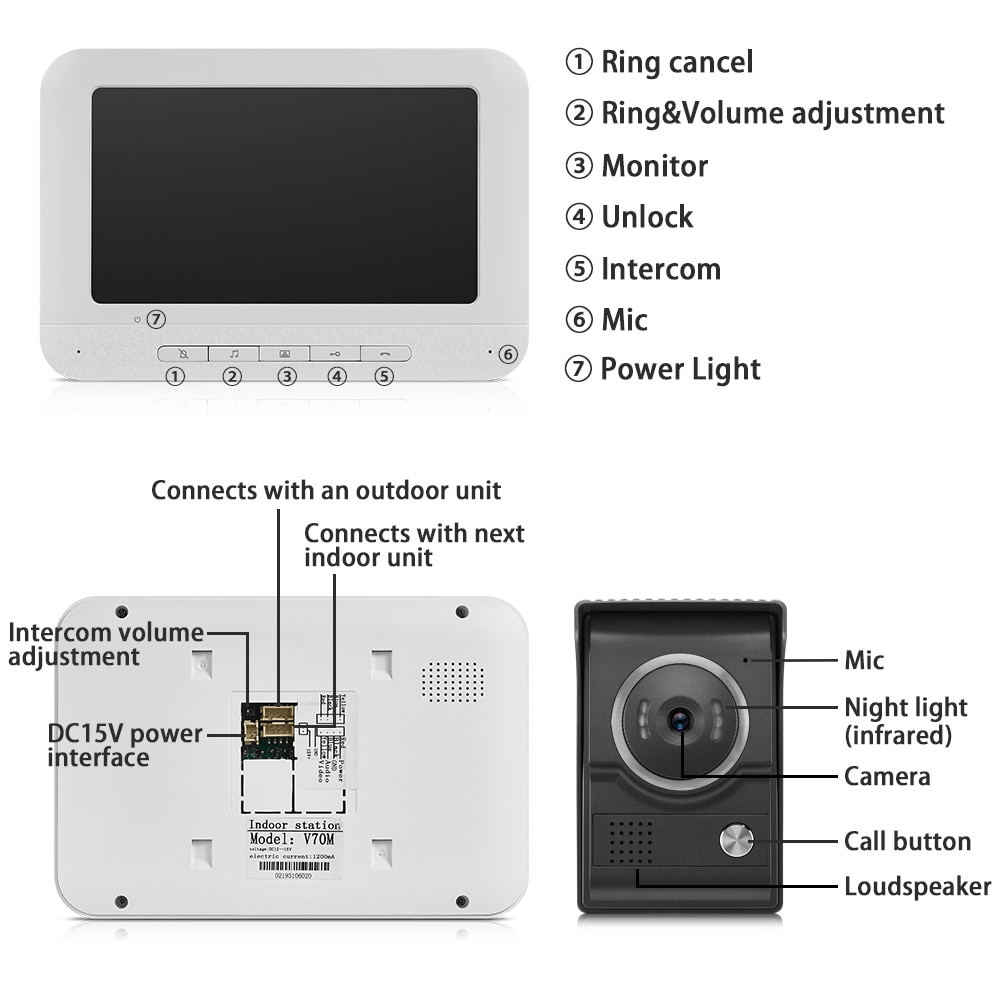

Monitor
Screen :Color HD TFT LCD
Resolution 800*480
Power supply Input: AC100-240
Output: DC15V 1200mA
Power Standby: ≤1W
Operating: ≤10W
Wiring terminal 5PX2.54
Operating temperature -20℃-60℃
Monitoring time 90 seconds
Talking time 90 seconds Number of calling
ringtones:25
>>>Standard package
Notes:There are 6 different sets for option,pls choose your prefer sets,thanks

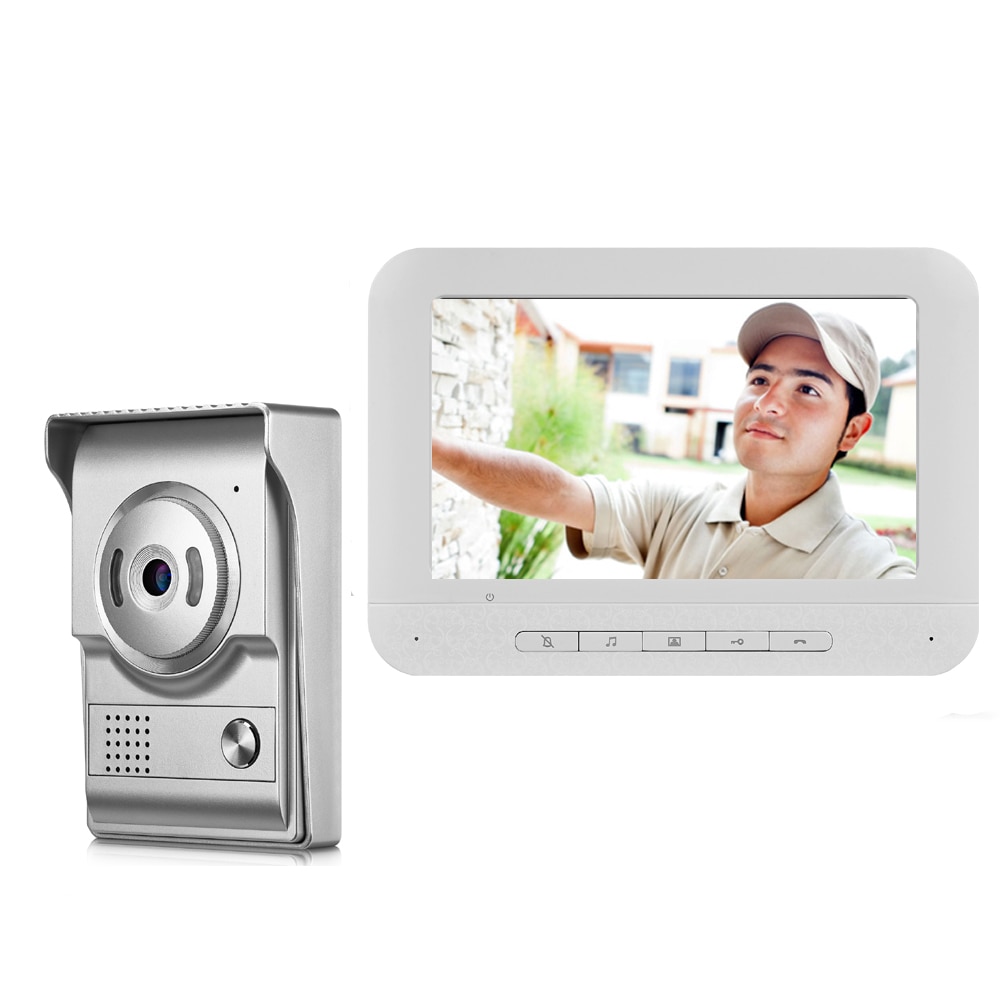

V70MLW-1V1-=1 x LCD Screen +1 x Silver outdoor camera+adapter+ Mounting plate+test Cable+ Manual

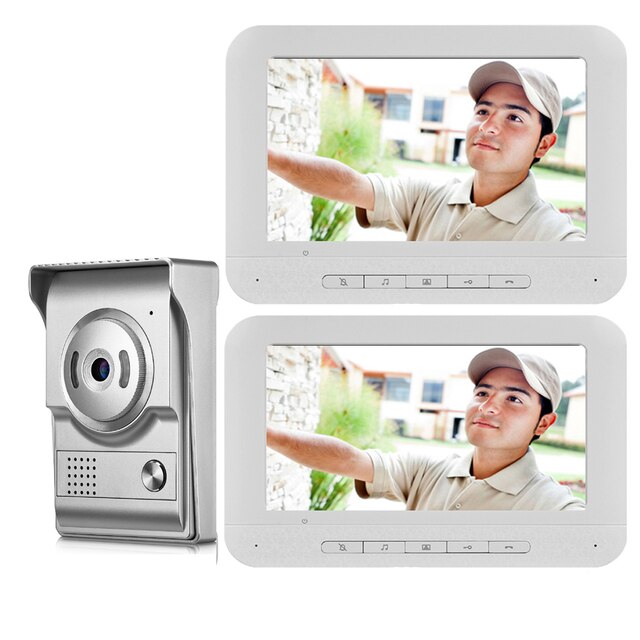

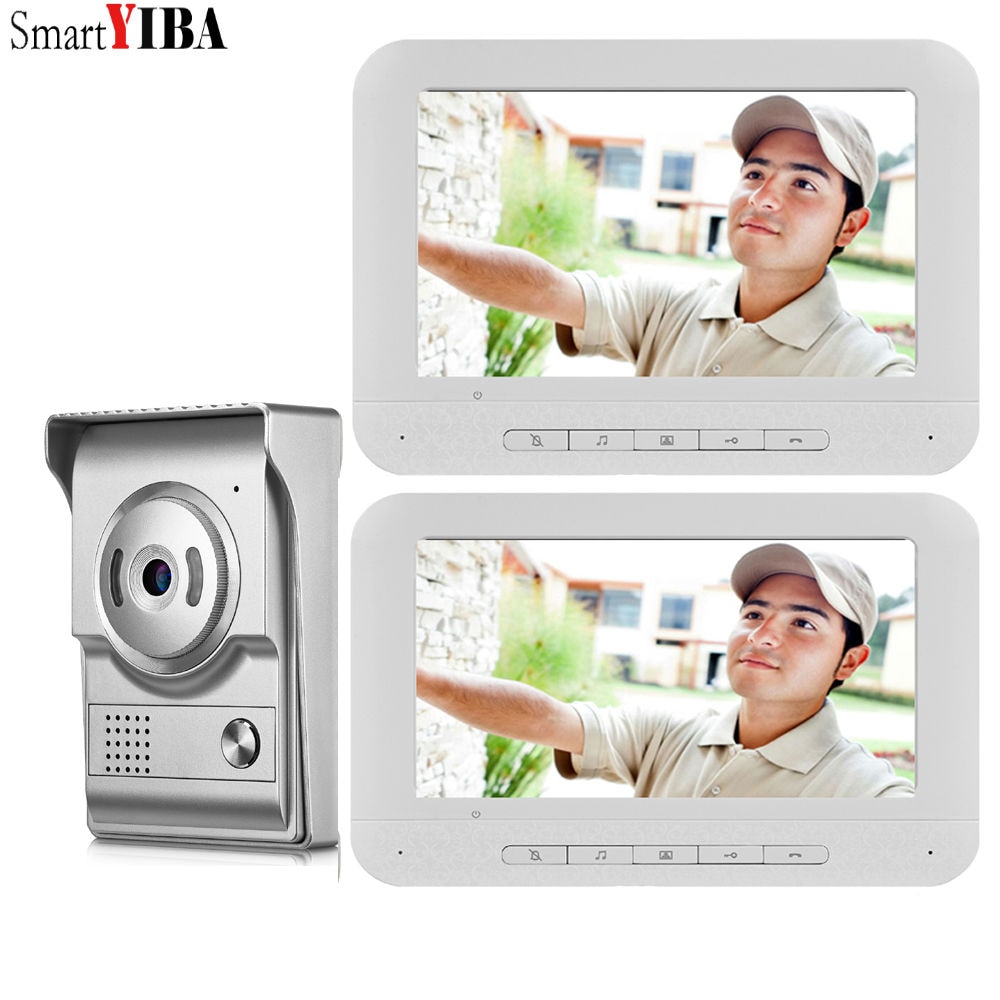

V70MLW-1V2=2 x  LCD Screen +1 x Silver outdoor camera+adapter+ Mounting plate+test Cable+ Manual
V70MLB-1V1-=1 x LCD Screen +1 x Black outdoor camera+adapter+ Mounting plate+test Cable+ Manual

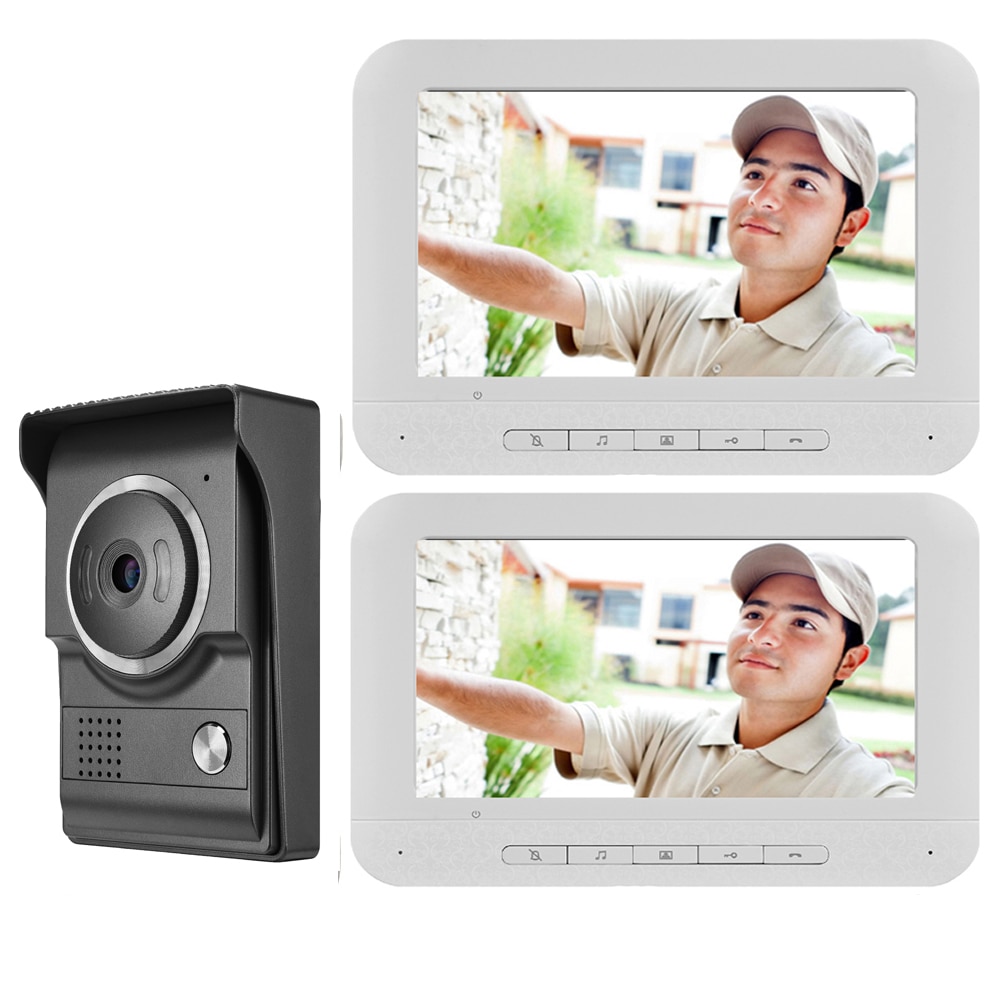

V70MLB-1V2=2 x  LCD Screen +1 x Black outdoor camera+adapter+ Mounting plate+test Cable+ Manual

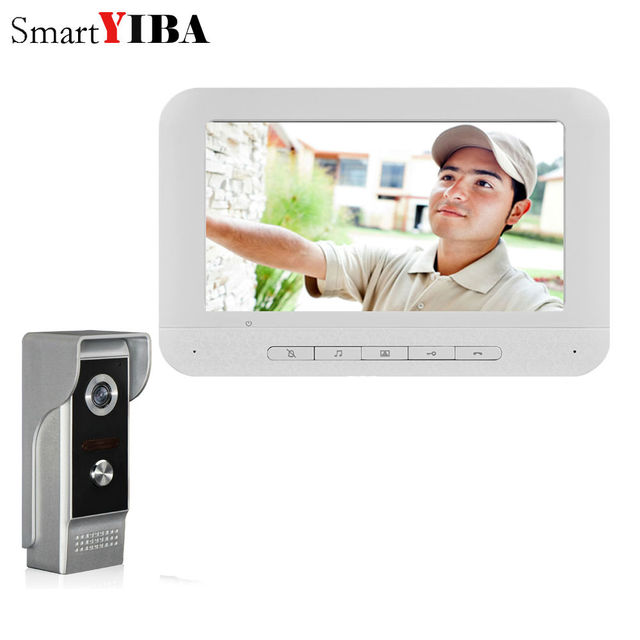

V70MM4-1V1=1 x LCD Screen +1 x outdoor camera+adapter+ Mounting plate+test Cable+ Manual

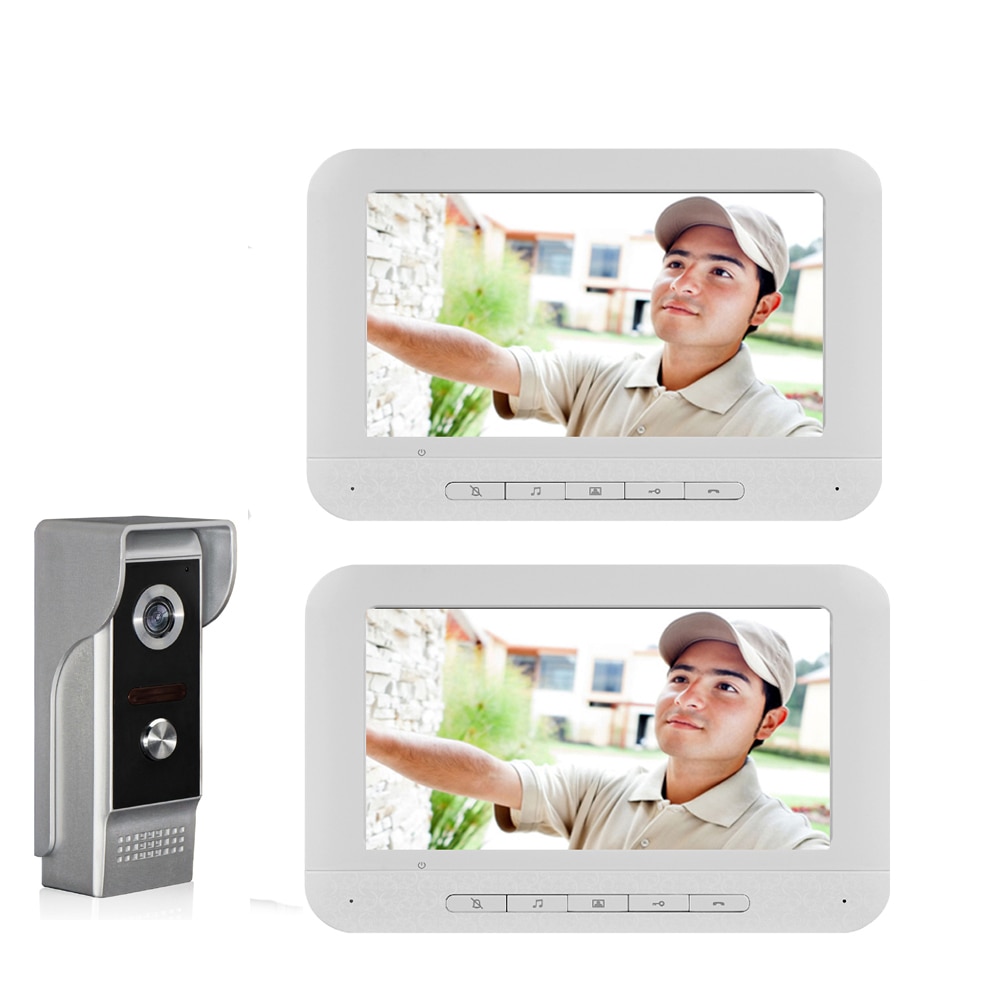

V70MM4-1V2=2 x  LCD Screen +1 x outdoor camera+adapter+ Mounting plate+test Cable+ Manual

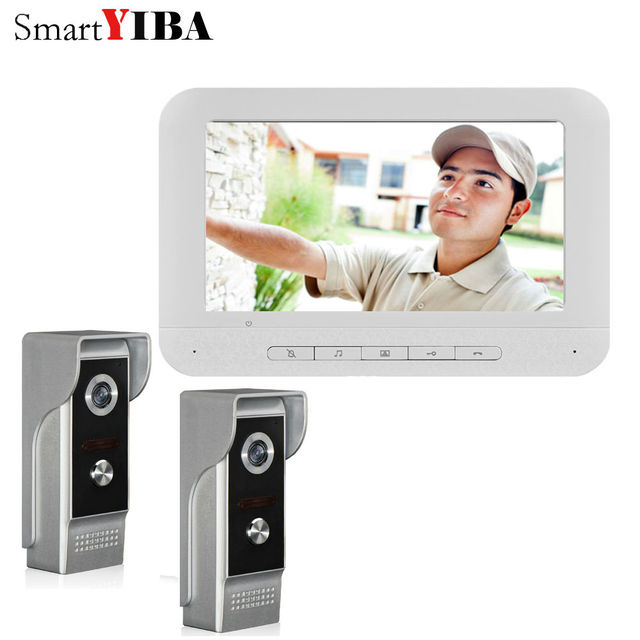

V70MM4-2V1=1 x LCD Screen +2 x outdoor camera+adapter+ Mounting plate+test Cable+ Manual




  • Size: 7 inch
  • Doorbell: Yes
  • Power: 15V
  • Sensor Size(Inch): 1/4
  • Resolution: >700TVL
  • Power: 100-240V
  • Camera: Color
  • Model Number: V70M412
  • IP Camera Interface: No
  • Access Control: support
  • Waterproof: Yes
  • Samrt Home Interface: No
  • Technology: Digital
  • Installation: Wall Mounting
  • Connection Type: WIRED
  • Zone Input: None
  • Display Screen Type: color
  • Type: Intercom System
  • Viewing Angle (°): 92
  • Kit Configuration: One to One video doorphone
  • Display Size: 7
  • Answering Mode: Hands-free
  • Camera Sensor type: CMOS
  • Connection Method: Wired
  • Brand Name: SmartYIBA
  • Origin: Mainland China
  • Certification: CE
