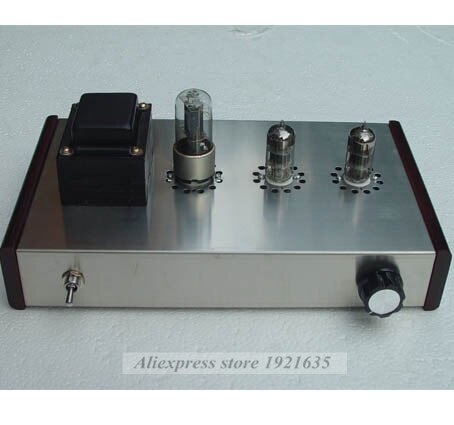

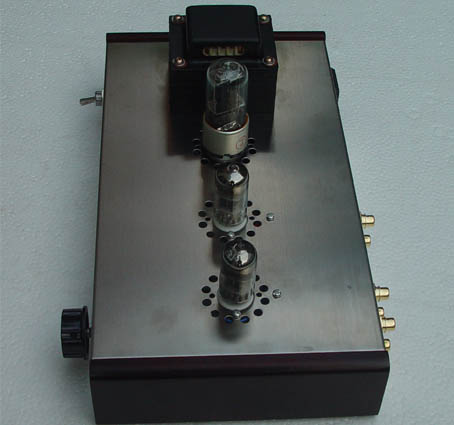

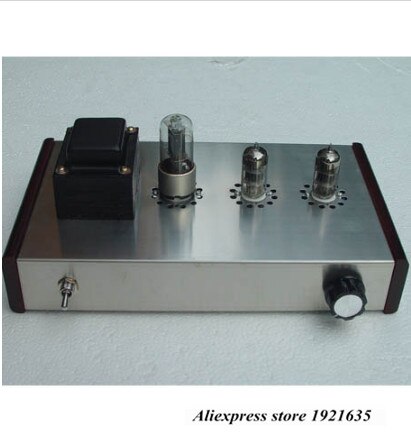

Valve tube 6N1 6Z5P amplfier part kits vacuum tube amplifier DIY components 110~230V
263.57 $
ID: 37262
Quantity
Valve tube 6N1 6Z5P amplfier part kits vacuum tube amplifier DIY components 110~230V
0.0 ( votes)
Price:
US $
263.57 -
292.07
/ piece
Notice
The products are the amplifier components part kits, need the buyer to install himshelf.
If the buyer does not know the installation, recommand to buy the finished machine version.
The valve tubes are included
Please leave what kind of voltage you want (110v/220/230/240V )
The kit contains the following list
The delivery of the components might be different from the physical photo.Subject to the delivery of the goods
please prepare the power cord yourself ( which is the same as computor cord), the kit does not provide
Wooden side board2block3mm 6Individual screw
Power transformer270v*26.3v3.15v*2 76
Stainless steel case*1

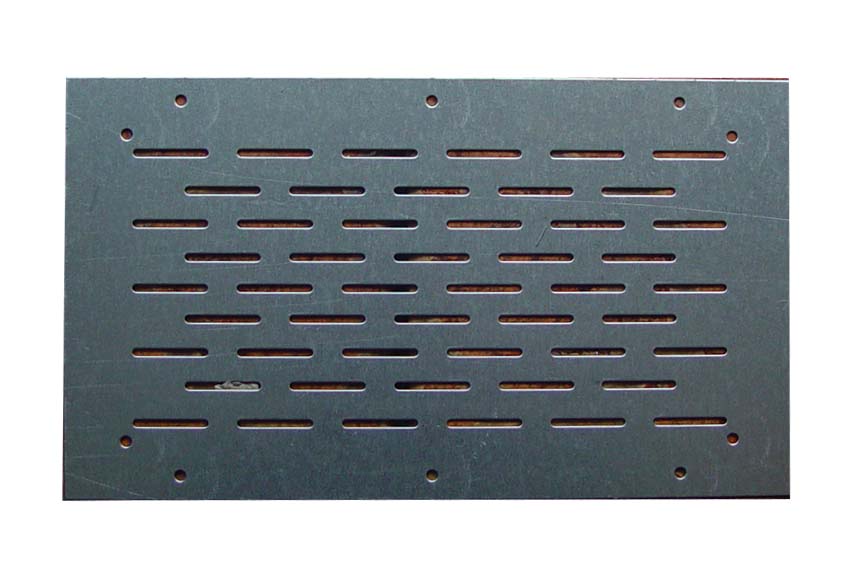

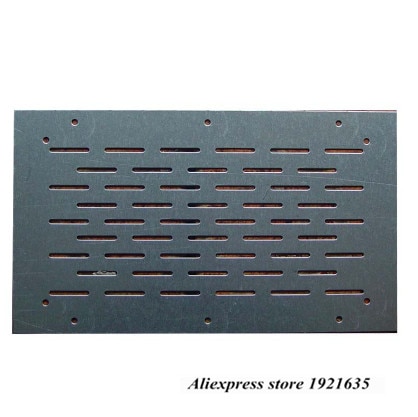

Chassis backplane*1
Chassis pin*4
Signal input socket*6
Power supply socket*1
switch*1
potentiometer100K*1
Potentiometer knob*1
6z5pKucundan*1
6n1Kucundan*2
Eight pin header*1
A small nine pin socket*2
47uf/400v*1
330uf/450v*2
22uf/400v*2
10u400v*2
0.33uf/630v*2
510k*2
2k*2
1.5k*2
90k*2
39k*2
27K *2
120k*2
820*2
220*1
Double core shielding wire30cm
bushing15cm
Welding line2m
A scaffolding2root
3mm4mmScrewmothervarious16individual
Parameter
Magnification 12 times
Output voltage 24V
Distortion characteristics: 10Hz--------30KHz, 0.5% (OUT=10V)
10Hz--------50KHz, 0.5% (OUT=2V)
10Hz--------20KHz, 0.9% (OUT=24V)
- Model Number: 6N1 6Z5P amp kits
- Brand Name: FAIRSZ
