New Product Promot Multifunctional 3.5aux 5V/12 Wireless MP3 BT5.2 Player Stereo Amplifier Spectrum dDsplay Audio Module

We are a professional design, development, production and sales factory. We can design, develop and produce according to your requirements; Welcome OEM

Note: The module chip model number is random; Different batches have different numbers

Color silver, black, purchase what color must leave a message

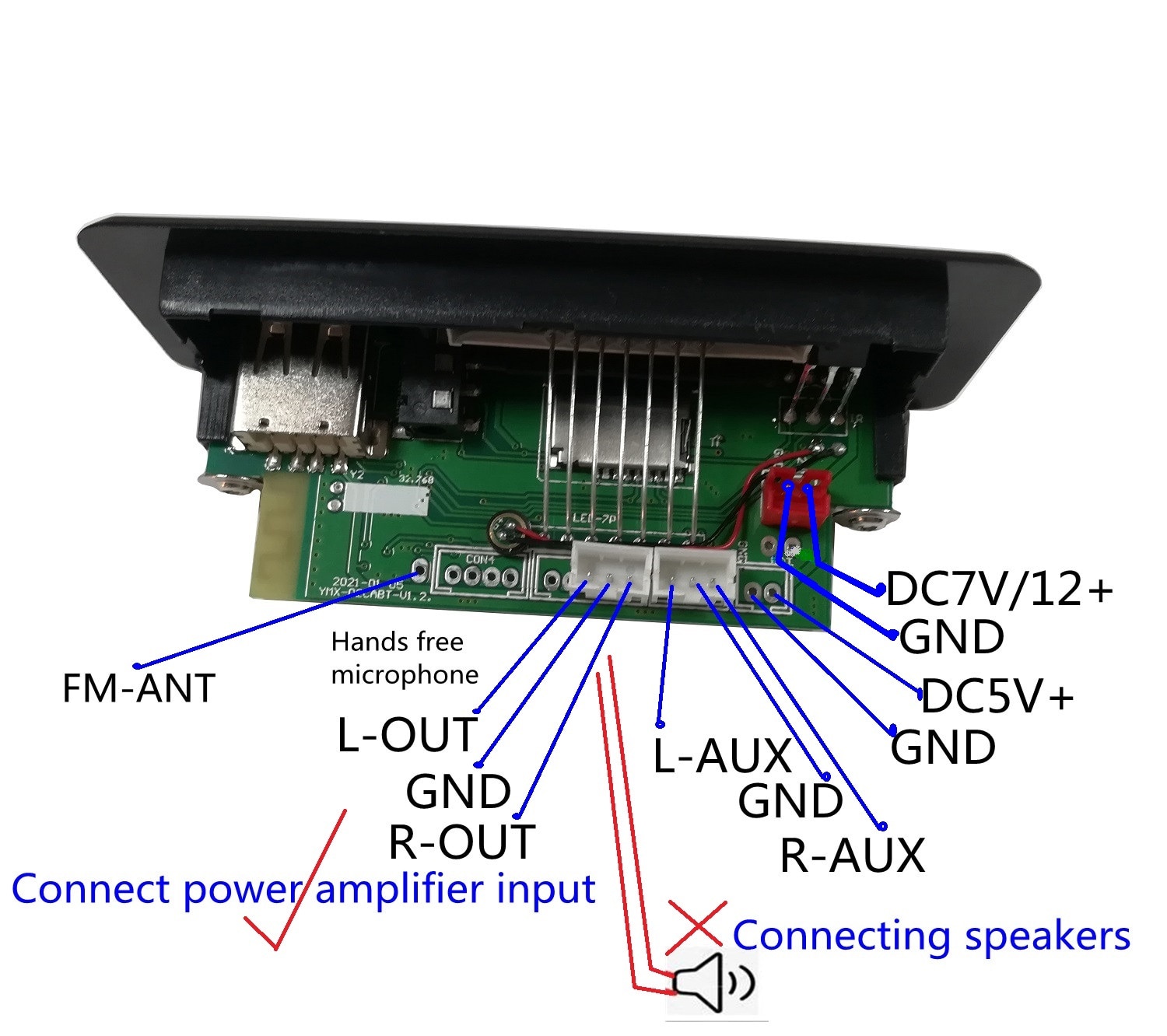

This product can not be directly connected to the loudspeaker without power amplifier, but can only be used by refitting the power amplifier. For the specific connection method, see the picture and the relevant instructions and precautions below the picture;

Model: TF 02cabt;

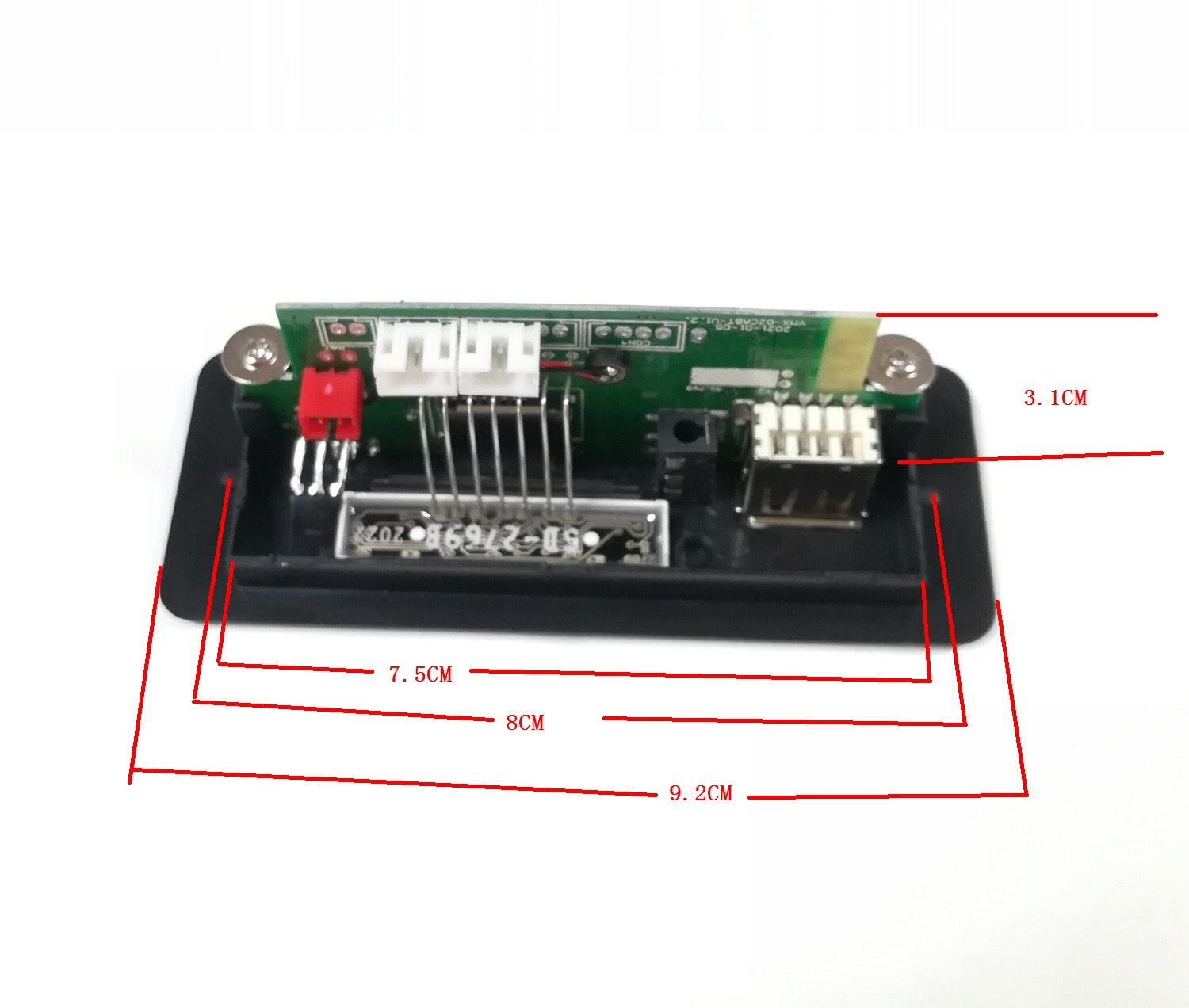

Panel size: length 92 * height 35 * depth 29mm, opening size: 75 * 27 * 29mm; screw hole center spacing: 80mm, PCBA size: length 71mm * 29mm (depth) * 20MM high

Power supply voltage: select one of the two power input, do not connect two power supply at the same time.

12V is the red seat DC 7V to 12V.

5V is the solder joint without seat, as shown in the figure.

Current 800ma-1a

Please do not connect any AC voltage value, please understand the precautions at the bottom of the picture before purchasing.

USB sound card function (double head USB cable, USB cable with data transmission function). USB plug in Computer, USB plug into USB module. The word "PC" will appear in the MP3 module; at this time, the computer

Playing music can be transmitted to the module through the audio output of the module. You can also delete the music directly from the computer,

-How to operate: insert the module into the TF card, and then turn on the computer with a removable hard disk or U disk and other computer systems, different prompts will be different)

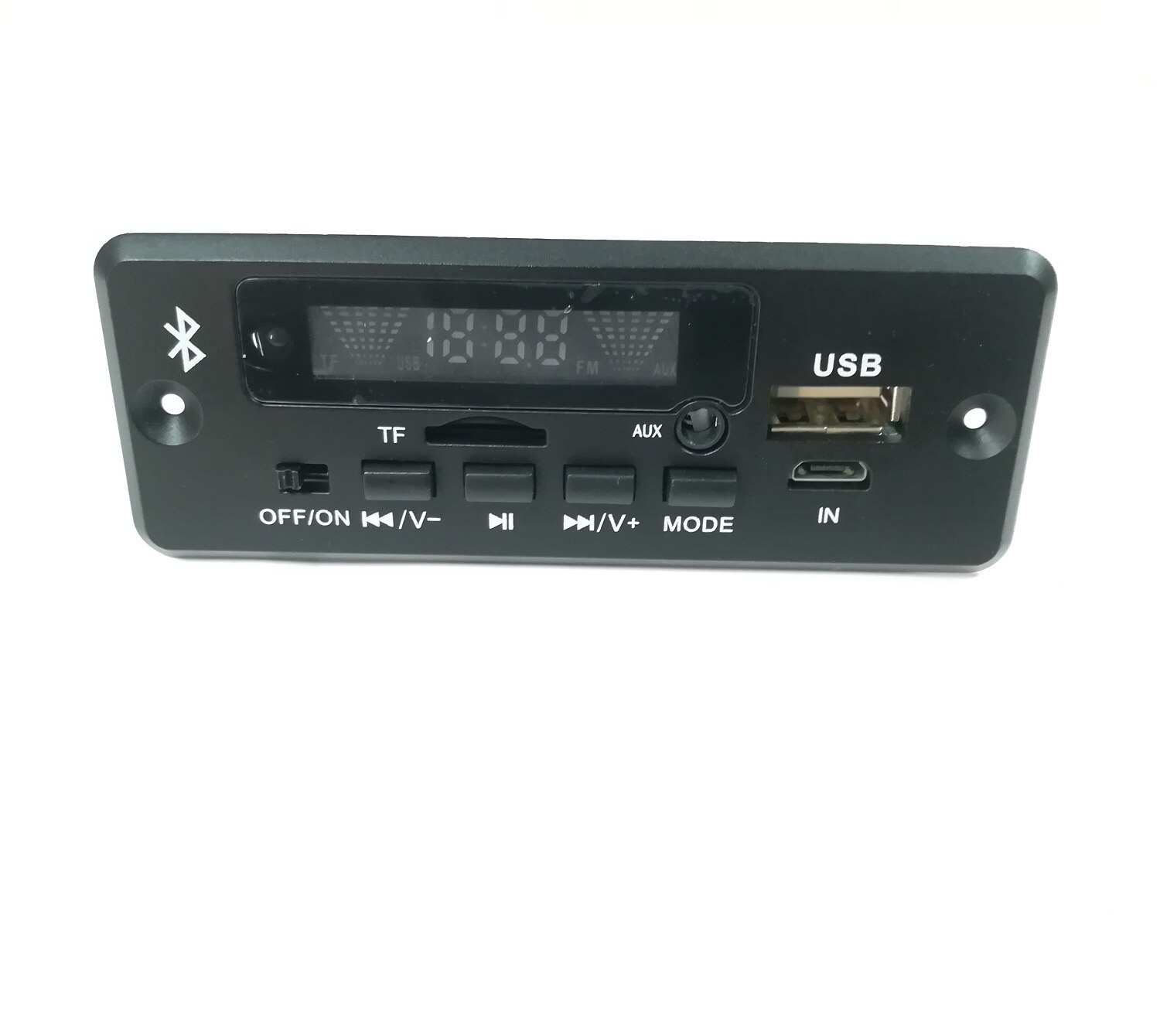

Multi function: support hands-free answering phone function, support mobile application control player (APP software needs to be installed). 4 color display, the effect is more moving. 3.5 auxiliary input; USB / TF play MP3 lossless; APE / WAV and wma / FLAC can also support folder selection play; FM radio; aux; stereo BT. DIY speaker and modified audio / car, the best accessories

Module function:

*Support 5.2 BT and hands-free phone (you can answer the phone hands-free, when you hear "beep" and number, press pause to answer the phone)

Callback: in BT mode, double-click the "pause" key to callback the last call number,

*Support to select the folder to play -. DJ music / background music / children's songs can be divided into different folders on the card / U disk; folder play: long press "mode", F001, F002,...

Circulation mode: in the playing state, press the "arrow" or "RPT" symbol key or long press the "play" key: ran / one / fol / all;

If you select (fol) under the current folder, you can only cycle completely in the current folder.

*Support mp3 / wma / WAV format music. MP3 songs 32-320kbps, no loss, APE / FLAC / wma / WAV 1411kbs or below, ordinary two channels (unable to play DTS format music)

*Support 2.0 USB (fat system) / card switching, previous song, next song, volume adjustment, EQ, play / pause, stop, single repeat, mute, power off, direct selection of songs.

*Support BT previous song, next song, volume adjustment, play / pause and mute.

*Support shutdown memory function: remember the song and volume played before shutdown, and remember the current point.

*Support electronic clock (clear after power off time)

Note: BT equipment name 02cabt

Special attention 1

1) Working voltage:

Red 2p socket 12V: DC 7V to 12V, not higher than 12V;

If the current is not enough, there will be abnormal jumping, remote control failure or BT reading failure (if there is such a problem, please check the power supply); the voltage should not be higher than the highest value of the voltage range required by the product; otherwise, the main chip and related components will be damaged.

2) The power ground and signal ground of the module are separated, and there is a separate resistance, which is more convenient for the selection and use of different power amplifiers (see the 0 ohm resistance of R21 on the board). Now it has been shipped to a 0 ohm connection. Some power amplifiers are noisy. It is recommended to use a separate power supply to supply power to the decoder board. If the power supply is connected in parallel with the power amplifier, disconnect the 0 ohm resistance of R32 connected between the audio output ground of the decoder board and the power supply ground before wiring (operate in case of power failure). If you don't understand the wiring or other problems, or can't handle them correctly, you can contact us at any time.)

In order to make the product work normally, independent power supply is recommended for the module

Special attention 2

Precautions for vehicle modification

Power supply: the power supply cannot be directly connected to the battery, cigarette lighter and door lock. These three voltage instability, there are precedents of damage to the circuit board. In addition, some cars also have interference. look out!!

3.5aux12v BT MP3 decoding board color screen decoder app lossless flacusb sound card wireless module

We are a professional design, development, production and sales factory If you have more needs, we can design, develop and produce products as required. OEM is welcome.
