USB DUAL SDI HDMI VIDEO CAPTURE Card Box Recorder Grabber Dongle Zoom Game Streaming Equipment Live Broadcast OBS Vmix
4.5 (6 votes) | 14 orders
Price:
US $345.52 - 363.57
/ piece
Discount Price:
US $
329.37 -
346.50
/ piece
-5%
- Color
-
-
Sorry! This item is out of stock
Due to the limitation of the Apple system ( It just allocates only one divice's name ) , the SDI can not be shown on the Apple computer. So if you use it on Apple computer , not recommended ! but on Windows and Linux systems , it works pretty well !If you just have Mac system please don't order, thank you ~
Features:
1. Connect multiple dongles to one machine
2. Enable the up/down conversion of video resolution, frame rate and audio sampling rate
3. Support brightness, contrast, hue, saturation, and other screen adjustment functions
4. The HDMI video capture meets UVC standard, support YUV 4:2:2 (YUY2) or RGB 4:4:4 (RGB24) video output
5. The HDMI video capture meets UAC standard and 48KHz PCM stereo audio output
6. The video processing engine can be updated via firmware without changing the hardware.
7. Automatically detect and de-interlace signals
8. Reliable and Stable: 64MB DDR2 Onboard memory, it can effectively conduct video frame buffer and USB transfer flow control to avoid interruption or error images when the USB transmission bandwidth is occupied.
Pass through 7x24h continuous high load tests in high and low temperatures (0-50 degrees)
9. Easy to Use: No need to install drivers in Windows, Linux, and OS X, real plug and play.
Compatibility:
1. Compatible with various USB 3.0 chipsets (Intel, Renesas, ASMedia, Fresco Logic), compatible with expended USB 3.0 via PCIe Gen1.1 x1
2. Compatible with USB 2.0
3. Compatible operating systems: Windows (7, 8, 8.1), Linux (kernel version 2.6.38 and above), OS X (10.8 and above)
4. Support APIs, such as Windows: DirectShow, DirectSound, Linux: V4L2, ALSA, OS X: QuickTime
5. Support software including Windows Media Encoder (Windows), Adobe Flash Media Live Encoder (Windows, OS X), Real Producer Plus (Windows), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and etc.
Excellent Video Processing:
1. Support up to 1920x1200p60 (CVT-RB) Video Input
2. Video output support up to 1920x1200p60 in YUY2
3. Video output support up to 1920x1200p60 in RGB24
4. The process of video and audio is done by the dongle and will not occupy CPU.
Specifications:
Connection | |
Host Interface | USB3.0, *300-350MB/s throughput |

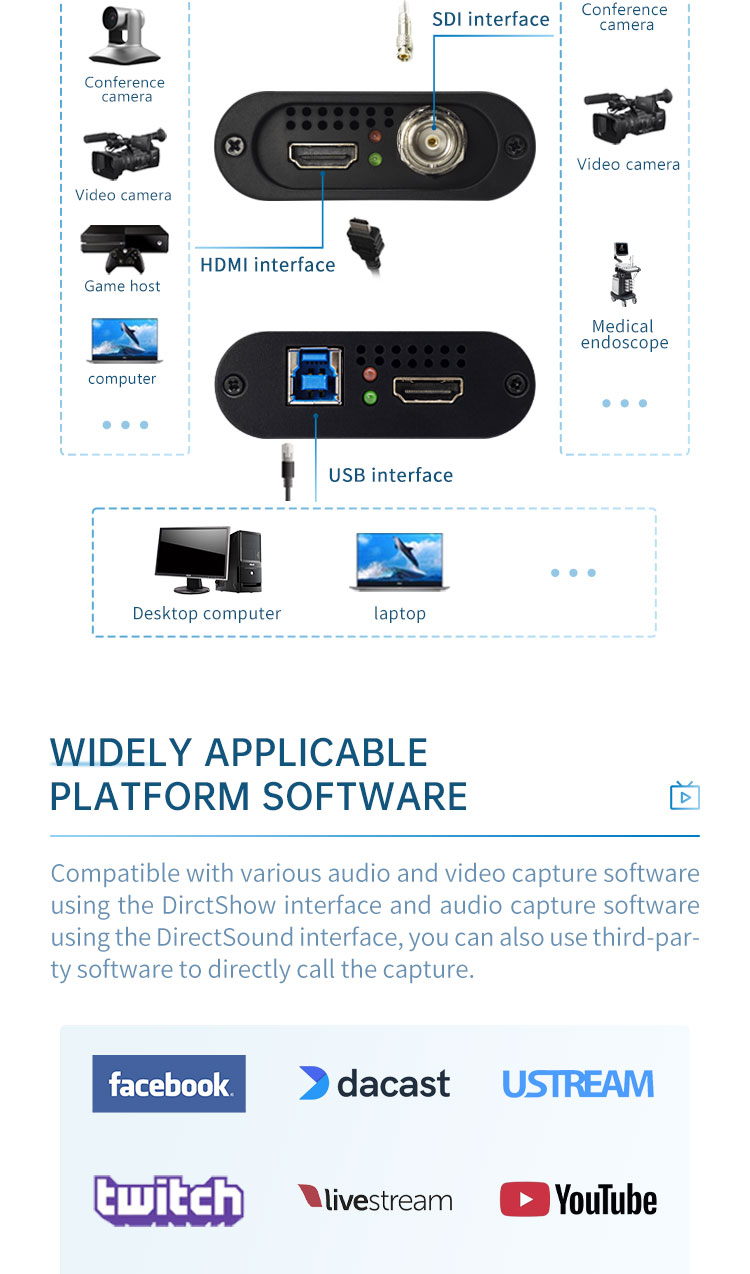

Input Interface | 1 HDMI interface/1 SDI interface |
HDMI Video Input | 1 1080P/60HZ HD HDMI signal or SDI signal |
HDMI Audio Input | 1 LPCM audio signal |
Standard | |
HDMI Input Formats | It meets HDMI 1.4a standard and supports 1080p/60Hz 8-bit, (RGB, YUV) or HD-SDI/3G-SDI |
Output Formats | Up to 48KHz, 85db, 24-bit |
Video Sampling Rate | HDMI: 165MHz |
Audio and Video Capture | It meets the standards of UVC (USB video class) and UAC(USB audio class) |
Output Color Space | YUY2, RGB24 |
Video Processing | |
Switch of Color Space | Hardware Color Switch |
Image Scale | Hardware Scale |
Image Adjustment | The image adjustment of brightness, contrast, hue, saturation |
Others | |
OS Support | It supports the following operating systems (x86 and x64 versions): |
Software Compatibility | Windows Media Encoder (Windows) |
Pacakge:

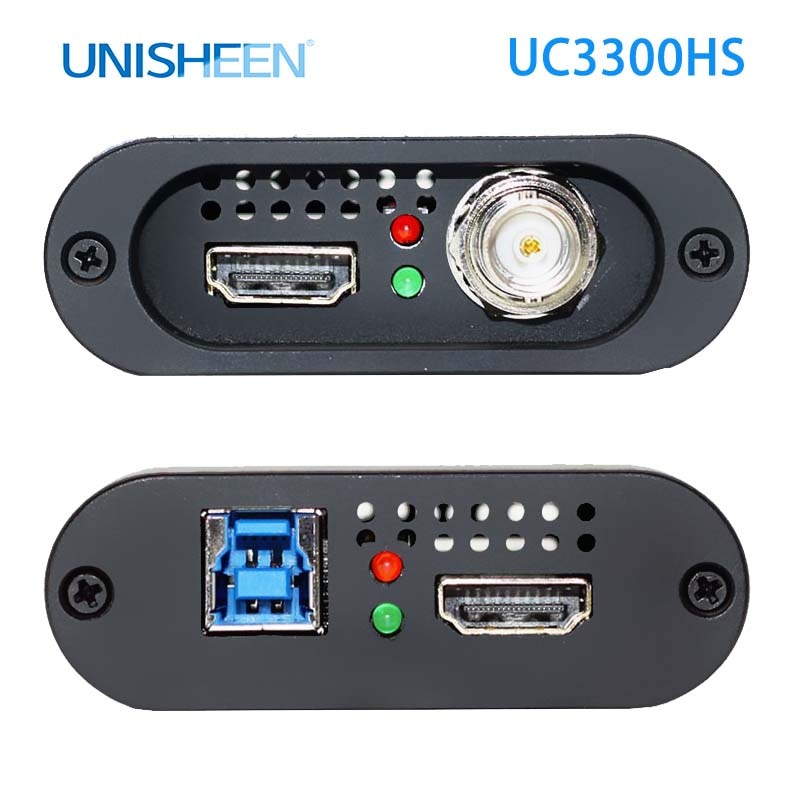

1 x HDMI+SDI Capture Dongle
1 x USB Cable
1 x User Manual
- Brand Name: unisheen
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE,FCC,RoHS

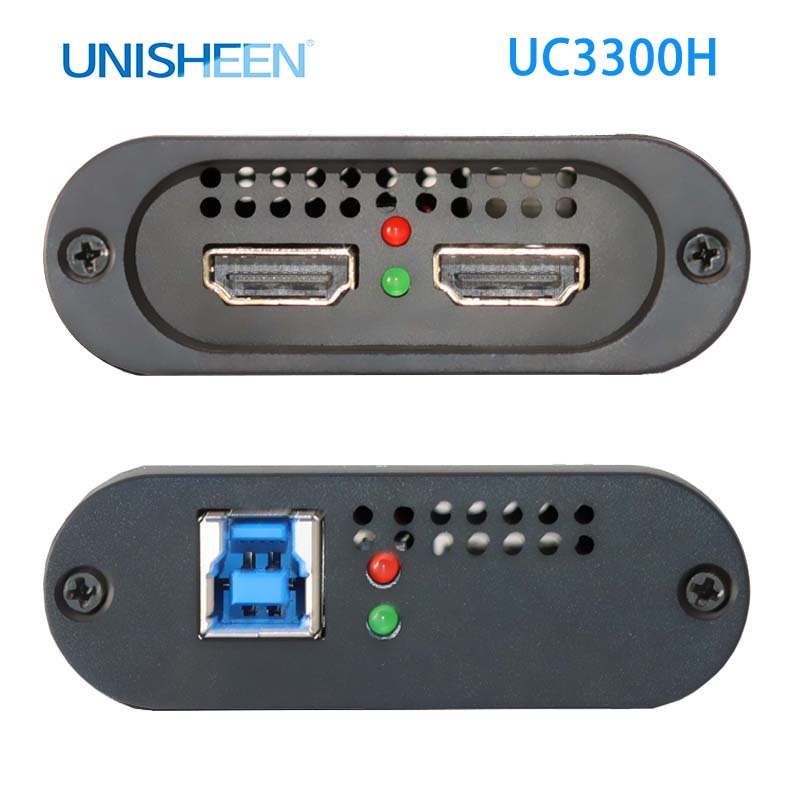

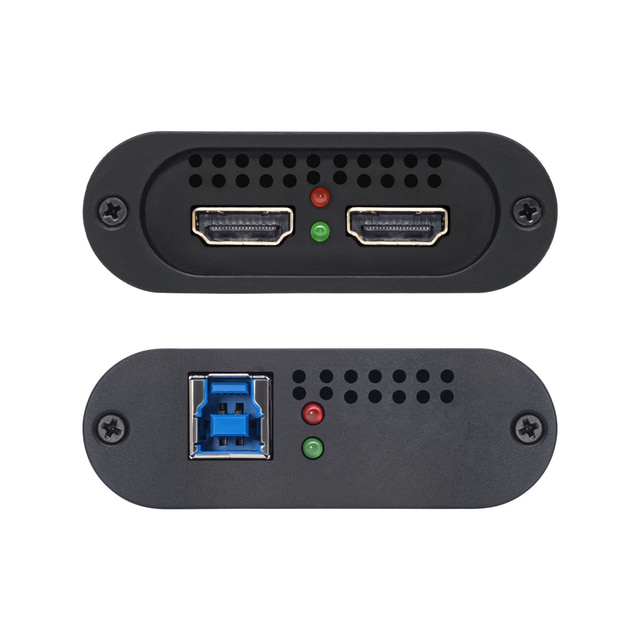

- Model Number: UC3300H
- Interface: USB3.0 Full Speed
- Video Input(work in double): 2xHDMI
- Audio Input: HDMI Embeded
- Platform: 32/64win7 8 10 11 Linux

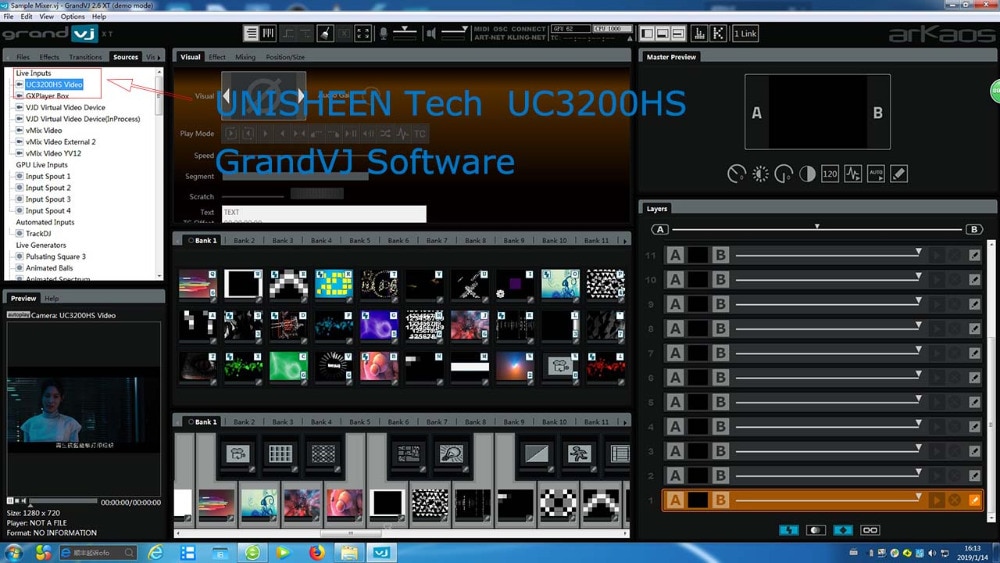

- Compatiable Software: Zoom/VJ/OBS/vMix/Wirecast etc
- Chip: FPGA
- Color Space: YUV2(BT.709)
- Color Sample: 4:2:2
- Input Resolution: 1080p60/50,720p,576p
- Recording Resolution: 1080p60/Single,1080p30/Dual
