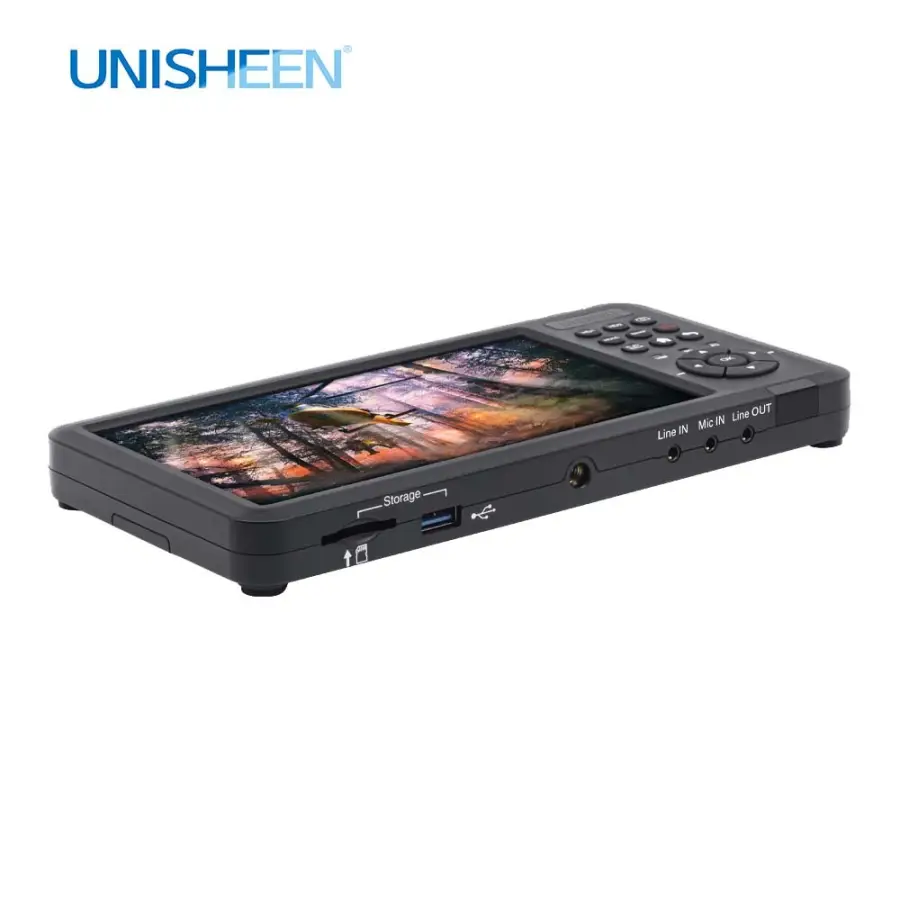

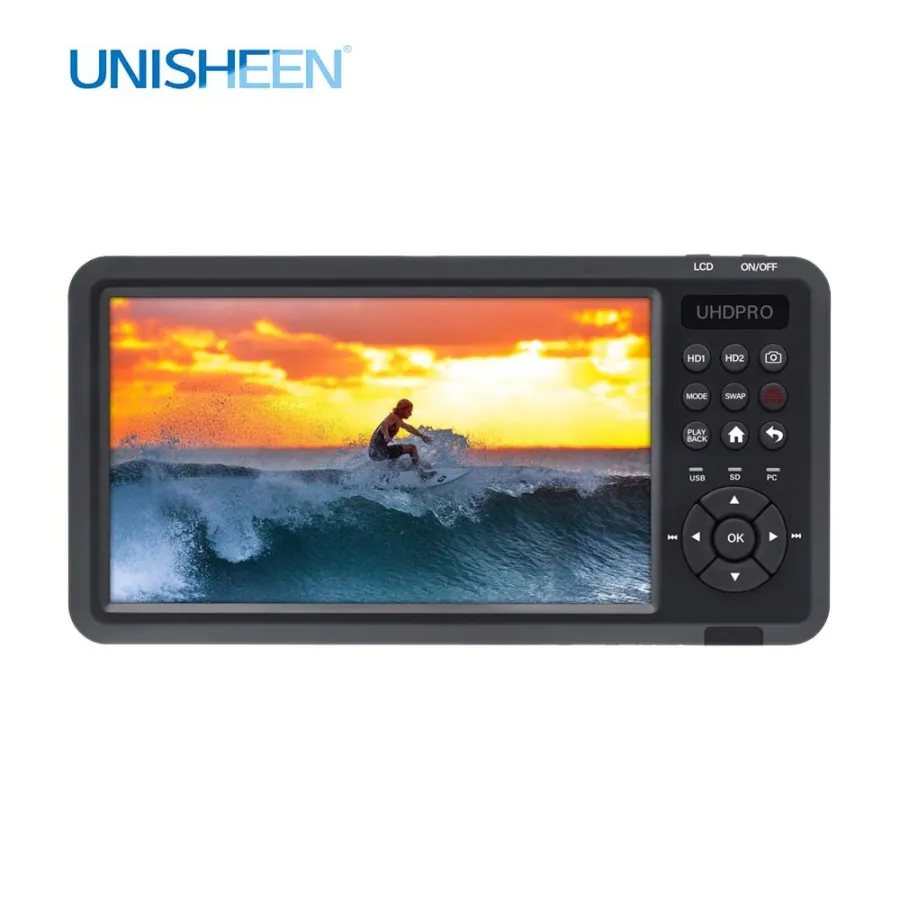

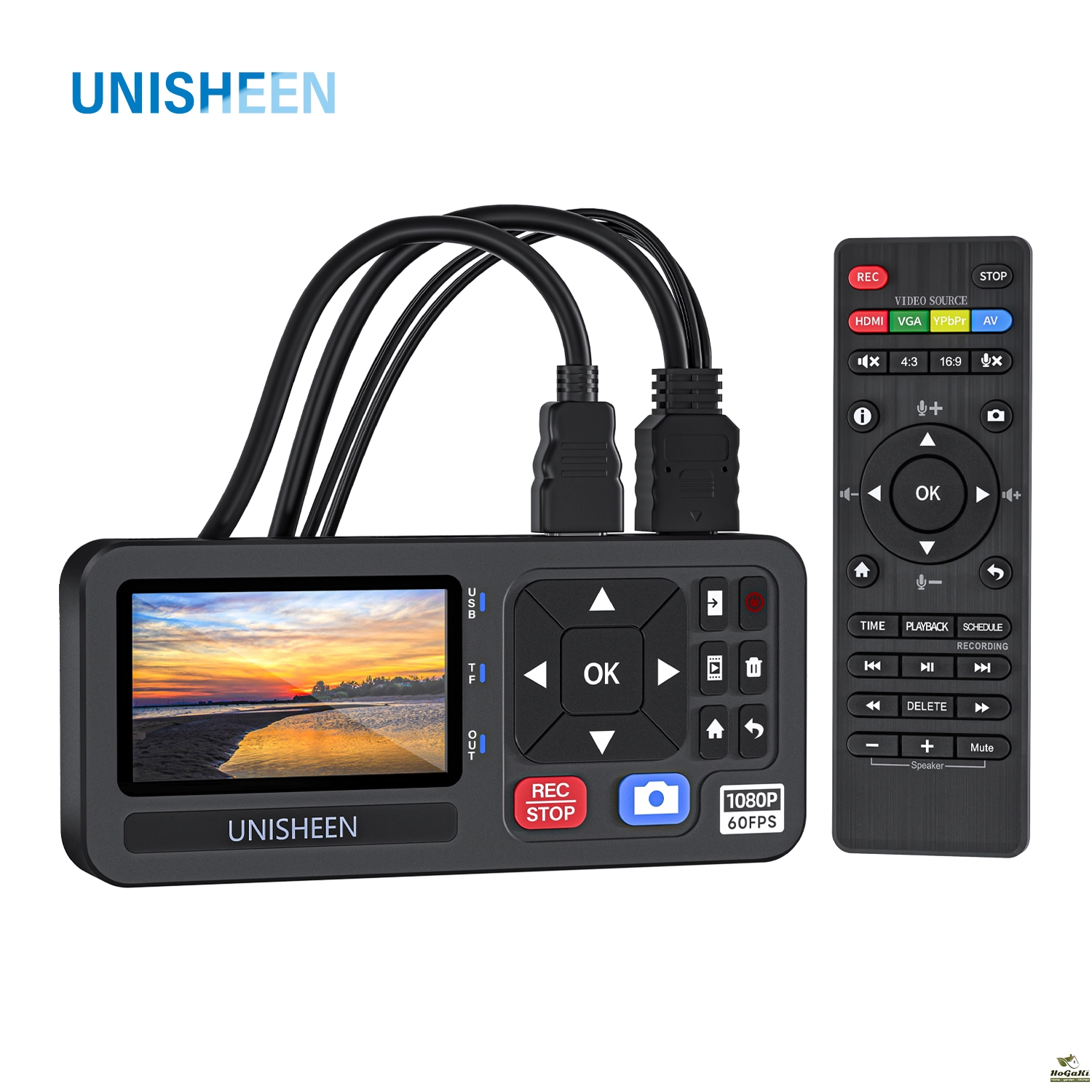

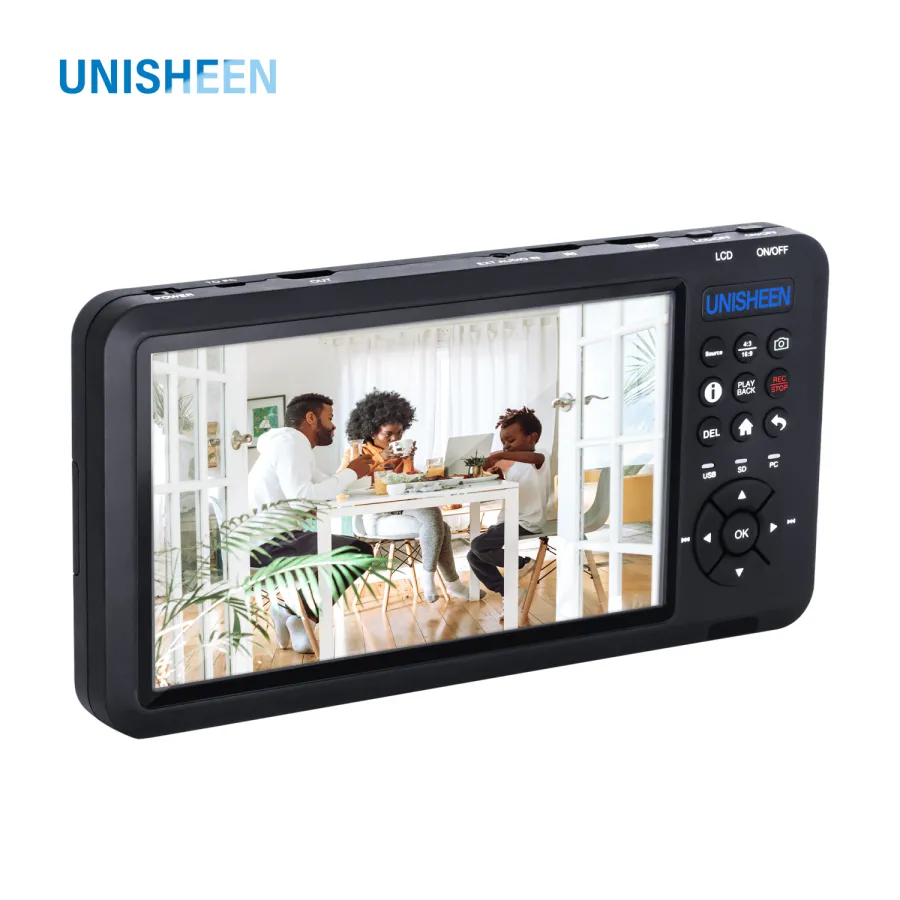

UNISHEEN 7inch Screen Video Capture Box 2 Channel HDMI Recorder Battery Socket Tape CVBS AV RCA SVideo DVI VGA YPbPr 1080p HD 4k

4.9 (9 votes) | 63 orders
Price: US $206.72 - 635.80
Discount Price:
US $ 199.96 - 466.17
-3%
Color
Quantity


Noted: Don't including Battery in Package, because ship company reason

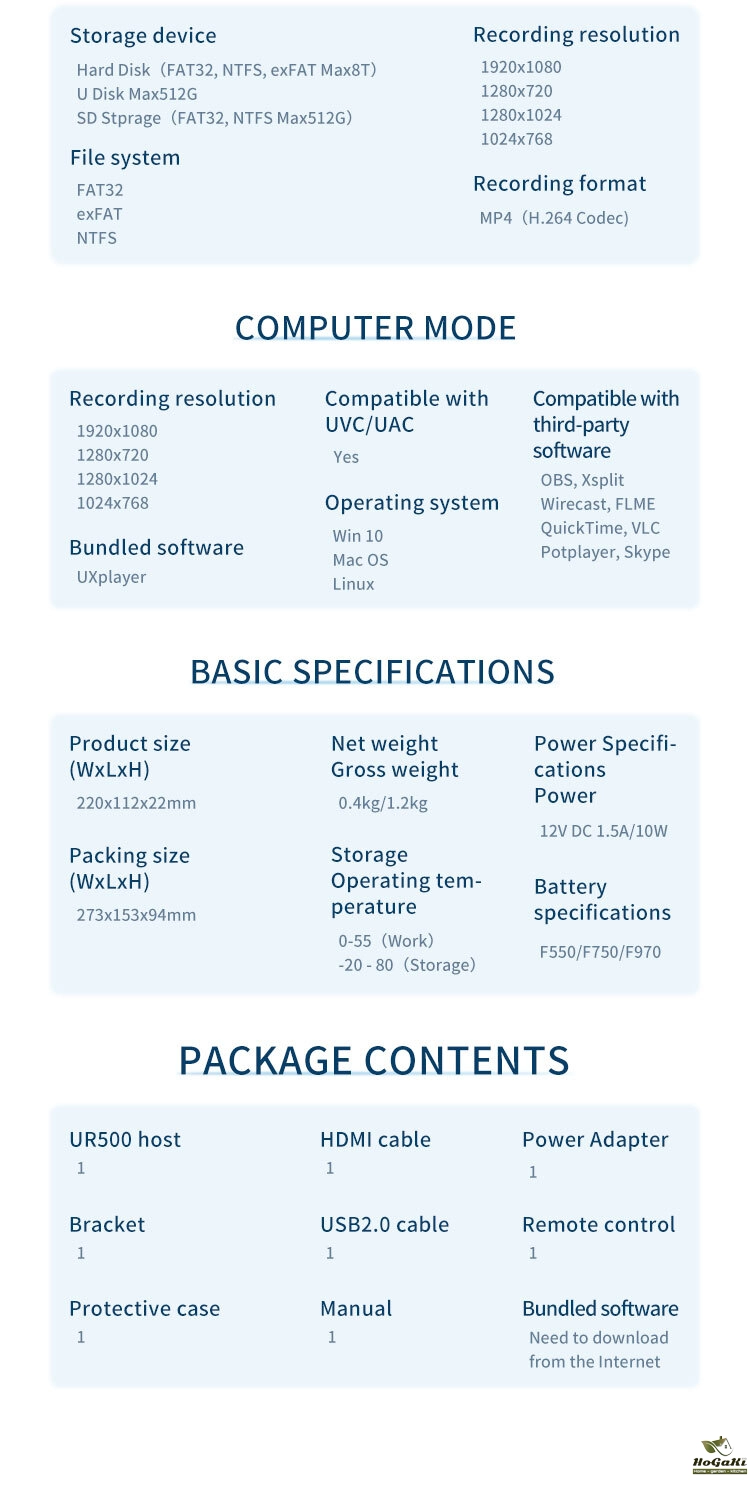

Specification

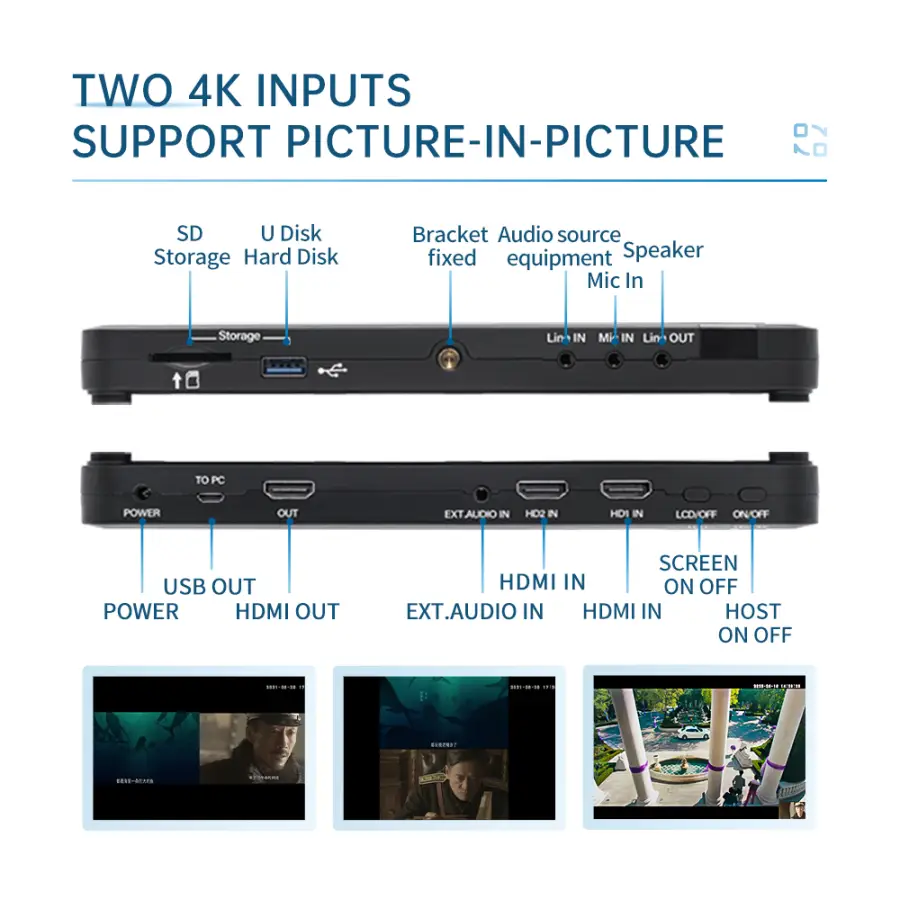

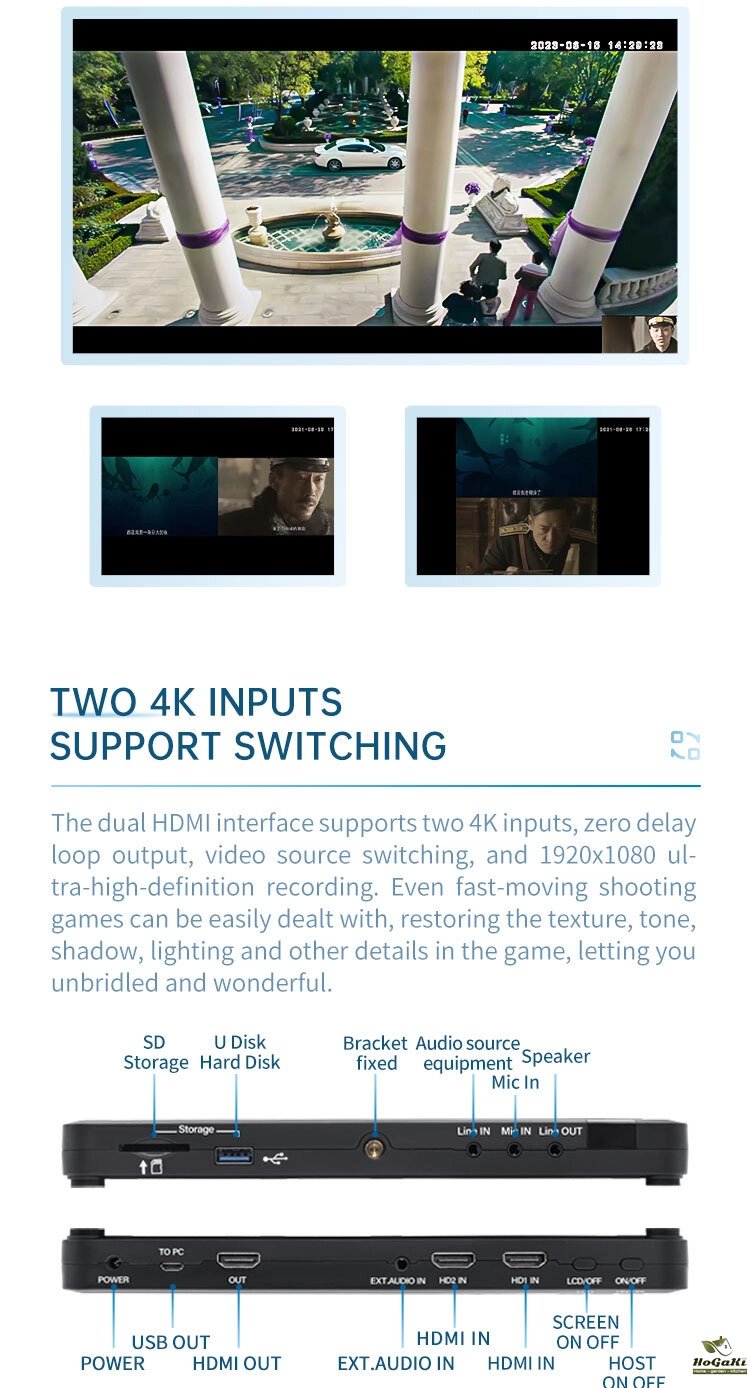

HD1/HD2 Video Input(Switchable)

2x HDMI( 1.4)4096x2160p60,1920x1080@60P/50p,1920x1080@60i/50i/1280x720@60p/50p 720x576i/720x480i

Loop Out

1xHDMI

Audio

HDMI Embeded/External Audio/Line In/Mic In

Display Screen

7 Inch

Remote Control

Yes

Screeshot in Recording

Yes

Picture Mode

PIP/POP/PMP

Playback

Yes

Alone Mode


Record Resolution

1920x1080/1280x720/1280x1024/1024x768

Storage Device

Flash USB Drive(up to 512G),Harddisk(up to 8T),SD(up to 512G)

Storage File System

FAT32/exFAT/NTFS

Record Format

MP4(H.264 Codec)

Computer Mode


Record Resolution

1920x1080/1280x720/1280x1024/1024x768

Compatible UVC/UAC

Yes

Comatible System

Win10/Mac OS/Linux

Compatibility with 3rd application software

OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype

Attached Software

UXplayer

General

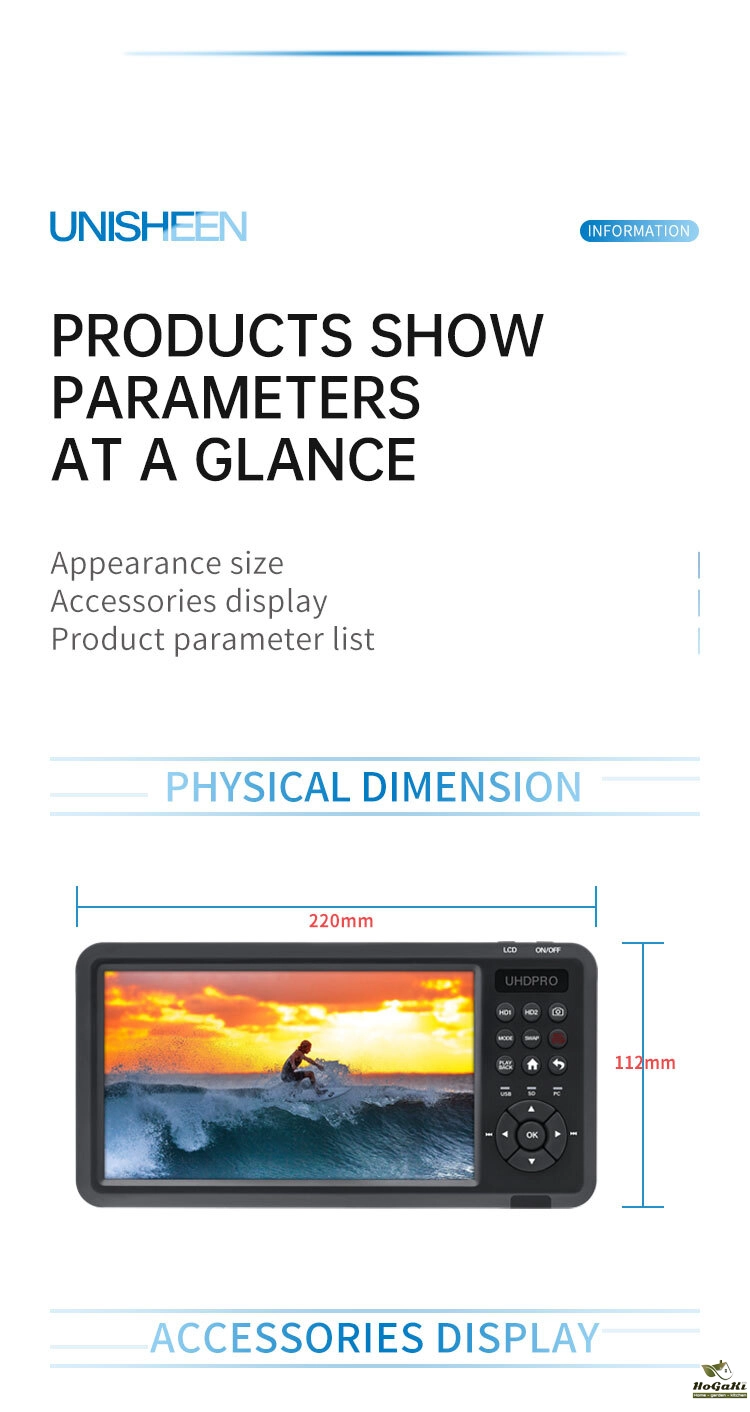

Dimension(W×L×H)

220x112x22mm

Package(W×L×H)

273x153x94mm

Net/Gross Weight

0.4kg/1.2kg

Temperature

0-55(Work),-20-80(Storage)

Power/Consumption

12V DC 1.5A/10w

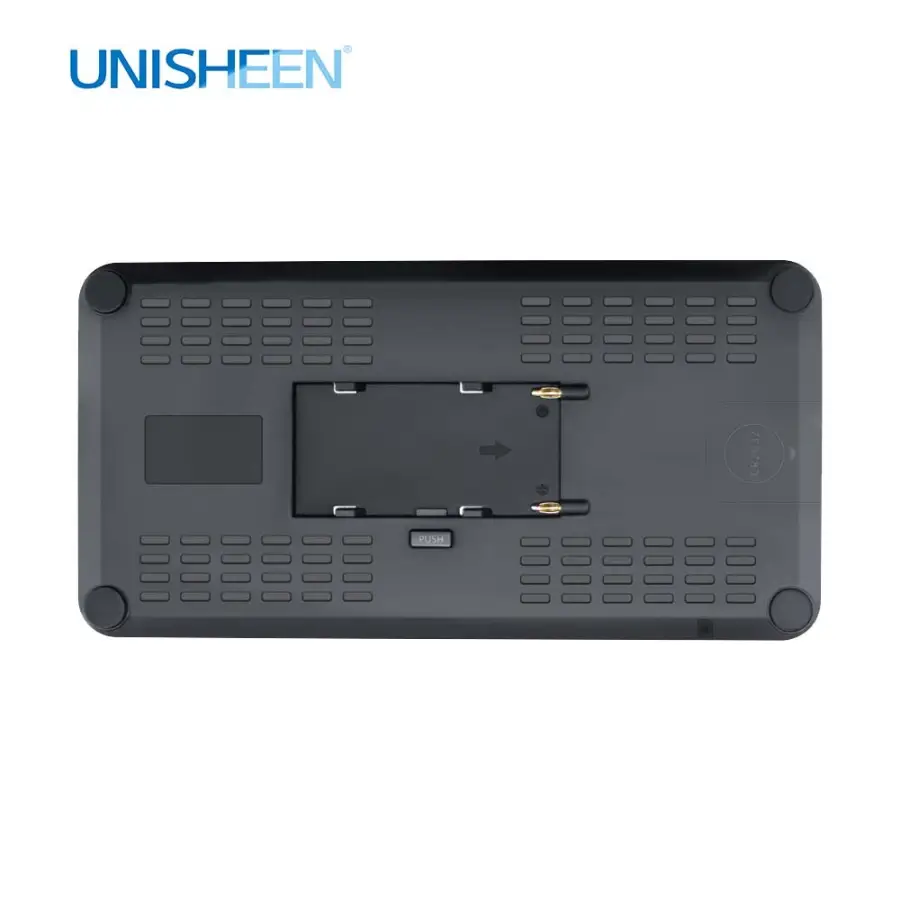

Battery Support

F550/F750/F970

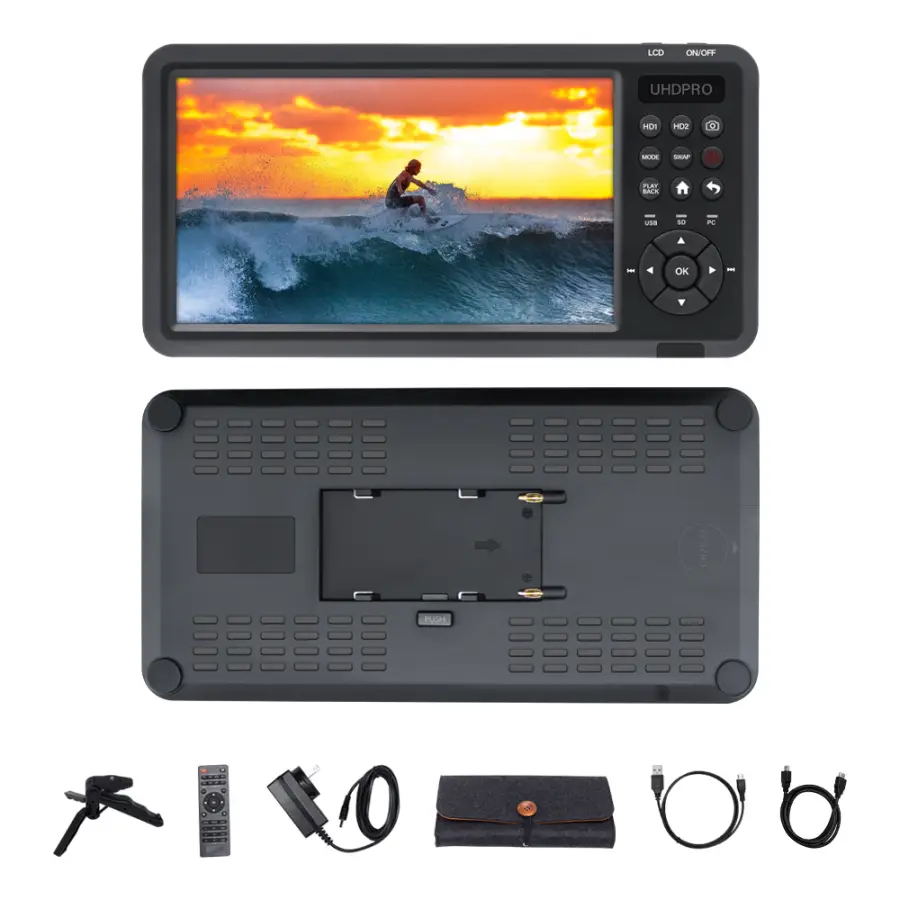

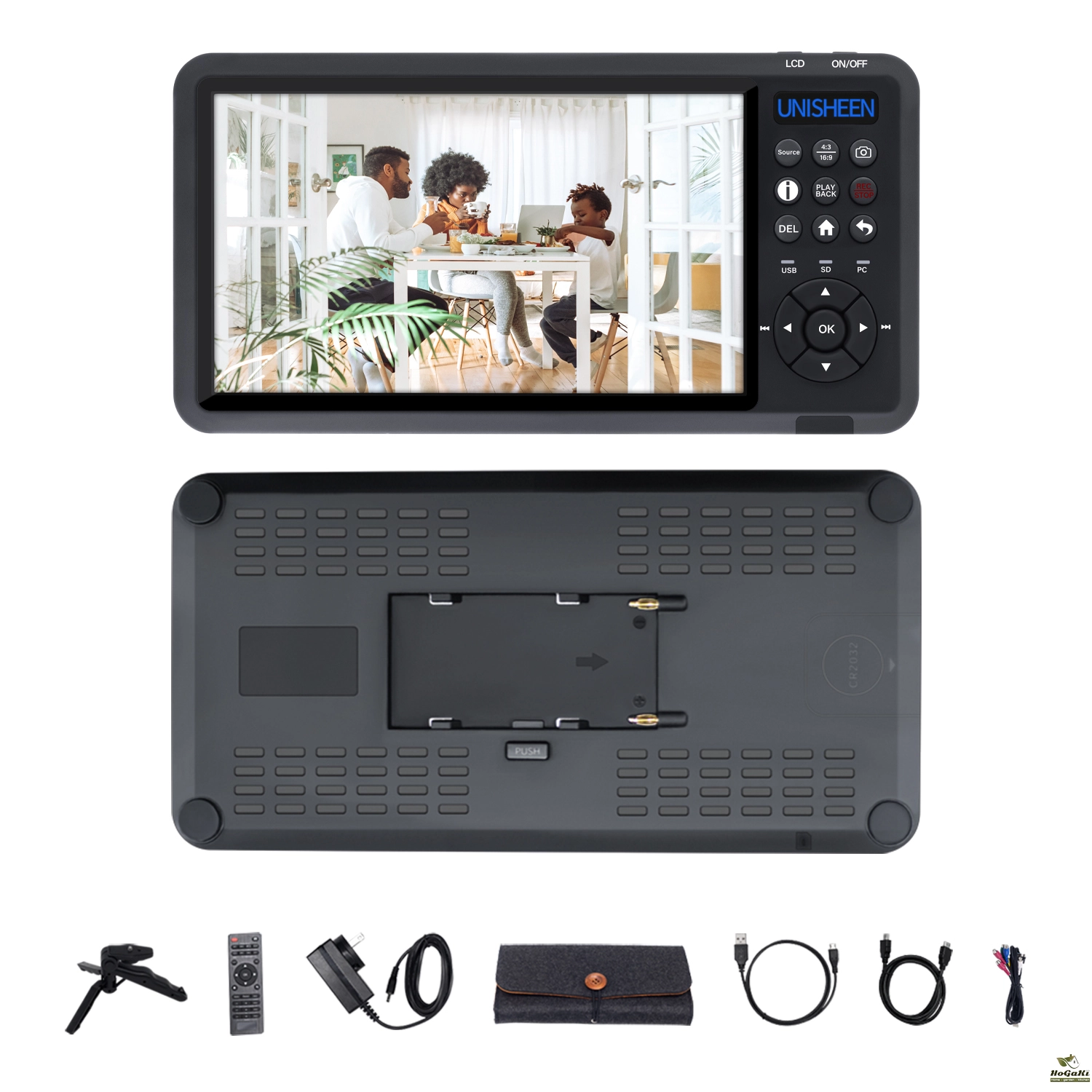

Included in Package


UR500

1pcs

Holder

1pcs

HDMI Cable 1.2M

1pcs

USB2.0 0.8M

1pcs

Power Adapter

1pcs

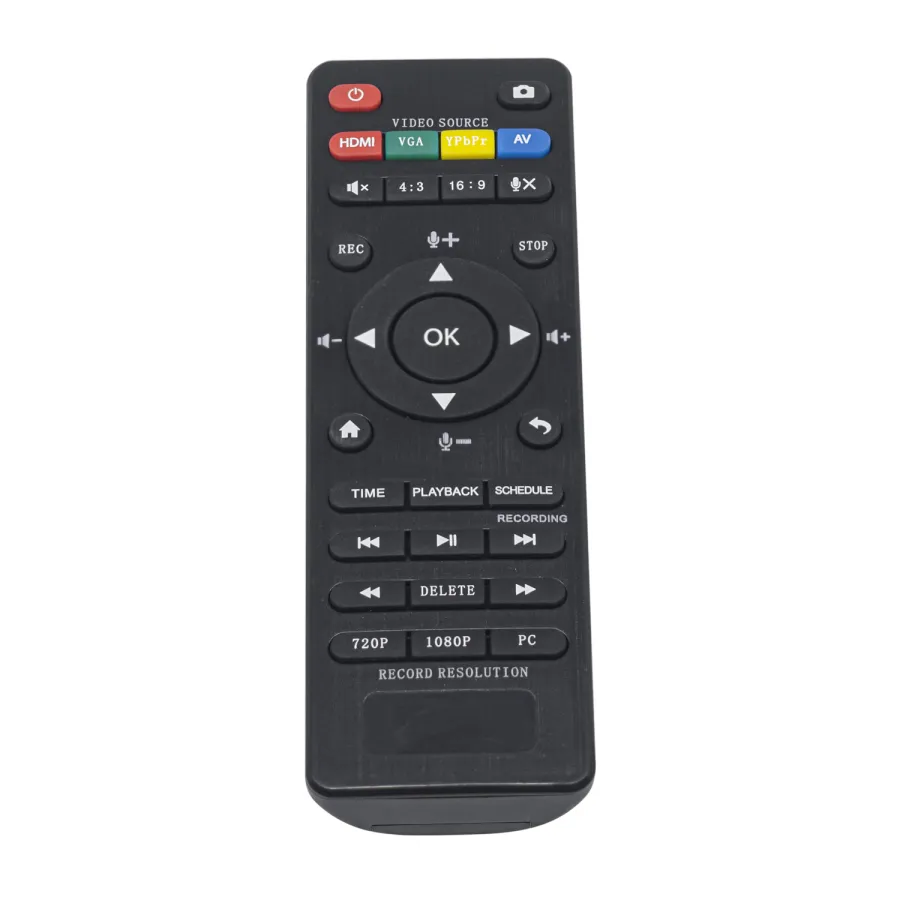

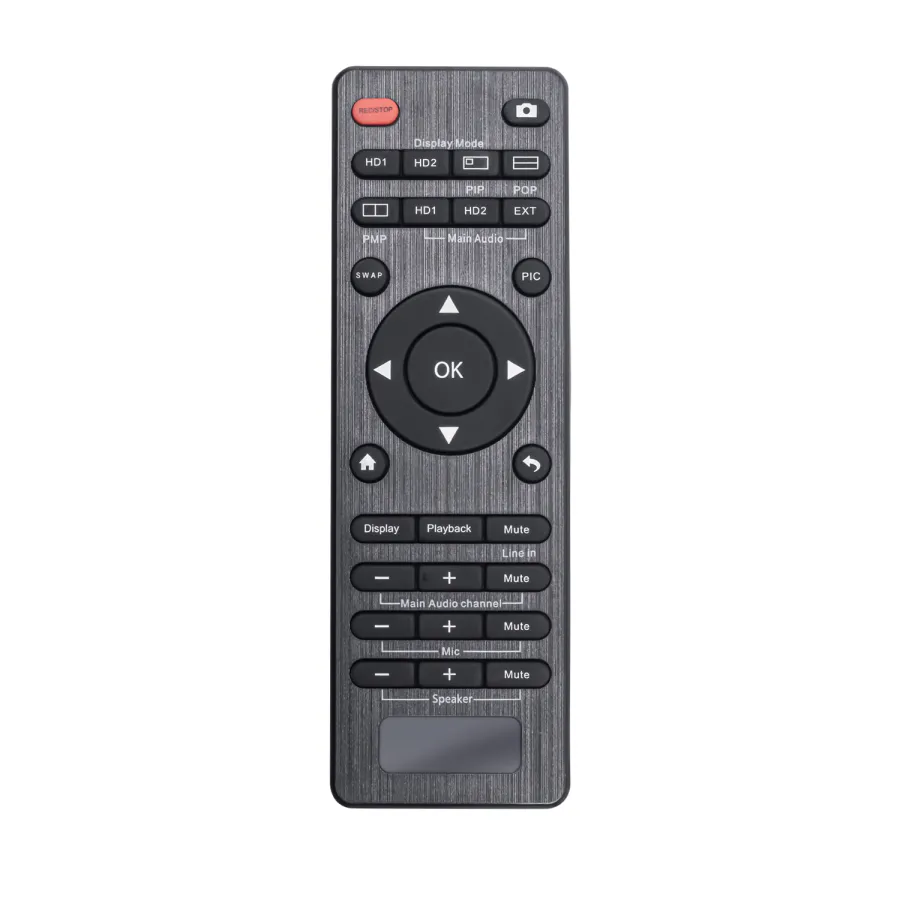

Remote Control

1pcs

Manual

1pcs


Packaging Details

  • Unit Type:
  • Package Weight: 1.500
  • Package Size: 16x11x28

  • Brand Name: unisheen
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Smart home platform: Other
  • Certification: CE
  • Certification: FCC
  • Certification: RoHS
  • Model Number: UR500
  • Video Input: HDMI-1/HDMI-2(Switchable)
  • Audio Input: HDMI/Line in/Mic
  • Video Record Format: MP4(H.264)
  • Audio Codec: AAC
  • Storage Device: SD Card/USB Flash Drive
  • Dimension: 220x112x22mm
  • Power: DC12V 1.5A
  • Battery(optional): F550/F750/F970
  • Included in Package: Holder/HDMI Cable/USB Cable
  • Remote Control: Yes
  • PIP/POP/PMP: Yes
