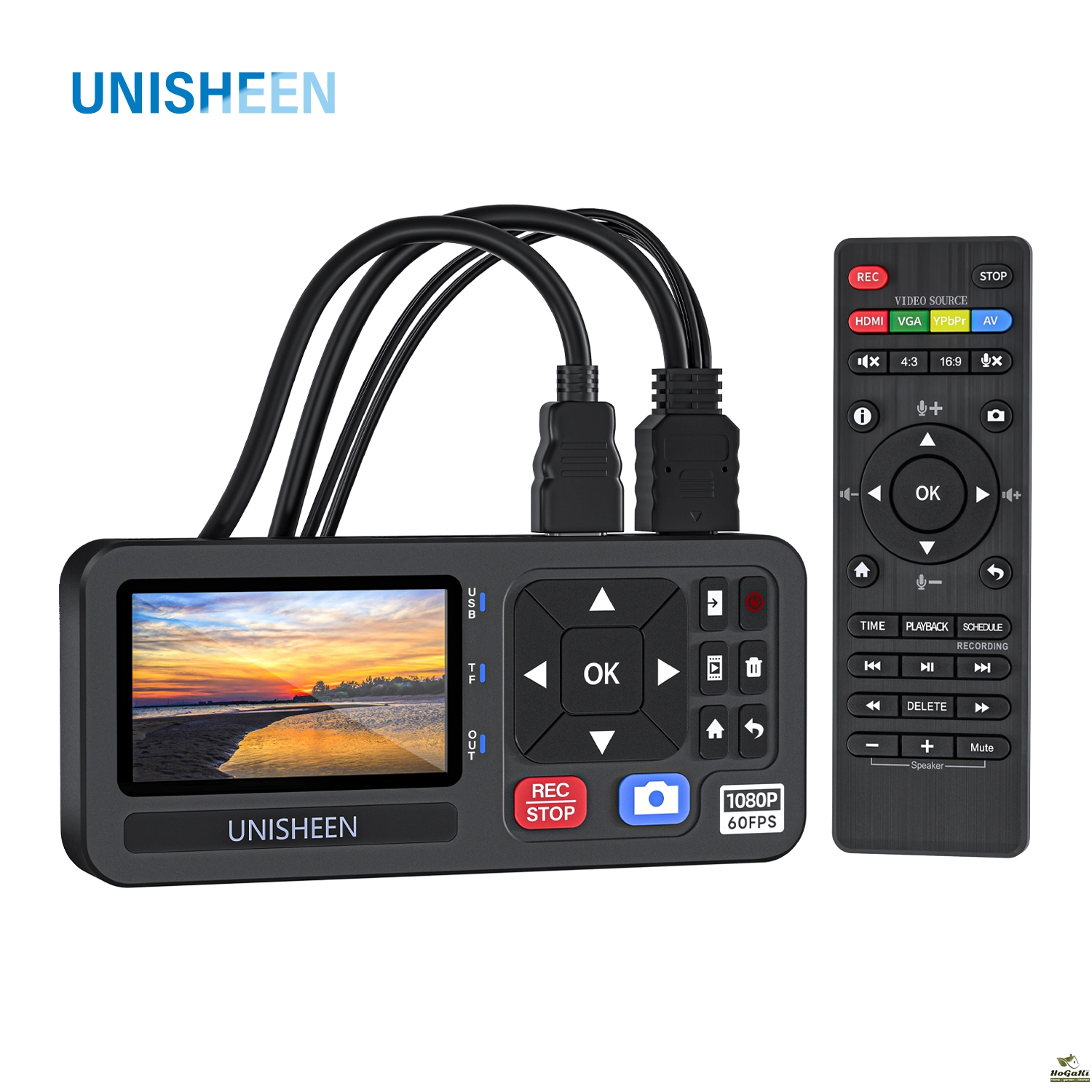

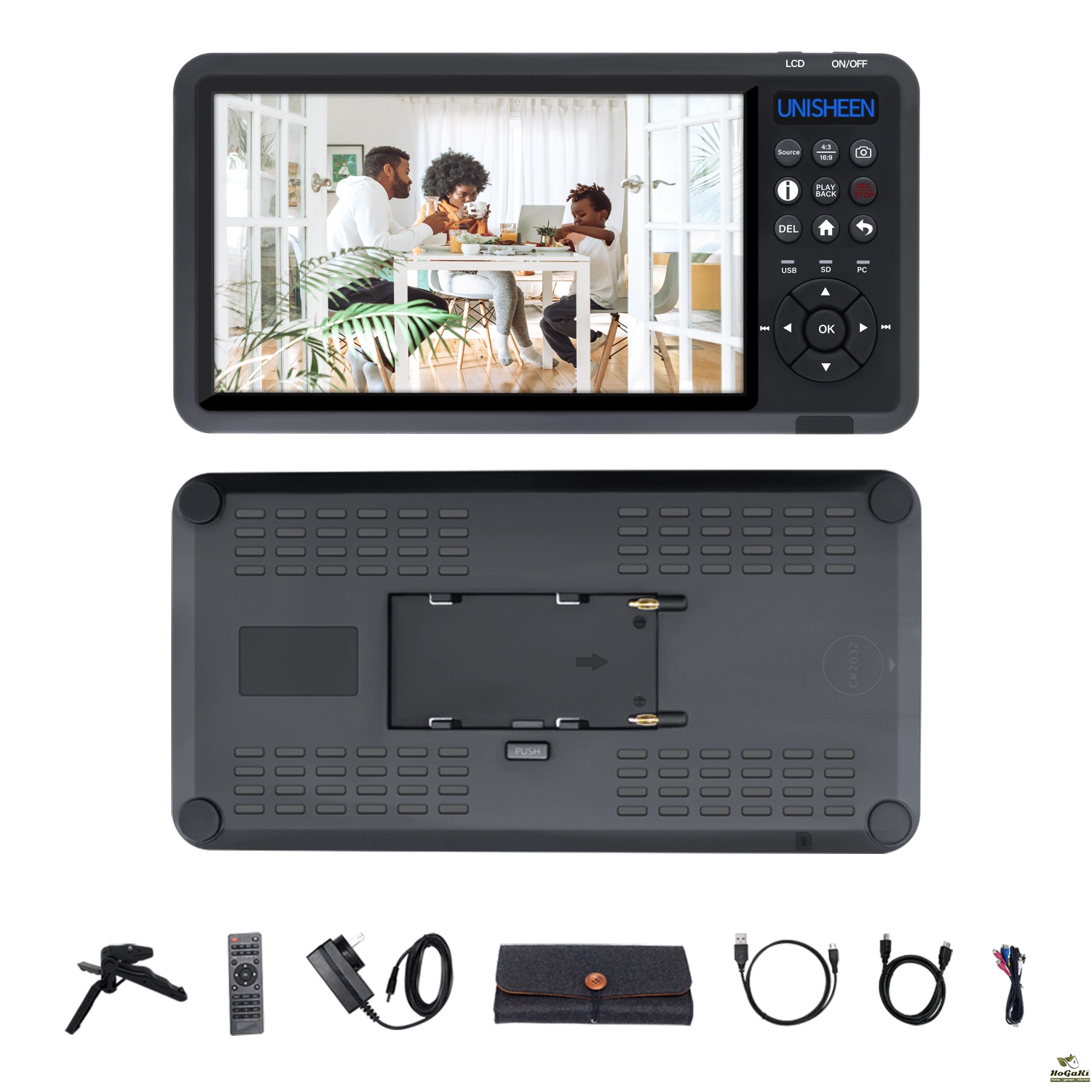

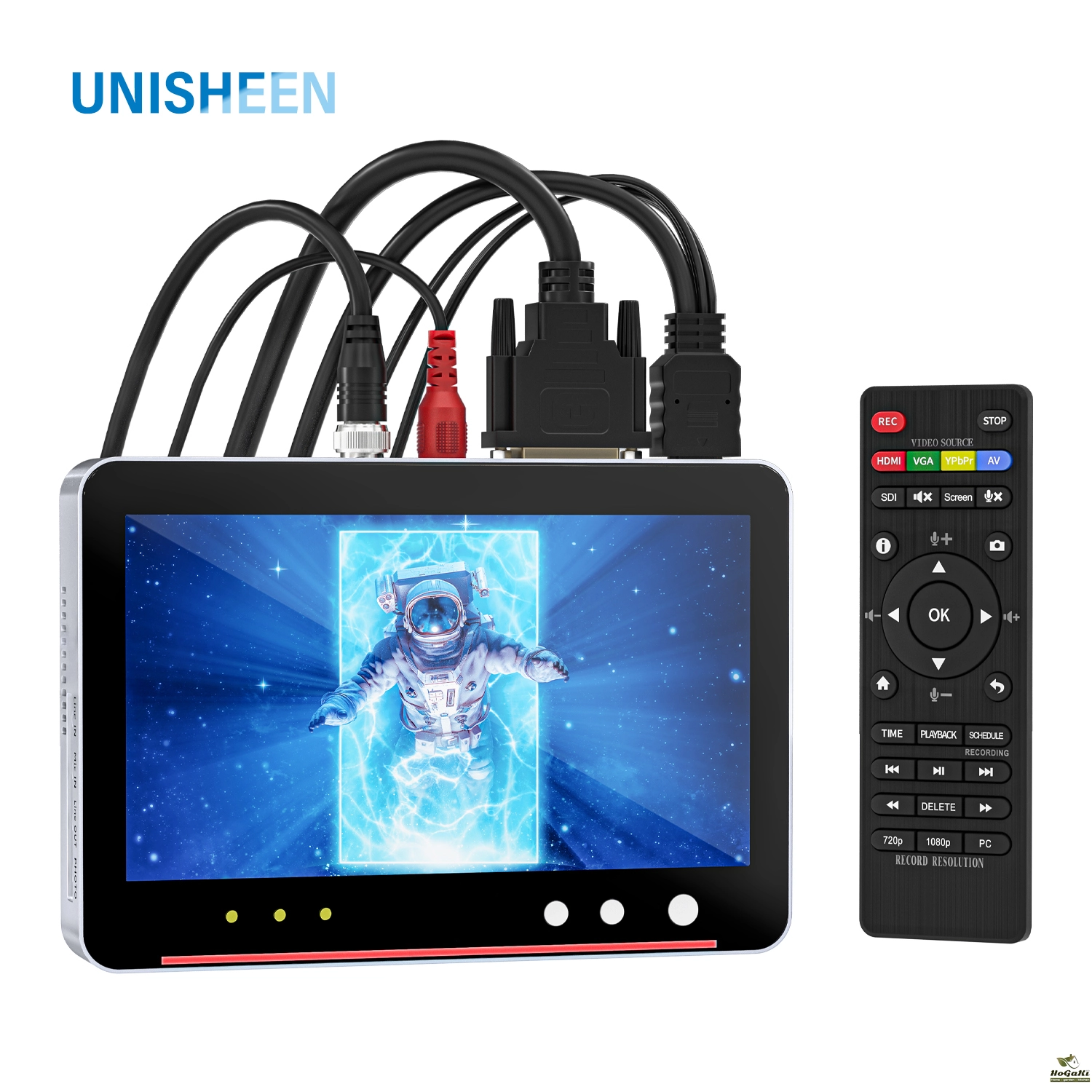

Hot-Sale 4K Capture Box Mini Video Record Device StandAlone Camera RCA HDMI VGA YPbPr Analog Screen Capture Box VHS Card Remote
518.95 323.61 $
ID: 160028
Quantity
Hot-Sale VHS Tape to Digital Video Camera Recorder Casette MP3 Reel Mini Small TF FLASH Disk Old Camcorder DVD Converter
4.7 (115 votes) | 500 orders
Price:
US $182.28
Discount Price:
US $
162.23
-11%

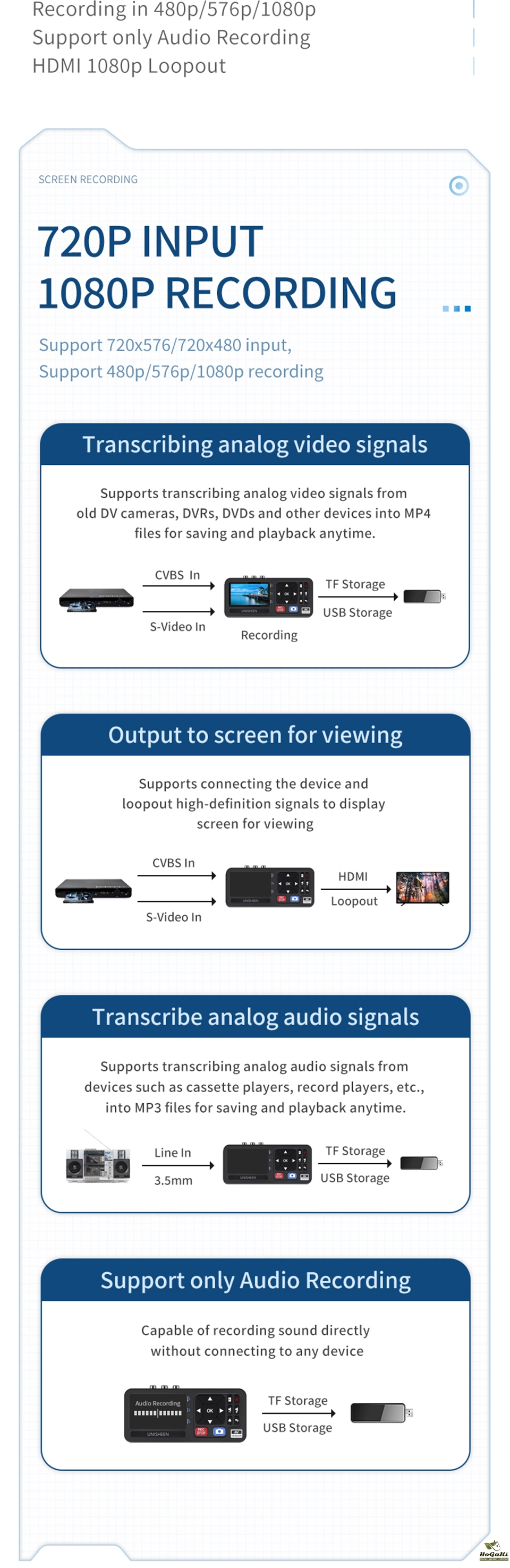

As a video recorder , it easily records audio and video from any devices which has CVBS / S-Video output ( RCA/AV output), such as a VCR,VHS,Camcorder,RCA,DVD player...
It saves the videos onto the flash USB drives (up to 512 G ) or TF cards (up to 512 G) in MP4 format .The size of each file is 4G(FAT32) or 16G (NTFS/exFAT)
It saves the videos onto the flash USB drives (up to 512 G ) or TF cards (up to 512 G) in MP4 format .The size of each file is 4G(FAT32) or 16G (NTFS/exFAT)
Q1,Which capture system is NTSC or Pal-M
A: UR230A supports NTSC and PAL .
Q2, Can this product runs on battery? or do i have to plug it in all the time?
The device is powered by a 5V 1A supply.it supports 7x 24 Hours to work.The battery-powered version will be available soon
Q3,which is what includes and you could bill me
A: Included in Package:
UR230A: 1 piece
RCA Cable 1.2M: 1 piece
3.5mm Audio Cable 1.2M: 1 piece
USB Cable 0.8M: 1 piece
USB Power Adapter 5V1A: 1 piece
Remote Control: 1 piece
Manual: 1 piece
Q4, How many fps the device saves video
A: Select AUTO or 1080P recording
NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.
PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50
Q5,The final video files are 720 or 1080?
A: Select AUTO or 1080P recording
NTSC: Input is 480i60, record 480P30 or 1920x1080P30, and HDMI OUT outputs 1920x1080P60.
PAL: Input is 576i50, record 576P25 or 1920x1080P25, and HDMI OUT outputs 1920x1080P50
Q6,Is the voltage for power supply dual? Does its supports Singapore voltage.?
A: The device is powered by a 5V 1A supply.
The USB power supply is wide-voltage, supporting 100-240V.
We offer three types of power supplies: US, EU and UK standard. Please select the appropriate one when placing your order.
Q7,This device records video from VHS ???

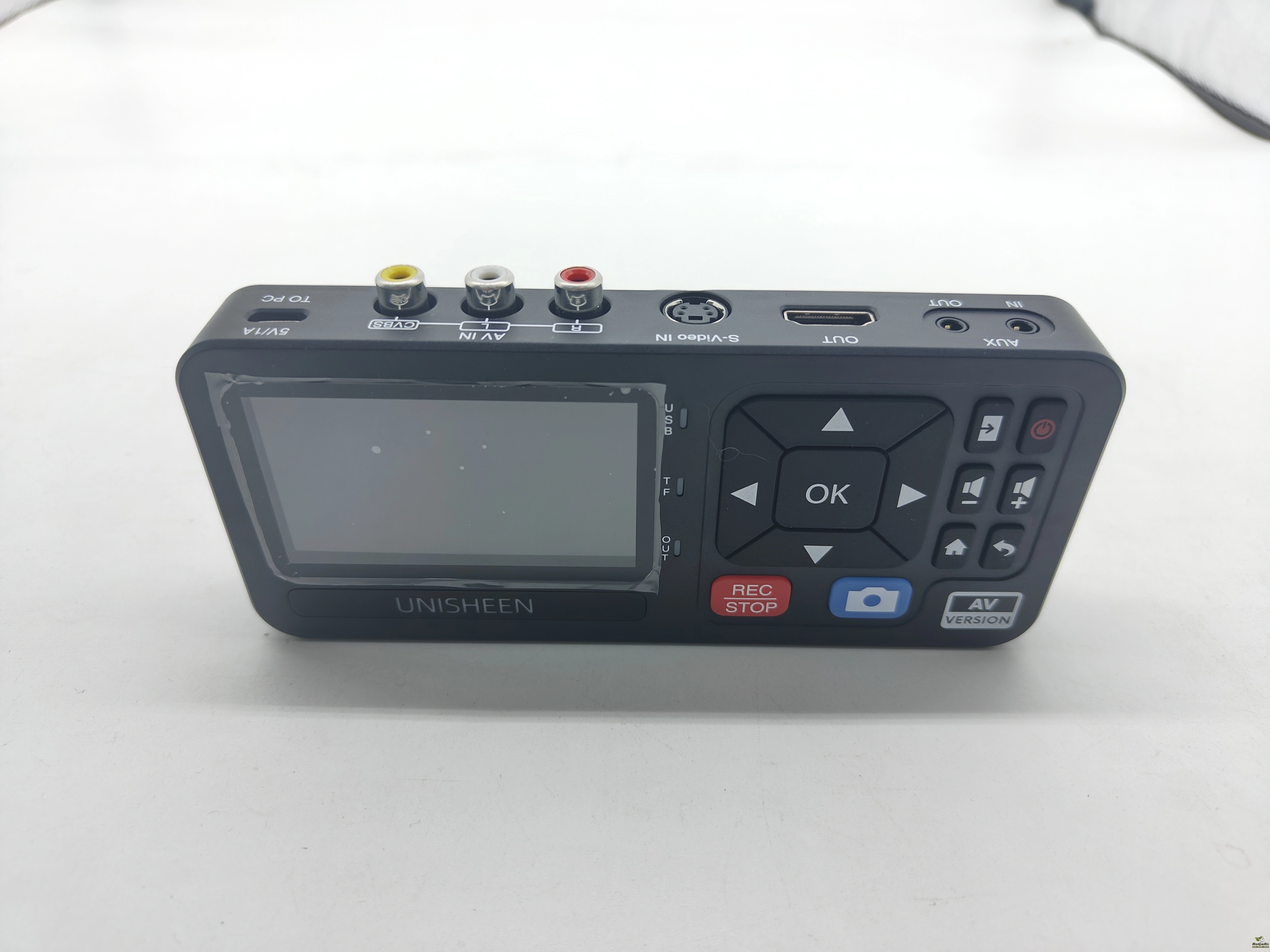

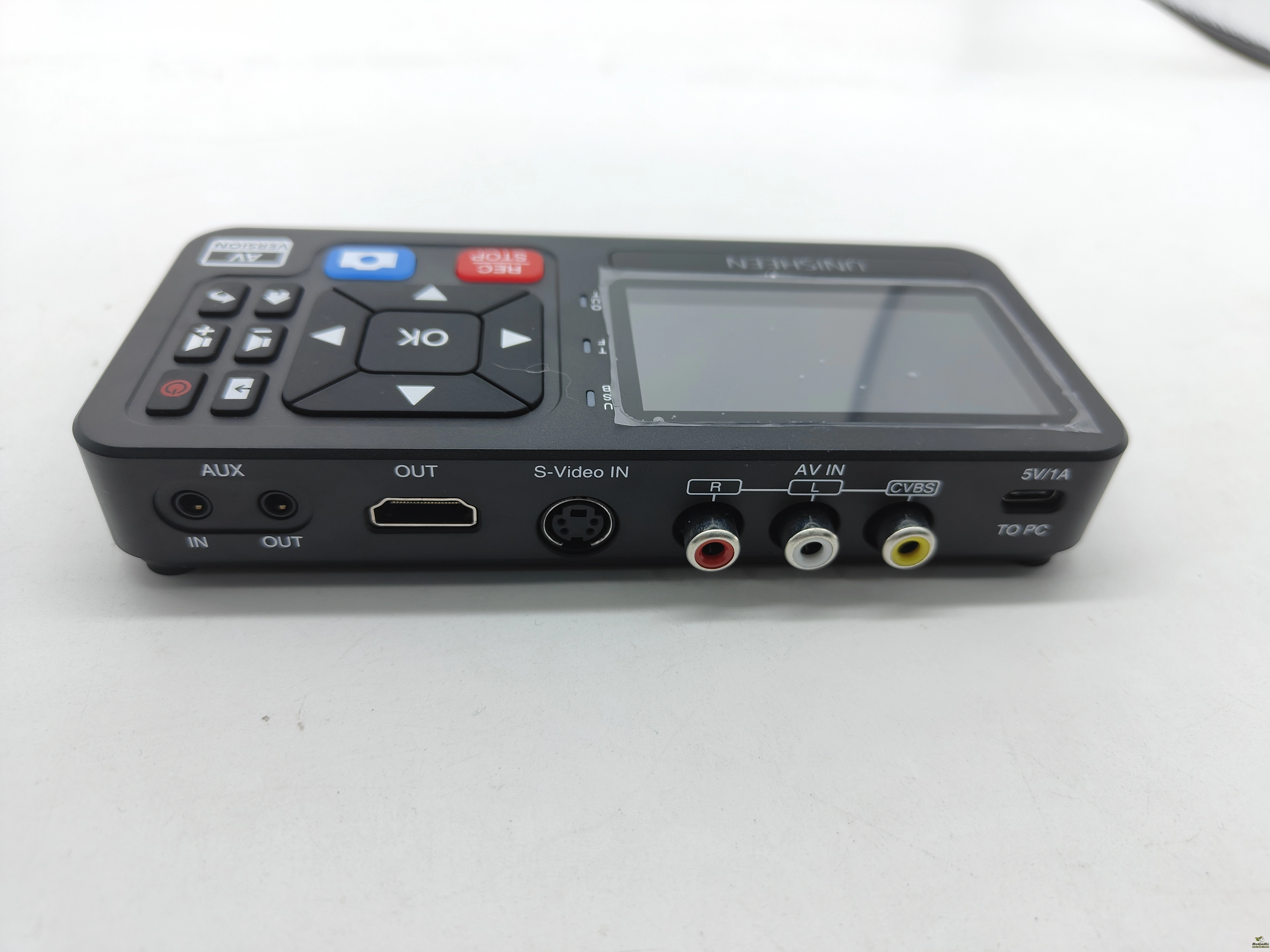

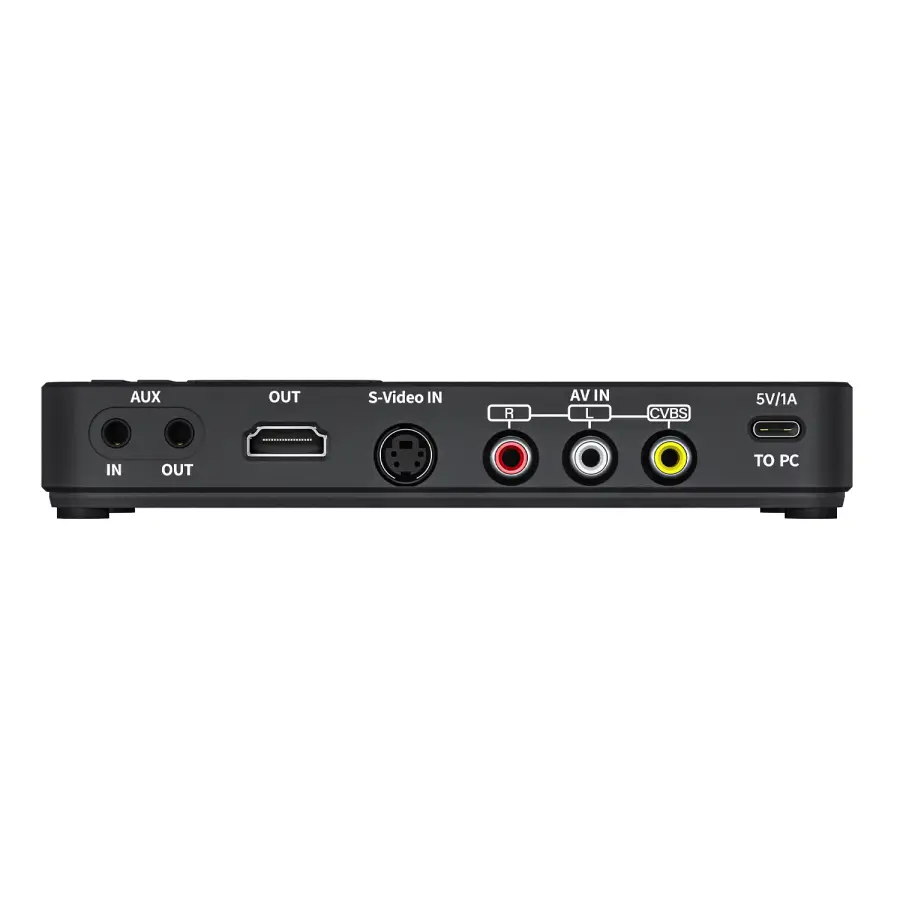

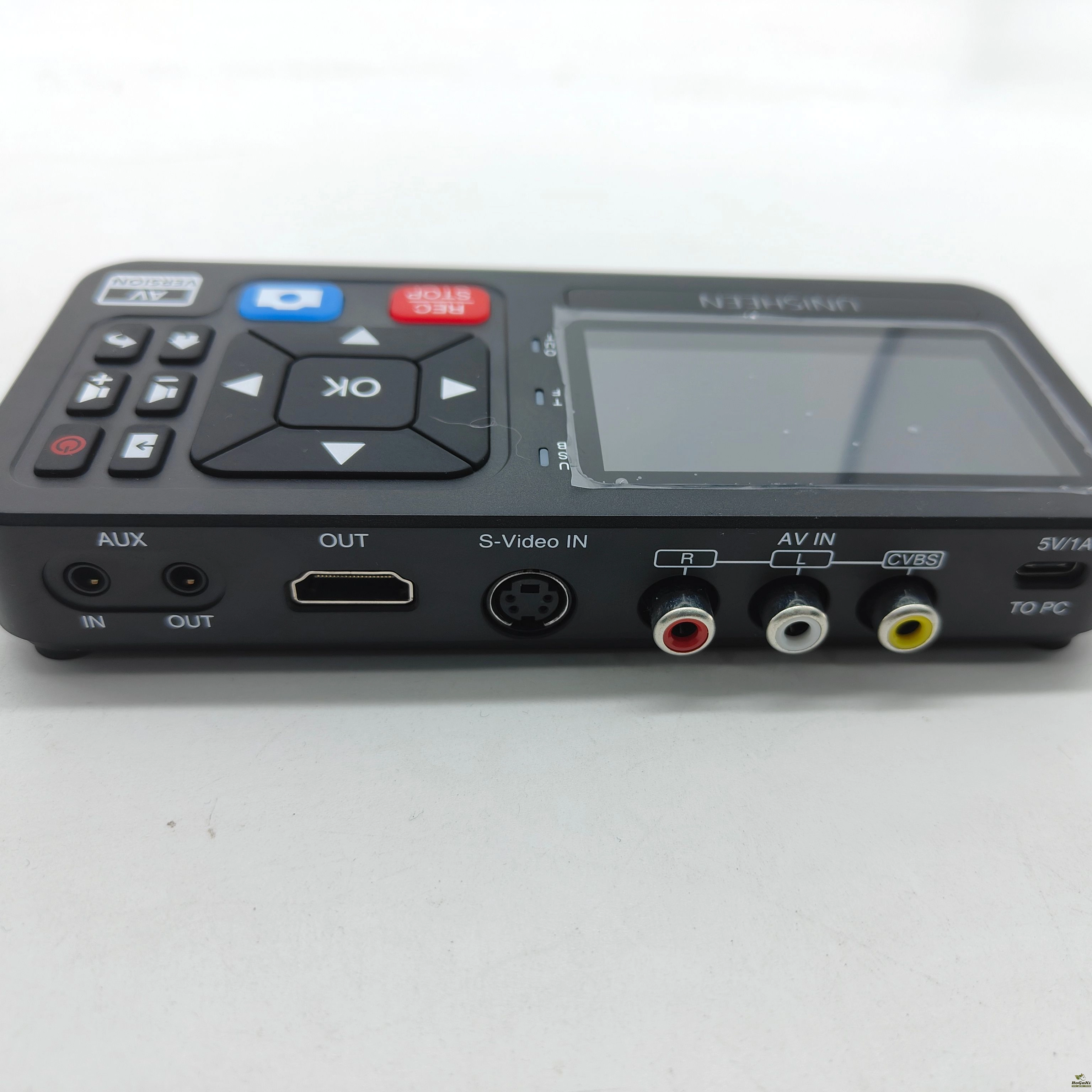

A: The UR230A features composite video and S-video interfaces, capable of capturing devices such as VHS、VCRs and cameras etc
Feature | * CVBS/Svideo Input* HDMI 1080p Loopout* Recording in 480p/576/1080p* Support only Audio Recording* Support Snapshot in Recording* Schedule Recording* Flash USB Drive or TF Storage* Support Play Back* Remote Control |
Specification | |
Video Input(Switchable) | 1x CVBS/Svideo |
Video Resolution | 720x576/720x480 NTSC/PAL |
Loop Out | 1xHDMI(1080p) |
Audio | RCA Audio/External Line In |
Display Screen | 3 Inch |
Remote Control | Yes |
Screeshot in Recording | Yes |
Only Audio Recording | Yes |
Playback | Yes |
Alone Mode | |
Record Resolution | 1080p/576p/480p |

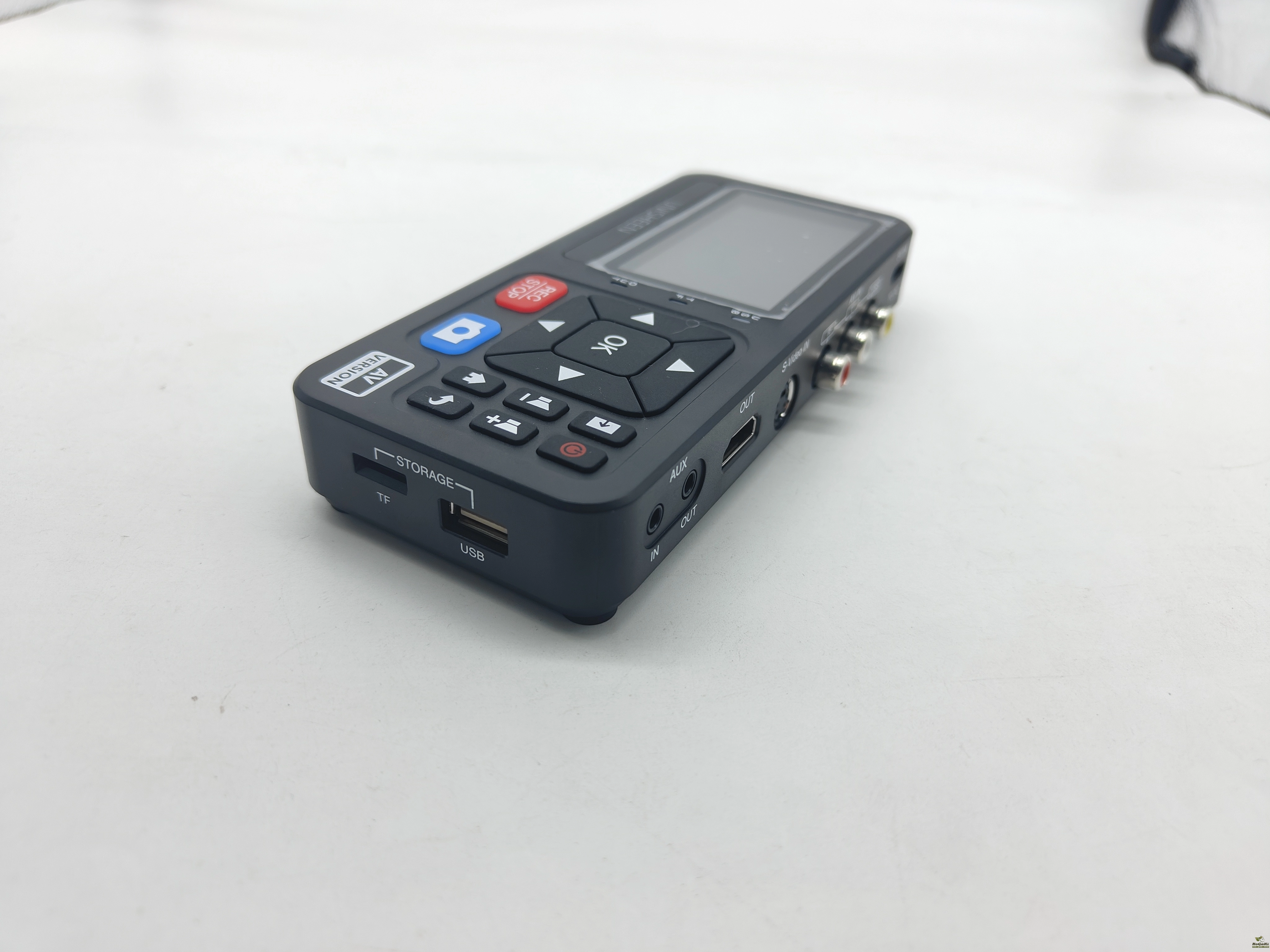

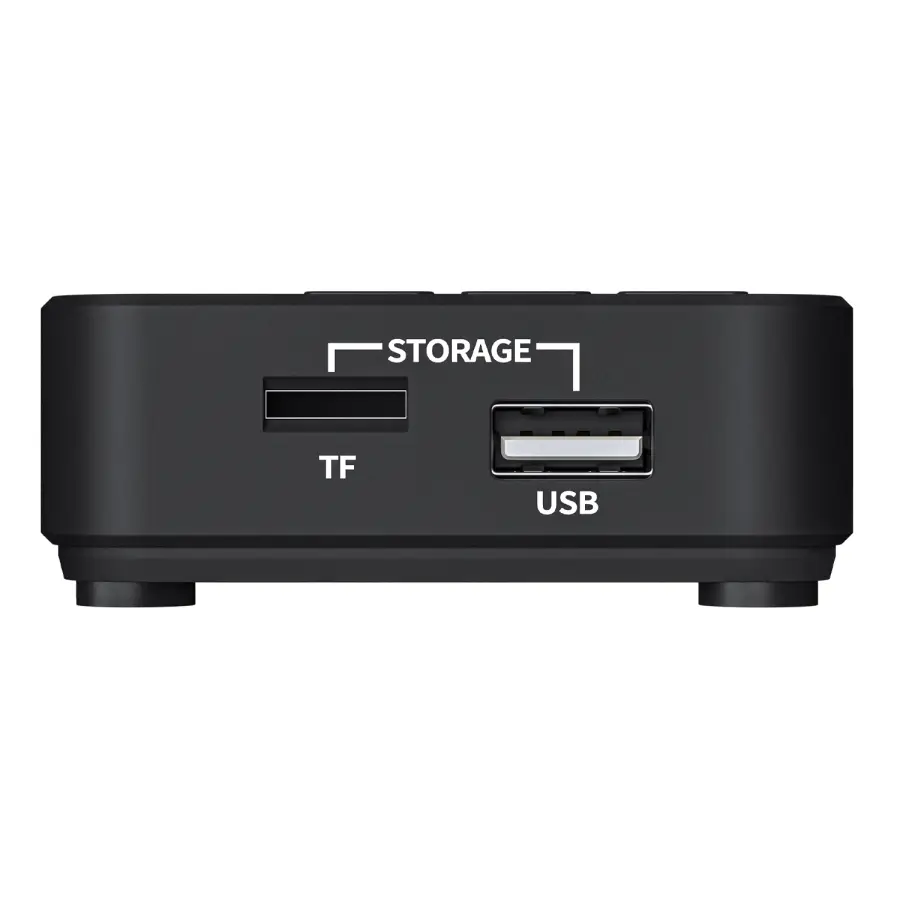

Storage Device | Flash USB Drive(up to 512G),TF(up to 512G) |
Storage File System | FAT32/exFAT/NTFS |
Record Format | MP4(H.264 Codec) |
Video Bitrate | 4/6/8MB |
Audio Bitrate | 128/196/320KB |
Size of Each File | 4G(FAT32) or 16G(NTFS/exFAT) |
Schedule Recording | Support |
Computer Mode | |
Record Resolution | 1080p/576p/480p |
Compatible UVC/UAC | Yes |
Comatible System | Win10/Mac OS/Linux |
Compatibility with 3rd application software | OBS/Xsplit/Wirecast/FLME/QuickTime/VLC/Potplayer/Skype |
Attached Software | UXplayer(separately to buy) |
General | |
Language | English/Japanese/Italian |
Dimension(W×L×H) | 158x70x25mm |
Package(W×L×H) | 186x145x78mm |
Net/Gross Weight | 0.18kg/0.6kg |
Temperature | 0-55(Work),-20-80(Storage) |
Power/Consumption | 5V DC 1.0A/3w |
Included in Package | |
UR230A | 1pcs |
RCA Cable 1.2M | 1pcs |
3.5mm Audio Cable 1.2M | 1pcs |
USB Cable 0.8M | 1pcs |
USB Power Adapter 5V1A | 1pcs |
Remote Control | 1pcs |
Manual | 1pcs |
Packaging Details
- Unit Type:
- Package Weight: 0.800
- Package Size: 15x9x28
- Brand Name: unisheen
- Hign-concerned Chemical: None
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Model Number: UR230A
- Video Input: CVBS/SVideo
- Audio Input: RCA/Line in/Mic
- Video Record Format: MP4(H.264)
- Audio Codec: AAC
- Storage Device: TF Card/USB Flash Drive
- Dimension: 220x112x22mm
- Power: DC5V1A
- included in Package: Audio Cable/USB Cable/USB Adatper
- Remoted Control: Yes
- MP3 Recorder: Support
