Tuya Smart Life EU WiFi Roller Shutter Curtain Switch for Electric Motorized Blinds with Remote Control Google Home Aelxa Echo
42.18 19.91 $
ID: 44568
Quantity
Tuya Smart Life WiFi Curtains Switch Connected Roller Shutters Control Blinds Motor Google Home Alexa Electric Window LoraTap
4.8 (200 votes) | 1434 orders
Price:
US $
100.83 -
459.42
/ piece
More To Love
LoraTap ZigBee Lithium Battery Roller Shutter Motor
LoraTap ZigBee Blind Bead Chain Motor
LoraTap ZigBee Curtain Robot Motor
Note before order
This is a Wi-Fi only Curtain Switch, it can’t work with our RF curtain remote. Please don’t buy the extra RF remote to add the remote control, they are not compatible.
- Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
- Before using App to control the shutter, please keep the wall manual switch at 'STOP' position, otherwise , the App can't work, it's to protect the motor.
- Main Chip: ESPRESSIF ESP8285 inside
APP Name: Tuya App or Smart Life App
Support : Android and IOS
NEW WiFi Smart Curtain Blind Switch Module Make your roller shutter smart
After you install this module, your wall manual switch still works, it can open , pause, or close the shutter, and also it becomes smart.
1. Mobile phone remote control open or close
2. You can set timer schedule for when to open or close your window or roller shutter
3. Voice Control with Google Home, Amazon Alexa
Hands free- Voice Control
Voice Control with Google Home, Amazon Alexa
Set Timer Schedule for your curtain
Set timer on App for when to open, when to close your curtain, it will open or close automatically.
Remote control with your mobile anywhere even you are not at home
- Group Function and Device Sharing
You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

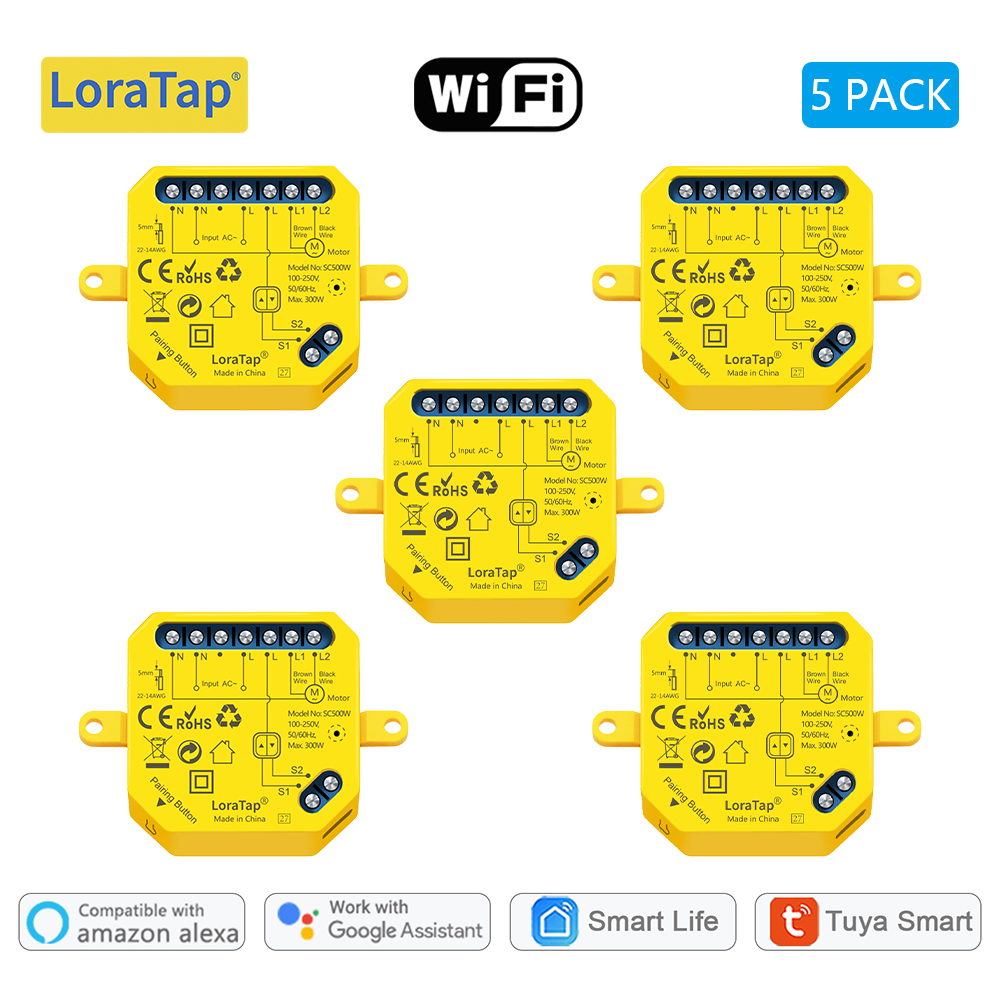

Espressif ESP8285 Chip inside
This module is with Espressif ESP8285 Chip inside, you can change the software by yourself if you need.
Compact Mini size
Tiny size design enable it can fit most junction box.
2 Wiring diagram according to your need, to connect with your manual switch or don't need a manual switch
- If you need to connect with your manual switch, please refer to below wiring diagram .
- To protect the motor, before using App to control the shutter, please keep the wall manual switch at 'STOP' position.
- If you need any help for how to connect the module, please be free to contact with seller.
- If you don't need to connect with your manual switch, please refer to below wiring diagram .
- If you need any help for how to connect the module, please be free to contact with seller.
Specification
Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz Wi-Fi)
Standby Consumption: below 0.5W
Main Chip: ESPRESSIF ESP8285
APP Name: Smart Life or Tuya
Voice Control: Google Assistant, Amazon Alexa
Plastic Material: Fireproof ABS
Certification: CE, EMC, RED, RoHS
Patented Product: Yes
Produced by ISO9001 Factory: Yes
We have all the accessories you need in the box, you don't need to pay extra cost.
What's in the box?
1 * Wi-Fi Smart Curtain Switch Module
1 * Screwdriver
3 * Cable for Wiring
1 * Double-Sided Tape
1 * English or French or Germany or Spanish User Guide
This is a WiFi Only Product. It can't work with any RF remote in our store.
Please don’t buy any extra RF remote in our store to work with this WiFi only curtain switch.
More To Love
RF + WiFi Roller Shutter Switches with 4 Channels RF Remote
12 Types Smart Life Tuya ZigBee Remote Control Scene Switch
RJ45 Wired Smart ZigBee Gateway Hub
LoraTap 2nd Generation ZigBee Mesh Roller Shutter Switch
ZigBee 3.0 Door and Window Sensor
Energy Monitor 16A WiFi Smart Plug
ZigBee Garage Door Opener Controller Kit
Smart Life Tuya ZigBee Lamp Holder LED Bulb Socket
Smart Life Tuya ZigBee 3.0 Socket Module
Smart Life Tuya 1 Gang ZigBee Switch Relay Module
Smart Life Tuya 2 Gang ZigBee Switch Relay Module
Why us?
1. We are the direct manufacturer, competitive price and good quality, we have ISO9001 certified
2. We are popular top brand.
- Wattage: 300W
- is_customized: Yes
- Voltage: 110-240V
- Model Number: SC500W-V2
- Brand Name: LoraTap
- Origin: Mainland China
- Certification: CE,RoHS
- WiFi Smart Curtain Switch: DIY Smart Home
- Works for: Smart blinds, Smart Curtain, Roller Blinds, Shutter
- Certification: CE, Rohs, FCC
- Voice Control: Google Home, Amazon Alexa, Yandex Alice
- App Name: Tuya , Smart Life
- Wireless Protocol: Wi-Fi 2.4Ghz
- Works with: Blinds Shutter with electric motor
- Switch type: Switch Module
- Support System: Both Android & iOS
- Compatible with: AC electic motor with 4 wires
- connect with: Tubular motor, electric blind motor
- Dimensions: 48mm*47mm*22mm
- Timer: App Timer schedule
- Remote Control: App Remote Control
- Manual Switch: Toggle, Rocker type
- Control Method 1: Wall Switch Control
- Control Method 2: App Control
- Control Method 3: Voice Control
- Main Chip inside: ESPRESSIF ESP8285
