TUF-2000M Water Flow Meter TS-2(DN15~DN100) TM-1 TL-1-HT(-30~160℃) High-Tem Ultrasonic Module Sensor Digital Liquid Flowmeter
4.7 (3 votes) | 62 orders
Price:
US $266.36 - 540.81
/ piece
Discount Price:
US $
263.70 -
535.41
/ piece
-1%
- Color
-
-
TUF-2000M Flow Meter TS-2(DN15~DN100mm) TM-1(DN50~DN700mm) TS-2-HT(-30~160℃) High-tem Ultrasonic Module Sensor Digital Flowmeter
Main Features:
1.High accuracy
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than 1%
2.Wide measuring range
Several types transducer for selection, pipe size from DN15mm to DN6000mm
3.Far transmission distance
Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m
4.Powerful Functions
Current output: 4-20mA, one channel, can be used for flow/heat transmitter;
OCT output: two channels, can be used for flow /heat switch;
Current input: 4-20mA, three channels, can be used for data collector;
Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter.
5.Wide Application
Its unique features, particularly low cost, small size, high performance, local display, make it the ideal choice for industrial automation, processing control, flow meter networking, composing multi-channel, high accuracy flow meter.

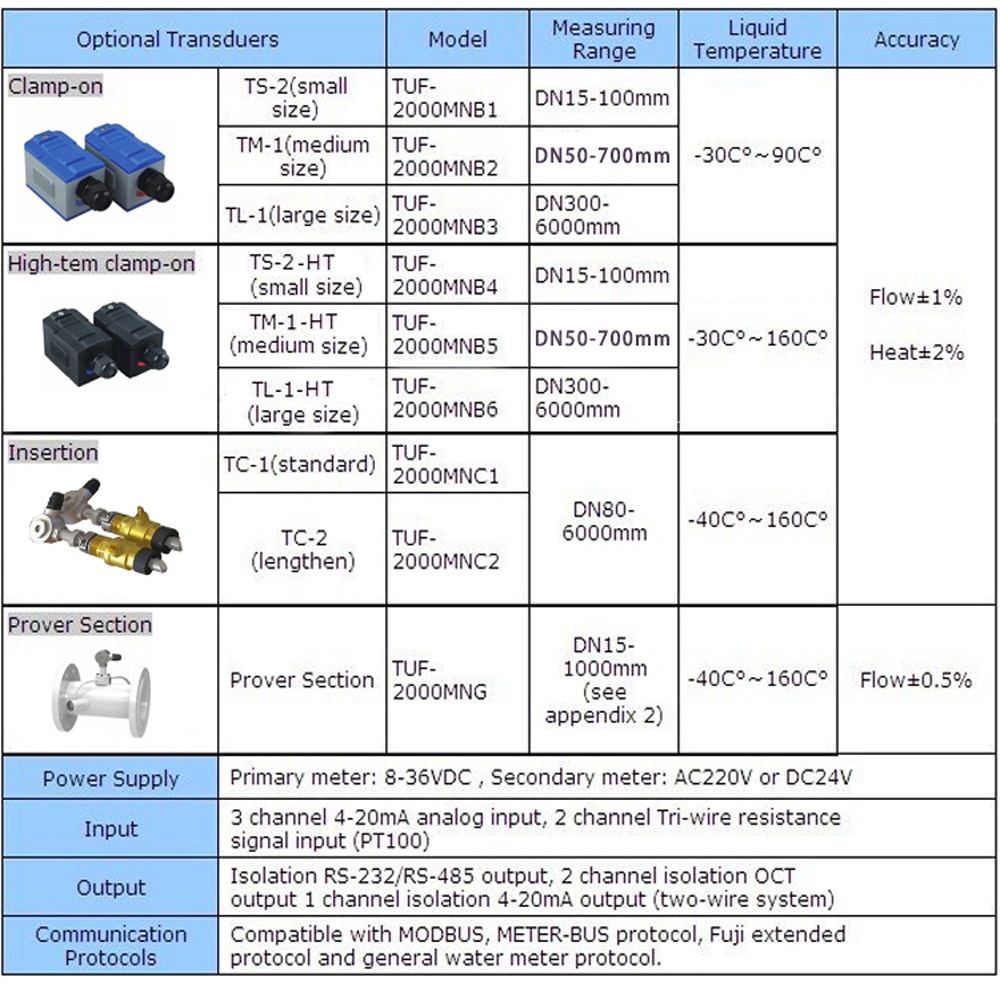

General Specification:

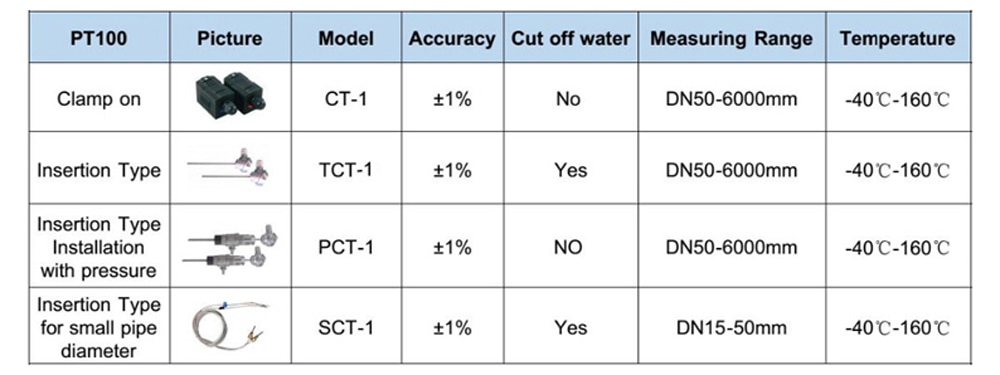

Optional temperature transducers PT100:

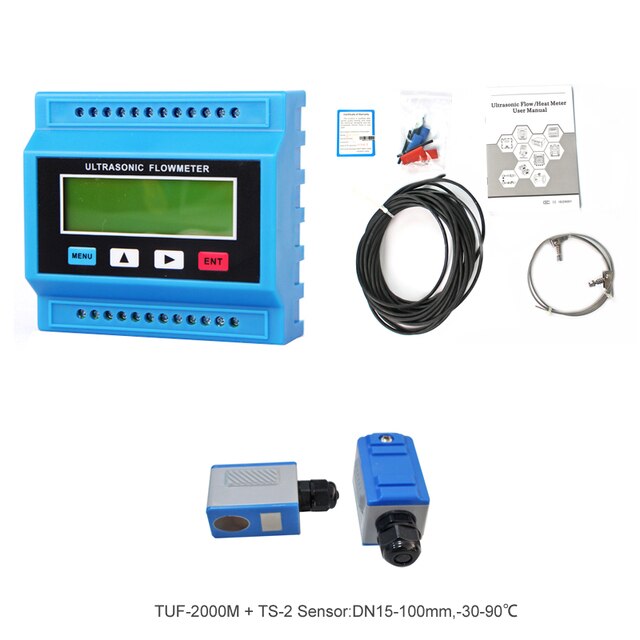

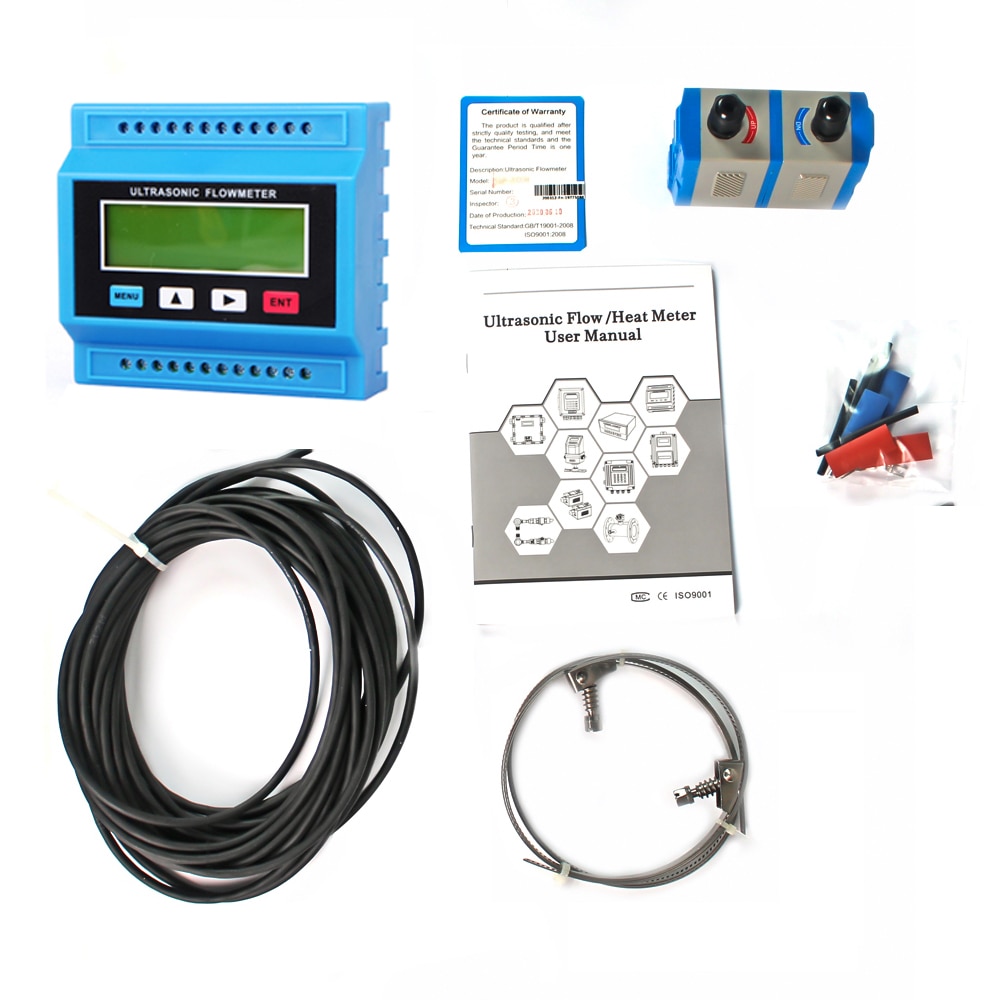

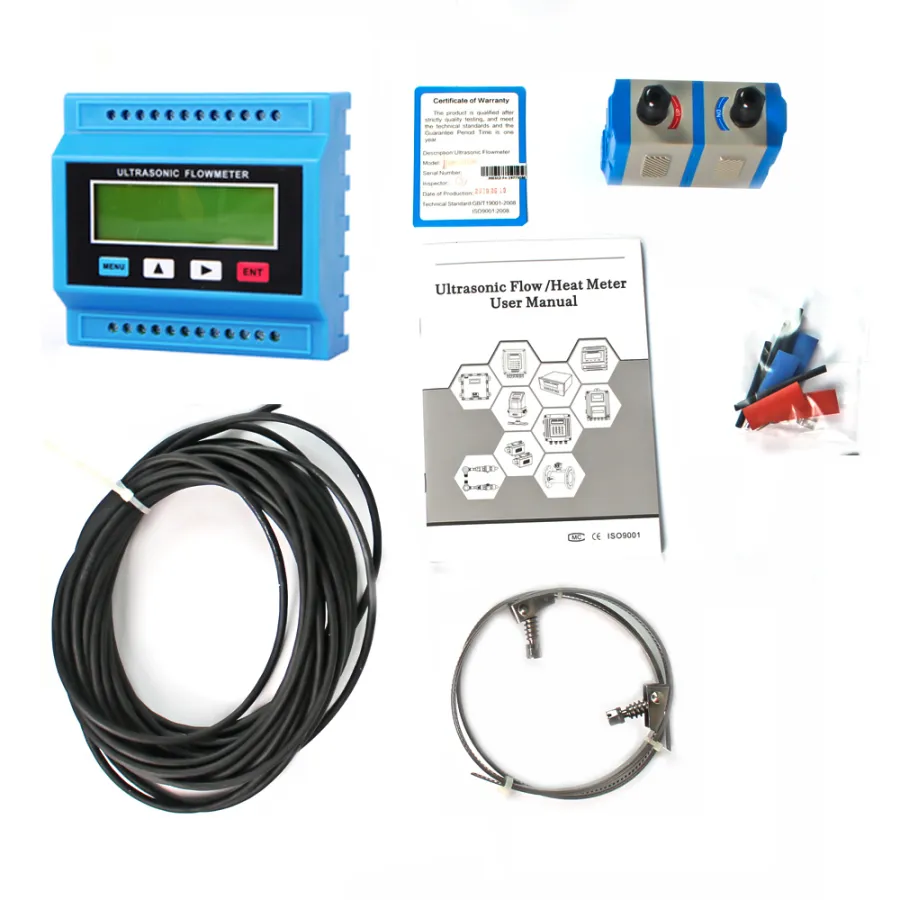

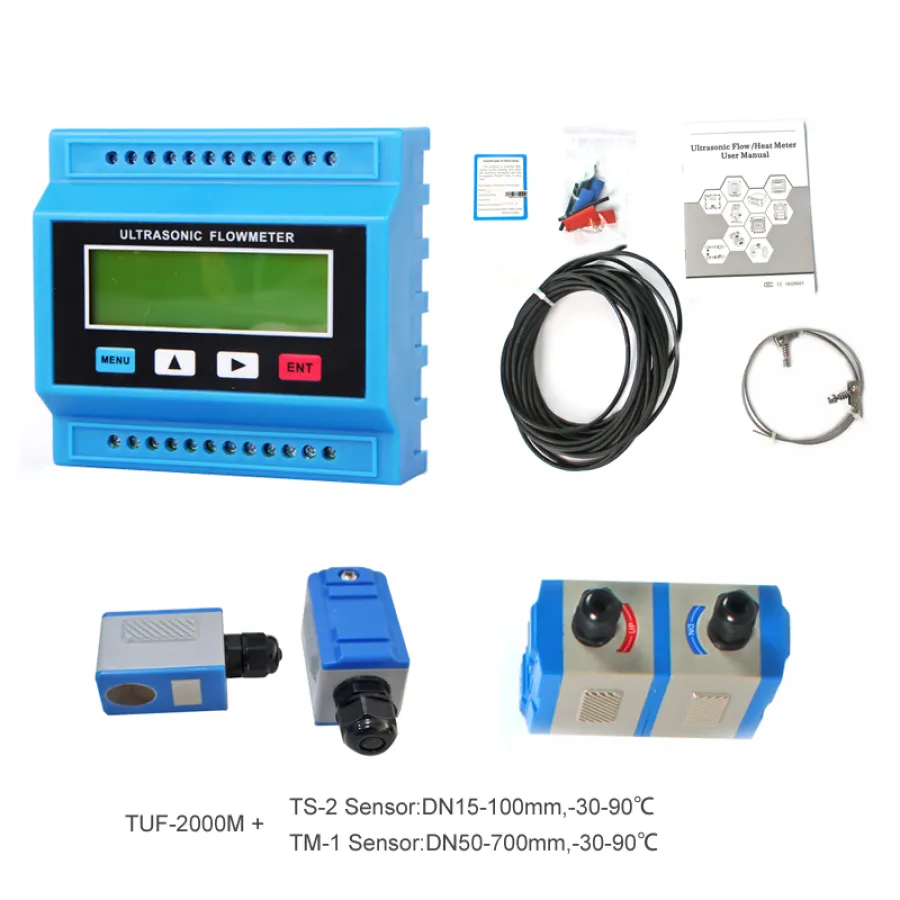

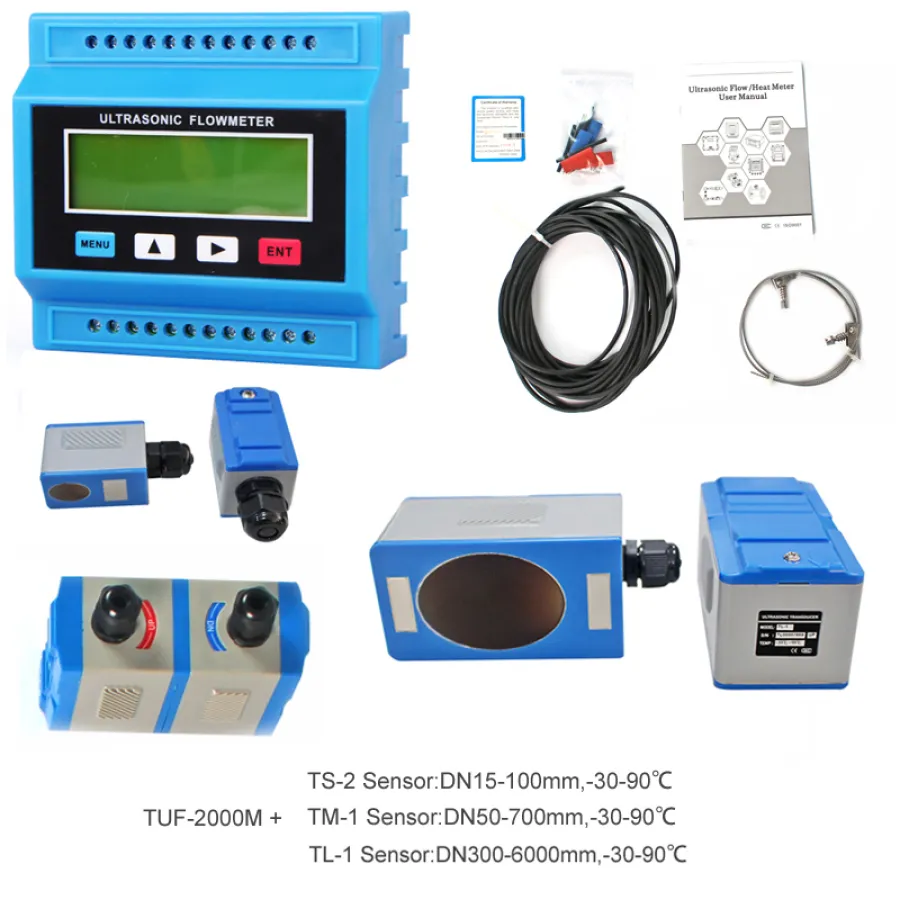

Standard Packing List:
TUF-2000M host 1 piece
Transducer 1 pair (Please select the appropriate one according to your pipe diameter and medium temperature)
Clamp Fixture 1 set
Thermoplastic tube 1 set
5m Transducer Cable 1 pair
English User Manual 1 piece

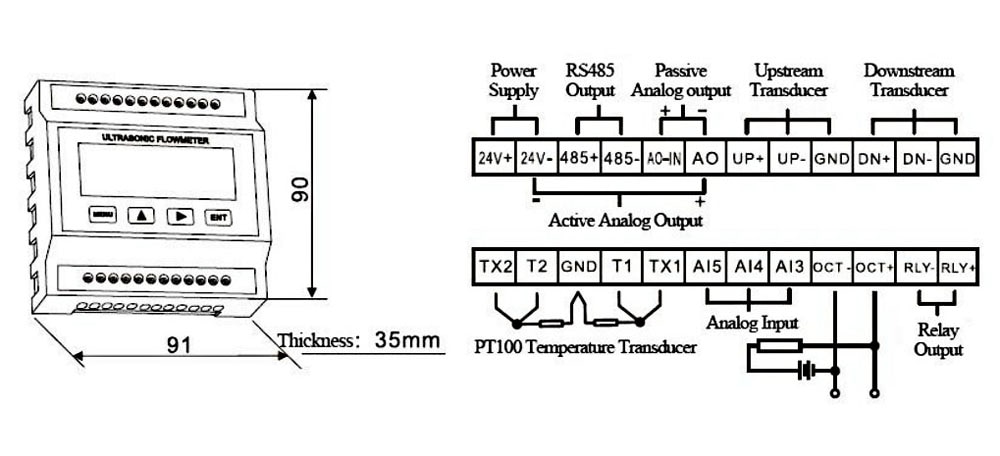

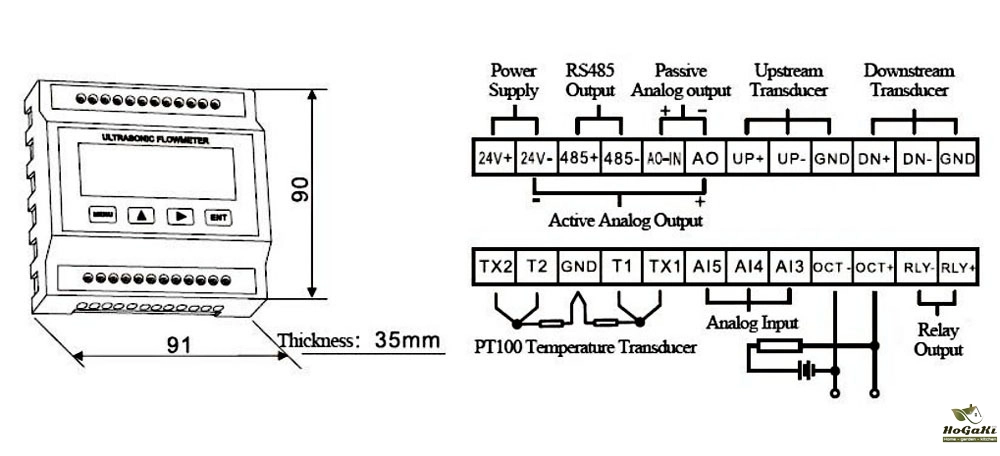

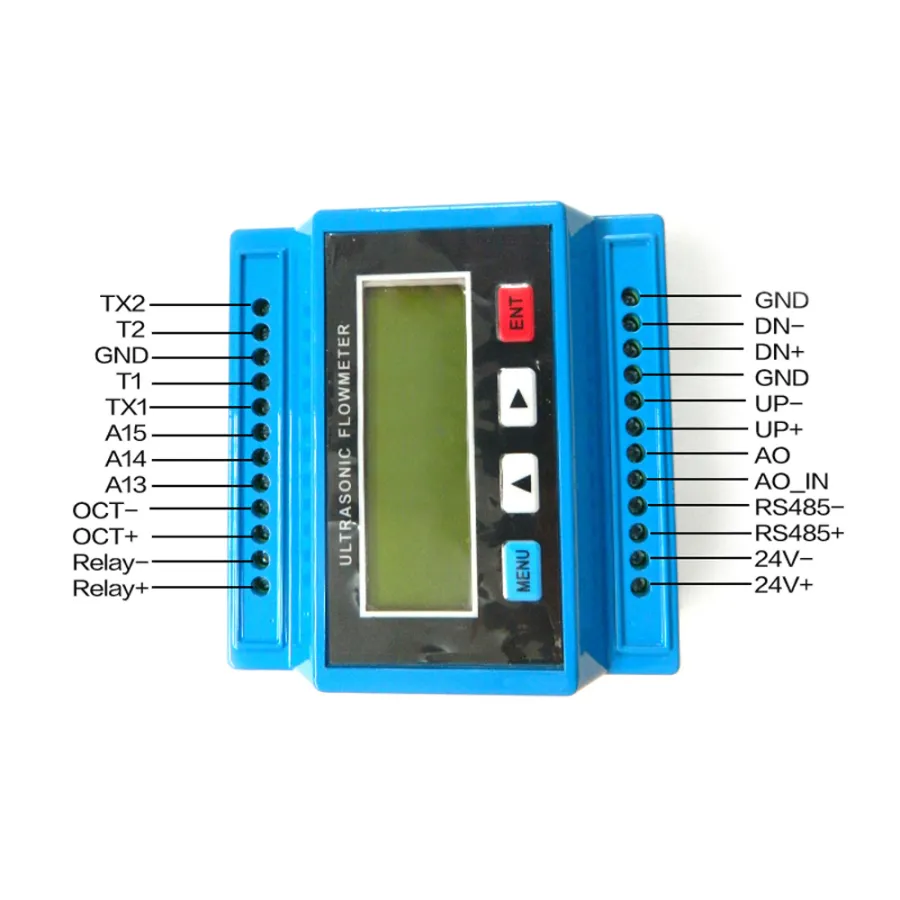

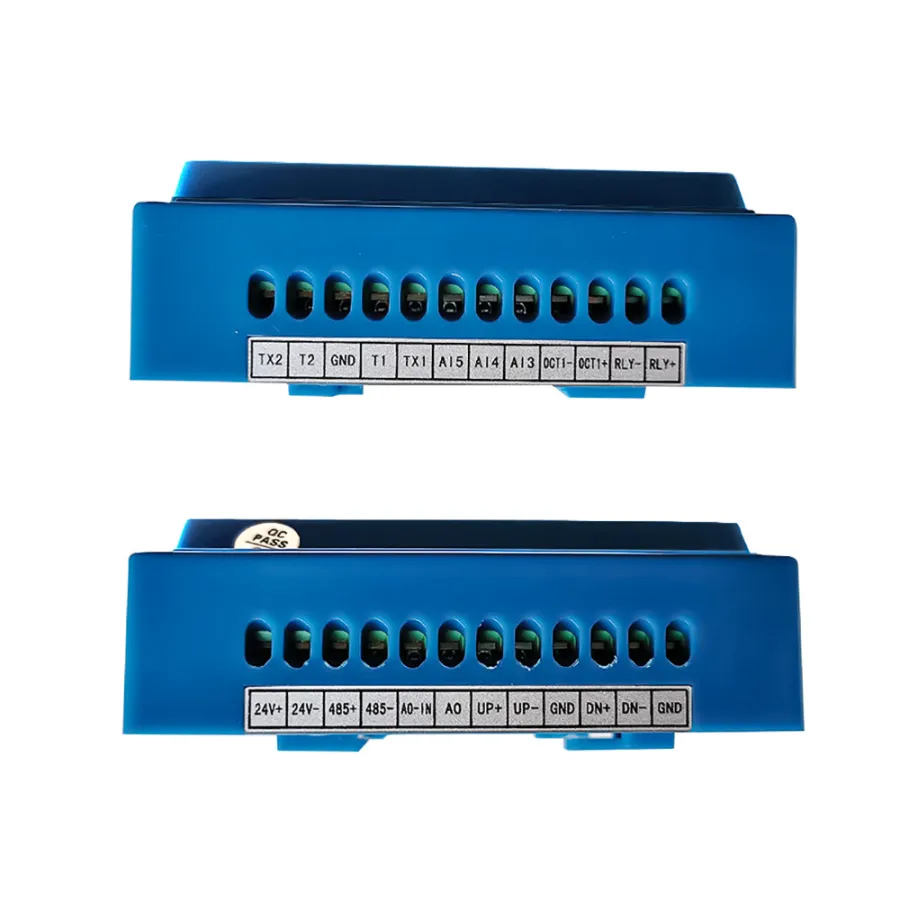

Wiring Diagram:
Notes:

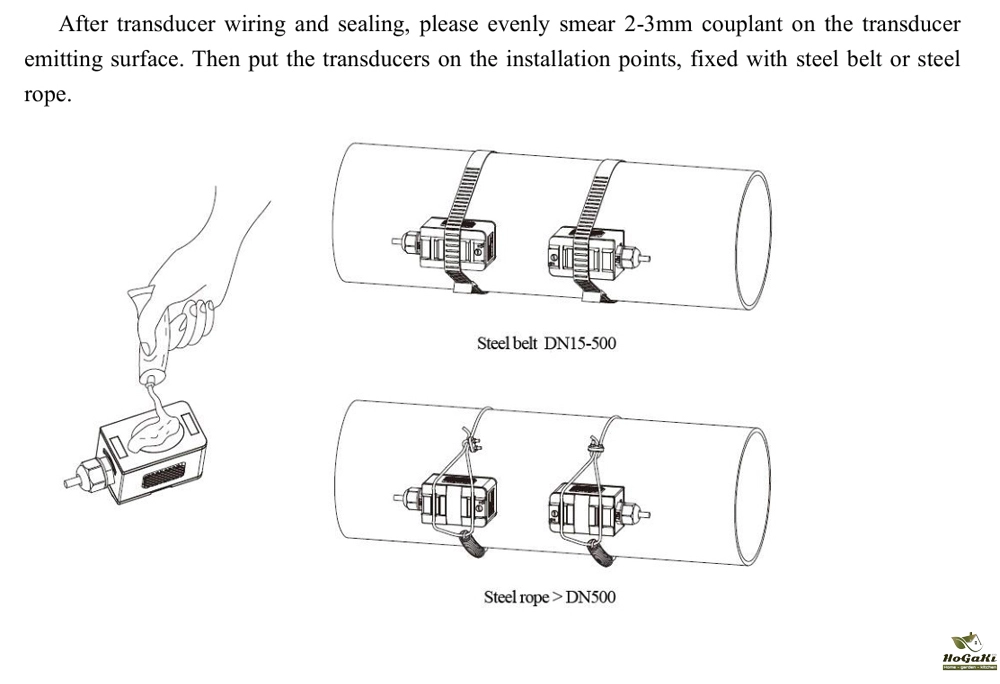

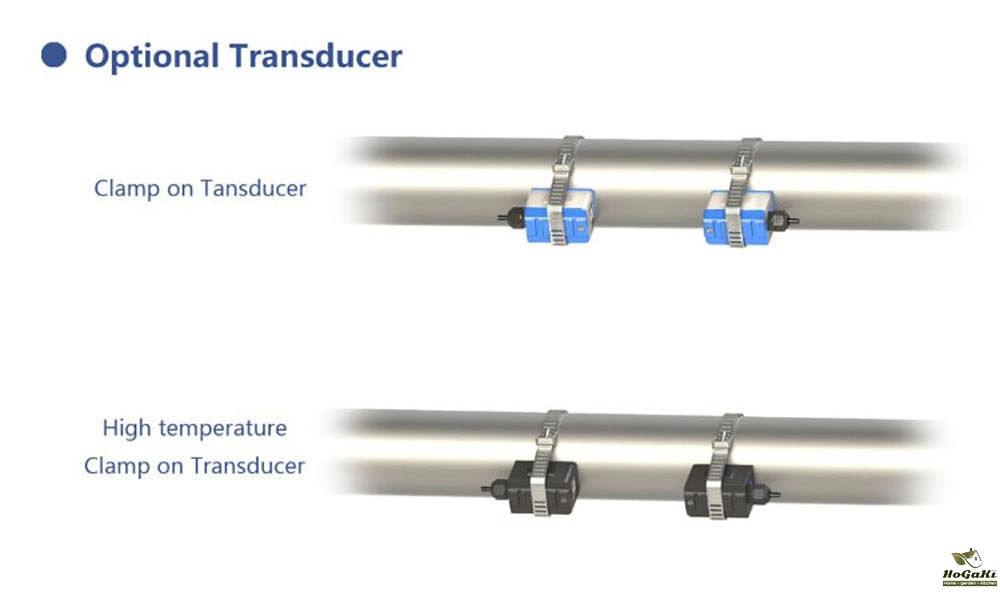

You need to apply the coupling agent on the contact surface of the transducer and the pipeline, as shown in the figure:
Because the coupling agent is a colloid. We cannot send it to you through logistics.
Hope you can understand! Thanks!
- Coupling Type: join
- Measurement Range: 0-10m/s
- Model Number: TUF-2000M
- DIY Supplies: Plumbing
- Brand Name: MANDUOLADZ
- Origin: Mainland China
- Certification: NONE

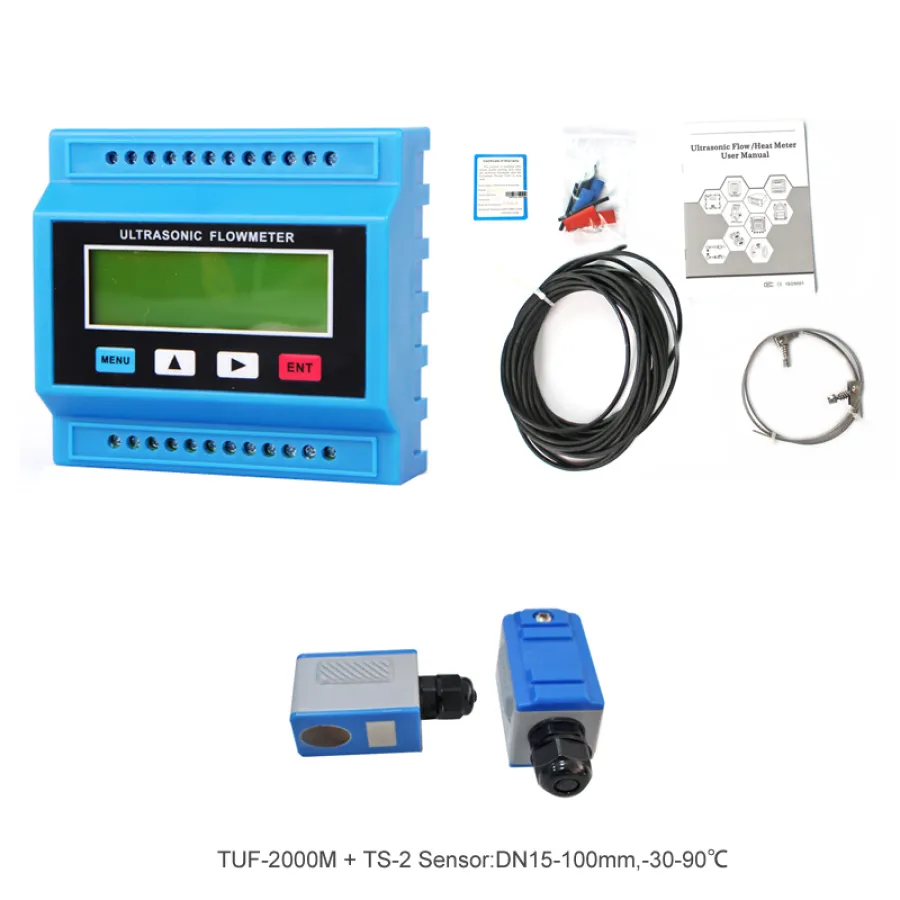

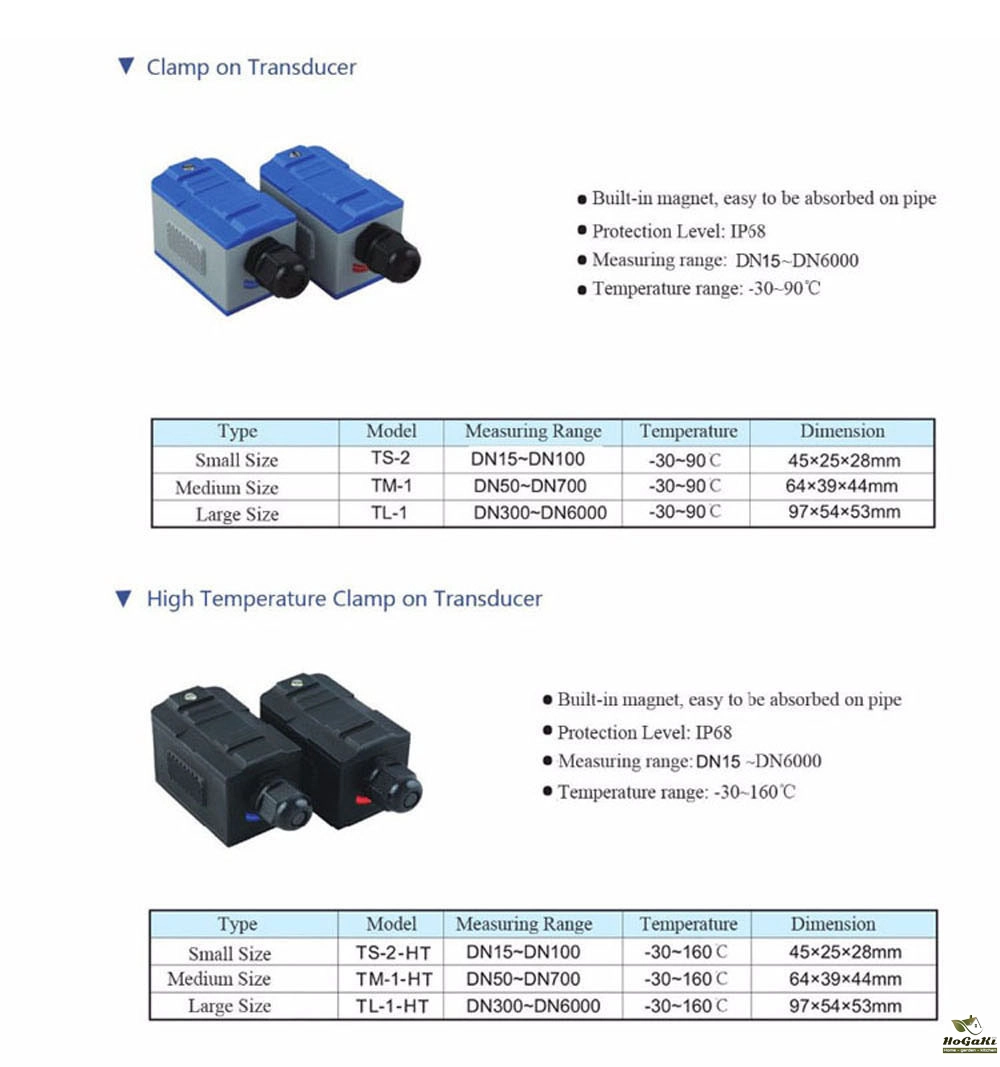

- TS-2 sensor: DN15~DN100mm,-30~90℃

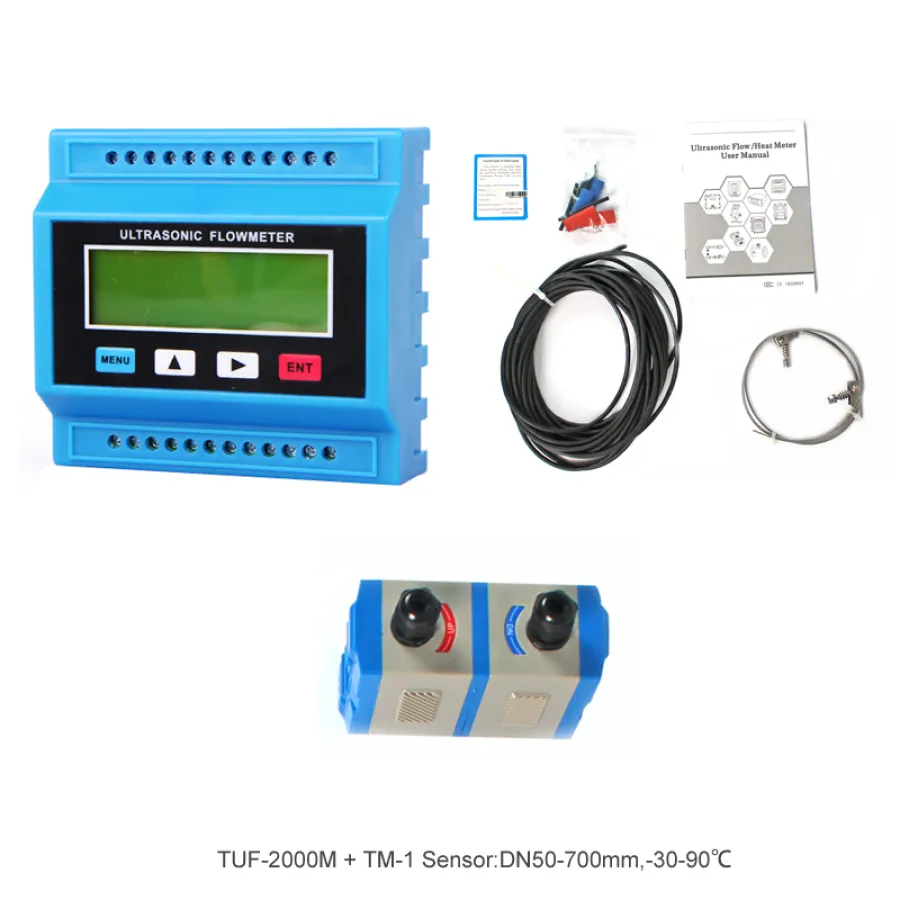

- TM-1 sensor: DN50~DN700mm,-30~90℃

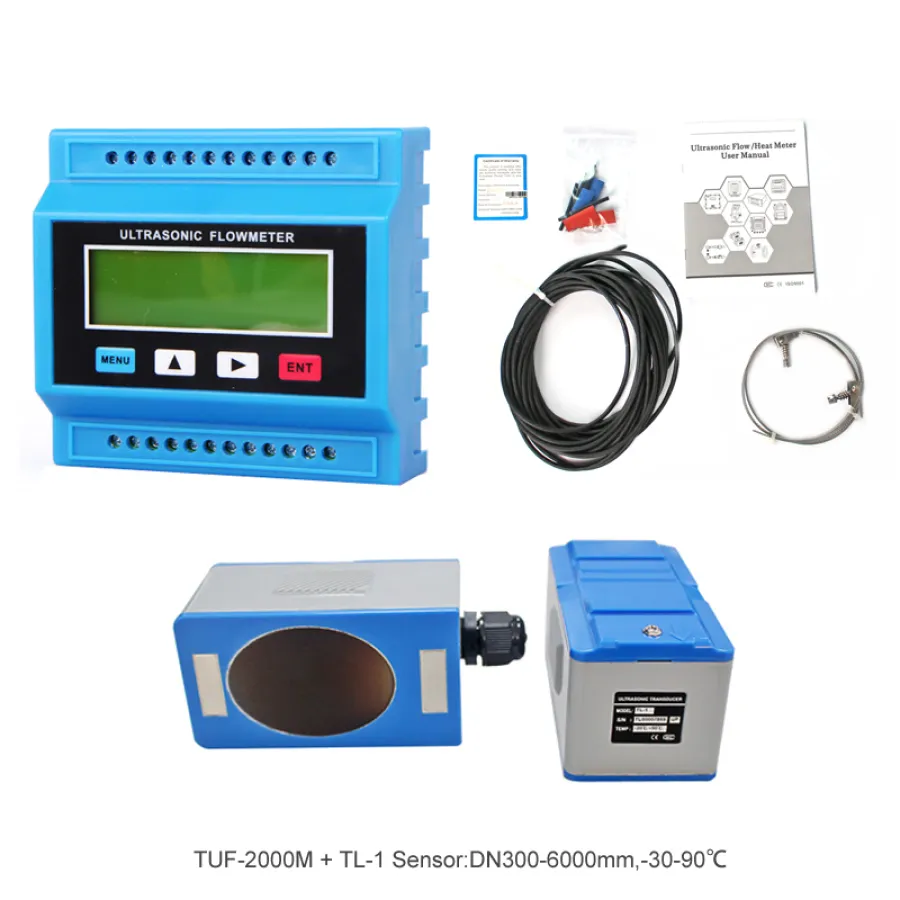

- TL-1 sensor: DN300~DN6000mm,-30~90℃

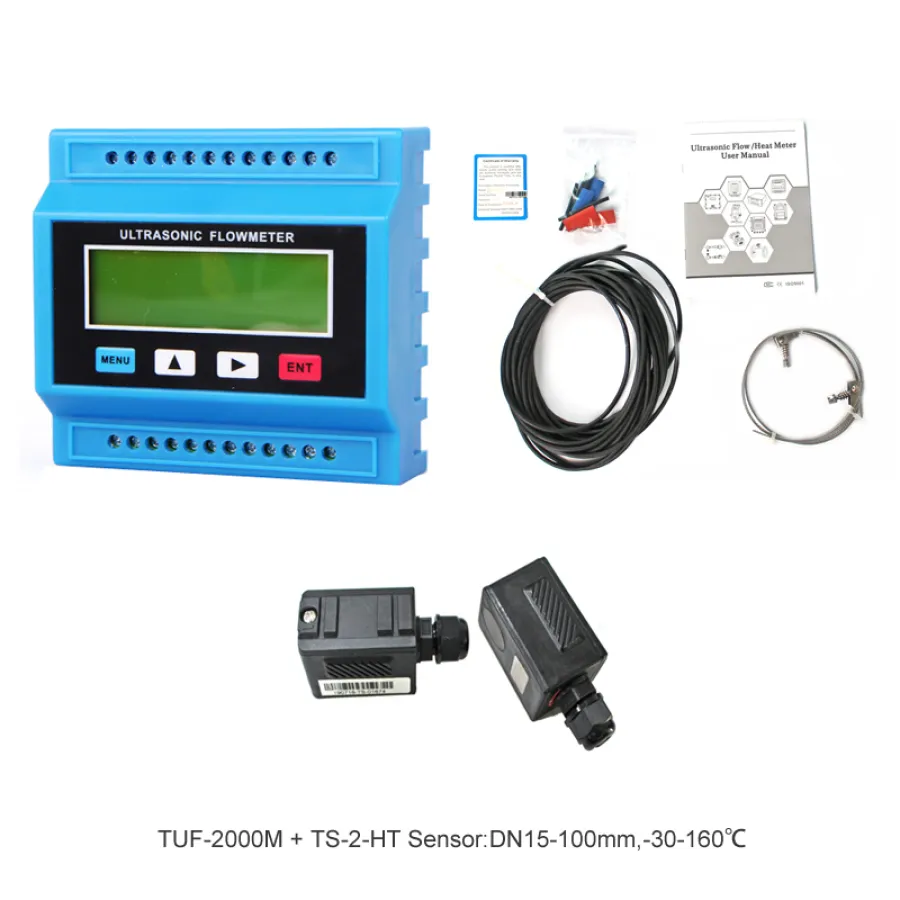

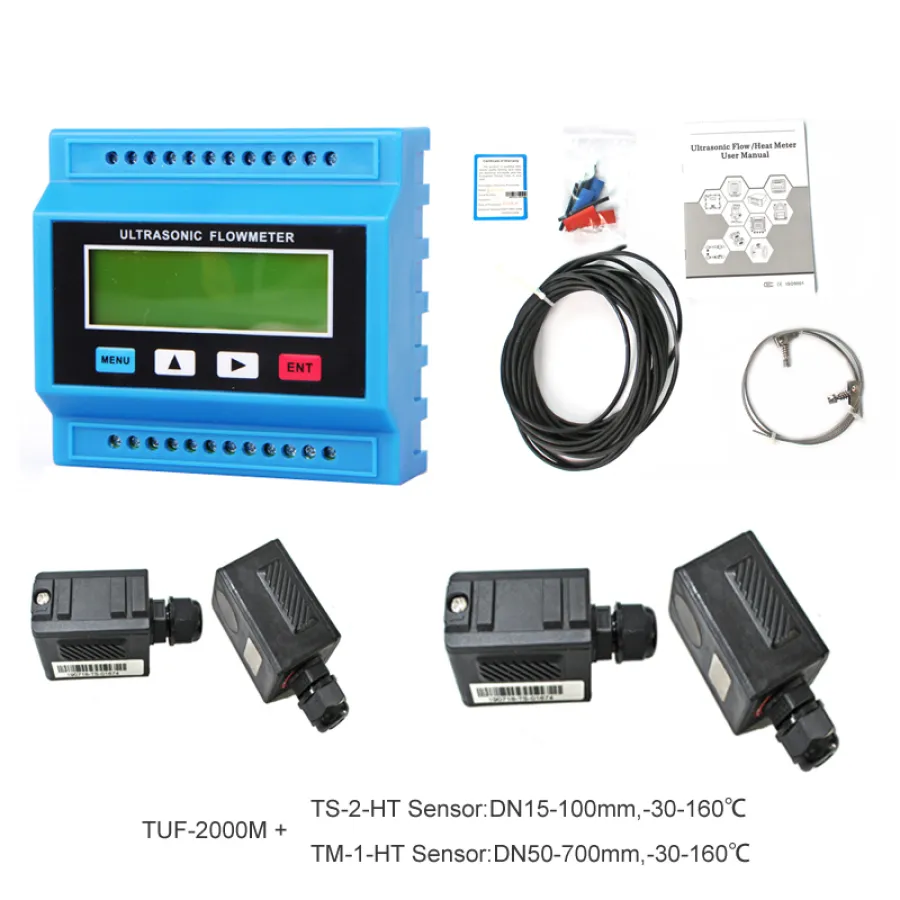

- TS-2-HT sensor(High-tem): DN15~DN100mm,-30~160℃

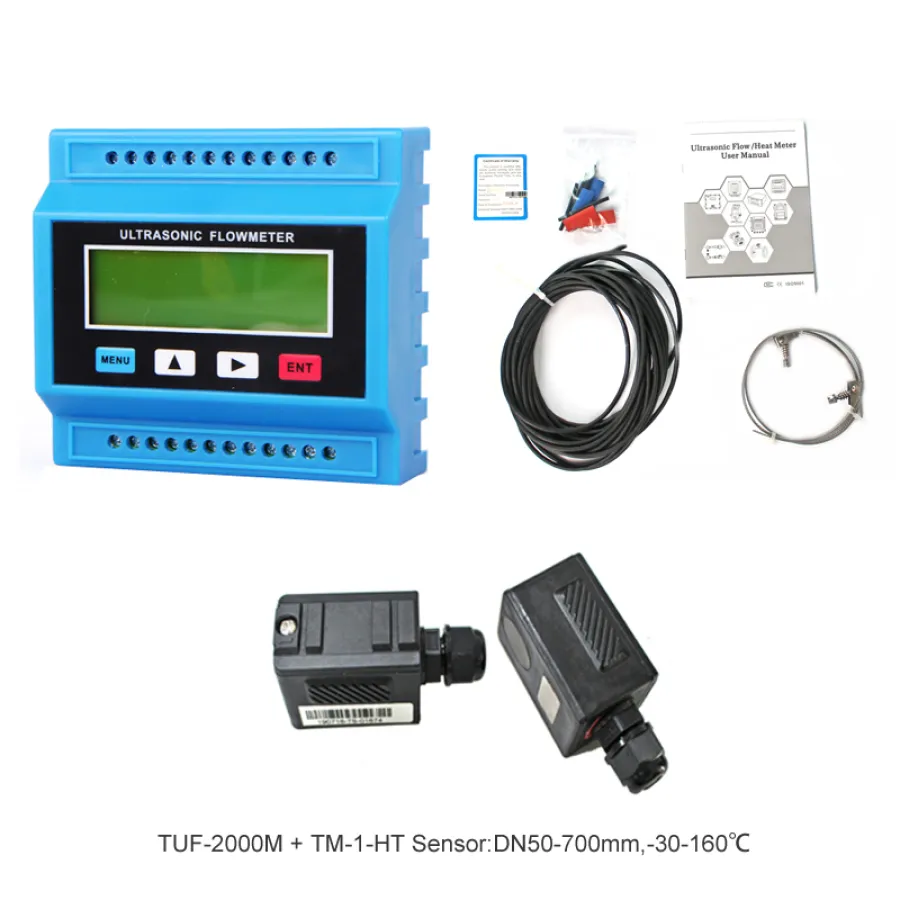

- TM-1-HT sensor(High-tem): DN50~DN700mm,-30~160℃

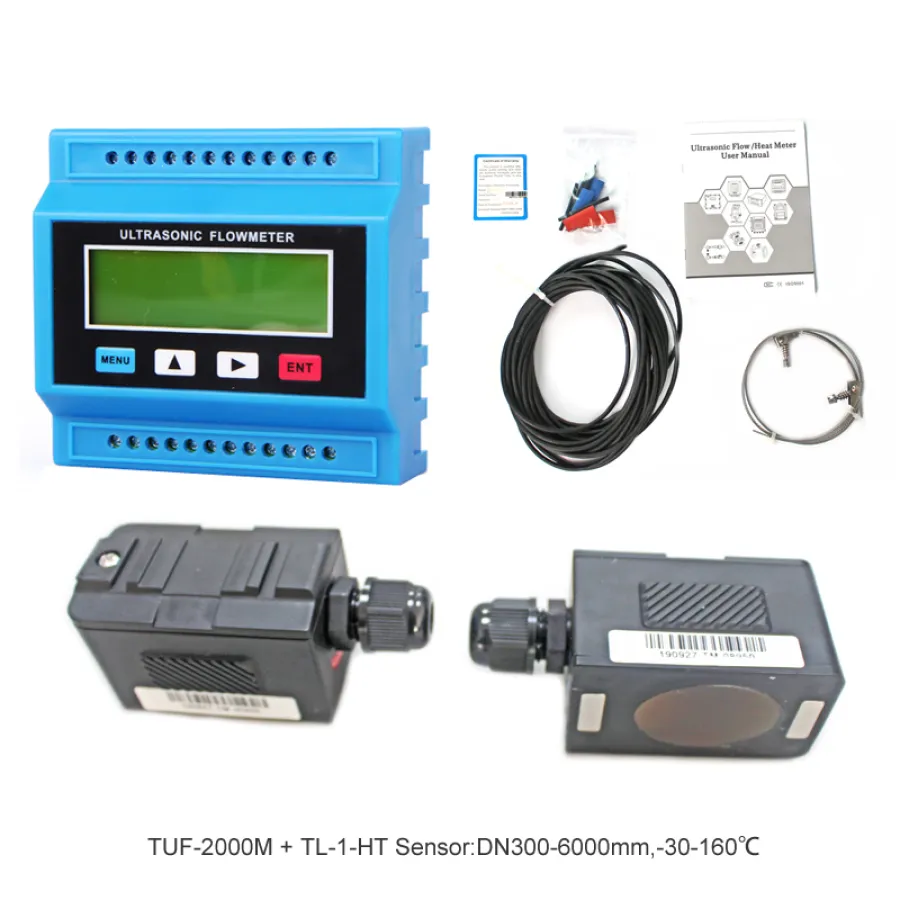

- TL-1-HT sensor(High-tem): DN300~DN6000mm,-30~160℃

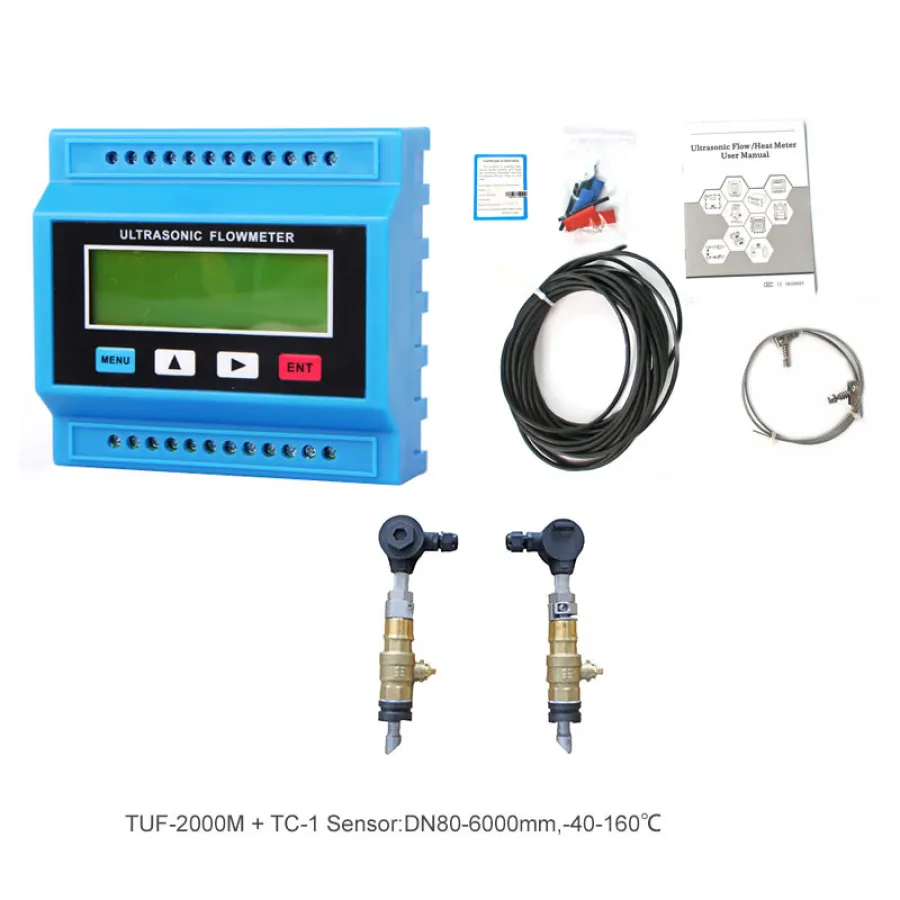

- TC-1 sensor(Insertion): DN80~DN6000mm,-40~160℃
