TQESC2-80A single plate dry electromagnetic clutch 4kw motor clutch 80N.m type A clutch
0.0 ( votes)
Price:
US $
716.56
- Color

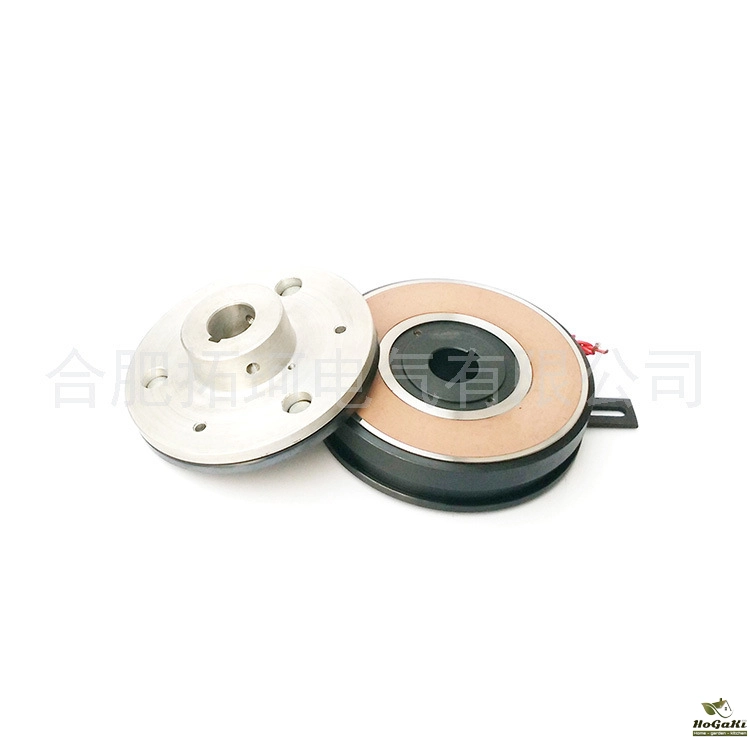

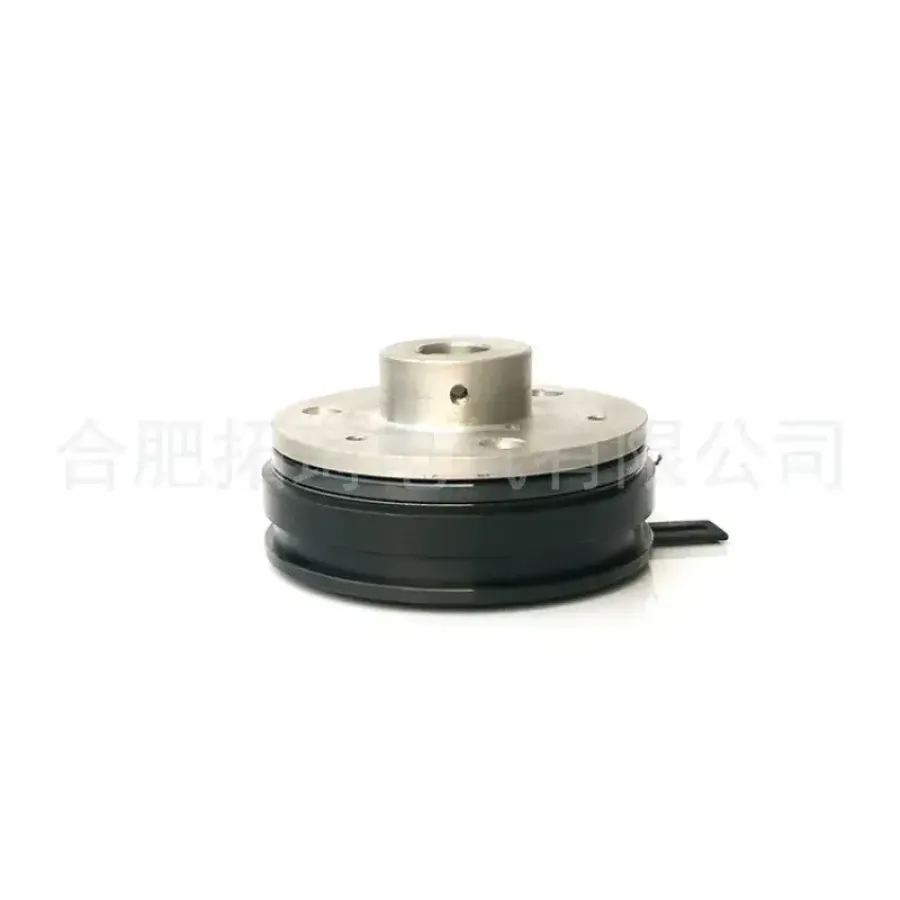

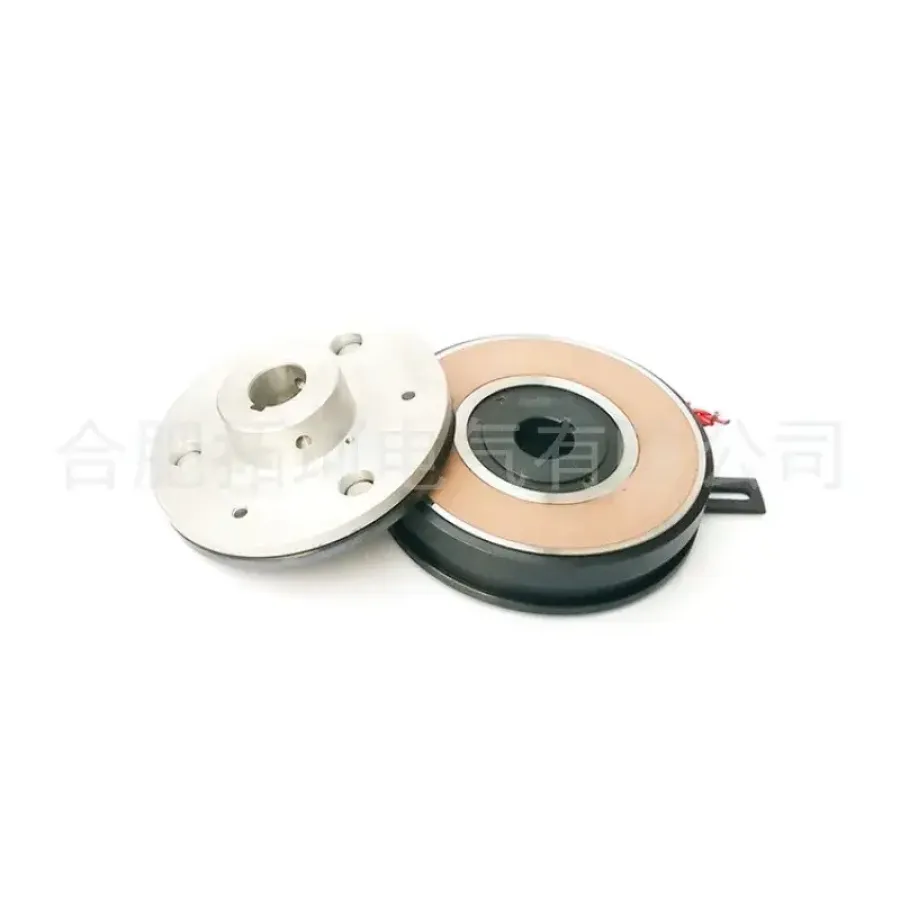

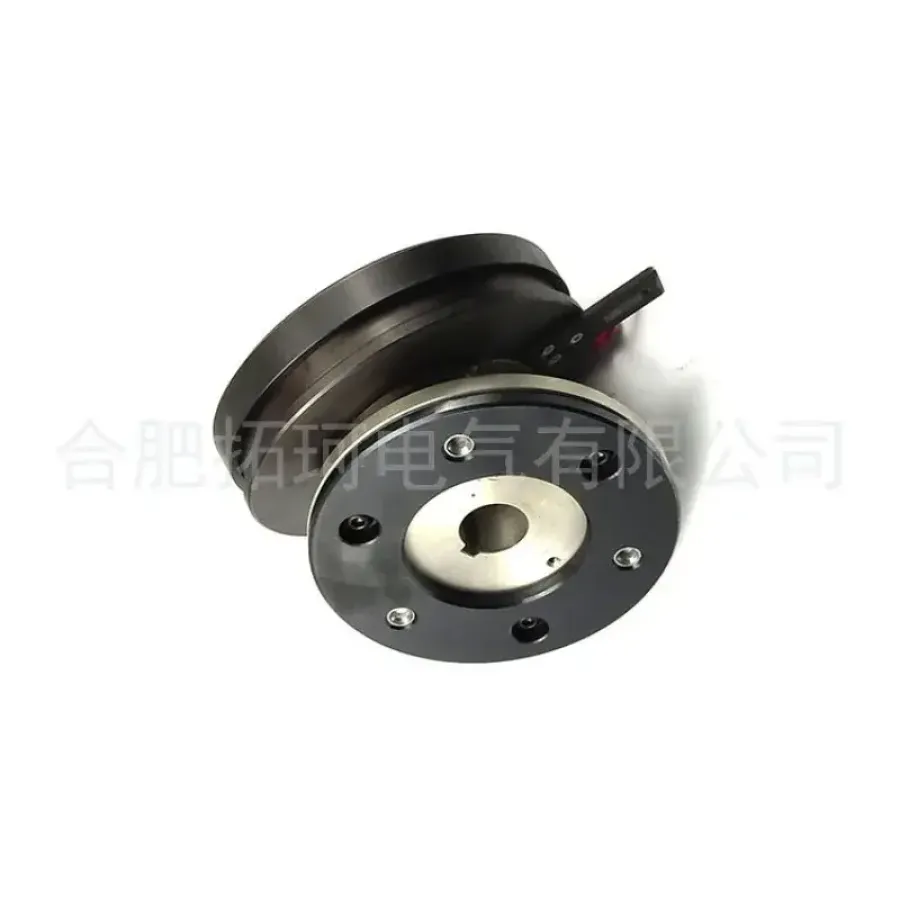

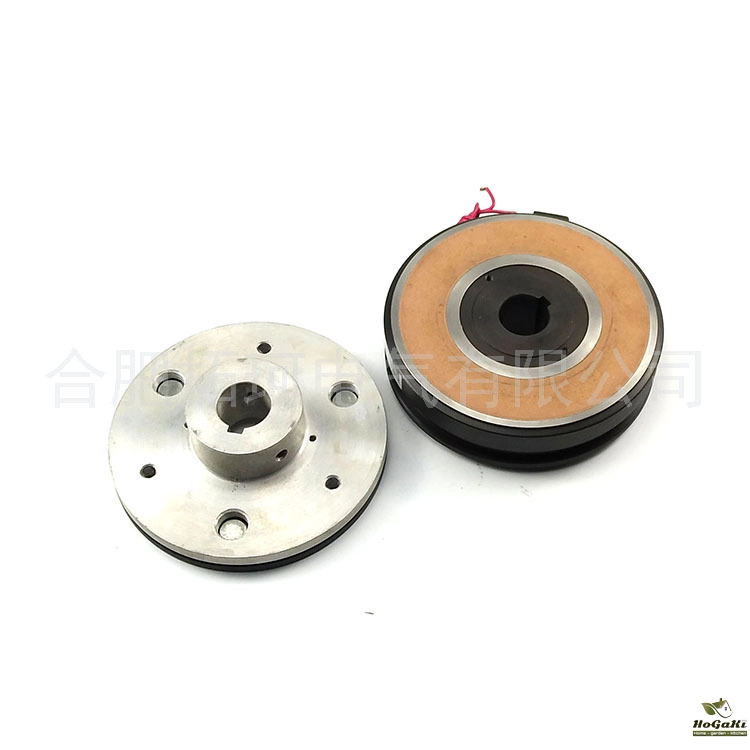

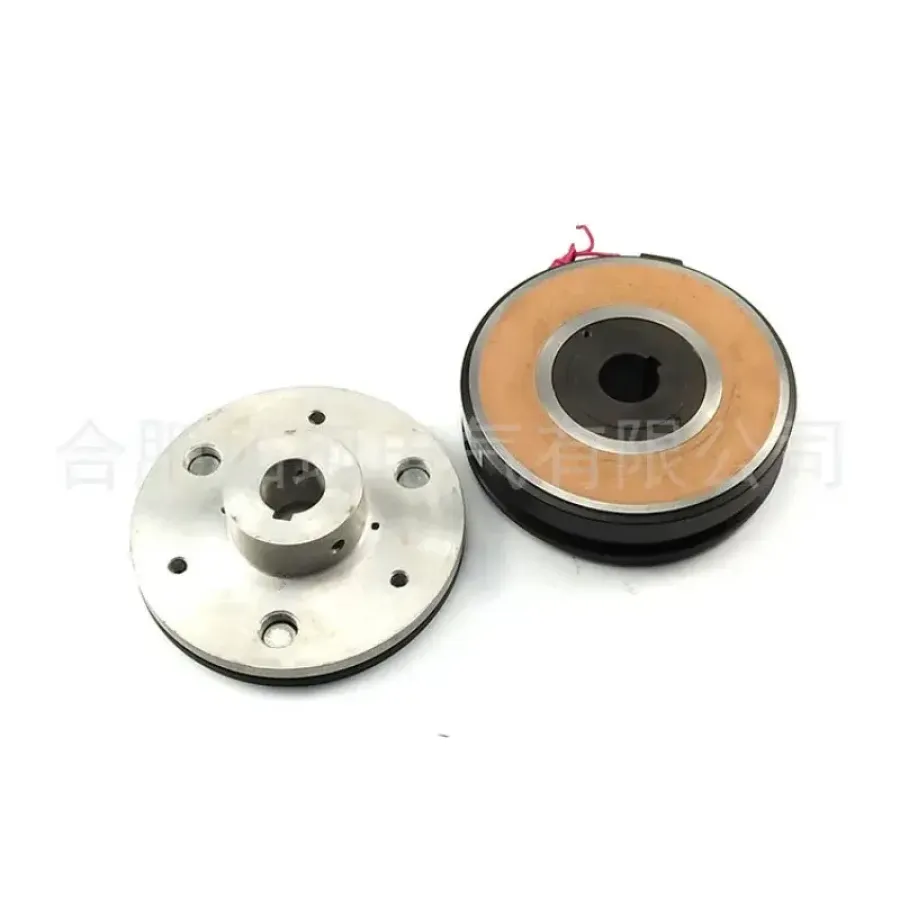

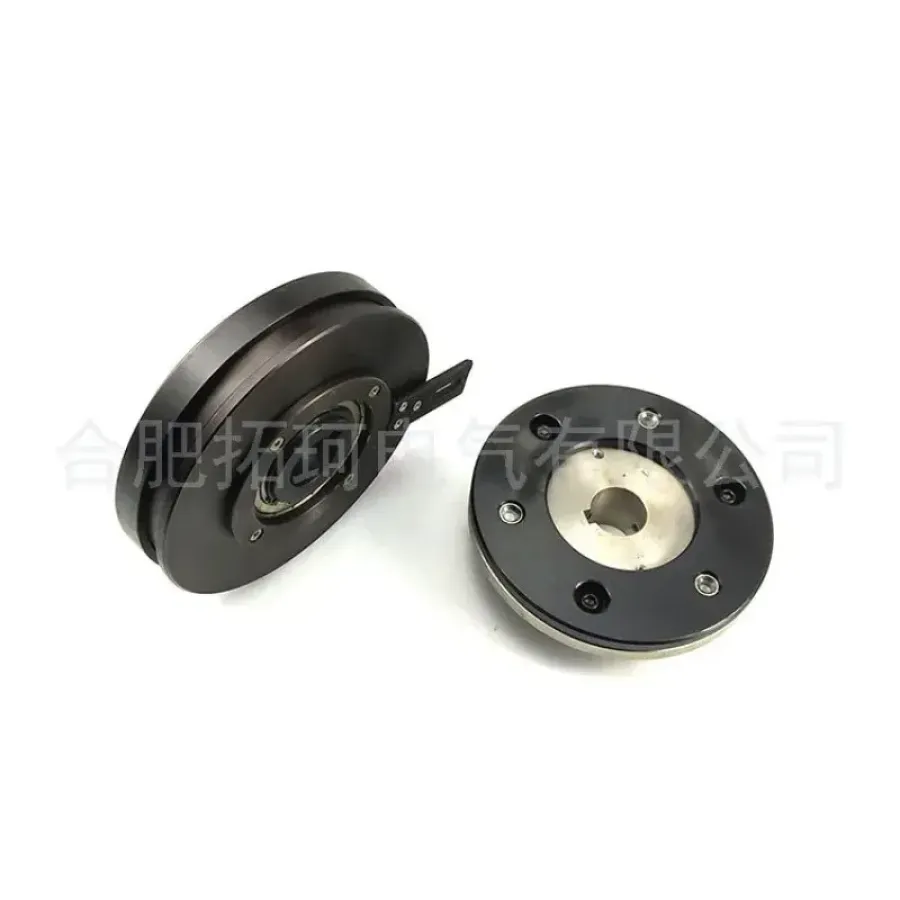

TQESC2-80A single plate dry electromagnetic clutch 4kw motor clutch 80N.m type A clutch
Outer diameter 169/height 92mm/shaft diameter 30mm
Voltage 24VDC&other voltage can be customized.
Size and voltage can be customized,If you have any question,please let us know.
Outer diameter 169/height 92mm/shaft diameter 30mm
Voltage 24VDC&other voltage can be customized.
Size and voltage can be customized,If you have any question,please let us know.

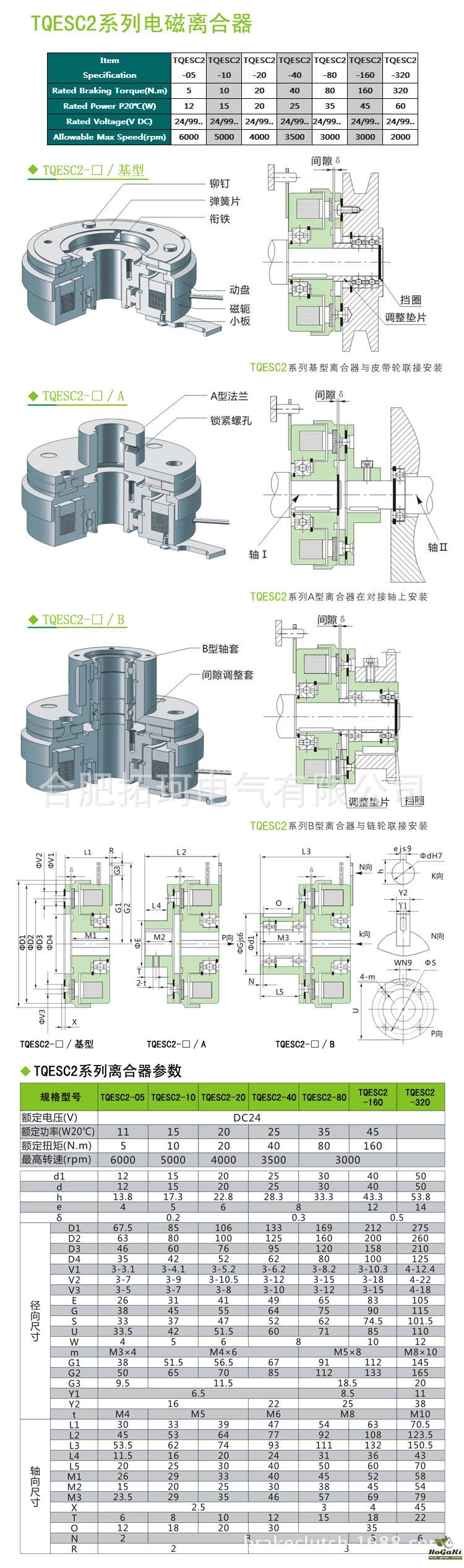

| Model TQESC2-05 |
Outer diameter 67/shaft diameter 12 |
Model TQESC2-05A |
Outer diameter 67/shaft diameter 12 |
||
| Model TQESC2-05B |
Outer diameter 67/shaft diameter 12 |
Model TQESC2-10 |
Outer diameter 85/shaft diameter 15 |
||
| Model TQESC2-10A |
Outer diameter 85/shaft diameter 15 |
Model TQESC2-10B |
Outer diameter 85/shaft diameter 15 |
||
| Model TQESC2-20 |
Outer diameter 106/shaft diameter 20 |
Model TQESC2-20A |
Outer diameter 106/shaft diameter 20 |
||
| Model TQESC2-20B |
Outer diameter 106/shaft diameter 20 |
Model TQESC2-40 |
Outer diameter 133/shaft diameter 25mm |
||
| Model TQESC2-40A |
Outer diameter 133/shaft diameter 25mm |
Model TQESC2-40B |
Outer diameter 133/shaft diameter 25mm |
||
| Model TQESC2-80 |
Outer diameter 169/shaft diameter 30mm |
Model TQESC2-80A |
Outer diameter 169/shaft diameter 30mm |
||
| Model TQESC2-80B |
Outer diameter 169/shaft diameter 30mm |
Model TQESC2-160 |
Outer Diameter 210/Shaft Diameter 40mm |
||
| Model TQESC2-160A |
Outer Diameter 212/Shaft Diameter 40mm |
Model TQESC2-160B |
Outer diameter 212/shaft diameter 40mm |
||
| Model TQESC2-320 |
Outer diameter 275/shaft diameter 50mm |
Model TQESC2-320A |
Outer diameter 275/shaft diameter 50mm |
||
| Model TQESC2-320B |
Outer diameter 275/shaft diameter 50mm |
Coil yoke armature accessories, etc |
|
purpose
The dry single-plate electromagnetic clutch is mainly composed of a yoke, an armature, a spring plate, a rotor, a flange, etc. The magnetic yoke coil is energized to generate a magnetic field to attract the armature to generate friction torque to combine or brake the driven part, and a special shaped spring plate is used to reset. The product has a simple product structure with short braking delay time and large braking torque. It is suitable for occasions where timing bonding or brake positioning requirements are required in mechanical transmission systems, such as precision machine tools. Clutch and positioning in transmission systems such as printing machinery, packaging machinery, experimental equipment and office machinery.
conditions of use
This series of clutches can operate reliably under the following conditions
1. Work in dry conditions;
2. In the surrounding medium, there is no risk of explosion and no gas or conductive dust that can corrode metals and damage insulation.
3. The working environment temperature is -40~ + 150 ° C, and there must be no oil stains on the surface of the friction plate and armature, and it must be kept clean.
4. The insulation class is Class B, the protection class is IP23, and the voltage fluctuation range does not exceed + 5% and -15%.
5. The working air gap shall not exceed the maximum working air gap. The main and driven sides of the brake shall be fixed and no axial movement shall be allowed.
6. Installation method: axial horizontal installation, axial vertical installation, installation of the clutch must ensure that the coaxial is not greater than 0.1mm.
7. Working mode: intermittent work, continuous work.
Packaging Details
- Unit Type:
- Package Weight: 6.500
- Package Size: 23x6x23
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Certification: CE
- Certification: RoHS
- Voltage: 24VDC&other voltage
- Model Number: TQESC2-80A
- torque: 80N*M
- weight: 6.5kg
- brand: TORQ
- rotational speed: 3000rpm
- material: Iron, friction material, copper wire
- Model: TQESC2-80A
- Specifications: 169mm*54mm
- Scope of application: Packaging , textile, printing , machining machinery, food machinery
- Outer diameter: 169mm
- Shaft bore: 30mm
- height: 92mm
