Thin High Precision 0.005mm Slim Linear Scale TTL 50 100 150 200 250 300 350 400mm 20x28mm Small Encoder Grating Ruler Sensor
ID: 153365

Thin High Precision 0.005mm Slim Linear Scale TTL 50 100 150 200 250 300 350 400mm 20x28mm Small Encoder Grating Ruler Sensor

4.8 (38 votes) | 240 orders
Price: US $245.27 - 299.52
Discount Price:
US $ 121.25 - 147.67
-51%
Quantity

Buy Now
Add to Cart

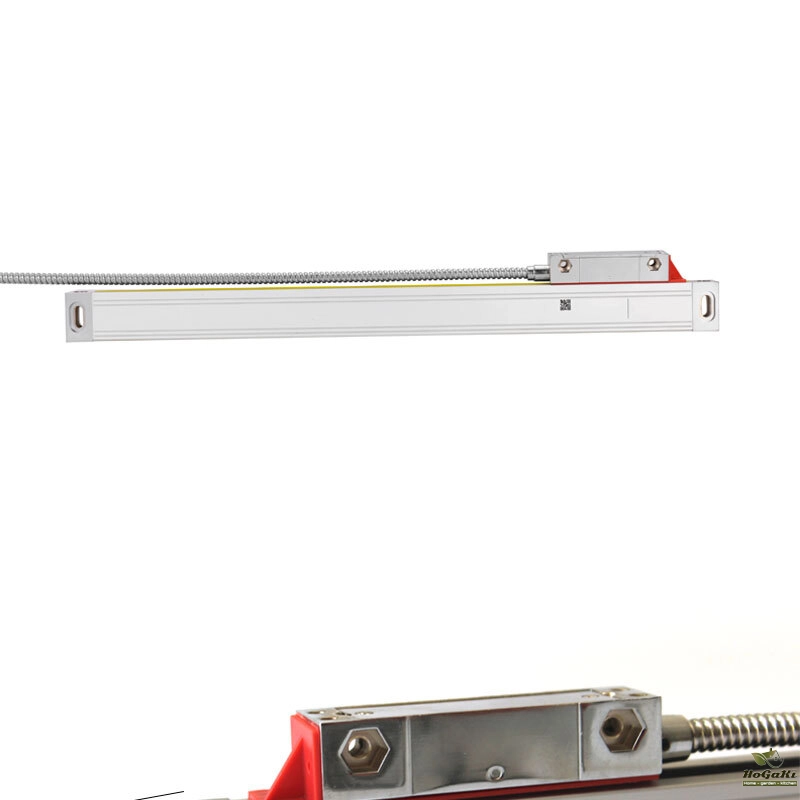

High Precision 0.005mm Slim Linear Scale TTL 100 150 200 250 300 350 400mm 20x28mm Small Linear Encoder Grating Ruler Sensor

5 Micron Linear Scale/Linear Encoder Specifications

1. Travel (measuring) length: 120/170/220/270/320/370/420mm

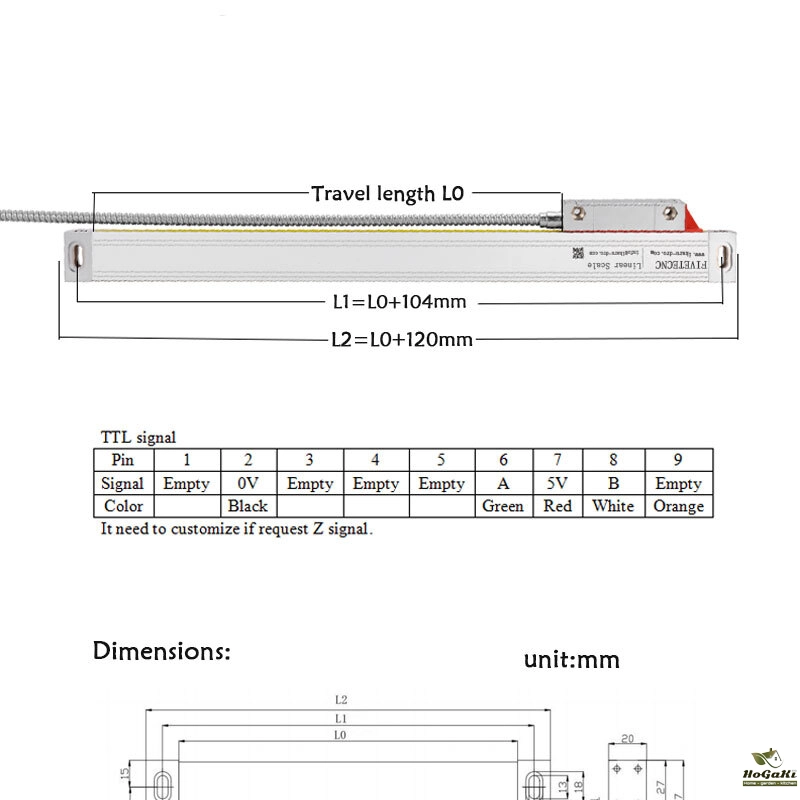

2. Total (overall) length: Travel length + 120mm
3. Plug: DB9
4. Resolution: 0.005mm
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)

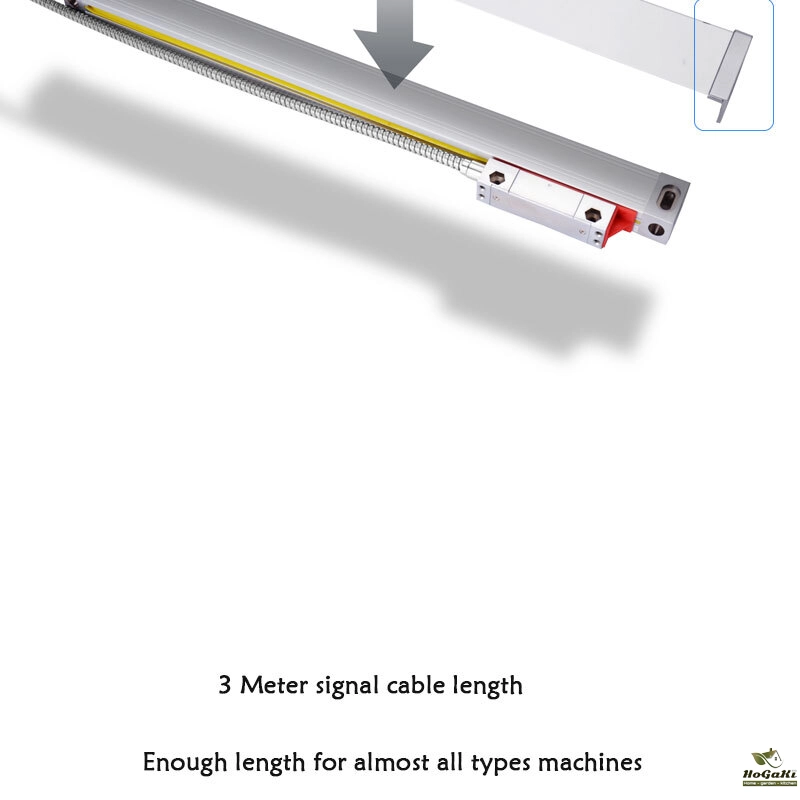

7. Cable length: 3 Meter
8. Normal scale dimension: 20*28mm
9.Accuracy:±3/5/8um
10. Output signal:TTL

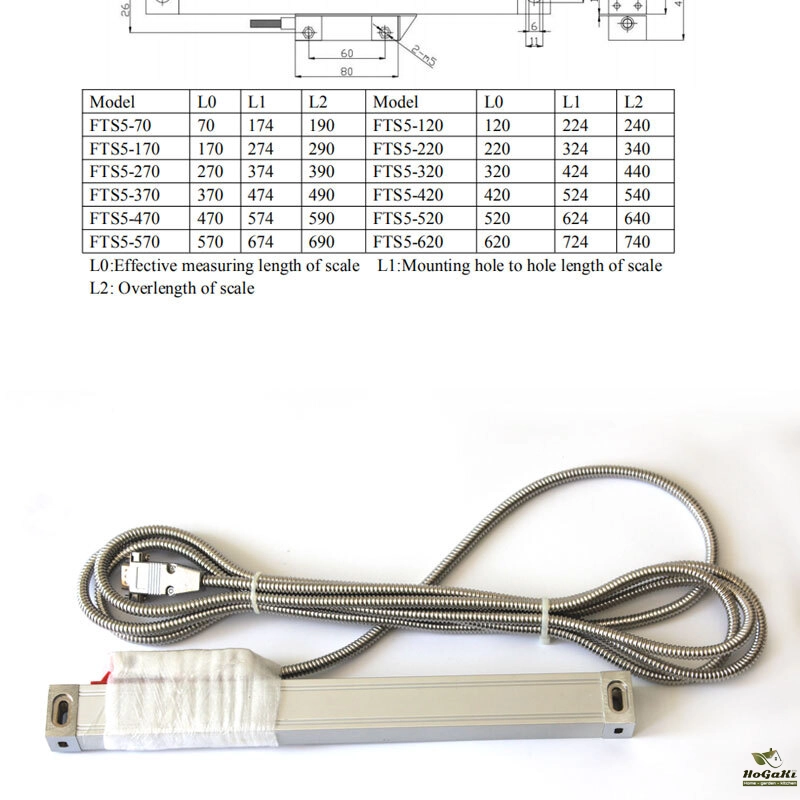

Tips: There are two types lable of the scale, one is 50mm,100mm,150mm,200mm etc , and another one is 70mm,120mm,170mm,220mm etc, they are same scale,only lable different. Because it can read 20mm addition for 50mm/100mm/150mm those scale, both lable linear scale total length is same.please note it.

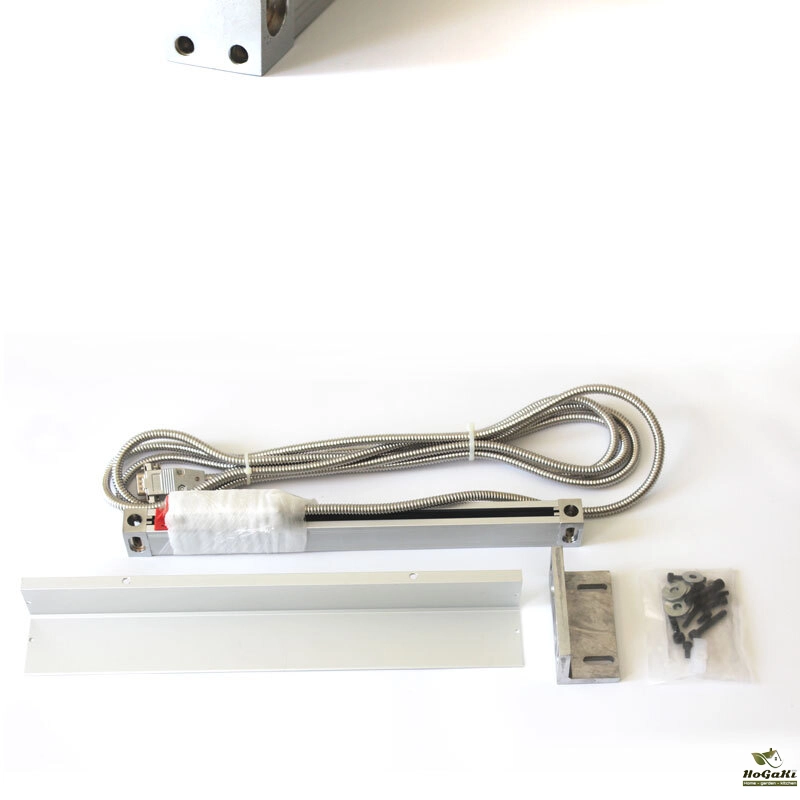

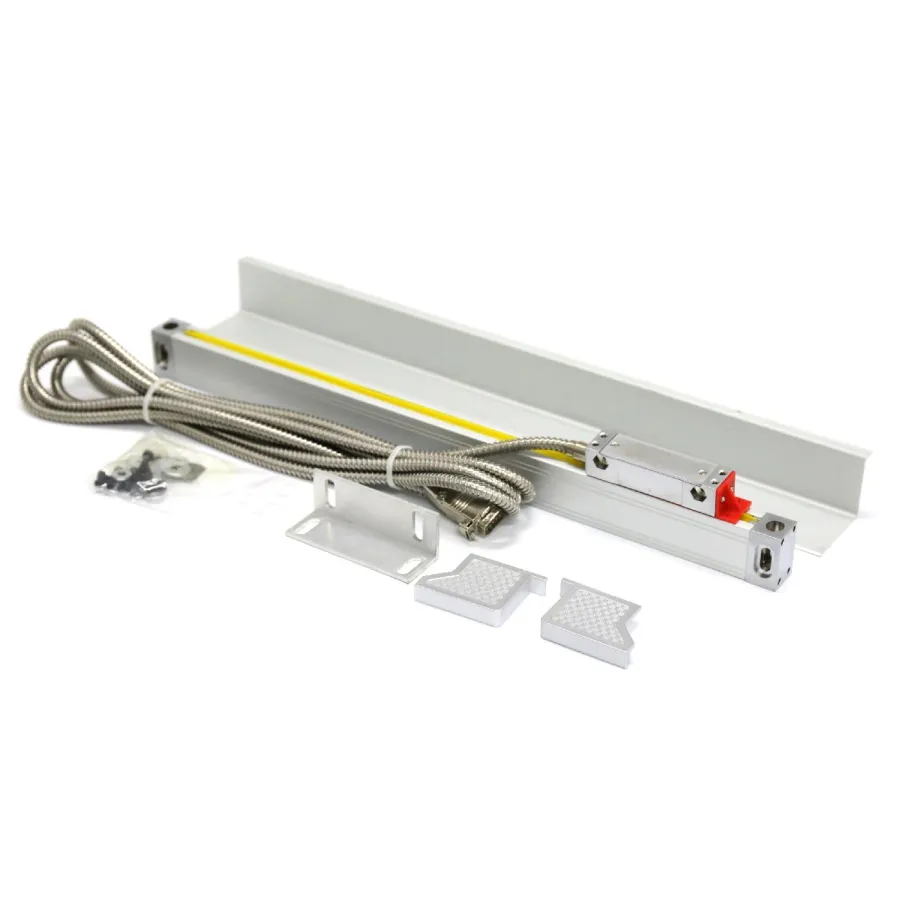

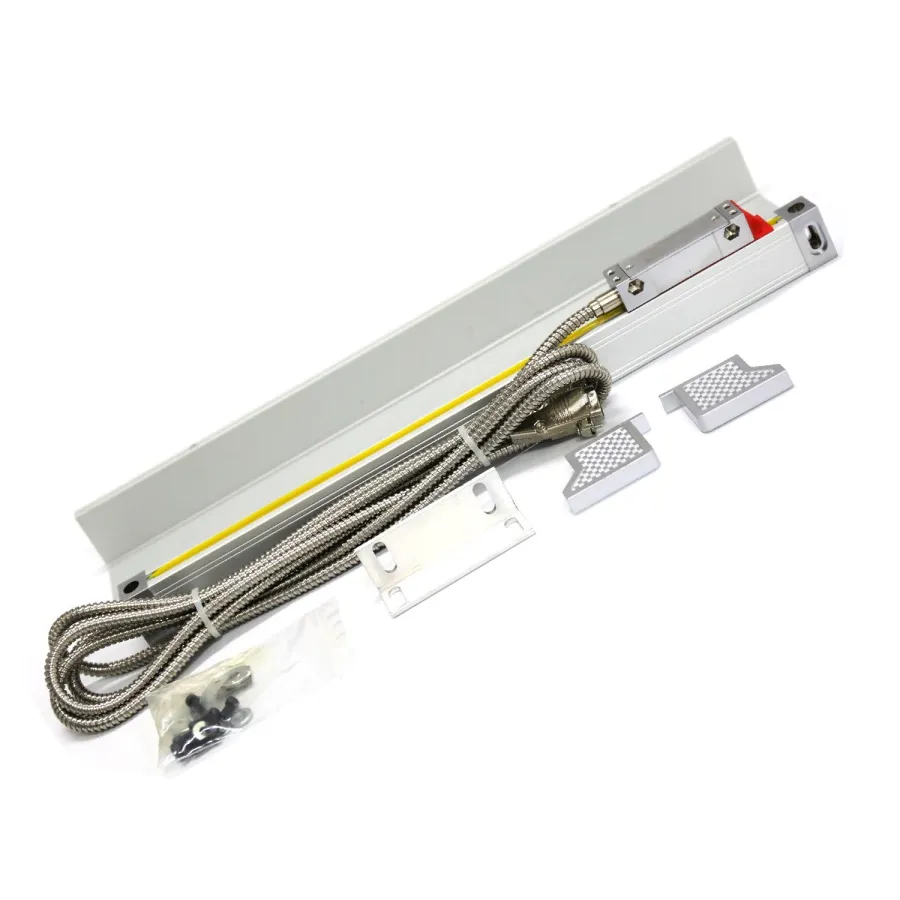

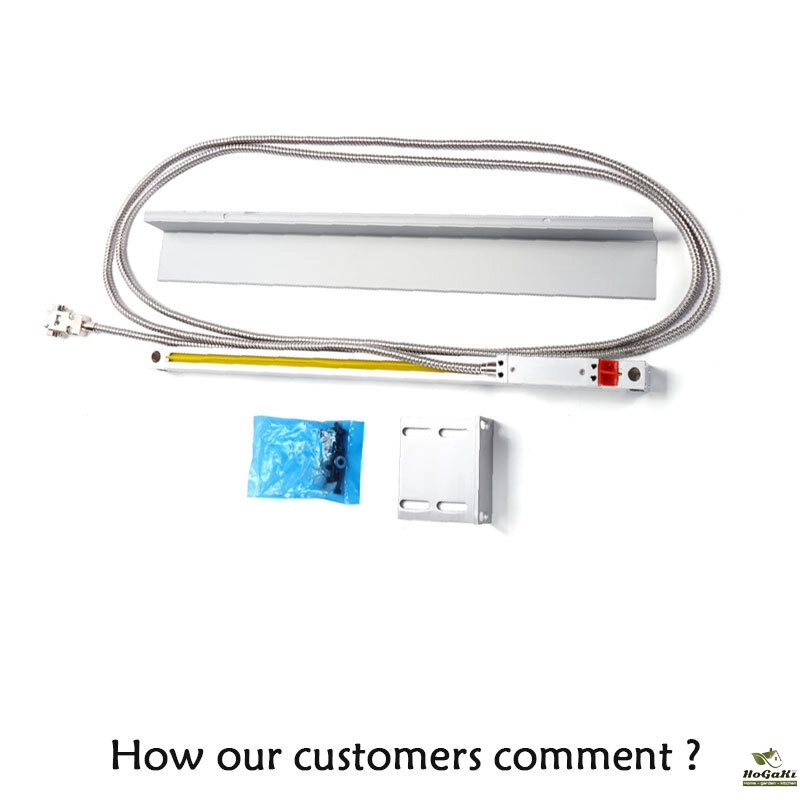

Package includes

Linear scale x 1 piece

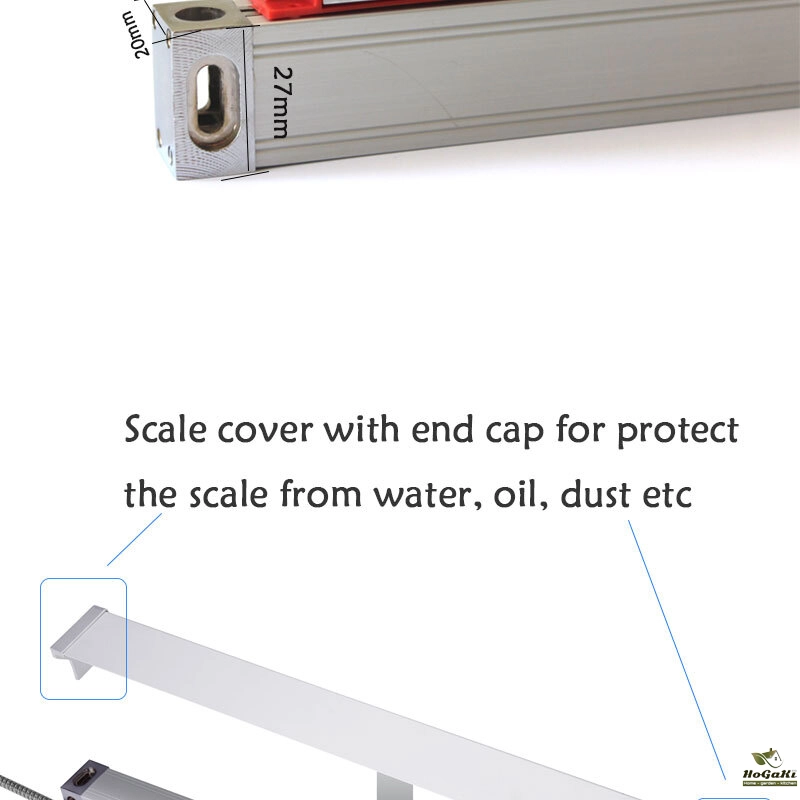

Scale dust cover x 1 piece

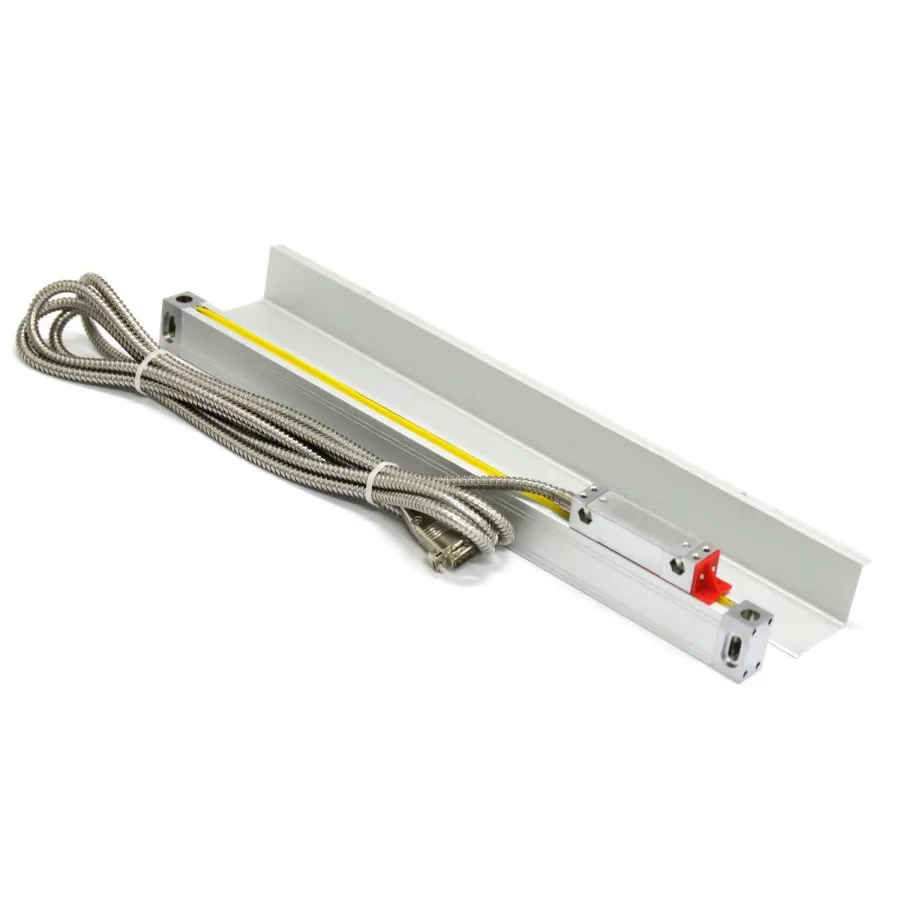

Mounting L bracket x 1 piece
Screws x 1 bag


Packaging Details

  • Unit Type:
  • Package Weight: 0.955
  • Package Size: 9x8x56

  • Brand Name: jcgs
  • Battery Included: No
  • Certification: CE
  • Certification: RoHS
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Model Number: NTS-S / FTS-

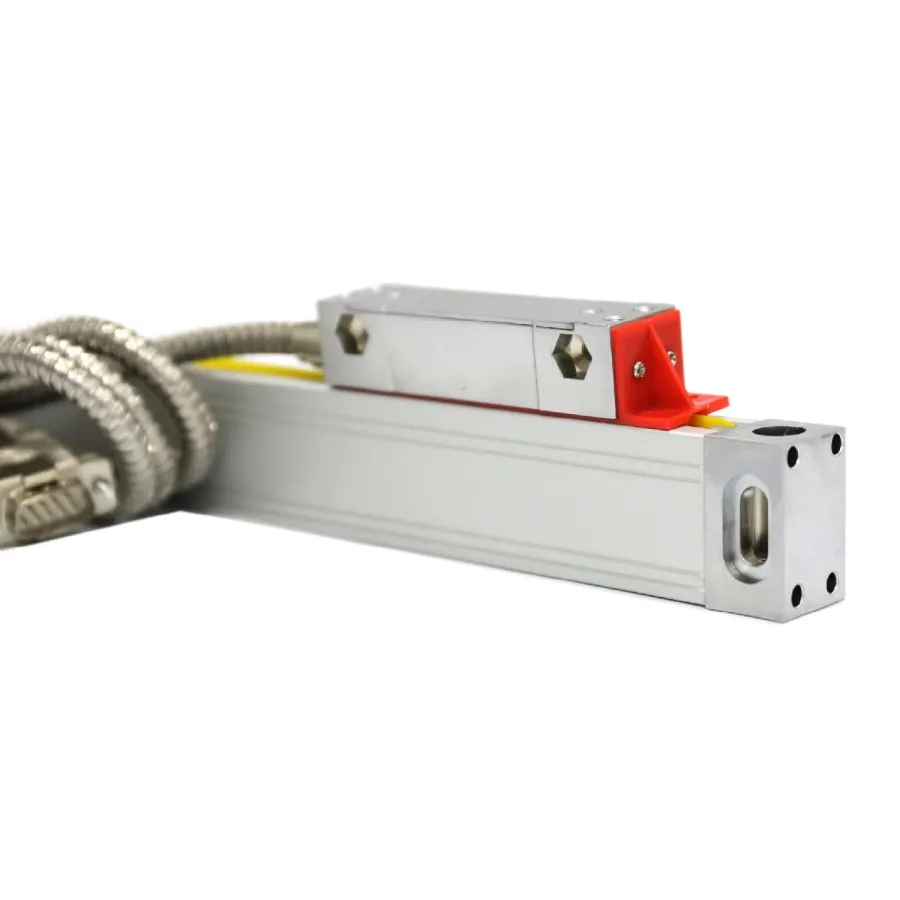

  • Product name: Slim linear glass scale
  • Voltage: 5V DC
  • Resolution: 0.005mm/5um
  • Output signal: TTL signal
  • Signal cable length: 3 meter
  • Dimensions: 20x28mm (width*height)
  • Scale actual length: travel length plus 120mm
  • Choice: yes
