M503 Magnetic Scale DRO Display Integrated Embedded Magnet Measurement System Magnetic Tape with Stain Belt Profile Woodworking
ID: 153347

M503 Magnetic Scale DRO Display Integrated Embedded Magnet Measurement System Magnetic Tape with Stain Belt Profile Woodworking

4.6 (58 votes) | 500 orders
Price:
US $ 73.71 - 148.83
Color
Quantity

Buy Now
Add to Cart

M503 Magnetic Scale Display Integrated Embedded Magnet Measurement System Magnetic Tape for Cutting Machine Woodworking

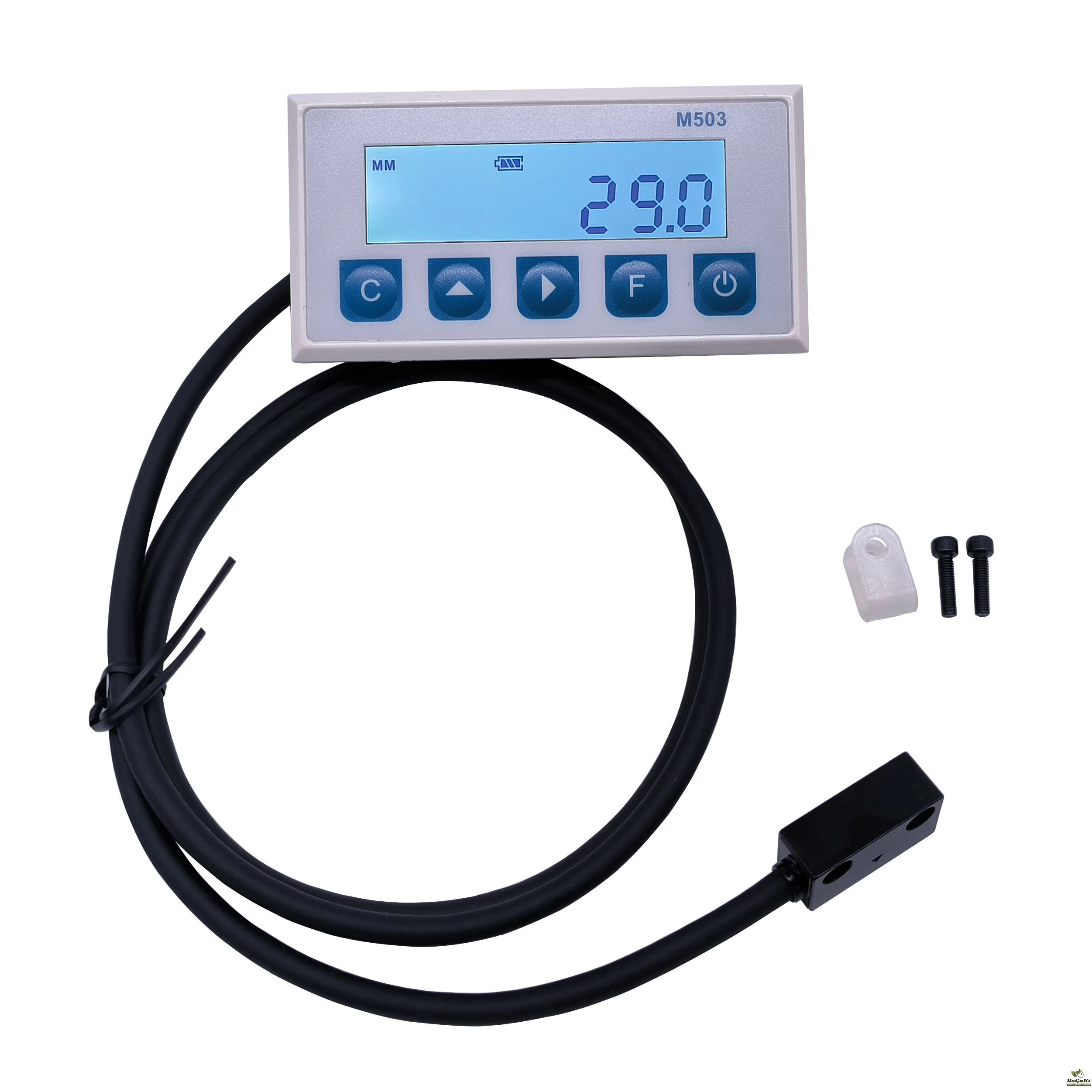

Package content

Option "Display only"

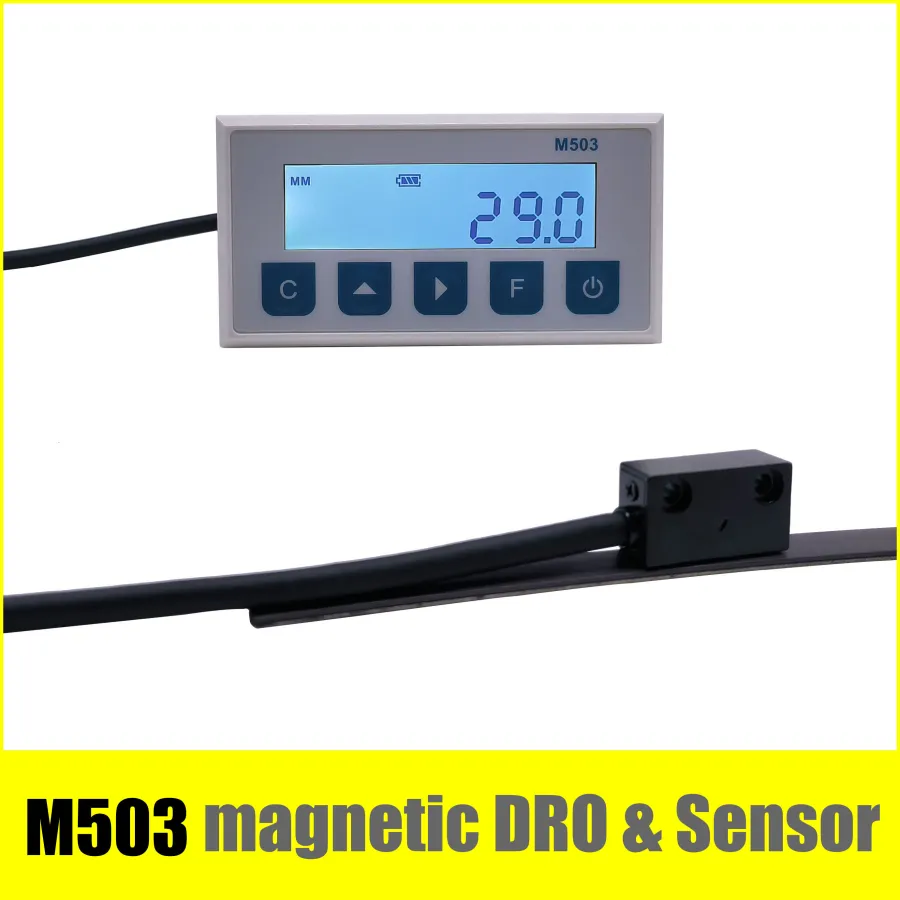

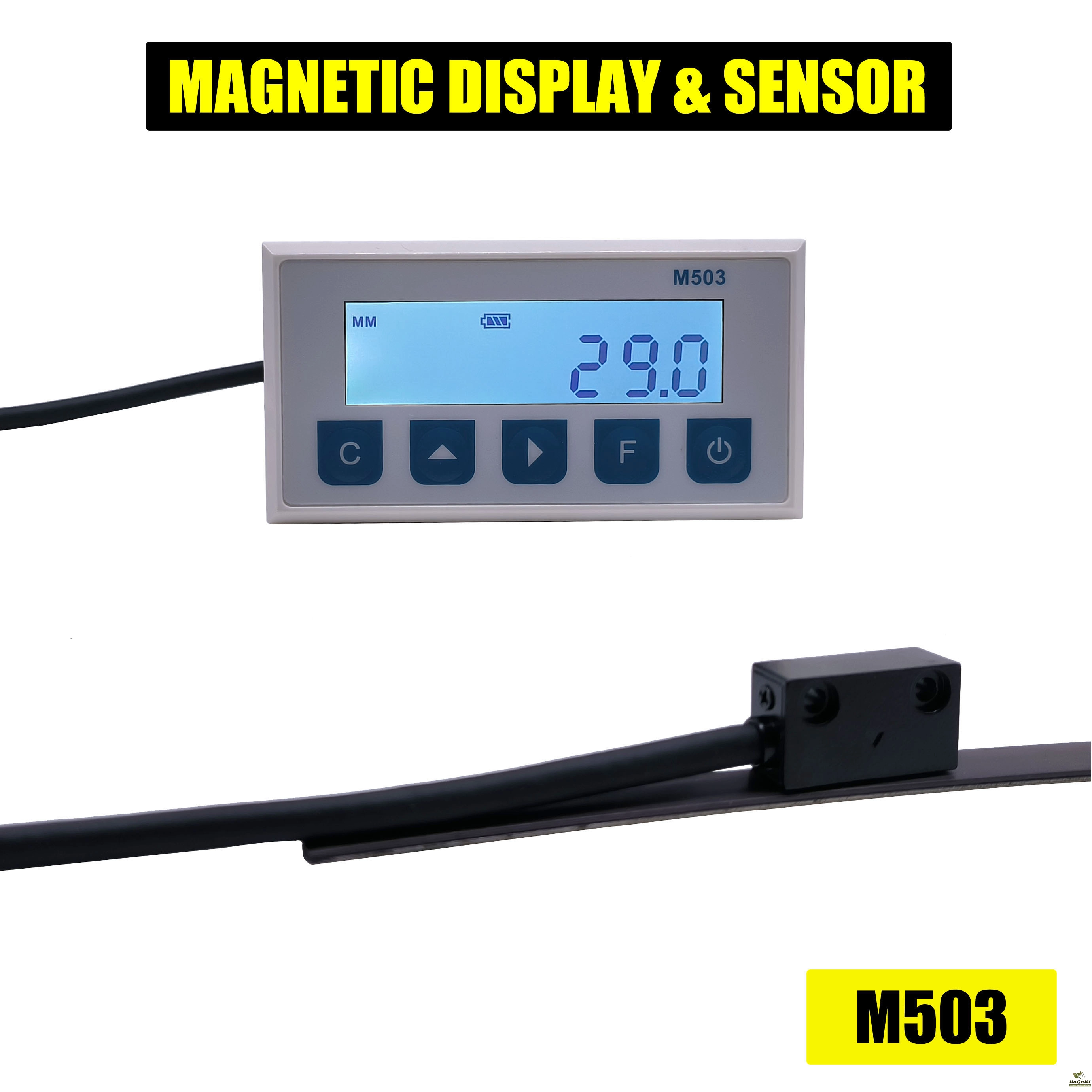

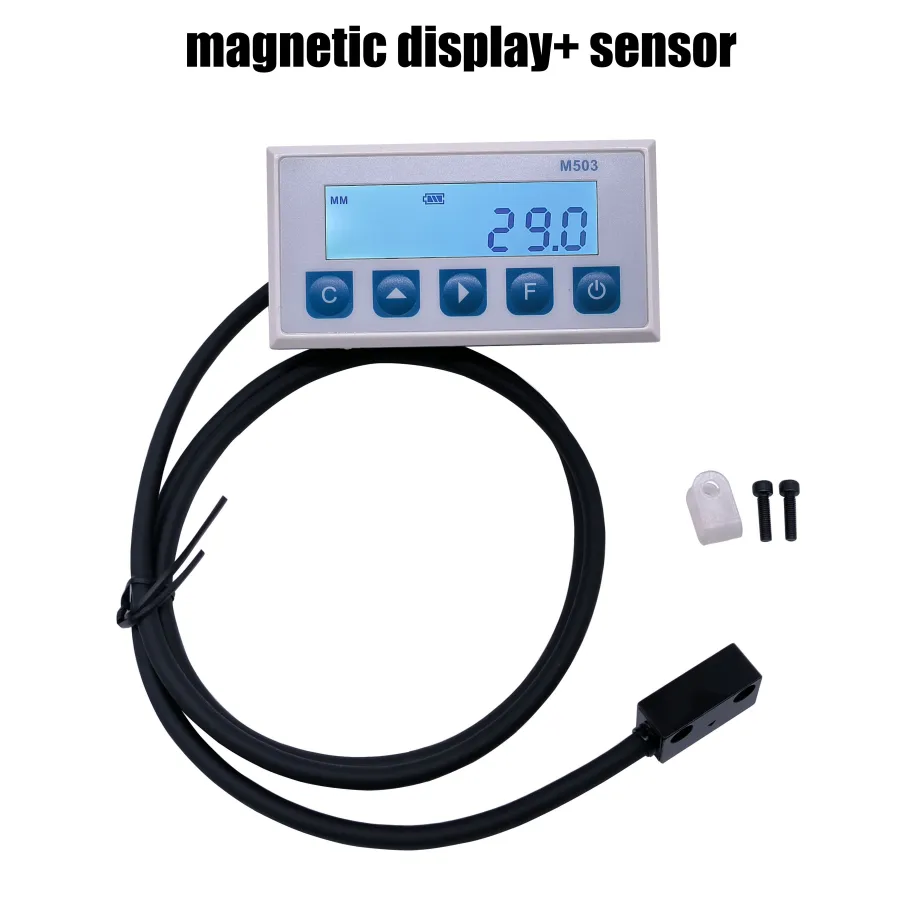

(M503 magnetic display with sensor )
If pay option "Display only", it will send a display and a magnetic sensor together, no magentic tape.

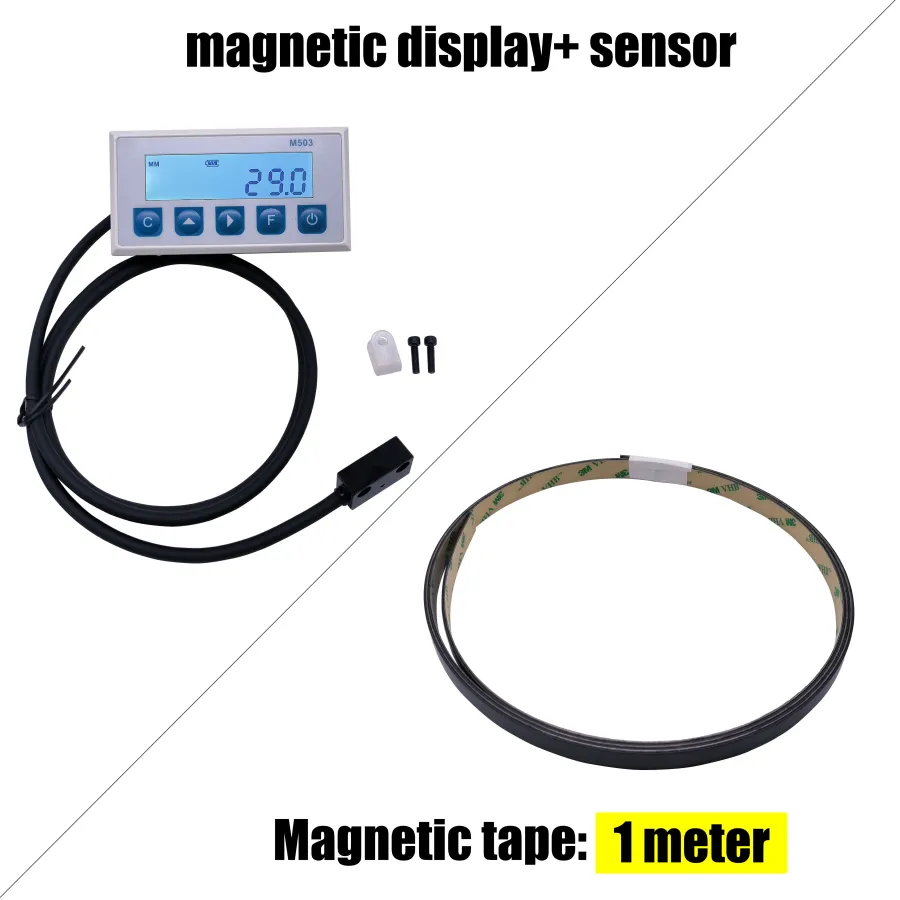

Option"Display with magnetic tape"
If need a complete set, display +sensor+tape. it need to pay both ( Display only + Magnetic tape).


Note: The display do not include battary, because it unable ship the battary by shipping company.

Please contact us if any question. thank you

Parameter

System accuracy: + (0.03+0.01*L) mm
Repeatability: Max. + 0.01mm
Display range: -1999999-9999999
Consumption current: Max.500UA (backlight not opened)

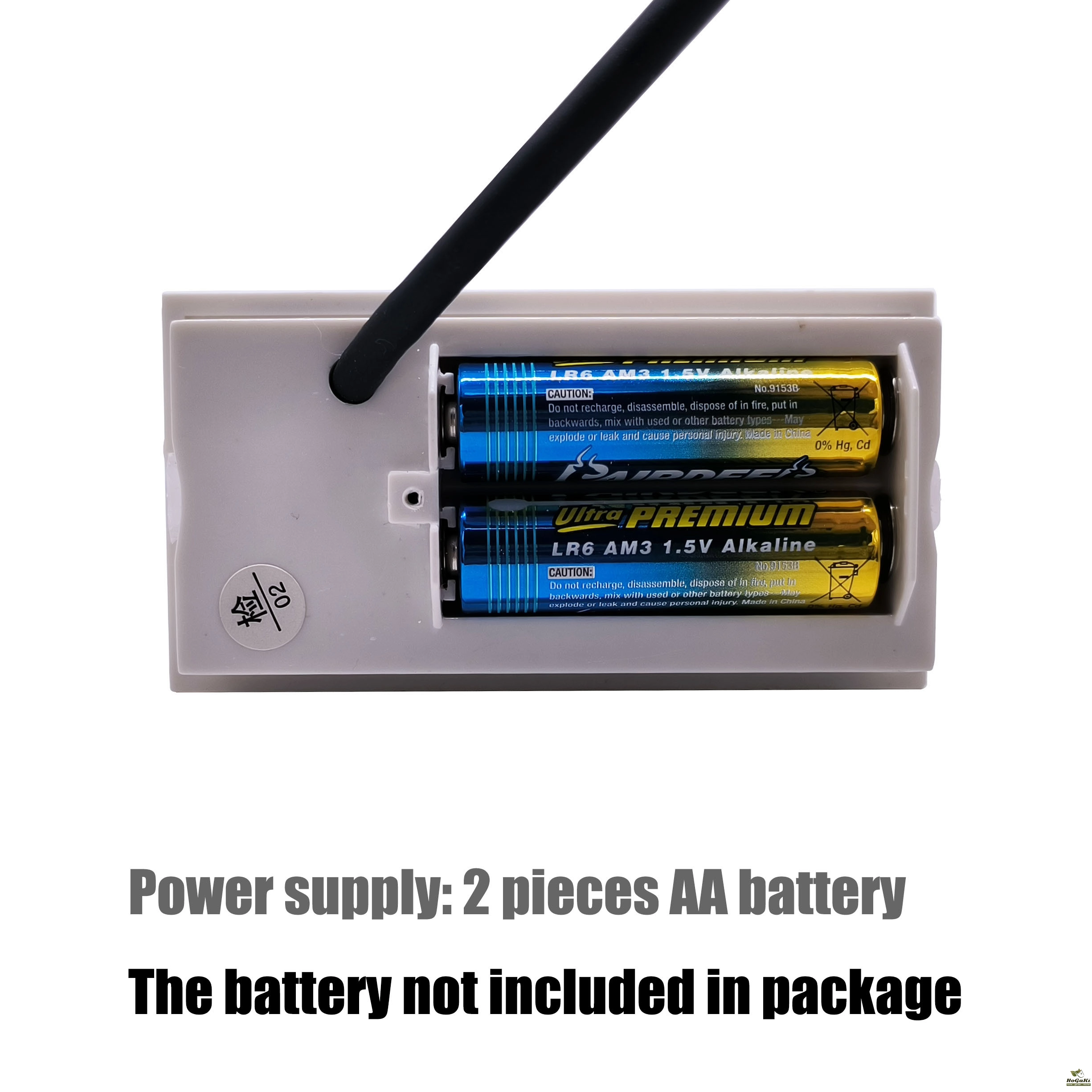

Power supply: two batteries No. 5 (AA)
Operating temperature: 0 degrees Celsius -60 degrees Celsius
Storage temperature: -10 degrees Celsius -70 degrees Celsius

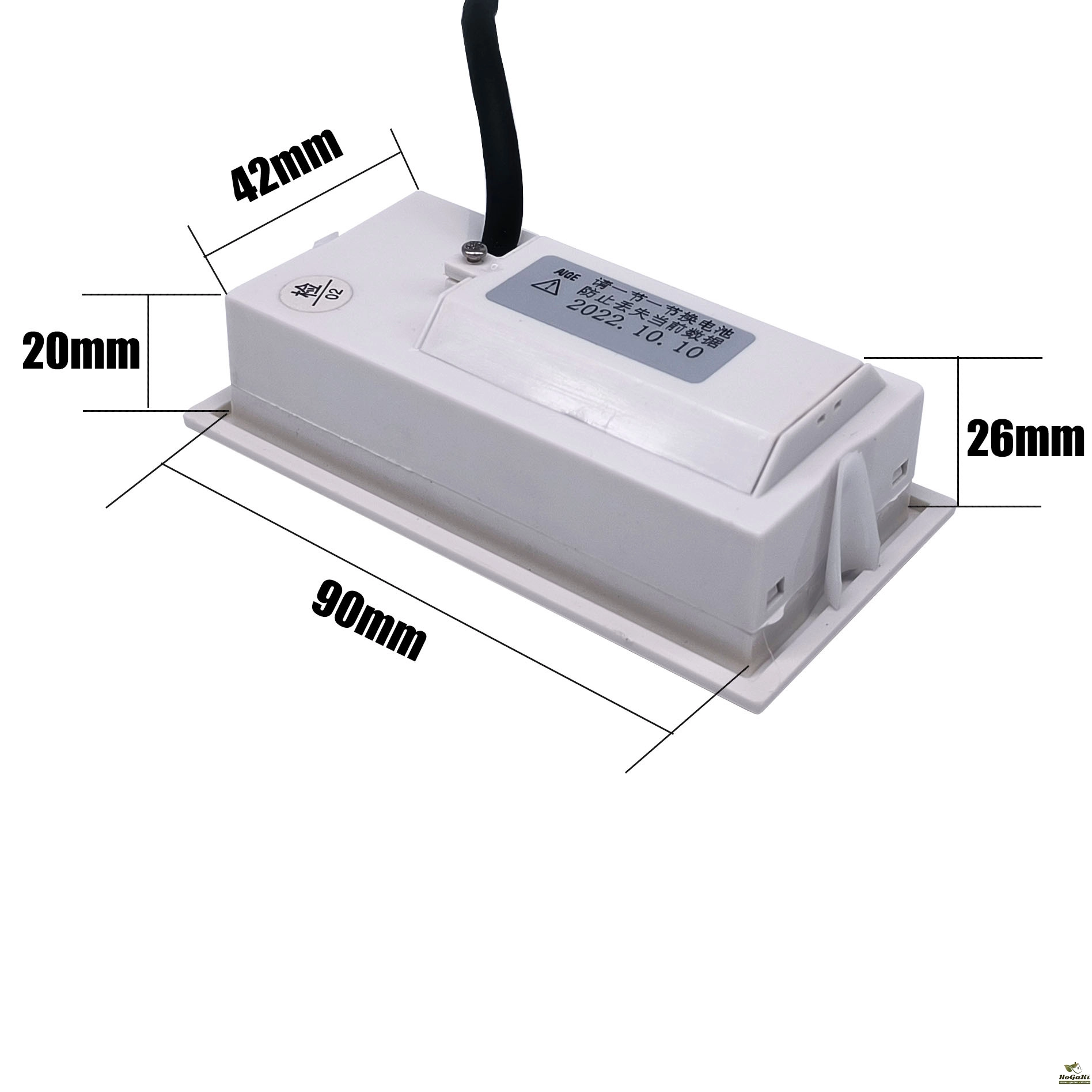

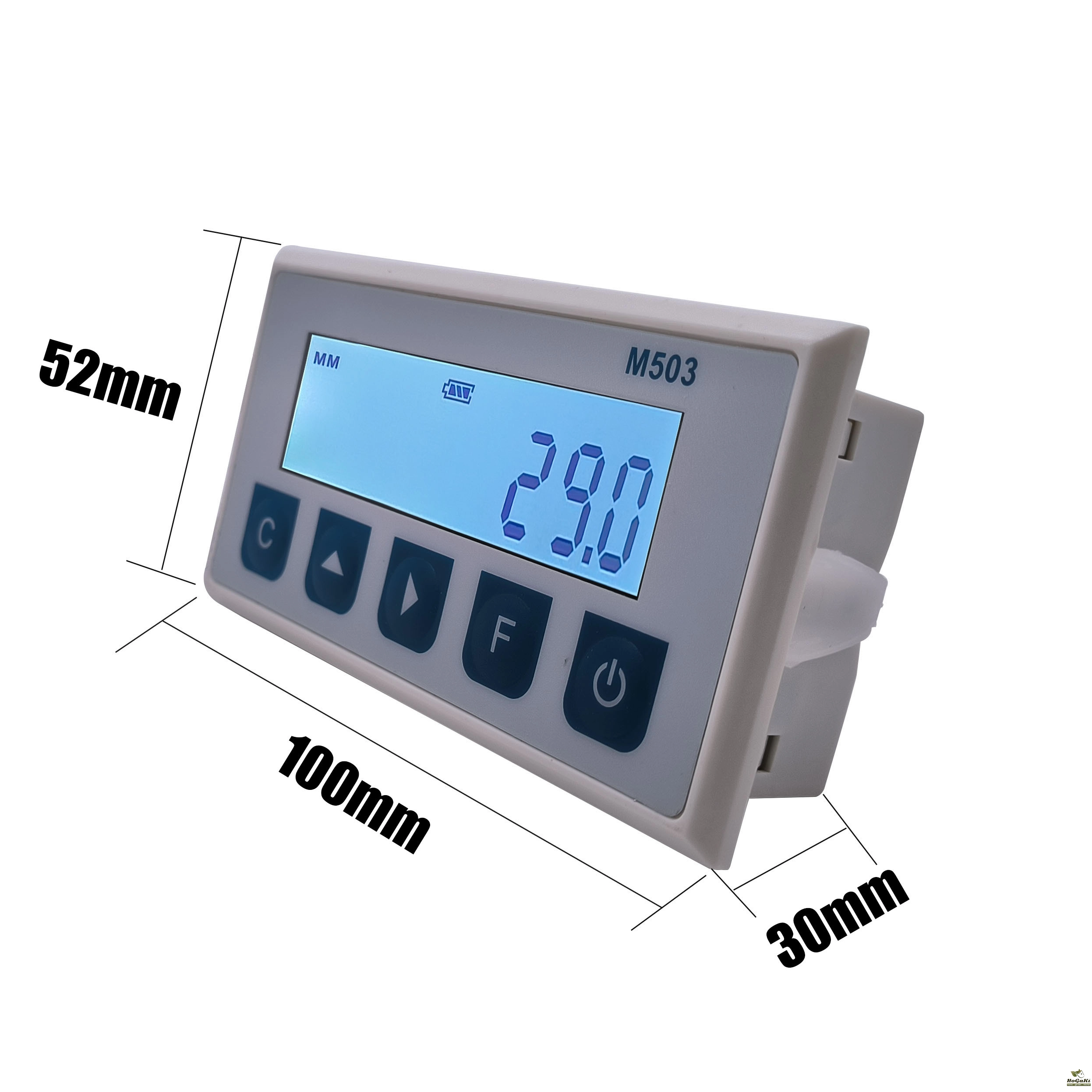

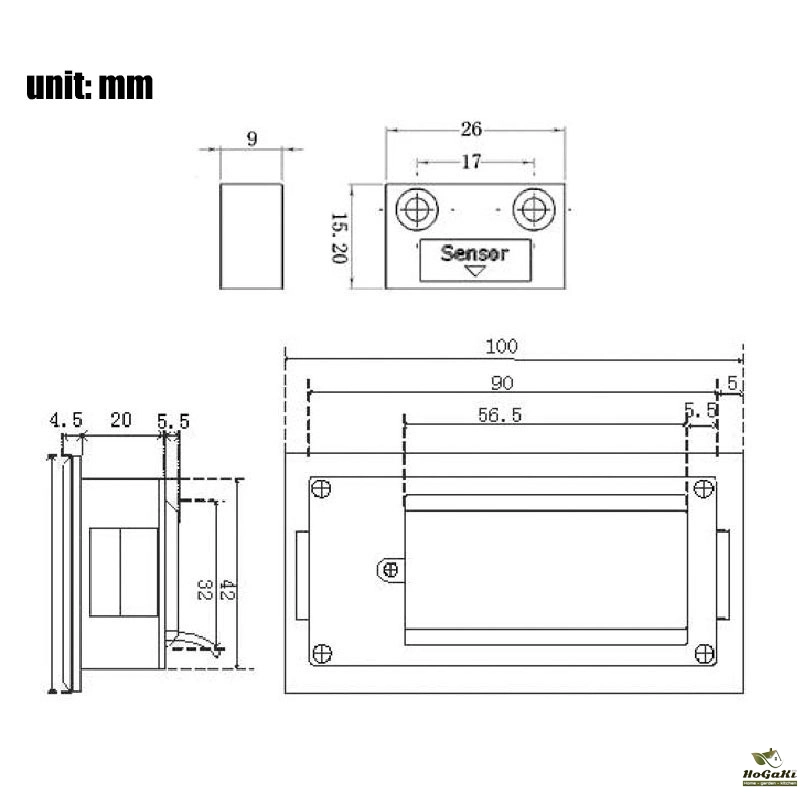

Outline size: 100*52*30mm
Opening size: 92*42mm
Read line length: 1m customizable (2M 3M 5M 6M).
Mobile speed: Max.5m/s
Read gap: Max.2.5mm, recommended 1.5mm

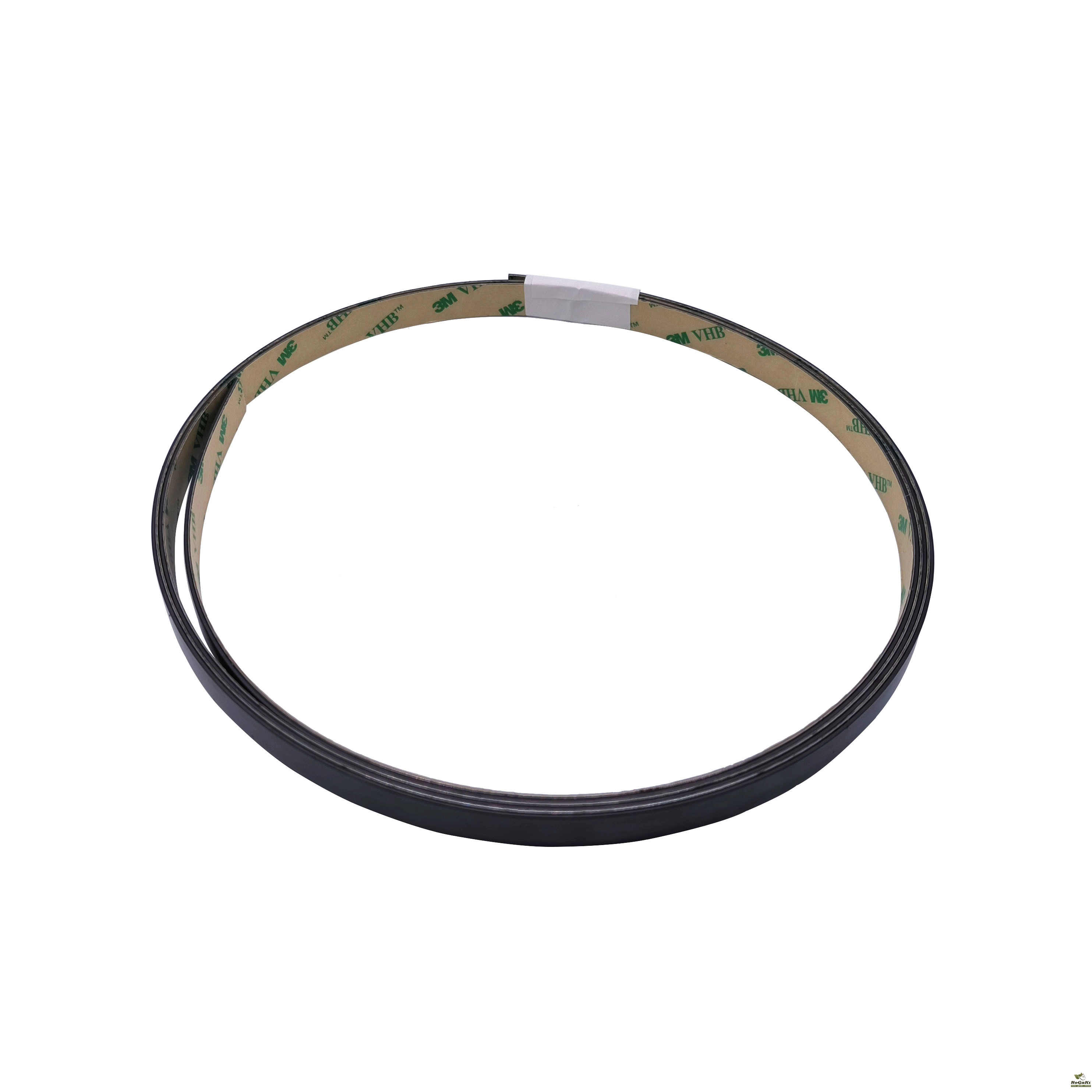

Matching magnetic stripe: FT50
Waterproof grade: digital display IP40, read head IP60
Weight: Max.150g

Basic datasheet

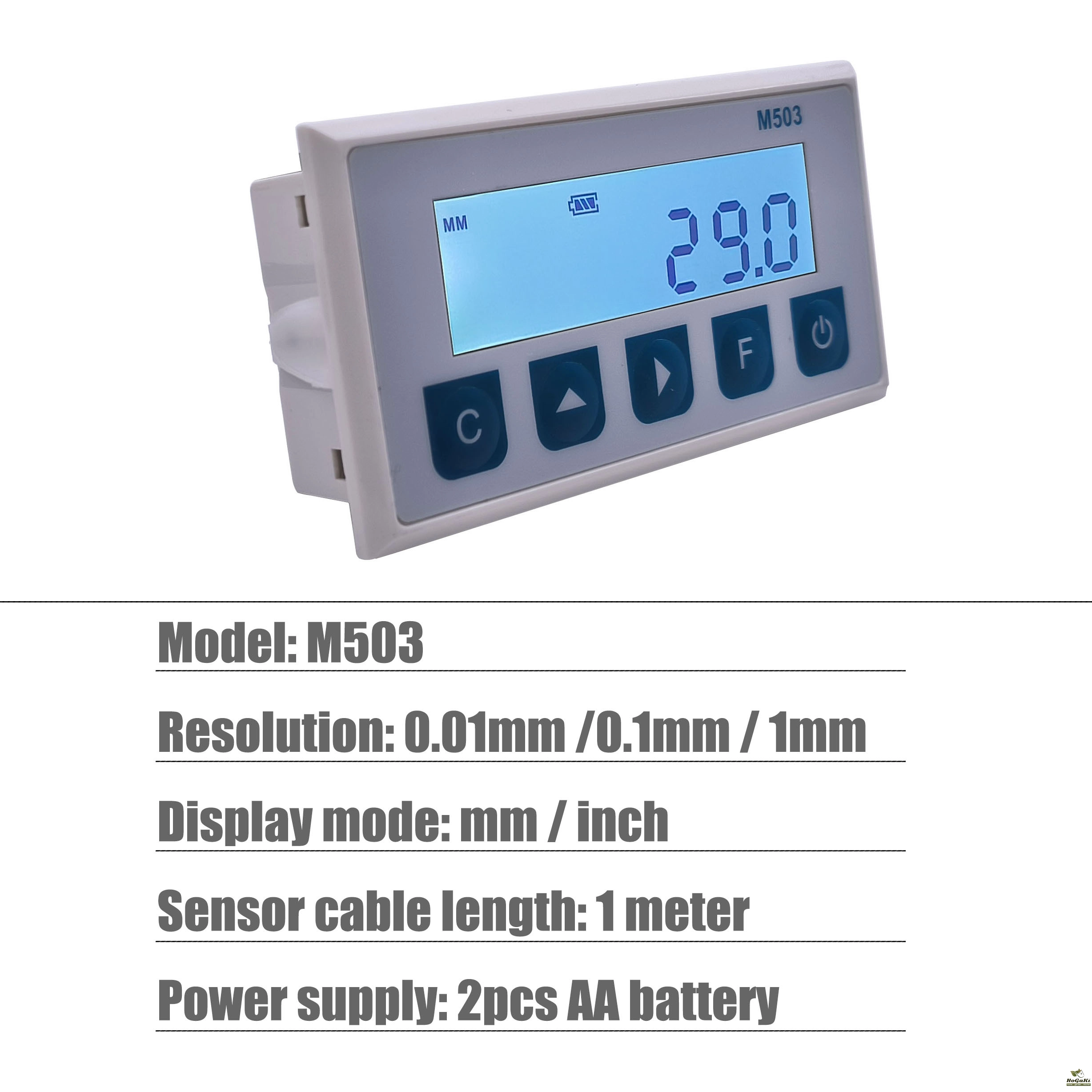

Resolution: 0.01mm /0.1mm / 1mm
Display mode:MM / INCH
Measuring: Length / Angle




Packaging Details

  • Unit Type:
  • Package Weight: 0.880
  • Package Size: 15x8x17

  • Brand Name: HYMSEANN
  • HYMSEANN Model: M503
  • Battery Included: No
  • Certification: CE
  • Certification: RoHS
  • Hign-concerned Chemical: None
  • Origin: Mainland China
  • Model Number: M503
  • Product name: Magnetic DRO display with Sensor
  • Resolution: 0.01mm/0.1mm/1mm
  • Display cable length: 1 meter
  • Display value mode: MM/INCH
  • Signal: TTL
  • Display size: 100*52*30mm
  • Application: Support frame, Wire cutting, woodworker
  • Warranty: 2 years
