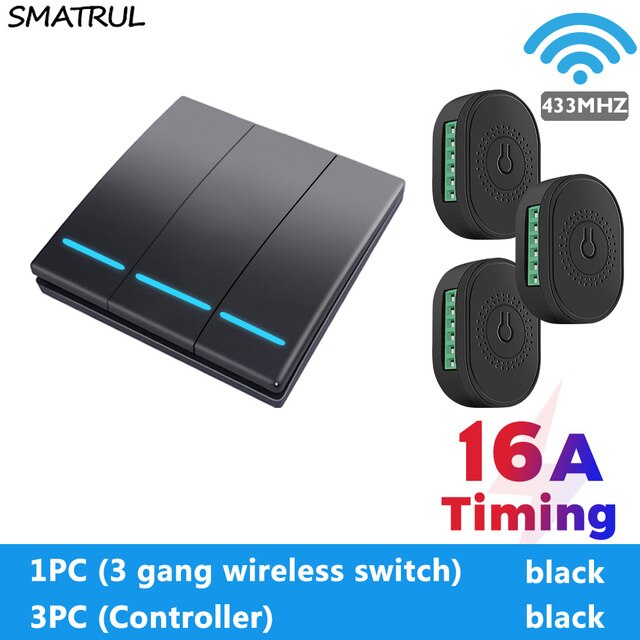

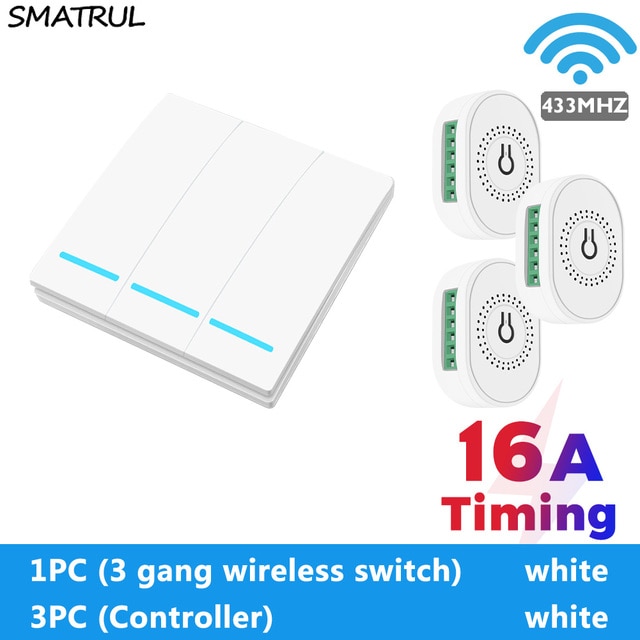

SMATRUL 16A Mini 433mhz Smart Wireless DIY Switch Light 220v RF Module Electric Supports 2 Way Timing Control Home Lamp On Off

Main features:

1. Timing function: do not need WIFI or APP, can achieve 4-level timing function
2. 16A high power: suitable for most equipment, safer to use
3. Mini body: can be directly installed in the switch bottom box, maintenance and installation are more convenient
4. The open distance of 100 meters is more convenient to use, and the actual distance is indirect obstacles. The more obstacles, the shorter the distance, the more serious the signal loss.

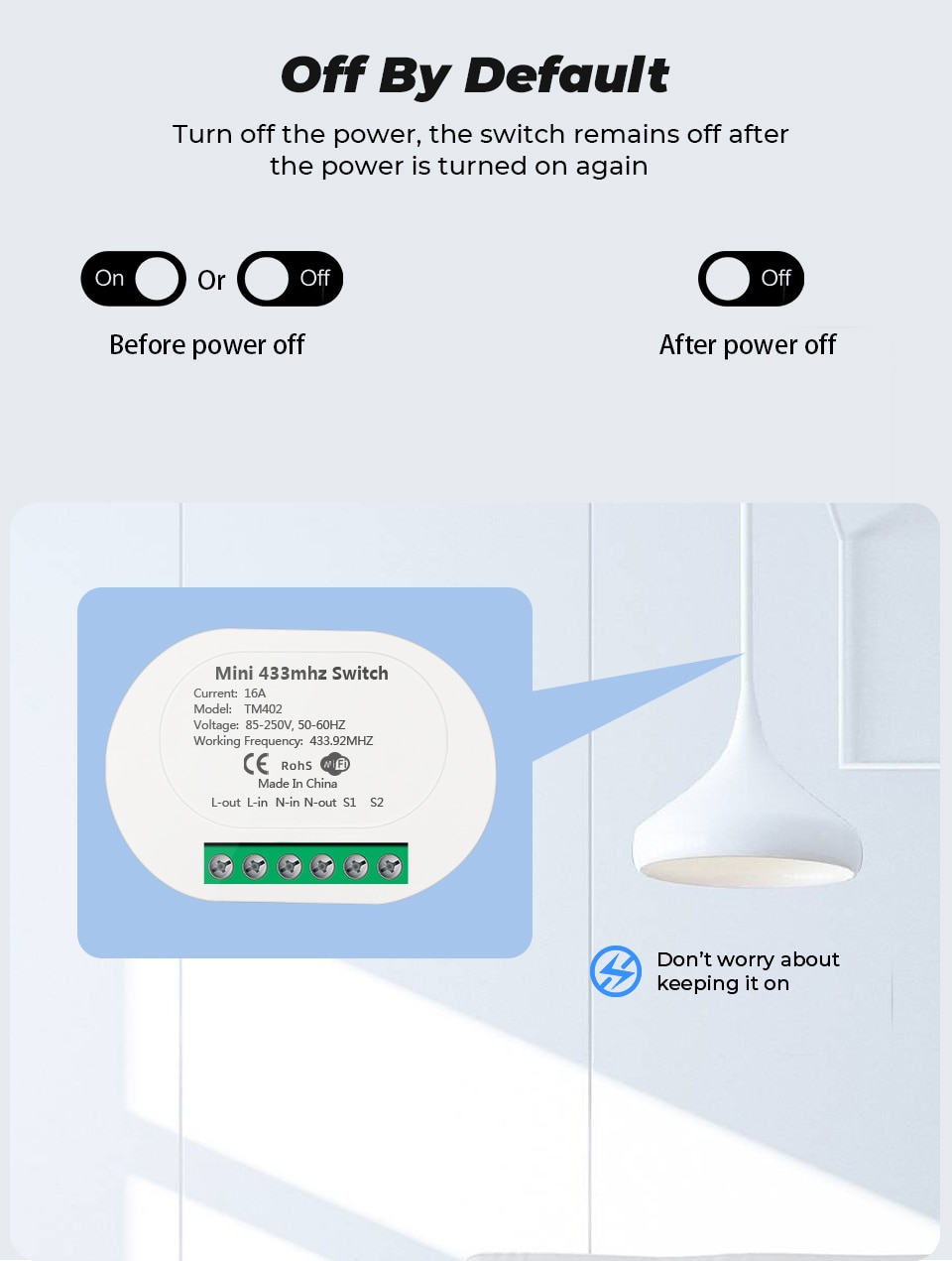

5. After turning off the power, turn on the power again, the device status is off
6. Support 2-way control: can be used in conjunction with 2-way control switch, and then connected to the home
7. Wireless switch fluorescent indicator, will not disturb rest at night

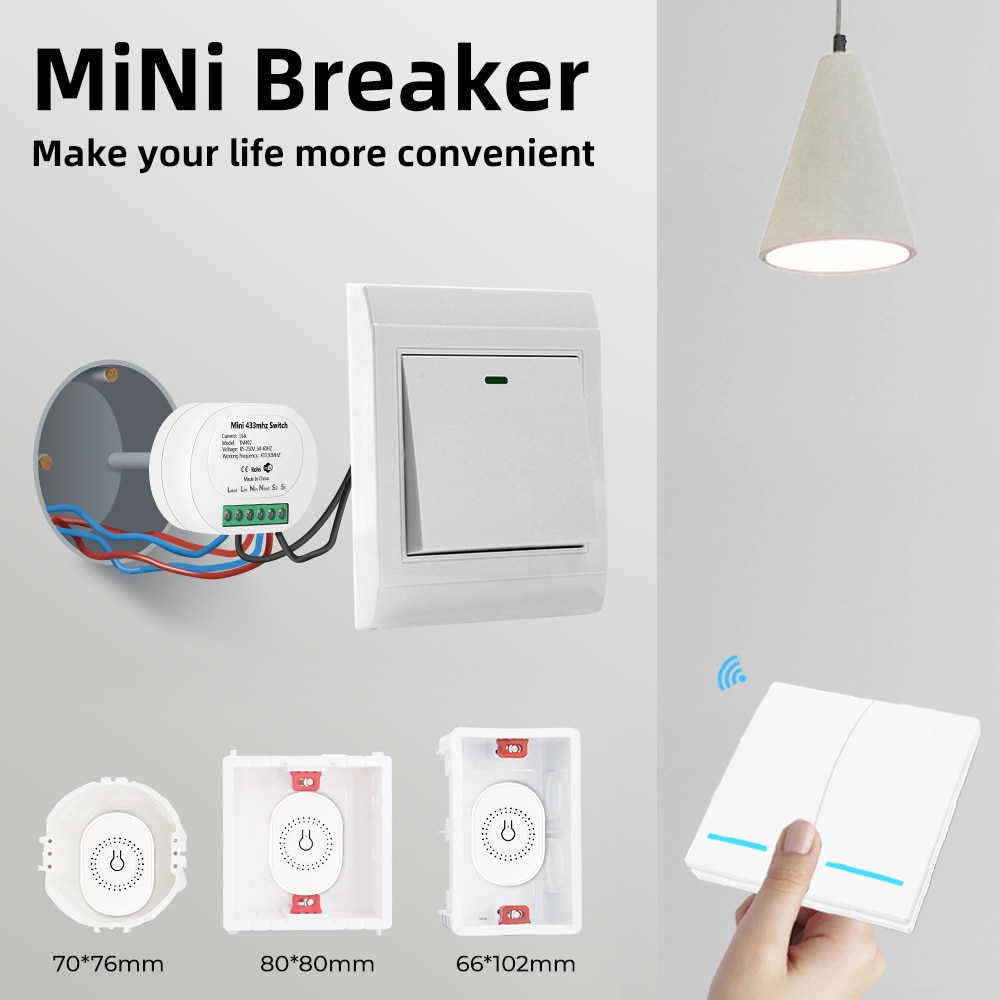

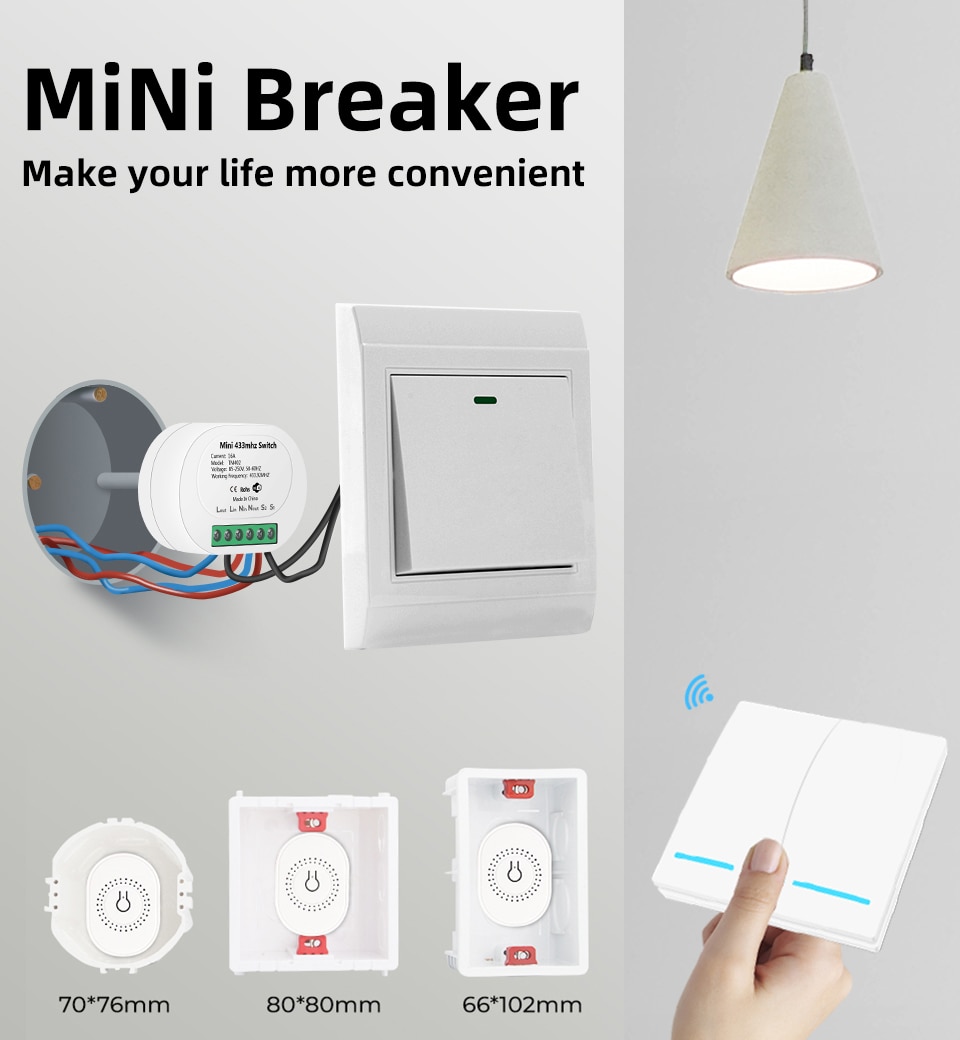

Mini Body

Can be placed in the bottom box

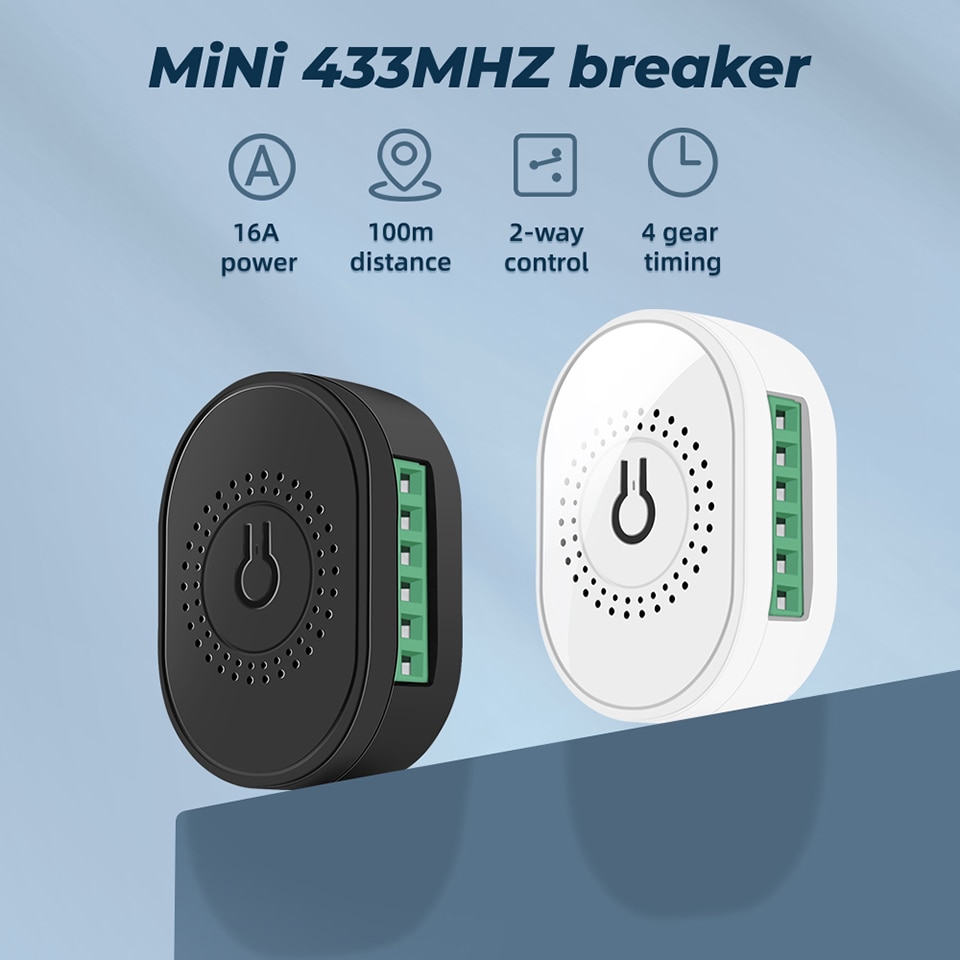

MiNi 433MHZ breaker

support timing and two-way control

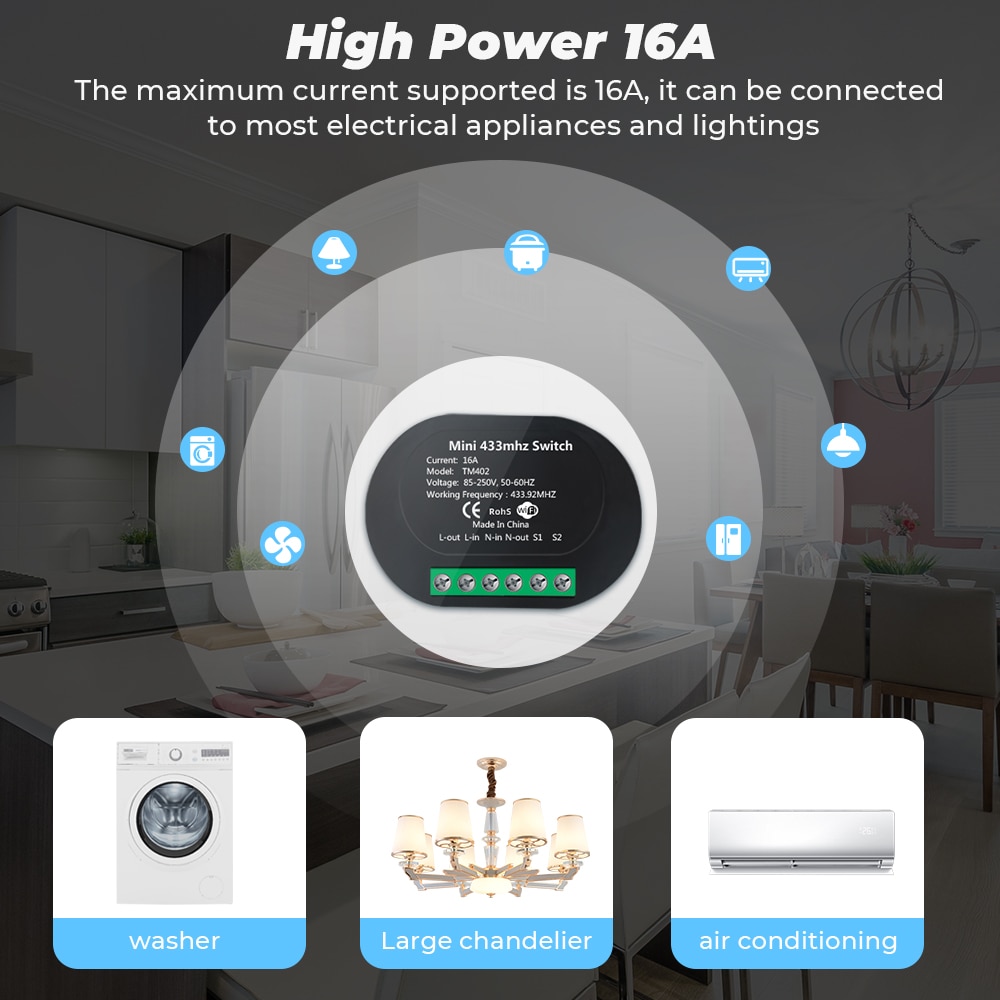

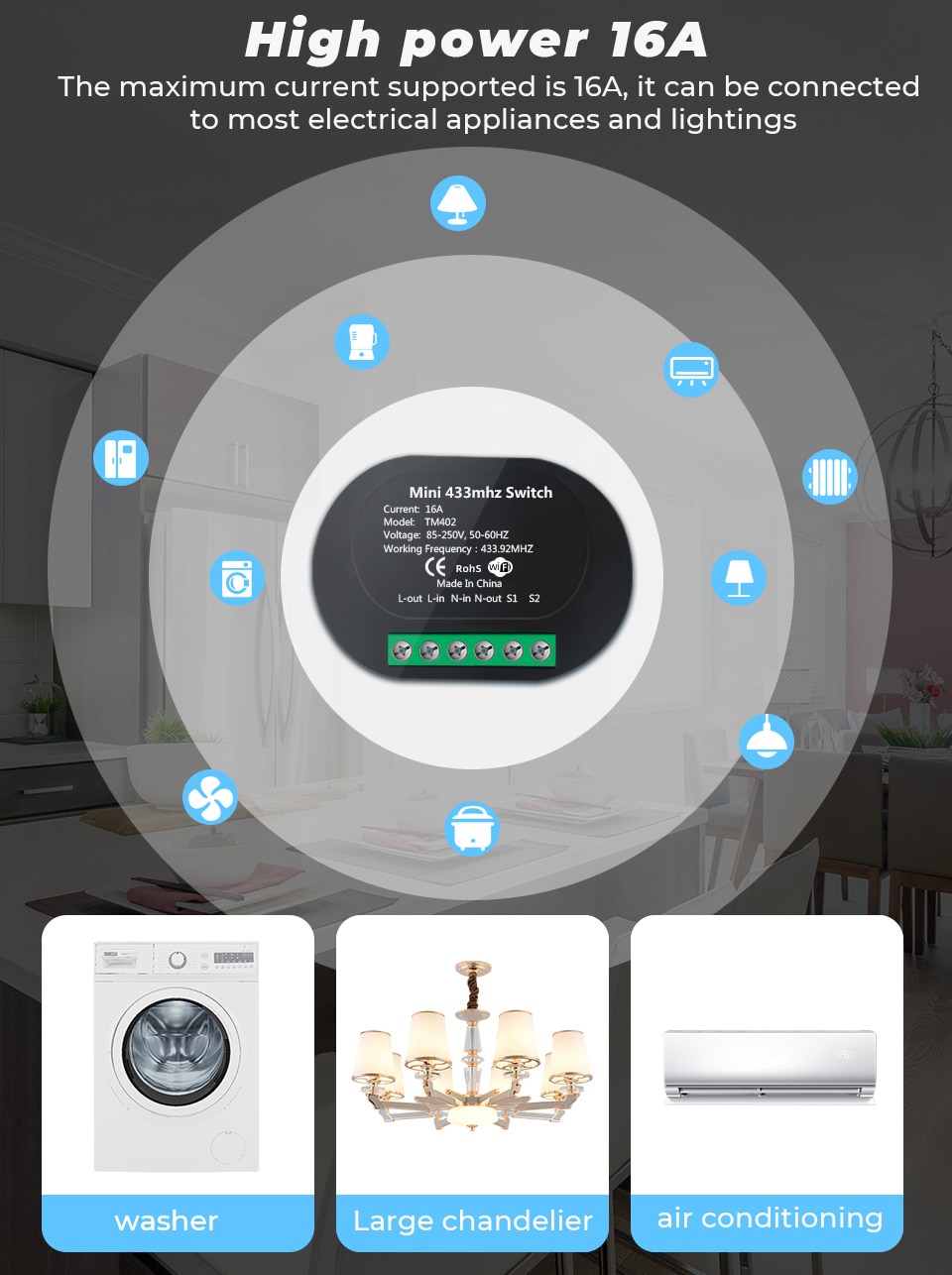

High power 16A

The maximum current supported is 16A, it can be connected to most electrical appliances and lightings

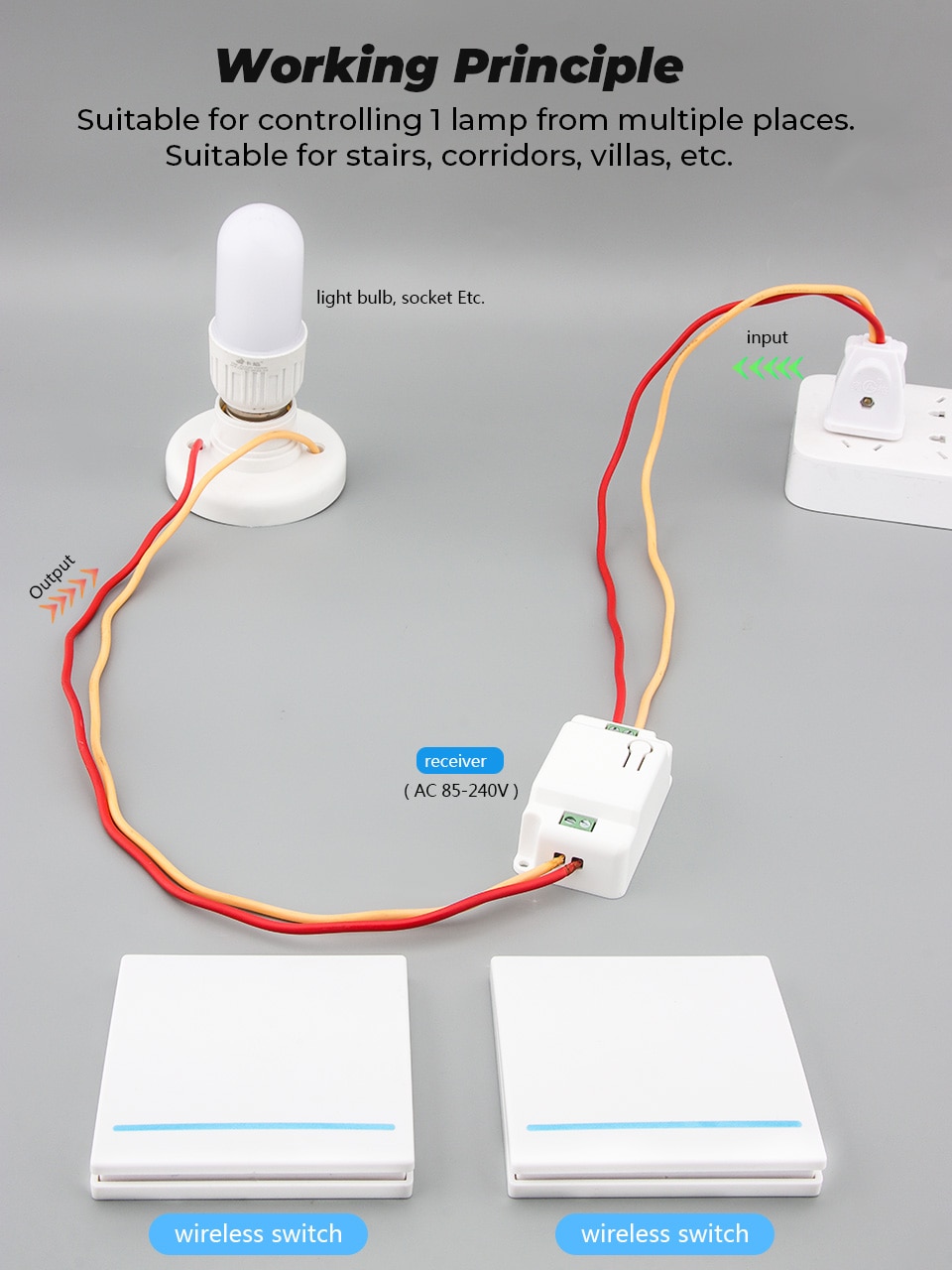

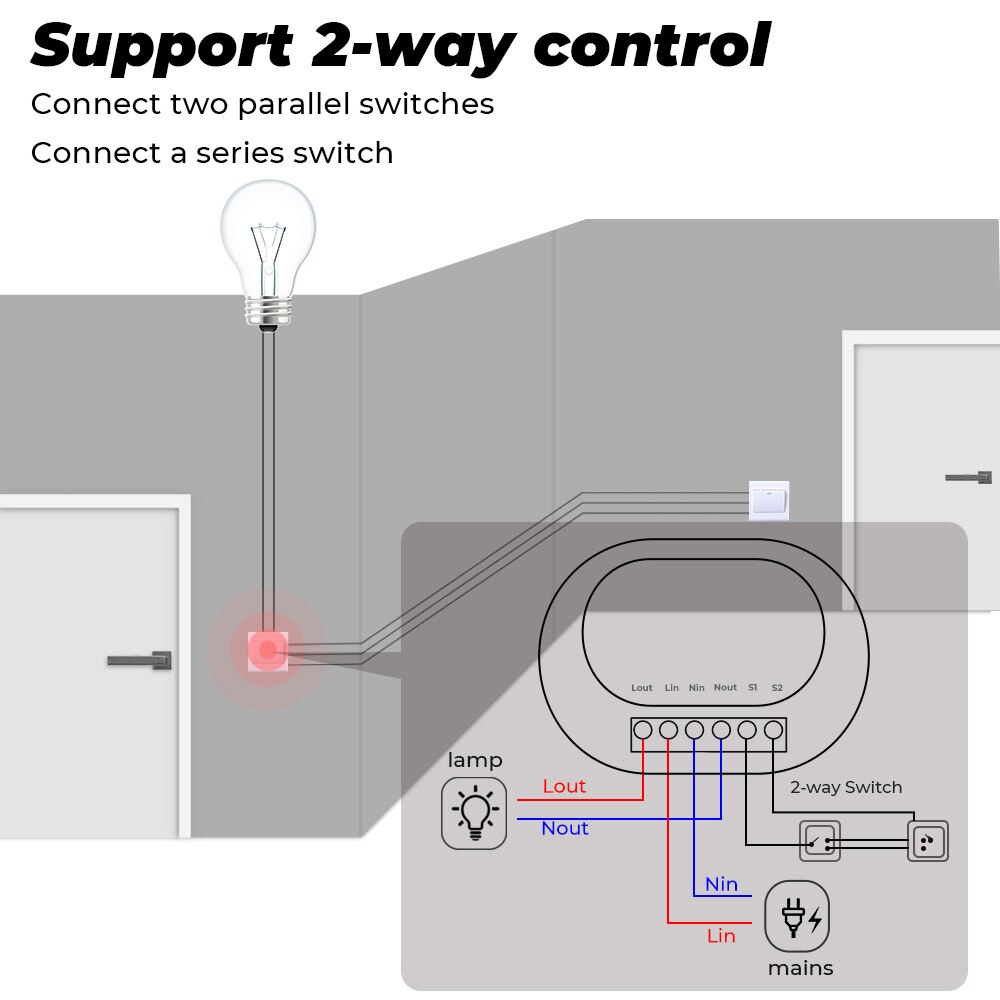

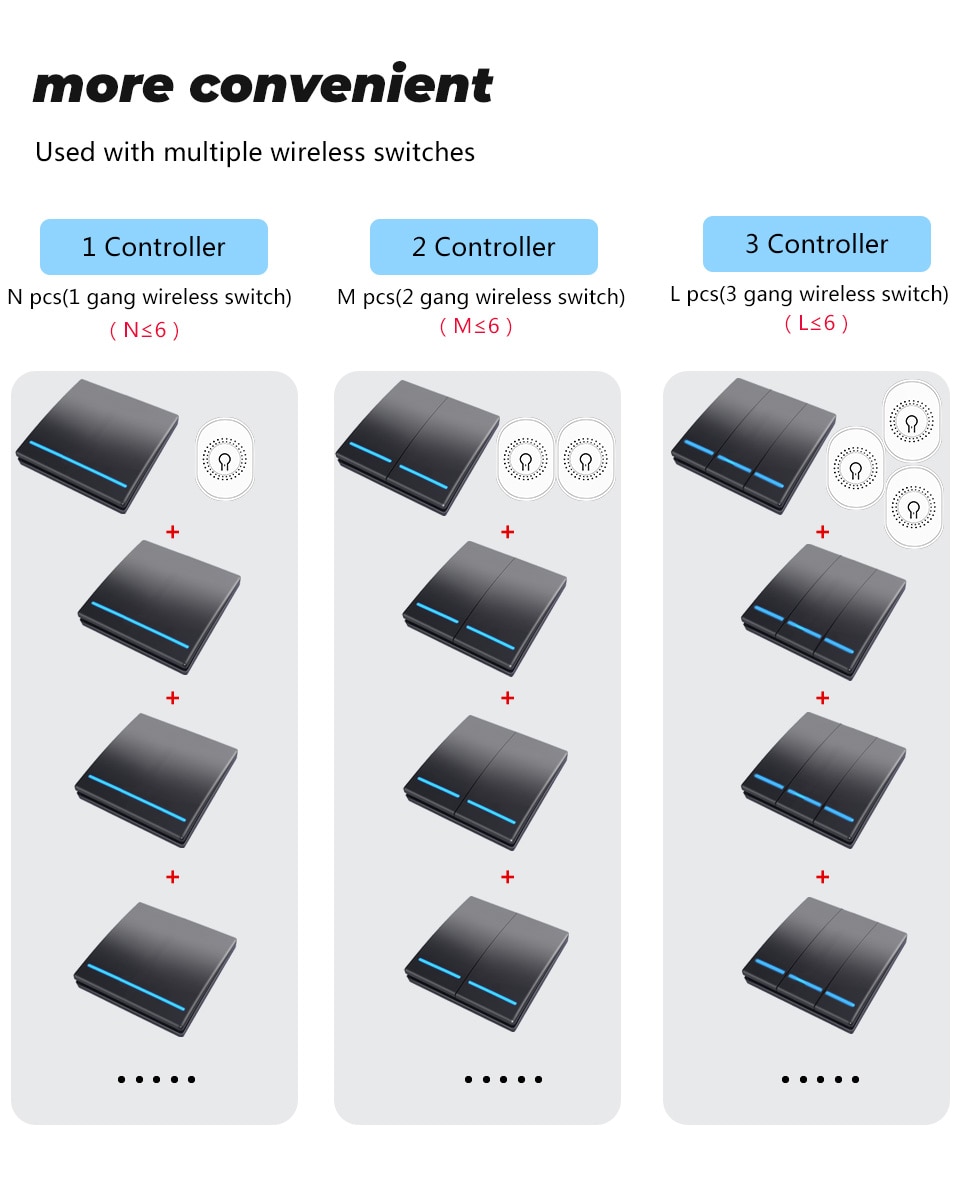

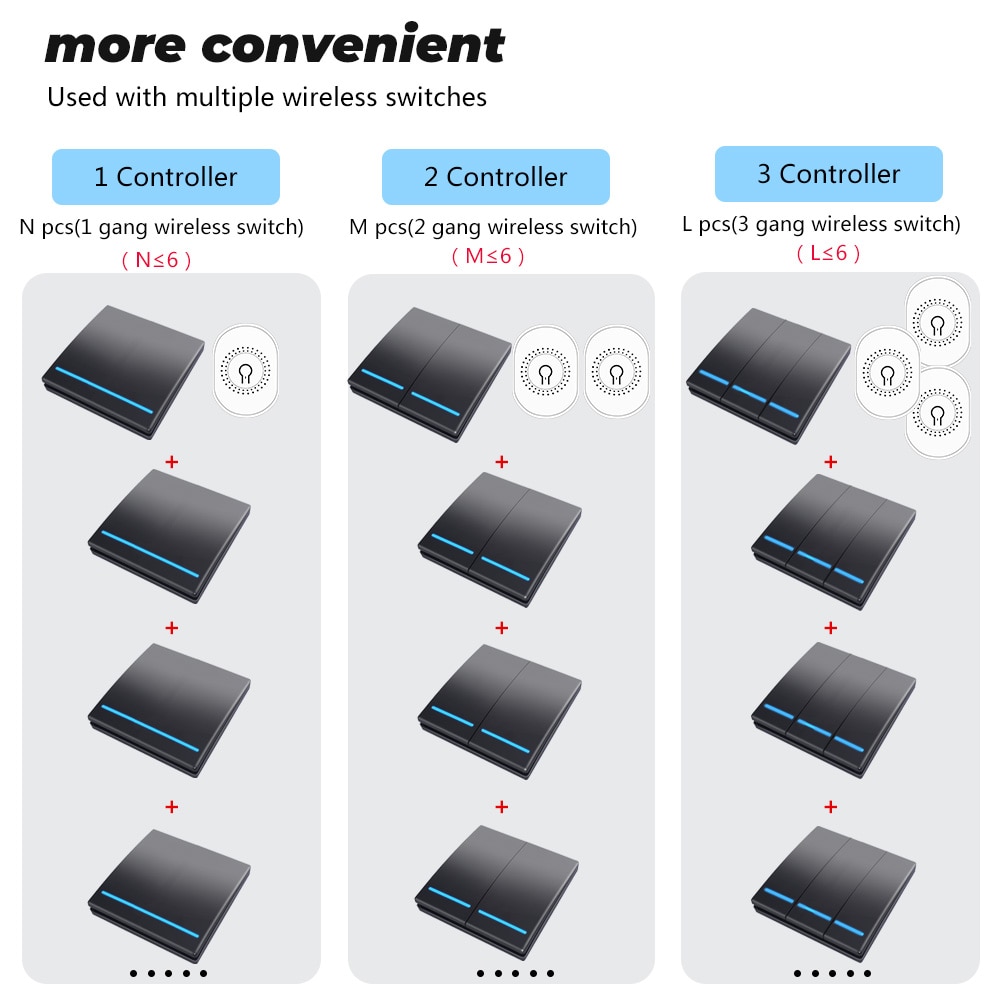

Support 2 way control

1. The controller is only connected to line N and L, not connected to the switch

2.This smart DIY switch could be used for your old 2 way control switch. Especially, you still available to control the old switch manually after isntalled it.

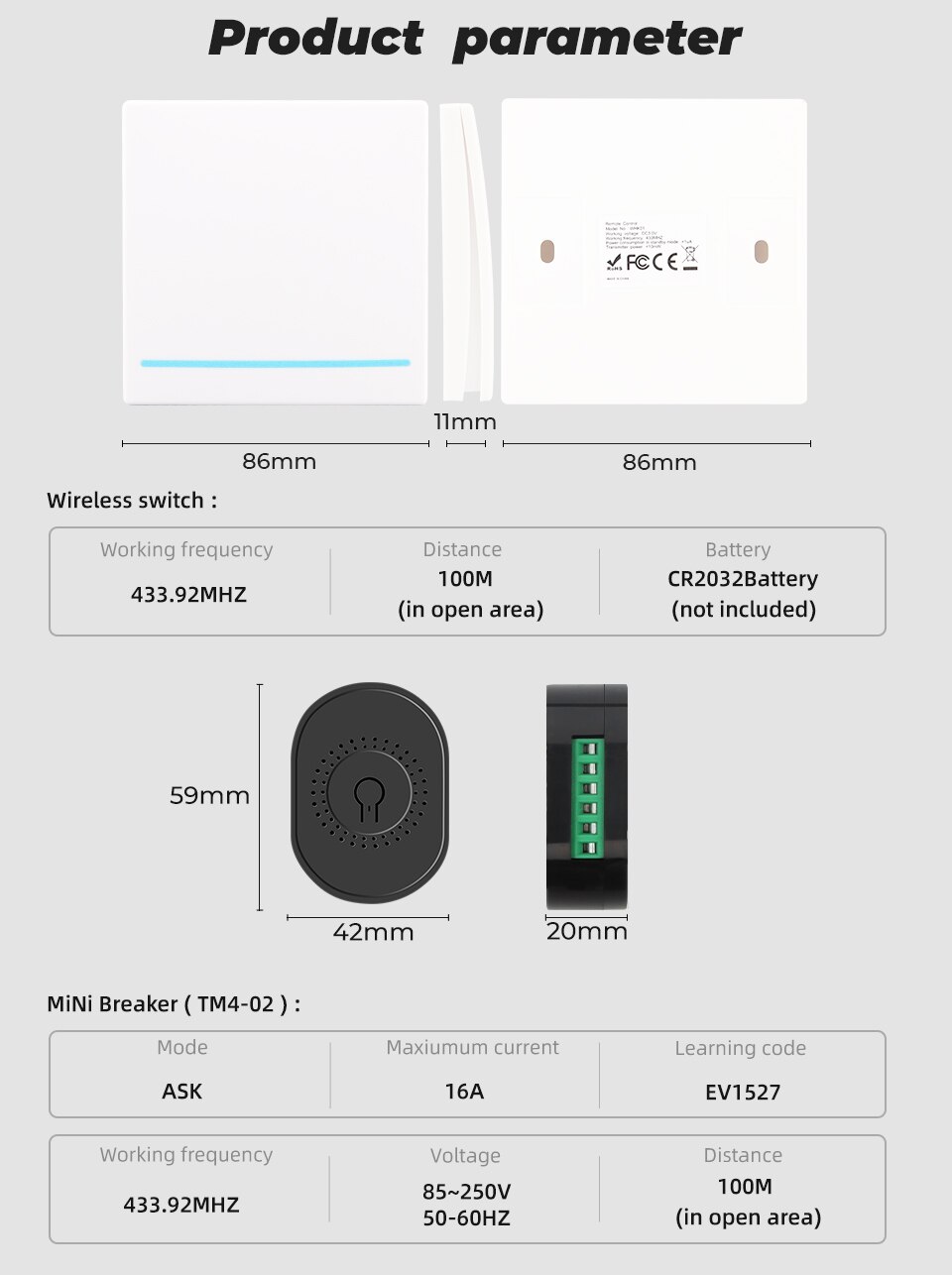

ontroller parameters:

Voltage: 85~250V, 50-60HZ
Current: 16A
Working frequency: 433.92MHZ
Material: PC flame retardant V0
Size: 59x42x20mm
Study code: EV 1527
Mode: ASK
Receiving distance: 100M open distance
The remote controller is compatible with EV1527 2262 chip. Does not support HCS101, HCS200, HCS300, HCS301 rolling code chip remote control

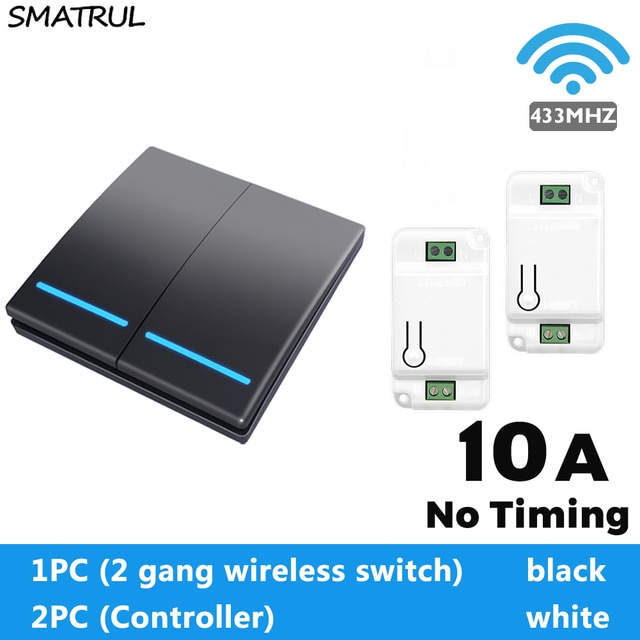

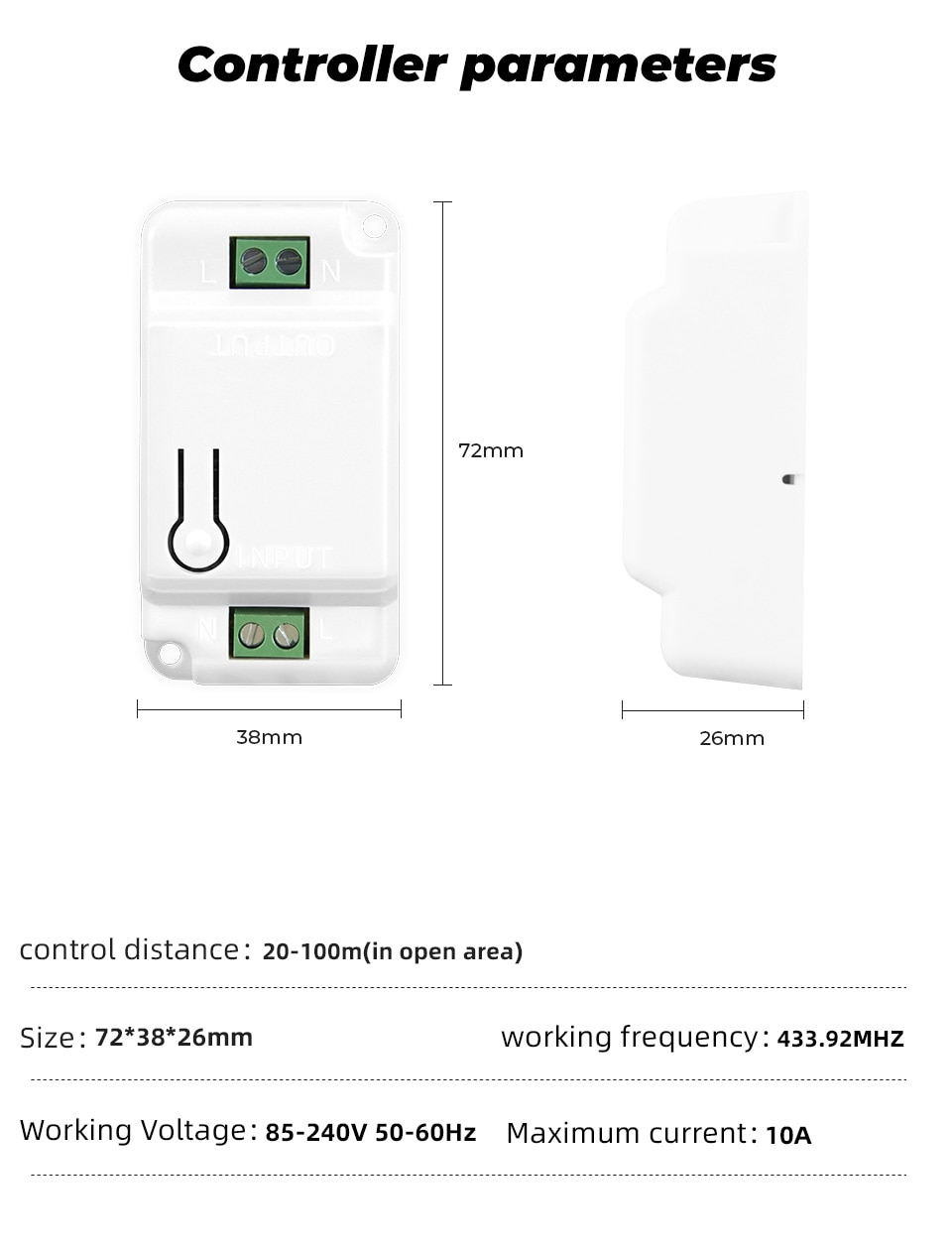

Old version installation method

note:This controller does not have a timing function.

How to solve the problem (if the product has a problem)

1. First check if the battery model is correct (Cr2032 battery)? Is the battery charged?

2.please provide an email and we will send you 6 video. You can try the following steps. First you can clear the signal (there are 2 ways, please see videos 1, 2, 3). Then re-pair the signal ( See video 4, 5, 6)

3. If these questions still don't solve the problem, please send the video to our email address (xue19870608@163.com). We check if your method is correct. If the product is really defective, we will re-deliver the wireless switch or controller to you.

How to get the wholesale price

1.Please provide your email address and we will send you the wholesale price list.

2.More than 50 or more, we use DHL, FEDEX IP, and other special logistics,and receive the package in about 7 days.

note：

1. professional electrician should operate this product. When powering on, do not touch the antenna. Install this product without opening the protective cover

2.This controller will not be available if a wall switch with RF function is installed at home. Otherwise the function will be affected. Just need to buy a separate wireless switch

3. Do not operate with power. Turn off the power supply and operate it. If the test is confirmed to be correct, use it under the guidance of a professional electrician.

4. When the voltage of the remote control is insufficient, please change the battery in time (the remote control distance becomes closer when the remote control battery voltage is insufficient).

5. When using wireless electronic products, care should be taken to avoid metal masks, large electronic devices, electromagnetic fields, etc., which have strong interference sources, to avoid remote control and short receiving distance or to work normally.

6. Do not use this electronic product abnormally. Abnormal use will reduce product performance and longevity. In severe cases, damage to the product will also pose a safety hazard.
