SINOTIMER Brand Microcomputer Electronic Weekly Programmable Digital TIMER SWITCH Time Relay Control 220V AC 16A Din Rail Mount
4.9 (40 votes) | 56 orders
Price:
US $686.46 - 1396.00
/ piece
Discount Price:
US $
504.78 -
1049.62
/ piece
-26%
- Ships From

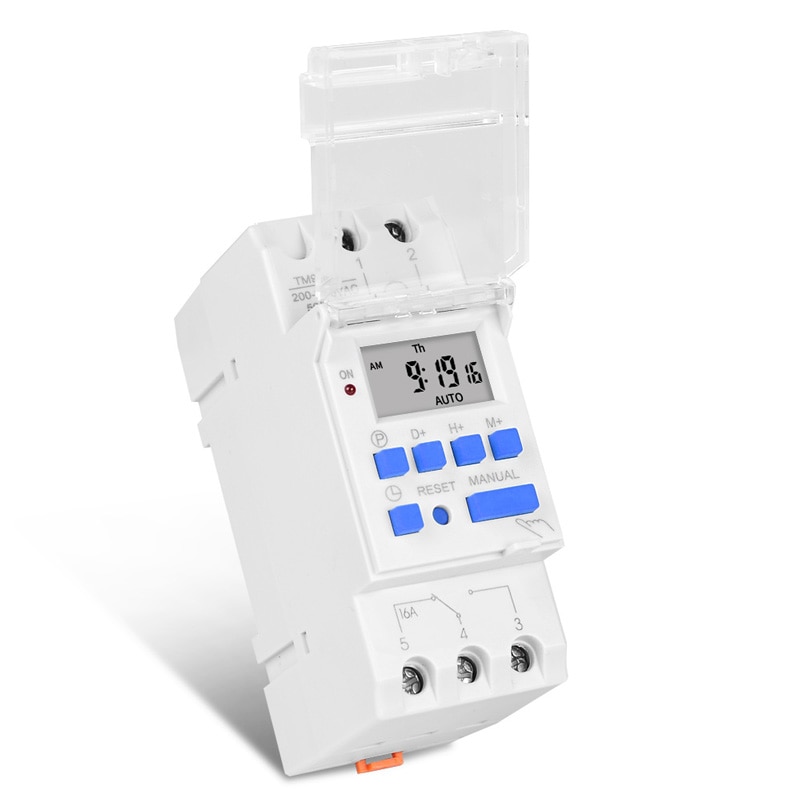

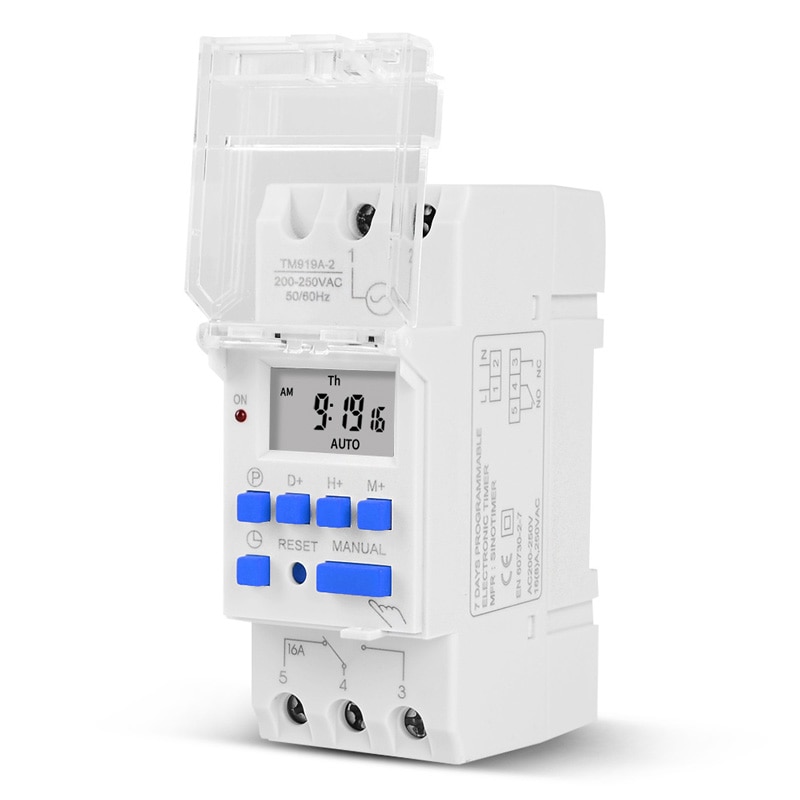

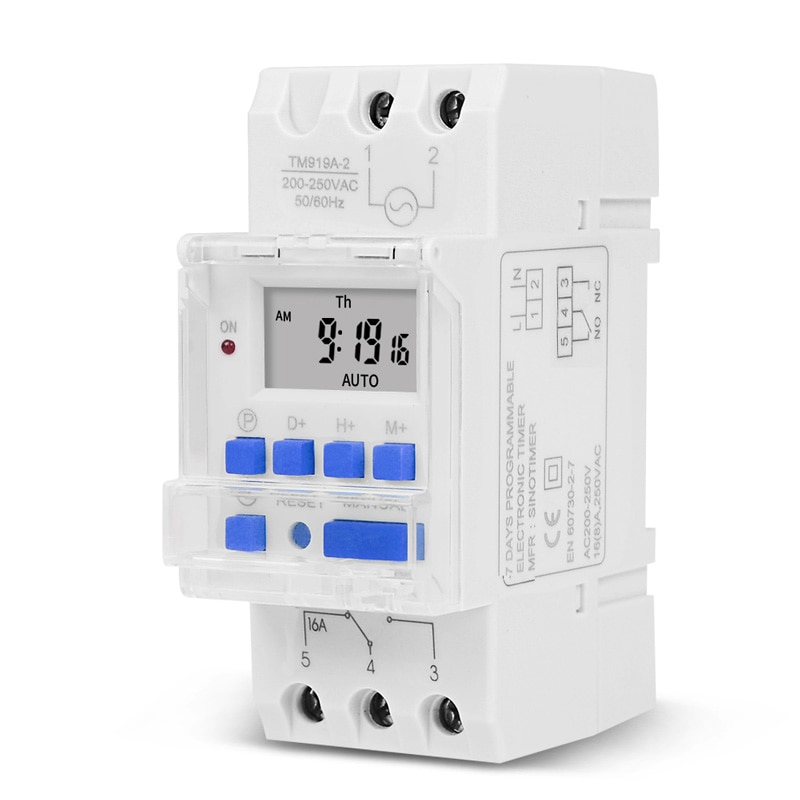

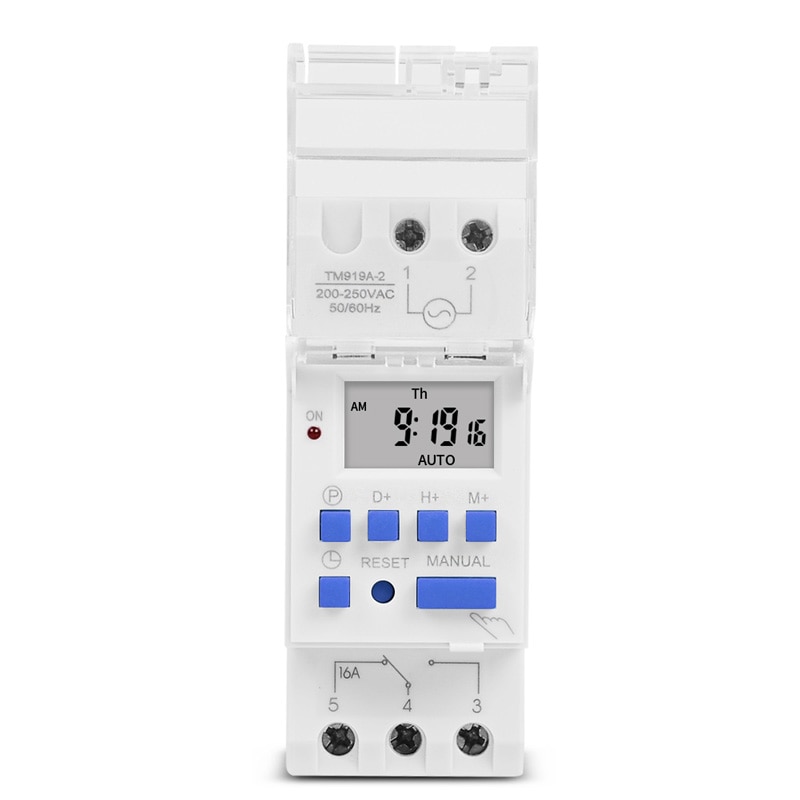

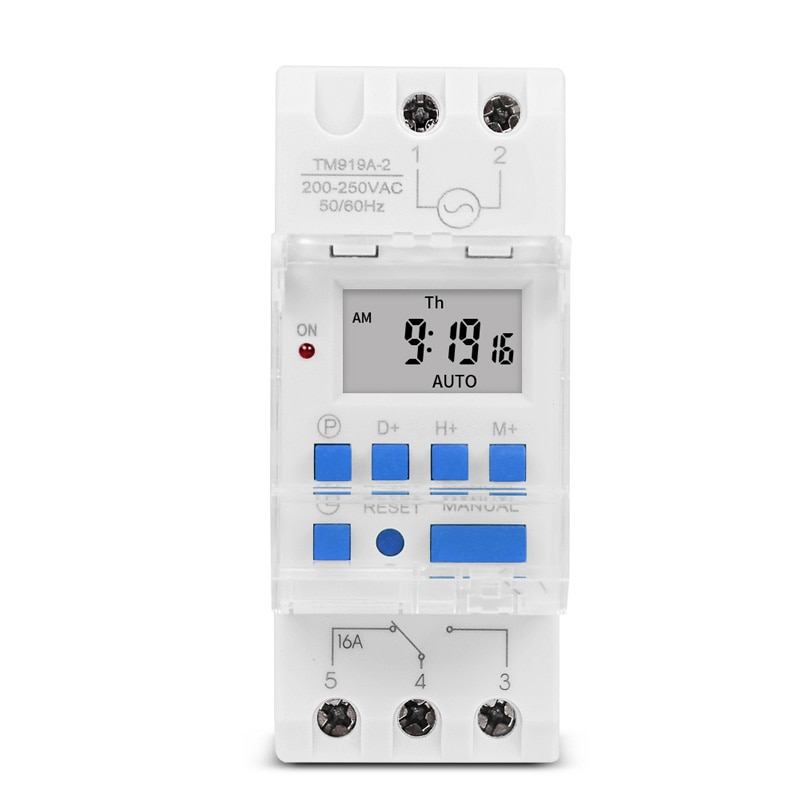

SinoTimerBrand TM919 DIN rail 7 days 24hrs Programmable switch timer can automatically switch on and switch off various kinds of electric equipment at a preset time. It is widely used in 7 days programmable control of streetlight, neon light (sign), lamp, water heater, air conditioner, billboard, electric cooker, booster, sprayer, bottler, preheater, agriculture facilities and broadcasting equipment etc. The digital timer switch is within rechargeable battery, in 1.2V/40Ma, to save the programs for power failiure. it has the features of low consumption, high-accuracy CMOS chip, strongly anti-jamming, simple and easy to set, confirms to IEC 60367and CE certificated.
BELOWS IS OUR LATEST PRODUCTS BIG LCD 1.6 Inch 220V TIMER module with UL LISTED RELAY inside, PLS CLICK THE PHOTES FOR AMAZING OFFER NOW.
TM615 Characterisitcs:
*Ideal for household use in DB Boards
*3500 Watt / 16 Amps
*24 hours / 7 days a week programmable
*24 hours / 7 days a week programmable

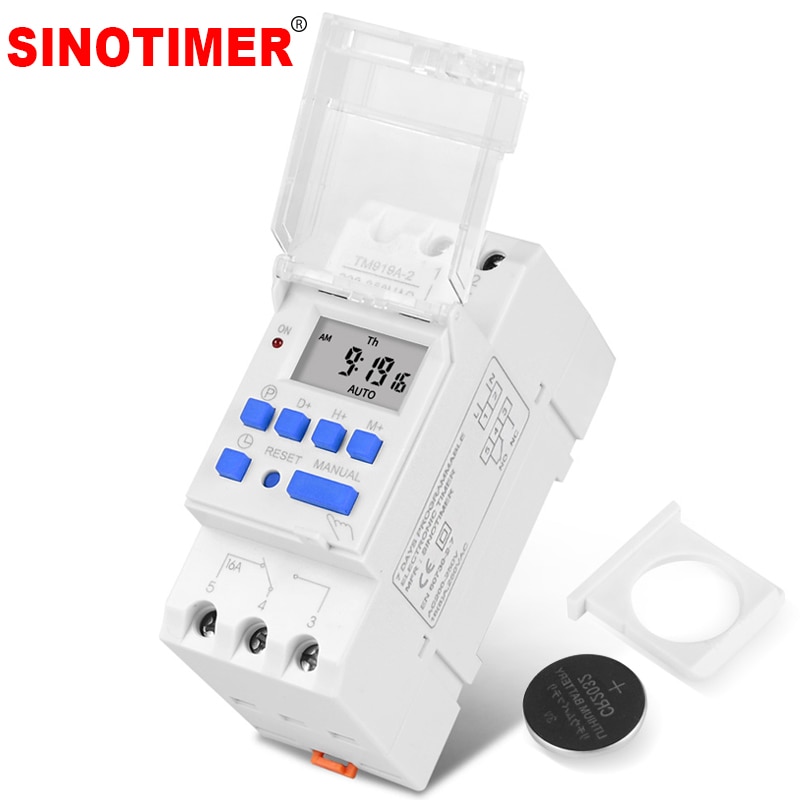

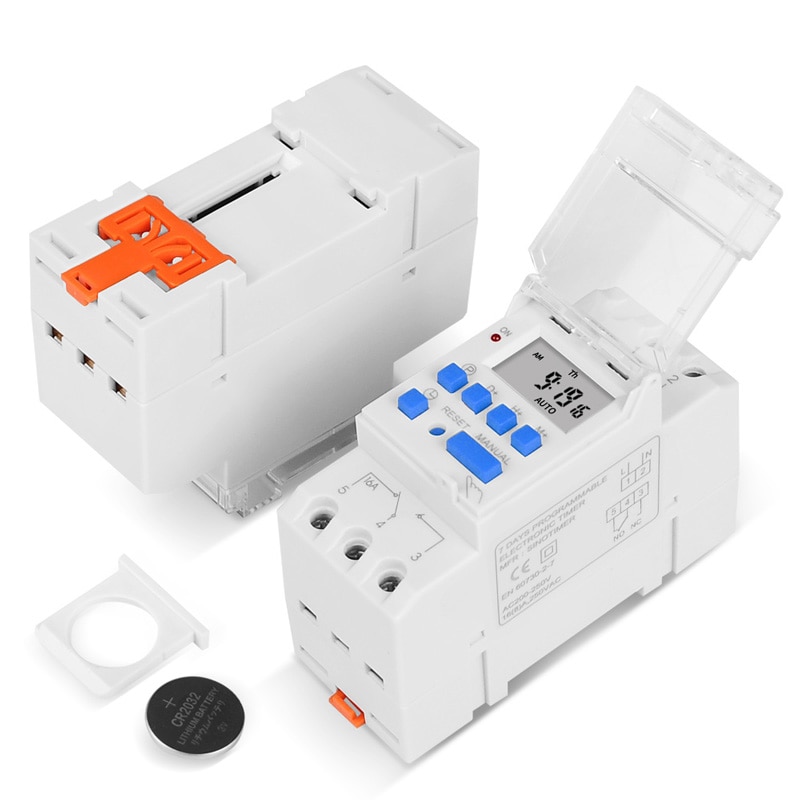

*Built-in battery for backup the memory when power failure
*Auto time error correction +/- 30 sec, weekly
*Repeat programs with 16 on/off settings, and setting on/off manually
*Auto time error correction +/- 30 sec, weekly
*Repeat programs with 16 on/off settings, and setting on/off manually
Why choose SinoTimer TM919 with FREE SHIPPING?

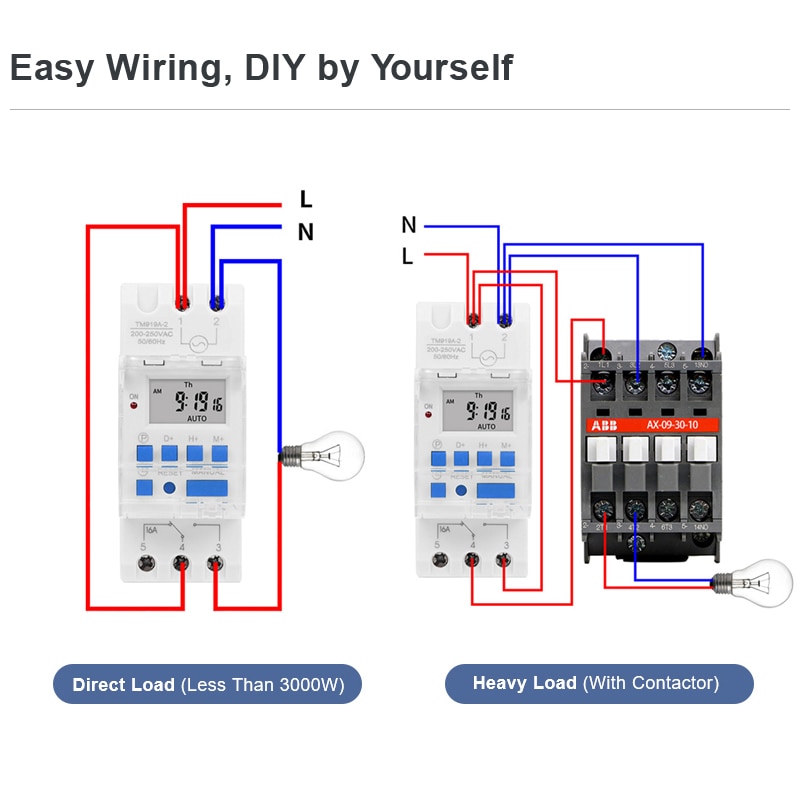

ONE:Simple wiring, no need to askan Electrical Engineer, you can do it by yourself at home.
TWO: Excellent load capacity, upto 4000Watt, 16AMP@250Vac.
TWO: Excellent load capacity, upto 4000Watt, 16AMP@250Vac.
THREE: Easy program, everyone can program it after he reads the manual JUST one time.
FOUR: Stable performance because of professional manufacturing in power saver since 2002.
FOUR: Stable performance because of professional manufacturing in power saver since 2002.

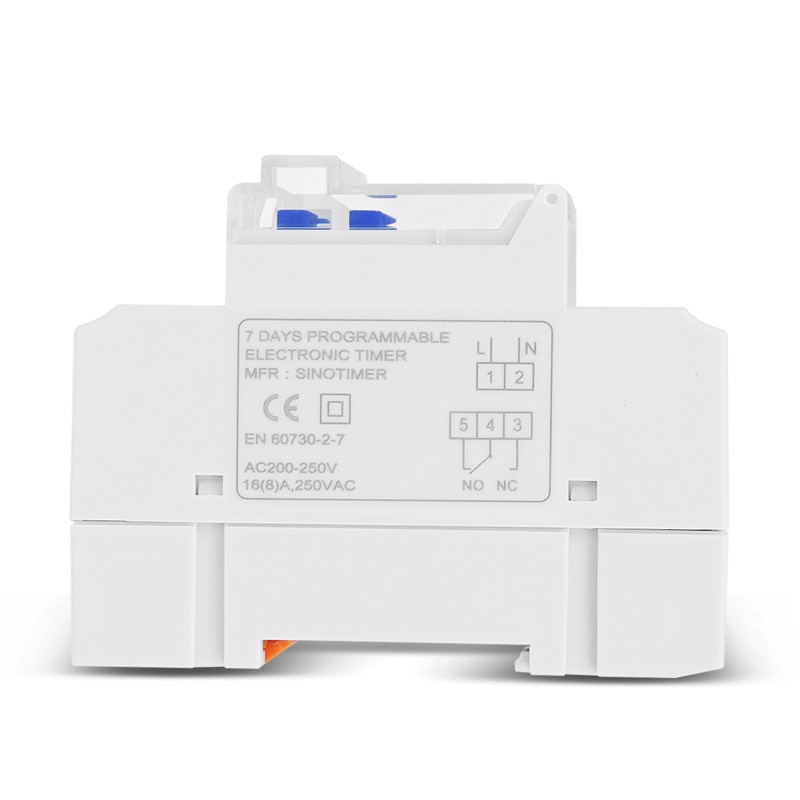

FIVE: Confirm to CE standard, and with LVD, EMC certificate passed.
Technical Data:
Model | TM-919A |
Temp.range: -20°C+50°C | Power Supply:according order |
Power consumption 4.5 VA (MAX) | Display: LCD |
Switching contact: 1 changeover switch | Programs:16 on/off each day or week |
Hysteresis 2 sec/day (25°C) | Mini interval: 1min |
Capacity: 16(8) 250V AC | Black-out: 60 days |
Timer range: 1min~168hr | Recharge battery: 1.2V 40Ma |
Average error: 1s/24h, 25°C | Weight: 0.15kg |
Package included:
1* Timer Switch TM919A (voltage according your order)
1* Manual in Russian,Portuguese and English language
Pregramming steps:
Step | Programmable Timer | |
Key | Programming | |
1 | Press Timer | Setting 1 ON time (display 1 on) |
2 | Press H+/M+ | Setting hours and minutes |
3 | Press D+ | Select same everyday, different everyday, MO-FR, MO-SA, SA-SU, MO WE FR, TU TH SA, MO-WE, TH-SA.(If same everyday, no need to press this key) |
4 | Press Timer | Setting 1 off time (display 1 off) |
5 | Press H+/M+ | Setting hours and minutes turn off time |
6 | Press D+ | If you want same set in every day, you need not press this key |
7 | Repeat step 2~6 | Set 2~16 ON/OFF time |
8 | Press C/R | End |
Related Hot Timers from SinoTimer:
PAYMENT: |
1. We accept Alipay,Western Union or Bank Transfer T/T here. 2. All major credit cards are accepted through secure payment processor ESCROW. |
SHIPPING: |
2. All the items will be dispatched timely after the payment verification. Items will arrive in 10-25 business days. The arrival time depends on destination and other factors, it may takes up to 25 business days. 3. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
time we declared.
6. We are not responsible for any custom duty or import tax. so buyer should be responsible for any tax and custom duty incurred. For example, Laser Pointer is unacceptable in some countries. Therefore, please double check your local customs policy carefully before purchase. Or, we will NOT be responsible for any failure delivery related destination customs issue. |
REFUND & REPLACEMENT POLICY: |
1. All the products we are selling include factory warranty, don’t cover items that have been abused,burned and damaged in any form.
with post office, and then resend or refund any missing item. 3. In the unlikely event that your product is faulty in anyway, you must contact us ASAP and then return it within 7 Days of receipt. The postage and packaging fee will NOT be refunded. 4. We will not be responsible for the delivery or insurance charges incurred in returning item back to us. If
components, accessories and manual included. Please allow up to 5 Working Days for us to process your returned item. |
FEEDBACK & CONTACT US: |
with the item after receive it. 2. If you have any questions, please feel free to email our service specialists24 Hours a Day, 7 Days a Week. your email and we will reply you as soon as possible.
|
- Power Source: AC
- Voltage: 220V
- is_customized: Yes
- Usage: Auto
- Model Number: TM919A-2
- Contact Load: Low Power
- Protect Feature: Sealed
- Theory: Time Relay
- Brand Name: SINOTIMER
- Origin: Mainland China
- Certification: CE,RoHS
- Power Supply: 220~240VAC
- Max. Current of Output Load: 16A
- Mini Interval: 1 minute
- P: 16 ON/OFF
- Size: 36*86.5*65.5mm
