RFID EM/ID Embedded Door Access Control intercom access control lift control with 2pcs mother card 10pcs em key fob min:1pcs
4.8 (30 votes) | 130 orders
Price:
US $
12.81 -
22.56
/ piece
- Color
-
-

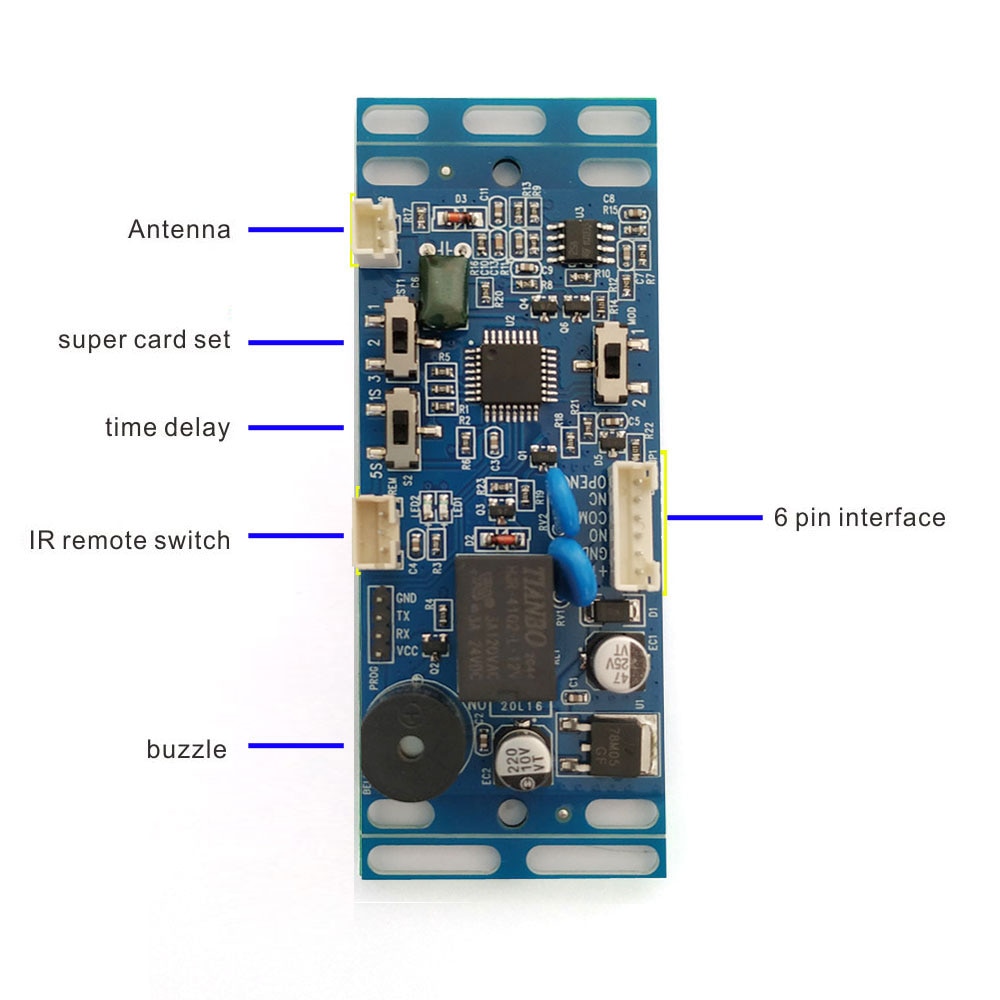

Specifications:
.Working Frequency:125KHz
.Power Supply: DC 9~18V
.Current: 60mA~80mA
.Rated Power: ≤ 1W
.Read Range: 3~5cm
.Card Capacity: 2000
.Temperature: <60 degree
.Humidity: 10% ~ 95% R.H

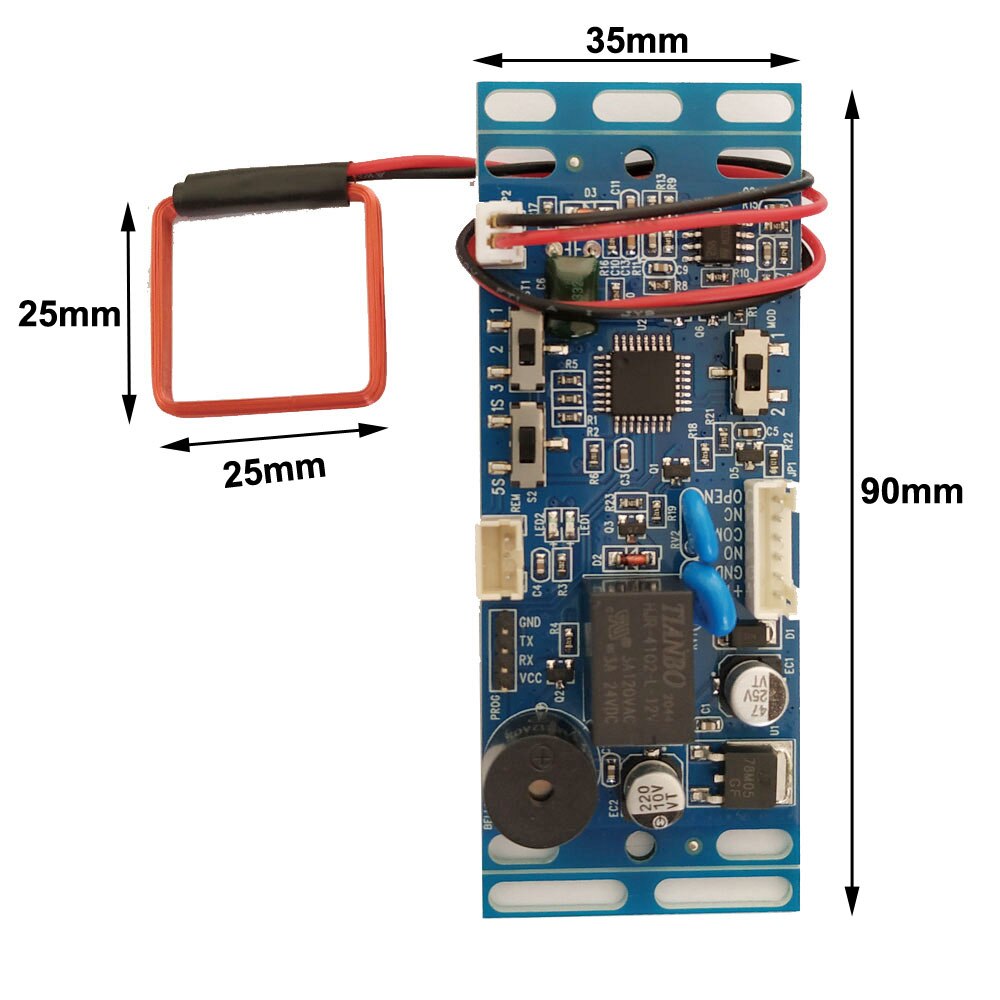

.Size: 86*34*12mm
.Outdoor Button: 1
.Sensor Input: 1
.Electric Lock Output: 1
.With manage card to add or delete users card
.With IR remote switch to add or delete users card (option)

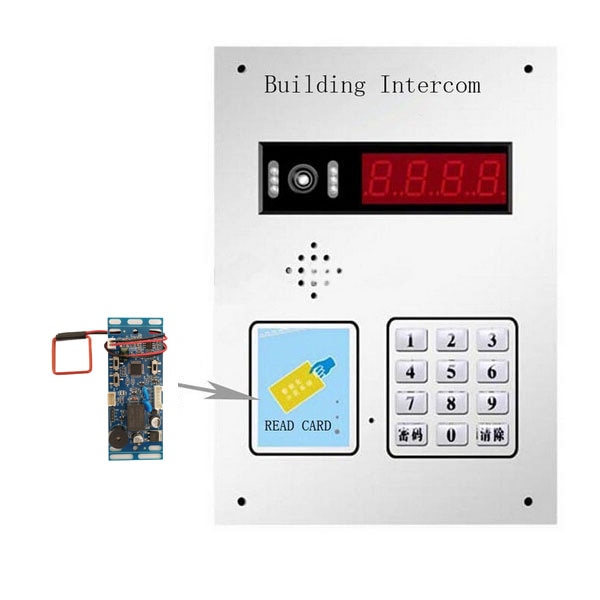

.Application Field: building intercom,Lift
****************************************************************************************************************************
Add card:
1.swipe the add card, enter add mode ,
2.then swipe the user card one by one,
3.swipe the add card again, quit 'add mode' , add user card succefully.

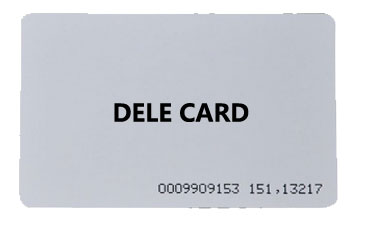

Delete card:
1.Dele the add card, enter delete mode ,
2.then swipe the user card one by one,
3.swipe the delete card again, quit 'delete mode' , add delete card succefully.
****************************************************************************************************************************************************************
this access control kit congiture Two master card, one add user card,another dele user card,you can use these super cards to add new users or dele old users. so this access control system is very easy to manage!
****************************************************************************************************************************************************************

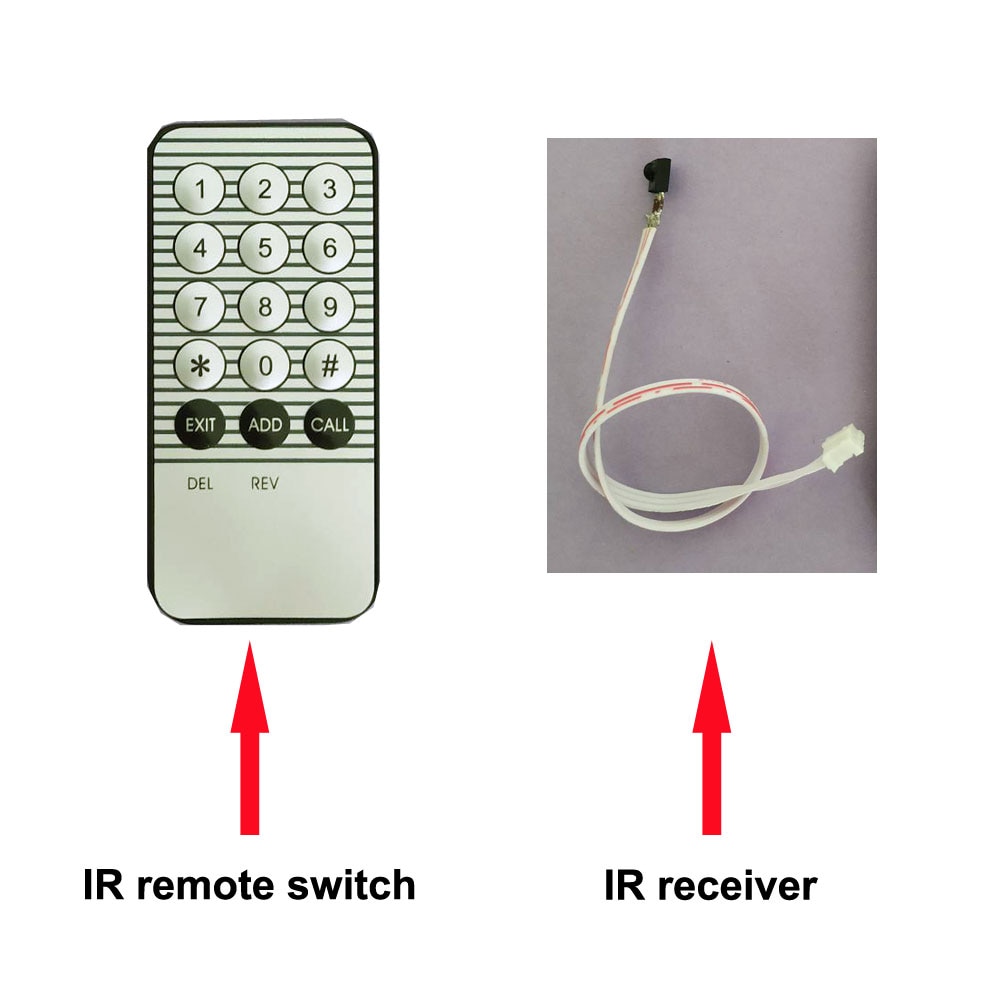

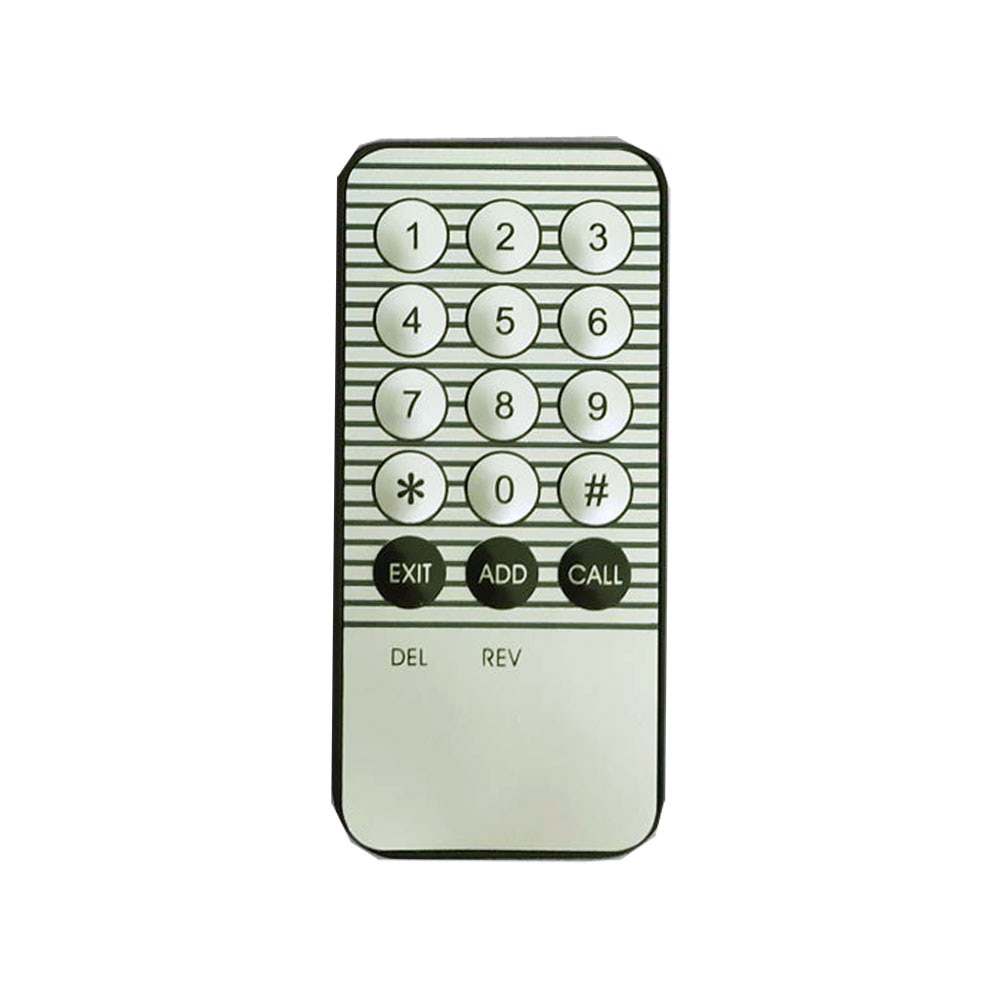

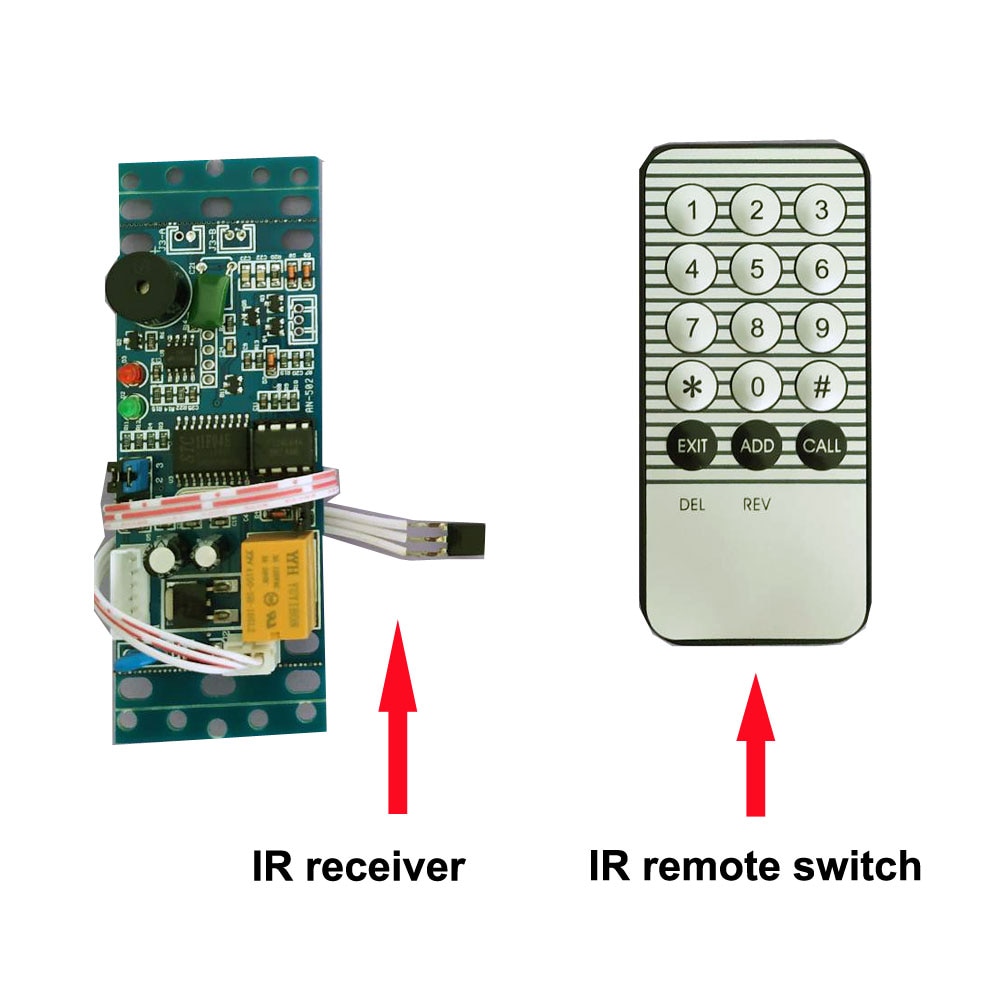

IR Remote control operation instructions (optional)
Operation method: use the infrared remote control to face the infrared receiver on the access control machine (Remark:factory programming password is 123456).
Use card number to add the user：Input in standby mode # 123456 # 23 Card number (10 digits) #
Use card number to delete the user：Input in standby mode # 123456 # 43 Card number (10 digits) #
Read card to add users：Input in standby mode # 123456 # 1 read card #
Delete all users：# 123456 # 40 0000 #
Modify the unlock time：# 123456 # 5 ×× #
Add management card：# 123456 # 91 Read two blank cards continuously #
Delete management card：# 123456 # 92 #
Modify the programming password：# 123456 # 0 New programming password # Repeat new programming password #
***********************************************************************************************************************************

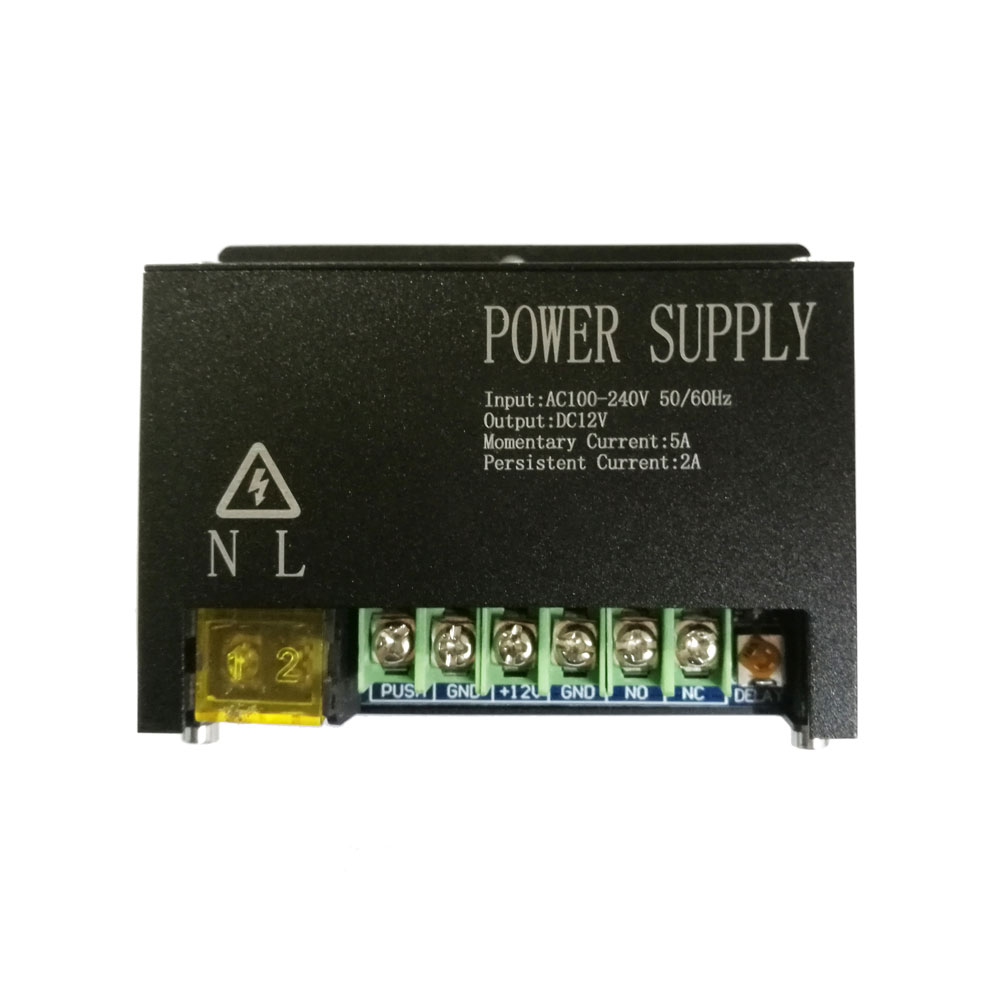

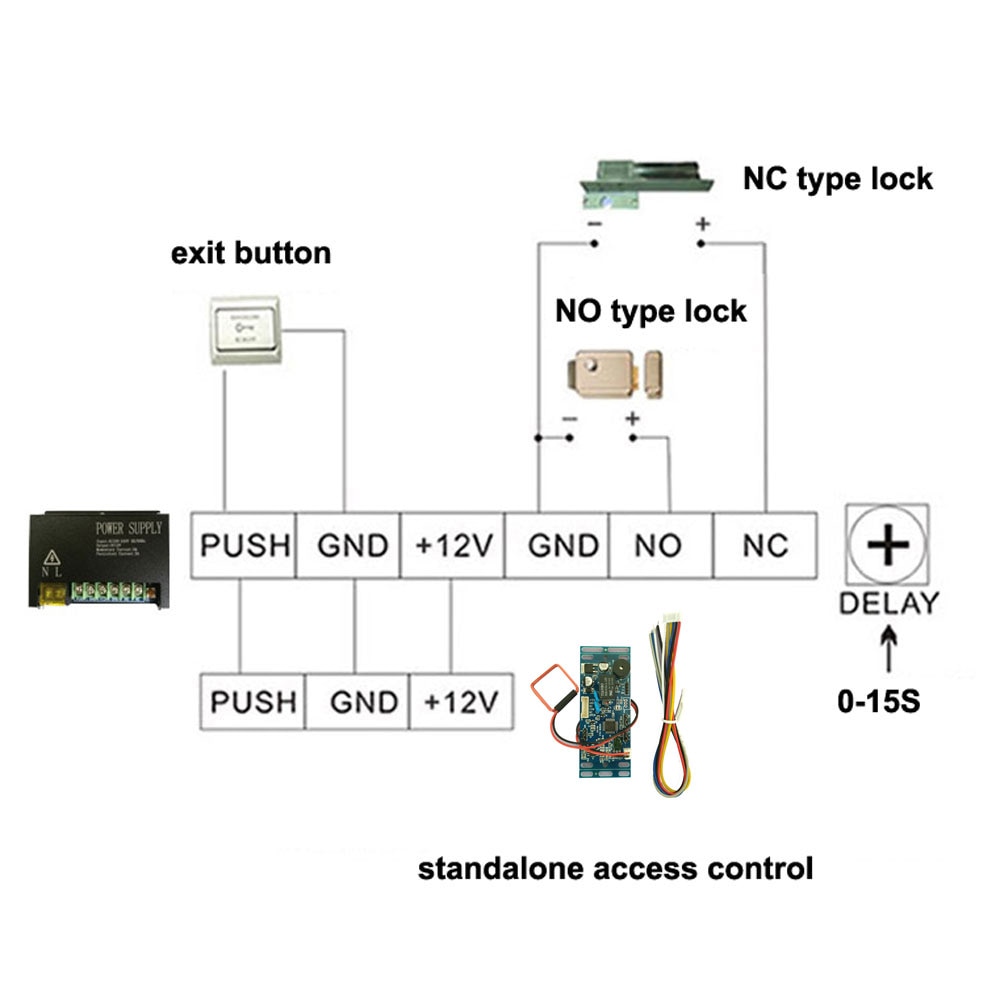

Access power supply (optional)
If there is not access power supply ,you can add an accesss power supply to connect lock.
1. NC / No output, pure copper high-quality transformer;
2. Built in reverse current circuit to prevent electric lock inductance, built-in unlocking time adjustment knob;
3. Over voltage and over current protection, wrong connection protection, international advanced power chip solution, anti ripple interference
It is especially suitable for the access control system with high voltage stability requirements. It is small in size and convenient for installation and carrying. Compared with the linear transformer power supply, it has small heating, high efficiency and small power consumption, and supports 90 ~ 260V voltage
***********************************************************************************************************************************

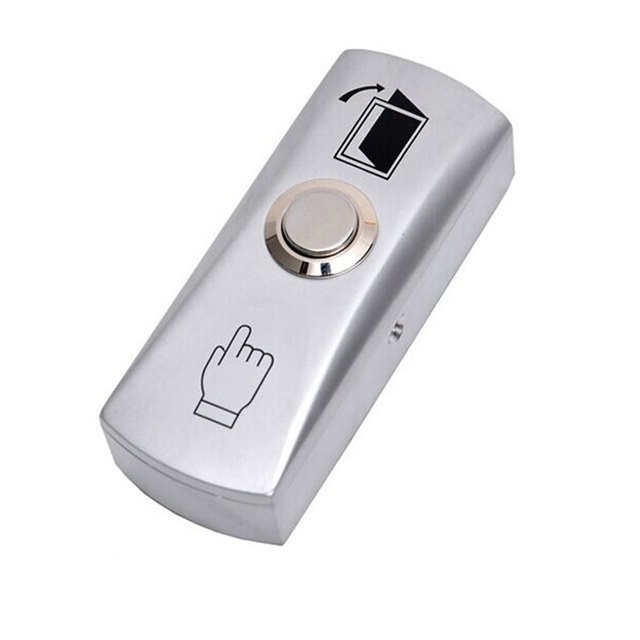

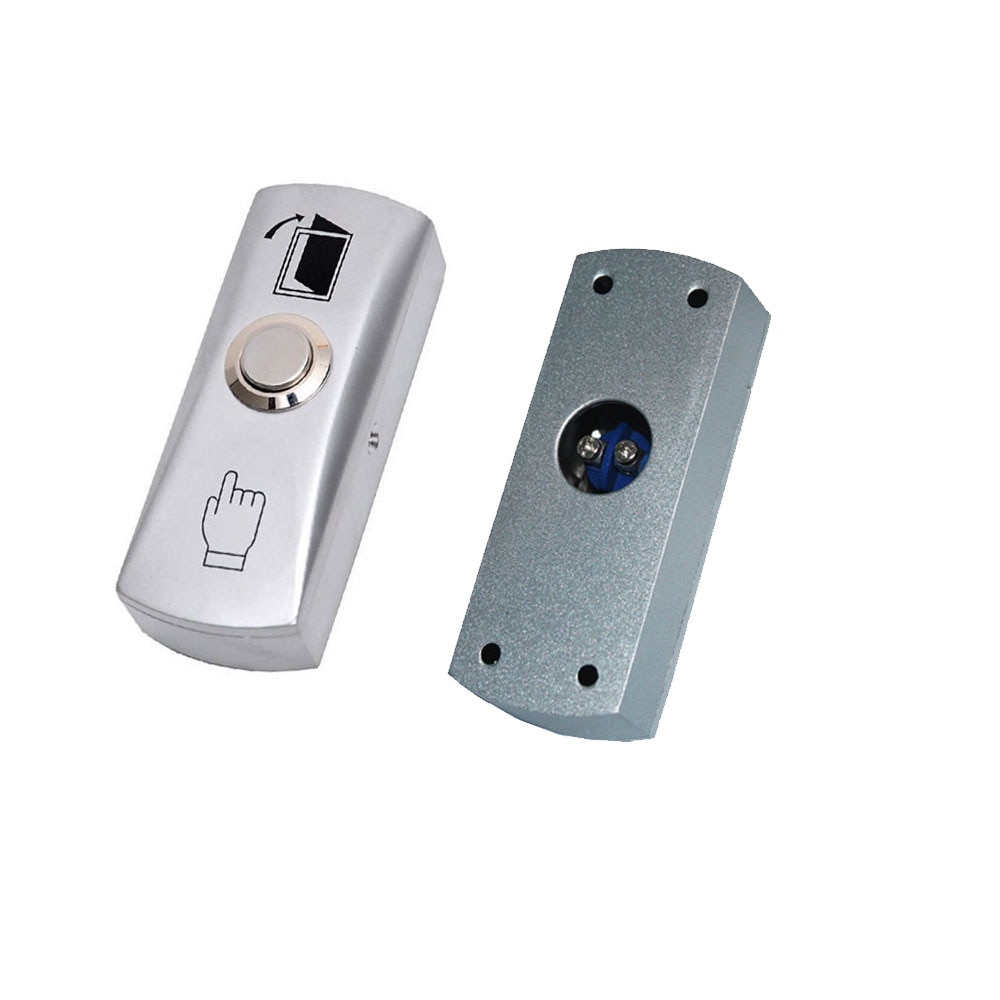

Metal exit button (optional)
Advantage:
1. Design with no Mechanical Bolt.
2. aluminum alloy Stainless Steel Panel with Elegant Style
3. With the Bottom Box, Easy to Install
4. 500000 Cycles tests
5. Two Contact Output, Suitable for all kinds of Locks
6. The Best Choice for Access Control
***********************************************************************************************************************************

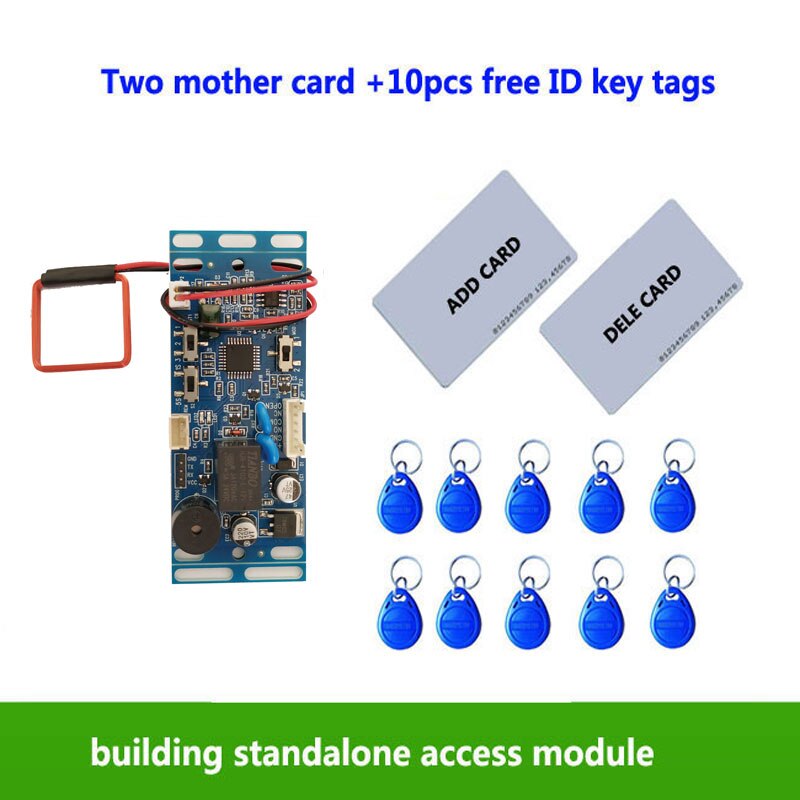

1pcs Package Included:

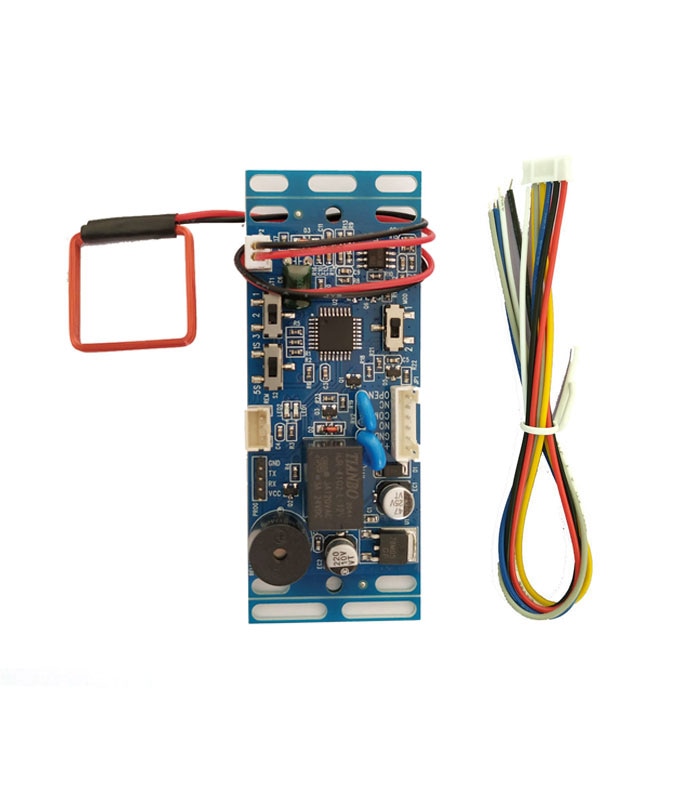

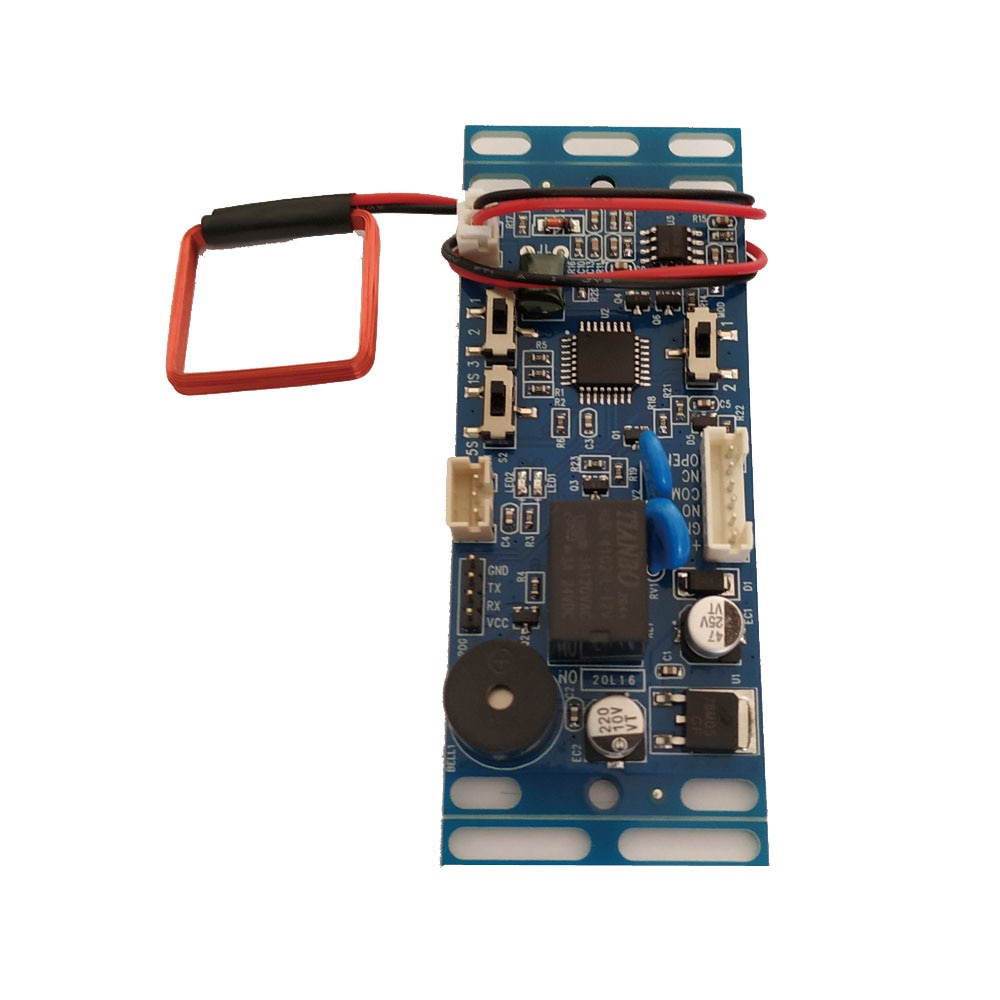

.1x Access Controller
.2x Master Cards

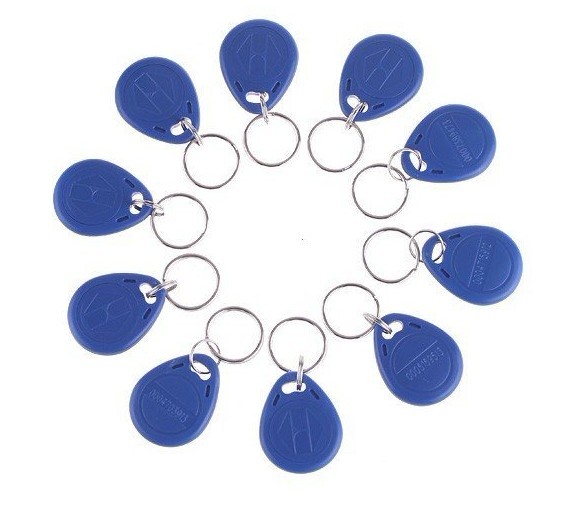

.10x em key fob
.1x Cable
.1x Handbook
.1 x IR remote switch (option)
.1 x access power supply (option)
.1 x metal exit button (option)
- Model Number: YA-H2002D
- Brand Name: FENGLIANSECURITY
- Origin: Mainland China
- Certification: NONE
- Smart home platform: Other
